DtGenericConfigWidget Class Reference

Base class for GenericConfig widgets The superclass is generated from Qt Designer, and has a central QListView widget. More...

Inheritance diagram for DtGenericConfigWidget:

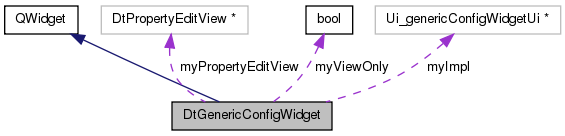

Collaboration diagram for DtGenericConfigWidget:

List of all members.

Public Member Functions
	DtGenericConfigWidget (bool viewOnly, QWidget *parent=0)
	Construct a base GenericConfig widget.
	~DtGenericConfigWidget ()
	Destructor.
void	addProperty (const DtProperty &p)
	Add a DtProperty to the property list.
void	addToProperty (const DtProperty &p)
	Extend existing DtProperty.
void	setProperty (QString prop, int value)
void	setProperty (QString prop, QString value)
void	setProperty (QString prop, bool value)
void	setProperty (QString prop, double value)
void	setProperty (QString prop, const QStringList &value)
virtual bool	property (QString name, int &value) const
virtual bool	property (QString name, QString &value) const
virtual bool	property (QString name, double &value) const
virtual bool	property (QString name, bool &value) const
virtual bool	property (QString name, QStringList &value) const
virtual bool	property (QString name) const
MAKCommonWidgets::DtPropertyEditView *	propertyEditView ()
	Return a pointer to the internal DtPropertyEditView object.
const MAKCommonWidgets::DtPropertyEditView *	propertyEditView () const
Protected Member Functions
virtual void	init ()
	Initialize internal data. Called from the constructors.
Protected Attributes
MAKCommonWidgets::DtPropertyEditView *	myPropertyEditView
bool	myViewOnly
Ui_genericConfigWidgetUi *	myImpl

---

Detailed Description

Base class for GenericConfig widgets The superclass is generated from Qt Designer, and has a central QListView widget.

This class adds some convenience functions for setting important data properties. This class is not intended to be used on its own, but rather provide a base interface.

---

Constructor & Destructor Documentation

DtGenericConfigWidget::DtGenericConfigWidget	(	bool	viewOnly,
		QWidget *	parent = 0
	)

Construct a base GenericConfig widget.

References init().

DtGenericConfigWidget::~DtGenericConfigWidget

(

)

Destructor.

References myImpl.

---

Member Function Documentation

void DtGenericConfigWidget::addProperty

(

const DtProperty &

p

)

Add a DtProperty to the property list.

References myPropertyEditView.

Referenced by DtRidWidget::displayAllProperties(), and DtRidWidget::displaySubsetOnly().

void DtGenericConfigWidget::addToProperty

(

const DtProperty &

p

)

Extend existing DtProperty.

References myPropertyEditView.

Referenced by DtRidWidget::displayAllProperties(), and DtRidWidget::displaySubsetOnly().

void DtGenericConfigWidget::init

(

)

[protected, virtual]

Initialize internal data. Called from the constructors.

Reimplemented in DtRidWidget.

References myImpl, myPropertyEditView, and myViewOnly.

Referenced by DtGenericConfigWidget().

bool DtGenericConfigWidget::property	(	QString	name,
		int &	value
	)		const [virtual]

References myPropertyEditView.

bool DtGenericConfigWidget::property	(	QString	name,
		QString &	value
	)		const [virtual]

References myPropertyEditView.

bool DtGenericConfigWidget::property	(	QString	name,
		double &	value
	)		const [virtual]

References myPropertyEditView.

bool DtGenericConfigWidget::property	(	QString	name,
		bool &	value
	)		const [virtual]

References myPropertyEditView.

bool DtGenericConfigWidget::property	(	QString	name,
		QStringList &	value
	)		const [virtual]

References myPropertyEditView.

bool DtGenericConfigWidget::property

(

QString

name

)

const [virtual]

References myPropertyEditView.

MAKCommonWidgets::DtPropertyEditView * DtGenericConfigWidget::propertyEditView

(

)

Return a pointer to the internal DtPropertyEditView object.

References myPropertyEditView.

Referenced by DtRidWidget::displayAllProperties(), DtRidWidget::displaySubsetOnly(), DtRidWidget::DtRidWidget(), DtRidWidget::propHeaderClicked(), and DtRidWidget::refreshValues().

const MAKCommonWidgets::DtPropertyEditView * DtGenericConfigWidget::propertyEditView

(

)

const

References myPropertyEditView.

void DtGenericConfigWidget::setProperty	(	QString	prop,
		int	value
	)

References myPropertyEditView.

Referenced by DtRidWidget::changeSpecificProperty().

void DtGenericConfigWidget::setProperty	(	QString	prop,
		QString	value
	)

References myPropertyEditView.

void DtGenericConfigWidget::setProperty	(	QString	prop,
		bool	value
	)

References myPropertyEditView.

void DtGenericConfigWidget::setProperty	(	QString	prop,
		double	value
	)

References myPropertyEditView.

void DtGenericConfigWidget::setProperty	(	QString	prop,
		const QStringList &	value
	)

References myPropertyEditView.

---

Member Data Documentation

Ui_genericConfigWidgetUi* DtGenericConfigWidget::myImpl [protected]

Referenced by DtRidWidget::addButton(), init(), DtRidWidget::init(), DtRidWidget::setLoadingState(), DtRidWidget::setRidFileName(), and ~DtGenericConfigWidget().

MAKCommonWidgets::DtPropertyEditView* DtGenericConfigWidget::myPropertyEditView [protected]

Referenced by addProperty(), addToProperty(), init(), DtRidWidget::init(), property(), propertyEditView(), DtRidWidget::propHeaderClicked(), DtRidWidget::setLoadingState(), and setProperty().

bool DtGenericConfigWidget::myViewOnly [protected]

Referenced by init(), and DtRidWidget::init().

---

The documentation for this class was generated from the following files:

• genericConfigWidget.h
• genericConfigWidget.cxx
