DtMulitcastDiscoveryMgr Class Reference

The DtMulitcastDiscoveryMgr can act as either a Requester or a Responder. More...

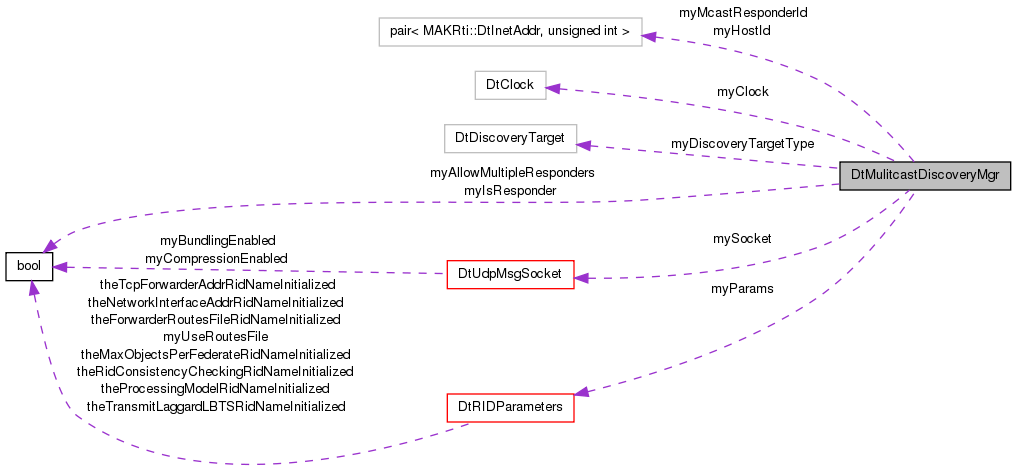

Collaboration diagram for DtMulitcastDiscoveryMgr:

List of all members.

Public Types
typedef std::pair < MAKRti::DtInetAddr, unsigned int >	DtMcastResponderId
	Multicast Discovery Responders are identified by an <Address:ID> pair.
Public Member Functions
	DtMulitcastDiscoveryMgr (const DtRIDParameters *params, DtMulticastDiscoveryMsg::DtDiscoveryTarget targetType, bool isResponder=false, bool allowMultipleResponders=false)
	Constructor.
virtual	~DtMulitcastDiscoveryMgr ()
	Destructor.
virtual bool	init ()
	Finish manager initialization.
virtual DtMcastResponderId	discover ()
	Discover and return the address of the Multicast Discovery Responder (blocking) Returns zero if discovery failed.
virtual bool	responderAlreadyExists ()
	Discover any existing responders and return true if a responder exists.
virtual bool	tick (float timeToWait)
	Give the Manager time to respond to incoming Address Requests Returns true if at least one request was processed.
virtual MAKRti::DtInetAddr	hostAddr () const
Protected Member Functions
virtual DtMcastResponderId	requestAddress (float timeToWait)
	Request Multicast Discovery Responder Address from the network.
Protected Attributes
bool	myIsResponder
bool	myAllowMultipleResponders
DtMulticastDiscoveryMsg::DtDiscoveryTarget	myDiscoveryTargetType
const DtRIDParameters *	myParams
MAKRti::DtClock	myClock
DtUdpMsgSocket *	mySocket
DtMcastResponderId	myMcastResponderId
	The ID of the discovered RTI Forwarder.
DtMcastResponderId	myHostId
	The ID of this process.
Private Member Functions
	DtMulitcastDiscoveryMgr ()
	Default Ctor - unimplemented.

---

Detailed Description

The DtMulitcastDiscoveryMgr can act as either a Requester or a Responder.

As a Requester, the DtMulitcastDiscoveryMgr discovers the host address of a Responder, if any are active. As a Responder, the DtMulitcastDiscoveryMgr responds to MulticastDiscovery Requests with its host address, and if requested it ensures that only one responder is active at a given time.

---

Member Typedef Documentation

typedef std::pair< MAKRti::DtInetAddr, unsigned int > DtMulitcastDiscoveryMgr::DtMcastResponderId

Multicast Discovery Responders are identified by an <Address:ID> pair.

---

Constructor & Destructor Documentation

DtMulitcastDiscoveryMgr::DtMulitcastDiscoveryMgr

(

)

[private]

Default Ctor - unimplemented.

DtMulitcastDiscoveryMgr::DtMulitcastDiscoveryMgr	(	const DtRIDParameters *	params,
		DtMulticastDiscoveryMsg::DtDiscoveryTarget	targetType,
		bool	isResponder = false,
		bool	allowMultipleResponders = false
	)

Constructor.

References DtDefaultInterfaceAddr(), myClock, myHostId, myParams, and DtRIDParameters::networkInterfaceAddr().

DtMulitcastDiscoveryMgr::~DtMulitcastDiscoveryMgr

(

)

[virtual]

Destructor.

References mySocket.

---

Member Function Documentation

DtMulitcastDiscoveryMgr::DtMcastResponderId DtMulitcastDiscoveryMgr::discover

(

)

[virtual]

Discover and return the address of the Multicast Discovery Responder (blocking) Returns zero if discovery failed.

References DtRIDParameters::lrcMcastDiscoveryDelay, DtRIDParameters::mcastDiscoveryTries, myAllowMultipleResponders, myHostId, myIsResponder, myMcastResponderId, myParams, and requestAddress().

Referenced by DtRtiMsgForwarder::performMcastDiscovery(), DtRtiShmQNetMgr::performMulticastDiscovery(), DtRtiAmbassadorBaseImplementor::performMulticastDiscovery(), DtRtiExec::performMulticastDiscovery(), and responderAlreadyExists().

MAKRti::DtInetAddr DtMulitcastDiscoveryMgr::hostAddr

(

)

const [inline, virtual]

References myHostId.

bool DtMulitcastDiscoveryMgr::init

(

)

[virtual]

Finish manager initialization.

References DtRIDParameters::bestEffortSendRetryWaitUsec, DtRIDParameters::enableBestEffortSendRetry, DtUdpMsgSocket::isOpen(), DtRIDParameters::maxUdpPacketSize, DtRIDParameters::mcastDiscoveryAddr(), myParams, mySocket, DtRIDParameters::networkInterfaceAddr(), DtUdpMsgSocket::openSocket(), DtUdpMsgSocket::setMcastTtlOption(), DtMsgSocket::setRecvBufferSize(), DtUdpMsgSocket::setRetryOnSend(), DtMsgSocket::setSendBufferSize(), DtRIDParameters::socketReceiveBufferSize, and DtRIDParameters::socketSendBufferSize.

Referenced by DtRtiMsgForwarder::performMcastDiscovery(), DtRtiShmQNetMgr::performMulticastDiscovery(), DtRtiAmbassadorBaseImplementor::performMulticastDiscovery(), and DtRtiExec::performMulticastDiscovery().

DtMulitcastDiscoveryMgr::DtMcastResponderId DtMulitcastDiscoveryMgr::requestAddress

(

float

timeToWait

)

[protected, virtual]

Request Multicast Discovery Responder Address from the network.

References DtMulticastDiscoveryMsg::discoveryAddr(), DtMulticastDiscoveryMsg::discoveryId(), DtMulticastDiscoveryMsg::discoveryStatus(), DtMulticastDiscoveryMsg::discoveryTarget(), DtMulticastDiscoveryMsg::DtDiscoveryRequest, DtMulticastDiscoveryMsg::DtDiscoveryResponse, DtMulticastDiscoveryMsgKind, DtUdpMsgSocket::flush(), myClock, myDiscoveryTargetType, myHostId, myIsResponder, myParams, mySocket, DtUdpMsgSocket::recvMessage(), DtUdpMsgSocket::sendMessage(), and DtRtiMtdTransportType::set().

Referenced by discover().

bool DtMulitcastDiscoveryMgr::responderAlreadyExists

(

)

[virtual]

Discover any existing responders and return true if a responder exists.

References discover().

bool DtMulitcastDiscoveryMgr::tick

(

float

timeToWait

)

[virtual]

Give the Manager time to respond to incoming Address Requests Returns true if at least one request was processed.

References DtMulticastDiscoveryMsg::discoveryAddr(), DtMulticastDiscoveryMsg::discoveryId(), DtMulticastDiscoveryMsg::discoveryStatus(), DtMulticastDiscoveryMsg::discoveryTarget(), DtMulticastDiscoveryMsg::DtDiscoveryRequest, DtMulticastDiscoveryMsg::DtDiscoveryResponse, DtMulticastDiscoveryMsgKind, myClock, myDiscoveryTargetType, myHostId, myIsResponder, myParams, mySocket, DtUdpMsgSocket::recvMessage(), DtUdpMsgSocket::sendMessage(), and DtRtiMtdTransportType::set().

Referenced by DtExtendedRtiMsgForwarder::getNextMsg(), DtRtiMsgForwarder::run(), and DtRtiExec::tick().

---

Member Data Documentation

bool DtMulitcastDiscoveryMgr::myAllowMultipleResponders [protected]

Referenced by discover().

MAKRti::DtClock DtMulitcastDiscoveryMgr::myClock [protected]

Referenced by DtMulitcastDiscoveryMgr(), requestAddress(), and tick().

DtMulticastDiscoveryMsg::DtDiscoveryTarget DtMulitcastDiscoveryMgr::myDiscoveryTargetType [protected]

Referenced by requestAddress(), and tick().

DtMcastResponderId DtMulitcastDiscoveryMgr::myHostId [protected]

The ID of this process.

Referenced by discover(), DtMulitcastDiscoveryMgr(), hostAddr(), requestAddress(), and tick().

bool DtMulitcastDiscoveryMgr::myIsResponder [protected]

Referenced by discover(), requestAddress(), and tick().

DtMcastResponderId DtMulitcastDiscoveryMgr::myMcastResponderId [protected]

The ID of the discovered RTI Forwarder.

Referenced by discover().

const DtRIDParameters* DtMulitcastDiscoveryMgr::myParams [protected]

Referenced by discover(), DtMulitcastDiscoveryMgr(), init(), requestAddress(), and tick().

DtUdpMsgSocket* DtMulitcastDiscoveryMgr::mySocket [protected]

Referenced by init(), requestAddress(), tick(), and ~DtMulitcastDiscoveryMgr().

---

The documentation for this class was generated from the following files:

• multicastDiscoveryMgr.h
• multicastDiscoveryMgr.cxx
