The client connection to the RTI Assistant for an LRC. More...

Inheritance diagram for DtRtiAssistantLrcClient:

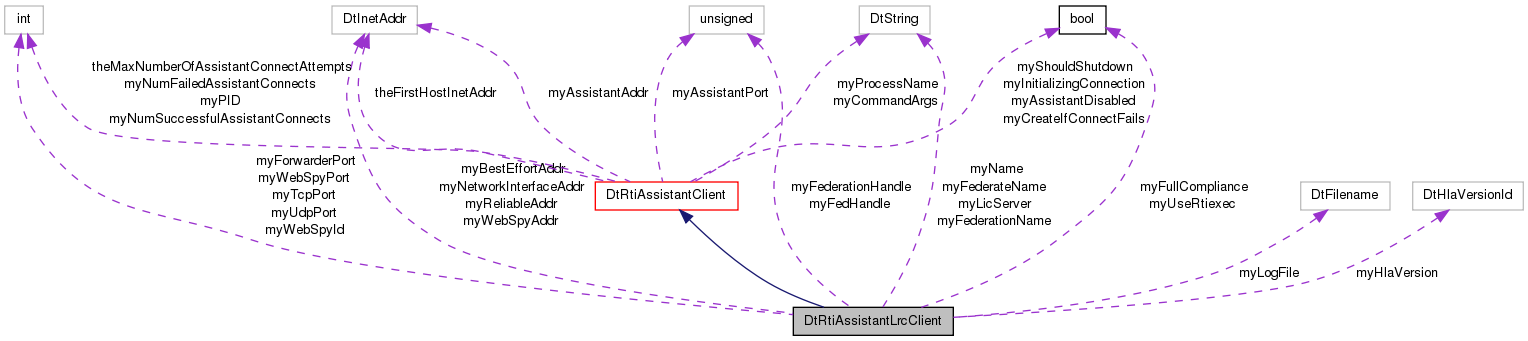

Collaboration diagram for DtRtiAssistantLrcClient:

Public Member Functions
	DtRtiAssistantLrcClient (int port=0)
virtual	~DtRtiAssistantLrcClient ()
virtual void	updateLrcName (const MAKRti::DtString &name)
	Updates the name used by the Assistant to identify this LRC.
virtual void	updateFederateName (const MAKRti::DtString &fedName)
	Updates the federate name used by the assistant.
virtual void	updateFederationInfo (unsigned long federationHandle, const MAKRti::DtString &federationName, unsigned long fedHandle, DtHlaVersionId hlaVersion)
	Updates the federation name and federate handle used by the Assistant to help identify this LRC.
virtual void	updateLrcLogFile (const MAKRti::DtFilename &file)
	Updates the log file name used by this LRC.
virtual void	updateLicenseServer (const MAKRti::DtString &server)
	Updates the license server used by this LRC.
virtual void	updateWebSpyInfo (const MAKRti::DtInetAddr &ipAddr, int port, int id)
	Updates the information needed for the Assistant to open the web spy page for this LRC, namely the host IP address, port number, and the connection ID.
virtual void	updateConnInfo (const MAKRti::DtInetAddr &ipAddr, const MAKRti::DtInetAddr &bestEffortIpAddr, const MAKRti::DtInetAddr &interfaceAddr, int udpPort, int tcpPort, bool useRtiexec, bool fullCompliance, int forwarderPort)
	Updates the information on this LRC's RTI connection.
virtual void	sendClientInfo ()
	Sends the stored LRC information to the Assistant.
Protected Attributes
MAKRti::DtString	myName
	The name the Assistant uses to identify this LRC.
unsigned long	myFedHandle
	This LRC's federate handle.
unsigned long	myFederationHandle
	This LRC's federation handle.
MAKRti::DtString	myFederationName
	This LRC's federation name.
MAKRti::DtFilename	myLogFile
	The name and full path of the log file.
MAKRti::DtString	myLicServer
	The license server used by this LRC.
MAKRti::DtInetAddr	myWebSpyAddr
	The host address for the web spy.
int	myWebSpyPort
	The port for the web spy.
int	myWebSpyId
	The connection ID used to identify this LRC's page.
MAKRti::DtInetAddr	myReliableAddr
	The RTI reliable IP address.
MAKRti::DtInetAddr	myBestEffortAddr
	The RTI best effort IP address.
MAKRti::DtInetAddr	myNetworkInterfaceAddr
	The address of the network interface being used.
int	myUdpPort
	The RTI UDP port.
int	myTcpPort
	The RTI TCP port.
bool	myUseRtiexec
	Whether use of an rtiexec is enabled.
bool	myFullCompliance
	Whether full compliance is enabled.
int	myForwarderPort
	The port the forwarder uses to connect to other forwarders.
MAKRti::DtString	myFederateName
	The federate name.
DtHlaVersionId	myHlaVersion
	The federate's HLA version.

Detailed Description

The client connection to the RTI Assistant for an LRC.

DtRtiAssistantLrcClient manages the client connection of an LRC to the RTI Assistant. Provides routines to create and send messages to the Assistant.

Constructor & Destructor Documentation

DtRtiAssistantLrcClient::DtRtiAssistantLrcClient ( int port = 0 )

References DtRtiAssistantClient::initialize().

DtRtiAssistantLrcClient::~DtRtiAssistantLrcClient ( ) [virtual]

Member Function Documentation

void DtRtiAssistantLrcClient::sendClientInfo ( ) [virtual]

Sends the stored LRC information to the Assistant.

Reimplemented from DtRtiAssistantClient.

Referenced by DtRtiExecFederateMgr::processJoinResponseMsg().

void DtRtiAssistantLrcClient::updateConnInfo	(	const MAKRti::DtInetAddr &	ipAddr,
		const MAKRti::DtInetAddr &	bestEffortIpAddr,
		const MAKRti::DtInetAddr &	interfaceAddr,
		int	udpPort,
		int	tcpPort,
		bool	useRtiexec,
		bool	fullCompliance,
		int	forwarderPort
	)		`[virtual]`

Updates the information on this LRC's RTI connection.

Note that this method does not send the message to the assistant, just stores the name to be sent when sendClientInfo is called.

References DtDefaultInterfaceAddr(), myBestEffortAddr, myForwarderPort, myFullCompliance, myNetworkInterfaceAddr, myReliableAddr, myTcpPort, myUdpPort, myUseRtiexec, and tcpPort.

void DtRtiAssistantLrcClient::updateFederateName ( const MAKRti::DtString & fedName ) [virtual]

Updates the federate name used by the assistant.

Note that this method does not send the message to the assistant, just stores the name to be send when sendClientInfo is called.

References myFederateName.

Referenced by DtRtiExecFederateMgr::processJoinResponseMsg().

void DtRtiAssistantLrcClient::updateFederationInfo	(	unsigned long	federationHandle,
		const MAKRti::DtString &	federationName,
		unsigned long	fedHandle,
		DtHlaVersionId	hlaVersion
	)		`[virtual]`

Updates the federation name and federate handle used by the Assistant to help identify this LRC.

Note that this method does not send the message to the assistant, just stores the name to be sent when sendClientInfo is called.

References federationName(), myFederationHandle, myFederationName, myFedHandle, and myHlaVersion.

void DtRtiAssistantLrcClient::updateLicenseServer ( const MAKRti::DtString & server ) [virtual]

Updates the license server used by this LRC.

Used by the Assistant to help other LRCs locate a license. Note that this method does not send the message to the assistant, just stores the name to be sent when sendClientInfo is called.

References myLicServer.

Referenced by initControl().

void DtRtiAssistantLrcClient::updateLrcLogFile ( const MAKRti::DtFilename & file ) [virtual]

Updates the log file name used by this LRC.

This is sent to the Assistant so that it may display the log to interested users. Note that this method does not send the message to the assistant, just stores the name to be sent when sendClientInfo is called.

References myLogFile, and NULL.

void DtRtiAssistantLrcClient::updateLrcName ( const MAKRti::DtString & name ) [virtual]

Updates the name used by the Assistant to identify this LRC.

Note that this method does not send the message to the assistant, just stores the name to be sent when sendClientInfo is called.

References myName.

void DtRtiAssistantLrcClient::updateWebSpyInfo	(	const MAKRti::DtInetAddr &	ipAddr,
		int	port,
		int	id
	)		`[virtual]`

Updates the information needed for the Assistant to open the web spy page for this LRC, namely the host IP address, port number, and the connection ID.

Note that this method does not send the message to the assistant, just stores the name to be sent when sendClientInfo is called.

References myWebSpyAddr, myWebSpyId, and myWebSpyPort.
