DtRtiAssistantShmExecClient Class Reference

The client connection to the RTI Assistant for the rtiShm. More...

Inheritance diagram for DtRtiAssistantShmExecClient:

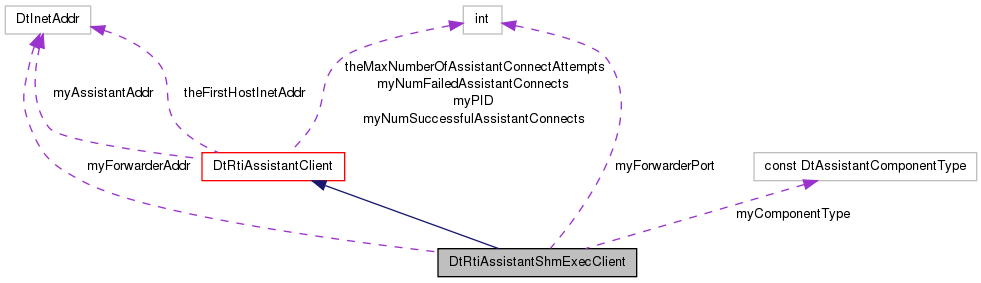

Collaboration diagram for DtRtiAssistantShmExecClient:

List of all members.

Public Member Functions
	DtRtiAssistantShmExecClient (int port=0)
	Constructor.
virtual	~DtRtiAssistantShmExecClient ()
	Destructor.
virtual void	updateForwarderInfo (DtInetAddr ipAddr, int port)
	Updates the forwarder address and port to be sent to the Assistant.
virtual void	sendClientInfo ()
	Send Shared Memory Exec address and port to the Assistant.
Protected Attributes
DtInetAddr	myForwarderAddr
	The host address for the forwarder.
int	myForwarderPort
	The port for the forwarder.
const DtAssistantComponentType	myComponentType
	The type of assistant component.

---

Detailed Description

The client connection to the RTI Assistant for the rtiShm.

DtRtiAssistantShmExecClient manages the client connection of the rtiShmQMgr to the RTI Assistant. Provides routines to create and send messages to the Assistant.

---

Constructor & Destructor Documentation

DtRtiAssistantShmExecClient::DtRtiAssistantShmExecClient

(

int

port = 0

)

Constructor.

References DtRtiAssistantClient::initialize().

DtRtiAssistantShmExecClient::~DtRtiAssistantShmExecClient

(

)

[virtual]

Destructor.

---

Member Function Documentation

void DtRtiAssistantShmExecClient::sendClientInfo

(

)

[virtual]

Send Shared Memory Exec address and port to the Assistant.

Reimplemented from DtRtiAssistantClient.

References DtAssistantShmCompInfoMsgKind, DtRtiAssistantClient::msgFactory(), myForwarderAddr, myForwarderPort, DtRtiAssistantClient::sendMsg(), DtAssistantShmCompInfoMsg::setIpAddress(), and DtAssistantShmCompInfoMsg::setPort().

void DtRtiAssistantShmExecClient::updateForwarderInfo	(	DtInetAddr	ipAddr,
		int	port
	)		[virtual]

Updates the forwarder address and port to be sent to the Assistant.

Note that this method does not send the message to the assistant, just stores the name to be sent when sendLrcInfo is called.

References myForwarderAddr, and myForwarderPort.

---

Member Data Documentation

const DtAssistantComponentType DtRtiAssistantShmExecClient::myComponentType [protected]

The type of assistant component.

Reimplemented from DtRtiAssistantClient.

DtInetAddr DtRtiAssistantShmExecClient::myForwarderAddr [protected]

The host address for the forwarder.

Referenced by sendClientInfo(), and updateForwarderInfo().

int DtRtiAssistantShmExecClient::myForwarderPort [protected]

The port for the forwarder.

Referenced by sendClientInfo(), and updateForwarderInfo().

---

The documentation for this class was generated from the following files:

• rtiAssistantShmExecClient.h
• rtiAssistantShmExecClient.cxx
