Provides time synchronization between HLA brokers. More...

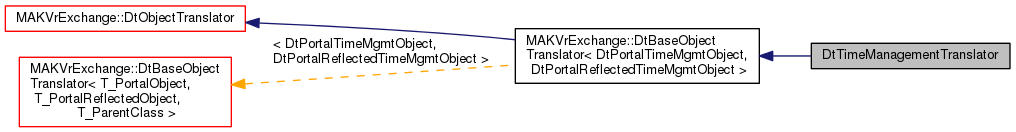

Inheritance diagram for DtTimeManagementTranslator:

Public Member Functions
	Dt_DEF_TRANSLATOR_NAME ("Time Management")
	Static translatorName method returns the translator name. More...

	DtTimeManagementTranslator (MAKVrExchange::DtBroker *broker)
	CTOR. More...

virtual	~DtTimeManagementTranslator ()
	Virtual DTOR. More...

virtual void	enableReflectTranslator (bool enabled)
	enables or disables this translator. More...

virtual void	tick ()
	Needs to be implemented for every translator, this is called every frame to allow the translator to do any needed processing. More...

virtual unsigned int	numObjects () const
	Returns the current number of objects. Which is always 1 in this case - the TimeMgmtObject. More...

Public Member Functions inherited from MAKVrExchange::DtBaseObjectTranslator< DtPortalTimeMgmtObject, DtPortalReflectedTimeMgmtObject >
	DtBaseObjectTranslator (DtBroker *broker, const DtString &name, DtPortalMessageKind kind)
	CTOR. More...

virtual	~DtBaseObjectTranslator ()
	Virtual CTOR. More...

virtual void	enablePublishTranslator (bool enabled)
	Enables or disables translation coming from the Portal. More...

virtual void	shutdown ()
	Performs any virtual shutdown logic prior to deletion. More...

virtual void	initializePortalCallbacks ()

virtual void	removePortalCallbacks ()

Public Member Functions inherited from MAKVrExchange::DtObjectTranslator
	DtObjectTranslator (DtBroker *broker, const DtString &name, DtPortalMessageKind kind)
	CTOR. More...

virtual	~DtObjectTranslator ()
	Virtual DTOR. More...

virtual void	forceUpdateAll ()
	Forces an update for all objects on the next tick. More...

virtual void	addObjectDiscoveredCallback (BrokerObjectCbPtr funcPtr, void *usr)

virtual void	addObjectUpdatedCallback (BrokerObjectCbPtr funcPtr, void *usr)

virtual void	addObjectRemovedCallback (BrokerObjectCbPtr funcPtr, void *usr)

virtual void	callObjectDiscoverCallbacks (const DtBrokerObject *obj)

virtual void	callObjectUpdateCallbacks (const DtBrokerObject *obj)

virtual void	callObjectRemoveCallbacks (const DtBrokerObject *obj)

virtual bool	isPortalDiscoverable (const DtPortalReflectedObject *obj)
	Tests whether the Portal object is discoverable. More...

virtual bool	isPortalPublishable (const DtBrokerObject *obj)
	Tests whether the Portal object is publishable. More...

Public Member Functions inherited from MAKVrExchange::DtTranslator
	DtTranslator (DtBroker *broker, const DtString &name, DtPortalMessageKind kind)
	CTOR. More...

virtual	~DtTranslator ()
	Virtual DTOR. More...

virtual DtString	name () const
	Accessor for the translator's name. More...

virtual bool	isReflectEnabled () const

virtual bool	isPublishEnabled () const

DtBroker *	broker () const
	Broker Accessor. More...

Protected Member Functions
virtual void	advanceTime ()
	Requests a time advance. More...

virtual void	discoverPortalObject (const DtPortalReflectedTimeMgmtObject &object)

virtual void	receivePortalUpdate (const DtPortalReflectedTimeMgmtObject &object)

virtual void	createPortalPublisher (MAKVrExchange::DtBrokerObject *brokerObj)

virtual void	removePortalObject (const DtPortalReflectedTimeMgmtObject &object)

virtual void	createHlaPublisher (MAKVrExchange::DtBrokerObject *brokerObj)

virtual void	deletePortalPublisher (MAKVrExchange::DtBrokerObject *brokerObj)

virtual void	deleteHlaPublisher (MAKVrExchange::DtBrokerObject *brokerObj)

virtual bool	isPortalPublishable (const MAKVrExchange::DtBrokerObject *brokerObj) const

virtual bool	isHlaPublishable (const MAKVrExchange::DtBrokerObject brokerObj, const DtPortalReflectedTimeMgmtObject refObj) const

Virtual Portal Callbacks
These functions are required for a translator to correctly publish objects from the portal to your protocol. If you do not fill them out this translator will simply not publish.

Static Protected Member Functions
static bool	portalDiscoveryCriteria (const MAKVrExchange::DtPortalReflectedObject reflectedObject, void usr)

static void	portalAdditionCallback (const DtPortalReflectedTimeMgmtObject &object, void *usr)

static void	portalUpdateCallback (const DtPortalReflectedTimeMgmtObject &object, void *usr)

static void	portalRemovalCallback (const DtPortalReflectedTimeMgmtObject &object, void *usr)

Protected Attributes
MAKVrExchange::DtRprBroker::DtRprBroker *	myRprBroker

DtPortalReflectedTimeMgmtObjectManager *	myPortalReflectedList

DtPortalTimeMgmtObjectPublisher *	myPortalPublisher

double	myLookahead
	The lookahead value for time regulation. More...

double	myCurrentLbts
	The current LBTS/GALT of this broker. More...

double	myCurrentTime
	The current logical time of this broker. More...

bool	myIsTimeRegulating
	Whether time regulation has yet been enabled. More...

bool	myIsTimeConstrained
	Whether time constrained has yet been enabled. More...

std::map< DtString, double >	myLbtsValues
	Map of time management info ID's to LBTS values for each broker. More...

bool	myRequestTime
	Indicates that a time advance should be requested. More...

Protected Attributes inherited from MAKVrExchange::DtBaseObjectTranslator< DtPortalTimeMgmtObject, DtPortalReflectedTimeMgmtObject >
DtPortalReflectedObjectManager < DtPortalReflectedTimeMgmtObject > *	myPortalReflectedManager

Protected Attributes inherited from MAKVrExchange::DtObjectTranslator
CallbackPairList	myDiscoverCallbacks

CallbackPairList	myUpdateCallbacks

CallbackPairList	myRemoveCallbacks

Protected Attributes inherited from MAKVrExchange::DtTranslator
DtString	myTranslatorName

DtPortalMessageKind	myPortalMessageKind

DtBroker *	myBroker

bool	myReflectEnabled

bool	myPublishEnabled

Private Member Functions
	DtTimeManagementTranslator (const DtTimeManagementTranslator &original)
	Copy constructor not implemented. More...

DtTimeManagementTranslator &	operator= (const DtTimeManagementTranslator &original)
	Assignment operator not implemented. More...

void	processTimeGrant (const RTI::FedTime &fedTime)
	Handles time grants. More...

static void	processTimeGrant (const RTI::FedTime &fedTime, void *usr)
	Handles time grants. More...

void	processTimeRegulating (const RTI::FedTime &fedTime)
	Handles becoming time regulating. More...

static void	processTimeRegulating (const RTI::FedTime &fedTime, void *usr)
	Handles becoming time regulating. More...

void	processTimeConstrained (const RTI::FedTime &fedTime)
	Handles becoming time constrained. More...

static void	processTimeConstrained (const RTI::FedTime &fedTime, void *usr)
	Handles becoming time constrained. More...

Additional Inherited Members
Public Types inherited from MAKVrExchange::DtBaseObjectTranslator< DtPortalTimeMgmtObject, DtPortalReflectedTimeMgmtObject >
typedef DtBaseObjectTranslator < DtPortalTimeMgmtObject, DtPortalReflectedTimeMgmtObject, DtObjectTranslator >	ParentClass

Public Types inherited from MAKVrExchange::DtObjectTranslator
typedef void(*	BrokerObjectCbPtr )(const DtBrokerObject brokerObj, void usr)

Static Public Member Functions inherited from MAKVrExchange::DtBaseObjectTranslator< DtPortalTimeMgmtObject, DtPortalReflectedTimeMgmtObject >
static bool	portalDiscoveryCriteria (const DtPortalReflectedObject obj, void usr)
	The Portal reflected list's discovery condition callback. More...

static void	portalObjectAddedCb (const DtPortalReflectedTimeMgmtObject &obj, void *usr)
	Callback called when an object is added to the reflected list. More...

static void	portalObjectUpdatedCb (const DtPortalReflectedTimeMgmtObject &obj, void *usr)
	Callback called when an object in the reflected list is updated. More...

static void	portalObjectDeletedCb (const DtPortalReflectedTimeMgmtObject &obj, void *usr)
	Callback called when an object in the reflected list is deleted. More...

Protected Types inherited from MAKVrExchange::DtObjectTranslator
typedef std::list< CallbackPair >	CallbackPairList

Detailed Description

Provides time synchronization between HLA brokers.

Constructor & Destructor Documentation

DtTimeManagementTranslator::DtTimeManagementTranslator ( MAKVrExchange::DtBroker * broker )

CTOR.

virtual DtTimeManagementTranslator::~DtTimeManagementTranslator ( )

virtual

Virtual DTOR.

DtTimeManagementTranslator::DtTimeManagementTranslator ( const DtTimeManagementTranslator & original )

private

Copy constructor not implemented.

Member Function Documentation

virtual void DtTimeManagementTranslator::advanceTime ( )

protectedvirtual

Requests a time advance.

virtual void DtTimeManagementTranslator::createHlaPublisher ( MAKVrExchange::DtBrokerObject * brokerObj )

protectedvirtual

virtual void DtTimeManagementTranslator::createPortalPublisher ( MAKVrExchange::DtBrokerObject * brokerObj )

protectedvirtual

virtual void DtTimeManagementTranslator::deleteHlaPublisher ( MAKVrExchange::DtBrokerObject * brokerObj )

protectedvirtual

virtual void DtTimeManagementTranslator::deletePortalPublisher ( MAKVrExchange::DtBrokerObject * brokerObj )

protectedvirtual

virtual void DtTimeManagementTranslator::discoverPortalObject ( const DtPortalReflectedTimeMgmtObject & object )

protectedvirtual

Reimplemented from MAKVrExchange::DtBaseObjectTranslator< DtPortalTimeMgmtObject, DtPortalReflectedTimeMgmtObject >.

DtTimeManagementTranslator::Dt_DEF_TRANSLATOR_NAME ( "Time Management" )

Static translatorName method returns the translator name.

virtual void DtTimeManagementTranslator::enableReflectTranslator ( bool enabled )

virtual

enables or disables this translator.

Note that this translator never publishes anything, so it is only enabled on the reflect side.

Reimplemented from MAKVrExchange::DtTranslator.

virtual bool DtTimeManagementTranslator::isHlaPublishable	(	const MAKVrExchange::DtBrokerObject *	brokerObj,
		const DtPortalReflectedTimeMgmtObject *	refObj
	)		const

protectedvirtual

virtual bool DtTimeManagementTranslator::isPortalPublishable ( const MAKVrExchange::DtBrokerObject * brokerObj ) const

protectedvirtual

virtual unsigned int DtTimeManagementTranslator::numObjects ( ) const

inlinevirtual

Returns the current number of objects. Which is always 1 in this case - the TimeMgmtObject.

Implements MAKVrExchange::DtObjectTranslator.

DtTimeManagementTranslator& DtTimeManagementTranslator::operator= ( const DtTimeManagementTranslator & original )

private

Assignment operator not implemented.

static void DtTimeManagementTranslator::portalAdditionCallback	(	const DtPortalReflectedTimeMgmtObject &	object,
		void *	usr
	)

staticprotected

static bool DtTimeManagementTranslator::portalDiscoveryCriteria	(	const MAKVrExchange::DtPortalReflectedObject *	reflectedObject,
		void *	usr
	)

staticprotected

static void DtTimeManagementTranslator::portalRemovalCallback	(	const DtPortalReflectedTimeMgmtObject &	object,
		void *	usr
	)

staticprotected

static void DtTimeManagementTranslator::portalUpdateCallback	(	const DtPortalReflectedTimeMgmtObject &	object,
		void *	usr
	)

staticprotected

static void DtTimeManagementTranslator::processTimeConstrained	(	const RTI::FedTime &	fedTime,
		void *	usr
	)

static

Handles becoming time constrained.

void DtTimeManagementTranslator::processTimeConstrained ( const RTI::FedTime & fedTime )

Handles becoming time constrained.

static void DtTimeManagementTranslator::processTimeGrant	(	const RTI::FedTime &	fedTime,
		void *	usr
	)

static

Handles time grants.

void DtTimeManagementTranslator::processTimeGrant ( const RTI::FedTime & fedTime )

Handles time grants.

static void DtTimeManagementTranslator::processTimeRegulating	(	const RTI::FedTime &	fedTime,
		void *	usr
	)

static

Handles becoming time regulating.

void DtTimeManagementTranslator::processTimeRegulating ( const RTI::FedTime & fedTime )

Handles becoming time regulating.

virtual void DtTimeManagementTranslator::receivePortalUpdate ( const DtPortalReflectedTimeMgmtObject & object )

protectedvirtual

Reimplemented from MAKVrExchange::DtBaseObjectTranslator< DtPortalTimeMgmtObject, DtPortalReflectedTimeMgmtObject >.

virtual void DtTimeManagementTranslator::removePortalObject ( const DtPortalReflectedTimeMgmtObject & object )

protectedvirtual

Reimplemented from MAKVrExchange::DtBaseObjectTranslator< DtPortalTimeMgmtObject, DtPortalReflectedTimeMgmtObject >.

virtual void DtTimeManagementTranslator::tick ( )

virtual

Needs to be implemented for every translator, this is called every frame to allow the translator to do any needed processing.

Reimplemented from MAKVrExchange::DtTranslator.

Member Data Documentation

double DtTimeManagementTranslator::myCurrentLbts

protected

The current LBTS/GALT of this broker.

double DtTimeManagementTranslator::myCurrentTime

protected

The current logical time of this broker.

bool DtTimeManagementTranslator::myIsTimeConstrained

protected

Whether time constrained has yet been enabled.

bool DtTimeManagementTranslator::myIsTimeRegulating

protected

Whether time regulation has yet been enabled.

std::map<DtString,double> DtTimeManagementTranslator::myLbtsValues

protected

Map of time management info ID's to LBTS values for each broker.

double DtTimeManagementTranslator::myLookahead

protected

The lookahead value for time regulation.

DtPortalTimeMgmtObjectPublisher* DtTimeManagementTranslator::myPortalPublisher

protected

DtPortalReflectedTimeMgmtObjectManager* DtTimeManagementTranslator::myPortalReflectedList

protected

bool DtTimeManagementTranslator::myRequestTime

protected

Indicates that a time advance should be requested.

MAKVrExchange::DtRprBroker::DtRprBroker* DtTimeManagementTranslator::myRprBroker

protected

The documentation for this class was generated from the following file:

timeMgmtTrans.h

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
