MAKLogger::DtObserver< SubjectType > Class Template Reference

DtObserver is the abstract interface for the observer object. More...

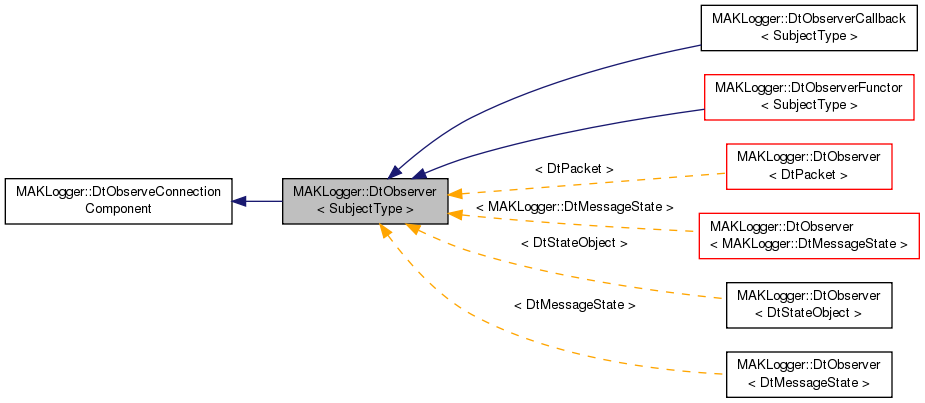

Inheritance diagram for MAKLogger::DtObserver< SubjectType >:

Collaboration diagram for MAKLogger::DtObserver< SubjectType >:

Public Member Functions
virtual	~DtObserver ()
	DTOR which disconnects the observer from all events.
virtual void	disconnect (DtObserveEvent< SubjectType > *event)
	Disconnect the observer from a specific event.
virtual void	observe (const SubjectType &)=0
	Abstract observe function called when a connected event fires.
Public Member Functions inherited from MAKLogger::DtObserveConnectionComponent
virtual	~DtObserveConnectionComponent ()
virtual void	connect (DtObserveConnectionSP con)
virtual void	disconnect (DtObserveConnectionSP con)
virtual void	disconnect (DtObserveConnectionComponent *component)
virtual bool	isConnected (DtObserveConnectionComponent *component)
void	disconnectAll ()
	Must be non virtual since called by destructor.

Additional Inherited Members
Public Types inherited from MAKLogger::DtObserveConnectionComponent
typedef std::list < DtObserveConnectionSP >	ConnectionList
Protected Member Functions inherited from MAKLogger::DtObserveConnectionComponent
	DtObserveConnectionComponent ()
	DtObserveConnection C.
	DtObserveConnectionComponent (const DtObserveConnectionComponent &)
	CopyCTOR not implemented.
DtObserveConnectionComponent &	operator= (const DtObserveConnectionComponent &)
	Assignment operator not implemented.
DtObserveConnectionSP	findEventObserverConnection (DtObserveConnectionComponent *event, DtObserveConnectionComponent *observer)
Protected Attributes inherited from MAKLogger::DtObserveConnectionComponent
ConnectionList	myConnections

Detailed Description

template<typename SubjectType>
class MAKLogger::DtObserver< SubjectType >

DtObserver is the abstract interface for the observer object.

Implementations of DtObserver must implement the observer function.

Constructor & Destructor Documentation

template<typename SubjectType>

virtual MAKLogger::DtObserver< SubjectType >::~DtObserver ( )

inlinevirtual

DTOR which disconnects the observer from all events.

Member Function Documentation

template<typename SubjectType>

virtual void MAKLogger::DtObserver< SubjectType >::disconnect ( DtObserveEvent< SubjectType > *  event )

inlinevirtual

Disconnect the observer from a specific event.

template<typename SubjectType>

virtual void MAKLogger::DtObserver< SubjectType >::observe ( const SubjectType &  )

pure virtual

Abstract observe function called when a connected event fires.

Implemented in MAKLogger::DtObserverFunctor< ClassType, SubjectType >, MAKLogger::DtObserverFunctor< DtCheckpointPolicy, DtPacket >, MAKLogger::DtObserverFunctor< DtStateObserverModel, MAKLogger::DtMessageState >, and MAKLogger::DtObserverCallback< SubjectType >.

---

The documentation for this class was generated from the following file:

• observe.h
