MAKLogger::DtTimeComponent Class Reference

A time component represents the current time of the logger. More...

Inheritance diagram for MAKLogger::DtTimeComponent:

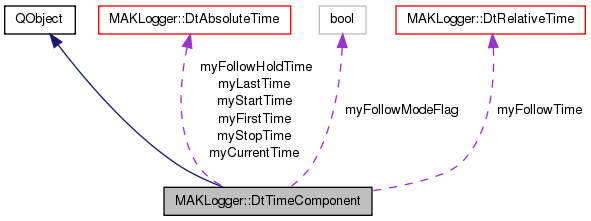

Collaboration diagram for MAKLogger::DtTimeComponent:

Public Slots
virtual void	setStartStopTimes (const DtAbsoluteTime &, const DtAbsoluteTime &, bool emitSignal=true)
	Concepts:
virtual void	setFirstTime (const DtAbsoluteTime &)
virtual void	setLastTime (const DtAbsoluteTime &)
virtual void	setCurrentTime (const DtAbsoluteTime &)
virtual void	emitSetCurrentTime (const DtAbsoluteTime &)
virtual void	emitStartStopTimesChanged (const DtAbsoluteTime &, const DtAbsoluteTime &)
virtual void	setFollowMode (bool mode)
	Enable follow mode.
virtual void	setFollowHoldTime (const DtAbsoluteTime &holdTime)
	Hold the advance of time bar when following until it gets past this time.
virtual void	setFollowTime (DtRelativeTime interval)
	Set the interval or window of time that follows current time when recording.

Signals
void	firstTimeChanged (const DtAbsoluteTime &)
	Distribution.
void	lastTimeChanged (const DtAbsoluteTime &)
void	startStopTimesChanged (const DtAbsoluteTime &, const DtAbsoluteTime &)
void	currentTimeChanged (const DtAbsoluteTime &)
void	modifyCurrentTime (const DtAbsoluteTime &)
void	modifyStartStopTime (const DtAbsoluteTime &, const DtAbsoluteTime &)
void	followModeChanged (bool)
	Signal that the follow mode has changed.

Public Member Functions
	DtTimeComponent ()
virtual	~DtTimeComponent ()
virtual DtAbsoluteTime	timeOfPercentFirstLast (float percent) const
	Calculate the time based on a percentage between the first and last times.
virtual float	percentOfTimeFirstLast (const DtAbsoluteTime &time) const
	Calculate the percent on a time between the first and last times.
virtual DtAbsoluteTime	timeOfPercentStartStop (float percent) const
	Calculate the time based on a percentage between the start and stop times.
virtual float	percentOfTimeStartStop (const DtAbsoluteTime &time) const
	Calculate the percent on a time between the start and stop times.
virtual DtAbsoluteTime	firstTime () const
	Get the first time that is valid.
virtual DtAbsoluteTime	lastTime () const
	Get the last time that is valid.
virtual DtAbsoluteTime	startTime () const
	Get the start time.
virtual DtAbsoluteTime	stopTime () const
	Get the stop time.
virtual DtAbsoluteTime	currentTime () const
	Get the current time.
virtual DtRelativeTime	length () const
	Get the total length. This is last minus first.
virtual DtRelativeTime	duration () const
	Get the current duration. This is stop minus start.
bool	followModeEnabled () const
	Get whether follow mode is enabled.
virtual DtAbsoluteTime	followFirstTime () const
	Get the start time for the following interval.
virtual DtAbsoluteTime	followLastTime () const
	Get the start time for the following interval.
virtual DtAbsoluteTime	followHoldTime () const
	Get the last time of the initial and post jump follow interval.
virtual DtRelativeTime	followTime () const
	Get the interval or window of time that follows current time when recording.

Static Public Member Functions
static void	listenOnly (const DtTimeComponent *, const DtTimeComponent *)
	Connect the second component to listen only to the first.
static void	disconnect (const DtTimeComponent *, const DtTimeComponent *)
	Connect two time components so they stay synchronized.

Protected Attributes
DtAbsoluteTime	myFirstTime
	Bounds.
DtAbsoluteTime	myLastTime
DtAbsoluteTime	myStartTime
	Dynamic parameters.
DtAbsoluteTime	myStopTime
DtAbsoluteTime	myCurrentTime
DtAbsoluteTime	myFollowHoldTime
DtRelativeTime	myFollowTime
bool	myFollowModeFlag

Private Member Functions
	DtTimeComponent (const DtTimeComponent &)
	Not Implemented.
DtTimeComponent &	operator= (const DtTimeComponent &)
	Not Implemented.

Detailed Description

A time component represents the current time of the logger.

The time can be synchronized between all the time components.

Constructor & Destructor Documentation

MAKLogger::DtTimeComponent::DtTimeComponent

(

)

virtual MAKLogger::DtTimeComponent::~DtTimeComponent ( )

virtual

MAKLogger::DtTimeComponent::DtTimeComponent ( const DtTimeComponent &  )

private

Not Implemented.

Member Function Documentation

virtual DtAbsoluteTime MAKLogger::DtTimeComponent::currentTime ( ) const

virtual

Get the current time.

void MAKLogger::DtTimeComponent::currentTimeChanged ( const DtAbsoluteTime &  )

signal

static void MAKLogger::DtTimeComponent::disconnect ( const DtTimeComponent *  , const DtTimeComponent *    )

static

Connect two time components so they stay synchronized.

static void connect(const DtTimeComponent*,const DtTimeComponent*); Disconnect two time components that were connected.

virtual DtRelativeTime MAKLogger::DtTimeComponent::duration ( ) const

virtual

Get the current duration. This is stop minus start.

virtual void MAKLogger::DtTimeComponent::emitSetCurrentTime ( const DtAbsoluteTime &  )

virtualslot

virtual void MAKLogger::DtTimeComponent::emitStartStopTimesChanged ( const DtAbsoluteTime &  , const DtAbsoluteTime &    )

virtualslot

virtual DtAbsoluteTime MAKLogger::DtTimeComponent::firstTime ( ) const

virtual

Get the first time that is valid.

void MAKLogger::DtTimeComponent::firstTimeChanged ( const DtAbsoluteTime &  )

signal

Distribution.

virtual DtAbsoluteTime MAKLogger::DtTimeComponent::followFirstTime ( ) const

virtual

Get the start time for the following interval.

virtual DtAbsoluteTime MAKLogger::DtTimeComponent::followHoldTime ( ) const

virtual

Get the last time of the initial and post jump follow interval.

virtual DtAbsoluteTime MAKLogger::DtTimeComponent::followLastTime ( ) const

virtual

Get the start time for the following interval.

void MAKLogger::DtTimeComponent::followModeChanged ( bool  )

signal

Signal that the follow mode has changed.

bool MAKLogger::DtTimeComponent::followModeEnabled

(

)

const

Get whether follow mode is enabled.

true Follow mode is enabled. false Follow mode is not enabled, absolute mode is used.

virtual DtRelativeTime MAKLogger::DtTimeComponent::followTime ( ) const

virtual

Get the interval or window of time that follows current time when recording.

virtual DtAbsoluteTime MAKLogger::DtTimeComponent::lastTime ( ) const

virtual

Get the last time that is valid.

void MAKLogger::DtTimeComponent::lastTimeChanged ( const DtAbsoluteTime &  )

signal

virtual DtRelativeTime MAKLogger::DtTimeComponent::length ( ) const

virtual

Get the total length. This is last minus first.

static void MAKLogger::DtTimeComponent::listenOnly ( const DtTimeComponent *  , const DtTimeComponent *    )

static

Connect the second component to listen only to the first.

void MAKLogger::DtTimeComponent::modifyCurrentTime ( const DtAbsoluteTime &  )

signal

void MAKLogger::DtTimeComponent::modifyStartStopTime ( const DtAbsoluteTime &  , const DtAbsoluteTime &    )

signal

DtTimeComponent& MAKLogger::DtTimeComponent::operator= ( const DtTimeComponent &  )

private

Not Implemented.

virtual float MAKLogger::DtTimeComponent::percentOfTimeFirstLast ( const DtAbsoluteTime &  time ) const

virtual

Calculate the percent on a time between the first and last times.

virtual float MAKLogger::DtTimeComponent::percentOfTimeStartStop ( const DtAbsoluteTime &  time ) const

virtual

Calculate the percent on a time between the start and stop times.

virtual void MAKLogger::DtTimeComponent::setCurrentTime ( const DtAbsoluteTime &  )

virtualslot

virtual void MAKLogger::DtTimeComponent::setFirstTime ( const DtAbsoluteTime &  )

virtualslot

virtual void MAKLogger::DtTimeComponent::setFollowHoldTime ( const DtAbsoluteTime &  holdTime )

virtualslot

Hold the advance of time bar when following until it gets past this time.

virtual void MAKLogger::DtTimeComponent::setFollowMode ( bool  mode )

virtualslot

Enable follow mode.

virtual void MAKLogger::DtTimeComponent::setFollowTime ( DtRelativeTime  interval )

virtualslot

Set the interval or window of time that follows current time when recording.

virtual void MAKLogger::DtTimeComponent::setLastTime ( const DtAbsoluteTime &  )

virtualslot

virtual void MAKLogger::DtTimeComponent::setStartStopTimes ( const DtAbsoluteTime &  , const DtAbsoluteTime &  , bool  emitSignal = true  )

virtualslot

Concepts:

void MAKLogger::DtTimeComponent::startStopTimesChanged ( const DtAbsoluteTime &  , const DtAbsoluteTime &    )

signal

virtual DtAbsoluteTime MAKLogger::DtTimeComponent::startTime ( ) const

virtual

Get the start time.

virtual DtAbsoluteTime MAKLogger::DtTimeComponent::stopTime ( ) const

virtual

Get the stop time.

virtual DtAbsoluteTime MAKLogger::DtTimeComponent::timeOfPercentFirstLast ( float  percent ) const

virtual

Calculate the time based on a percentage between the first and last times.

virtual DtAbsoluteTime MAKLogger::DtTimeComponent::timeOfPercentStartStop ( float  percent ) const

virtual

Calculate the time based on a percentage between the start and stop times.

Member Data Documentation

DtAbsoluteTime MAKLogger::DtTimeComponent::myCurrentTime

protected

DtAbsoluteTime MAKLogger::DtTimeComponent::myFirstTime

protected

Bounds.

DtAbsoluteTime MAKLogger::DtTimeComponent::myFollowHoldTime

protected

bool MAKLogger::DtTimeComponent::myFollowModeFlag

protected

DtRelativeTime MAKLogger::DtTimeComponent::myFollowTime

protected

DtAbsoluteTime MAKLogger::DtTimeComponent::myLastTime

protected

DtAbsoluteTime MAKLogger::DtTimeComponent::myStartTime

protected

Dynamic parameters.

DtAbsoluteTime MAKLogger::DtTimeComponent::myStopTime

protected

---

The documentation for this class was generated from the following file:

• timeComponent.h
