Stores basic information about a remote assistant. More...

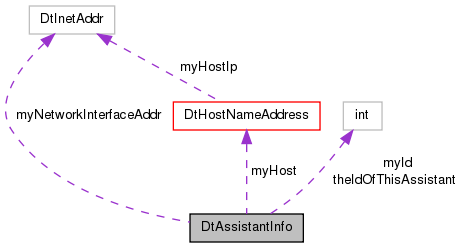

Collaboration diagram for DtAssistantInfo:

Public Member Functions
	~DtAssistantInfo ()
	Destructor.
bool	operator< (const DtAssistantInfo &other) const
	Overloaded operator.
bool	operator== (const DtAssistantInfo &other) const
	Overloaded operator. Determines if all params are equal.
bool	operator!= (const DtAssistantInfo &other) const
	Overloaded operator. Determines if any param is not equal.
DtHostNameAddress	host () const
	Get the host of the assistant.
void	setHost (const DtHostNameAddress &host)
	Set the host of the assistant.
const MAKRti::DtString &	hostName () const
	Get the host name of the assistant.
void	setHostName (const MAKRti::DtString &name)
	Set the host name of the assistant.
const MAKRti::DtInetAddr &	address () const
	Get IP address of the assistant.
void	setAddress (const MAKRti::DtInetAddr &addr)
	Set the IP address of the assistant.
const MAKRti::DtInetAddr &	networkInterfaceAddress () const
	Get address of local interface to the remote the assistant.
void	setNetworkInterfaceAddress (const MAKRti::DtInetAddr &interfaceAddr)
	Set address of local interface to the remote the assistant.
int	id () const
	Get the ID which is used to distinguish between assistants running on the same machine.
void	setId (int id)
	Set the ID which is used to distinguish between assistants running on the same machine.
DtAssistantInfoSet::const_iterator	findMatchingHostInfo (const DtAssistantInfoSet &set)
	Returns an iterator into the given set of an item in the set that matches this assistant's host info.
bool	isThisAssistant () const
	Returns true if this assistant info is for this assistant.

	DtAssistantInfo ()
	Constructor.
	DtAssistantInfo (const MAKRti::DtString &host, const MAKRti::DtInetAddr &addr, const MAKRti::DtInetAddr &interfaceAddr, int id)
	Constructor.
	DtAssistantInfo (const DtHostNameAddress &host, const MAKRti::DtInetAddr &interfaceAddr, int id)
	Constructor.

Static Public Member Functions
static void	setThisAssistantId (int id)
	Sets the ID of this assistant for comparisons.

Protected Attributes
DtHostNameAddress	myHost
	Host on which the assistant is running.
MAKRti::DtInetAddr	myNetworkInterfaceAddr
	Address of local interface to remote host.
int	myId
	ID used to distinguish between assistants running on the same machine.

Static Protected Attributes
static int	theIdOfThisAssistant = DtASSISTANT_DEFAULT_DEST_ID
	The ID of this assistant. Must be set with setThisAssistantInfo().

Detailed Description

Stores basic information about a remote assistant.

Constructor & Destructor Documentation

DtAssistantInfo::DtAssistantInfo ( )

Constructor.

DtAssistantInfo::DtAssistantInfo	(	const MAKRti::DtString &	host,
		const MAKRti::DtInetAddr &	addr,
		const MAKRti::DtInetAddr &	interfaceAddr,
		int	id
	)

Constructor.

DtAssistantInfo::DtAssistantInfo	(	const DtHostNameAddress &	host,
		const MAKRti::DtInetAddr &	interfaceAddr,
		int	id
	)

Constructor.

DtAssistantInfo::~DtAssistantInfo ( )

Destructor.

Member Function Documentation

const MAKRti::DtInetAddr & DtAssistantInfo::address ( ) const

Get IP address of the assistant.

References DtHostNameAddress::ip(), and myHost.

Referenced by findMatchingHostInfo(), DtRtiAssistantPeer::sendFederateInfoReqMsg(), DtRtiAssistantPeer::sendMsgToAssistant(), and DtRtiAssistantPeer::sendObserveFederationsMsg().

DtAssistantInfoSet::const_iterator DtAssistantInfo::findMatchingHostInfo ( const DtAssistantInfoSet & set )

Returns an iterator into the given set of an item in the set that matches this assistant's host info.

Does not attempt to match ID.

References address(), hostName(), DtHostNameAddress::isValid(), myHost, myNetworkInterfaceAddr, networkInterfaceAddress(), setAddress(), and setHost().

Referenced by DtAssistantLrcConnQueryWidget::isKnownAssistant(), DtAssistantLrcConnQueryWidget::setHostNameFromKnownAssistants(), and DtAssistantLrcConnQueryWidget::setReliableIpFromKnownAssistants().

DtHostNameAddress DtAssistantInfo::host ( ) const

Get the host of the assistant.

References myHost.

Referenced by DtAssistantFederateViewMgr::federateStatDlgClosing(), DtAssistantFomViewMgr::fomStatDlgClosing(), DtAssistantFomViewMgr::lrcNetStatsUpdateIntervalUpdated(), DtAssistantFederateViewMgr::lrcNetStatsUpdateIntervalUpdated(), operator<(), operator==(), DtAssistantFederationsInfoMgr::requestFederateLoc(), DtAssistantFederateViewMgr::sendFederateObservationRequest(), DtAssistantFomViewMgr::sendFomObservationRequest(), DtRtiAssistantPeer::sendMsgToAssistant(), DtAssistantNetStatsObservationMgr::sendNetStatsObserveRsp(), DtAssistantFederationsViewMgr::sendPendingRidRequest(), setHost(), and DtAssistantFederationsViewMgr::updateRidParams().

const MAKRti::DtString & DtAssistantInfo::hostName ( ) const

Get the host name of the assistant.

References DtHostNameAddress::hostName(), and myHost.

Referenced by findMatchingHostInfo(), and DtAssistantFederationsViewMgr::updateRidParams().

int DtAssistantInfo::id ( ) const

Get the ID which is used to distinguish between assistants running on the same machine.

References myId.

Referenced by operator<(), operator==(), DtRtiAssistantPeer::sendFederateInfoReqMsg(), DtRtiAssistantPeer::sendMsgToAssistant(), DtRtiAssistantPeer::sendObserveFederationsMsg(), setId(), and setThisAssistantId().

bool DtAssistantInfo::isThisAssistant ( ) const

Returns true if this assistant info is for this assistant.

References DtHostNameAddress::isLocal(), myHost, myId, and theIdOfThisAssistant.

Referenced by DtAssistantFederateViewMgr::federateStatDlgClosing(), DtAssistantFomViewMgr::fomStatDlgClosing(), DtAssistantFomViewMgr::lrcNetStatsUpdateIntervalUpdated(), DtAssistantFederateViewMgr::lrcNetStatsUpdateIntervalUpdated(), DtAssistantConnectionInfoMgr::processLocalRtiComponentConnected(), DtAssistantFederateViewMgr::sendFederateObservationRequest(), DtAssistantFomViewMgr::sendFomObservationRequest(), DtAssistantNetStatsObservationMgr::sendNetStatsObserveRsp(), and DtAssistantFederationsViewMgr::sendPendingRidRequest().

const MAKRti::DtInetAddr & DtAssistantInfo::networkInterfaceAddress ( ) const

Get address of local interface to the remote the assistant.

References myNetworkInterfaceAddr.

Referenced by findMatchingHostInfo(), operator<(), operator==(), DtRtiAssistantPeer::sendFederateInfoReqMsg(), and DtRtiAssistantPeer::sendMsgToAssistant().

bool DtAssistantInfo::operator!= ( const DtAssistantInfo & other ) const

Overloaded operator. Determines if any param is not equal.

References operator==().

bool DtAssistantInfo::operator< ( const DtAssistantInfo & other ) const

Overloaded operator.

References host(), id(), myHost, myId, myNetworkInterfaceAddr, and networkInterfaceAddress().

bool DtAssistantInfo::operator== ( const DtAssistantInfo & other ) const

Overloaded operator. Determines if all params are equal.

References host(), id(), myHost, myId, myNetworkInterfaceAddr, and networkInterfaceAddress().

Referenced by operator!=().

void DtAssistantInfo::setAddress ( const MAKRti::DtInetAddr & addr )

Set the IP address of the assistant.

References myHost, and DtHostNameAddress::setIp().

Referenced by findMatchingHostInfo(), and DtAssistantLatencyTestMgr::getRtiexecConn().

void DtAssistantInfo::setHost ( const DtHostNameAddress & host )

Set the host of the assistant.

References host(), and myHost.

Referenced by findMatchingHostInfo(), and DtAssistantFederationsInfoMgr::requestFederateLoc().

void DtAssistantInfo::setHostName ( const MAKRti::DtString & name )

Set the host name of the assistant.

References myHost, and DtHostNameAddress::setHostName().

void DtAssistantInfo::setId ( int id )

Set the ID which is used to distinguish between assistants running on the same machine.

References id(), and myId.

Referenced by DtAssistantLatencyTestMgr::getRtiexecConn(), and DtAssistantFederationsInfoMgr::requestFederateLoc().

void DtAssistantInfo::setNetworkInterfaceAddress ( const MAKRti::DtInetAddr & interfaceAddr )

Set address of local interface to the remote the assistant.

References myNetworkInterfaceAddr.

Referenced by DtAssistantLatencyTestMgr::getRtiexecConn(), and DtRtiAssistantPeer::sendFederateInfoReqMsg().

void DtAssistantInfo::setThisAssistantId ( int id )

static

Sets the ID of this assistant for comparisons.

References id(), and theIdOfThisAssistant.

Referenced by DtRtiAssistantPeer::DtRtiAssistantPeer().

Member Data Documentation

DtHostNameAddress DtAssistantInfo::myHost

protected

Host on which the assistant is running.

Referenced by address(), findMatchingHostInfo(), host(), hostName(), isThisAssistant(), operator<(), operator==(), setAddress(), setHost(), and setHostName().

int DtAssistantInfo::myId

protected

ID used to distinguish between assistants running on the same machine.

Referenced by id(), isThisAssistant(), operator<(), operator==(), and setId().

MAKRti::DtInetAddr DtAssistantInfo::myNetworkInterfaceAddr

protected

Address of local interface to remote host.

Referenced by findMatchingHostInfo(), networkInterfaceAddress(), operator<(), operator==(), and setNetworkInterfaceAddress().

int DtAssistantInfo::theIdOfThisAssistant = DtASSISTANT_DEFAULT_DEST_ID

staticprotected

The ID of this assistant. Must be set with setThisAssistantInfo().

Referenced by isThisAssistant(), and setThisAssistantId().

The documentation for this class was generated from the following files:
