The DtForwarderPingProcessor class consists of filters for ForwarderPing messages for forwarder nodes. More...

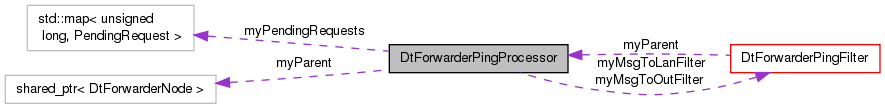

Collaboration diagram for DtForwarderPingProcessor:

Classes
class	PendingRequest
	Simple helper class to hold status of pending Pings. More...

Public Types
typedef bool(DtForwarderPingProcessor::*	PingMsgHandlerMemberCb )(const DtInetAddrAndPort &src, const DtForwarderPingMsg &msg)
	Pointer to member function callbacks used by the port filters.
typedef bool(DtForwarderPingProcessor::*	DestinationProcessingMemberCb )(const DtInetAddrAndPort &src, DtForwarderPort::DtAddressPortList &destinations)

Public Member Functions
	DtForwarderPingProcessor (DtBoost::shared_ptr< DtForwarderNode > parent)
	Default Ctor.
virtual	~DtForwarderPingProcessor ()
	Default Dtor.
virtual bool	gotMsgToLanPort (const DtInetAddrAndPort &src, const DtForwarderPingMsg &msg)
	Got Ping Message at the IN Port, drop the message at IN to LAN processor.
virtual bool	gotMsgToOutPort (const DtInetAddrAndPort &src, const DtForwarderPingMsg &msg)
	Got Ping Message from the IN or LAN Port to the OUT Port.
virtual bool	processPingMsgDestinations (const DtInetAddrAndPort &src, DtForwarderPort::DtAddressPortList &destinations)
	Set forwarding destination list based on source (eg.
virtual bool	ignorePingMsgToLan (const DtInetAddrAndPort &src, DtForwarderPort::DtAddressPortList &destinations)
	Ping messages are never forwarded out the LAN port and will be filtered out by gotMsgToLanPort anyway, so there's no destination processing necessary.

Static Public Member Functions
static int	lostConnection (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &connAddr, void *usr)
	Connection loss callback.

Protected Types
typedef std::map< unsigned long, PendingRequest >	DtDestToRequestMap

Protected Member Functions
virtual int	lostConnection (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &connAddr)
	Connection loss callback.
virtual void	sendResponseMsg (unsigned long target, DtForwarderPingMsg::DtPingStatus status, const DtInetAddrAndPort *addr=0)
	Send a ping Response based on aggregating all Local responses and all downstream WAN responses.
virtual bool	processInToOutMsg (const DtInetAddrAndPort &src, const DtForwarderPingMsg &msg)
	Got ping Message from the IN Port to the OUT Port.
virtual bool	processLanToOutMsg (const DtInetAddrAndPort &src, const DtForwarderPingMsg &msg)
	Got ping Message from the LAN Port to the OUT Port.

Protected Attributes
DtBoost::shared_ptr < DtForwarderNode >	myParent
DtForwarderPingFilter *	myMsgToLanFilter
DtForwarderPingFilter *	myMsgToOutFilter
DtDestToRequestMap	myPendingRequests
	Map of outstanding Ping Requests to Responses.

Detailed Description

The DtForwarderPingProcessor class consists of filters for ForwarderPing messages for forwarder nodes.

The Ping algorithm allows a node or an RTI Exec to determine whether a path exists to a specified downstream node (NOTE: - currently does not handle pinging federates, but this could be added)

Member Typedef Documentation

typedef bool(DtForwarderPingProcessor::* DtForwarderPingProcessor::DestinationProcessingMemberCb)(const DtInetAddrAndPort &src, DtForwarderPort::DtAddressPortList &destinations)

typedef std::map< unsigned long, PendingRequest > DtForwarderPingProcessor::DtDestToRequestMap

protected

typedef bool(DtForwarderPingProcessor::* DtForwarderPingProcessor::PingMsgHandlerMemberCb)(const DtInetAddrAndPort &src, const DtForwarderPingMsg &msg)

Pointer to member function callbacks used by the port filters.

Constructor & Destructor Documentation

DtForwarderPingProcessor::DtForwarderPingProcessor ( DtBoost::shared_ptr< DtForwarderNode > parent )

Default Ctor.

References gotMsgToLanPort(), gotMsgToOutPort(), ignorePingMsgToLan(), lostConnection(), myMsgToLanFilter, myMsgToOutFilter, myParent, and processPingMsgDestinations().

DtForwarderPingProcessor::~DtForwarderPingProcessor ( )

virtual

Default Dtor.

References myMsgToLanFilter, myMsgToOutFilter, and myParent.

Member Function Documentation

bool DtForwarderPingProcessor::gotMsgToLanPort	(	const DtInetAddrAndPort &	src,
		const DtForwarderPingMsg &	msg
	)

virtual

Got Ping Message at the IN Port, drop the message at IN to LAN processor.

Referenced by DtForwarderPingProcessor().

bool DtForwarderPingProcessor::gotMsgToOutPort	(	const DtInetAddrAndPort &	src,
		const DtForwarderPingMsg &	msg
	)

virtual

Got Ping Message from the IN or LAN Port to the OUT Port.

References myParent, DtRtiMsg::print(), processInToOutMsg(), and processLanToOutMsg().

Referenced by DtForwarderPingProcessor().

bool DtForwarderPingProcessor::ignorePingMsgToLan	(	const DtInetAddrAndPort &	src,
		DtForwarderPort::DtAddressPortList &	destinations
	)

virtual

Ping messages are never forwarded out the LAN port and will be filtered out by gotMsgToLanPort anyway, so there's no destination processing necessary.

This method is just a dummy for the filter ctor.

Referenced by DtForwarderPingProcessor().
