DtInteractionMsg Class Reference

DtInteractionMsg is a message type that represents an HLA Interaction. More...

Inheritance diagram for DtInteractionMsg:

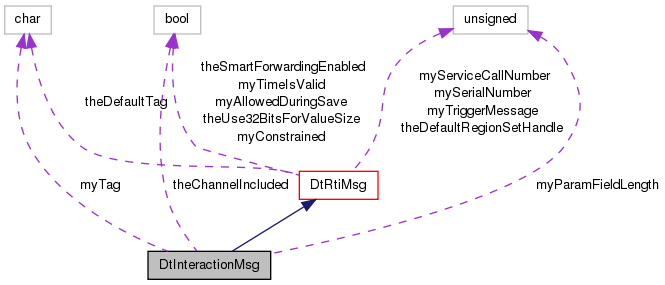

Collaboration diagram for DtInteractionMsg:

Public Member Functions
	DtInteractionMsg (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Constructor.
virtual	~DtInteractionMsg ()
	Destructor.
virtual void	setChannel (unsigned long handleValue)
	Set/Get DDM channel.
virtual unsigned long	channel () const
virtual void	setHandle (DtInteractionClassHandle hand)=0
	Set/Get handle.
virtual DtInteractionClassHandle	handle () const =0
virtual void	setTag (char const *tag)
	Set/Get tag.
virtual char const *	tag () const
virtual void	setParams (const DtPhvps &theParameters, bool checkBufferSize=true)
	Set/Get parameters.
virtual void	getParams (DtPhvps &params, bool useMsgMemory, DtInteractionClassInfo *classInfo=NULL) const
	Parameter value set allocates own memory for values or accesses the message's memory directly Fills in only subscribed parameters if class info is provided otherwise gets all parameters in message.
virtual unsigned long	numParams () const
	Get number of parameters.
Public Member Functions inherited from DtRtiMsg
virtual	~DtRtiMsg ()
	Destructor.
virtual DtRtiMsg *	clone (bool copy=true) const =0
	Return a copy/empty object of the same type as this.
virtual DtRtiMsg *	cloneWithTransport (bool copy=true) const
	Return a copy/empty object of the same type as this using clone and set the transport type from the host message.
virtual DtNetMsgHeader *	netHeader () const
	Get header of network representation.
virtual int	version () const
	Return the message version.
virtual bool	isValidVersion () const
	Returns bool: message version is valid?
virtual void	setFedEx (const MAKRti::DtString &name)
	All RTI messages contain information to identify which federation execution the message applies to.
virtual void	setFedEx (int handle)
	Set federation execution identifier as a handle.
virtual bool	isForExec (const MAKRti::DtString &execName, int execHandle) const
	Returns true if the current message belongs to the indicated federation execution, false otherwise.
virtual DtRtiMsgKind	msgKind () const
	Get the message kind.
virtual const char *	kindString () const
	Returns the message kind string name.
virtual bool	isConstrained () const
	Return boolean: message type can be time constrained?
virtual bool	isAllowedDuringSave () const
	Return boolean: message type can be processed during save?
virtual void	setTime (const RTI::FedTime &time)
	Set/Get time Used in timestamped messages.
virtual RTI::FedTime const *	time (DtLogicalTimeFactory *fedTimeFactory) const
virtual bool	hasTime () const
	Returns true if time field is valid.
virtual void	setSerialNumber (unsigned long serialNumberValue)
	Set/Get event retraction serial number Used in timestamped messages.
virtual unsigned long	serialNumber () const
virtual void	setTransportType (DtTransportHandle type)
	Set/Get transport type.
virtual DtTransportHandle	transportType () const
virtual DtOrderHandle	orderType () const
	This base implementation always returns recieve order.
virtual bool	isMetadataPresent () const
	Test if metadata has been added to a DtRtiMsg object.
virtual bool	addMetadata (caddr_t *mtdAddr, unsigned int size, unsigned int *alignPad, unsigned int *headerPad=NULL)
	Allocate space for next block of metadata.
virtual void	removeMetadata (unsigned int size)
	Update the size of the message when metadata has been removed.
bool	isInteractionMsgType () const
	Utility functions, check the message type against known interaciton/update message types.
bool	isUpdateMsgType () const
virtual void	print (DtLogicalTimeFactory *logicalTimeFactory) const
	Printing functions.
virtual void	printHeader (DtLogicalTimeFactory *logicalTimeFactory) const
virtual void	printData (DtLogicalTimeFactory *logicalTimeFactory) const
virtual void	printTime (const char *label, RTI::FedTime const *timeValue) const
	Print the given time.
virtual void	printInterval (const char *label, RTI::FedTime const *intervalValue) const
	Print the interval.
virtual int	status () const
	Returns MSG_STATUS_OK if OK, a reason enumeration otherwise.
virtual const MAKRti::DtString	fedExName () const
	These two functions should be avoided in favor of isForExec().
virtual int	fedExHandle () const
	Get the federation execution identifier as a handle Returns 0 if the identifier is being represented as a name.
virtual void	setFederateHandle (DtFederateHandle handle)
	Set/Get federate handle.
virtual DtFederateHandle	federateHandle () const
	Set/Get federate handle.
virtual void	setSequenceNumber (unsigned long value)
	Set/Get message sequence number.
virtual unsigned long	sequenceNumber () const
	Set/Get message sequence number.
virtual void	setServiceCallNumber (unsigned long value)
	Set/Get service call number.
virtual unsigned long	serviceCallNumber () const
	Set/Get service call number.
virtual void	setTriggerMessageNumber (unsigned long value)
	Set/Get trigger message sequence number (i.e., the message being processed that triggered this message being sent).
virtual unsigned long	triggerMessageNumber () const
	Set/Get trigger message sequence number (i.e., the message being processed that triggered this message being sent).

Static Public Member Functions
static void	setChannelIncluded (bool includeChannel)
	Set/Get flag to include DDM channel identifier.
static bool	channelIncluded ()
Static Public Member Functions inherited from DtRtiMsg
static const char *	kindToString (DtRtiMsgKind kind)
	Returns the name of the message, by kind enumeration.
static const char *	kindString (const void *buffer)
	Extracts the message kind from the given buffer and returns its string name.
static void	setDefaultRegionSet (unsigned long defaultRegionSet)
	Set the default region set handle.
static void	setUse32BitsForValueSize (bool use32BitsForValueSizeEnabled)
	Set/Get flag to enable use of 32 bit size field for attribute/parameter values.
static bool	use32BitsForValueSize ()
static void	setSmartForwardingEnabled (bool enabled)
	Set/Get is SmartForwarding enabled?
static bool	smartForwardingEnabled ()

Protected Member Functions
virtual void	setTagSize (int size)=0
	Set/Get tag size.
virtual int	tagSize () const =0
virtual DtNetU32 *	channelPtr () const =0
	Returns pointer to the channel in the netMsg.
virtual char *	tagPtr ()=0
	Returns pointer to the tag in the netMsg.
virtual DtNetParams *	netParams ()=0
	Returns pointer to the network rep of the pvList.
virtual DtNetBigParams *	netBigParams ()=0
	Supports big parameter values > 64K.
virtual DtNetParamValue *	nextNetParam (DtNetParamValue *netParam) const
	Find pointer to next parameter in the network rep.
virtual DtNetBigParamValue *	nextNetBigParam (DtNetBigParamValue *netParam) const
	Supports parameter values > 64K.
virtual void	fillFromNetParams (const DtNetParams *netRepParams, DtPhvps &params, bool useMsgMemory, DtInteractionClassInfo *classInfo=NULL) const
	Fill the given parameter set with the message's parameters Parameter value set allocates own memory for values or accesses the message's memory directly Fills in only subscribed attributes if class info is provided otherwise gets all attributes in message.
virtual void	fillFromNetBigParams (const DtNetBigParams *netRepParams, DtPhvps &params, bool useMsgMemory, DtInteractionClassInfo *classInfo=NULL) const
	Fill the given parameter set with the message's parameters Supports parameter values > 64K Parameter value set allocates own memory for values or accesses the message's memory directly Fills in only subscribed attributes if class info is provided otherwise gets all attributes in message.
virtual void	fillNetParams (const DtPhvps &theParameters, DtNetParams *netRepParams)
	Fill message with given parameter set.
virtual void	fillNetBigParams (const DtPhvps &theParameters, DtNetBigParams *netRepParams)
	Supports parameter values > 64K.
virtual void	setSizeOfNetParams (unsigned long size)
	Sets size for the network rep of the pvList.
virtual unsigned long	sizeNeededForNetParams (const DtPhvps &params) const
	Returns the size the network representation will consume.
virtual int	channelFieldSize () const
	Returns size of channel field.
virtual int	tagFieldSize () const
	Returns size of tag field.
virtual DtInteractionMsg *	self () const
	Returns pointer to the serial number in the netMsg.
Protected Member Functions inherited from DtRtiMsg
	DtRtiMsg ()
	Constructor.
virtual DtRtiMsgKind	internalDtRtiMsgKind ()=0
virtual void	sizeChanged (int size)
	Called whenever size is changed using changeSize, or insert/deleteBytes.
void	initDtRtiMsg (int size, DtRtiMsgKind msgKindVal, DtBufferPtr buffer)
	Called by ctor, so not virtual.
void	initDtRtiMsg (const void *initial, int size, DtBufferPtr buffer)
void	initDtRtiMsg (const DtNetMsgHeader *header, DtBufferPtr buffer)
virtual void	adjustBytes (int offset, int numBytes)
	Adjust numBytes bytes at the indicated offset in the net rep.
virtual void	adjustBytes (void *address, int numBytes)
	Adjust the numBytes starting at the indicated addres.

Protected Attributes
char *	myTag
unsigned long	myParamFieldLength
Protected Attributes inherited from DtRtiMsg
DtTransportHandle	myTransportType
DtOrderHandle	myOrderType
RTI::FedTime *	myFedTime
bool	myTimeIsValid
bool	myConstrained
bool	myAllowedDuringSave
unsigned long	mySerialNumber
unsigned long	myServiceCallNumber
unsigned long	myTriggerMessage

Static Protected Attributes
static bool	theChannelIncluded = false
Static Protected Attributes inherited from DtRtiMsg
static bool	theUse32BitsForValueSize = false
static bool	theSmartForwardingEnabled = false

Additional Inherited Members
Static Public Attributes inherited from DtRtiMsg
static unsigned long	theDefaultRegionSetHandle = 0
static const char *	theDefaultTag = NULL

Detailed Description

DtInteractionMsg is a message type that represents an HLA Interaction.

Constructor & Destructor Documentation

DtInteractionMsg::DtInteractionMsg

(

DtBufferPtr

buffer = DtUSE_INTERNAL_BUFFER

)

Constructor.

References DtRtiMsg::myAllowedDuringSave, and DtRtiMsg::myConstrained.

DtInteractionMsg::~DtInteractionMsg ( )

virtual

Destructor.

References myTag, and NULL.

Member Function Documentation

unsigned long DtInteractionMsg::channel ( ) const

virtual

References channelIncluded(), channelPtr(), and DtDefaultRegionSetHandle.

Referenced by DtInteractionRoMsg::printData(), and DtInteractionMgr::processInteraction().

int DtInteractionMsg::channelFieldSize ( ) const

protectedvirtual

Returns size of channel field.

References channelIncluded().

Referenced by DtInteractionRoMsg::tagPtr().

bool DtInteractionMsg::channelIncluded ( )

inlinestatic

References theChannelIncluded.

Referenced by DtInteractionRoMsg::addCallback(), channel(), channelFieldSize(), DtInteractionRoMsg::DtInteractionRoMsg(), DtInteractionRoMsg::internalDtRtiMsgKind(), DtInteractionRoMsg::printData(), DtInteractionRoMsg::removeCallback(), and setChannel().

virtual DtNetU32* DtInteractionMsg::channelPtr ( ) const

protectedpure virtual

Returns pointer to the channel in the netMsg.

Implemented in DtInteractionRoMsg.

Referenced by channel(), and setChannel().

void DtInteractionMsg::fillFromNetBigParams ( const DtNetBigParams *  netRepParams, DtPhvps &  params, bool  useMsgMemory, DtInteractionClassInfo *  classInfo = NULL  ) const

protectedvirtual

Fill the given parameter set with the message's parameters Supports parameter values > 64K Parameter value set allocates own memory for values or accesses the message's memory directly Fills in only subscribed attributes if class info is provided otherwise gets all attributes in message.

References DtNetBigParamValue::handle, nextNetBigParam(), numParams(), DtNetBigParams::numParams, and DtInteractionClassInfo::paramByHandle().

Referenced by getParams().

void DtInteractionMsg::fillFromNetParams ( const DtNetParams *  netRepParams, DtPhvps &  params, bool  useMsgMemory, DtInteractionClassInfo *  classInfo = NULL  ) const

protectedvirtual

Fill the given parameter set with the message's parameters Parameter value set allocates own memory for values or accesses the message's memory directly Fills in only subscribed attributes if class info is provided otherwise gets all attributes in message.

References DtNetParamValue::handle, nextNetParam(), DtNetParams::numParams, numParams(), and DtInteractionClassInfo::paramByHandle().

Referenced by getParams().

void DtInteractionMsg::fillNetBigParams ( const DtPhvps &  theParameters, DtNetBigParams *  netRepParams  )

protectedvirtual

Supports parameter values > 64K.

References DtNetBigParamValue::handle, nextNetBigParam(), DtNetBigParams::numParams, and DtNetBigParamValue::size.

Referenced by setParams().

void DtInteractionMsg::fillNetParams ( const DtPhvps &  theParameters, DtNetParams *  netRepParams  )

protectedvirtual

Fill message with given parameter set.

References DtNetParamValue::handle, nextNetParam(), DtNetParams::numParams, and DtNetParamValue::size.

Referenced by setParams().

void DtInteractionMsg::getParams ( DtPhvps &  params, bool  useMsgMemory, DtInteractionClassInfo *  classInfo = NULL  ) const

virtual

Parameter value set allocates own memory for values or accesses the message's memory directly Fills in only subscribed parameters if class info is provided otherwise gets all parameters in message.

References fillFromNetBigParams(), fillFromNetParams(), netBigParams(), netParams(), and DtRtiMsg::use32BitsForValueSize().

Referenced by DtInteractionRoMsg::printData(), and DtInteractionMgr::processInteraction().

virtual DtInteractionClassHandle DtInteractionMsg::handle ( ) const

pure virtual

Implemented in DtInteractionRoMsg.

Referenced by DtInteractionMgr::processInteraction(), and DtNetStatsMonitor::recordInteractionStats().

virtual DtNetBigParams* DtInteractionMsg::netBigParams ( )

protectedpure virtual

Supports big parameter values > 64K.

Implemented in DtInteractionRoMsg.

Referenced by getParams(), numParams(), and setParams().

virtual DtNetParams* DtInteractionMsg::netParams ( )

protectedpure virtual

Returns pointer to the network rep of the pvList.

Implemented in DtInteractionRoMsg.

Referenced by getParams(), numParams(), setParams(), and setSizeOfNetParams().

DtNetBigParamValue * DtInteractionMsg::nextNetBigParam ( DtNetBigParamValue *  netParam ) const

protectedvirtual

Supports parameter values > 64K.

References DtNetBigParamValue::totalSize().

Referenced by fillFromNetBigParams(), and fillNetBigParams().

DtNetParamValue * DtInteractionMsg::nextNetParam ( DtNetParamValue *  netParam ) const

protectedvirtual

Find pointer to next parameter in the network rep.

References DtNetParamValue::totalSize().

Referenced by fillFromNetParams(), and fillNetParams().

unsigned long DtInteractionMsg::numParams ( ) const

virtual

Get number of parameters.

References netBigParams(), netParams(), DtNetParams::numParams, DtNetBigParams::numParams, and DtRtiMsg::use32BitsForValueSize().

Referenced by fillFromNetBigParams(), fillFromNetParams(), DtInteractionRoMsg::printData(), and DtInteractionMgr::processInteraction().

DtInteractionMsg * DtInteractionMsg::self ( ) const

inlineprotectedvirtual

Returns pointer to the serial number in the netMsg.

Casts away const-ness

void DtInteractionMsg::setChannel ( unsigned long  handleValue )

virtual

Set/Get DDM channel.

References channelIncluded(), and channelPtr().

Referenced by DtInteractionRoMsg::DtInteractionRoMsg(), and DtInteractionRoMsg::set().

void DtInteractionMsg::setChannelIncluded ( bool  includeChannel )

static

Set/Get flag to include DDM channel identifier.

References theChannelIncluded.

Referenced by DtFedExec::DtFedExec(), DtInteractionMgr::DtInteractionMgr(), and DtConnectionMgr::initParams().

virtual void DtInteractionMsg::setHandle ( DtInteractionClassHandle  hand )

pure virtual

Set/Get handle.

Implemented in DtInteractionRoMsg.

void DtInteractionMsg::setParams ( const DtPhvps &  theParameters, bool  checkBufferSize = true  )

virtual

Set/Get parameters.

References fillNetBigParams(), fillNetParams(), netBigParams(), netParams(), setSizeOfNetParams(), sizeNeededForNetParams(), and DtRtiMsg::use32BitsForValueSize().

Referenced by DtInteractionRoMsg::DtInteractionRoMsg(), and DtInteractionRoMsg::set().

void DtInteractionMsg::setSizeOfNetParams ( unsigned long  size )

protectedvirtual

Sets size for the network rep of the pvList.

References DtRtiMsg::adjustBytes(), myParamFieldLength, and netParams().

Referenced by setParams().

void DtInteractionMsg::setTag ( char const *  tag )

virtual

Set/Get tag.

References DtRtiMsg::adjustBytes(), myTag, NULL, setTagSize(), tagFieldSize(), tagPtr(), and tagSize().

Referenced by DtInteractionRoMsg::DtInteractionRoMsg(), and DtInteractionRoMsg::set().

virtual void DtInteractionMsg::setTagSize ( int  size )

protectedpure virtual

Set/Get tag size.

Implemented in DtInteractionRoMsg.

Referenced by setTag().

unsigned long DtInteractionMsg::sizeNeededForNetParams ( const DtPhvps &  params ) const

protectedvirtual

Returns the size the network representation will consume.

References DtRtiMsg::use32BitsForValueSize().

Referenced by setParams().

char const * DtInteractionMsg::tag ( ) const

virtual

References myTag, NULL, tagPtr(), and tagSize().

Referenced by DtInteractionRoMsg::printData(), and DtInteractionMgr::processInteraction().

int DtInteractionMsg::tagFieldSize ( ) const

protectedvirtual

Returns size of tag field.

References tagSize().

Referenced by DtInteractionRoMsg::DtInteractionRoMsg(), DtInteractionRoMsg::netBigParams(), DtInteractionRoMsg::netParams(), and setTag().

virtual char* DtInteractionMsg::tagPtr ( )

protectedpure virtual

Returns pointer to the tag in the netMsg.

Implemented in DtInteractionRoMsg.

Referenced by setTag(), and tag().

virtual int DtInteractionMsg::tagSize ( ) const

protectedpure virtual

Implemented in DtInteractionRoMsg.

Referenced by setTag(), tag(), and tagFieldSize().

Member Data Documentation

unsigned long DtInteractionMsg::myParamFieldLength

protected

Referenced by DtInteractionRoMsg::DtInteractionRoMsg(), and setSizeOfNetParams().

char* DtInteractionMsg::myTag

protected

Referenced by setTag(), tag(), and ~DtInteractionMsg().

bool DtInteractionMsg::theChannelIncluded = false

staticprotected

Referenced by channelIncluded(), and setChannelIncluded().

---

The documentation for this class was generated from the following files:

• interactMsg.h
• interactMsg.cxx
