Dialog which displays the results of network latency testing for a particular initiating federate. More...

Inheritance diagram for DtLatencyTestDialog:

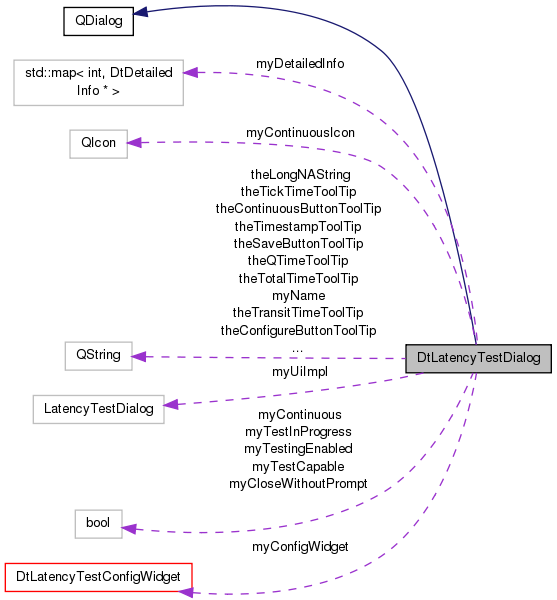

Collaboration diagram for DtLatencyTestDialog:

Classes
struct	DtDetailedInfo
	Structure to store detailed information. More...

Public Slots
virtual void	processRun ()
	Process the pressing of the run button.
virtual void	processContinuous ()
	Process the pressing of the continuous button.
virtual void	processStop ()
	Process the pressing of the stop button.
virtual void	processSave ()
	Process the pressing of the save button.
virtual void	processSelectionChange ()
	Process the selection of a new item in the table.
virtual void	setTestConfig (unsigned int interactionPeriod, unsigned int numInteractions, unsigned int payloadBytes)
	Set test configuration values.

Signals
void	run ()
	Signal emitted when run button is pressed.
void	runContinuous ()
	Signal emitted when run button is pressed in continuous mode.
void	stopRunning ()
	Signal emitted when stop button is pressed.
void	dismiss ()
	Signal emitted when the dialog is closed or dismissed.
void	updateTestConfig (unsigned int interactionPeriod, unsigned int numInteractions, unsigned int payloadBytes)
	Signal emitted when test configuration is updated.
void	observing ()
	Signal emitted when the dialog is ready to receive test reports.

Public Member Functions
	DtLatencyTestDialog (QWidget *parent=0, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtLatencyTestDialog ()
	Destructor.
virtual void	clearResults ()
	Clears the displayed results.
virtual void	addResult (const QString &recipName, unsigned int recipHandle, DtRIDParameters::DtAsynchronousIOModeEnum initProcModel, DtRIDParameters::DtAsynchronousIOModeEnum recipProcModel, unsigned int initTickTime, unsigned int recipTickTime, unsigned int bestEffortRoundTripTime, unsigned int reliableRoundTripTime, int initBestEffortQTime, int recipBestEffortQTime, int initReliableQTime, int recipReliableQTime)
	Adds a new test result.
virtual void	addTimeoutResult (const QString &recipName, unsigned int recipHandle)
	Adds a new timeout test result.
virtual void	setName (const QString &name)
	Renames the component.
virtual void	updateStatus (bool enabled, bool capable, bool continuous, bool inProgress)
	Updates the testing status.
virtual void	indicateFederateResigned ()
	Indicate on the dialog that federate has resigned.
virtual void	indicateRtiexecShutdown ()
	Indicate on the dialog that rtiexec has shutdown.
virtual bool	isTestInProgress ()
	Returns true if a test is currently in progress.
virtual void	closeWithoutPrompt ()
	Closes the dialog without displaying a prompt, even if a test is in progress.

Protected Types
enum	DtResultsTableCol { RecipientCol, TransitTimeCol, TimeWaitingCol, TotalTimeCol }
	Enumeration for the table columns. More...
typedef std::map< int, DtDetailedInfo * >	DtHandleToDetailedInfoMap
	Typedef for map of recipient handle to detailed info.

Protected Member Functions
virtual void	getWidgetsToUpdate (unsigned int recipHandle, QTableWidgetItem &recipItem, QTableWidgetItem &timeWaitingItem, QTableWidgetItem &transitTimeItem, QTableWidgetItem &totalTimeItem, DtDetailedInfo *&details)
	Gets the widgets in the dialog that should be updated to display the test results for the given recipient name.
virtual QString	federateNameToDisplay (unsigned int handle, const QString &name=QString::null)
	Creates the string to be used in the GUI display for the given federate.
virtual unsigned int	handleFromDisplayName (const QString &name)
	Returns the handle from the displayed federate name.
virtual QString	procModelString (DtRIDParameters::DtAsynchronousIOModeEnum procModel)
	Converts the processing model value to a string.
virtual void	clearDetailsDisplay ()
	Clears the detailed information display.
virtual void	setTitle ()
	Updates the title of the dialog.
virtual void	closeEvent (QCloseEvent *event)
	Handles the closing of the window.
virtual void	showEvent (QShowEvent *event)
	Prepare the dialog to be shown.

virtual void	convertToMsString (unsigned int usec, QString &result, const QString &notAvailableString=theLongNAString, bool zeroIsNotAvailable=true)
	Converts from usec to a string displaying msec.
virtual void	convertToMsString (int usec, QString &result, const QString &notAvailableString=theLongNAString, bool zeroIsNotAvailable=true)
	Converts from usec to a string displaying msec.

Protected Attributes
Ui::LatencyTestDialog	myUiImpl
QString	myName
	Name of the initiating federate.
QString	myStatusText
	Text which displays the current status.
DtHandleToDetailedInfoMap	myDetailedInfo
	Map of recipient handles to more detailed information.
DtLatencyTestConfigWidget *	myConfigWidget
	The widget which configures latency test parameters.
bool	myTestingEnabled
	Stores whether or not testing is enabled.
bool	myTestCapable
	Stores whether or not the LRC is currently capable of running a test.
bool	myTestInProgress
	Stores whether or not a test is in progress.
bool	myContinuous
	Stores whether or not the current test is continuous.
QIcon	myContinuousIcon
	Icon for the continuous button when it is not depressed.
QString	mySavedFile
	The previously saved file.
bool	myCloseWithoutPrompt
	Indicates that no prompt should be displayed when the dialog is closed.

Static Protected Attributes
static const QString	theShortNAString = "--"
	Short string used to indicate metric is not available.
static const QString	theLongNAString = "Not available"
	Longer string used to indicate metric is not available.

static const QString	theInitiatorToolTip = "The federate initiating test messages."
	Tool tip text for the displayed information.
static const QString	theRecipientToolTip = "The remote federate the initiator is sending messages to."
	Tool tip text for the displayed information.
static const QString	theTimeWaitingToolTip = "Shown as Best Effort Time / Reliable Time"
	Tool tip text for the displayed information.
static const QString	theTransitTimeToolTip = "Shown as Best Effort Time / Reliable Time"
	Tool tip text for the displayed information.
static const QString	theTotalTimeToolTip = "Shown as Best Effort Time / Reliable Time"
	Tool tip text for the displayed information.
static const QString	theTimestampToolTip = "The time at which this test result was received."
	Tool tip text for the displayed information.
static const QString	theProcModelToolTip = "Some metrics are not available in all modes."
	Tool tip text for the displayed information.
static const QString	theTickTimeToolTip = "The average time between ticks on this federate."
	Tool tip text for the displayed information.
static const QString	theQTimeToolTip = "Callbacks processing modes."
	Tool tip text for the displayed information.

static const QString	theRunButtonToolTip = "Run a test"
	Tool tip text for the dialog buttons.
static const QString	theStopButtonToolTip = "Stop the current test"
	Tool tip text for the dialog buttons.
static const QString	theContinuousButtonToolTip = "Run test continuously"
	Tool tip text for the dialog buttons.
static const QString	theConfigureButtonToolTip = "Configure test preferences"
	Tool tip text for the dialog buttons.
static const QString	theSaveButtonToolTip = "Save the results to a file"
	Tool tip text for the dialog buttons.

Detailed Description

Dialog which displays the results of network latency testing for a particular initiating federate.

Member Typedef Documentation

typedef std::map< int, DtDetailedInfo* > DtLatencyTestDialog::DtHandleToDetailedInfoMap

protected

Typedef for map of recipient handle to detailed info.

Member Enumeration Documentation

enum DtLatencyTestDialog::DtResultsTableCol

protected

Enumeration for the table columns.

Enumerator:

RecipientCol
TransitTimeCol
TimeWaitingCol
TotalTimeCol

Constructor & Destructor Documentation

DtLatencyTestDialog::DtLatencyTestDialog	(	QWidget *	parent = `0`,
		Qt::WindowFlags	f = `0`
	)

DtLatencyTestDialog::~DtLatencyTestDialog ( )

virtual

Destructor.

References myConfigWidget.

Member Function Documentation

void DtLatencyTestDialog::addResult	(	const QString &	recipName,
		unsigned int	recipHandle,
		DtRIDParameters::DtAsynchronousIOModeEnum	initProcModel,
		DtRIDParameters::DtAsynchronousIOModeEnum	recipProcModel,
		unsigned int	initTickTime,
		unsigned int	recipTickTime,
		unsigned int	bestEffortRoundTripTime,
		unsigned int	reliableRoundTripTime,
		int	initBestEffortQTime,
		int	recipBestEffortQTime,
		int	initReliableQTime,
		int	recipReliableQTime
	)

virtual

Adds a new test result.

Referenced by DtAssistantLatencyTestMgr::processLatencyTestResults().

void DtLatencyTestDialog::addTimeoutResult	(	const QString &	recipName,
		unsigned int	recipHandle
	)

virtual

Adds a new timeout test result.

References federateNameToDisplay(), getWidgetsToUpdate(), myUiImpl, DtLatencyTestDialog::DtDetailedInfo::recipName, and DtLatencyTestDialog::DtDetailedInfo::timestamp.

Referenced by DtAssistantLatencyTestMgr::processLatencyTestResults().

void DtLatencyTestDialog::clearDetailsDisplay ( )

protectedvirtual

Clears the detailed information display.

References myUiImpl.

Referenced by clearResults(), and processSelectionChange().

void DtLatencyTestDialog::clearResults ( )

virtual

Clears the displayed results.

References clearDetailsDisplay(), myDetailedInfo, and myUiImpl.

Referenced by closeEvent().

void DtLatencyTestDialog::closeEvent ( QCloseEvent * event )

protectedvirtual

Handles the closing of the window.

References clearResults(), dismiss(), myCloseWithoutPrompt, myContinuous, myTestInProgress, and updateStatus().

void DtLatencyTestDialog::closeWithoutPrompt ( )

virtual

Closes the dialog without displaying a prompt, even if a test is in progress.

References myCloseWithoutPrompt.

Referenced by DtAssistantLatencyTestMgr::verifyNewTestCanBeRun().

void DtLatencyTestDialog::convertToMsString	(	unsigned int	usec,
		QString &	result,
		const QString &	notAvailableString = `theLongNAString`,
		bool	zeroIsNotAvailable = `true`
	)

protectedvirtual

Converts from usec to a string displaying msec.

Referenced by addResult(), and convertToMsString().

void DtLatencyTestDialog::convertToMsString	(	int	usec,
		QString &	result,
		const QString &	notAvailableString = `theLongNAString`,
		bool	zeroIsNotAvailable = `true`
	)

protectedvirtual

Converts from usec to a string displaying msec.

References convertToMsString().

void DtLatencyTestDialog::dismiss ( )

signal

Signal emitted when the dialog is closed or dismissed.

Referenced by closeEvent().

QString DtLatencyTestDialog::federateNameToDisplay	(	unsigned int	handle,
		const QString &	name = `QString::null`
	)

protectedvirtual

Creates the string to be used in the GUI display for the given federate.

Referenced by addResult(), addTimeoutResult(), and getWidgetsToUpdate().

void DtLatencyTestDialog::getWidgetsToUpdate	(	unsigned int	recipHandle,
		QTableWidgetItem *&	recipItem,
		QTableWidgetItem *&	timeWaitingItem,
		QTableWidgetItem *&	transitTimeItem,
		QTableWidgetItem *&	totalTimeItem,
		DtDetailedInfo *&	details
	)

protectedvirtual

Gets the widgets in the dialog that should be updated to display the test results for the given recipient name.

References federateNameToDisplay(), myDetailedInfo, myUiImpl, RecipientCol, theRecipientToolTip, theTimeWaitingToolTip, theTotalTimeToolTip, theTransitTimeToolTip, TimeWaitingCol, TotalTimeCol, and TransitTimeCol.

Referenced by addResult(), and addTimeoutResult().

unsigned int DtLatencyTestDialog::handleFromDisplayName ( const QString & name )

protectedvirtual

Returns the handle from the displayed federate name.

Referenced by processSave(), and processSelectionChange().

void DtLatencyTestDialog::indicateFederateResigned ( )

virtual

Indicate on the dialog that federate has resigned.

References myStatusText, myTestCapable, myTestInProgress, myUiImpl, and setTitle().

Referenced by DtAssistantLatencyTestMgr::removeLrcComponent().

void DtLatencyTestDialog::indicateRtiexecShutdown ( )

virtual

Indicate on the dialog that rtiexec has shutdown.

References myStatusText, myTestCapable, myTestInProgress, myUiImpl, and setTitle().

Referenced by DtAssistantLatencyTestMgr::processConnectionsRemoval(), and DtAssistantLatencyTestMgr::processConnectionsUpdate().

bool DtLatencyTestDialog::isTestInProgress ( )

virtual

Returns true if a test is currently in progress.

References myTestInProgress.

Referenced by DtAssistantLatencyTestMgr::verifyNewTestCanBeRun().

void DtLatencyTestDialog::observing ( )

signal

Signal emitted when the dialog is ready to receive test reports.

Referenced by showEvent().

void DtLatencyTestDialog::processContinuous ( )

virtualslot

Process the pressing of the continuous button.

References myUiImpl, and runContinuous().

Referenced by DtLatencyTestDialog().

void DtLatencyTestDialog::processRun ( )

virtualslot

Process the pressing of the run button.

References myStatusText, myUiImpl, run(), runContinuous(), and setTitle().

Referenced by DtLatencyTestDialog(), and showEvent().

void DtLatencyTestDialog::processSave ( )

virtualslot

Process the pressing of the save button.

References handleFromDisplayName(), myDetailedInfo, myName, mySavedFile, and myUiImpl.

Referenced by DtLatencyTestDialog().

void DtLatencyTestDialog::processSelectionChange ( )

virtualslot

Process the selection of a new item in the table.

Referenced by DtLatencyTestDialog().

void DtLatencyTestDialog::processStop ( )

virtualslot

Process the pressing of the stop button.

References myStatusText, myTestInProgress, myUiImpl, setTitle(), and stopRunning().

Referenced by DtLatencyTestDialog().

QString DtLatencyTestDialog::procModelString ( DtRIDParameters::DtAsynchronousIOModeEnum procModel )

protectedvirtual

Converts the processing model value to a string.

References DtRIDParameters::DtAsynchronousCallbacks, DtRIDParameters::DtAsynchronousMode, DtRIDParameters::DtAsynchronousProcessMessage, and DtRIDParameters::DtSynchronousMode.

Referenced by addResult().

void DtLatencyTestDialog::run ( )

signal

Signal emitted when run button is pressed.

Referenced by processRun().

void DtLatencyTestDialog::runContinuous ( )

signal

Signal emitted when run button is pressed in continuous mode.

Referenced by processContinuous(), and processRun().

void DtLatencyTestDialog::setName ( const QString & name )

virtual

Renames the component.

References myName, myUiImpl, and setTitle().

Referenced by DtAssistantLatencyTestMgr::renameComponent(), DtAssistantLatencyTestMgr::showLrcLatencyTestDialog(), and DtAssistantLatencyTestMgr::showRtiexecLatencyTestDialog().

void DtLatencyTestDialog::setTestConfig	(	unsigned int	interactionPeriod,
		unsigned int	numInteractions,
		unsigned int	payloadBytes
	)

virtualslot

Set test configuration values.

References connect(), myConfigWidget, myUiImpl, DtLatencyTestConfigWidget::setConfig(), and updateTestConfig().

Referenced by DtAssistantLatencyTestMgr::showLrcLatencyTestDialog(), and DtAssistantLatencyTestMgr::showRtiexecLatencyTestDialog().

void DtLatencyTestDialog::setTitle ( )

protectedvirtual

Updates the title of the dialog.

References myName, and myStatusText.

Referenced by indicateFederateResigned(), indicateRtiexecShutdown(), processRun(), processStop(), setName(), and updateStatus().

void DtLatencyTestDialog::showEvent ( QShowEvent * event )

protectedvirtual

Prepare the dialog to be shown.

References myUiImpl, observing(), and processRun().

void DtLatencyTestDialog::stopRunning ( )

signal

Signal emitted when stop button is pressed.

Referenced by processStop().

void DtLatencyTestDialog::updateStatus	(	bool	enabled,
		bool	capable,
		bool	continuous,
		bool	inProgress
	)

virtual

Updates the testing status.

References myContinuous, myStatusText, myTestCapable, myTestingEnabled, myTestInProgress, myUiImpl, and setTitle().

Referenced by closeEvent(), DtAssistantLatencyTestMgr::processTestMgrStatusUpdate(), and DtAssistantLatencyTestMgr::updateFederateTestStatus().

void DtLatencyTestDialog::updateTestConfig	(	unsigned int	interactionPeriod,
		unsigned int	numInteractions,
		unsigned int	payloadBytes
	)

signal

Signal emitted when test configuration is updated.

Referenced by setTestConfig().

Member Data Documentation

bool DtLatencyTestDialog::myCloseWithoutPrompt

protected

Indicates that no prompt should be displayed when the dialog is closed.

Referenced by closeEvent(), and closeWithoutPrompt().

DtLatencyTestConfigWidget* DtLatencyTestDialog::myConfigWidget

protected

The widget which configures latency test parameters.

Referenced by setTestConfig(), and ~DtLatencyTestDialog().

bool DtLatencyTestDialog::myContinuous

protected

Stores whether or not the current test is continuous.

Referenced by closeEvent(), and updateStatus().

QIcon DtLatencyTestDialog::myContinuousIcon

protected

Icon for the continuous button when it is not depressed.

Referenced by DtLatencyTestDialog().

DtHandleToDetailedInfoMap DtLatencyTestDialog::myDetailedInfo

protected

Map of recipient handles to more detailed information.

Referenced by clearResults(), getWidgetsToUpdate(), processSave(), and processSelectionChange().

QString DtLatencyTestDialog::myName

protected

Name of the initiating federate.

Referenced by processSave(), setName(), and setTitle().

QString DtLatencyTestDialog::mySavedFile

protected

The previously saved file.

Referenced by processSave().

QString DtLatencyTestDialog::myStatusText

protected

Text which displays the current status.

Referenced by indicateFederateResigned(), indicateRtiexecShutdown(), processRun(), processStop(), setTitle(), and updateStatus().

bool DtLatencyTestDialog::myTestCapable

protected

Stores whether or not the LRC is currently capable of running a test.

Referenced by indicateFederateResigned(), indicateRtiexecShutdown(), and updateStatus().

bool DtLatencyTestDialog::myTestingEnabled

protected

Stores whether or not testing is enabled.

Referenced by updateStatus().

bool DtLatencyTestDialog::myTestInProgress

protected

Stores whether or not a test is in progress.

Referenced by closeEvent(), indicateFederateResigned(), indicateRtiexecShutdown(), isTestInProgress(), processStop(), and updateStatus().

Ui::LatencyTestDialog DtLatencyTestDialog::myUiImpl

protected

Referenced by addResult(), addTimeoutResult(), clearDetailsDisplay(), clearResults(), DtLatencyTestDialog(), getWidgetsToUpdate(), indicateFederateResigned(), indicateRtiexecShutdown(), processContinuous(), processRun(), processSave(), processSelectionChange(), processStop(), setName(), setTestConfig(), showEvent(), and updateStatus().

const QString DtLatencyTestDialog::theConfigureButtonToolTip = "Configure test preferences"

staticprotected

Tool tip text for the dialog buttons.

Referenced by DtLatencyTestDialog().

const QString DtLatencyTestDialog::theContinuousButtonToolTip = "Run test continuously"

staticprotected

Tool tip text for the dialog buttons.

Referenced by DtLatencyTestDialog().

const QString DtLatencyTestDialog::theInitiatorToolTip = "The federate initiating test messages."

staticprotected

Tool tip text for the displayed information.

Referenced by DtLatencyTestDialog().

const QString DtLatencyTestDialog::theLongNAString = "Not available"

staticprotected

Longer string used to indicate metric is not available.

Referenced by addResult().

const QString DtLatencyTestDialog::theProcModelToolTip = "Some metrics are not available in all modes."

staticprotected

Tool tip text for the displayed information.

Referenced by DtLatencyTestDialog().

const QString DtLatencyTestDialog::theQTimeToolTip = "Callbacks processing modes."

staticprotected

Tool tip text for the displayed information.

Referenced by DtLatencyTestDialog().

const QString DtLatencyTestDialog::theRecipientToolTip = "The remote federate the initiator is sending messages to."

staticprotected

Tool tip text for the displayed information.

Referenced by DtLatencyTestDialog(), and getWidgetsToUpdate().

const QString DtLatencyTestDialog::theRunButtonToolTip = "Run a test"

staticprotected

Tool tip text for the dialog buttons.

Referenced by DtLatencyTestDialog().

const QString DtLatencyTestDialog::theSaveButtonToolTip = "Save the results to a file"

staticprotected

Tool tip text for the dialog buttons.

Referenced by DtLatencyTestDialog().

const QString DtLatencyTestDialog::theShortNAString = "--"

staticprotected

Short string used to indicate metric is not available.

Referenced by addResult().

const QString DtLatencyTestDialog::theStopButtonToolTip = "Stop the current test"

staticprotected

Tool tip text for the dialog buttons.

Referenced by DtLatencyTestDialog().

const QString DtLatencyTestDialog::theTickTimeToolTip = "The average time between ticks on this federate."

staticprotected

Tool tip text for the displayed information.

Referenced by DtLatencyTestDialog().

const QString DtLatencyTestDialog::theTimestampToolTip = "The time at which this test result was received."

staticprotected

Tool tip text for the displayed information.

Referenced by DtLatencyTestDialog().

const QString DtLatencyTestDialog::theTimeWaitingToolTip = "Shown as Best Effort Time / Reliable Time"

staticprotected

Tool tip text for the displayed information.

Referenced by DtLatencyTestDialog(), and getWidgetsToUpdate().

const QString DtLatencyTestDialog::theTotalTimeToolTip = "Shown as Best Effort Time / Reliable Time"

staticprotected

Tool tip text for the displayed information.

Referenced by DtLatencyTestDialog(), and getWidgetsToUpdate().

const QString DtLatencyTestDialog::theTransitTimeToolTip = "Shown as Best Effort Time / Reliable Time"

staticprotected

Tool tip text for the displayed information.

Referenced by DtLatencyTestDialog(), and getWidgetsToUpdate().

The documentation for this class was generated from the following files:

Classes

Public Slots

Signals

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
