DtMessageCallbackManager< T_Message, T_MessageKind > Class Template Reference

The DtMessageCallbackManager template can be instantiated to declare a message callback manager for a given message class. More...

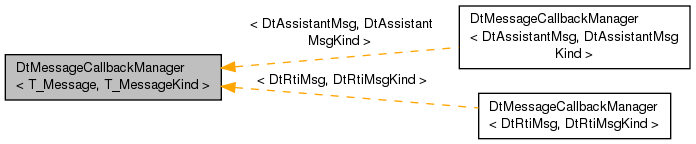

Inheritance diagram for DtMessageCallbackManager< T_Message, T_MessageKind >:

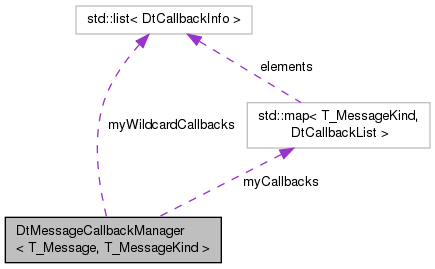

Collaboration diagram for DtMessageCallbackManager< T_Message, T_MessageKind >:

Public Types
typedef void(*	DtCallbackFcn )(const T_Message &msg, void *userData)

Public Member Functions
	DtMessageCallbackManager ()
	Constructor - Default.
	DtMessageCallbackManager (const DtMessageCallbackManager &orig)
	Constructor - Copy.
	~DtMessageCallbackManager ()
	Destructor.
DtMessageCallbackManager &	operator= (const DtMessageCallbackManager &orig)
	Operator - Assignment.
void	addMsgCallback (T_MessageKind k, DtCallbackFcn fcn, void *userData)
	Add a callback function for the given message kind and user data.
void	removeMsgCallback (T_MessageKind k, DtCallbackFcn fcn, void *userData)
	Remove a callback function for the given message kind and user data.
void	addWildcardMsgCallback (DtCallbackFcn fcn, void *userData)
	/brief Add a function callback for the given user data.
void	removeWildcardMsgCallback (DtCallbackFcn fcn, void *userData)
	Remove a function callback for the given user data.
void	processMsg (const T_Message &msg) const
	Call the callbacks registered for the msg's kind.
int	numCallbacks (T_MessageKind k)
	Return the number of callbacks registered for the msg kind.

Protected Types
typedef std::pair < DtCallbackFcn, void * >	DtCallbackInfo
	The callback function and user data passed to it.
typedef std::list< DtCallbackInfo >	DtCallbackList
	A callback function list.
typedef std::map < T_MessageKind, DtCallbackList >	DtCallbackMap
	A map from message kind to a list of callback functions.

Protected Attributes
DtCallbackMap	myCallbacks
	A map of message kinds to callback list.
DtCallbackList	myWildcardCallbacks
	A list of callbacks processed for all message kinds.

Detailed Description

template<typename T_Message, typename T_MessageKind>
class DtMessageCallbackManager< T_Message, T_MessageKind >

The DtMessageCallbackManager template can be instantiated to declare a message callback manager for a given message class.

The resulting message callback manager is used to register callbacks for specific message kinds. Processing a message will result in the invocation of all functions registered for the message kind. The callbacks are registered with user data that is supplied as a parameter to the function call. Typically, the user data is a pointer to the class instance that is registering a static function. The static function then performs a cast of the user data to the class and invokes a virtual function to handle the message.

Parameters

T_Message	- the message class
T_MessageKind	- the message kind enumeration type

Member Typedef Documentation

template<typename T_Message, typename T_MessageKind>

typedef void(* DtMessageCallbackManager< T_Message, T_MessageKind >::DtCallbackFcn)(const T_Message &msg, void *userData)

template<typename T_Message, typename T_MessageKind>

typedef std::pair<DtCallbackFcn, void*> DtMessageCallbackManager< T_Message, T_MessageKind >::DtCallbackInfo

protected

The callback function and user data passed to it.

template<typename T_Message, typename T_MessageKind>

typedef std::list<DtCallbackInfo> DtMessageCallbackManager< T_Message, T_MessageKind >::DtCallbackList

protected

A callback function list.

template<typename T_Message, typename T_MessageKind>

typedef std::map<T_MessageKind, DtCallbackList> DtMessageCallbackManager< T_Message, T_MessageKind >::DtCallbackMap

protected

A map from message kind to a list of callback functions.

Constructor & Destructor Documentation

template<typename T_Message , typename T_MessageKind >

DtMessageCallbackManager< T_Message, T_MessageKind >::DtMessageCallbackManager

(

)

Constructor - Default.

template<typename T_Message , typename T_MessageKind >

DtMessageCallbackManager< T_Message, T_MessageKind >::DtMessageCallbackManager

(

const DtMessageCallbackManager< T_Message, T_MessageKind > &

orig

)

Constructor - Copy.

References DtMessageCallbackManager< T_Message, T_MessageKind >::myCallbacks.

template<typename T_Message , typename T_MessageKind >

DtMessageCallbackManager< T_Message, T_MessageKind >::~DtMessageCallbackManager

(

)

Destructor.

Member Function Documentation

template<typename T_Message , typename T_MessageKind>

void DtMessageCallbackManager< T_Message, T_MessageKind >::addMsgCallback	(	T_MessageKind	k,
		DtCallbackFcn	fcn,
		void *	userData
	)

Add a callback function for the given message kind and user data.

The function is called for messages of the given kind with the user data as a parameter.

Exceptions

MAKRti::DtException

if function is NULL

Referenced by DtConnectionMgr::addMsgCallback().

template<typename T_Message , typename T_MessageKind >

void DtMessageCallbackManager< T_Message, T_MessageKind >::addWildcardMsgCallback	(	DtCallbackFcn	fcn,
		void *	userData
	)

/brief Add a function callback for the given user data.

The function is called for all messages with the user data as a parameter.

Referenced by DtConnectionMgr::addWildcardMsgCallback().

template<typename T_Message , typename T_MessageKind>

int DtMessageCallbackManager< T_Message, T_MessageKind >::numCallbacks

(

T_MessageKind

k

)

Return the number of callbacks registered for the msg kind.

Referenced by DtConnectionMgr::momProcessMsg(), DtRtiShmQNetMgr::processMsg(), and DtConnectionMgr::processMsg().

template<typename T_Message , typename T_MessageKind >

DtMessageCallbackManager< T_Message, T_MessageKind > & DtMessageCallbackManager< T_Message, T_MessageKind >::operator=

(

const DtMessageCallbackManager< T_Message, T_MessageKind > &

orig

)

Operator - Assignment.

References DtMessageCallbackManager< T_Message, T_MessageKind >::myCallbacks.

template<typename T_Message, typename T_MessageKind >

void DtMessageCallbackManager< T_Message, T_MessageKind >::processMsg

(

const T_Message &

msg

)

const

Call the callbacks registered for the msg's kind.

Referenced by DtConnectionMgr::momProcessMsg(), DtRtiShmQNetMgr::processMsg(), and DtConnectionMgr::processMsg().

template<typename T_Message , typename T_MessageKind>

void DtMessageCallbackManager< T_Message, T_MessageKind >::removeMsgCallback	(	T_MessageKind	k,
		DtCallbackFcn	fcn,
		void *	userData
	)

Remove a callback function for the given message kind and user data.

Referenced by DtConnectionMgr::removeMsgCallback().

template<typename T_Message , typename T_MessageKind >

void DtMessageCallbackManager< T_Message, T_MessageKind >::removeWildcardMsgCallback	(	DtCallbackFcn	fcn,
		void *	userData
	)

Remove a function callback for the given user data.

Referenced by DtConnectionMgr::removeWildcardMsgCallback().

Member Data Documentation

template<typename T_Message, typename T_MessageKind>

DtCallbackMap DtMessageCallbackManager< T_Message, T_MessageKind >::myCallbacks

protected

A map of message kinds to callback list.

Each callback list holds callbacks for the specific message kind.

Referenced by DtMessageCallbackManager< T_Message, T_MessageKind >::DtMessageCallbackManager(), and DtMessageCallbackManager< T_Message, T_MessageKind >::operator=().

template<typename T_Message, typename T_MessageKind>

DtCallbackList DtMessageCallbackManager< T_Message, T_MessageKind >::myWildcardCallbacks

protected

A list of callbacks processed for all message kinds.

---

The documentation for this class was generated from the following files:

• messageCallbackManager.h
• messageCallbackManager.inl
