Instances of DtPartnerMgr process partner messages to establish federate partners in an unlicensed federation execution. More...

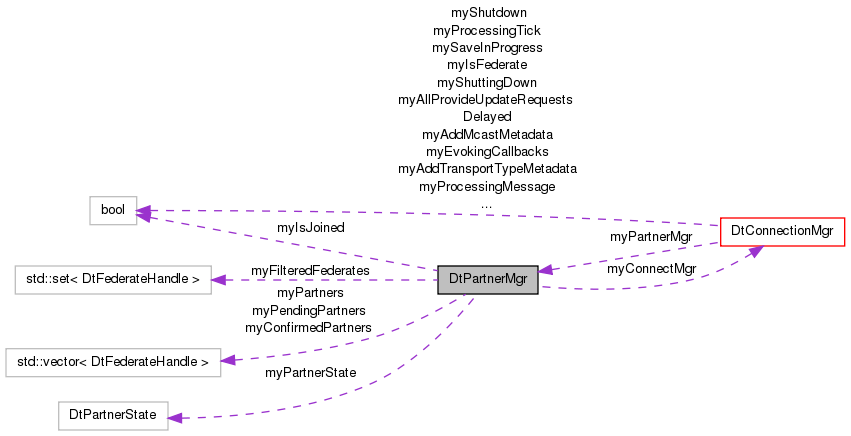

Collaboration diagram for DtPartnerMgr:

Public Member Functions
	DtPartnerMgr (DtConnectionMgr *connectMgr)
	Constructor.
	~DtPartnerMgr ()
	Destructor.
virtual void	joinFederationExecution (const char federateType, const char executionName, const char *federateName, unsigned long flags)
	Start up partner management.
virtual void	resign ()
	Shut down partner management.
virtual bool	acceptMessage (const DtRtiMsg &msg)
	Return boolean: message should be accepted?

Protected Member Functions
virtual void	sendJoinMessage (MAKRti::DtString federateType, MAKRti::DtString fedexName, MAKRti::DtString federateName)
	Send a lightweight join message.
virtual void	sendPartnerMessage (DtFederateHandle partnerFederate, DtPartnerResponse response)
	Send a partner response message.
virtual void	processOtherMessage (DtRtiMsg const &msg)
	Process all other messages.
virtual void	processResignMessage (const DtResignMsg &msg)
	Process resign message.
virtual void	processPartnerMessage (const DtPartnerFederateMsg &msg)
	Partner federate message callback.
virtual void	processPartnerAccept (const DtPartnerFederateMsg &msg)
	Process partner federate message callback for accept response.
virtual void	processPartnerConfirm (const DtPartnerFederateMsg &msg)
	Process partner federate message callback for confirm response.
virtual void	processPartnerReject (const DtPartnerFederateMsg &msg)
	Process partner federate message callback for reject response.
virtual bool	partnerSlotAvailable () const
	Return boolean: Is a partner slot available?
virtual bool	waitingForConfirm () const
	Return boolean: Is there any partner that needs to be confirmed?
virtual bool	isPartner (DtFederateHandle federate) const
	Return boolean: Is the given federate a partner?
virtual bool	isPending (DtFederateHandle federate) const
	Return boolean: Is the given federate a pending partner? (false if not a partner or partner but confirmed)
virtual bool	isConfirmed (DtFederateHandle federate) const
	Return boolean: Is the given federate a confirmed partner? (false if not a partner or partner but pending)
virtual void	acceptPartner (DtFederateHandle federate, bool confirmed=false)
	Accept the given federate as a partner. Partner may either be pending or confirmed.
virtual void	confirmPartner (DtFederateHandle federate)
	Change the status of a partner to confirmed.
virtual void	removePartner (DtFederateHandle federate)
	Remove the given federate as a partner.
virtual void	removePendingPartner (DtFederateHandle federate)
	Remove the given federate as a pending partner.
virtual void	removeConfirmedPartner (DtFederateHandle federate)
	Remove the given federate as a confirmed partner.
virtual bool	isMe (DtFederateHandle federate) const
	Return boolean: given federate handle is mine.
virtual DtFederateHandle	federateHandle () const
	Return federate handle.

Protected Attributes
DtConnectionMgr *	myConnectMgr
	Access to connection manager.
bool	myIsJoined
	Join status.
DtPartnerState	myPartnerState
	Partnering acceptance/confirm state.
std::vector< DtFederateHandle >	myPartners
	List of partners.
std::vector< DtFederateHandle >	myPendingPartners
	List of pending partners.
std::vector< DtFederateHandle >	myConfirmedPartners
	List of confirmed partners.
DtFederateHandleStdSet	myFilteredFederates
	List of license opposites that are being filtered.

Private Member Functions
	DtPartnerMgr (DtPartnerMgr const &)
	Copy Constructor not implemented – Copy Not Allowed!
DtPartnerMgr &	operator= (DtPartnerMgr const &)
	Assignment not implemented – Assignment Not Allowed!

Detailed Description

Instances of DtPartnerMgr process partner messages to establish federate partners in an unlicensed federation execution.

Constructor & Destructor Documentation

DtPartnerMgr::DtPartnerMgr ( DtConnectionMgr * connectMgr )

Constructor.

References DtMAX_PARTNERS, and DtUseFedObservers.

DtPartnerMgr::~DtPartnerMgr ( )

Destructor.

DtPartnerMgr::DtPartnerMgr ( DtPartnerMgr const & )

private

Copy Constructor not implemented – Copy Not Allowed!

Member Function Documentation

bool DtPartnerMgr::acceptMessage ( const DtRtiMsg & msg )

virtual

Return boolean: message should be accepted?

References DtPartnerFederateMsgKind, DtResignMsgKind, DtUseFedObservers, DtRtiMsg::federateHandle(), DtNetMsgHeader::flags, isPartner(), DtRtiMsg::msgKind(), myFilteredFederates, myIsJoined, DtRtiMsg::netHeader(), processOtherMessage(), processPartnerMessage(), and processResignMessage().

Referenced by DtConnectionMgr::processMsg().

void DtPartnerMgr::acceptPartner	(	DtFederateHandle	federate,
		bool	confirmed = `false`
	)

protectedvirtual

Accept the given federate as a partner. Partner may either be pending or confirmed.

References DtUseFedObservers, isConfirmed(), isPartner(), isPending(), myConfirmedPartners, myPartners, myPendingPartners, removeConfirmedPartner(), and removePendingPartner().

Referenced by confirmPartner(), processOtherMessage(), and processPartnerAccept().

void DtPartnerMgr::confirmPartner ( DtFederateHandle federate )

protectedvirtual

Change the status of a partner to confirmed.

References acceptPartner(), isConfirmed(), and isPending().

Referenced by processPartnerConfirm().

DtFederateHandle DtPartnerMgr::federateHandle ( ) const

protectedvirtual

Return federate handle.

References DtConnectionMgr::fedHandle(), and myConnectMgr.

Referenced by isMe().

bool DtPartnerMgr::isConfirmed ( DtFederateHandle federate ) const

protectedvirtual

Return boolean: Is the given federate a confirmed partner? (false if not a partner or partner but pending)

References myConfirmedPartners.

Referenced by acceptPartner(), and confirmPartner().

bool DtPartnerMgr::isMe ( DtFederateHandle federate ) const

protectedvirtual

Return boolean: given federate handle is mine.

References federateHandle().

Referenced by processOtherMessage(), processPartnerAccept(), processPartnerConfirm(), processPartnerMessage(), and processPartnerReject().

bool DtPartnerMgr::isPartner ( DtFederateHandle federate ) const

protectedvirtual

Return boolean: Is the given federate a partner?

References myPartners.

Referenced by acceptMessage(), acceptPartner(), processOtherMessage(), processPartnerAccept(), processPartnerConfirm(), and processResignMessage().

bool DtPartnerMgr::isPending ( DtFederateHandle federate ) const

protectedvirtual

Return boolean: Is the given federate a pending partner? (false if not a partner or partner but confirmed)

References myPendingPartners.

Referenced by acceptPartner(), and confirmPartner().

void DtPartnerMgr::joinFederationExecution	(	const char *	federateType,
		const char *	executionName,
		const char *	federateName,
		unsigned long	flags
	)

virtual

Start up partner management.

References DtPartnerAccepting, myConnectMgr, myIsJoined, myPartnerState, DtConnectionMgr::params(), sendJoinMessage(), and DtRIDParameters::useRtiExec.

Referenced by DtSimpleFederateMgr::joinFederationExecution().

DtPartnerMgr& DtPartnerMgr::operator= ( DtPartnerMgr const & )

private

Assignment not implemented – Assignment Not Allowed!

bool DtPartnerMgr::partnerSlotAvailable ( ) const

protectedvirtual

Return boolean: Is a partner slot available?

References DtUseFedObservers, and myPartners.

Referenced by processOtherMessage(), processPartnerAccept(), processPartnerConfirm(), and processResignMessage().

void DtPartnerMgr::processOtherMessage ( DtRtiMsg const & msg )

protectedvirtual

Process all other messages.

References acceptPartner(), DtPartnerAccepting, DtPartnerConfirmed, DtPartnerPendingConfirm, DtPartnerResponseAccept, DtPartnerResponseReject, DtRtiMsg::federateHandle(), isMe(), isPartner(), myPartnerState, partnerSlotAvailable(), and sendPartnerMessage().

Referenced by acceptMessage().

void DtPartnerMgr::processPartnerAccept ( const DtPartnerFederateMsg & msg )

protectedvirtual

Process partner federate message callback for accept response.

References acceptPartner(), DtPartnerAccepting, DtPartnerConfirmed, DtPartnerPendingConfirm, DtPartnerResponseConfirm, DtPartnerResponseReject, DtUseFedObservers, DtRtiMsg::federateHandle(), isMe(), isPartner(), myPartnerState, DtPartnerFederateMsg::partnerFederate(), partnerSlotAvailable(), sendPartnerMessage(), and waitingForConfirm().

Referenced by processPartnerMessage().

void DtPartnerMgr::processPartnerConfirm ( const DtPartnerFederateMsg & msg )

protectedvirtual

Process partner federate message callback for confirm response.

References confirmPartner(), DtPartnerConfirmed, DtPartnerPendingConfirm, DtPartnerResponseReject, DtUseFedObservers, DtRtiMsg::federateHandle(), isMe(), isPartner(), myPartnerState, DtPartnerFederateMsg::partnerFederate(), partnerSlotAvailable(), sendPartnerMessage(), and waitingForConfirm().

Referenced by processPartnerMessage().

void DtPartnerMgr::processPartnerMessage ( const DtPartnerFederateMsg & msg )

protectedvirtual

Partner federate message callback.

References DtPartnerResponseAccept, DtPartnerResponseConfirm, DtPartnerResponseInvalid, DtPartnerResponseReject, DtRtiMsg::federateHandle(), isMe(), DtPartnerFederateMsg::partnerResponse(), processPartnerAccept(), processPartnerConfirm(), and processPartnerReject().

Referenced by acceptMessage().

void DtPartnerMgr::processPartnerReject ( const DtPartnerFederateMsg & msg )

protectedvirtual

Process partner federate message callback for reject response.

References rti1516::CANCEL_THEN_DELETE_THEN_DIVEST, rti1516e::CANCEL_THEN_DELETE_THEN_DIVEST, RTI::DELETE_OBJECTS_AND_RELEASE_ATTRIBUTES, DtPartnerResponseReject, DtToWString(), DtUseFedObservers, DtRtiMsg::federateHandle(), DtConnectionMgr::fedMgr(), isMe(), myConnectMgr, DtPartnerFederateMsg::partnerFederate(), DtAssistantPopupHelper::popupAssistantMessage(), DtFederateMgr::resignFederationExecution(), and sendPartnerMessage().

Referenced by processPartnerMessage().

void DtPartnerMgr::processResignMessage ( const DtResignMsg & msg )

protectedvirtual

Process resign message.

References DtPartnerAccepting, DtRtiMsg::federateHandle(), isPartner(), myPartnerState, partnerSlotAvailable(), and removePartner().

Referenced by acceptMessage().

void DtPartnerMgr::removeConfirmedPartner ( DtFederateHandle federate )

protectedvirtual

Remove the given federate as a confirmed partner.

noop if federate was not confirmed.

References myConfirmedPartners.

Referenced by acceptPartner(), and removePartner().

void DtPartnerMgr::removePartner ( DtFederateHandle federate )

protectedvirtual

Remove the given federate as a partner.

noop if federate was not partner.

References myPartners, removeConfirmedPartner(), and removePendingPartner().

Referenced by processResignMessage().

void DtPartnerMgr::removePendingPartner ( DtFederateHandle federate )

protectedvirtual

Remove the given federate as a pending partner.

noop if federate was not pending.

References myPendingPartners.

Referenced by acceptPartner(), and removePartner().

void DtPartnerMgr::resign ( )

virtual

Shut down partner management.

References DtPartnerAccepting, myConfirmedPartners, myIsJoined, myPartners, myPartnerState, and myPendingPartners.

void DtPartnerMgr::sendJoinMessage	(	MAKRti::DtString	federateType,
		MAKRti::DtString	fedexName,
		MAKRti::DtString	federateName
	)

protectedvirtual

Send a lightweight join message.

References DtConnectionMgr::create(), DtJoinLightWeightMsgKind, DtConnectionMgr::internalTransportType(), myConnectMgr, DtRIDParameters::networkInterfaceAddr(), DtConnectionMgr::params(), DtConnectionMgr::sendStampedAndDelete(), DtJoinLightWeightMsg::set(), and DtJoinLightWeightMsg::setIpAddress().

Referenced by joinFederationExecution().

void DtPartnerMgr::sendPartnerMessage	(	DtFederateHandle	partnerFederate,
		DtPartnerResponse	response
	)

protectedvirtual

Send a partner response message.

References DtConnectionMgr::create(), DtPartnerFederateMsgKind, DtConnectionMgr::internalTransportType(), myConnectMgr, DtConnectionMgr::sendStampedAndDelete(), and DtPartnerFederateMsg::set().

Referenced by processOtherMessage(), processPartnerAccept(), processPartnerConfirm(), and processPartnerReject().

bool DtPartnerMgr::waitingForConfirm ( ) const

protectedvirtual

Return boolean: Is there any partner that needs to be confirmed?

References DtUseFedObservers, and myConfirmedPartners.

Referenced by processPartnerAccept(), and processPartnerConfirm().

Member Data Documentation

std::vector<DtFederateHandle> DtPartnerMgr::myConfirmedPartners

protected

List of confirmed partners.

Referenced by acceptPartner(), isConfirmed(), removeConfirmedPartner(), resign(), and waitingForConfirm().

DtConnectionMgr* DtPartnerMgr::myConnectMgr

protected

Access to connection manager.

Referenced by federateHandle(), joinFederationExecution(), processPartnerReject(), sendJoinMessage(), and sendPartnerMessage().

DtFederateHandleStdSet DtPartnerMgr::myFilteredFederates

protected

List of license opposites that are being filtered.

Referenced by acceptMessage().

bool DtPartnerMgr::myIsJoined

protected

Join status.

Referenced by acceptMessage(), joinFederationExecution(), and resign().

std::vector<DtFederateHandle> DtPartnerMgr::myPartners

protected

List of partners.

Referenced by acceptPartner(), isPartner(), partnerSlotAvailable(), removePartner(), and resign().

DtPartnerState DtPartnerMgr::myPartnerState

protected

Partnering acceptance/confirm state.

Referenced by joinFederationExecution(), processOtherMessage(), processPartnerAccept(), processPartnerConfirm(), processResignMessage(), and resign().

std::vector<DtFederateHandle> DtPartnerMgr::myPendingPartners

protected

List of pending partners.

Referenced by acceptPartner(), isPending(), removePendingPartner(), and resign().

The documentation for this class was generated from the following files:
