The RTI object maintains the internal RTI object state. More...

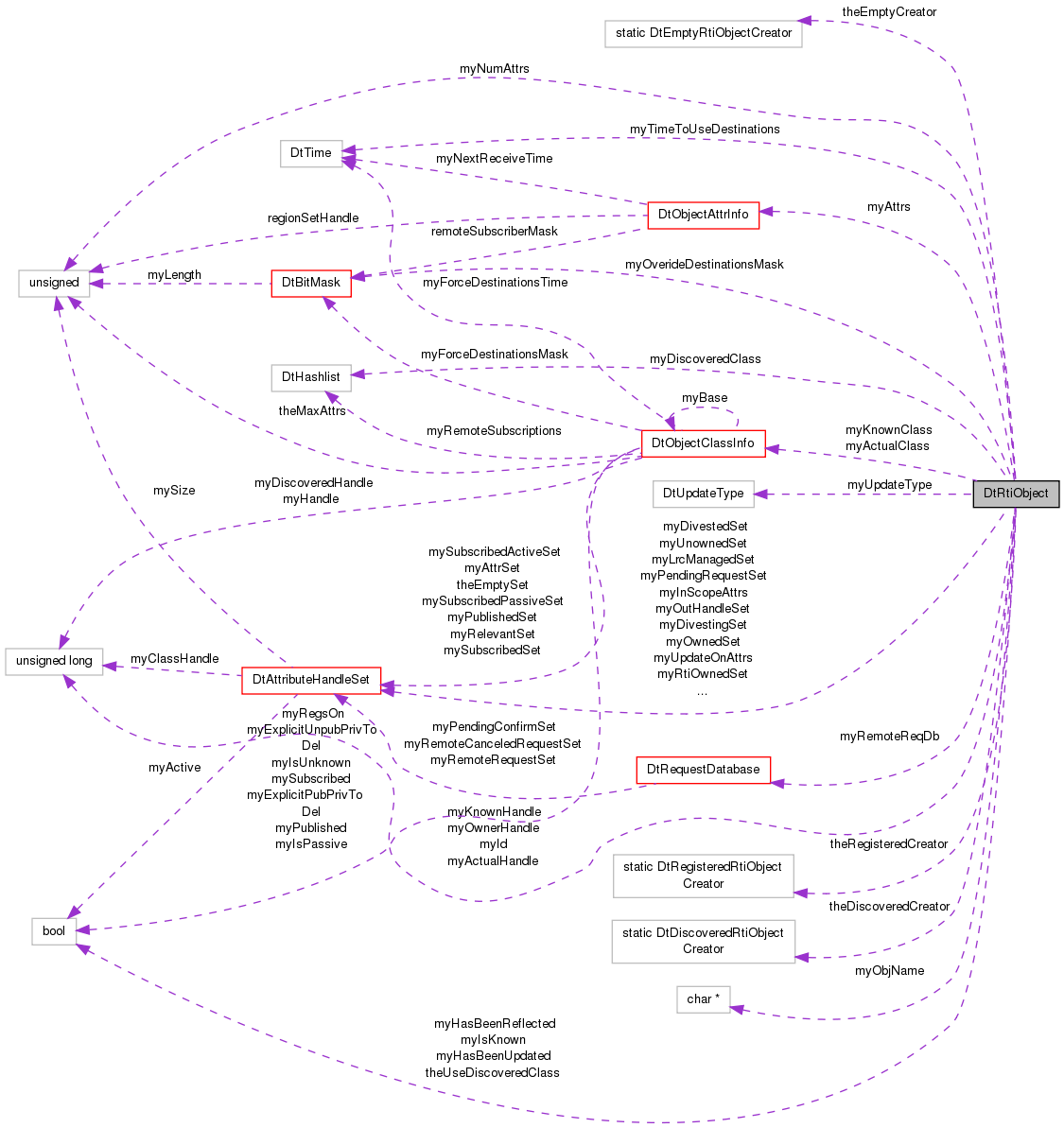

Collaboration diagram for DtRtiObject:

Public Member Functions
virtual	~DtRtiObject ()
	Destructor.
	DtRtiObject (const DtRtiObject &orig)
	Copy constructor Copies object state only!
const DtRtiObject &	operator= (const DtRtiObject &orig)
	assignment operator Assigned object state only!
void	initUpdateRates (const MAKRti::DtUpdateRateSetT rates)
	push update rates into each object attribute
virtual const char *	objName () const
	Set/Get my name.
virtual void	setObjName (const char *name)
virtual DtObjectClassHandle	actualClassHandle () const
	Returns class handle of the object.
virtual DtObjectClassHandle	knownClassHandle () const
	Returns class handle indicating class by which the federate knows the object.
virtual void	setKnownClass (DtObjectClassInfo *classInfo)
	Set the known class.
virtual DtObjectClassInfo *	knownClass ()
	Returns the known class of the object.
virtual DtObjectClassInfo *	actualClass ()
	Returns the actual (registered) class of the object.
virtual int	owned (DtAttributeHandle handle) const
	Returns 1 if handle is owned by the object, 0 otherwise.
virtual bool	ownPriviledgeToDelete ()
	Returns true if the priviledgeToDelete attribute is locally owned, false otherwise.
virtual DtFederateHandle	ownerHandle () const
	Set/Get the federate who owns the priviledgeToDelete attribute.
virtual void	setOwnerHandle (DtFederateHandle handle)
virtual void	setIsKnown (bool isKnownValue)
	Set/Get known status of object This status can not be determined by status of attributes.
virtual bool	isKnown () const
DtUpdateType	updateType () const
	Return the object's update type.
virtual void	setDiscoveredClass (DtFederateHandle remoteFedHandle, DtObjectClassInfo const &classInfo)
	Set the discovery class for the remote federate As a result, the remote federates subscription information is reset with this class and attribute advisory status may change.
virtual void	removeDiscoveredClass (DtFederateHandle remoteFedHandle)
	Remove the discovery class for the remote federate As a result, the remote federates subscription information is removed and attribute advisory status may change.
virtual DtObjectClassHandle	discoveredClass (DtFederateHandle remoteFedHandle)
	Get the discovery class for the remote federate.
virtual bool	isDiscovered (DtFederateHandle remoteFedHandle)
	Return bool: is object discovered by federate?
virtual bool	hasBeenUpdated () const
	Returns bool: has object been updated by this federate.
virtual void	markAsUpdated ()
	Mark object as having been updated by this federate.
virtual bool	hasBeenReflected () const
	Returns bool: has object been reflected by this federate.
virtual void	markAsReflected ()
	Mark object as having been reflected by this federate.
virtual int	rtiOwned (DtAttributeHandle handle) const
	Returns 1 if handle is owned by the RTI, 0 otherwise.
virtual int	lrcManaged (DtAttributeHandle handle) const
	Returns 1 if handle is unowned, and managed by the LRC, 0 otherwise.
virtual void	takeFromLrc (const DtAttributeHandleSet &set)
	Transfer ownership from local LRC to local federate.
virtual void	giveToLrc (const DtAttributeHandleSet &set)
	Transfer attributes from local federate to local LRC as unowned.
virtual void	divestToLrc (const DtAttributeHandleSet &set)
	Transfer attributes from local federate to local LRC as divested.
virtual void	giveToRti (const DtAttributeHandleSet &set)
	Transfer ownership to local RTI.
virtual void	lrcUnmanage (const DtAttributeHandleSet &set)
	Remove the elements of set from the set of attributes managed by the local LRC.
virtual void	addRemoteRequest (const DtAttributeHandleSet &requestSet, DtFederateHandle fed)
	Call to indicate that a remote federate has requested ownership of requestSet.
virtual void	cancelDivest (const DtAttributeHandleSet &set)
	Cancel a divest.
virtual void	cancelRemoteRequest (const DtAttributeHandleSet &requestSet, DtFederateHandle fed)
	Cancel the remote request.
virtual void	cancelAllRemoteRequests (const DtAttributeHandleSet &requestSet)
	Cancel all remote requests for supplied attributes.
virtual void	removeCanceledRequests (DtAttributeHandleSet const &requestSet)
	Get the cancelled request set.
virtual DtAttributeHandleSet	canceledRequestSet () const
	Get the cancelled request set.
virtual bool	isRequestCanceled (DtAttributeHandle hand)
	Returns boolean: is there a canceled request for the attribute for which the federate has not responded?
virtual int	requestCount () const
	Returns the number of request by all federates.
virtual DtAttributeHandleSet const &	requestedAttributes () const
	Return the set of requested attributes.
virtual int	confirmCount () const
	Returns the number of attributes pending divestiture confirmation.
virtual DtAttributeHandleSet const &	pendingConfirmAttributes () const
	Return the set of pedning confirmed attributes.
virtual DtFederateHandle	pendingRemoteRequest (DtAttributeHandle hand)
	Returns the handle of the federate that has most recently requested ownership of this attribute.
virtual DtFederateHandle	pendingConfirm (DtAttributeHandle hand) const
	Returns the handle of the federate that will get ownership of attribute when confirmed.
virtual DtFederateHandle	releaseRequested (const DtAttributeHandleSet &inSet, DtAttributeHandleSet *releasedSet, bool keepForConfirm)
	Calls to this method with the attributes provided in inSet will release and return in releaseSet any matching requested attributes from a single requesting federate, whose handle is the return argument.
virtual DtFederateHandle	releaseConfirm (const DtAttributeHandleSet &inSet, DtAttributeHandleSet *releasedSet)
	Calls to this method with the attributes provided in inSet will release and return in releaseSet any matching pending confirm attributes assigned to a single requesting federate, whose handle is the return argument.
virtual DtAttributeHandleSet	requestedByFed (DtFederateHandle fed, bool includePendingConfirm=false)
	Returns the set of attributes most recently requested by fed.
virtual DtAttributeHandleSet	pendingConfirmByFed (DtFederateHandle fed) const
	Returns only the current set of attributes that are pending confirm for fed.
virtual DtFederateHandle	unavailablePendingRequests (DtAttributeHandleSet *invalidatedSet)
	Get the next federate with requests that have become unavailable and the invalidated attrs.
virtual void	releaseAttrs (const DtAttributeHandleSet &releaseSet)
	Release ownership of these attributes.
virtual void	takeAttrs (const DtAttributeHandleSet &takeSet)
	Take ownership of these attributes.
virtual bool	okToReceive (DtHandle attrHandle, float tolerance)
	Update Rate Reduction receive-side test.
virtual unsigned int	computeAttrOffset (DtHandle attrHandle)
	Compute Update Rate Reduction send-side mcast destination address.
virtual const DtAttributeHandleSet &	filterOwned (const DtAttributeHandleSet &inSet) const
	Returns a set that contains those members of inSet that are owned by the federate.
virtual int	expectedCount (const DtAhvps &inSet, DtHandle regSetHandle) const
	Returns the number of attributes in inSet that are expected (subscribed) by the federate.
virtual void	selectExpected (DtAhvps &outSet, const DtAhvps &inSet, DtHandle regSetHandle) const
	Fills the outSet with the attributes in inSet that are expected (subscribed) by the federate.
virtual void	removeUnexpected (DtAhvps &attrSet, DtHandle regSetHandle) const
	Remove those members of attrSet that are not expected (subscribed) by the federate.
virtual int	isOfActualClass (DtAttributeHandle handle) const
	Return 1 if the object is of actualclass handle, or is of a class that's a subclass of handle.
virtual int	isOfKnownClass (DtAttributeHandle handle) const
	Return 1 if the object is of known class handle, or is of a class that's a subclass of handle.
virtual int	expecting (DtAttributeHandle handle, DtHandle regSetHandle) const
	Returns 1 if we are expected (subscribed to) this attribute, else 0.
virtual const DtAttributeHandleSet &	lrcManagedAttrs ()
	Returns the set of unowned attributes managed by our LRC.
virtual const DtAttributeHandleSet &	ownedAttrs ()
	Returns the set of owned attributes managed by our LRC.
virtual const DtAttributeHandleSet &	rtiOwnedAttrs ()
	Returns the set of rti owned attributes managed by our LRC.
virtual const DtAttributeHandleSet &	divestingAttrs ()
	Returns the set of attributes currently being divested.
virtual const DtAttributeHandleSet &	divestedAttrs ()
	Returns the set of attributes unconditionaly divested and managed by LRC.
virtual const DtAttributeHandleSet &	uncondRequestedAttrs ()
	Returns the set of attributes currently being unconditionally requested.
virtual const DtAttributeHandleSet &	ifAvailRequestedAttrs ()
	Returns the set of attributes currently being if available requested.
virtual int	inScope (DtAttributeHandle handle) const
	Returns boolean: is attribute in scope?
virtual const DtAttributeHandleSet &	inScopeAttrs ()
	Returns the set of attributes that are in scope.
virtual bool	inScope () const
	Returns boolean: is any attribute in scope?
virtual void	addToScope (DtAttributeHandle handle)
	Add the attributes to scope.
virtual void	addToScope (const DtAttributeHandleSet &attrs)
	Add the attributes to scope.
virtual void	removeFromScope (DtAttributeHandle handle)
	Remove the attributes from scope.
virtual void	removeFromScope (const DtAttributeHandleSet &attrs)
	Remove the attributes from scope.
virtual void	acquireRemoteSubscriptions (const DtAttributeHandleSet &attrs, DtFomClassMgr *fom)
	Collect the remote subscriptions that match these acquired attributes.
virtual void	overrideDestinations (DtBitMask const &mask)
	Override the destinations with this mask.
virtual void	setAllDestinations ()
	Adds all destinations to all attributes.
virtual void	divestRemoteSubscriptions (const DtAttributeHandleSet &attrs)
	Remove the remote subscription status for each of these divested attrs.
virtual bool	isUpdateOn (DtAttributeHandle handle) const
	Returns boolean: is attribute update on?
virtual DtAttributeHandleSet	updateOnAttrs () const
	Returns the set of owned attributes that are turned on.
virtual DtAttributeHandleSet	updateOffAttrs () const
	Returns the set of owned attributes that are turned off.
virtual bool	isUpdateOn () const
	Returns boolean: is any attribute turned on?
virtual MAKRti::DtTransportType	attrTransport (DtAttributeHandle theHandle)
	Get attribute transport type from handle.
virtual MAKRti::DtOrderType	attrOrder (DtAttributeHandle theHandle)
	Get attribute order from handle.
virtual void	setAttrTransport (DtAttributeHandle theHandle, MAKRti::DtTransportType transport)
	Set attribute transport type from handle.
virtual void	setAttrOrder (DtAttributeHandle theHandle, MAKRti::DtOrderType order)
	Set attribute order from handle.
virtual bool	attrHasDimensions (DtAttributeHandle attrHandle) const
	Return bool: attribute has associated DDM dimensions (where DM default region has all dimensions)?
virtual bool	decode (const char buff, DtFomClassMgr fom)
	Decode object data for restore Return: data successfully decoded?
void	setTimeToUseDestinations (MAKRti::DtTime timeVal)
	Set time to use attribute destinations.
MAKRti::DtTime	timeToUseDestinations () const
	Get time to use attribute destinations.

virtual void	setObjHandle (DtObjectInstanceHandle handle)
	Set/Get my object handle.
virtual DtObjectInstanceHandle	objHandle () const
	Set/Get my object handle.
virtual DtObjectInstanceHandle	id () const
	Set/Get my object handle.

virtual void	addRequest (const DtAttributeHandleSet &requestSet, bool ifAvail)
	Add/Remove these to the set of attributes that we have requested, where the request is pending.
virtual void	removeRequest (const DtAttributeHandleSet &set)
	Add/Remove these to the set of attributes that we have requested, where the request is pending.

virtual void	addDivesting (const DtAttributeHandleSet &divestSet)
	Add/Remove these to the set of attributes for which a divest is pending.
virtual void	removeDivesting (const DtAttributeHandleSet &set)
	Add/Remove these to the set of attributes for which a divest is pending.

virtual void	addPendingConfirm (const DtAttributeHandleSet &attrs, DtFederateHandle fed)
	Add/Remove these to the set of attributes for which a confirm divest is pending.
virtual void	removePendingConfirm (const DtAttributeHandleSet &requestSet, DtFederateHandle fed)
	Add/Remove these to the set of attributes for which a confirm divest is pending.
virtual void	removePendingConfirm (const DtAttributeHandleSet &set)
	Add/Remove these to the set of attributes for which a confirm divest is pending.

virtual bool	pendingUncondRequest (DtAttributeHandle hand)
	Returns true if there's already a request pending that we've made for this attribute.
virtual bool	pendingRequestIfAvail (DtAttributeHandle hand)
	Returns true if there's already a request pending that we've made for this attribute.

virtual void	remoteSubscribe (DtFederateHandle fedHandle, const DtAttributeHandleSet &attrs)
	Add remote DM subscriptions.
virtual void	remoteSubscribe (DtFederateHandle fedHandle, DtAttributeHandle attributeHandle)
	Add remote DM subscriptions.

virtual void	remotePassiveSubscribe (DtFederateHandle fedHandle, DtAttributeHandle attrHandle)
	Add remote DM passive subscriptions.
virtual void	remotePassiveSubscribe (DtFederateHandle fedHandle, const DtAttributeHandleSet &attrs)
	Add remote DM passive subscriptions.

virtual void	remoteUnsubscribe (DtFederateHandle fedHandle, DtAttributeHandle attrHandle)
	Remove remote DM subscriptions.
virtual void	remoteUnsubscribe (DtFederateHandle fedHandle, const DtAttributeHandleSet &attrs)
	Remove remote DM subscriptions.
virtual void	remoteUnsubscribe (DtFederateHandle fedHandle)
	Remove remote DM subscriptions.

virtual DtBitMask	getDestinations () const
	Get the list of remote subscribers to the class = update destinations.
virtual DtBitMask	getDestinations (const DtAttributeHandleSet &attrs) const
	Get the list of remote subscribers to the class = update destinations.
virtual DtBitMask	getDestinations (const DtAhvps &attrs) const
	Get the list of remote subscribers to the class = update destinations.

virtual void	turnUpdateOn (DtAttributeHandle handle)
	Turn update on for given attribute(s)
virtual void	turnUpdateOn (const DtAttributeHandleSet &attrs)
	Turn update on for given attribute(s)

virtual void	turnUpdateOff (DtAttributeHandle handle)
	Turn update off for given attribute(s)
virtual void	turnUpdateOff (const DtAttributeHandleSet &attrs)
	Turn update off for given attribute(s)

virtual DtHandle	regionSetHandle (DtAttributeHandle attrHandle)

virtual unsigned int	encodedLength () const
	Encode object for save.
virtual void	encode (const char *buff)
	Encode object for save.

Static Public Member Functions
static DtRtiObject *	createEmptyObject ()
	Creator for Empty Object.
static DtRtiObject *	createRegisteredObject (DtObjectInstanceHandle id, const char name, DtObjectClassInfo classDesc, DtUpdateType updateType=DtUpdateFederateObject)
	Creator for Registered Object.
static DtRtiObject *	createDiscoveredObject (DtObjectInstanceHandle id, const char name, DtObjectClassInfo classDesc, DtObjectClassInfo *discoveredClass, DtUpdateType updateType=DtUpdateFederateObject)
	Creator for Discovered Object.
static void	setEmptyCreatorFunction (DtEmptyRtiObjectCreator fn)
	Used to override the default Empty Creator Function.
static void	setRegisteredCreatorFunction (DtRegisteredRtiObjectCreator fn)
	Used to override the default Registered Creator Function.
static void	setDiscoveredCreatorFunction (DtDiscoveredRtiObjectCreator fn)
	Used to override the deafult Discovered Creator Function.
static void	setUseDiscoveredClass (bool yesNo)
	Set to false when not exchanging discovered class information The object will return the known class instead.

Protected Member Functions
	DtRtiObject ()
	Constructors are now protected.
	DtRtiObject (DtObjectInstanceHandle id, const char name, DtObjectClassInfo classDesc, DtUpdateType updateType=DtUpdateFederateObject)
	Constructor for registered objects.
	DtRtiObject (DtObjectInstanceHandle id, const char objName, DtObjectClassInfo actualClass, DtObjectClassInfo *discoveredClass, DtUpdateType updateType=DtUpdateFederateObject)
	Constructor for discovered objects.
DtRtiObject *	self () const
	Casts away const-ness.
virtual void	addRemoteSubscribe (DtFederateHandle fedHandle, DtAttributeHandle attrHandle)
	Add the remote subscription of the given attribute by the given federate.
virtual void	removeRemoteSubscribe (DtFederateHandle fedHandle, DtAttributeHandle attrHandle)
	Remove the remote subscription of the given attribute by the given federate.

Protected Attributes
DtObjectInstanceHandle	myId
	The object instance handle.
DtObjectClassHandle	myActualHandle
	The actual object class handle.
DtObjectClassHandle	myKnownHandle
	The federate knows the object as this class.
char *	myObjName
	The object instance name.
DtAttributeHandleSet	myOwnedSet
	The set of attributes owned by this federate.
DtAttributeHandleSet	myOutHandleSet
	Temporary set holds owned attributes of a given set.
bool	myIsKnown
	Indicates if the federate knows about this object.
DtFederateHandle	myOwnerHandle
	The federate who owns the privilege to delete.
bool	myHasBeenUpdated
	Indicates if this object has been updated.
bool	myHasBeenReflected
	Indicates if this object has been reflected.
DtUpdateType	myUpdateType
	Indicates the update type.
DtAttributeHandleSet	myLrcManagedSet
	Union of attributes that are not owned by anyone and managed by LRC.
DtAttributeHandleSet	myUnownedSet
	Attributes never owned or divested through unpublish and managed by LRC.
DtAttributeHandleSet	myDivestedSet
	Attributes unconditionally divested and managed by LRC These attributes must be actively divested by the RTI.
DtAttributeHandleSet	myRtiOwnedSet
	Attributes owned by the RTI (MOM attributes)
DtAttributeHandleSet	myPendingRequestSet
	Attributes that we've requested, whose requests are pending.
DtAttributeHandleSet	myPendingReqIfAvailSet
DtAttributeHandleSet	myDivestingSet
	Attributes for which we have initiated a negotiated divestiture.
DtRequestDatabase	myRemoteReqDb
	Database of remote request information. These attributes are owned.
DtObjectClassInfo *	myActualClass
	Actual class info.
DtObjectClassInfo *	myKnownClass
	Known class info.
DtAttributeHandleSet	myInScopeAttrs
	Attribute in scope advisory status.
DtAttributeHandleSet	myUpdateOnAttrs
	Attribute update on advisory status.
MAKRti::DtHashlist	myDiscoveredClass
	For each remote federate that discovered this object, contains the discovery class handle.
DtBitMask *	myOverideDestinationsMask
	Create this bit mask to override remote subscrbie destinations.
DtObjectAttrInfo *	myAttrs
	List of attributes and information about them.
unsigned	myNumAttrs
	Number of attributes.
MAKRti::DtTime	myTimeToUseDestinations
	Time that smart forwarding destinations should take effect Before this time, RTI is waiting for discovery updates to determine destinations.

Static Protected Attributes
static bool	theUseDiscoveredClass
	Indicates if discovered class should be used.
static DtEmptyRtiObjectCreator	theEmptyCreator = NULL
	Static Creator Method for Empty RTI Objects.
static DtRegisteredRtiObjectCreator	theRegisteredCreator = NULL
	Static Creator Method for Registered RTI Objects.
static DtDiscoveredRtiObjectCreator	theDiscoveredCreator = NULL
	Static Creator Method for Discovered RTI Objects.

Detailed Description

The RTI object maintains the internal RTI object state.

The RTI object maintains information about instance handle, instance name, registered/discovered class, attribute ownership/transport/order, advisories, etc.

Constructor & Destructor Documentation

DtRtiObject::DtRtiObject ( )

protected

Constructors are now protected.

New RTI objects will be created through creator functions. Constructor

Referenced by createDiscoveredObject(), createEmptyObject(), and createRegisteredObject().

DtRtiObject::DtRtiObject	(	DtObjectInstanceHandle	id,
		const char *	name,
		DtObjectClassInfo *	classDesc,
		DtUpdateType	updateType = `DtUpdateFederateObject`
	)

protected

Constructor for registered objects.

Set of owned attributes is initialized to the set of published attributes.

References DtObjectClassInfo::allAttrs(), DtObjectClassInfo::attrOrder(), DtObjectClassInfo::attrTransport(), DtDefaultRegionSetHandle, myActualClass, myAttrs, myLrcManagedSet, myNumAttrs, myOwnedSet, myUnownedSet, NULL, DtObjectClassInfo::numAttributes(), DtObjectAttrInfo::order, DtObjectClassInfo::publishedAttrs(), DtObjectAttrInfo::regionSet, DtObjectAttrInfo::regionSetHandle, DtObjectAttrInfo::remoteSubscriberMask, DtAttributeHandleSet::removeSetIntersection(), DtBitMask::reset(), and DtObjectAttrInfo::transport.

DtRtiObject::DtRtiObject	(	DtObjectInstanceHandle	id,
		const char *	objName,
		DtObjectClassInfo *	actualClass,
		DtObjectClassInfo *	discoveredClass,
		DtUpdateType	updateType = `DtUpdateFederateObject`
	)

protected

Constructor for discovered objects.

References DtObjectClassInfo::attrOrder(), DtObjectClassInfo::attrTransport(), DtDefaultRegionSetHandle, myActualClass, myAttrs, myNumAttrs, NULL, DtObjectClassInfo::numAttributes(), DtObjectAttrInfo::order, DtObjectAttrInfo::regionSet, DtObjectAttrInfo::regionSetHandle, DtObjectAttrInfo::remoteSubscriberMask, DtBitMask::reset(), and DtObjectAttrInfo::transport.

DtRtiObject::~DtRtiObject ( )

virtual

Destructor.

References myAttrs, myObjName, myOverideDestinationsMask, and NULL.

DtRtiObject::DtRtiObject ( const DtRtiObject & orig )

Copy constructor Copies object state only!

References getDestinations(), myAttrs, myNumAttrs, myOverideDestinationsMask, DtObjectAttrInfo::order, DtObjectAttrInfo::regionSet, DtObjectAttrInfo::regionSetHandle, DtObjectAttrInfo::remoteSubscriberMask, and DtObjectAttrInfo::transport.

Member Function Documentation

void DtRtiObject::acquireRemoteSubscriptions	(	const DtAttributeHandleSet &	attrs,
		DtFomClassMgr *	fom
	)

virtual

Collect the remote subscriptions that match these acquired attributes.

References DtFomClassMgr::classByHandle(), discoveredClass(), myDiscoveredClass, NULL, remoteSubscribe(), and DtObjectClassInfo::remoteSubscription().

Referenced by DtObjectMgr::acquireAttrs(), and DtObjectMgr::processNotifyAcquire().

DtObjectClassInfo * DtRtiObject::actualClass ( )

virtual

Returns the actual (registered) class of the object.

References myActualClass.

Referenced by createDiscoveredObject(), createRegisteredObject(), decode(), encode(), getDestinations(), DtObjectMgr::notifyDivestedAttributes(), DtObjectMgr::sendBestEffortUpdateMsg(), DtObjectMgr::sendPendingRegister(), DtObjectMgr::sendReliableUpdateMsg(), and DtObjectMgr::sendUpdate().

DtObjectClassHandle DtRtiObject::actualClassHandle ( ) const

virtual

Returns class handle of the object.

References myActualHandle.

Referenced by DtObjectMgr::acquireAttrs(), encode(), DtObjectMgr::processNotifyAcquire(), DtObjectMgr::releaseAllAttributes(), DtObjectMgr::sendBestEffortUpdateMsg(), and DtObjectMgr::sendReliableUpdateMsg().

void DtRtiObject::addDivesting ( const DtAttributeHandleSet & divestSet )

virtual

Add/Remove these to the set of attributes for which a divest is pending.

References myDivestingSet, and DtAttributeHandleSet::setUnion().

Referenced by DtObjectMgr::divestOwnership().

void DtRtiObject::addPendingConfirm	(	const DtAttributeHandleSet &	attrs,
		DtFederateHandle	fed
	)

virtual

Add/Remove these to the set of attributes for which a confirm divest is pending.

References DtRequestDatabase::addPendingConfirm(), and myRemoteReqDb.

Referenced by decode(), and DtObjectMgr::processAcquire().

void DtRtiObject::addRemoteRequest	(	const DtAttributeHandleSet &	requestSet,
		DtFederateHandle	fed
	)

virtual

Call to indicate that a remote federate has requested ownership of requestSet.

If an attribute is passed to this function more than once, the more recent request takes precedence. That is, when it's time to divest, we will divest the attribute to the most recent requesting federate.

References DtRequestDatabase::addRemoteRequest(), and myRemoteReqDb.

Referenced by decode(), and DtObjectMgr::processAcquire().

void DtRtiObject::addRemoteSubscribe	(	DtFederateHandle	fedHandle,
		DtAttributeHandle	attrHandle
	)

protectedvirtual

Add the remote subscription of the given attribute by the given federate.

References DtRtiMtdDestinationList::destinationIndex(), myAttrs, DtObjectAttrInfo::remoteSubscriberMask, DtObjectAttrInfo::remoteSubscriptions, DtBitMask::setBit(), DtRtiMsg::smartForwardingEnabled(), and turnUpdateOn().

Referenced by remoteSubscribe().

void DtRtiObject::addRequest	(	const DtAttributeHandleSet &	requestSet,
		bool	ifAvail
	)

virtual

Add/Remove these to the set of attributes that we have requested, where the request is pending.

References myPendingReqIfAvailSet, myPendingRequestSet, DtAttributeHandleSet::removeSetIntersection(), and DtAttributeHandleSet::setUnion().

Referenced by DtObjectMgr::acquireAttrs().

void DtRtiObject::addToScope ( DtAttributeHandle handle )

virtual

Add the attributes to scope.

References DtAttributeHandleSet::add(), and myInScopeAttrs.

void DtRtiObject::addToScope ( const DtAttributeHandleSet & attrs )

virtual

Add the attributes to scope.

References myInScopeAttrs, and DtAttributeHandleSet::setUnion().

bool DtRtiObject::attrHasDimensions ( DtAttributeHandle attrHandle ) const

virtual

Return bool: attribute has associated DDM dimensions (where DM default region has all dimensions)?

Referenced by DtObjectMgr::sendUpdate().

MAKRti::DtOrderType DtRtiObject::attrOrder ( DtAttributeHandle theHandle )

virtual

Get attribute order from handle.

References myAttrs, and DtObjectAttrInfo::order.

Referenced by DtObjectMgr::deleteObj(), encode(), and takeAttrs().

MAKRti::DtTransportType DtRtiObject::attrTransport ( DtAttributeHandle theHandle )

virtual

Get attribute transport type from handle.

References myAttrs, and DtObjectAttrInfo::transport.

Referenced by encode(), DtObjectMgr::processOwnership(), and takeAttrs().

void DtRtiObject::cancelAllRemoteRequests ( const DtAttributeHandleSet & requestSet )

virtual

Cancel all remote requests for supplied attributes.

References DtRequestDatabase::cancelAllRemoteRequest(), and myRemoteReqDb.

Referenced by decode(), and DtObjectMgr::processResign().

void DtRtiObject::cancelDivest ( const DtAttributeHandleSet & set )

virtual

Cancel a divest.

References removeDivesting(), and removePendingConfirm().

Referenced by DtObjectMgr::cancelDivest().

DtAttributeHandleSet DtRtiObject::canceledRequestSet ( ) const

virtual

Get the cancelled request set.

References DtRequestDatabase::canceledRequestSet(), and myRemoteReqDb.

Referenced by decode(), and DtObjectMgr::processAcquire().

void DtRtiObject::cancelRemoteRequest	(	const DtAttributeHandleSet &	requestSet,
		DtFederateHandle	fed
	)

virtual

Cancel the remote request.

References DtRequestDatabase::cancelRemoteRequest(), and myRemoteReqDb.

Referenced by DtObjectMgr::processCancelAcquire().

unsigned int DtRtiObject::computeAttrOffset ( DtHandle attrHandle )

virtual

Compute Update Rate Reduction send-side mcast destination address.

References myAttrs, and DtObjectAttrInfo::offsets.

int DtRtiObject::confirmCount ( ) const

virtual

Returns the number of attributes pending divestiture confirmation.

References DtRequestDatabase::confirmCount(), and myRemoteReqDb.

DtRtiObject * DtRtiObject::createDiscoveredObject	(	DtObjectInstanceHandle	id,
		const char *	name,
		DtObjectClassInfo *	classDesc,
		DtObjectClassInfo *	discoveredClass,
		DtUpdateType	updateType = `DtUpdateFederateObject`
	)

static

Creator for Discovered Object.

References actualClass(), discoveredClass(), DtRtiObject(), id(), objName(), theDiscoveredCreator, and updateType().

Referenced by DtObjectMgr::discoverObject(), and DtObjectMgr::processGiveToLrc().

DtRtiObject * DtRtiObject::createEmptyObject ( )

static

Creator for Empty Object.

Is used to create empty object for restore, then decode is called on the object.

References DtRtiObject(), and theEmptyCreator.

Referenced by DtObjectMgr::restoreObjectList().

DtRtiObject * DtRtiObject::createRegisteredObject	(	DtObjectInstanceHandle	id,
		const char *	name,
		DtObjectClassInfo *	classDesc,
		DtUpdateType	updateType = `DtUpdateFederateObject`
	)

static

Creator for Registered Object.

References actualClass(), DtRtiObject(), id(), objName(), theRegisteredCreator, and updateType().

Referenced by DtObjectMgr::registerObj().

bool DtRtiObject::decode	(	const char *	buff,
		DtFomClassMgr *	fom
	)

virtual

Decode object data for restore Return: data successfully decoded?

References actualClass(), DtAttributeHandleSet::add(), addPendingConfirm(), addRemoteRequest(), cancelAllRemoteRequests(), DtObjectPacket::canceledRequests, canceledRequestSet(), DtFomClassMgr::classByHandle(), DtObjectPacket::classHandle, DtRequestDatabase::clearAll(), DtObjectPacket::divested, DtObjectPacket::divesting, DtDefaultRegionSetHandle, DtRtiSaveObjectType, DtObjectPacket::header, DtObjectPacket::inScope, DtObjectPacket::isKnown, DtObjectPacket::knownHandle, DtObjectPacket::lrcManaged, myActualClass, myActualHandle, myAttrs, myDiscoveredClass, myDivestedSet, myDivestingSet, DtObjectPacket::myId, myId, myInScopeAttrs, myIsKnown, myKnownClass, myKnownHandle, myLrcManagedSet, myNumAttrs, myObjName, myOwnedSet, myPendingReqIfAvailSet, myPendingRequestSet, myRemoteReqDb, myRtiOwnedSet, myUnownedSet, myUpdateOnAttrs, NULL, DtObjectClassInfo::numAttributes(), DtObjectPacket::numPendingConfirm, DtObjectPacket::numRemoteDiscover, DtObjectPacket::numRemoteRequest, DtObjectPacket::order, DtObjectAttrInfo::order, DtObjectPacket::owned, DtObjectPacket::ownerHandle, DtSaveDataHeader::packetType, DtObjectPacket::pendingRequest, DtObjectPacket::pendingRequestAvail, DtObjectAttrInfo::regionSet, DtObjectAttrInfo::regionSetHandle, DtObjectPacket::rtiOwned, setDiscoveredClass(), setOwnerHandle(), DtObjectPacket::trans, DtObjectAttrInfo::transport, DtObjectPacket::unowned, and DtObjectPacket::updateOn.

Referenced by DtObjectMgr::restoreObjectList().

DtObjectClassHandle DtRtiObject::discoveredClass ( DtFederateHandle remoteFedHandle )

virtual

Get the discovery class for the remote federate.

References knownClassHandle(), myDiscoveredClass, and theUseDiscoveredClass.

Referenced by acquireRemoteSubscriptions(), createDiscoveredObject(), DtObjectMgr::remotePassiveSubscribe(), and DtObjectMgr::remoteSubscribe().

const DtAttributeHandleSet & DtRtiObject::divestedAttrs ( )

virtual

Returns the set of attributes unconditionaly divested and managed by LRC.

References myDivestedSet.

Referenced by DtObjectMgr::notifyDivestedAttributes().

const DtAttributeHandleSet & DtRtiObject::divestingAttrs ( )

virtual

Returns the set of attributes currently being divested.

References myDivestingSet.

Referenced by DtObjectMgr::cancelDivest(), DtObjectMgr::divestOwnership(), DtObjectMgr::processAcquire(), and DtObjectMgr::processCancelAcquire().

void DtRtiObject::divestRemoteSubscriptions ( const DtAttributeHandleSet & attrs )

virtual

Remove the remote subscription status for each of these divested attrs.

References DtAttributeHandleSet::getHandle(), myAttrs, DtObjectAttrInfo::remoteSubscriberMask, DtObjectAttrInfo::remoteSubscriptionRegions, DtObjectAttrInfo::remoteSubscriptionRegionsByFederate, DtObjectAttrInfo::remoteSubscriptions, DtBitMask::reset(), DtAttributeHandleSet::size(), and turnUpdateOff().

Referenced by DtObjectMgr::divestOwnership(), DtObjectMgr::processAcquire(), and DtObjectMgr::releaseOwnership().

void DtRtiObject::divestToLrc ( const DtAttributeHandleSet & set )

virtual

Transfer attributes from local federate to local LRC as divested.

References myDivestedSet, myLrcManagedSet, releaseAttrs(), and DtAttributeHandleSet::setUnion().

Referenced by DtObjectMgr::divestOwnership().

void DtRtiObject::encode ( const char * buff )

virtual

Encode object for save.

References actualClass(), actualClassHandle(), attrOrder(), attrTransport(), DtObjectPacket::canceledRequests, DtRequestDatabase::canceledRequestSet(), DtObjectPacket::classHandle, DtRequestDatabase::confirmCount(), DtObjectPacket::divested, DtObjectPacket::divesting, DtRtiSaveObjectType, DtAttributeHandleSet::encode(), encodedLength(), DtObjectPacket::header, DtObjectPacket::inScope, DtObjectPacket::isKnown, isKnown(), knownClassHandle(), DtObjectPacket::knownHandle, DtObjectPacket::lrcManaged, myDiscoveredClass, myDivestedSet, myDivestingSet, DtObjectPacket::myId, myInScopeAttrs, myLrcManagedSet, myOwnedSet, myPendingReqIfAvailSet, myPendingRequestSet, myRemoteReqDb, myRtiOwnedSet, myUnownedSet, myUpdateOnAttrs, DtObjectPacket::nameLength, DtObjectClassInfo::numAttributes(), DtObjectPacket::numPendingConfirm, DtObjectPacket::numRemoteDiscover, DtObjectPacket::numRemoteRequest, objName(), DtObjectPacket::order, DtObjectPacket::owned, DtObjectPacket::ownerHandle, ownerHandle(), DtSaveDataHeader::packetSize, DtSaveDataHeader::packetType, pendingConfirm(), pendingRemoteRequest(), DtObjectPacket::pendingRequest, DtObjectPacket::pendingRequestAvail, requestCount(), DtObjectPacket::rtiOwned, DtObjectPacket::trans, DtObjectPacket::unowned, and DtObjectPacket::updateOn.

Referenced by DtObjectMgr::saveObjectList().

unsigned int DtRtiObject::encodedLength ( ) const

virtual

Encode object for save.

References DtRequestDatabase::confirmCount(), myDiscoveredClass, myRemoteReqDb, objName(), and requestCount().

Referenced by encode(), and DtObjectMgr::saveObjectList().

int DtRtiObject::expectedCount	(	const DtAhvps &	inSet,
		DtHandle	regSetHandle
	)		const

virtual

Returns the number of attributes in inSet that are expected (subscribed) by the federate.

References expecting().

int DtRtiObject::expecting	(	DtAttributeHandle	handle,
		DtHandle	regSetHandle
	)		const

virtual

Returns 1 if we are expected (subscribed to) this attribute, else 0.

References DtAttributeHandleSet::isMember(), myKnownClass, and DtObjectClassInfo::subscribedAttrs().

Referenced by expectedCount(), removeUnexpected(), and selectExpected().

const DtAttributeHandleSet & DtRtiObject::filterOwned ( const DtAttributeHandleSet & inSet ) const

virtual

Returns a set that contains those members of inSet that are owned by the federate.

References myOutHandleSet, myOwnedSet, and DtAttributeHandleSet::setIntersection().

Referenced by DtObjectMgr::processRequest(), DtObjectMgr::provideAttrValueUpdate(), and DtObjectMgr::sendPendingRequestAttributes().

DtBitMask DtRtiObject::getDestinations ( ) const

virtual

Get the list of remote subscribers to the class = update destinations.

References actualClass(), DtObjectClassInfo::getForcedDestinations(), DtRtiMtdDestinationList::getMaxDestinations(), myAttrs, myNumAttrs, myOverideDestinationsMask, DtObjectAttrInfo::remoteSubscriberMask, DtBitMask::reset(), and timeToUseDestinations().

Referenced by DtRtiObject(), operator=(), DtObjectMgr::sendBestEffortUpdateMsg(), and DtObjectMgr::sendReliableUpdateMsg().

DtBitMask DtRtiObject::getDestinations ( const DtAttributeHandleSet & attrs ) const

virtual

Get the list of remote subscribers to the class = update destinations.

References actualClass(), DtObjectClassInfo::getForcedDestinations(), DtAttributeHandleSet::getHandle(), DtRtiMtdDestinationList::getMaxDestinations(), myAttrs, myOverideDestinationsMask, DtObjectAttrInfo::remoteSubscriberMask, DtBitMask::reset(), DtAttributeHandleSet::size(), and timeToUseDestinations().

DtBitMask DtRtiObject::getDestinations ( const DtAhvps & attrs ) const

virtual

Get the list of remote subscribers to the class = update destinations.

References actualClass(), DtObjectClassInfo::getForcedDestinations(), DtRtiMtdDestinationList::getMaxDestinations(), myAttrs, myOverideDestinationsMask, DtObjectAttrInfo::remoteSubscriberMask, DtBitMask::reset(), and timeToUseDestinations().

void DtRtiObject::giveToLrc ( const DtAttributeHandleSet & set )

virtual

Transfer attributes from local federate to local LRC as unowned.

References myLrcManagedSet, myUnownedSet, releaseAttrs(), and DtAttributeHandleSet::setUnion().

Referenced by DtObjectMgr::divestOwnership(), DtObjectMgr::processGiveToLrc(), and DtObjectMgr::releaseOwnership().

void DtRtiObject::giveToRti ( const DtAttributeHandleSet & set )

virtual

Transfer ownership to local RTI.

References myDivestedSet, myLrcManagedSet, myOwnedSet, myRtiOwnedSet, myUnownedSet, DtAttributeHandleSet::removeSetIntersection(), and DtAttributeHandleSet::setUnion().

bool DtRtiObject::hasBeenReflected ( ) const

virtual

Returns bool: has object been reflected by this federate.

References myHasBeenReflected.

bool DtRtiObject::hasBeenUpdated ( ) const

virtual

Returns bool: has object been updated by this federate.

References myHasBeenUpdated.

DtObjectInstanceHandle DtRtiObject::id ( ) const

virtual

Set/Get my object handle.

References myId.

Referenced by DtObjectMgr::acquireAttrs(), createDiscoveredObject(), createRegisteredObject(), DtObjectMgr::objectWasCreatedByFederate(), DtObjectMgr::prepareToResign(), and DtObjectMgr::processResign().

const DtAttributeHandleSet & DtRtiObject::ifAvailRequestedAttrs ( )

virtual

Returns the set of attributes currently being if available requested.

References myPendingReqIfAvailSet.

Referenced by DtObjectMgr::isAcquistionPending(), DtObjectMgr::localDeleteObj(), DtObjectMgr::prepareToResign(), DtObjectMgr::processNotifyAcquire(), DtObjectMgr::processOwnership(), and DtObjectMgr::throwIfAcquisitionPending().

void DtRtiObject::initUpdateRates ( const MAKRti::DtUpdateRateSetT rates )

push update rates into each object attribute

References myAttrs, myNumAttrs, and DtObjectAttrInfo::offsets.

Referenced by DtObjectMgr::registerObj().

int DtRtiObject::inScope ( DtAttributeHandle handle ) const

virtual

Returns boolean: is attribute in scope?

References DtAttributeHandleSet::isMember(), and myInScopeAttrs.

bool DtRtiObject::inScope ( ) const

virtual

Returns boolean: is any attribute in scope?

References myInScopeAttrs, and DtAttributeHandleSet::size().

const DtAttributeHandleSet & DtRtiObject::inScopeAttrs ( )

virtual

Returns the set of attributes that are in scope.

References myInScopeAttrs.

bool DtRtiObject::isDiscovered ( DtFederateHandle remoteFedHandle )

virtual

Return bool: is object discovered by federate?

References myDiscoveredClass, NULL, and theUseDiscoveredClass.

Referenced by DtObjectMgr::remoteUnsubscribe().

bool DtRtiObject::isKnown ( ) const

virtual

References myIsKnown.

Referenced by encode(), and DtObjectMgr::restoreObjectList().

int DtRtiObject::isOfActualClass ( DtAttributeHandle handle ) const

virtual

Return 1 if the object is of actualclass handle, or is of a class that's a subclass of handle.

References DtObjectClassInfo::isOfClass(), and myActualClass.

Referenced by DtObjectMgr::processRequest().

int DtRtiObject::isOfKnownClass ( DtAttributeHandle handle ) const

virtual

Return 1 if the object is of known class handle, or is of a class that's a subclass of handle.

References DtObjectClassInfo::isOfClass(), and myKnownClass.

bool DtRtiObject::isRequestCanceled ( DtAttributeHandle hand )

virtual

Returns boolean: is there a canceled request for the attribute for which the federate has not responded?

References DtRequestDatabase::isRequestCanceled(), and myRemoteReqDb.

Referenced by DtObjectMgr::releaseResponse().

bool DtRtiObject::isUpdateOn ( DtAttributeHandle handle ) const

virtual

Returns boolean: is attribute update on?

References DtAttributeHandleSet::isMember(), and myUpdateOnAttrs.

bool DtRtiObject::isUpdateOn ( ) const

virtual

Returns boolean: is any attribute turned on?

References myUpdateOnAttrs, and DtAttributeHandleSet::size().

DtObjectClassInfo * DtRtiObject::knownClass ( )

virtual

Returns the known class of the object.

References myKnownClass.

Referenced by DtObjectMgr::acquireAttrs(), DtObjectMgr::cancelAcquire(), DtObjectMgr::cancelDivest(), DtObjectMgr::divestOwnership(), okToReceive(), DtObjectMgr::processDivest(), DtObjectMgr::processNotifyAcquire(), DtObjectMgr::processUpdate(), DtObjectMgr::queryOwnership(), DtObjectMgr::releaseResponse(), DtObjectMgr::requestObjectUpdate(), and takeAttrs().

DtObjectClassHandle DtRtiObject::knownClassHandle ( ) const

virtual

Returns class handle indicating class by which the federate knows the object.

References myKnownHandle.

Referenced by discoveredClass(), DtObjectMgr::discoverObject(), DtObjectMgr::divestAllInstances(), encode(), DtObjectMgr::objectClass(), DtObjectMgr::sendPendingStopUpdates(), and DtObjectMgr::throwIfAcquisitionPending().

int DtRtiObject::lrcManaged ( DtAttributeHandle handle ) const

virtual

Returns 1 if handle is unowned, and managed by the LRC, 0 otherwise.

References DtAttributeHandleSet::isMember(), and myUnownedSet.

Referenced by DtObjectMgr::processQueryOwner(), and DtObjectMgr::queryOwnership().

const DtAttributeHandleSet & DtRtiObject::lrcManagedAttrs ( )

virtual

Returns the set of unowned attributes managed by our LRC.

References myLrcManagedSet.

Referenced by DtObjectMgr::acquireAttrs(), DtObjectMgr::processAcquire(), DtObjectMgr::processOwnership(), DtObjectMgr::registerObj(), DtObjectMgr::releaseAllAttributes(), and DtObjectMgr::restoreObjectList().

void DtRtiObject::lrcUnmanage ( const DtAttributeHandleSet & set )

virtual

Remove the elements of set from the set of attributes managed by the local LRC.

References myDivestedSet, myLrcManagedSet, myUnownedSet, and DtAttributeHandleSet::removeSetIntersection().

Referenced by DtObjectMgr::processAcquire(), and takeFromLrc().

void DtRtiObject::markAsReflected ( )

virtual

Mark object as having been reflected by this federate.

References myHasBeenReflected.

Referenced by DtObjectMgr::processUpdate().

void DtRtiObject::markAsUpdated ( )

virtual

Mark object as having been updated by this federate.

References myHasBeenUpdated.

DtObjectInstanceHandle DtRtiObject::objHandle ( ) const

virtual

Set/Get my object handle.

References myId.

Referenced by DtObjectMgr::acquireAttrs(), DtObjectMgr::addAllObj(), DtObjectMgr::addKnownObj(), DtObjectMgr::addLrcManagedObj(), DtObjectMgr::addOwnedObj(), DtObjectMgr::deleteAllOwnedObjects(), DtObjectMgr::deleteObj(), DtObjectMgr::destroyObjectLists(), DtObjectMgr::divestOwnership(), DtObjectMgr::notifyDivestedAttributes(), DtObjectMgr::objectHandle(), DtObjectMgr::prepareToResign(), DtObjectMgr::processAcquire(), DtObjectMgr::processDelete(), DtObjectMgr::processDiscover(), DtObjectMgr::processGiveToLrc(), DtObjectMgr::processNotifyAcquire(), DtObjectMgr::processOwnership(), DtObjectMgr::processRequest(), DtObjectMgr::processRequestDiscover(), DtObjectMgr::provideAttrValueUpdate(), DtObjectMgr::registerObj(), DtObjectMgr::releaseAllAttributes(), DtObjectMgr::releaseOwnership(), DtObjectMgr::removeAllObj(), DtObjectMgr::removeFromAllLists(), DtObjectMgr::removeKnownObj(), DtObjectMgr::removeLrcManagedObj(), DtObjectMgr::removeOwnedObj(), DtObjectMgr::retainTsoDeletedObj(), DtObjectMgr::retainTsoRemovedObj(), DtObjectMgr::sendBestEffortUpdateMsg(), DtObjectMgr::sendPendingRequestAttributes(), DtObjectMgr::sendPendingStartUpdates(), DtObjectMgr::sendPendingStopUpdates(), DtObjectMgr::sendRegisterMsg(), DtObjectMgr::sendReliableUpdateMsg(), and DtObjectMgr::setAttributeTransportType().

const char * DtRtiObject::objName ( ) const

virtual

Set/Get my name.

References myObjName.

Referenced by DtObjectMgr::addAllObj(), DtObjectMgr::addKnownObj(), DtObjectMgr::addLrcManagedObj(), DtObjectMgr::addOwnedObj(), createDiscoveredObject(), createRegisteredObject(), DtObjectMgr::deleteObj(), encode(), encodedLength(), DtObjectMgr::objectName(), DtObjectMgr::prepareToResign(), DtObjectMgr::releaseAllAttributes(), DtObjectMgr::removeAllObj(), DtObjectMgr::removeKnownObj(), DtObjectMgr::removeLrcManagedObj(), DtObjectMgr::removeOwnedObj(), DtObjectMgr::sendBestEffortUpdateMsg(), and DtObjectMgr::sendReliableUpdateMsg().

bool DtRtiObject::okToReceive	(	DtHandle	attrHandle,
		float	tolerance
	)

virtual

Update Rate Reduction receive-side test.

References DtObjectClassInfo::attrByHandle(), knownClass(), myAttrs, DtObjectAttrInfo::myNextReceiveTime, and DtAttrInfo::subscribedRate().

Referenced by DtUpdateMsg::fillFromNetAttrs(), and DtUpdateMsg::fillFromNetBigAttrs().

const DtRtiObject & DtRtiObject::operator= ( const DtRtiObject & orig )

assignment operator Assigned object state only!

References getDestinations(), myActualClass, myActualHandle, myAttrs, myDivestedSet, myDivestingSet, myHasBeenReflected, myHasBeenUpdated, myId, myIsKnown, myKnownClass, myKnownHandle, myLrcManagedSet, myNumAttrs, myObjName, myOverideDestinationsMask, myOwnedSet, myPendingReqIfAvailSet, myPendingRequestSet, myRtiOwnedSet, myUnownedSet, DtObjectAttrInfo::order, DtObjectAttrInfo::regionSet, DtObjectAttrInfo::regionSetHandle, DtObjectAttrInfo::remoteSubscriberMask, and DtObjectAttrInfo::transport.

void DtRtiObject::overrideDestinations ( DtBitMask const & mask )

virtual

Override the destinations with this mask.

References myOverideDestinationsMask.

int DtRtiObject::owned ( DtAttributeHandle handle ) const

virtual

Returns 1 if handle is owned by the object, 0 otherwise.

References DtAttributeHandleSet::isMember(), and myOwnedSet.

Referenced by DtObjectMgr::acquireAttrs(), DtObjectMgr::cancelAcquire(), DtObjectMgr::cancelDivest(), DtObjectMgr::divestOwnership(), ownPriviledgeToDelete(), DtObjectMgr::processOwnership(), DtObjectMgr::processQueryOwner(), DtObjectMgr::queryOwnership(), DtObjectMgr::releaseResponse(), remotePassiveSubscribe(), remoteSubscribe(), DtObjectMgr::sendUpdate(), DtObjectMgr::setAttributeOrderType(), and DtObjectMgr::setAttributeTransportType().

const DtAttributeHandleSet & DtRtiObject::ownedAttrs ( )

virtual

DtFederateHandle DtRtiObject::ownerHandle ( ) const

virtual

Set/Get the federate who owns the priviledgeToDelete attribute.

References myOwnerHandle.

Referenced by encode(), DtObjectMgr::processDiscover(), and DtObjectMgr::processResign().

bool DtRtiObject::ownPriviledgeToDelete ( )

virtual

Returns true if the priviledgeToDelete attribute is locally owned, false otherwise.

References DtPrivilegeToDelete, and owned().

Referenced by DtObjectMgr::deleteAllOwnedObjects(), DtObjectMgr::deleteObj(), DtObjectMgr::numObjectsOwned(), DtObjectMgr::prepareToResign(), DtObjectMgr::processNotifyAcquire(), and DtObjectMgr::registerObj().

DtFederateHandle DtRtiObject::pendingConfirm ( DtAttributeHandle hand ) const

virtual

Returns the handle of the federate that will get ownership of attribute when confirmed.

References myRemoteReqDb, and DtRequestDatabase::pendingConfirm().

Referenced by encode().

DtAttributeHandleSet const & DtRtiObject::pendingConfirmAttributes ( ) const

virtual

Return the set of pedning confirmed attributes.

References myRemoteReqDb, and DtRequestDatabase::pendingConfirmAttributes().

Referenced by DtObjectMgr::processAcquire().

DtAttributeHandleSet DtRtiObject::pendingConfirmByFed ( DtFederateHandle fed ) const

virtual

Returns only the current set of attributes that are pending confirm for fed.

References myRemoteReqDb, and DtRequestDatabase::pendingConfirmByFed().

Referenced by DtObjectMgr::processAcquire().

DtFederateHandle DtRtiObject::pendingRemoteRequest ( DtAttributeHandle hand )

virtual

Returns the handle of the federate that has most recently requested ownership of this attribute.

References myRemoteReqDb, and DtRequestDatabase::pendingRemoteRequest().

Referenced by encode(), and DtObjectMgr::releaseResponse().

bool DtRtiObject::pendingRequestIfAvail ( DtAttributeHandle hand )

virtual

Returns true if there's already a request pending that we've made for this attribute.

References DtAttributeHandleSet::isMember(), and myPendingReqIfAvailSet.

bool DtRtiObject::pendingUncondRequest ( DtAttributeHandle hand )

virtual

Returns true if there's already a request pending that we've made for this attribute.

References DtAttributeHandleSet::isMember(), and myPendingRequestSet.

Referenced by DtObjectMgr::acquireAttrs(), and DtObjectMgr::cancelAcquire().

DtHandle DtRtiObject::regionSetHandle ( DtAttributeHandle attrHandle )

virtual

References DtDefaultRegionSetHandle, myAttrs, and DtObjectAttrInfo::regionSet.

Referenced by DtObjectMgr::sendUpdate(), and setDiscoveredClass().

void DtRtiObject::releaseAttrs ( const DtAttributeHandleSet & releaseSet )

virtual

Release ownership of these attributes.

References myOwnedSet, myRemoteReqDb, DtRequestDatabase::removeCanceledRequests(), removeDivesting(), DtRequestDatabase::removeRemoteRequest(), and DtAttributeHandleSet::removeSetIntersection().

Referenced by divestToLrc(), giveToLrc(), DtObjectMgr::processAcquire(), releaseConfirm(), and releaseRequested().

DtFederateHandle DtRtiObject::releaseConfirm	(	const DtAttributeHandleSet &	inSet,
		DtAttributeHandleSet *	releasedSet
	)

virtual

Calls to this method with the attributes provided in inSet will release and return in releaseSet any matching pending confirm attributes assigned to a single requesting federate, whose handle is the return argument.

The method should be called repeatedly until it returns 0 to release all the matching attributes. Not all the attributes may match a pending confirm.

References myRemoteReqDb, releaseAttrs(), and DtRequestDatabase::releaseConfirm().

DtFederateHandle DtRtiObject::releaseRequested	(	const DtAttributeHandleSet &	inSet,
		DtAttributeHandleSet *	releasedSet,
		bool	keepForConfirm
	)

virtual

Calls to this method with the attributes provided in inSet will release and return in releaseSet any matching requested attributes from a single requesting federate, whose handle is the return argument.

The method should be called repeatedly until it returns 0 to release all the matching attributes. In 1516 negotiated divest, these attributes are not fully released. Set the bool value to move them to a pending confirm status (see releaseConfirm below). Not all the attributes may match a request.

References myRemoteReqDb, releaseAttrs(), and DtRequestDatabase::releaseRequested().

Referenced by DtObjectMgr::divestOwnership(), DtObjectMgr::releaseOwnership(), and DtObjectMgr::releaseResponse().

void DtRtiObject::remotePassiveSubscribe	(	DtFederateHandle	fedHandle,
		DtAttributeHandle	attrHandle
	)

virtual

Add remote DM passive subscriptions.

References DtRtiMtdDestinationList::destinationIndex(), DtIsFound(), myAttrs, owned(), DtObjectAttrInfo::remoteSubscriberMask, DtObjectAttrInfo::remoteSubscriptions, DtBitMask::setBit(), and DtRtiMsg::smartForwardingEnabled().

Referenced by remotePassiveSubscribe().

void DtRtiObject::remotePassiveSubscribe	(	DtFederateHandle	fedHandle,
		const DtAttributeHandleSet &	attrs
	)

virtual

Add remote DM passive subscriptions.

References DtAttributeHandleSet::getHandle(), remotePassiveSubscribe(), and DtAttributeHandleSet::size().

void DtRtiObject::remoteSubscribe	(	DtFederateHandle	fedHandle,
		const DtAttributeHandleSet &	attrs
	)

virtual

Add remote DM subscriptions.

References addRemoteSubscribe(), DtIsFound(), DtAttributeHandleSet::getHandle(), myAttrs, myNumAttrs, owned(), DtObjectAttrInfo::remoteSubscriptions, and DtAttributeHandleSet::size().

Referenced by acquireRemoteSubscriptions(), and setDiscoveredClass().

void DtRtiObject::remoteSubscribe	(	DtFederateHandle	fedHandle,
		DtAttributeHandle	attributeHandle
	)

virtual

Add remote DM subscriptions.

References addRemoteSubscribe(), DtIsFound(), myAttrs, and owned().

void DtRtiObject::remoteUnsubscribe	(	DtFederateHandle	fedHandle,
		DtAttributeHandle	attrHandle
	)

virtual

Remove remote DM subscriptions.

References removeRemoteSubscribe().

Referenced by DtObjectMgr::remoteSubscribe(), and remoteUnsubscribe().

void DtRtiObject::remoteUnsubscribe	(	DtFederateHandle	fedHandle,
		const DtAttributeHandleSet &	attrs
	)

virtual

Remove remote DM subscriptions.

References DtAttributeHandleSet::getHandle(), remoteUnsubscribe(), and DtAttributeHandleSet::size().

void DtRtiObject::remoteUnsubscribe ( DtFederateHandle fedHandle )

virtual

Remove remote DM subscriptions.

References myNumAttrs, and remoteUnsubscribe().

void DtRtiObject::removeCanceledRequests ( DtAttributeHandleSet const & requestSet )

virtual

Get the cancelled request set.

References myRemoteReqDb, and DtRequestDatabase::removeCanceledRequests().

void DtRtiObject::removeDiscoveredClass ( DtFederateHandle remoteFedHandle )

virtual

Remove the discovery class for the remote federate As a result, the remote federates subscription information is removed and attribute advisory status may change.

References DtRtiMtdDestinationList::destinationIndex(), DtAttributeHandleSet::getHandle(), myAttrs, myDiscoveredClass, ownedAttrs(), DtObjectAttrInfo::remoteSubscriberMask, DtObjectAttrInfo::remoteSubscriptionRegions, DtObjectAttrInfo::remoteSubscriptionRegionsByFederate, DtObjectAttrInfo::remoteSubscriptions, DtBitMask::setBit(), DtAttributeHandleSet::size(), DtRtiMsg::smartForwardingEnabled(), and turnUpdateOff().

Referenced by DtObjectMgr::processResign().

void DtRtiObject::removeDivesting ( const DtAttributeHandleSet & set )

virtual

Add/Remove these to the set of attributes for which a divest is pending.

References myDivestingSet, and DtAttributeHandleSet::removeSetIntersection().

Referenced by cancelDivest(), and releaseAttrs().

void DtRtiObject::removeFromScope ( DtAttributeHandle handle )

virtual

Remove the attributes from scope.

References myInScopeAttrs, and DtAttributeHandleSet::remove().

void DtRtiObject::removeFromScope ( const DtAttributeHandleSet & attrs )

virtual

Remove the attributes from scope.

References myInScopeAttrs, and DtAttributeHandleSet::removeSetIntersection().

void DtRtiObject::removePendingConfirm	(	const DtAttributeHandleSet &	requestSet,
		DtFederateHandle	fed
	)

virtual

Add/Remove these to the set of attributes for which a confirm divest is pending.

References myRemoteReqDb, and DtRequestDatabase::removePendingConfirm().

Referenced by cancelDivest(), and DtObjectMgr::processAcquire().

void DtRtiObject::removePendingConfirm ( const DtAttributeHandleSet & set )

virtual

Add/Remove these to the set of attributes for which a confirm divest is pending.

References myRemoteReqDb, and DtRequestDatabase::removePendingConfirm().

void DtRtiObject::removeRemoteSubscribe	(	DtFederateHandle	fedHandle,
		DtAttributeHandle	attrHandle
	)

protectedvirtual

Remove the remote subscription of the given attribute by the given federate.

References DtRtiMtdDestinationList::destinationIndex(), DtIsFound(), myAttrs, DtObjectAttrInfo::remoteSubscriberMask, DtObjectAttrInfo::remoteSubscriptionRegions, DtObjectAttrInfo::remoteSubscriptions, DtBitMask::setBit(), DtRtiMsg::smartForwardingEnabled(), and turnUpdateOff().

Referenced by remoteUnsubscribe().

void DtRtiObject::removeRequest ( const DtAttributeHandleSet & set )

virtual

Add/Remove these to the set of attributes that we have requested, where the request is pending.

References myPendingReqIfAvailSet, myPendingRequestSet, and DtAttributeHandleSet::removeSetIntersection().

Referenced by DtObjectMgr::divestOwnership(), DtObjectMgr::processConfirmCancelAcquire(), and takeAttrs().

void DtRtiObject::removeUnexpected	(	DtAhvps &	attrSet,
		DtHandle	regSetHandle
	)		const

virtual

Remove those members of attrSet that are not expected (subscribed) by the federate.

References DtAttributeHandleSet::add(), expecting(), DtAttributeHandleSet::getHandle(), and DtAttributeHandleSet::size().

int DtRtiObject::requestCount ( ) const

virtual

Returns the number of request by all federates.

References myRemoteReqDb, and DtRequestDatabase::requestCount().

Referenced by encode(), and encodedLength().

DtAttributeHandleSet const & DtRtiObject::requestedAttributes ( ) const

virtual

Return the set of requested attributes.

References myRemoteReqDb, and DtRequestDatabase::requestedAttributes().

Referenced by DtObjectMgr::processAcquire().

DtAttributeHandleSet DtRtiObject::requestedByFed	(	DtFederateHandle	fed,
		bool	includePendingConfirm = `false`
	)

virtual

Returns the set of attributes most recently requested by fed.

References myRemoteReqDb, and DtRequestDatabase::requestedByFed().

Referenced by DtObjectMgr::processAcquire(), DtObjectMgr::processCancelAcquire(), and DtObjectMgr::processResign().

int DtRtiObject::rtiOwned ( DtAttributeHandle handle ) const

virtual

Returns 1 if handle is owned by the RTI, 0 otherwise.

References DtAttributeHandleSet::isMember(), and myRtiOwnedSet.

Referenced by DtObjectMgr::destroyObjectLists(), DtObjectMgr::processQueryOwner(), DtObjectMgr::queryOwnership(), and DtObjectMgr::saveObjectList().

const DtAttributeHandleSet & DtRtiObject::rtiOwnedAttrs ( )

virtual

Returns the set of rti owned attributes managed by our LRC.

References myRtiOwnedSet.

Referenced by DtObjectMgr::acquireAttrs(), DtObjectMgr::localDeleteObj(), DtObjectMgr::prepareToResign(), and DtObjectMgr::releaseAllAttributes().

void DtRtiObject::selectExpected	(	DtAhvps &	outSet,
		const DtAhvps &	inSet,
		DtHandle	regSetHandle
	)		const

virtual

Fills the outSet with the attributes in inSet that are expected (subscribed) by the federate.

References expecting().

DtRtiObject * DtRtiObject::self ( ) const

inlineprotected

Casts away const-ness.

void DtRtiObject::setAllDestinations ( )

virtual

Adds all destinations to all attributes.

References myAttrs, DtObjectAttrInfo::remoteSubscriberMask, and DtBitMask::reset().

Referenced by DtObjectMgr::acquireAttrs(), DtObjectMgr::processNotifyAcquire(), and DtObjectMgr::registerObj().

void DtRtiObject::setAttrOrder	(	DtAttributeHandle	theHandle,
		MAKRti::DtOrderType	order
	)

virtual

Set attribute order from handle.

References myAttrs, and DtObjectAttrInfo::order.

Referenced by DtObjectMgr::setAttributeOrderType(), and takeAttrs().

void DtRtiObject::setAttrTransport	(	DtAttributeHandle	theHandle,
		MAKRti::DtTransportType	transport
	)

virtual

Set attribute transport type from handle.

References myAttrs, and DtObjectAttrInfo::transport.

Referenced by DtObjectMgr::setAttributeTransportType(), and takeAttrs().

void DtRtiObject::setDiscoveredClass	(	DtFederateHandle	remoteFedHandle,
		DtObjectClassInfo const &	classInfo
	)

virtual

Set the discovery class for the remote federate As a result, the remote federates subscription information is reset with this class and attribute advisory status may change.

References DtRtiMtdDestinationList::destinationIndex(), DtDefaultRegionSetHandle, DtAttributeHandleSet::getHandle(), DtObjectClassInfo::handle(), DtAttributeHandleSet::isMember(), myAttrs, myDiscoveredClass, ownedAttrs(), regionSetHandle(), remoteSubscribe(), DtObjectAttrInfo::remoteSubscriberMask, DtObjectClassInfo::remoteSubscription(), DtObjectAttrInfo::remoteSubscriptionRegions, DtObjectAttrInfo::remoteSubscriptionRegionsByFederate, DtObjectAttrInfo::remoteSubscriptions, DtBitMask::setBit(), DtAttributeHandleSet::size(), DtRtiMsg::smartForwardingEnabled(), and turnUpdateOff().

Referenced by decode().

void DtRtiObject::setDiscoveredCreatorFunction ( DtDiscoveredRtiObjectCreator fn )

static

Used to override the deafult Discovered Creator Function.

References DtBindCreator(), and theDiscoveredCreator.

void DtRtiObject::setEmptyCreatorFunction ( DtEmptyRtiObjectCreator fn )

static

Used to override the default Empty Creator Function.

References DtBindCreator(), and theEmptyCreator.

void DtRtiObject::setIsKnown ( bool isKnownValue )

virtual

Set/Get known status of object This status can not be determined by status of attributes.

References myIsKnown.

Referenced by DtObjectMgr::addKnownObj(), and DtObjectMgr::removeKnownObj().

void DtRtiObject::setKnownClass ( DtObjectClassInfo * classInfo )

virtual

Set the known class.

References DtObjectClassInfo::handle(), myKnownClass, and myKnownHandle.

void DtRtiObject::setObjHandle ( DtObjectInstanceHandle handle )

virtual

Set/Get my object handle.

References myId.

void DtRtiObject::setObjName ( const char * name )

virtual

References myObjName.

void DtRtiObject::setOwnerHandle ( DtFederateHandle handle )

virtual

References myOwnerHandle.

Referenced by decode(), DtObjectMgr::processGiveToLrc(), DtObjectMgr::processRegister(), DtObjectMgr::registerObj(), and DtObjectMgr::resetOwner().

void DtRtiObject::setRegisteredCreatorFunction ( DtRegisteredRtiObjectCreator fn )

static

Used to override the default Registered Creator Function.

References DtBindCreator(), and theRegisteredCreator.

void DtRtiObject::setTimeToUseDestinations ( MAKRti::DtTime timeVal )

Set time to use attribute destinations.

References myTimeToUseDestinations.

Referenced by DtObjectMgr::acquireAttrs(), DtObjectMgr::processNotifyAcquire(), and DtObjectMgr::registerObj().

void DtRtiObject::setUseDiscoveredClass ( bool yesNo )

static

Set to false when not exchanging discovered class information The object will return the known class instead.

References theUseDiscoveredClass.

Referenced by DtObjectMgr::DtObjectMgr().

void DtRtiObject::takeAttrs ( const DtAttributeHandleSet & takeSet )

virtual

Take ownership of these attributes.

References attrOrder(), attrTransport(), knownClass(), myOwnedSet, removeRequest(), setAttrOrder(), setAttrTransport(), and DtAttributeHandleSet::setUnion().

Referenced by DtObjectMgr::processNotifyAcquire(), and takeFromLrc().

void DtRtiObject::takeFromLrc ( const DtAttributeHandleSet & set )

virtual

Transfer ownership from local LRC to local federate.

References lrcUnmanage(), and takeAttrs().

Referenced by DtObjectMgr::acquireAttrs().

MAKRti::DtTime DtRtiObject::timeToUseDestinations ( ) const

Get time to use attribute destinations.

References myTimeToUseDestinations.

Referenced by getDestinations().

void DtRtiObject::turnUpdateOff ( DtAttributeHandle handle )

virtual

Turn update off for given attribute(s)

References myUpdateOnAttrs, and DtAttributeHandleSet::remove().

Referenced by divestRemoteSubscriptions(), removeDiscoveredClass(), removeRemoteSubscribe(), and setDiscoveredClass().

void DtRtiObject::turnUpdateOff ( const DtAttributeHandleSet & attrs )

virtual

Turn update off for given attribute(s)

References myUpdateOnAttrs, and DtAttributeHandleSet::removeSetIntersection().

void DtRtiObject::turnUpdateOn ( DtAttributeHandle handle )

virtual

Turn update on for given attribute(s)

References DtAttributeHandleSet::add(), and myUpdateOnAttrs.

Referenced by addRemoteSubscribe().

void DtRtiObject::turnUpdateOn ( const DtAttributeHandleSet & attrs )

virtual

Turn update on for given attribute(s)

References myUpdateOnAttrs, and DtAttributeHandleSet::setUnion().

DtFederateHandle DtRtiObject::unavailablePendingRequests ( DtAttributeHandleSet * invalidatedSet )

virtual

Get the next federate with requests that have become unavailable and the invalidated attrs.

References myRemoteReqDb, and DtRequestDatabase::unavailablePendingRequests().

const DtAttributeHandleSet & DtRtiObject::uncondRequestedAttrs ( )

virtual

Returns the set of attributes currently being unconditionally requested.

References myPendingRequestSet.

Referenced by DtObjectMgr::isAcquistionPending(), DtObjectMgr::localDeleteObj(), DtObjectMgr::prepareToResign(), DtObjectMgr::processNotifyAcquire(), and DtObjectMgr::throwIfAcquisitionPending().

DtAttributeHandleSet DtRtiObject::updateOffAttrs ( ) const

virtual

Returns the set of owned attributes that are turned off.

References myOwnedSet, myUpdateOnAttrs, and DtAttributeHandleSet::removeSetIntersection().

DtAttributeHandleSet DtRtiObject::updateOnAttrs ( ) const

virtual

Returns the set of owned attributes that are turned on.

References myOwnedSet, myUpdateOnAttrs, and DtAttributeHandleSet::setIntersection().

Referenced by DtObjectMgr::acquireAttrs(), DtObjectMgr::autoProvideAttrValueUpdate(), DtObjectMgr::processNotifyAcquire(), and DtObjectMgr::processResign().

DtUpdateType DtRtiObject::updateType ( ) const

Return the object's update type.

References myUpdateType.

Referenced by createDiscoveredObject(), createRegisteredObject(), DtObjectMgr::sendBestEffortUpdateMsg(), DtObjectMgr::sendRegisterMsg(), DtObjectMgr::sendReliableUpdateMsg(), and DtObjectMgr::sendUpdate().

Member Data Documentation

DtObjectClassInfo* DtRtiObject::myActualClass

protected

Actual class info.

Referenced by actualClass(), decode(), DtRtiObject(), isOfActualClass(), and operator=().

DtObjectClassHandle DtRtiObject::myActualHandle

protected

The actual object class handle.

Referenced by actualClassHandle(), decode(), and operator=().

DtObjectAttrInfo* DtRtiObject::myAttrs

protected

List of attributes and information about them.

Referenced by addRemoteSubscribe(), attrOrder(), attrTransport(), computeAttrOffset(), decode(), divestRemoteSubscriptions(), DtRtiObject(), getDestinations(), initUpdateRates(), okToReceive(), operator=(), regionSetHandle(), remotePassiveSubscribe(), remoteSubscribe(), removeDiscoveredClass(), removeRemoteSubscribe(), setAllDestinations(), setAttrOrder(), setAttrTransport(), setDiscoveredClass(), and ~DtRtiObject().

MAKRti::DtHashlist DtRtiObject::myDiscoveredClass

protected

For each remote federate that discovered this object, contains the discovery class handle.

Referenced by acquireRemoteSubscriptions(), decode(), discoveredClass(), encode(), encodedLength(), isDiscovered(), removeDiscoveredClass(), and setDiscoveredClass().

DtAttributeHandleSet DtRtiObject::myDivestedSet

protected

Attributes unconditionally divested and managed by LRC These attributes must be actively divested by the RTI.

Referenced by decode(), divestedAttrs(), divestToLrc(), encode(), giveToRti(), lrcUnmanage(), and operator=().

DtAttributeHandleSet DtRtiObject::myDivestingSet

protected

Attributes for which we have initiated a negotiated divestiture.

These attributes are still owned, though.

Referenced by addDivesting(), decode(), divestingAttrs(), encode(), operator=(), and removeDivesting().

bool DtRtiObject::myHasBeenReflected

protected

Indicates if this object has been reflected.

Referenced by hasBeenReflected(), markAsReflected(), and operator=().

bool DtRtiObject::myHasBeenUpdated

protected

Indicates if this object has been updated.

Referenced by hasBeenUpdated(), markAsUpdated(), and operator=().

DtObjectInstanceHandle DtRtiObject::myId

protected

The object instance handle.

Referenced by decode(), id(), objHandle(), operator=(), and setObjHandle().

DtAttributeHandleSet DtRtiObject::myInScopeAttrs

protected

Attribute in scope advisory status.

Referenced by addToScope(), decode(), encode(), inScope(), inScopeAttrs(), and removeFromScope().

bool DtRtiObject::myIsKnown

protected

Indicates if the federate knows about this object.

Referenced by decode(), isKnown(), operator=(), and setIsKnown().

DtObjectClassInfo* DtRtiObject::myKnownClass

protected

Known class info.

Referenced by decode(), expecting(), isOfKnownClass(), knownClass(), operator=(), and setKnownClass().

DtObjectClassHandle DtRtiObject::myKnownHandle

protected

The federate knows the object as this class.

Referenced by decode(), knownClassHandle(), operator=(), and setKnownClass().

DtAttributeHandleSet DtRtiObject::myLrcManagedSet

protected

Union of attributes that are not owned by anyone and managed by LRC.

Referenced by decode(), divestToLrc(), DtRtiObject(), encode(), giveToLrc(), giveToRti(), lrcManagedAttrs(), lrcUnmanage(), and operator=().

unsigned DtRtiObject::myNumAttrs

protected

Number of attributes.

Referenced by decode(), DtRtiObject(), getDestinations(), initUpdateRates(), operator=(), remoteSubscribe(), and remoteUnsubscribe().

char* DtRtiObject::myObjName

protected

The object instance name.

Referenced by decode(), objName(), operator=(), setObjName(), and ~DtRtiObject().

DtAttributeHandleSet DtRtiObject::myOutHandleSet

protected

Temporary set holds owned attributes of a given set.

Referenced by filterOwned().

DtBitMask* DtRtiObject::myOverideDestinationsMask

protected

Create this bit mask to override remote subscrbie destinations.

Referenced by DtRtiObject(), getDestinations(), operator=(), overrideDestinations(), and ~DtRtiObject().

DtAttributeHandleSet DtRtiObject::myOwnedSet

protected

The set of attributes owned by this federate.

Referenced by decode(), DtRtiObject(), encode(), filterOwned(), giveToRti(), operator=(), owned(), ownedAttrs(), releaseAttrs(), takeAttrs(), updateOffAttrs(), and updateOnAttrs().

DtFederateHandle DtRtiObject::myOwnerHandle

protected

The federate who owns the privilege to delete.

Referenced by ownerHandle(), and setOwnerHandle().

DtAttributeHandleSet DtRtiObject::myPendingReqIfAvailSet

protected

Referenced by addRequest(), decode(), encode(), ifAvailRequestedAttrs(), operator=(), pendingRequestIfAvail(), and removeRequest().

DtAttributeHandleSet DtRtiObject::myPendingRequestSet

protected

Attributes that we've requested, whose requests are pending.

All members are unowned.

Referenced by addRequest(), decode(), encode(), operator=(), pendingUncondRequest(), removeRequest(), and uncondRequestedAttrs().

DtRequestDatabase DtRtiObject::myRemoteReqDb

protected

Database of remote request information. These attributes are owned.

Referenced by addPendingConfirm(), addRemoteRequest(), cancelAllRemoteRequests(), canceledRequestSet(), cancelRemoteRequest(), confirmCount(), decode(), encode(), encodedLength(), isRequestCanceled(), pendingConfirm(), pendingConfirmAttributes(), pendingConfirmByFed(), pendingRemoteRequest(), releaseAttrs(), releaseConfirm(), releaseRequested(), removeCanceledRequests(), removePendingConfirm(), requestCount(), requestedAttributes(), requestedByFed(), and unavailablePendingRequests().

DtAttributeHandleSet DtRtiObject::myRtiOwnedSet

protected

Attributes owned by the RTI (MOM attributes)

Referenced by decode(), encode(), giveToRti(), operator=(), rtiOwned(), and rtiOwnedAttrs().

MAKRti::DtTime DtRtiObject::myTimeToUseDestinations

protected

Time that smart forwarding destinations should take effect Before this time, RTI is waiting for discovery updates to determine destinations.

Referenced by setTimeToUseDestinations(), and timeToUseDestinations().

DtAttributeHandleSet DtRtiObject::myUnownedSet

protected

Attributes never owned or divested through unpublish and managed by LRC.

Referenced by decode(), DtRtiObject(), encode(), giveToLrc(), giveToRti(), lrcManaged(), lrcUnmanage(), and operator=().

DtAttributeHandleSet DtRtiObject::myUpdateOnAttrs

protected

Attribute update on advisory status.

Referenced by decode(), encode(), isUpdateOn(), turnUpdateOff(), turnUpdateOn(), updateOffAttrs(), and updateOnAttrs().

DtUpdateType DtRtiObject::myUpdateType

protected

Indicates the update type.

Referenced by updateType().

DtDiscoveredRtiObjectCreator DtRtiObject::theDiscoveredCreator = NULL

staticprotected

Static Creator Method for Discovered RTI Objects.

Referenced by createDiscoveredObject(), and setDiscoveredCreatorFunction().

DtEmptyRtiObjectCreator DtRtiObject::theEmptyCreator = NULL

staticprotected

Static Creator Method for Empty RTI Objects.

Referenced by createEmptyObject(), and setEmptyCreatorFunction().

DtRegisteredRtiObjectCreator DtRtiObject::theRegisteredCreator = NULL

staticprotected

Static Creator Method for Registered RTI Objects.

Referenced by createRegisteredObject(), and setRegisteredCreatorFunction().

bool DtRtiObject::theUseDiscoveredClass

staticprotected

Indicates if discovered class should be used.

Referenced by discoveredClass(), isDiscovered(), and setUseDiscoveredClass().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
