Shows detailed statistics, presented as both trees and running graphs which can be populated from the tree data. More...

Inheritance diagram for DtTreesAndGraphWidget:

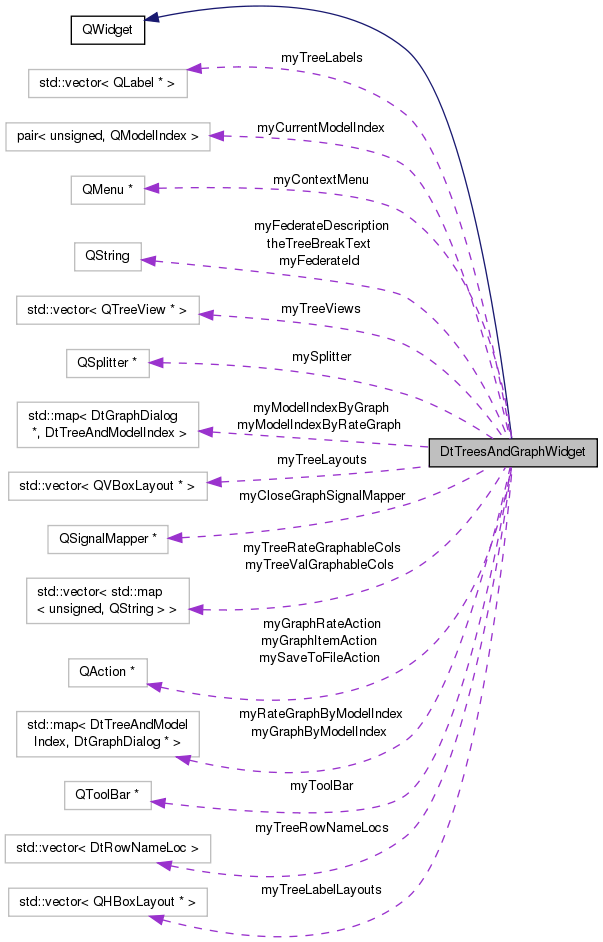

Collaboration diagram for DtTreesAndGraphWidget:

Public Types
enum	DtRowNameLoc { DtRowNameIsHeader, DtRowNameIsFirstColumn, DtNoRowNames }
typedef std::pair< unsigned, QModelIndex >	DtTreeAndModelIndex
	Type which pairs the tree index and QModelIndex to uniquely identify an index across all trees in the widget.

Public Slots
void	deleteDialog (QWidget *graphDialog)
	Handles deletion of a graph dialog.
void	processItemSelection (const QModelIndex &index)
	Processes item selection by enabling/disabling buttons and menu actions for the newly selected item.
void	showContextMenu (const QPoint &point)
	Shows the context menu.
void	graphSelectedItem ()
	Creates a graph for the selected item.
void	graphSelectedItemRate ()
	Creates a graph for the rate of change for the selected item.
void	updateSortingEnable ()
	Checks whether the trees should have sorting enabled or disabled.
void	saveTreesToFile ()
	Saves the trees to a file.
void	hideToolbar ()

Public Member Functions
	DtTreesAndGraphWidget (QWidget *parent=0, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtTreesAndGraphWidget ()
	Destructor.
virtual QSize	sizeHint () const
	Returns the recommended size for the widget.
unsigned	addTree (const QString &name, const QString &description, QAbstractItemModel *model, DtRowNameLoc rowNameLoc, bool hideHeaders=false)
	Adds a new tree, must be called prior to initComplete.
void	initComplete ()
	Initializes the widget, adding trees with each of the given names.
void	enableValueGraphing (unsigned treeIndex, unsigned column, const QString &units)
	Enables the option to graph the value for the given column of the given tree.
void	enableRateGraphing (unsigned treeIndex, unsigned column, const QString &units)
	Enables the option to graph the rate for the given column of the given tree.
void	addSet (DtTreeAndModelIndex modelIndex)
	Adds a set to the graph for the given model index.
void	deleteSet (DtTreeAndModelIndex modelIndex)
	Deletes the set matching the given model index from the graph.
void	updateGraphs (double currentTime)
	Must be called periodically to update the graph.
void	updateGraphsForTree (unsigned treeIndex, double currentTime)
	Updates the graphs for the specified tree.
void	saveGuiConfiguration (QFile &configFile)
	Saves the GUI configuration to the given file.
void	loadGuiConfiguration (QFile &configFile)
	Loads the GUI configuration from the given file.
void	setFederateId (const QString &federateId)
	Sets the federate identification text.
void	setFederateDescription (const QString &federateDescr)
	Sets the federate description text.

Protected Types
enum	TableFileFormat { TextTableFormat, CsvTableFormat }

Protected Member Functions
void	initTrees ()
	Initializes all added trees.
void	connectSignals ()
	Connects our signals and slots.
void	getRowAndColNames (DtTreeAndModelIndex modelIndex, QString &rowName, QString &colName)
	Retrieves the names of the row and column for a given model index.
void	enableDisableGraphOptions ()
	Enables and disables the graph actions for the selected item.
void	writeTreeToStream (const QTreeView *tree, QTextStream &fileStrm, TableFileFormat format)
	Writes the given tree's data as a table to the given file stream.

Protected Attributes
QSplitter *	mySplitter
	Main layout.
std::vector< QVBoxLayout * >	myTreeLayouts
	Layouts for each tree.
std::vector< QLabel * >	myTreeLabels
	Labels for each tree.
std::vector< QHBoxLayout * >	myTreeLabelLayouts
	Layouts for each tree label.
std::vector< QTreeView * >	myTreeViews
	The tree view for each tree.
std::vector< DtRowNameLoc >	myTreeRowNameLocs
	The row name location for the tree.
std::vector< std::map < unsigned, QString > >	myTreeValGraphableCols
	The columns for which the value can be graphed and the units to be displayed on the y axis.
std::vector< std::map < unsigned, QString > >	myTreeRateGraphableCols
	The columns for which the rate can be graphed and the units to be displayed on the y axis.
QSignalMapper *	myCloseGraphSignalMapper
	Maps signals from graph dialog close events.
DtTreeAndModelIndex	myCurrentModelIndex
	The model index for which to display the context menu.
QString	myFederateId
	Identifying text for the current federate.
QString	myFederateDescription
	Detailed description of this federate.

std::map< DtTreeAndModelIndex, DtGraphDialog * >	myGraphByModelIndex
	Maps between a graphed model index and the graph dialog that is displaying it.
std::map< DtGraphDialog *, DtTreeAndModelIndex >	myModelIndexByGraph
	Maps between a graphed model index and the graph dialog that is displaying it.

std::map< DtTreeAndModelIndex, DtGraphDialog * >	myRateGraphByModelIndex
	Maps between a graphed model index and the graph dialog that is displaying its rate.
std::map< DtGraphDialog *, DtTreeAndModelIndex >	myModelIndexByRateGraph
	Maps between a graphed model index and the graph dialog that is displaying its rate.

QMenu *	myContextMenu
	The context menu and toolbar and their actions.
QToolBar *	myToolBar
	The context menu and toolbar and their actions.
QAction *	myGraphItemAction
	The context menu and toolbar and their actions.
QAction *	myGraphRateAction
	The context menu and toolbar and their actions.
QAction *	mySaveToFileAction
	The context menu and toolbar and their actions.

Static Protected Attributes
static const QString	theTreeBreakText = "------------\n"
	Indicates the end of one tree's configuration data and the start of the next in a GUI config file.

Private Member Functions
	DtTreesAndGraphWidget (const DtTreesAndGraphWidget &)
	Copy Constructor not implemented.
DtTreesAndGraphWidget &	operator= (const DtTreesAndGraphWidget &)
	Assignment Operator not implemented.

Detailed Description

Shows detailed statistics, presented as both trees and running graphs which can be populated from the tree data.

Member Typedef Documentation

typedef std::pair<unsigned, QModelIndex> DtTreesAndGraphWidget::DtTreeAndModelIndex

Type which pairs the tree index and QModelIndex to uniquely identify an index across all trees in the widget.

Member Enumeration Documentation

enum DtTreesAndGraphWidget::DtRowNameLoc

Enumerator:

DtRowNameIsHeader
DtRowNameIsFirstColumn
DtNoRowNames

enum DtTreesAndGraphWidget::TableFileFormat

protected

Enumerator:

TextTableFormat
CsvTableFormat

Constructor & Destructor Documentation

DtTreesAndGraphWidget::DtTreesAndGraphWidget	(	QWidget *	parent = `0`,
		Qt::WindowFlags	f = `0`
	)

Constructor.

References DtIconAndTextureManager::getInstance(), myContextMenu, myGraphItemAction, myGraphRateAction, mySaveToFileAction, mySplitter, and myToolBar.

DtTreesAndGraphWidget::~DtTreesAndGraphWidget ( )

virtual

Destructor.

DtTreesAndGraphWidget::DtTreesAndGraphWidget ( const DtTreesAndGraphWidget & )

private

Copy Constructor not implemented.

Member Function Documentation

void DtTreesAndGraphWidget::addSet ( DtTreeAndModelIndex modelIndex )

Adds a set to the graph for the given model index.

unsigned DtTreesAndGraphWidget::addTree	(	const QString &	name,
		const QString &	description,
		QAbstractItemModel *	model,
		DtRowNameLoc	rowNameLoc,
		bool	hideHeaders = `false`
	)

Adds a new tree, must be called prior to initComplete.

Specifies the tree name, a brief description, column headers, and row headers. Returns the index of the tree.

References myTreeLabelLayouts, myTreeLabels, myTreeLayouts, myTreeRateGraphableCols, myTreeRowNameLocs, myTreeValGraphableCols, and myTreeViews.

Referenced by DtFederateStatisticsDialog::initCallbackStatsWidget(), DtFederateStatisticsDialog::initInteractionStatsWidget(), DtFederateStatisticsDialog::initMsgStatsWidget(), DtFederateStatisticsDialog::initObjectStatsWidget(), and DtFederateStatisticsDialog::initServiceStatsWidget().

void DtTreesAndGraphWidget::connectSignals ( )

protected

Connects our signals and slots.

References connect(), deleteDialog(), graphSelectedItem(), graphSelectedItemRate(), myCloseGraphSignalMapper, myGraphItemAction, myGraphRateAction, mySaveToFileAction, myTreeViews, processItemSelection(), saveTreesToFile(), showContextMenu(), and updateSortingEnable().

Referenced by initComplete().

void DtTreesAndGraphWidget::deleteDialog ( QWidget * graphDialog )

slot

Handles deletion of a graph dialog.

References myGraphByModelIndex, myModelIndexByGraph, myModelIndexByRateGraph, and myRateGraphByModelIndex.

Referenced by connectSignals().

void DtTreesAndGraphWidget::deleteSet ( DtTreeAndModelIndex modelIndex )

Deletes the set matching the given model index from the graph.

void DtTreesAndGraphWidget::enableDisableGraphOptions ( )

protected

Enables and disables the graph actions for the selected item.

References myContextMenu, myCurrentModelIndex, myGraphItemAction, myGraphRateAction, myTreeRateGraphableCols, and myTreeValGraphableCols.

Referenced by processItemSelection(), and showContextMenu().

void DtTreesAndGraphWidget::enableRateGraphing	(	unsigned	treeIndex,
		unsigned	column,
		const QString &	units
	)

Enables the option to graph the rate for the given column of the given tree.

References myTreeRateGraphableCols.

Referenced by DtFederateStatisticsDialog::initCallbackStatsWidget(), DtFederateStatisticsDialog::initInteractionStatsWidget(), DtFederateStatisticsDialog::initMsgStatsWidget(), DtFederateStatisticsDialog::initObjectStatsWidget(), and DtFederateStatisticsDialog::initServiceStatsWidget().

void DtTreesAndGraphWidget::enableValueGraphing	(	unsigned	treeIndex,
		unsigned	column,
		const QString &	units
	)

Enables the option to graph the value for the given column of the given tree.

Must also specify the x axis label.

References myTreeValGraphableCols.

Referenced by DtFederateStatisticsDialog::initCallbackStatsWidget(), DtFederateStatisticsDialog::initInteractionStatsWidget(), DtFederateStatisticsDialog::initMsgStatsWidget(), DtFederateStatisticsDialog::initObjectStatsWidget(), and DtFederateStatisticsDialog::initServiceStatsWidget().

void DtTreesAndGraphWidget::getRowAndColNames	(	DtTreeAndModelIndex	modelIndex,
		QString &	rowName,
		QString &	colName
	)

protected

Retrieves the names of the row and column for a given model index.

References DtRowNameIsFirstColumn, DtRowNameIsHeader, and myTreeRowNameLocs.

Referenced by graphSelectedItem(), and graphSelectedItemRate().

void DtTreesAndGraphWidget::graphSelectedItem ( )

slot

Creates a graph for the selected item.

References connect(), DtGraphDialog::DtValueGraph, getRowAndColNames(), myCloseGraphSignalMapper, myCurrentModelIndex, myGraphByModelIndex, myModelIndexByGraph, and myTreeValGraphableCols.

Referenced by connectSignals().

void DtTreesAndGraphWidget::graphSelectedItemRate ( )

slot

Creates a graph for the rate of change for the selected item.

References connect(), DtGraphDialog::DtRateGraph, getRowAndColNames(), myCloseGraphSignalMapper, myCurrentModelIndex, myModelIndexByRateGraph, myRateGraphByModelIndex, and myTreeRateGraphableCols.

Referenced by connectSignals().

void DtTreesAndGraphWidget::hideToolbar ( )

slot

References myToolBar.

void DtTreesAndGraphWidget::initComplete ( )

Initializes the widget, adding trees with each of the given names.

Trees are added in order and assigned indices, starting at 0, in order.

References connectSignals(), and initTrees().

Referenced by DtFederateStatisticsDialog::initCallbackStatsWidget(), DtFederateStatisticsDialog::initInteractionStatsWidget(), DtFederateStatisticsDialog::initMsgStatsWidget(), DtFederateStatisticsDialog::initObjectStatsWidget(), and DtFederateStatisticsDialog::initServiceStatsWidget().

void DtTreesAndGraphWidget::initTrees ( )

protected

Initializes all added trees.

References mySplitter, myToolBar, myTreeLabelLayouts, myTreeLayouts, and myTreeViews.

Referenced by initComplete().

void DtTreesAndGraphWidget::loadGuiConfiguration ( QFile & configFile )

Loads the GUI configuration from the given file.

It's expected that the file will be open and ready to read the configuration.

References myTreeViews, and theTreeBreakText.

DtTreesAndGraphWidget& DtTreesAndGraphWidget::operator= ( const DtTreesAndGraphWidget & )

private

Assignment Operator not implemented.

void DtTreesAndGraphWidget::processItemSelection ( const QModelIndex & index )

slot

Processes item selection by enabling/disabling buttons and menu actions for the newly selected item.

References enableDisableGraphOptions(), myCurrentModelIndex, and myTreeViews.

Referenced by connectSignals().

void DtTreesAndGraphWidget::saveGuiConfiguration ( QFile & configFile )

Saves the GUI configuration to the given file.

It's expected that the file will be open and ready to write to.

References myTreeViews, and theTreeBreakText.

void DtTreesAndGraphWidget::saveTreesToFile ( )

slot

Saves the trees to a file.

References CsvTableFormat, myFederateDescription, myFederateId, myTreeLabels, myTreeViews, TextTableFormat, and writeTreeToStream().

Referenced by connectSignals().

void DtTreesAndGraphWidget::setFederateDescription ( const QString & federateDescr )

inline

Sets the federate description text.

Referenced by DtFederateStatisticsDialog::updateFederateDescription().

void DtTreesAndGraphWidget::setFederateId ( const QString & federateId )

inline

Sets the federate identification text.

Referenced by DtFederateStatisticsDialog::updateFederateId().

void DtTreesAndGraphWidget::showContextMenu ( const QPoint & point )

slot

Shows the context menu.

References enableDisableGraphOptions(), myContextMenu, myCurrentModelIndex, and myTreeViews.

Referenced by connectSignals().

QSize DtTreesAndGraphWidget::sizeHint ( ) const

virtual

Returns the recommended size for the widget.

void DtTreesAndGraphWidget::updateGraphs ( double currentTime )

Must be called periodically to update the graph.

References myModelIndexByGraph, and myModelIndexByRateGraph.

void DtTreesAndGraphWidget::updateGraphsForTree	(	unsigned	treeIndex,
		double	currentTime
	)

Updates the graphs for the specified tree.

References myModelIndexByGraph, and myModelIndexByRateGraph.

void DtTreesAndGraphWidget::updateSortingEnable ( )

slot

Checks whether the trees should have sorting enabled or disabled.

References myTreeViews.

Referenced by connectSignals().

void DtTreesAndGraphWidget::writeTreeToStream	(	const QTreeView *	tree,
		QTextStream &	fileStrm,
		TableFileFormat	format
	)

protected

Writes the given tree's data as a table to the given file stream.

Must specify the format that should be used.

References CsvTableFormat.

Referenced by saveTreesToFile().

Member Data Documentation

QSignalMapper* DtTreesAndGraphWidget::myCloseGraphSignalMapper

protected

Maps signals from graph dialog close events.

Referenced by connectSignals(), graphSelectedItem(), and graphSelectedItemRate().

QMenu* DtTreesAndGraphWidget::myContextMenu

protected

The context menu and toolbar and their actions.

Referenced by DtTreesAndGraphWidget(), enableDisableGraphOptions(), and showContextMenu().

DtTreeAndModelIndex DtTreesAndGraphWidget::myCurrentModelIndex

protected

The model index for which to display the context menu.

Referenced by enableDisableGraphOptions(), graphSelectedItem(), graphSelectedItemRate(), processItemSelection(), and showContextMenu().

QString DtTreesAndGraphWidget::myFederateDescription

protected

Detailed description of this federate.

Printed to files with tree information to preserve more detailed information about the federate.

Referenced by saveTreesToFile().

QString DtTreesAndGraphWidget::myFederateId

protected

Identifying text for the current federate.

Referenced by saveTreesToFile().

std::map<DtTreeAndModelIndex, DtGraphDialog*> DtTreesAndGraphWidget::myGraphByModelIndex

protected

Maps between a graphed model index and the graph dialog that is displaying it.

Referenced by deleteDialog(), and graphSelectedItem().

QAction* DtTreesAndGraphWidget::myGraphItemAction

protected

The context menu and toolbar and their actions.

Referenced by connectSignals(), DtTreesAndGraphWidget(), and enableDisableGraphOptions().

QAction* DtTreesAndGraphWidget::myGraphRateAction

protected

The context menu and toolbar and their actions.

Referenced by connectSignals(), DtTreesAndGraphWidget(), and enableDisableGraphOptions().

std::map<DtGraphDialog*, DtTreeAndModelIndex> DtTreesAndGraphWidget::myModelIndexByGraph

protected

Maps between a graphed model index and the graph dialog that is displaying it.

Referenced by deleteDialog(), graphSelectedItem(), updateGraphs(), and updateGraphsForTree().

std::map<DtGraphDialog*, DtTreeAndModelIndex> DtTreesAndGraphWidget::myModelIndexByRateGraph

protected

Maps between a graphed model index and the graph dialog that is displaying its rate.

Referenced by deleteDialog(), graphSelectedItemRate(), updateGraphs(), and updateGraphsForTree().

std::map<DtTreeAndModelIndex, DtGraphDialog*> DtTreesAndGraphWidget::myRateGraphByModelIndex

protected

Maps between a graphed model index and the graph dialog that is displaying its rate.

Referenced by deleteDialog(), and graphSelectedItemRate().

QAction* DtTreesAndGraphWidget::mySaveToFileAction

protected

The context menu and toolbar and their actions.

Referenced by connectSignals(), and DtTreesAndGraphWidget().

QSplitter* DtTreesAndGraphWidget::mySplitter

protected

Main layout.

Referenced by DtTreesAndGraphWidget(), and initTrees().

QToolBar* DtTreesAndGraphWidget::myToolBar

protected

The context menu and toolbar and their actions.

Referenced by DtTreesAndGraphWidget(), hideToolbar(), and initTrees().

std::vector<QHBoxLayout*> DtTreesAndGraphWidget::myTreeLabelLayouts

protected

Layouts for each tree label.

Referenced by addTree(), and initTrees().

std::vector<QLabel*> DtTreesAndGraphWidget::myTreeLabels

protected

Labels for each tree.

Referenced by addTree(), and saveTreesToFile().

std::vector<QVBoxLayout*> DtTreesAndGraphWidget::myTreeLayouts

protected

Layouts for each tree.

Referenced by addTree(), and initTrees().

std::vector<std::map<unsigned, QString> > DtTreesAndGraphWidget::myTreeRateGraphableCols

protected

The columns for which the rate can be graphed and the units to be displayed on the y axis.

Referenced by addTree(), enableDisableGraphOptions(), enableRateGraphing(), and graphSelectedItemRate().

std::vector<DtRowNameLoc> DtTreesAndGraphWidget::myTreeRowNameLocs

protected

The row name location for the tree.

Referenced by addTree(), and getRowAndColNames().

std::vector<std::map<unsigned, QString> > DtTreesAndGraphWidget::myTreeValGraphableCols

protected

The columns for which the value can be graphed and the units to be displayed on the y axis.

Referenced by addTree(), enableDisableGraphOptions(), enableValueGraphing(), and graphSelectedItem().

std::vector<QTreeView*> DtTreesAndGraphWidget::myTreeViews

protected

The tree view for each tree.

Referenced by addTree(), connectSignals(), initTrees(), loadGuiConfiguration(), processItemSelection(), saveGuiConfiguration(), saveTreesToFile(), showContextMenu(), and updateSortingEnable().

const QString DtTreesAndGraphWidget::theTreeBreakText = "------------\n"

staticprotected

Indicates the end of one tree's configuration data and the start of the next in a GUI config file.

Referenced by loadGuiConfiguration(), and saveGuiConfiguration().

The documentation for this class was generated from the following files:

Public Types

Public Slots

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
