DtAssistantFederateViewMgr Class Reference

Populates and displays the Federate Statistics dialog. More...

Inheritance diagram for DtAssistantFederateViewMgr:

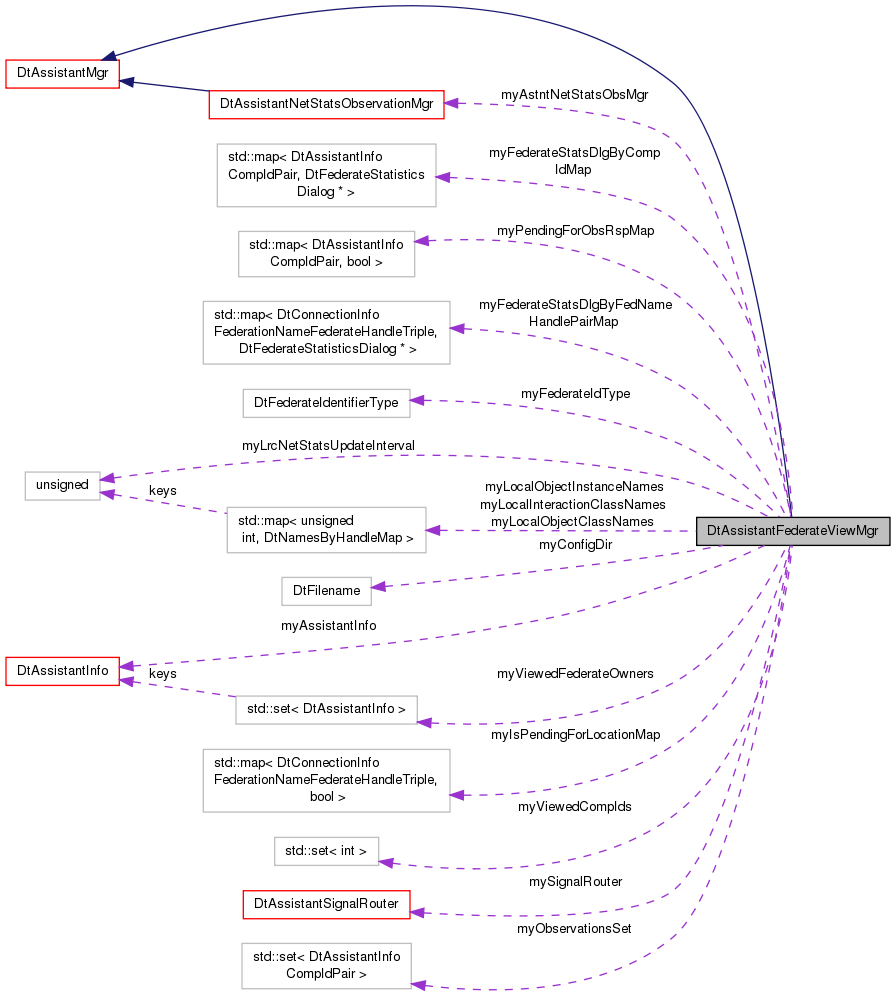

Collaboration diagram for DtAssistantFederateViewMgr:

Public Slots
void	showFederateStatsDialog (const DtRtiConnectionInfo &connInfo, const MAKRti::DtString &federationName, unsigned int federateHandle)
	Displays the Federate Statistics Dialog for the given federate.
void	processFederateRemoval (const DtAssistantComponentInfo *comp)
	Handles local federate removal in cases where we happen to be currently viewing that federate.
void	processFederateRemoval (const DtRtiConnectionInfo &conn, const MAKRti::DtString &federationName, unsigned federateHandle)
	Handles remote federate removal in cases where we happen to be currently viewing that federate.
void	sendFederateObservationRequest (const DtRtiConnectionInfo &connInfo, const MAKRti::DtString &federationName, unsigned federateHdl, const DtAssistantInfo &astnt, unsigned compId)
	Attempt to send a pending Observation request for the specified federate.
void	processLocalRtiComponentConnected (const DtAssistantComponentInfo *compInfo)
void	processLocalRtiComponentDisconnected (const DtAssistantComponentInfo *compInfo)
void	handleObsRspFederateStatDlgUpdate (const DtAssistantInfo &observer, int compId, bool response)
void	federateStatDlgClosing (const DtAssistantInfo &astnt, int compId, const MAKRti::DtString &federationName, int federateHandle, const DtRtiConnectionInfo &connInfo)
void	federateIdentifierUpdated (unsigned int)
	Updates how federates should be identified.
void	lrcNetStatsUpdateIntervalUpdated (unsigned int)
	Updates the LRC NetStats interval (seconds)
Public Slots inherited from DtAssistantMgr
void	displayWarningDialogs ()
	Displays all warning dialogs.

Signals
void	queryFederateInfo (const DtRtiConnectionInfo &conn, const MAKRti::DtString &federationName, unsigned federateHandle, const DtAssistantFederateInfo **info)
	Emitted to query for detailed federate info.
void	queryForwarderInfo (const DtRtiConnectionInfo &conn, const DtAssistantForwarderInfo **info)
	Emitted to query for detailed forwarder info.
void	requestFederateLoc (const DtRtiConnectionInfo &connInfo, const MAKRti::DtString &federationName, unsigned int federateHdl)
	Emitted to request a federate's loc.
Signals inherited from DtAssistantMgr
void	warningDialogDisplayed ()
	Emitted when a warning dialog is displayed.
void	warningDialogDismissed ()
	Emitted when a warning dialog is dismissed.
void	popupRequested (const MAKRti::DtString &text, int sourceCompId, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed.
void	popupRequested (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed.
void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId, bool logOnly)
	Emitted when a notification should be displayed.
void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source, bool logOnly)
	Emitted when a notification should be displayed.

Public Member Functions
	DtAssistantFederateViewMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter, const MAKRti::DtFilename &configDir)
	Constructor.
	~DtAssistantFederateViewMgr ()
	Destructor.
virtual void	startShutdown ()
	Saves the GUI configuration at the start of shut down.
Public Member Functions inherited from DtAssistantMgr
	DtAssistantMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter)
	Constructor.
virtual	~DtAssistantMgr ()
	Destructor.
virtual void	initialize ()
	Initializes this manager just prior to beginning assistant processing.
virtual void	tick ()
	Performs tasks that need to be completed periodically.
virtual bool	dialogsVisible () const
	Determines if there are any visible dialogs for which this manager is responsible.
virtual void	configWidget (DtAssistantConfigWidget **widget, QIcon &icon, QString &name, DtPreferencesPage &pageId)
	Retrieves a widget which will be placed in the configuration dialog for configuring user preferences.
virtual void	updateConfigWidget ()
	Forces the configuration widget to be updated.
virtual void	processConfigWidgetAccept ()
	Process the changes that were accepted in the configuration widget.

Protected Member Functions
virtual void	processNetStatsObserveReqMsg (const DtAssistantNetStatsObserveReqMsg &msg)
virtual void	processNetStatsObserveRspMsg (const DtAssistantNetStatsObserveRspMsg &msg)
virtual void	processServerNetStatsMsgUpdateMsg (const DtAssistantNetStatsMsgUpdateMsg &msg)
virtual void	processServerNetStatsRtiAmbUpdateMsg (const DtAssistantNetStatsRtiAmbUpdateMsg &msg)
virtual void	processServerNetStatsFedAmbUpdateMsg (const DtAssistantNetStatsFedAmbUpdateMsg &msg)
virtual void	processServerNetStatsObjectsUpdateMsg (const DtAssistantNetStatsObjectsUpdateMsg &msg)
virtual void	processServerNetStatsInteractionsUpdateMsg (const DtAssistantNetStatsInteractionsUpdateMsg &msg)
virtual void	processServerNetStatsStringUpdateMsg (const DtAssistantNetStatsStringUpdateMsg &msg)
virtual void	processPeerNetStatsMsgUpdateMsg (const DtAssistantNetStatsMsgUpdateMsg &msg)
virtual void	processPeerNetStatsRtiAmbUpdateMsg (const DtAssistantNetStatsRtiAmbUpdateMsg &msg)
virtual void	processPeerNetStatsFedAmbUpdateMsg (const DtAssistantNetStatsFedAmbUpdateMsg &msg)
virtual void	processPeerNetStatsObjectsUpdateMsg (const DtAssistantNetStatsObjectsUpdateMsg &msg)
virtual void	processPeerNetStatsInteractionsUpdateMsg (const DtAssistantNetStatsInteractionsUpdateMsg &msg)
virtual void	processPeerNetStatsStringUpdateMsg (const DtAssistantNetStatsStringUpdateMsg &msg)
virtual void	processPeerNetStatsStringReqMsg (const DtAssistantNetStatsStringReqMsg &msg)
virtual void	handleNetStatsMsgUpdateDlgUpdate (const DtAssistantNetStatsMsgUpdateMsg &msg, const DtAssistantInfoCompIdPair &astntCompIdPair)
virtual void	handleNetStatsRtiAmbUpdateDlgUpdate (const DtAssistantNetStatsRtiAmbUpdateMsg &msg, const DtAssistantInfoCompIdPair &astntCompIdPair)
virtual void	handleNetStatsFedAmbUpdateDlgUpdate (const DtAssistantNetStatsFedAmbUpdateMsg &msg, const DtAssistantInfoCompIdPair &astntCompIdPair)
virtual void	handleNetStatsObjectsUpdateDlgUpdate (const DtAssistantNetStatsObjectsUpdateMsg &msg, const DtAssistantInfoCompIdPair &astntCompIdPair, bool isLocal=true)
virtual void	handleNetStatsInteractionsUpdateDlgUpdate (const DtAssistantNetStatsInteractionsUpdateMsg &msg, const DtAssistantInfoCompIdPair &astntCompIdPair, bool isLocal=true)
virtual void	handleNetStatsStringUpdateDlgUpdate (const DtAssistantInfoCompIdPair &astntCompIdPair, DtAssistantHandleType handleType, const std::vector< DtU32 > &instanceHandles, const std::vector< MAKRti::DtString > &instanceNames)
virtual void	insertLocalObjectClassNames (unsigned int lrcCompId, const std::vector< DtU32 > &objectClassHandles, const std::vector< MAKRti::DtString > &objectClassNames)
virtual void	insertLocalInteractionClassNames (unsigned int lrcCompId, const std::vector< DtU32 > &interactionClassHandles, const std::vector< MAKRti::DtString > &interactionClassNames)
virtual void	insertLocalObjectInstanceNames (unsigned int lrcCompId, const std::vector< DtU32 > &objectInstanceHandles, const std::vector< MAKRti::DtString > &objectInteractionNames)
virtual bool	getObjectClassName (unsigned int lrcCompId, DtU32 objectClassHandle, MAKRti::DtString &objectClassName)
virtual bool	getInteractionClassName (unsigned int lrcCompId, DtU32 InteractionClassHandle, MAKRti::DtString &interactionClassName)
virtual bool	getObjectInstanceName (unsigned int lrcCompId, DtU32 objectInstanceHandle, MAKRti::DtString &objectInstanceName)
virtual void	requestNetStatsStringUpdate (const DtAssistantInfoCompIdPair &astntCompIdPair, DtAssistantHandleType handletype, const std::set< DtU32 > &handles)
virtual void	getHandlesAndNames (DtAssistantHandleType handleType, unsigned int myObservedCompId, const std::set< DtU32 > &unknownNamesHandles, std::vector< DtU32 > &instanceHandles, std::vector< MAKRti::DtString > &instanceNames)
Protected Member Functions inherited from DtAssistantMgr
void	startDialog (QDialog *dlg, bool inTaskbar, bool warningDialog)
	Sets up the given widget as a dialog.
void	finishDialog (QDialog *dlg)
	Should be called prior to deleting any dialog started with startDialog.
void	showDialog (QDialog *dlg)
	Shows the dialog.
void	startMainWindow (QMainWindow *dlg)
	Sets up a main window dialog.
void	finishMainWindow (QMainWindow *dlg)
	Should be called prior to deleting any dialog started with startMainWindow.
void	showMainWindow (QMainWindow *dlg)
	Shows the dialog.
void	showPopup (const MAKRti::DtString &text, int sourceCompId=-1, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and name of the given source component.
void	showPopup (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and source name.
void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Displays and logs a notification from the given component.
void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Displays and logs notification with the given component name.
void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Logs a notification from the given component, does not display.
void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Logs a notification with the given component name, does not display.

Static Protected Member Functions
static void	processNetStatsObserveReqMsg (const DtAssistantNetStatsObserveReqMsg &msg, void *usr)
static void	processNetStatsObserveRspMsg (const DtAssistantNetStatsObserveRspMsg &msg, void *usr)
static void	processServerNetStatsMsgUpdateMsg (const DtAssistantNetStatsMsgUpdateMsg &msg, void *usr)
static void	processServerNetStatsRtiAmbUpdateMsg (const DtAssistantNetStatsRtiAmbUpdateMsg &msg, void *usr)
static void	processServerNetStatsFedAmbUpdateMsg (const DtAssistantNetStatsFedAmbUpdateMsg &msg, void *usr)
static void	processServerNetStatsObjectsUpdateMsg (const DtAssistantNetStatsObjectsUpdateMsg &msg, void *usr)
static void	processServerNetStatsInteractionsUpdateMsg (const DtAssistantNetStatsInteractionsUpdateMsg &msg, void *usr)
static void	processServerNetStatsStringUpdateMsg (const DtAssistantNetStatsStringUpdateMsg &msg, void *usr)
static void	processPeerNetStatsMsgUpdateMsg (const DtAssistantNetStatsMsgUpdateMsg &msg, void *usr)
static void	processPeerNetStatsRtiAmbUpdateMsg (const DtAssistantNetStatsRtiAmbUpdateMsg &msg, void *usr)
static void	processPeerNetStatsFedAmbUpdateMsg (const DtAssistantNetStatsFedAmbUpdateMsg &msg, void *usr)
static void	processPeerNetStatsObjectsUpdateMsg (const DtAssistantNetStatsObjectsUpdateMsg &msg, void *usr)
static void	processPeerNetStatsInteractionsUpdateMsg (const DtAssistantNetStatsInteractionsUpdateMsg &msg, void *usr)
static void	processPeerNetStatsStringUpdateMsg (const DtAssistantNetStatsStringUpdateMsg &msg, void *usr)
static void	processPeerNetStatsStringReqMsg (const DtAssistantNetStatsStringReqMsg &msg, void *usr)

Protected Attributes
std::set< int >	myViewedCompIds
	The component ID of the federate being viewed.
std::set< DtAssistantInfo >	myViewedFederateOwners
	Set of assistant's which own the current viewed federates.
MAKRti::DtFilename	myConfigDir
	The directory where the configuration file is located.
DtAssistantSignalRouter &	mySignalRouter
	Routes signals between different Assistant managers.
std::map < DtConnectionInfoFederationNameFederateHandleTriple, bool >	myIsPendingForLocationMap
	Determines whether or not we are waiting for location to send Observation Requests.
std::set < DtAssistantInfoCompIdPair >	myObservationsSet
	The federates being observed.
std::map < DtAssistantInfoCompIdPair, bool >	myPendingForObsRspMap
DtAssistantNetStatsObservationMgr *	myAstntNetStatsObsMgr
DtNameByHandleMapByLrcCompIdMap	myLocalObjectClassNames
DtNameByHandleMapByLrcCompIdMap	myLocalInteractionClassNames
DtNameByHandleMapByLrcCompIdMap	myLocalObjectInstanceNames
DtFederateIdentifierType	myFederateIdType
	Flag indicating current federate identifier type.
DtAssistantInfo	myAssistantInfo
	The AssistantInfo for server msgs.
unsigned int	myLrcNetStatsUpdateInterval
	This interval is the interval sent when observation requests are sent (in seconds).
std::map < DtAssistantInfoCompIdPair, DtFederateStatisticsDialog * >	myFederateStatsDlgByCompIdMap
	Maps to the dialogs which display federate operational statistics.
std::map < DtConnectionInfoFederationNameFederateHandleTriple, DtFederateStatisticsDialog * >	myFederateStatsDlgByFedNameHandlePairMap
	Maps to the dialogs which display federate operational statistics.
Protected Attributes inherited from DtAssistantMgr
DtBoost::shared_ptr < DtRtiAssistantServer >	myServer
	The Assistant server from which new messages will arrive from local RTI components.
DtBoost::shared_ptr < DtRtiAssistantPeer >	myPeer
	The Assistant peer which communicates with other Assistants.
std::set< QDialog * >	myUnparentedDialogs
	All unparented dialogs that are created by the GUI should be added to this set.
std::set< QMainWindow * >	myMainWindows
	All main windows that are created by the GUI should be added to this set.
std::set< QDialog * >	myWarningDialogs
	Set of the popup dialogs, either parented or unparented, which, when active, should cause a warning icon to be displayed.

Private Member Functions
	DtAssistantFederateViewMgr (const DtAssistantFederateViewMgr &)
	Copy Constructor not implemented.
DtAssistantFederateViewMgr &	operator= (const DtAssistantFederateViewMgr &)
	Assignment Operator not implemented.

Additional Inherited Members
Static Protected Attributes inherited from DtAssistantMgr
static QIcon	theRtiIcon
	The icons used by the RTI Assistant.
static QIcon	theSmallRtiIcon
static QIcon	theWebIcon
static QIcon	theNotifyRtiIcon
static QIcon	theWarningRtiIcon
static QIcon	thePreferencesIcon
static QIcon	theAboutIcon
static QIcon	theHelpIcon
static bool	theIconsAreLoaded = false
	Whether or not the icons have yet been loaded.

Detailed Description

Populates and displays the Federate Statistics dialog.

Constructor & Destructor Documentation

DtAssistantFederateViewMgr::DtAssistantFederateViewMgr	(	DtBoost::shared_ptr< DtRtiAssistantServer >	server,
		DtBoost::shared_ptr< DtRtiAssistantPeer >	peer,
		DtAssistantSignalRouter &	signalRouter,
		const MAKRti::DtFilename &	configDir
	)

Constructor.

DtAssistantFederateViewMgr::~DtAssistantFederateViewMgr

(

)

Destructor.

References DtAssistantMgr::finishMainWindow(), myAstntNetStatsObsMgr, myFederateStatsDlgByCompIdMap, DtAssistantMgr::myServer, and processNetStatsObserveReqMsg().

DtAssistantFederateViewMgr::DtAssistantFederateViewMgr ( const DtAssistantFederateViewMgr &  )

private

Copy Constructor not implemented.

Member Function Documentation

void DtAssistantFederateViewMgr::federateIdentifierUpdated ( unsigned int  identifier )

slot

Updates how federates should be identified.

References myFederateIdType, and myFederateStatsDlgByCompIdMap.

void DtAssistantFederateViewMgr::federateStatDlgClosing ( const DtAssistantInfo &  astnt, int  compId, const MAKRti::DtString &  federationName, int  federateHandle, const DtRtiConnectionInfo &  connInfo  )

slot

References DtAssistantRTISpy, DtAssistantMgr::finishMainWindow(), DtAssistantInfo::host(), DtAssistantInfo::isThisAssistant(), DtHostNameAddress::isValid(), myFederateStatsDlgByCompIdMap, myFederateStatsDlgByFedNameHandlePairMap, myObservationsSet, DtAssistantMgr::myPeer, and myPendingForObsRspMap.

Referenced by showFederateStatsDialog().

void DtAssistantFederateViewMgr::getHandlesAndNames ( DtAssistantHandleType  handleType, unsigned int  myObservedCompId, const std::set< DtU32 > &  unknownNamesHandles, std::vector< DtU32 > &  instanceHandles, std::vector< MAKRti::DtString > &  instanceNames  )

protectedvirtual

References DtAssistantInteractionClassHandleType, DtAssistantObjectClassHandleType, DtAssistantObjectInstanceHandleType, getInteractionClassName(), getObjectClassName(), and getObjectInstanceName().

Referenced by handleNetStatsInteractionsUpdateDlgUpdate(), handleNetStatsObjectsUpdateDlgUpdate(), and processPeerNetStatsStringReqMsg().

bool DtAssistantFederateViewMgr::getInteractionClassName ( unsigned int  lrcCompId, DtU32  InteractionClassHandle, MAKRti::DtString &  interactionClassName  )

protectedvirtual

References myLocalInteractionClassNames.

Referenced by getHandlesAndNames().

bool DtAssistantFederateViewMgr::getObjectClassName ( unsigned int  lrcCompId, DtU32  objectClassHandle, MAKRti::DtString &  objectClassName  )

protectedvirtual

References myLocalObjectClassNames.

Referenced by getHandlesAndNames().

bool DtAssistantFederateViewMgr::getObjectInstanceName ( unsigned int  lrcCompId, DtU32  objectInstanceHandle, MAKRti::DtString &  objectInstanceName  )

protectedvirtual

References myLocalObjectInstanceNames.

Referenced by getHandlesAndNames().

void DtAssistantFederateViewMgr::handleNetStatsFedAmbUpdateDlgUpdate ( const DtAssistantNetStatsFedAmbUpdateMsg &  msg, const DtAssistantInfoCompIdPair &  astntCompIdPair  )

protectedvirtual

References myFederateStatsDlgByCompIdMap.

Referenced by processPeerNetStatsFedAmbUpdateMsg(), and processServerNetStatsFedAmbUpdateMsg().

void DtAssistantFederateViewMgr::handleNetStatsInteractionsUpdateDlgUpdate ( const DtAssistantNetStatsInteractionsUpdateMsg &  msg, const DtAssistantInfoCompIdPair &  astntCompIdPair, bool  isLocal = true  )

protectedvirtual

References DtAssistantInteractionClassHandleType, getHandlesAndNames(), handleNetStatsStringUpdateDlgUpdate(), myFederateStatsDlgByCompIdMap, and requestNetStatsStringUpdate().

Referenced by processPeerNetStatsInteractionsUpdateMsg(), and processServerNetStatsInteractionsUpdateMsg().

void DtAssistantFederateViewMgr::handleNetStatsMsgUpdateDlgUpdate ( const DtAssistantNetStatsMsgUpdateMsg &  msg, const DtAssistantInfoCompIdPair &  astntCompIdPair  )

protectedvirtual

References myFederateStatsDlgByCompIdMap.

Referenced by processPeerNetStatsMsgUpdateMsg(), and processServerNetStatsMsgUpdateMsg().

void DtAssistantFederateViewMgr::handleNetStatsObjectsUpdateDlgUpdate ( const DtAssistantNetStatsObjectsUpdateMsg &  msg, const DtAssistantInfoCompIdPair &  astntCompIdPair, bool  isLocal = true  )

protectedvirtual

References DtAssistantObjectClassHandleType, DtAssistantObjectInstanceHandleType, getHandlesAndNames(), handleNetStatsStringUpdateDlgUpdate(), myFederateStatsDlgByCompIdMap, and requestNetStatsStringUpdate().

Referenced by processPeerNetStatsObjectsUpdateMsg(), and processServerNetStatsObjectsUpdateMsg().

void DtAssistantFederateViewMgr::handleNetStatsRtiAmbUpdateDlgUpdate ( const DtAssistantNetStatsRtiAmbUpdateMsg &  msg, const DtAssistantInfoCompIdPair &  astntCompIdPair  )

protectedvirtual

References myFederateStatsDlgByCompIdMap.

Referenced by processPeerNetStatsRtiAmbUpdateMsg(), and processServerNetStatsRtiAmbUpdateMsg().

void DtAssistantFederateViewMgr::handleNetStatsStringUpdateDlgUpdate ( const DtAssistantInfoCompIdPair &  astntCompIdPair, DtAssistantHandleType  handleType, const std::vector< DtU32 > &  instanceHandles, const std::vector< MAKRti::DtString > &  instanceNames  )

protectedvirtual

References DtAssistantInteractionClassHandleType, DtAssistantObjectClassHandleType, DtAssistantObjectInstanceHandleType, and myFederateStatsDlgByCompIdMap.

Referenced by handleNetStatsInteractionsUpdateDlgUpdate(), handleNetStatsObjectsUpdateDlgUpdate(), and processPeerNetStatsStringUpdateMsg().

void DtAssistantFederateViewMgr::handleObsRspFederateStatDlgUpdate ( const DtAssistantInfo &  observer, int  compId, bool  response  )

slot

References myObservationsSet, and myPendingForObsRspMap.

Referenced by processNetStatsObserveRspMsg().

void DtAssistantFederateViewMgr::insertLocalInteractionClassNames ( unsigned int  lrcCompId, const std::vector< DtU32 > &  interactionClassHandles, const std::vector< MAKRti::DtString > &  interactionClassNames  )

protectedvirtual

References myLocalInteractionClassNames.

Referenced by processServerNetStatsStringUpdateMsg().

void DtAssistantFederateViewMgr::insertLocalObjectClassNames ( unsigned int  lrcCompId, const std::vector< DtU32 > &  objectClassHandles, const std::vector< MAKRti::DtString > &  objectClassNames  )

protectedvirtual

References myLocalObjectClassNames.

Referenced by processServerNetStatsStringUpdateMsg().

void DtAssistantFederateViewMgr::insertLocalObjectInstanceNames ( unsigned int  lrcCompId, const std::vector< DtU32 > &  objectInstanceHandles, const std::vector< MAKRti::DtString > &  objectInteractionNames  )

protectedvirtual

References myLocalObjectInstanceNames.

Referenced by processServerNetStatsStringUpdateMsg().

void DtAssistantFederateViewMgr::lrcNetStatsUpdateIntervalUpdated ( unsigned int  interval )

slot

Updates the LRC NetStats interval (seconds)

References DtAssistantRTISpy, DtAssistantInfo::host(), interval, DtAssistantInfo::isThisAssistant(), DtHostNameAddress::isValid(), myLrcNetStatsUpdateInterval, myObservationsSet, and DtAssistantMgr::myPeer.

DtAssistantFederateViewMgr& DtAssistantFederateViewMgr::operator= ( const DtAssistantFederateViewMgr &  )

private

Assignment Operator not implemented.

void DtAssistantFederateViewMgr::processFederateRemoval ( const DtAssistantComponentInfo *  comp )

slot

Handles local federate removal in cases where we happen to be currently viewing that federate.

void DtAssistantFederateViewMgr::processFederateRemoval ( const DtRtiConnectionInfo &  conn, const MAKRti::DtString &  federationName, unsigned  federateHandle  )

slot

Handles remote federate removal in cases where we happen to be currently viewing that federate.

void DtAssistantFederateViewMgr::processLocalRtiComponentConnected ( const DtAssistantComponentInfo *  compInfo )

slot

References DtAssistantComponentInfo::compId(), and DtAssistantComponentInfo::isNetStatsEnabled().

void DtAssistantFederateViewMgr::processLocalRtiComponentDisconnected ( const DtAssistantComponentInfo *  compInfo )

slot

References DtAssistantComponentInfo::compId(), myLocalInteractionClassNames, myLocalObjectClassNames, and myLocalObjectInstanceNames.

void DtAssistantFederateViewMgr::processNetStatsObserveReqMsg ( const DtAssistantNetStatsObserveReqMsg &  msg, void *  usr  )

staticprotected

Referenced by ~DtAssistantFederateViewMgr().

void DtAssistantFederateViewMgr::processNetStatsObserveReqMsg ( const DtAssistantNetStatsObserveReqMsg &  msg )

protectedvirtual

References DtAssistantMsg::compId(), DtAssistantRTISpy, DtAssistantMgr::myPeer, DtAssistantMsg::sourceAddr(), DtAssistantMsg::sourceHost(), and DtAssistantMsg::sourceId().

void DtAssistantFederateViewMgr::processNetStatsObserveRspMsg ( const DtAssistantNetStatsObserveRspMsg &  msg, void *  usr  )

staticprotected

void DtAssistantFederateViewMgr::processNetStatsObserveRspMsg ( const DtAssistantNetStatsObserveRspMsg &  msg )

protectedvirtual

References DtAssistantMsg::compId(), DtAssistantRTISpy, handleObsRspFederateStatDlgUpdate(), myObservationsSet, DtAssistantMgr::myPeer, myPendingForObsRspMap, DtAssistantMsg::sourceAddr(), DtAssistantMsg::sourceHost(), and DtAssistantMsg::sourceId().

void DtAssistantFederateViewMgr::processPeerNetStatsFedAmbUpdateMsg ( const DtAssistantNetStatsFedAmbUpdateMsg &  msg, void *  usr  )

staticprotected

void DtAssistantFederateViewMgr::processPeerNetStatsFedAmbUpdateMsg ( const DtAssistantNetStatsFedAmbUpdateMsg &  msg )

protectedvirtual

References DtAssistantMsg::compId(), handleNetStatsFedAmbUpdateDlgUpdate(), myObservationsSet, DtAssistantMgr::myPeer, DtAssistantMsg::sourceAddr(), DtAssistantMsg::sourceHost(), and DtAssistantMsg::sourceId().

void DtAssistantFederateViewMgr::processPeerNetStatsInteractionsUpdateMsg ( const DtAssistantNetStatsInteractionsUpdateMsg &  msg, void *  usr  )

staticprotected

void DtAssistantFederateViewMgr::processPeerNetStatsInteractionsUpdateMsg ( const DtAssistantNetStatsInteractionsUpdateMsg &  msg )

protectedvirtual

References DtAssistantMsg::compId(), handleNetStatsInteractionsUpdateDlgUpdate(), myObservationsSet, DtAssistantMgr::myPeer, DtAssistantMsg::sourceAddr(), DtAssistantMsg::sourceHost(), and DtAssistantMsg::sourceId().

void DtAssistantFederateViewMgr::processPeerNetStatsMsgUpdateMsg ( const DtAssistantNetStatsMsgUpdateMsg &  msg, void *  usr  )

staticprotected

void DtAssistantFederateViewMgr::processPeerNetStatsMsgUpdateMsg ( const DtAssistantNetStatsMsgUpdateMsg &  msg )

protectedvirtual

References DtAssistantMsg::compId(), handleNetStatsMsgUpdateDlgUpdate(), myObservationsSet, DtAssistantMgr::myPeer, DtAssistantMsg::sourceAddr(), DtAssistantMsg::sourceHost(), and DtAssistantMsg::sourceId().

void DtAssistantFederateViewMgr::processPeerNetStatsObjectsUpdateMsg ( const DtAssistantNetStatsObjectsUpdateMsg &  msg, void *  usr  )

staticprotected

void DtAssistantFederateViewMgr::processPeerNetStatsObjectsUpdateMsg ( const DtAssistantNetStatsObjectsUpdateMsg &  msg )

protectedvirtual

References DtAssistantMsg::compId(), handleNetStatsObjectsUpdateDlgUpdate(), myObservationsSet, DtAssistantMgr::myPeer, DtAssistantMsg::sourceAddr(), DtAssistantMsg::sourceHost(), and DtAssistantMsg::sourceId().

void DtAssistantFederateViewMgr::processPeerNetStatsRtiAmbUpdateMsg ( const DtAssistantNetStatsRtiAmbUpdateMsg &  msg, void *  usr  )

staticprotected

void DtAssistantFederateViewMgr::processPeerNetStatsRtiAmbUpdateMsg ( const DtAssistantNetStatsRtiAmbUpdateMsg &  msg )

protectedvirtual

References DtAssistantMsg::compId(), handleNetStatsRtiAmbUpdateDlgUpdate(), myObservationsSet, DtAssistantMgr::myPeer, DtAssistantMsg::sourceAddr(), DtAssistantMsg::sourceHost(), and DtAssistantMsg::sourceId().

void DtAssistantFederateViewMgr::processPeerNetStatsStringReqMsg ( const DtAssistantNetStatsStringReqMsg &  msg, void *  usr  )

staticprotected

void DtAssistantFederateViewMgr::processPeerNetStatsStringReqMsg ( const DtAssistantNetStatsStringReqMsg &  msg )

protectedvirtual

References DtAssistantMsg::compId(), getHandlesAndNames(), DtAssistantMgr::myPeer, DtAssistantMsg::sourceAddr(), DtAssistantMsg::sourceHost(), and DtAssistantMsg::sourceId().

void DtAssistantFederateViewMgr::processPeerNetStatsStringUpdateMsg ( const DtAssistantNetStatsStringUpdateMsg &  msg, void *  usr  )

staticprotected

void DtAssistantFederateViewMgr::processPeerNetStatsStringUpdateMsg ( const DtAssistantNetStatsStringUpdateMsg &  msg )

protectedvirtual

References DtAssistantMsg::compId(), handleNetStatsStringUpdateDlgUpdate(), myObservationsSet, DtAssistantMgr::myPeer, DtAssistantMsg::sourceAddr(), DtAssistantMsg::sourceHost(), and DtAssistantMsg::sourceId().

void DtAssistantFederateViewMgr::processServerNetStatsFedAmbUpdateMsg ( const DtAssistantNetStatsFedAmbUpdateMsg &  msg, void *  usr  )

staticprotected

void DtAssistantFederateViewMgr::processServerNetStatsFedAmbUpdateMsg ( const DtAssistantNetStatsFedAmbUpdateMsg &  msg )

protectedvirtual

References DtAssistantMsg::compId(), handleNetStatsFedAmbUpdateDlgUpdate(), myAssistantInfo, and myObservationsSet.

void DtAssistantFederateViewMgr::processServerNetStatsInteractionsUpdateMsg ( const DtAssistantNetStatsInteractionsUpdateMsg &  msg, void *  usr  )

staticprotected

void DtAssistantFederateViewMgr::processServerNetStatsInteractionsUpdateMsg ( const DtAssistantNetStatsInteractionsUpdateMsg &  msg )

protectedvirtual

References DtAssistantMsg::compId(), handleNetStatsInteractionsUpdateDlgUpdate(), myAssistantInfo, and myObservationsSet.

void DtAssistantFederateViewMgr::processServerNetStatsMsgUpdateMsg ( const DtAssistantNetStatsMsgUpdateMsg &  msg, void *  usr  )

staticprotected

void DtAssistantFederateViewMgr::processServerNetStatsMsgUpdateMsg ( const DtAssistantNetStatsMsgUpdateMsg &  msg )

protectedvirtual

References DtAssistantMsg::compId(), handleNetStatsMsgUpdateDlgUpdate(), myAssistantInfo, and myObservationsSet.

void DtAssistantFederateViewMgr::processServerNetStatsObjectsUpdateMsg ( const DtAssistantNetStatsObjectsUpdateMsg &  msg, void *  usr  )

staticprotected

void DtAssistantFederateViewMgr::processServerNetStatsObjectsUpdateMsg ( const DtAssistantNetStatsObjectsUpdateMsg &  msg )

protectedvirtual

References DtAssistantMsg::compId(), handleNetStatsObjectsUpdateDlgUpdate(), myAssistantInfo, and myObservationsSet.

void DtAssistantFederateViewMgr::processServerNetStatsRtiAmbUpdateMsg ( const DtAssistantNetStatsRtiAmbUpdateMsg &  msg, void *  usr  )

staticprotected

void DtAssistantFederateViewMgr::processServerNetStatsRtiAmbUpdateMsg ( const DtAssistantNetStatsRtiAmbUpdateMsg &  msg )

protectedvirtual

References DtAssistantMsg::compId(), handleNetStatsRtiAmbUpdateDlgUpdate(), myAssistantInfo, and myObservationsSet.

void DtAssistantFederateViewMgr::processServerNetStatsStringUpdateMsg ( const DtAssistantNetStatsStringUpdateMsg &  msg, void *  usr  )

staticprotected

void DtAssistantFederateViewMgr::processServerNetStatsStringUpdateMsg ( const DtAssistantNetStatsStringUpdateMsg &  msg )

protectedvirtual

References DtAssistantMsg::compId(), DtAssistantInteractionClassHandleType, DtAssistantObjectClassHandleType, DtAssistantObjectInstanceHandleType, insertLocalInteractionClassNames(), insertLocalObjectClassNames(), and insertLocalObjectInstanceNames().

void DtAssistantFederateViewMgr::queryFederateInfo ( const DtRtiConnectionInfo &  conn, const MAKRti::DtString &  federationName, unsigned  federateHandle, const DtAssistantFederateInfo **  info  )

signal

Emitted to query for detailed federate info.

Referenced by showFederateStatsDialog().

void DtAssistantFederateViewMgr::queryForwarderInfo ( const DtRtiConnectionInfo &  conn, const DtAssistantForwarderInfo **  info  )

signal

Emitted to query for detailed forwarder info.

Referenced by showFederateStatsDialog().

void DtAssistantFederateViewMgr::requestFederateLoc ( const DtRtiConnectionInfo &  connInfo, const MAKRti::DtString &  federationName, unsigned int  federateHdl  )

signal

Emitted to request a federate's loc.

Referenced by showFederateStatsDialog().

void DtAssistantFederateViewMgr::requestNetStatsStringUpdate ( const DtAssistantInfoCompIdPair &  astntCompIdPair, DtAssistantHandleType  handletype, const std::set< DtU32 > &  handles  )

protectedvirtual

References DtAssistantMgr::myPeer.

Referenced by handleNetStatsInteractionsUpdateDlgUpdate(), and handleNetStatsObjectsUpdateDlgUpdate().

void DtAssistantFederateViewMgr::sendFederateObservationRequest ( const DtRtiConnectionInfo &  connInfo, const MAKRti::DtString &  federationName, unsigned  federateHdl, const DtAssistantInfo &  astnt, unsigned  compId  )

slot

Attempt to send a pending Observation request for the specified federate.

References DtAssistantRTISpy, DtAssistantInfo::host(), DtAssistantInfo::isThisAssistant(), DtHostNameAddress::isValid(), myAssistantInfo, myFederateStatsDlgByCompIdMap, myFederateStatsDlgByFedNameHandlePairMap, myIsPendingForLocationMap, myLrcNetStatsUpdateInterval, myObservationsSet, DtAssistantMgr::myPeer, myPendingForObsRspMap, DtFederateStatisticsDialog::setAssistantInfo(), and DtFederateStatisticsDialog::setCompId().

void DtAssistantFederateViewMgr::showFederateStatsDialog ( const DtRtiConnectionInfo &  connInfo, const MAKRti::DtString &  federationName, unsigned int  federateHandle  )

slot

Displays the Federate Statistics Dialog for the given federate.

References connect(), DtAssistantFederateInfo::federateHostName(), DtFederateStatisticsDialog::federateIdentifierUpdated(), DtAssistantForwarderInfo::federateInfo(), DtAssistantFederateInfo::federateName(), federateStatDlgClosing(), DtAssistantFederateInfo::federateType(), DtIconAndTextureManager::getInstance(), myConfigDir, myFederateIdType, myFederateStatsDlgByFedNameHandlePairMap, myIsPendingForLocationMap, DtAssistantNetworkCompInfo::processName(), queryFederateInfo(), queryForwarderInfo(), requestFederateLoc(), DtFederateStatisticsDialog::setConnectionInfo(), DtFederateStatisticsDialog::setFederateHandle(), DtFederateStatisticsDialog::setFederateHost(), DtFederateStatisticsDialog::setFederateIcon(), DtFederateStatisticsDialog::setFederateName(), DtFederateStatisticsDialog::setFederateProcess(), DtFederateStatisticsDialog::setFederateType(), DtFederateStatisticsDialog::setFederationName(), DtFederateStatisticsDialog::setFederationNameStr(), DtAssistantMgr::showMainWindow(), and DtAssistantMgr::startMainWindow().

void DtAssistantFederateViewMgr::startShutdown ( )

virtual

Saves the GUI configuration at the start of shut down.

Reimplemented from DtAssistantMgr.

Member Data Documentation

DtAssistantInfo DtAssistantFederateViewMgr::myAssistantInfo

protected

The AssistantInfo for server msgs.

Referenced by processServerNetStatsFedAmbUpdateMsg(), processServerNetStatsInteractionsUpdateMsg(), processServerNetStatsMsgUpdateMsg(), processServerNetStatsObjectsUpdateMsg(), processServerNetStatsRtiAmbUpdateMsg(), and sendFederateObservationRequest().

DtAssistantNetStatsObservationMgr* DtAssistantFederateViewMgr::myAstntNetStatsObsMgr

protected

Referenced by ~DtAssistantFederateViewMgr().

MAKRti::DtFilename DtAssistantFederateViewMgr::myConfigDir

protected

The directory where the configuration file is located.

Referenced by showFederateStatsDialog().

DtFederateIdentifierType DtAssistantFederateViewMgr::myFederateIdType

protected

Flag indicating current federate identifier type.

Referenced by federateIdentifierUpdated(), and showFederateStatsDialog().

std::map<DtAssistantInfoCompIdPair, DtFederateStatisticsDialog*> DtAssistantFederateViewMgr::myFederateStatsDlgByCompIdMap

protected

Maps to the dialogs which display federate operational statistics.

Referenced by federateIdentifierUpdated(), federateStatDlgClosing(), handleNetStatsFedAmbUpdateDlgUpdate(), handleNetStatsInteractionsUpdateDlgUpdate(), handleNetStatsMsgUpdateDlgUpdate(), handleNetStatsObjectsUpdateDlgUpdate(), handleNetStatsRtiAmbUpdateDlgUpdate(), handleNetStatsStringUpdateDlgUpdate(), sendFederateObservationRequest(), and ~DtAssistantFederateViewMgr().

std::map<DtConnectionInfoFederationNameFederateHandleTriple, DtFederateStatisticsDialog*> DtAssistantFederateViewMgr::myFederateStatsDlgByFedNameHandlePairMap

protected

Maps to the dialogs which display federate operational statistics.

Referenced by federateStatDlgClosing(), sendFederateObservationRequest(), and showFederateStatsDialog().

std::map<DtConnectionInfoFederationNameFederateHandleTriple, bool> DtAssistantFederateViewMgr::myIsPendingForLocationMap

protected

Determines whether or not we are waiting for location to send Observation Requests.

Referenced by sendFederateObservationRequest(), and showFederateStatsDialog().

DtNameByHandleMapByLrcCompIdMap DtAssistantFederateViewMgr::myLocalInteractionClassNames

protected

Referenced by getInteractionClassName(), insertLocalInteractionClassNames(), and processLocalRtiComponentDisconnected().

DtNameByHandleMapByLrcCompIdMap DtAssistantFederateViewMgr::myLocalObjectClassNames

protected

Referenced by getObjectClassName(), insertLocalObjectClassNames(), and processLocalRtiComponentDisconnected().

DtNameByHandleMapByLrcCompIdMap DtAssistantFederateViewMgr::myLocalObjectInstanceNames

protected

Referenced by getObjectInstanceName(), insertLocalObjectInstanceNames(), and processLocalRtiComponentDisconnected().

unsigned int DtAssistantFederateViewMgr::myLrcNetStatsUpdateInterval

protected

This interval is the interval sent when observation requests are sent (in seconds).

The end result should be that the Display is updated with fresh information (if applicable) every interval.

Referenced by lrcNetStatsUpdateIntervalUpdated(), and sendFederateObservationRequest().

std::set<DtAssistantInfoCompIdPair> DtAssistantFederateViewMgr::myObservationsSet

protected

The federates being observed.

Referenced by federateStatDlgClosing(), handleObsRspFederateStatDlgUpdate(), lrcNetStatsUpdateIntervalUpdated(), processNetStatsObserveRspMsg(), processPeerNetStatsFedAmbUpdateMsg(), processPeerNetStatsInteractionsUpdateMsg(), processPeerNetStatsMsgUpdateMsg(), processPeerNetStatsObjectsUpdateMsg(), processPeerNetStatsRtiAmbUpdateMsg(), processPeerNetStatsStringUpdateMsg(), processServerNetStatsFedAmbUpdateMsg(), processServerNetStatsInteractionsUpdateMsg(), processServerNetStatsMsgUpdateMsg(), processServerNetStatsObjectsUpdateMsg(), processServerNetStatsRtiAmbUpdateMsg(), and sendFederateObservationRequest().

std::map<DtAssistantInfoCompIdPair, bool> DtAssistantFederateViewMgr::myPendingForObsRspMap

protected

Referenced by federateStatDlgClosing(), handleObsRspFederateStatDlgUpdate(), processNetStatsObserveRspMsg(), and sendFederateObservationRequest().

DtAssistantSignalRouter& DtAssistantFederateViewMgr::mySignalRouter

protected

Routes signals between different Assistant managers.

std::set<int> DtAssistantFederateViewMgr::myViewedCompIds

protected

The component ID of the federate being viewed.

std::set<DtAssistantInfo> DtAssistantFederateViewMgr::myViewedFederateOwners

protected

Set of assistant's which own the current viewed federates.

---

The documentation for this class was generated from the following files:

• federateViewMgr.h
• federateViewMgr.cxx
