Compiles federation information from rtiexecs and LRCs. More...

Inheritance diagram for DtAssistantFederationsInfoMgr:

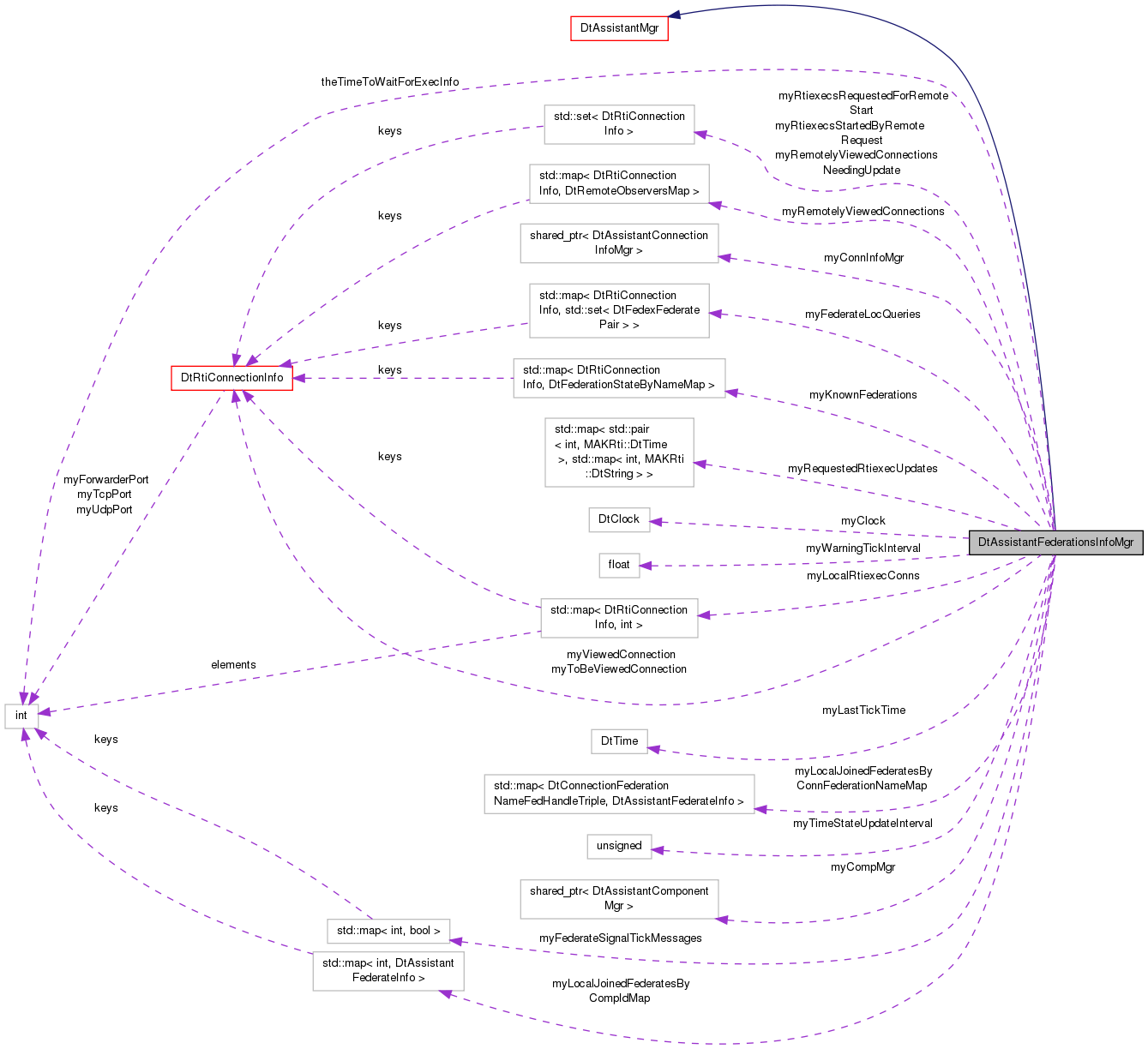

Collaboration diagram for DtAssistantFederationsInfoMgr:

Public Slots
void	processLocalFederateJoined (const DtAssistantComponentInfo *info, const MAKRti::DtString &federateType, const MAKRti::DtString &federateName, unsigned federateHandle, const MAKRti::DtString &federationName, unsigned federationHandle, DtHlaVersionId hlaVersion)
	Processes a local LRC joining a federation.
void	processLocalFederateResigned (const DtAssistantComponentInfo *)
	Processes a local LRC resigning from its federation.
void	processConnectionsUpdate (const DtRtiConnectionAndConfiguration &conns)
	Processes changes in connection state.
void	processConnectionsRemoval (const DtRtiConnectionAndConfiguration &conns)
	Processes removal of known connections.
void	sendAllFederationInfo ()
	Sends update messages for all local federations to remote assistants.
void	pruneStaleFederationsAndObservers ()
	Removes any federations which have not been heartbeated and remote observers.
void	startRtiexec (const DtRtiConnectionInfoDataPair &conn, const DtRtiConnectionConfigurationInfo &config, bool requestedRemotely)
	Processes a request to start an rtiexec.
void	updateFederateWarningTickInterval (float interval)
	Updates the interval at which federates must tick in order to prevent warnings.
void	sendObserveFederationsMsg ()
	Sends a message indicating the current connection whose federations are being observed by this assistant.
void	processRtiexecWebServerChange (const DtAssistantComponentInfo *)
	Processes a change in local rtiexec info to see if we have obtained info on the rtiexec's web server.
void	provideFederateInfo (const DtRtiConnectionInfo &conn, const MAKRti::DtString &federationName, unsigned federateHandle, const DtAssistantFederateInfo **info)
	Response to a query for federate info.
void	provideFederationInfo (const DtRtiConnectionInfo &conn, const MAKRti::DtString &federationName, const DtAssistantFederationInfo **info)
	Response to a query for federation info.
void	requestFederateLoc (const DtRtiConnectionInfo &connInfo, const MAKRti::DtString &federationName, unsigned federateHdl)
	Respond to a request for a federate location.
void	removeFederationsForRtiexec (const DtAssistantComponentInfo *)
	Process the removal of a local rtiexec.
Public Slots inherited from DtAssistantMgr
void	displayWarningDialogs ()
	Displays all warning dialogs.

Signals
void	federationAdded (const DtRtiConnectionInfo &conn, const MAKRti::DtString &federationName)
	Emitted when a new federation is added.
void	federationUpdated (const DtRtiConnectionInfo &conn, const MAKRti::DtString &federationName)
	Emitted when a federation is updated.
void	federationRemoved (const DtRtiConnectionInfo &conn, const MAKRti::DtString &federationName)
	Emitted when a federation is destroyed.
void	federateAdded (const DtRtiConnectionInfo &conn, const MAKRti::DtString &federationName, unsigned federateHandle)
	Emitted when a new federate is added.
void	federateUpdated (const DtRtiConnectionInfo &conn, const MAKRti::DtString &federationName, unsigned federateHandle)
	Emitted when a federate is updated.
void	federateRemoved (const DtRtiConnectionInfo &conn, const MAKRti::DtString &federationName, unsigned federateHandle)
	Emitted when a federate is removed.
void	rtiexecHasNoFederations (const DtRtiConnectionInfo &conn)
	Emitted when an rtiexec response message is received with no federations.
void	viewedWebSpyInfoUpdated (const MAKRti::DtInetAddr &addr, int port)
	Emitted when the web spy info for the currently viewed connection is updated.
void	federateLocReceived (const DtRtiConnectionInfo &connInfo, const MAKRti::DtString &federationName, unsigned federateHdl, const DtAssistantInfo &astnt, unsigned compId)
	Emitted when remote federate location is received after processing a requestFederateLoc from another manager.
Signals inherited from DtAssistantMgr
void	warningDialogDisplayed ()
	Emitted when a warning dialog is displayed.
void	warningDialogDismissed ()
	Emitted when a warning dialog is dismissed.
void	popupRequested (const MAKRti::DtString &text, int sourceCompId, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed.
void	popupRequested (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed.
void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId, bool logOnly)
	Emitted when a notification should be displayed.
void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source, bool logOnly)
	Emitted when a notification should be displayed.

Public Member Functions
	DtAssistantFederationsInfoMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter, DtBoost::shared_ptr< DtAssistantComponentMgr > compMgr, DtBoost::shared_ptr< DtAssistantConnectionInfoMgr > connInfoMgr)
	Constructor.
	~DtAssistantFederationsInfoMgr ()
	Destructor.
virtual const DtAssistantFederationInfo *	federationInfo (const DtRtiConnectionInfo &conn, const MAKRti::DtString &name) const
	Get information on the given federation.
virtual const DtFederationStateByNameMap *	federations (const DtRtiConnectionInfo &conn) const
	Get a list of federates in the given federation.
virtual const DtAssistantFederateInfo *	federateInfo (const DtRtiConnectionInfo &conn, const MAKRti::DtString &federationName, unsigned federateHandle)
	Get information on the given federate.
virtual const DtFederateInfoByHandleMap *	federates (const DtRtiConnectionInfo &conn, const MAKRti::DtString &federationName) const
	Get a list of federates in the given federation.
virtual bool	isLocalRtiexecViewedRemotely (const DtRtiConnectionInfo &conn) const
	Returns true if the connection is for a local rtiexec which is being viewed remotely.
virtual void	tick ()
	Performs tasks that need to be completed periodically.
virtual void	requestSingleUpdateFromConnectedRtiexecs (int id)
	Performs a single data request of the connected rtiexecs.
virtual void	pruneTimedOutSingleUpdates ()
	If there were rtiexec updates that timed out, we send back the incomplete msg.
virtual void	viewFederationsForConnection (const DtRtiConnectionInfo &conn)
	Tell the manager that the connection being viewed has changed.
Public Member Functions inherited from DtAssistantMgr
	DtAssistantMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter)
	Constructor.
virtual	~DtAssistantMgr ()
	Destructor.
virtual void	initialize ()
	Initializes this manager just prior to beginning assistant processing.
virtual void	startShutdown ()
	Performs any necessary processing at the start of shutdown.
virtual bool	dialogsVisible () const
	Determines if there are any visible dialogs for which this manager is responsible.
virtual void	configWidget (DtAssistantConfigWidget **widget, QIcon &icon, QString &name, DtPreferencesPage &pageId)
	Retrieves a widget which will be placed in the configuration dialog for configuring user preferences.
virtual void	updateConfigWidget ()
	Forces the configuration widget to be updated.
virtual void	processConfigWidgetAccept ()
	Process the changes that were accepted in the configuration widget.

Protected Types
typedef std::map < DtAssistantInfo, bool >	DtRemoteObserversMap
typedef std::map < DtRtiConnectionInfo, DtRemoteObserversMap >	DtConnToObserversMap
typedef std::map < DtRtiConnectionInfo, DtFederationStateByNameMap >	DtConnToFederationStateMap
typedef std::map < DtRtiConnectionInfo, int >	DtConnToCompIdMap
typedef std::pair < MAKRti::DtString, unsigned >	DtFedexFederatePair
	Federates we are trying to locate.
typedef std::map < DtRtiConnectionInfo, std::set< DtFedexFederatePair > >	DtFedsByConn
typedef std::map< int, DtAssistantFederateInfo >	DtFedInfoByCompIdMap
	Maps of locally joined Federates based off Components.
typedef std::pair < MAKRti::DtString, unsigned int >	FederationNameFederateHandlePair
typedef std::pair < DtRtiConnectionInfo, FederationNameFederateHandlePair >	DtConnectionFederationNameFedHandleTriple
typedef std::map < DtConnectionFederationNameFedHandleTriple, DtAssistantFederateInfo >	DtFedInfoByConnFederationPairMap

Protected Member Functions
virtual void	processRtiexecConnUpdate (const DtRtiConnectionInfoDataPair &rtiexec)
	Processes an update to an rtiexec connection.
virtual void	processLightweightConnUpdate (const DtRtiConnectionInfoDataPair &conn)
	Processes an update to a lightweight connection.
virtual void	processConnectionRemoval (const DtRtiConnectionInfoDataPair &conn)
	Processes the removal of a known connection.
virtual bool	localFederateInfo (int compId, const DtAssistantFederateInfo federate, DtAssistantFederationInfo federation)
	Returns the local federate info matching the given component ID.
Protected Member Functions inherited from DtAssistantMgr
void	startDialog (QDialog *dlg, bool inTaskbar, bool warningDialog)
	Sets up the given widget as a dialog.
void	finishDialog (QDialog *dlg)
	Should be called prior to deleting any dialog started with startDialog.
void	showDialog (QDialog *dlg)
	Shows the dialog.
void	startMainWindow (QMainWindow *dlg)
	Sets up a main window dialog.
void	finishMainWindow (QMainWindow *dlg)
	Should be called prior to deleting any dialog started with startMainWindow.
void	showMainWindow (QMainWindow *dlg)
	Shows the dialog.
void	showPopup (const MAKRti::DtString &text, int sourceCompId=-1, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and name of the given source component.
void	showPopup (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and source name.
void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Displays and logs a notification from the given component.
void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Displays and logs notification with the given component name.
void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Logs a notification from the given component, does not display.
void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Logs a notification with the given component name, does not display.

Protected Attributes
DtBoost::shared_ptr < DtAssistantComponentMgr >	myCompMgr
	The component manager.
DtBoost::shared_ptr < DtAssistantConnectionInfoMgr >	myConnInfoMgr
	The connection info manager.
DtConnToFederationStateMap	myKnownFederations
	All known information on all federations mapped by connection.
DtConnToCompIdMap	myLocalRtiexecConns
	Map of all connections which have an rtiexec running locally, mapped to the component ID of the local rtiexec.
std::set< DtRtiConnectionInfo >	myRtiexecsRequestedForRemoteStart
	The list of remote rtiexecs which have been started by this Assistant but have yet to be verified or failed to start.
std::set< DtRtiConnectionInfo >	myRtiexecsStartedByRemoteRequest
	The list of local rtiexecs whose startup was requested by remote Assistants but have yet to be verified or failed to start.
DtConnToObserversMap	myRemotelyViewedConnections
	Local connections currently being viewed by remote Assistants, and the set of all Assistants which are viewing them.
std::set< DtRtiConnectionInfo >	myRemotelyViewedConnectionsNeedingUpdate
	Local connections currently being viewed by remote Assistants which require an update to be sent as soon as we get one.
DtRtiConnectionInfo	myViewedConnection
	The connection currently being viewed at this Assistant.
DtRtiConnectionInfo	myToBeViewedConnection
	The connection to be viewed if it ever becomes valid.
MAKRti::DtClock	myClock
	Clock used to determine if we need to resend lost messages.
unsigned int	myTimeStateUpdateInterval
	The interval, in ms, at which local rtiexecs should be requested to send updated time state information.
std::map< std::pair< int, MAKRti::DtTime >, std::map < int, MAKRti::DtString > >	myRequestedRtiexecUpdates
	One time rtiexec updates that have been requested.
float	myWarningTickInterval
	Warning tick interval.
MAKRti::DtTime	myLastTickTime
	The last tick time.
std::map< int, bool >	myFederateSignalTickMessages
	Set of federate component ids and signal ticks.
DtFedsByConn	myFederateLocQueries
DtFedInfoByCompIdMap	myLocalJoinedFederatesByCompIdMap
DtFedInfoByConnFederationPairMap	myLocalJoinedFederatesByConnFederationNameMap
Protected Attributes inherited from DtAssistantMgr
DtBoost::shared_ptr < DtRtiAssistantServer >	myServer
	The Assistant server from which new messages will arrive from local RTI components.
DtBoost::shared_ptr < DtRtiAssistantPeer >	myPeer
	The Assistant peer which communicates with other Assistants.
std::set< QDialog * >	myUnparentedDialogs
	All unparented dialogs that are created by the GUI should be added to this set.
std::set< QMainWindow * >	myMainWindows
	All main windows that are created by the GUI should be added to this set.
std::set< QDialog * >	myWarningDialogs
	Set of the popup dialogs, either parented or unparented, which, when active, should cause a warning icon to be displayed.

Static Protected Attributes
static const int	theTimeToWaitForExecInfo = 2
	The time, in seconds, to wait for information requested from a remote rtiexec.
Static Protected Attributes inherited from DtAssistantMgr
static QIcon	theRtiIcon
	The icons used by the RTI Assistant.
static QIcon	theSmallRtiIcon
static QIcon	theWebIcon
static QIcon	theNotifyRtiIcon
static QIcon	theWarningRtiIcon
static QIcon	thePreferencesIcon
static QIcon	theAboutIcon
static QIcon	theHelpIcon
static bool	theIconsAreLoaded = false
	Whether or not the icons have yet been loaded.

Private Member Functions
	DtAssistantFederationsInfoMgr (DtAssistantFederationsInfoMgr const &)
	Copy Constructor not implemented – Copy Not Allowed!
DtAssistantFederationsInfoMgr &	operator= (DtAssistantFederationsInfoMgr const &)
	Assignment not implemented – Assignment Not Allowed!

Message Callbacks
Callbacks for federation information and command messages
virtual void	processObserveMsg (const DtAssistantStateObserveMsg &msg)
	Called by the callback function to process a federation observe message.
virtual void	processExecObserveRspMsg (const DtAssistantExecObserveRspMsg &msg)
	Called by the callback function to process an rtiexec observe response message.
virtual void	processRemoteRtiexecPopupMsg (const DtAssistantPopupMsg &msg)
	Called by the callback function to process a remote rtiexec popup msg.
virtual void	processFederationStateMsg (const DtAssistantFederationStateMsg &msg)
	Called by the callback function to process a federation state message from a local rtiexec or remote assistant.
virtual void	processFederateStateMsg (const DtAssistantFederateStateMsg &msg)
	Called by the callback function to process a federate state message from a local rtiexec.
virtual void	processExecStateMsgForConnection (const DtAssistantExecStateMsg &msg)
	Called by the callback function to process a federation state message on behalf of an rtiAssistanttoAssistantClient that requested the data.
virtual void	processTimeStateMsg (const DtAssistantTimeStateMsg &msg)
	Called by the callback function to process a time state message from a local rtiexec.
virtual void	processSyncPtStateMsg (const DtAssistantSyncPtUpdateMsg &msg)
	Called by the callback function to process a synchronization point state message.
virtual void	processAssistantCommandMsg (const DtAssistantCommandMsg &msg)
	Processes an RTI Assistant command message.
virtual void	processFederateRequestMsg (const DtAssistantFederateReqMsg &msg)
	Called by the callback function to process federate info request.
virtual void	processFederateResponseMsg (const DtAssistantFederateRespMsg &msg)
	Called by the callback function to process federate info response.
virtual void	forwardMsgToLocalRtiexec (const DtAssistantMsg &msg, bool sendOnlyIfCommandsAccepted=false)
	Called by callback functions to simply forward a message to a local rtiexec.
virtual void	forwardMsgFromLocalRtiexec (const DtAssistantMsg &msg)
	Called by the callback function to forward a local rtiexec message to remote assistants.
virtual void	processSignalTickedMsg (const DtAssistantSignalTickedMsg &msg)
	Called by the callback function to process the signal ticked message.
static void	processObserveMsg (const DtAssistantStateObserveMsg &msg, void *usr)
	Callback to process a federation observe message.
static void	processExecObserveRspMsg (const DtAssistantExecObserveRspMsg &msg, void *usr)
	Callback to process an rtiexec observe response message.
static void	processRemoteRtiexecPopupMsg (const DtAssistantPopupMsg &msg, void *usr)
	Callback to process a popup message from a remote rtiexec.
static void	processFederationStateMsg (const DtAssistantFederationStateMsg &msg, void *usr)
	Callback to process a federation state message from a local rtiexec or remote assistant.
static void	processFederateStateMsg (const DtAssistantFederateStateMsg &msg, void *usr)
	Callback to process a federate state message from a local rtiexec.
static void	processExecStateMsgForConnection (const DtAssistantExecStateMsg &msg, void *usr)
	Called to process a exec state message on behalf of an rtiAssistanttoAssistantClient that requested the data.
static void	processTimeStateMsg (const DtAssistantTimeStateMsg &msg, void *usr)
	Callback to process a time state message from a local rtiexec.
static void	processSyncPtStateMsg (const DtAssistantSyncPtUpdateMsg &msg, void *usr)
	Callback to process a synchronization point state message.
static void	processAssistantCommandMsg (const DtAssistantCommandMsg &msg, void *usr)
	Processes an RTI Assistant command message.
static void	processFederateDeleteMsg (const DtAssistantDeleteFederateMsg &msg, void *usr)
	Callback to process a federate delete message.
static void	processFederationDeleteMsg (const DtAssistantDeleteFederationMsg &msg, void *usr)
	Callback to process a federation delete message.
static void	processFederateRequestMsg (const DtAssistantFederateReqMsg &msg, void *usr)
	Callback to process a federate info request from a remote peer.
static void	processFederateResponseMsg (const DtAssistantFederateRespMsg &msg, void *usr)
	Callback to process a federate info response from a remote peer.
static void	forwardRtiexecNotifyMsg (const DtAssistantNotifyMsg &msg, void *usr)
	Callback to forward a notify message from a local rtiexec to a remote assistant.
static void	forwardRtiexecPopupMsg (const DtAssistantPopupMsg &msg, void *usr)
	Callback to forward a popup message from a local rtiexec to a remote assistant.
static void	forwardRtiexecLogMsg (const DtAssistantLogMsg &msg, void *usr)
	Callback to forward a log message from a local rtiexec to a remote assistant.
static void	forwardLogRequestMsg (const DtAssistantLogRequestMsg &msg, void *usr)
	Callback to process a log request from a remote peer for a local rtiexec.
static void	forwardRtiexecExitMsg (const DtAssistantExitMsg &msg, void *usr)
	Callback to process a request from a remote peer to shutdown a local rtiexec.
static void	processSignalTickedMsg (const DtAssistantSignalTickedMsg &msg, void *usr)
	Callback to process a signal ticked message from a federate.

Detailed Description

Compiles federation information from rtiexecs and LRCs.

Member Typedef Documentation

typedef std::pair< DtRtiConnectionInfo, FederationNameFederateHandlePair> DtAssistantFederationsInfoMgr::DtConnectionFederationNameFedHandleTriple

protected

typedef std::map< DtRtiConnectionInfo, int > DtAssistantFederationsInfoMgr::DtConnToCompIdMap

protected

typedef std::map< DtRtiConnectionInfo, DtFederationStateByNameMap > DtAssistantFederationsInfoMgr::DtConnToFederationStateMap

protected

typedef std::map< DtRtiConnectionInfo, DtRemoteObserversMap > DtAssistantFederationsInfoMgr::DtConnToObserversMap

protected

typedef std::pair<MAKRti::DtString, unsigned> DtAssistantFederationsInfoMgr::DtFedexFederatePair

protected

Federates we are trying to locate.

typedef std::map< int, DtAssistantFederateInfo > DtAssistantFederationsInfoMgr::DtFedInfoByCompIdMap

protected

Maps of locally joined Federates based off Components.

typedef std::map<DtConnectionFederationNameFedHandleTriple, DtAssistantFederateInfo> DtAssistantFederationsInfoMgr::DtFedInfoByConnFederationPairMap

protected

typedef std::map<DtRtiConnectionInfo, std::set<DtFedexFederatePair> > DtAssistantFederationsInfoMgr::DtFedsByConn

protected

typedef std::map< DtAssistantInfo, bool > DtAssistantFederationsInfoMgr::DtRemoteObserversMap

protected

typedef std::pair< MAKRti::DtString, unsigned int > DtAssistantFederationsInfoMgr::FederationNameFederateHandlePair

protected

Constructor & Destructor Documentation

DtAssistantFederationsInfoMgr::DtAssistantFederationsInfoMgr	(	DtBoost::shared_ptr< DtRtiAssistantServer >	server,
		DtBoost::shared_ptr< DtRtiAssistantPeer >	peer,
		DtAssistantSignalRouter &	signalRouter,
		DtBoost::shared_ptr< DtAssistantComponentMgr >	compMgr,
		DtBoost::shared_ptr< DtAssistantConnectionInfoMgr >	connInfoMgr
	)

Constructor.

DtAssistantFederationsInfoMgr::~DtAssistantFederationsInfoMgr ( )

Destructor.

DtAssistantFederationsInfoMgr::DtAssistantFederationsInfoMgr ( DtAssistantFederationsInfoMgr const & )

private

Copy Constructor not implemented – Copy Not Allowed!

Member Function Documentation

void DtAssistantFederationsInfoMgr::federateAdded	(	const DtRtiConnectionInfo &	conn,
		const MAKRti::DtString &	federationName,
		unsigned	federateHandle
	)

signal

Emitted when a new federate is added.

Referenced by DtAssistantFederationsInfoMgr(), processFederateResponseMsg(), and processLocalFederateJoined().

const DtAssistantFederateInfo * DtAssistantFederationsInfoMgr::federateInfo	(	const DtRtiConnectionInfo &	conn,
		const MAKRti::DtString &	federationName,
		unsigned	federateHandle
	)

virtual

Get information on the given federate.

References DtAssistantFederationInfo::federateInfo(), and federationInfo().

Referenced by processLocalFederateJoined(), provideFederateInfo(), and requestFederateLoc().

void DtAssistantFederationsInfoMgr::federateLocReceived	(	const DtRtiConnectionInfo &	connInfo,
		const MAKRti::DtString &	federationName,
		unsigned	federateHdl,
		const DtAssistantInfo &	astnt,
		unsigned	compId
	)

signal

Emitted when remote federate location is received after processing a requestFederateLoc from another manager.

Referenced by DtAssistantFederationsInfoMgr(), processFederateResponseMsg(), and requestFederateLoc().

void DtAssistantFederationsInfoMgr::federateRemoved	(	const DtRtiConnectionInfo &	conn,
		const MAKRti::DtString &	federationName,
		unsigned	federateHandle
	)

signal

Emitted when a federate is removed.

Referenced by DtAssistantFederationsInfoMgr(), processFederateStateMsg(), processLocalFederateResigned(), and pruneStaleFederationsAndObservers().

const DtFederateInfoByHandleMap * DtAssistantFederationsInfoMgr::federates	(	const DtRtiConnectionInfo &	conn,
		const MAKRti::DtString &	federationName
	)		const

virtual

Get a list of federates in the given federation.

References DtAssistantFederationInfo::federates(), and federationInfo().

Referenced by processFederateRequestMsg().

void DtAssistantFederationsInfoMgr::federateUpdated	(	const DtRtiConnectionInfo &	conn,
		const MAKRti::DtString &	federationName,
		unsigned	federateHandle
	)

signal

Emitted when a federate is updated.

Referenced by DtAssistantFederationsInfoMgr(), processFederateResponseMsg(), and processFederateStateMsg().

void DtAssistantFederationsInfoMgr::federationAdded	(	const DtRtiConnectionInfo &	conn,
		const MAKRti::DtString &	federationName
	)

signal

Emitted when a new federation is added.

Referenced by DtAssistantFederationsInfoMgr(), and processLocalFederateJoined().

const DtAssistantFederationInfo * DtAssistantFederationsInfoMgr::federationInfo	(	const DtRtiConnectionInfo &	conn,
		const MAKRti::DtString &	name
	)		const

virtual

Get information on the given federation.

References myKnownFederations.

Referenced by federateInfo(), federates(), processLocalFederateJoined(), and provideFederationInfo().

void DtAssistantFederationsInfoMgr::federationRemoved	(	const DtRtiConnectionInfo &	conn,
		const MAKRti::DtString &	federationName
	)

signal

Emitted when a federation is destroyed.

Referenced by DtAssistantFederationsInfoMgr(), processFederationStateMsg(), processLocalFederateResigned(), pruneStaleFederationsAndObservers(), and removeFederationsForRtiexec().

const DtFederationStateByNameMap * DtAssistantFederationsInfoMgr::federations ( const DtRtiConnectionInfo & conn ) const

virtual

Get a list of federates in the given federation.

References myKnownFederations.

Referenced by viewFederationsForConnection().

void DtAssistantFederationsInfoMgr::federationUpdated	(	const DtRtiConnectionInfo &	conn,
		const MAKRti::DtString &	federationName
	)

signal

Emitted when a federation is updated.

Referenced by DtAssistantFederationsInfoMgr(), processFederationStateMsg(), processSyncPtStateMsg(), and processTimeStateMsg().

void DtAssistantFederationsInfoMgr::forwardLogRequestMsg	(	const DtAssistantLogRequestMsg &	msg,
		void *	usr
	)

static

Callback to process a log request from a remote peer for a local rtiexec.

References forwardMsgToLocalRtiexec().

Referenced by DtAssistantFederationsInfoMgr(), and ~DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::forwardMsgFromLocalRtiexec ( const DtAssistantMsg & msg )

virtual

Called by the callback function to forward a local rtiexec message to remote assistants.

References DtAssistantComponentInfo::compId(), DtAssistantComponentInfo::compType(), DtAssistantComponentInfo::connUsed(), DtAssistantRtiexecComponent, myCompMgr, DtAssistantMgr::myPeer, myRemotelyViewedConnections, myRtiexecsStartedByRemoteRequest, and DtAssistantMgr::myServer.

Referenced by forwardRtiexecLogMsg(), forwardRtiexecNotifyMsg(), and forwardRtiexecPopupMsg().

void DtAssistantFederationsInfoMgr::forwardMsgToLocalRtiexec	(	const DtAssistantMsg &	msg,
		bool	sendOnlyIfCommandsAccepted = `false`
	)

virtual

Called by callback functions to simply forward a message to a local rtiexec.

Can optionally specify that the command should only be sent if remote commands are accepted.

References myConnInfoMgr, and DtAssistantMgr::myServer.

Referenced by forwardLogRequestMsg(), forwardRtiexecExitMsg(), processFederateDeleteMsg(), and processFederationDeleteMsg().

void DtAssistantFederationsInfoMgr::forwardRtiexecExitMsg	(	const DtAssistantExitMsg &	msg,
		void *	usr
	)

static

Callback to process a request from a remote peer to shutdown a local rtiexec.

References forwardMsgToLocalRtiexec().

Referenced by DtAssistantFederationsInfoMgr(), and ~DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::forwardRtiexecLogMsg	(	const DtAssistantLogMsg &	msg,
		void *	usr
	)

static

Callback to forward a log message from a local rtiexec to a remote assistant.

References forwardMsgFromLocalRtiexec().

Referenced by DtAssistantFederationsInfoMgr(), and ~DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::forwardRtiexecNotifyMsg	(	const DtAssistantNotifyMsg &	msg,
		void *	usr
	)

static

Callback to forward a notify message from a local rtiexec to a remote assistant.

References forwardMsgFromLocalRtiexec().

Referenced by DtAssistantFederationsInfoMgr(), and ~DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::forwardRtiexecPopupMsg	(	const DtAssistantPopupMsg &	msg,
		void *	usr
	)

static

Callback to forward a popup message from a local rtiexec to a remote assistant.

References forwardMsgFromLocalRtiexec().

Referenced by DtAssistantFederationsInfoMgr(), and ~DtAssistantFederationsInfoMgr().

bool DtAssistantFederationsInfoMgr::isLocalRtiexecViewedRemotely ( const DtRtiConnectionInfo & conn ) const

virtual

Returns true if the connection is for a local rtiexec which is being viewed remotely.

References myRemotelyViewedConnections.

bool DtAssistantFederationsInfoMgr::localFederateInfo	(	int	compId,
		const DtAssistantFederateInfo **	federate,
		DtAssistantFederationInfo **	federation
	)

protectedvirtual

Returns the local federate info matching the given component ID.

Returns false if it could not be found.

References DtAssistantComponentInfo::connUsed(), myCompMgr, and myKnownFederations.

Referenced by processLocalFederateResigned(), and tick().

DtAssistantFederationsInfoMgr& DtAssistantFederationsInfoMgr::operator= ( DtAssistantFederationsInfoMgr const & )

private

Assignment not implemented – Assignment Not Allowed!

void DtAssistantFederationsInfoMgr::processAssistantCommandMsg	(	const DtAssistantCommandMsg &	msg,
		void *	usr
	)

static

Processes an RTI Assistant command message.

Referenced by DtAssistantFederationsInfoMgr(), and ~DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::processAssistantCommandMsg ( const DtAssistantCommandMsg & msg )

virtual

Processes an RTI Assistant command message.

References DtAssistantCommandMsg::commandType(), DtAssistantComponentInfo::compType(), DtAssistantCommandDeleteFederate, DtAssistantCommandKill, DtAssistantCommandList, DtAssistantCommandListForwarder, DtAssistantCommandListRtiExec, DtAssistantRtiexecComponent, myCompMgr, DtAssistantMgr::myServer, requestSingleUpdateFromConnectedRtiexecs(), DtAssistantCommandMsg::setIsAssistantToAssistant(), DtAssistantCommandMsg::setMessageString(), DtAssistantCommandMsg::targetAssistantComponentId(), DtAssistantCommandMsg::targetFederateHandle(), and DtAssistantCommandMsg::targetFederationHandle().

void DtAssistantFederationsInfoMgr::processConnectionRemoval ( const DtRtiConnectionInfoDataPair & conn )

protectedvirtual

Processes the removal of a known connection.

References myKnownFederations, myLocalRtiexecConns, myRemotelyViewedConnections, and myRemotelyViewedConnectionsNeedingUpdate.

Referenced by processConnectionsRemoval(), processLightweightConnUpdate(), and processRtiexecConnUpdate().

void DtAssistantFederationsInfoMgr::processConnectionsRemoval ( const DtRtiConnectionAndConfiguration & conns )

slot

Processes removal of known connections.

References DtRtiConnectionAndConfiguration::connections(), and processConnectionRemoval().

void DtAssistantFederationsInfoMgr::processConnectionsUpdate ( const DtRtiConnectionAndConfiguration & conns )

slot

Processes changes in connection state.

References DtRtiConnectionAndConfiguration::connections(), processLightweightConnUpdate(), and processRtiexecConnUpdate().

Referenced by DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::processExecObserveRspMsg	(	const DtAssistantExecObserveRspMsg &	msg,
		void *	usr
	)

static

Callback to process an rtiexec observe response message.

Referenced by DtAssistantFederationsInfoMgr(), and ~DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::processExecObserveRspMsg ( const DtAssistantExecObserveRspMsg & msg )

virtual

Called by the callback function to process an rtiexec observe response message.

References DtAssistantMsg::compId(), DtAssistantMsg::isAssistantToAssistantMessage(), DtRtiConnectionInfo::isValid(), myConnInfoMgr, DtAssistantMgr::myPeer, myViewedConnection, DtAssistantMsg::sourceAddr(), DtAssistantMsg::sourceHost(), DtAssistantMsg::sourceId(), viewedWebSpyInfoUpdated(), DtAssistantExecObserveRspMsg::webServerIp(), and DtAssistantExecObserveRspMsg::webServerPort().

void DtAssistantFederationsInfoMgr::processExecStateMsgForConnection	(	const DtAssistantExecStateMsg &	msg,
		void *	usr
	)

static

Called to process a exec state message on behalf of an rtiAssistanttoAssistantClient that requested the data.

Referenced by processExecStateMsgForConnection(), pruneTimedOutSingleUpdates(), and requestSingleUpdateFromConnectedRtiexecs().

void DtAssistantFederationsInfoMgr::processExecStateMsgForConnection ( const DtAssistantExecStateMsg & msg )

virtual

Called by the callback function to process a federation state message on behalf of an rtiAssistanttoAssistantClient that requested the data.

References myCompMgr, myRequestedRtiexecUpdates, DtAssistantMgr::myServer, processExecStateMsgForConnection(), and DtAssistantExecStateMsg::removeCallback().

void DtAssistantFederationsInfoMgr::processFederateDeleteMsg	(	const DtAssistantDeleteFederateMsg &	msg,
		void *	usr
	)

static

Callback to process a federate delete message.

References forwardMsgToLocalRtiexec().

Referenced by DtAssistantFederationsInfoMgr(), and ~DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::processFederateRequestMsg	(	const DtAssistantFederateReqMsg &	msg,
		void *	usr
	)

static

Callback to process a federate info request from a remote peer.

Referenced by DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::processFederateRequestMsg ( const DtAssistantFederateReqMsg & msg )

virtual

Called by the callback function to process federate info request.

References federates(), federationName(), DtAssistantFederateInfo::isLocalComp(), myKnownFederations, myLocalJoinedFederatesByConnFederationNameMap, and DtAssistantMgr::myPeer.

void DtAssistantFederationsInfoMgr::processFederateResponseMsg	(	const DtAssistantFederateRespMsg &	msg,
		void *	usr
	)

static

Callback to process a federate info response from a remote peer.

Referenced by DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::processFederateResponseMsg ( const DtAssistantFederateRespMsg & msg )

virtual

Called by the callback function to process federate info response.

void DtAssistantFederationsInfoMgr::processFederateStateMsg	(	const DtAssistantFederateStateMsg &	msg,
		void *	usr
	)

static

Callback to process a federate state message from a local rtiexec.

Referenced by DtAssistantFederationsInfoMgr(), and ~DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::processFederateStateMsg ( const DtAssistantFederateStateMsg & msg )

virtual

Called by the callback function to process a federate state message from a local rtiexec.

void DtAssistantFederationsInfoMgr::processFederationDeleteMsg	(	const DtAssistantDeleteFederationMsg &	msg,
		void *	usr
	)

static

Callback to process a federation delete message.

References forwardMsgToLocalRtiexec().

Referenced by DtAssistantFederationsInfoMgr(), and ~DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::processFederationStateMsg	(	const DtAssistantFederationStateMsg &	msg,
		void *	usr
	)

static

Callback to process a federation state message from a local rtiexec or remote assistant.

Referenced by DtAssistantFederationsInfoMgr(), and ~DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::processFederationStateMsg ( const DtAssistantFederationStateMsg & msg )

virtual

Called by the callback function to process a federation state message from a local rtiexec or remote assistant.

void DtAssistantFederationsInfoMgr::processLightweightConnUpdate ( const DtRtiConnectionInfoDataPair & conn )

protectedvirtual

Processes an update to a lightweight connection.

References myKnownFederations, and processConnectionRemoval().

Referenced by processConnectionsUpdate().

void DtAssistantFederationsInfoMgr::processLocalFederateJoined	(	const DtAssistantComponentInfo *	info,
		const MAKRti::DtString &	federateType,
		const MAKRti::DtString &	federateName,
		unsigned	federateHandle,
		const MAKRti::DtString &	federationName,
		unsigned	federationHandle,
		DtHlaVersionId	hlaVersion
	)

slot

Processes a local LRC joining a federation.

Referenced by DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::processLocalFederateResigned ( const DtAssistantComponentInfo * compInfo )

slot

Processes a local LRC resigning from its federation.

References DtAssistantComponentInfo::compId(), DtAssistantComponentInfo::connUsed(), DtAssistantFederateInfo::federateHandle(), federateRemoved(), DtAssistantFederationInfo::federationName(), federationRemoved(), localFederateInfo(), myFederateSignalTickMessages, myKnownFederations, myLocalJoinedFederatesByCompIdMap, myLocalJoinedFederatesByConnFederationNameMap, DtAssistantFederationInfo::numFederates(), and DtAssistantFederationInfo::removeFederate().

Referenced by DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::processObserveMsg	(	const DtAssistantStateObserveMsg &	msg,
		void *	usr
	)

static

Callback to process a federation observe message.

Referenced by DtAssistantFederationsInfoMgr(), and ~DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::processObserveMsg ( const DtAssistantStateObserveMsg & msg )

virtual

Called by the callback function to process a federation observe message.

References DtAssistantComponentInfo::compId(), DtAssistantMsg::compId(), DtAssistantStateObserveFederationsOrRtiexec, DtAssistantStateObserveMsg::getConnection(), DtAssistantMsg::isAssistantToAssistantMessage(), DtAssistantStateObserveMsg::isLogRequest(), DtAssistantStateObserveMsg::isObserved(), myCompMgr, myKnownFederations, myLocalRtiexecConns, DtAssistantMgr::myPeer, myRemotelyViewedConnections, myRemotelyViewedConnectionsNeedingUpdate, DtAssistantMgr::myServer, myTimeStateUpdateInterval, myViewedConnection, DtAssistantComponentInfo::notifyLevel(), DtAssistantMsg::sourceAddr(), DtAssistantMsg::sourceHost(), DtAssistantMsg::sourceId(), DtAssistantStateObserveMsg::targetType(), DtRtiConnectionInfo::useRtiexec(), DtAssistantComponentInfo::webSpyAddr(), and DtAssistantComponentInfo::webSpyHttpPort().

void DtAssistantFederationsInfoMgr::processRemoteRtiexecPopupMsg	(	const DtAssistantPopupMsg &	msg,
		void *	usr
	)

static

Callback to process a popup message from a remote rtiexec.

Referenced by DtAssistantFederationsInfoMgr(), and ~DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::processRemoteRtiexecPopupMsg ( const DtAssistantPopupMsg & msg )

virtual

Called by the callback function to process a remote rtiexec popup msg.

References DtAssistantPopupMsg::advancedText(), DtAssistantMsg::compId(), myConnInfoMgr, DtAssistantMgr::myPeer, myRtiexecsRequestedForRemoteStart, myViewedConnection, DtAssistantMgr::showPopup(), DtAssistantMsg::sourceAddr(), DtAssistantMsg::sourceHost(), DtAssistantMsg::sourceId(), and DtAssistantPopupMsg::text().

void DtAssistantFederationsInfoMgr::processRtiexecConnUpdate ( const DtRtiConnectionInfoDataPair & rtiexec )

protectedvirtual

Processes an update to an rtiexec connection.

References myKnownFederations, myLocalRtiexecConns, myRtiexecsStartedByRemoteRequest, myToBeViewedConnection, processConnectionRemoval(), and viewFederationsForConnection().

Referenced by processConnectionsUpdate().

void DtAssistantFederationsInfoMgr::processRtiexecWebServerChange ( const DtAssistantComponentInfo * compInfo )

slot

Processes a change in local rtiexec info to see if we have obtained info on the rtiexec's web server.

References DtAssistantComponentInfo::connUsed(), DtRtiConnectionInfo::isValid(), myViewedConnection, viewedWebSpyInfoUpdated(), DtAssistantComponentInfo::webSpyAddr(), and DtAssistantComponentInfo::webSpyHttpPort().

Referenced by DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::processSignalTickedMsg	(	const DtAssistantSignalTickedMsg &	msg,
		void *	usr
	)

static

Callback to process a signal ticked message from a federate.

Referenced by DtAssistantFederationsInfoMgr(), and ~DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::processSignalTickedMsg ( const DtAssistantSignalTickedMsg & msg )

virtual

Called by the callback function to process the signal ticked message.

References myFederateSignalTickMessages, DtAssistantMgr::myServer, and true.

void DtAssistantFederationsInfoMgr::processSyncPtStateMsg	(	const DtAssistantSyncPtUpdateMsg &	msg,
		void *	usr
	)

static

Callback to process a synchronization point state message.

Referenced by DtAssistantFederationsInfoMgr(), and ~DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::processSyncPtStateMsg ( const DtAssistantSyncPtUpdateMsg & msg )

virtual

Called by the callback function to process a synchronization point state message.

References DtAssistantMsg::compId(), DtAssistantComponentInfo::connUsed(), DtAssistantSyncPtUpdateMsg::federationName(), federationUpdated(), DtAssistantSyncPtUpdateMsg::getPendingAndAchieved(), DtAssistantMsg::isAssistantToAssistantMessage(), DtAssistantSyncPtUpdateMsg::isRemoval(), myCompMgr, myConnInfoMgr, myKnownFederations, DtAssistantMgr::myPeer, myRemotelyViewedConnections, DtAssistantMgr::myServer, DtAssistantMsg::sourceAddr(), DtAssistantMsg::sourceHost(), DtAssistantMsg::sourceId(), and DtAssistantSyncPtUpdateMsg::syncPtName().

void DtAssistantFederationsInfoMgr::processTimeStateMsg	(	const DtAssistantTimeStateMsg &	msg,
		void *	usr
	)

static

Callback to process a time state message from a local rtiexec.

Referenced by DtAssistantFederationsInfoMgr(), and ~DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::processTimeStateMsg ( const DtAssistantTimeStateMsg & msg )

virtual

Called by the callback function to process a time state message from a local rtiexec.

References DtAssistantComponentInfo::connUsed(), DtAssistantTimeStateMsg::federationName(), federationUpdated(), DtAssistantTimeStateMsg::getFederateTimeStates(), myCompMgr, myKnownFederations, and DtAssistantMgr::myServer.

void DtAssistantFederationsInfoMgr::provideFederateInfo	(	const DtRtiConnectionInfo &	conn,
		const MAKRti::DtString &	federationName,
		unsigned	federateHandle,
		const DtAssistantFederateInfo **	info
	)

slot

Response to a query for federate info.

References federateInfo().

Referenced by DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::provideFederationInfo	(	const DtRtiConnectionInfo &	conn,
		const MAKRti::DtString &	federationName,
		const DtAssistantFederationInfo **	info
	)

slot

Response to a query for federation info.

References federationInfo().

Referenced by DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::pruneStaleFederationsAndObservers ( )

slot

Removes any federations which have not been heartbeated and remote observers.

References federateRemoved(), DtAssistantFederationInfo::federates(), DtAssistantFederationInfo::federationName(), federationRemoved(), DtAssistantFederationInfo::heartbeated(), myConnInfoMgr, myKnownFederations, myLocalRtiexecConns, myRemotelyViewedConnections, myRemotelyViewedConnectionsNeedingUpdate, DtAssistantMgr::myServer, myTimeStateUpdateInterval, myViewedConnection, DtAssistantFederationInfo::numLocalFederates(), DtAssistantFederationInfo::removeFederate(), and DtAssistantFederationInfo::setHeartbeated().

Referenced by DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::pruneTimedOutSingleUpdates ( )

virtual

If there were rtiexec updates that timed out, we send back the incomplete msg.

References myClock, myCompMgr, myRequestedRtiexecUpdates, DtAssistantMgr::myServer, processExecStateMsgForConnection(), and DtAssistantExecStateMsg::removeCallback().

Referenced by tick().

void DtAssistantFederationsInfoMgr::removeFederationsForRtiexec ( const DtAssistantComponentInfo * comp )

slot

Process the removal of a local rtiexec.

References DtAssistantComponentInfo::connUsed(), federationRemoved(), myConnInfoMgr, myKnownFederations, DtAssistantMgr::myPeer, myRemotelyViewedConnections, myRemotelyViewedConnectionsNeedingUpdate, and rtiexecHasNoFederations().

Referenced by DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::requestFederateLoc	(	const DtRtiConnectionInfo &	connInfo,
		const MAKRti::DtString &	federationName,
		unsigned	federateHdl
	)

slot

Respond to a request for a federate location.

This will trigger a federateLocReceived signal once we know the location, either immediately or in the future.

References DtAssistantFederateInfo::assistantCompId(), DtAssistantFederateInfo::assistantInfo(), DtAssistantAnyId, DtAssistantFederateInfo::federateHostAddr(), DtAssistantFederateInfo::federateHostName(), federateInfo(), federateLocReceived(), DtAssistantInfo::host(), DtAssistantFederateInfo::isLocalComp(), DtHostNameAddress::isValid(), myFederateLocQueries, myLocalJoinedFederatesByConnFederationNameMap, DtAssistantMgr::myPeer, DtAssistantInfo::setHost(), and DtAssistantInfo::setId().

Referenced by DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::requestSingleUpdateFromConnectedRtiexecs ( int id )

virtual

Performs a single data request of the connected rtiexecs.

References DtAssistantExecStateMsg::addCallback(), myClock, myCompMgr, myRequestedRtiexecUpdates, DtAssistantMgr::myServer, processExecStateMsgForConnection(), and theTimeToWaitForExecInfo.

Referenced by processAssistantCommandMsg().

void DtAssistantFederationsInfoMgr::rtiexecHasNoFederations ( const DtRtiConnectionInfo & conn )

signal

Emitted when an rtiexec response message is received with no federations.

Referenced by DtAssistantFederationsInfoMgr(), processFederationStateMsg(), and removeFederationsForRtiexec().

void DtAssistantFederationsInfoMgr::sendAllFederationInfo ( )

slot

Sends update messages for all local federations to remote assistants.

References DtAssistantFederationInfo::federates(), DtAssistantFederationInfo::federationHandle(), DtAssistantFederationInfo::federationName(), DtAssistantFederationInfo::fomModules(), myConnInfoMgr, myKnownFederations, DtAssistantMgr::myPeer, myRemotelyViewedConnections, myRemotelyViewedConnectionsNeedingUpdate, and DtAssistantFederationInfo::testingEnabled().

Referenced by DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::sendObserveFederationsMsg ( )

slot

Sends a message indicating the current connection whose federations are being observed by this assistant.

References DtRtiConnectionInfo::isValid(), myConnInfoMgr, DtAssistantMgr::myPeer, myViewedConnection, and DtRtiConnectionInfo::useRtiexec().

Referenced by DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::startRtiexec	(	const DtRtiConnectionInfoDataPair &	conn,
		const DtRtiConnectionConfigurationInfo &	config,
		bool	requestedRemotely
	)

slot

Processes a request to start an rtiexec.

References DtRtiLibPath(), DtRtiConnectionConfigurationInfo::forceFullCompliance(), DtAssistantMgr::myPeer, myRtiexecsRequestedForRemoteStart, and myRtiexecsStartedByRemoteRequest.

Referenced by DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::tick ( )

virtual

Performs tasks that need to be completed periodically.

Reimplemented from DtAssistantMgr.

References DtAssistantMgr::displayNotification(), DtAssistantFederateInfo::federateHandle(), DtAssistantFederateInfo::federateType(), DtAssistantFederationInfo::federationName(), localFederateInfo(), myClock, myCompMgr, myConnInfoMgr, myFederateSignalTickMessages, myLastTickTime, myRemotelyViewedConnections, myRequestedRtiexecUpdates, DtAssistantMgr::myServer, myTimeStateUpdateInterval, myViewedConnection, myWarningTickInterval, DtAssistantComponentInfo::name(), and pruneTimedOutSingleUpdates().

void DtAssistantFederationsInfoMgr::updateFederateWarningTickInterval ( float interval )

slot

Updates the interval at which federates must tick in order to prevent warnings.

References interval, myFederateSignalTickMessages, DtAssistantMgr::myServer, and myWarningTickInterval.

Referenced by DtAssistantFederationsInfoMgr().

void DtAssistantFederationsInfoMgr::viewedWebSpyInfoUpdated	(	const MAKRti::DtInetAddr &	addr,
		int	port
	)

signal

Emitted when the web spy info for the currently viewed connection is updated.

Referenced by DtAssistantFederationsInfoMgr(), processExecObserveRspMsg(), and processRtiexecWebServerChange().

void DtAssistantFederationsInfoMgr::viewFederationsForConnection ( const DtRtiConnectionInfo & conn )

virtual

Tell the manager that the connection being viewed has changed.

It will then make sure to request updates.

References federations(), DtRtiConnectionInfo::invalidConn(), DtRtiConnectionInfo::isValid(), myConnInfoMgr, myKnownFederations, DtAssistantMgr::myPeer, myRemotelyViewedConnections, DtAssistantMgr::myServer, myToBeViewedConnection, myViewedConnection, and DtRtiConnectionInfo::useRtiexec().

Referenced by processRtiexecConnUpdate().

Member Data Documentation

MAKRti::DtClock DtAssistantFederationsInfoMgr::myClock

protected

Clock used to determine if we need to resend lost messages.

Referenced by DtAssistantFederationsInfoMgr(), pruneTimedOutSingleUpdates(), requestSingleUpdateFromConnectedRtiexecs(), and tick().

DtBoost::shared_ptr<DtAssistantComponentMgr> DtAssistantFederationsInfoMgr::myCompMgr

protected

The component manager.

Referenced by forwardMsgFromLocalRtiexec(), localFederateInfo(), processAssistantCommandMsg(), processExecStateMsgForConnection(), processFederateStateMsg(), processFederationStateMsg(), processObserveMsg(), processSyncPtStateMsg(), processTimeStateMsg(), pruneTimedOutSingleUpdates(), requestSingleUpdateFromConnectedRtiexecs(), and tick().

DtBoost::shared_ptr<DtAssistantConnectionInfoMgr> DtAssistantFederationsInfoMgr::myConnInfoMgr

protected

The connection info manager.

Referenced by forwardMsgToLocalRtiexec(), processExecObserveRspMsg(), processFederationStateMsg(), processRemoteRtiexecPopupMsg(), processSyncPtStateMsg(), pruneStaleFederationsAndObservers(), removeFederationsForRtiexec(), sendAllFederationInfo(), sendObserveFederationsMsg(), tick(), and viewFederationsForConnection().

DtFedsByConn DtAssistantFederationsInfoMgr::myFederateLocQueries

protected

Referenced by processFederateResponseMsg(), and requestFederateLoc().

std::map<int, bool> DtAssistantFederationsInfoMgr::myFederateSignalTickMessages

protected

Set of federate component ids and signal ticks.

Referenced by processLocalFederateResigned(), processSignalTickedMsg(), tick(), and updateFederateWarningTickInterval().

DtConnToFederationStateMap DtAssistantFederationsInfoMgr::myKnownFederations

protected

All known information on all federations mapped by connection.

Referenced by federationInfo(), federations(), localFederateInfo(), processConnectionRemoval(), processFederateRequestMsg(), processFederateResponseMsg(), processFederateStateMsg(), processFederationStateMsg(), processLightweightConnUpdate(), processLocalFederateJoined(), processLocalFederateResigned(), processObserveMsg(), processRtiexecConnUpdate(), processSyncPtStateMsg(), processTimeStateMsg(), pruneStaleFederationsAndObservers(), removeFederationsForRtiexec(), sendAllFederationInfo(), and viewFederationsForConnection().

MAKRti::DtTime DtAssistantFederationsInfoMgr::myLastTickTime

protected

The last tick time.

Referenced by tick().

DtFedInfoByCompIdMap DtAssistantFederationsInfoMgr::myLocalJoinedFederatesByCompIdMap

protected

Referenced by processLocalFederateJoined(), and processLocalFederateResigned().

DtFedInfoByConnFederationPairMap DtAssistantFederationsInfoMgr::myLocalJoinedFederatesByConnFederationNameMap

protected

Referenced by processFederateRequestMsg(), processLocalFederateJoined(), processLocalFederateResigned(), and requestFederateLoc().

DtConnToCompIdMap DtAssistantFederationsInfoMgr::myLocalRtiexecConns

protected

Map of all connections which have an rtiexec running locally, mapped to the component ID of the local rtiexec.

Referenced by processConnectionRemoval(), processObserveMsg(), processRtiexecConnUpdate(), and pruneStaleFederationsAndObservers().

DtConnToObserversMap DtAssistantFederationsInfoMgr::myRemotelyViewedConnections

protected

Local connections currently being viewed by remote Assistants, and the set of all Assistants which are viewing them.

Referenced by forwardMsgFromLocalRtiexec(), isLocalRtiexecViewedRemotely(), processConnectionRemoval(), processFederationStateMsg(), processObserveMsg(), processSyncPtStateMsg(), pruneStaleFederationsAndObservers(), removeFederationsForRtiexec(), sendAllFederationInfo(), tick(), and viewFederationsForConnection().

std::set< DtRtiConnectionInfo > DtAssistantFederationsInfoMgr::myRemotelyViewedConnectionsNeedingUpdate

protected

Local connections currently being viewed by remote Assistants which require an update to be sent as soon as we get one.

Referenced by processConnectionRemoval(), processFederationStateMsg(), processObserveMsg(), pruneStaleFederationsAndObservers(), removeFederationsForRtiexec(), and sendAllFederationInfo().

std::map<std::pair<int, MAKRti::DtTime>, std::map<int, MAKRti::DtString> > DtAssistantFederationsInfoMgr::myRequestedRtiexecUpdates

protected

One time rtiexec updates that have been requested.

Referenced by processExecStateMsgForConnection(), pruneTimedOutSingleUpdates(), requestSingleUpdateFromConnectedRtiexecs(), and tick().

std::set< DtRtiConnectionInfo > DtAssistantFederationsInfoMgr::myRtiexecsRequestedForRemoteStart

protected

The list of remote rtiexecs which have been started by this Assistant but have yet to be verified or failed to start.

Referenced by processRemoteRtiexecPopupMsg(), and startRtiexec().

std::set< DtRtiConnectionInfo > DtAssistantFederationsInfoMgr::myRtiexecsStartedByRemoteRequest

protected

The list of local rtiexecs whose startup was requested by remote Assistants but have yet to be verified or failed to start.

Referenced by forwardMsgFromLocalRtiexec(), processRtiexecConnUpdate(), and startRtiexec().

unsigned int DtAssistantFederationsInfoMgr::myTimeStateUpdateInterval

protected

The interval, in ms, at which local rtiexecs should be requested to send updated time state information.

Also takes into account remote assistants.

Referenced by processObserveMsg(), pruneStaleFederationsAndObservers(), and tick().

DtRtiConnectionInfo DtAssistantFederationsInfoMgr::myToBeViewedConnection

protected

The connection to be viewed if it ever becomes valid.

Referenced by processRtiexecConnUpdate(), and viewFederationsForConnection().

DtRtiConnectionInfo DtAssistantFederationsInfoMgr::myViewedConnection

protected

The connection currently being viewed at this Assistant.

Referenced by processExecObserveRspMsg(), processObserveMsg(), processRemoteRtiexecPopupMsg(), processRtiexecWebServerChange(), pruneStaleFederationsAndObservers(), sendObserveFederationsMsg(), tick(), and viewFederationsForConnection().

float DtAssistantFederationsInfoMgr::myWarningTickInterval

protected

Warning tick interval.

Referenced by processLocalFederateJoined(), tick(), and updateFederateWarningTickInterval().

const int DtAssistantFederationsInfoMgr::theTimeToWaitForExecInfo = 2

staticprotected

The time, in seconds, to wait for information requested from a remote rtiexec.

Referenced by requestSingleUpdateFromConnectedRtiexecs().

The documentation for this class was generated from the following files:

Public Slots

Signals

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Message Callbacks

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
