DtAssistantLicenseQueryMgr Class Reference

Maintains list of known RTI license servers and processes license queries from RTI components. More...

Inheritance diagram for DtAssistantLicenseQueryMgr:

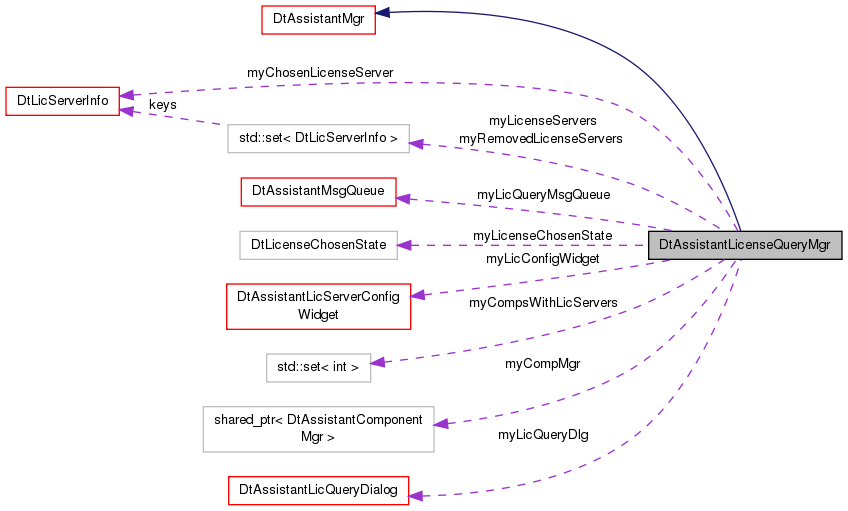

Collaboration diagram for DtAssistantLicenseQueryMgr:

Public Slots
void	processLicQueryResults (int result)
	Processes the results of a license query dialog.
void	closeLicQueryDialogForId (const DtAssistantComponentInfo *)
	Closes the license query dialog if it is for the component with the matching ID.
void	addLicenseServerFromComponent (const DtAssistantComponentInfo *)
	Adds a new license server (or servers if string contains multiple) to the list.
void	removeLicenseServer (const MAKRti::DtString &server)
	Removes a license server from the list.
void	sendLicenseServerUpdate ()
	Sends a license server update message.
void	clearStoredLicense ()
	Clears the stored license.
void	setDefaultToUnlicensed (bool)
	Processes a change in whether or not we are defaulting to unlicensed.
Public Slots inherited from DtAssistantMgr
void	displayWarningDialogs ()
	Displays all warning dialogs.

Signals
void	chosenLicServerUpdated (const QString &name, int port)
	Emitted when the chosen license server changes.
void	unlicensedModeChosen (bool)
	Emitted when unlicensed mode is chosen or unchosen.
void	updateDefaultToUnlicensed (bool)
	Emitted when updating whether or not we are defaulting to unlicensed mode.
Signals inherited from DtAssistantMgr
void	warningDialogDisplayed ()
	Emitted when a warning dialog is displayed.
void	warningDialogDismissed ()
	Emitted when a warning dialog is dismissed.
void	popupRequested (const MAKRti::DtString &text, int sourceCompId, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed.
void	popupRequested (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed.
void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId, bool logOnly)
	Emitted when a notification should be displayed.
void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source, bool logOnly)
	Emitted when a notification should be displayed.

Public Member Functions
	DtAssistantLicenseQueryMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter, DtBoost::shared_ptr< DtAssistantComponentMgr > compMgr)
	Constructor.
virtual	~DtAssistantLicenseQueryMgr ()
	Destructor.
virtual void	tick ()
	Performs tasks that need to be completed periodically.
virtual void	configWidget (DtAssistantConfigWidget **widget, QIcon &icon, QString &name, DtPreferencesPage &pageId)
	Retrieves a widget which will be placed in the configuration dialog for configuring user preferences.
virtual void	updateConfigWidget ()
	Forces the configuration widget to be updated.
Public Member Functions inherited from DtAssistantMgr
	DtAssistantMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter)
	Constructor.
virtual	~DtAssistantMgr ()
	Destructor.
virtual void	initialize ()
	Initializes this manager just prior to beginning assistant processing.
virtual void	startShutdown ()
	Performs any necessary processing at the start of shutdown.
virtual bool	dialogsVisible () const
	Determines if there are any visible dialogs for which this manager is responsible.
virtual void	processConfigWidgetAccept ()
	Process the changes that were accepted in the configuration widget.

Protected Types
enum	DtLicenseChosenState { NothingChosen, UnlicensedChosen, LicenseChosen }

Protected Member Functions
virtual void	updateLicQuery ()
	Updates the list of available license servers.
Protected Member Functions inherited from DtAssistantMgr
void	startDialog (QDialog *dlg, bool inTaskbar, bool warningDialog)
	Sets up the given widget as a dialog.
void	finishDialog (QDialog *dlg)
	Should be called prior to deleting any dialog started with startDialog.
void	showDialog (QDialog *dlg)
	Shows the dialog.
void	startMainWindow (QMainWindow *dlg)
	Sets up a main window dialog.
void	finishMainWindow (QMainWindow *dlg)
	Should be called prior to deleting any dialog started with startMainWindow.
void	showMainWindow (QMainWindow *dlg)
	Shows the dialog.
void	showPopup (const MAKRti::DtString &text, int sourceCompId=-1, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and name of the given source component.
void	showPopup (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and source name.
void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Displays and logs a notification from the given component.
void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Displays and logs notification with the given component name.
void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Logs a notification from the given component, does not display.
void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Logs a notification with the given component name, does not display.

Protected Attributes
DtAssistantMsgQueue	myLicQueryMsgQueue
	The queue which holds license query messages.
DtBoost::shared_ptr < DtAssistantComponentMgr >	myCompMgr
	The manager that keeps track of all local RTI components.
DtAssistantLicQueryDialog *	myLicQueryDlg
	The dialog which queries the user for license information.
DtAssistantLicServerConfigWidget *	myLicConfigWidget
	The widget that displays the current preferred license in the configuration dialog.
DtLicenseChosenState	myLicenseChosenState
	Whether a license is chosen, unlicensed mode is chosen, or nothing is chosen.
DtLicServerInfo	myChosenLicenseServer
	The currently chosen license server.
DtLicServerSet	myLicenseServers
	Set of license servers known to this assistant.
DtLicServerSet	myRemovedLicenseServers
	Set of removed local license servers since last update was sent.
std::set< int >	myCompsWithLicServers
	The set of components we've received license servers from.
Protected Attributes inherited from DtAssistantMgr
DtBoost::shared_ptr < DtRtiAssistantServer >	myServer
	The Assistant server from which new messages will arrive from local RTI components.
DtBoost::shared_ptr < DtRtiAssistantPeer >	myPeer
	The Assistant peer which communicates with other Assistants.
std::set< QDialog * >	myUnparentedDialogs
	All unparented dialogs that are created by the GUI should be added to this set.
std::set< QMainWindow * >	myMainWindows
	All main windows that are created by the GUI should be added to this set.
std::set< QDialog * >	myWarningDialogs
	Set of the popup dialogs, either parented or unparented, which, when active, should cause a warning icon to be displayed.

Private Member Functions
	DtAssistantLicenseQueryMgr (DtAssistantLicenseQueryMgr const &)
	Copy Constructor not implemented – Copy Not Allowed!
DtAssistantLicenseQueryMgr &	operator= (DtAssistantLicenseQueryMgr const &)
	Assignment not implemented – Assignment Not Allowed!

Message Callbacks
Callbacks for license messages
static void	addLicQueryMsgToQueue (const DtAssistantLicQueryMsg &msg, void *usr)
	Callback to add license query message to queue.
static void	processLicQueryMsg (const DtAssistantLicQueryMsg &msg, void *usr)
	Callback to process a license query message from a component.
static void	processLicServerInfoMsg (const DtAssistantLicServerInfoMsg &msg, void *usr)
	Called to process a change in the available license servers.
virtual void	addLicQueryMsgToQueue (const DtAssistantLicQueryMsg &msg)
	Called by the callback function to add a message to the queue.
virtual void	processLicQueryMsg (const DtAssistantLicQueryMsg &msg)
	Called by the callback function to process license query messages.
virtual void	processLicServerInfoMsg (const DtAssistantLicServerInfoMsg &msg)
	Called by the callback function to process the a change in the available license servers.

Additional Inherited Members
Static Protected Attributes inherited from DtAssistantMgr
static QIcon	theRtiIcon
	The icons used by the RTI Assistant.
static QIcon	theSmallRtiIcon
static QIcon	theWebIcon
static QIcon	theNotifyRtiIcon
static QIcon	theWarningRtiIcon
static QIcon	thePreferencesIcon
static QIcon	theAboutIcon
static QIcon	theHelpIcon
static bool	theIconsAreLoaded = false
	Whether or not the icons have yet been loaded.

Detailed Description

Maintains list of known RTI license servers and processes license queries from RTI components.

Member Enumeration Documentation

enum DtAssistantLicenseQueryMgr::DtLicenseChosenState

protected

Enumerator:

NothingChosen
UnlicensedChosen
LicenseChosen

Constructor & Destructor Documentation

DtAssistantLicenseQueryMgr::DtAssistantLicenseQueryMgr	(	DtBoost::shared_ptr< DtRtiAssistantServer >	server,
		DtBoost::shared_ptr< DtRtiAssistantPeer >	peer,
		DtAssistantSignalRouter &	signalRouter,
		DtBoost::shared_ptr< DtAssistantComponentMgr >	compMgr
	)

Constructor.

References DtAssistantLicServerInfoMsg::addCallback(), DtAssistantLicQueryMsg::addCallback(), addLicenseServerFromComponent(), addLicQueryMsgToQueue(), clearStoredLicense(), closeLicQueryDialogForId(), connect(), DtDefaultToUnlicensedUpdatedSig, DtLrcComponentRemovedSig, DtLrcComponentRemovedUnexpectedlySig, DtLrcComponentUpdatedSig, DtRtiConnHeartbeatSig, DtRtiexecComponentRemovedSig, DtRtiexecComponentRemovedUnexpectedlySig, DtRtiexecComponentUpdatedSig, DtUpdateDefaultToUnlicensedSig, LicenseChosen, lm, myChosenLicenseServer, myLicConfigWidget, myLicenseChosenState, myLicQueryDlg, myLicQueryMsgQueue, DtAssistantMgr::myPeer, DtAssistantMgr::myServer, processLicQueryMsg(), processLicQueryResults(), processLicServerInfoMsg(), DtAssistantSignalRouter::registerSignal(), DtAssistantSignalRouter::registerSlot(), sendLicenseServerUpdate(), setDefaultToUnlicensed(), DtLicServerInfo::setServerName(), DtLicServerInfo::setServerPort(), DtAssistantMgr::startDialog(), and updateDefaultToUnlicensed().

DtAssistantLicenseQueryMgr::~DtAssistantLicenseQueryMgr ( )

virtual

Destructor.

References addLicQueryMsgToQueue(), myLicQueryMsgQueue, DtAssistantMgr::myPeer, DtAssistantMgr::myServer, processLicQueryMsg(), processLicServerInfoMsg(), DtAssistantLicServerInfoMsg::removeCallback(), and DtAssistantLicQueryMsg::removeCallback().

DtAssistantLicenseQueryMgr::DtAssistantLicenseQueryMgr ( DtAssistantLicenseQueryMgr const &  )

private

Copy Constructor not implemented – Copy Not Allowed!

Member Function Documentation

void DtAssistantLicenseQueryMgr::addLicenseServerFromComponent ( const DtAssistantComponentInfo *  compInfo )

slot

Adds a new license server (or servers if string contains multiple) to the list.

References DtAssistantComponentInfo::compId(), DtAssistantComponentInfo::licenseServer(), myCompsWithLicServers, and myLicenseServers.

Referenced by DtAssistantLicenseQueryMgr().

void DtAssistantLicenseQueryMgr::addLicQueryMsgToQueue ( const DtAssistantLicQueryMsg &  msg, void *  usr  )

staticprotected

Callback to add license query message to queue.

License query messages should be added to a queue in order to be processed one at a time. Two license query dialogs should not be displayed at the same time.

Referenced by DtAssistantLicenseQueryMgr(), and ~DtAssistantLicenseQueryMgr().

void DtAssistantLicenseQueryMgr::addLicQueryMsgToQueue ( const DtAssistantLicQueryMsg &  msg )

protectedvirtual

Called by the callback function to add a message to the queue.

References DtAssistantMsgQueue::addMsg(), myLicQueryMsgQueue, and DtAssistantMgr::myServer.

void DtAssistantLicenseQueryMgr::chosenLicServerUpdated ( const QString &  name, int  port  )

signal

Emitted when the chosen license server changes.

Referenced by processLicQueryResults().

void DtAssistantLicenseQueryMgr::clearStoredLicense ( )

slot

Clears the stored license.

References lm, myChosenLicenseServer, myLicenseChosenState, NothingChosen, DtLicServerInfo::setServerName(), DtLicServerInfo::setServerPort(), UnlicensedChosen, and updateDefaultToUnlicensed().

Referenced by DtAssistantLicenseQueryMgr(), and processLicQueryMsg().

void DtAssistantLicenseQueryMgr::closeLicQueryDialogForId ( const DtAssistantComponentInfo *  compInfo )

slot

Closes the license query dialog if it is for the component with the matching ID.

References DtAssistantComponentInfo::compId(), DtAssistantMsgQueue::currentCompId(), myLicQueryDlg, and myLicQueryMsgQueue.

Referenced by DtAssistantLicenseQueryMgr().

void DtAssistantLicenseQueryMgr::configWidget ( DtAssistantConfigWidget **  widget, QIcon &  icon, QString &  name, DtPreferencesPage &  pageId  )

virtual

Retrieves a widget which will be placed in the configuration dialog for configuring user preferences.

Reimplemented from DtAssistantMgr.

References DtDefaultLicensePage, DtIconAndTextureManager::getIcon(), DtIconAndTextureManager::getInstance(), and myLicConfigWidget.

DtAssistantLicenseQueryMgr& DtAssistantLicenseQueryMgr::operator= ( DtAssistantLicenseQueryMgr const &  )

private

Assignment not implemented – Assignment Not Allowed!

void DtAssistantLicenseQueryMgr::processLicQueryMsg ( const DtAssistantLicQueryMsg &  msg, void *  usr  )

staticprotected

Callback to process a license query message from a component.

Referenced by DtAssistantLicenseQueryMgr(), and ~DtAssistantLicenseQueryMgr().

void DtAssistantLicenseQueryMgr::processLicQueryMsg ( const DtAssistantLicQueryMsg &  msg )

protectedvirtual

Called by the callback function to process license query messages.

References clearStoredLicense(), DtAssistantMsgQueue::currentCompId(), DtAssistantMsgQueue::finishProcessMsg(), DtAssistantLicQueryMsg::isUnlicensed(), LicenseChosen, DtAssistantComponentInfo::licenseServer(), DtAssistantLicQueryMsg::licenseServerName(), lm, myChosenLicenseServer, myCompMgr, myLicenseChosenState, myLicQueryDlg, myLicQueryMsgQueue, DtAssistantMgr::myServer, DtAssistantLicQueryMsg::port(), DtLicServerInfo::serverName(), DtLicServerInfo::serverPort(), DtAssistantLicQueryDialog::setAllowUnlicensed(), DtAssistantComponentInfo::setLicenseServer(), DtAssistantMgr::showDialog(), UnlicensedChosen, and updateLicQuery().

void DtAssistantLicenseQueryMgr::processLicQueryResults ( int  result )

slot

Processes the results of a license query dialog.

References chosenLicServerUpdated(), DtAssistantMsgQueue::currentCompId(), DtAssistantMsgQueue::finishProcessMsg(), DtAssistantLicQueryDialog::getResults(), LicenseChosen, lm, myChosenLicenseServer, myCompMgr, myLicenseChosenState, myLicQueryDlg, myLicQueryMsgQueue, DtAssistantMgr::myServer, DtAssistantComponentInfo::setLicenseServer(), DtLicServerInfo::setServerName(), DtLicServerInfo::setServerPort(), DtAssistantMgr::showDialog(), DtLicServerInfo::string(), UnlicensedChosen, and updateDefaultToUnlicensed().

Referenced by DtAssistantLicenseQueryMgr().

void DtAssistantLicenseQueryMgr::processLicServerInfoMsg ( const DtAssistantLicServerInfoMsg &  msg, void *  usr  )

staticprotected

Called to process a change in the available license servers.

Referenced by DtAssistantLicenseQueryMgr(), and ~DtAssistantLicenseQueryMgr().

void DtAssistantLicenseQueryMgr::processLicServerInfoMsg ( const DtAssistantLicServerInfoMsg &  msg )

protectedvirtual

Called by the callback function to process the a change in the available license servers.

References DtAssistantLicServerInfoMsg::getLicenseServers(), DtAssistantLicServerInfoMsg::isRemoval(), myLicenseServers, myLicQueryDlg, and updateLicQuery().

void DtAssistantLicenseQueryMgr::removeLicenseServer ( const MAKRti::DtString &  server )

slot

Removes a license server from the list.

References myLicenseServers, and myRemovedLicenseServers.

void DtAssistantLicenseQueryMgr::sendLicenseServerUpdate ( )

slot

Sends a license server update message.

References myLicenseServers, DtAssistantMgr::myPeer, and myRemovedLicenseServers.

Referenced by DtAssistantLicenseQueryMgr().

void DtAssistantLicenseQueryMgr::setDefaultToUnlicensed ( bool  val )

slot

Processes a change in whether or not we are defaulting to unlicensed.

References myLicenseChosenState, NothingChosen, and UnlicensedChosen.

Referenced by DtAssistantLicenseQueryMgr().

void DtAssistantLicenseQueryMgr::tick ( )

virtual

Performs tasks that need to be completed periodically.

Reimplemented from DtAssistantMgr.

References DtAssistantMsgQueue::beginProcessMsg(), and myLicQueryMsgQueue.

void DtAssistantLicenseQueryMgr::unlicensedModeChosen ( bool  )

signal

Emitted when unlicensed mode is chosen or unchosen.

void DtAssistantLicenseQueryMgr::updateConfigWidget ( )

virtual

Forces the configuration widget to be updated.

Reimplemented from DtAssistantMgr.

References LicenseChosen, myChosenLicenseServer, myLicConfigWidget, myLicenseChosenState, DtLicServerInfo::serverName(), DtLicServerInfo::serverPort(), DtAssistantLicServerConfigWidget::setConfiguration(), and UnlicensedChosen.

void DtAssistantLicenseQueryMgr::updateDefaultToUnlicensed ( bool  )

signal

Emitted when updating whether or not we are defaulting to unlicensed mode.

Referenced by clearStoredLicense(), DtAssistantLicenseQueryMgr(), and processLicQueryResults().

void DtAssistantLicenseQueryMgr::updateLicQuery ( )

protectedvirtual

Updates the list of available license servers.

References DtAssistantLicQueryDialog::addServer(), DtAssistantLicQueryDialog::clearServers(), myLicenseServers, and myLicQueryDlg.

Referenced by processLicQueryMsg(), and processLicServerInfoMsg().

Member Data Documentation

DtLicServerInfo DtAssistantLicenseQueryMgr::myChosenLicenseServer

protected

The currently chosen license server.

Referenced by clearStoredLicense(), DtAssistantLicenseQueryMgr(), processLicQueryMsg(), processLicQueryResults(), and updateConfigWidget().

DtBoost::shared_ptr<DtAssistantComponentMgr> DtAssistantLicenseQueryMgr::myCompMgr

protected

The manager that keeps track of all local RTI components.

Referenced by processLicQueryMsg(), and processLicQueryResults().

std::set<int> DtAssistantLicenseQueryMgr::myCompsWithLicServers

protected

The set of components we've received license servers from.

Referenced by addLicenseServerFromComponent().

DtAssistantLicServerConfigWidget* DtAssistantLicenseQueryMgr::myLicConfigWidget

protected

The widget that displays the current preferred license in the configuration dialog.

Referenced by configWidget(), DtAssistantLicenseQueryMgr(), and updateConfigWidget().

DtLicenseChosenState DtAssistantLicenseQueryMgr::myLicenseChosenState

protected

Whether a license is chosen, unlicensed mode is chosen, or nothing is chosen.

Referenced by clearStoredLicense(), DtAssistantLicenseQueryMgr(), processLicQueryMsg(), processLicQueryResults(), setDefaultToUnlicensed(), and updateConfigWidget().

DtLicServerSet DtAssistantLicenseQueryMgr::myLicenseServers

protected

Set of license servers known to this assistant.

Referenced by addLicenseServerFromComponent(), processLicServerInfoMsg(), removeLicenseServer(), sendLicenseServerUpdate(), and updateLicQuery().

DtAssistantLicQueryDialog* DtAssistantLicenseQueryMgr::myLicQueryDlg

protected

The dialog which queries the user for license information.

Referenced by closeLicQueryDialogForId(), DtAssistantLicenseQueryMgr(), processLicQueryMsg(), processLicQueryResults(), processLicServerInfoMsg(), and updateLicQuery().

DtAssistantMsgQueue DtAssistantLicenseQueryMgr::myLicQueryMsgQueue

protected

The queue which holds license query messages.

Only one may be processed at a time, but this should not prevent the processing of other messages.

Referenced by addLicQueryMsgToQueue(), closeLicQueryDialogForId(), DtAssistantLicenseQueryMgr(), processLicQueryMsg(), processLicQueryResults(), tick(), and ~DtAssistantLicenseQueryMgr().

DtLicServerSet DtAssistantLicenseQueryMgr::myRemovedLicenseServers

protected

Set of removed local license servers since last update was sent.

Referenced by removeLicenseServer(), and sendLicenseServerUpdate().

---

The documentation for this class was generated from the following files:

• licenseQueryMgr.h
• licenseQueryMgr.cxx
