DtAssistantTemplateMsg defines a base class which can be subclassed to quickly produce a new Assistant messages based on templates and macros. More...

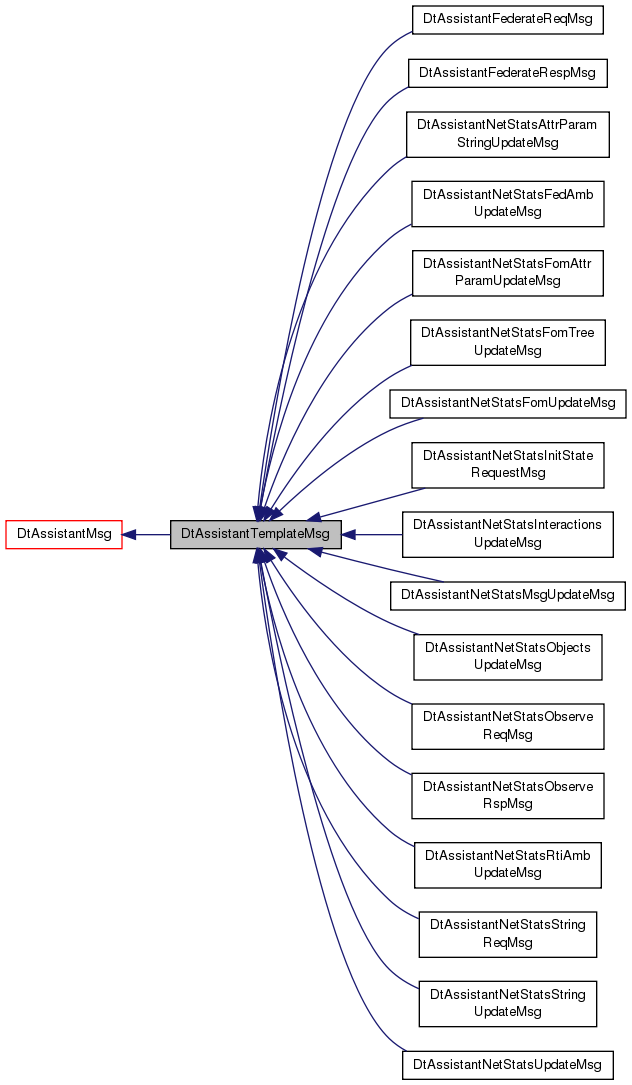

Inheritance diagram for DtAssistantTemplateMsg:

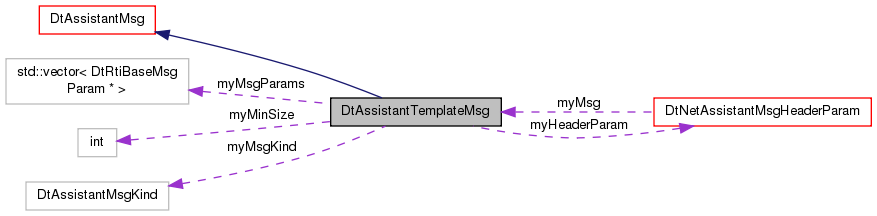

Collaboration diagram for DtAssistantTemplateMsg:

Public Member Functions
virtual	~DtAssistantTemplateMsg ()
	Destructor.
unsigned	addParameter (DtRtiBaseMsgParam *param)
	Adds a new parameter to this message.
virtual void	printData () const
	Print the data section. Message parameters must be created first.
Public Member Functions inherited from DtAssistantMsg
virtual	~DtAssistantMsg ()
	Destructor.
virtual DtAssistantMsg *	clone (bool copy=true) const =0
	Return a copy/empty object of the same type as this.
virtual DtNetAssistantMsgHeader *	netHeader () const
	Get header of network representation.
virtual int	version () const
	Return the message version.
virtual bool	isValidVersion () const
	Returns bool: message version is valid?
virtual DtAssistantMsgKind	msgKind () const
	Get the message kind.
virtual void	print () const
	Printing functions.
virtual void	printHeader () const
virtual bool	isOk () const
	Message is good?
bool	isAssistantToAssistantMessage () const
	Returns whether or not this message contains source/destination information included in messages sent between assistants.
virtual MAKRti::DtInetAddr	sourceAddr () const
	Get/Set the IP address of the source of this message.
virtual void	setSourceAddr (const MAKRti::DtInetAddr &addr)
virtual int	sourceId () const
	Get/Set the ID of the source of this message.
virtual void	setSourceId (int id)
virtual MAKRti::DtString	sourceHost () const
	Get/Set the host name of the source of this message.
virtual void	setSourceHost (const MAKRti::DtString &addr)
virtual MAKRti::DtInetAddr	destAddr () const
	Get/Set the IP address of the destination of this message.
virtual void	setDestAddr (const MAKRti::DtInetAddr &addr)
virtual int	destId () const
	Get/Set the ID of the destination of this message.
virtual void	setDestId (int id)
virtual int	compId () const
	Get/Set the related component's connection ID.
virtual void	setCompId (int compId)

Protected Member Functions
	DtAssistantTemplateMsg (DtAssistantMsgKind msgKind)
	Constructor.
virtual DtAssistantMsgKind	internalMsgKind ()
	Returns the kind of this message.
virtual int	minSize () const
	Returns minimum size of a message, including header.
Protected Member Functions inherited from DtAssistantMsg
	DtAssistantMsg ()
	Constructor.
virtual void	sizeChanged (int size)
	Called whenever size is changed using changeSize, or insert/deleteBytes.
void	initAssistantMsg (int size, DtAssistantMsgKind msgKindVal, DtBufferPtr buffer)
	Called by ctor, so not virtual.
void	initAssistantMsg (const void *initial, int size, DtBufferPtr buffer)
void	initAssistantMsg (const DtNetAssistantMsgHeader *header, DtBufferPtr buffer)
virtual void	adjustBytes (int offset, int numBytes)
	Adjust numBytes bytes at the indicated offset in the net rep.
virtual void	adjustBytes (void *address, int numBytes)
	Adjust the numBytes starting at the indicated address.
virtual void	resizeForSrcDestInfo ()
	Allocates memory at the end of the message for source/destination information needed when sending messages between assistants.
virtual const DtNetAssistantSrcDestInfo *	srcDestInfoPtr () const
	Return pointer to source/destination information in the message.
virtual DtNetAssistantSrcDestInfo *	srcDestInfoPtr ()
virtual void	setSourceHostSize (unsigned long size)
	Set/Get source host name text size.
virtual unsigned long	sourceHostSize () const
virtual const char *	sourceHostPtr () const
	Return pointer to source host name in message.
virtual char *	sourceHostPtr ()

Protected Attributes
DtNetAssistantMsgHeaderParam *	myHeaderParam
	The parameter which points to the message header.
std::vector< DtRtiBaseMsgParam * >	myMsgParams
	The list of other message parameters.
DtAssistantMsgKind	myMsgKind
	The message kind.
int	myMinSize
	The minimum size needed for this message.

Friends
class	DtNetAssistantMsgHeaderParam

Additional Inherited Members
Static Public Member Functions inherited from DtAssistantMsg
static const char *	kindToString (DtAssistantMsgKind kind)
	Returns the name of the message, by kind enumeration.

Detailed Description

DtAssistantTemplateMsg defines a base class which can be subclassed to quickly produce a new Assistant messages based on templates and macros.

To produce a new message class: 1) Declare your class a subclass of DtRtiTemplateMsg. 2) In your class definition use DtASTNT_DECLARE_STANDARD_MSG_METHODS. 3) In your class definition use at least one of the DtASTNT_DECLARE_*_CALLBACK_METHODS macros. 4) In your class definition use the parameter declaration macros defined in rtiTemplateMsgParams.h or any of the other template param files to declare your template parameters. 5) In your .cxx file use DtDEFINE_STANDARD_MSG_METHODS. 6) In your .cxx file use use at least one of the DtASTNT_DEFINE_*_CALLBACK_METHODS macros. 7) In your .cxx file, define a method of your class void addAllParameters() which contains calls to the macro ADD_PARAMETER (or any of the other type-specific versions) for each of your parameters. Make sure to add them in the proper order for byte alignment. The could will assert if you do not have a correct alignment. 8) In your .cxx file, use the parameter method definition macros defined in rtiTemplateMsgParams.h or any of the other template param files to define your get and set methods for each of your parameters. The unit tests for this class have several example messages. Check out testAssistantTemplateMsg.h and testAssistantTemplateMsg.cxx.
