the Asynchronous Connection Mgr adds asynchronous I/O to the connectionMgr class. More...

Inheritance diagram for DtAsyncConnectionMgr:

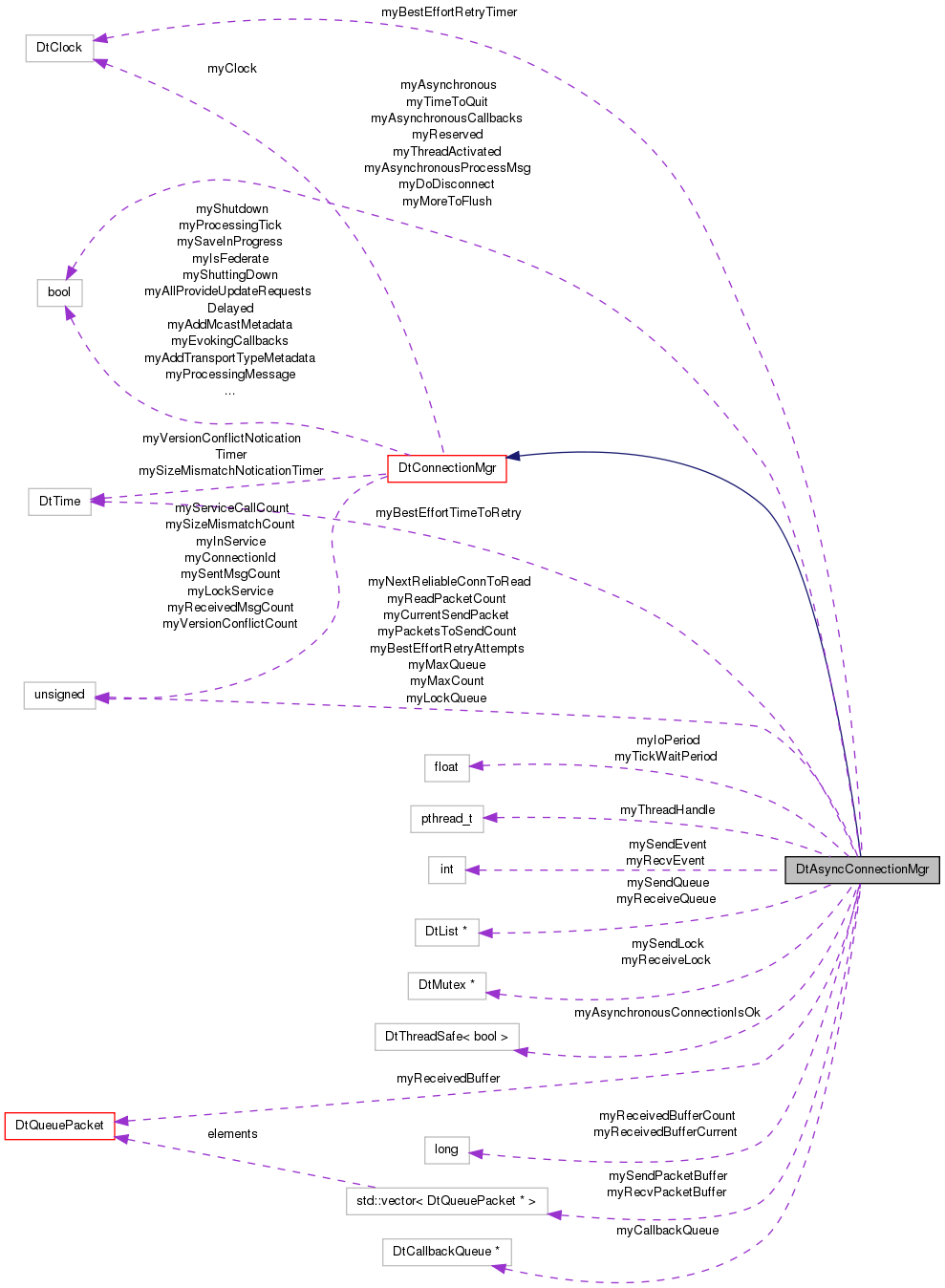

Collaboration diagram for DtAsyncConnectionMgr:

Public Member Functions
virtual	~DtAsyncConnectionMgr ()
virtual int	init (DtRIDParameters *params)
	Initialize the RTI's exercise connections Users who wish to override the MAK RTI's network connections should override this function After the network connections are set it up creates a thread to monitor the sockets.
virtual void	setFederateMgr (DtFederateMgr *fedMgrPtr)
	Set the federate manager.
virtual void	shutdown ()
	Request shutdown of communication activities.
virtual bool	isAsynchronous ()
	return if in asynchronous mode
virtual void	disconnectFederation ()
	The LRC disassociates its connections from the federation.
virtual void	connectFederation (DtLogicalTimeFactory *logicalTimeFactoryPtr, MAKRti::DtString fedExName, DtFederateHandle fedHandle, int fedExHandle)
	The LRC associates its federation information with its network connections.
virtual void	queueMsg (DtRtiMsg *msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	method uses a mutex to lock the send queue while adding a a packet to the queue
virtual int	send (const DtRtiMsg &msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	Send a message.
virtual int	sendAndDelete (DtRtiMsg *msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	Send a message and delete the message after it has been sent Retraction record of timestamped messages must made here.
virtual bool	tick ()
	Process the connections for sychronous IO or callbacks.
virtual bool	processConnections ()
	Check all the connections and process any incomming messages Return boolean: message was received? (i.e.
virtual DtRtiMsg *	getMessage ()
	Get a message if one exists Message must be destroyed by caller.
virtual DtNetReadStatus	handleMsg (DtRtiMsg &msg)
	Handle this message by either processing it or queueing it if save pending.
virtual bool	flush ()
	Does nothing in Async.
virtual void	workerThread ()
	worker thread (called by run)
virtual bool	wait (MAKRti::DtTime periodInSeconds, bool unlockWhileWaiting=false)
	Wait for data to be ready or the given period of time to expire Return boolean: data is ready for reading?
virtual int	readFileDescriptor (RTI::TransportType transport)
	Returns a file descriptor on which data will be present for the given transport type whenever there is incoming data waiting to be read.
virtual int	waitEvent ()
	return the waiting handle
virtual void	signalReceiveEvent ()
	Signal the receive event Used by IO thread to signal federate thread.
virtual void	clearReceiveEvent ()
	Clear receive event Used by federate thread to clear signal.
virtual void	signalSendEvent ()
	Signal the send event Used by federate thread to signal IO thread.
virtual void	clearSendEvent ()
	Clear send event Used by IO thread to clear signal.
virtual void	yield ()
	Yield processing to allow more data to arrive.
Public Member Functions inherited from DtConnectionMgr
virtual	~DtConnectionMgr ()
	Destructor.
virtual void	initParams (DtRIDParameters *params)
	Initialize the parameters used by the connection manager.
virtual void	enableSmartForwarding (bool enable, int maxNumFederates)
	Enables or disables smart forwarding.
virtual DtRIDParameters *	params ()
	Get a pointer to the RID parameters.
virtual bool	isShuttingDown ()
	Shutdown acknowledged.
virtual int	sendStamped (const DtRtiMsg &msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &=MAKRti::DtInetAddr::inaddrAny())
	Send a message stamped with fedEx name and federate ID Retraction record of timestamped messages made here.
virtual int	sendStampedAnonymous (const DtRtiMsg &msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	Send a message stamped with fedEx name, but not federate ID Does not make retraction record of sent messages.
virtual int	sendStampedAndDelete (DtRtiMsg *msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &=MAKRti::DtInetAddr::inaddrAny())
	Send and delete a message stamped with fedEx name and federate ID Retraction record of timestamped messages made here.
virtual int	sendStampedAnonymousAndDelete (DtRtiMsg *msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	Send and delete a message stamped with fedEx name, but not federate ID Does not make retraction record of sent messages.
virtual void	sendLoopback (DtRtiMsg *msg)
	Send a message to be processed by this federate.
virtual bool	drainBacklog (MAKRti::DtTime timeout=0.0)
	Attempts to flush backlogged messages repeatedly until either all messages are sent or the timeout expires.
virtual void	activateTransmitDelay ()
	Activate a delay timer (based on RID) used by managers to control transmission of internal state Expired delays disable activation for current tick.
virtual bool	delayTransmit () const
	Return true if retransmission of internal state should be delayed.
virtual void	testTransmitDelay ()
	Test if retransmit delay time has expired.
virtual void	activateAutoProvideDelay ()
	Activate a delay timer (based on RID) used by managers to control timing for autoprovide callbacks Expired delays disable activation for current tick.
virtual bool	delayAutoProvide () const
	Return true if autoprovides should be delayed.
bool	allProvideUpdateRequestsDelayed () const
	Return true if all provide update calls should be delayed (not just auto provide).
virtual void	testAutoProvideDelay ()
	Test if autoprovide delay time has expired.
virtual void	processQueuedMessages ()
	Process queued messages that are being sent at specified rate.
virtual void	flushQueuedMessages ()
	Process queued messages.
virtual unsigned long	incrementServiceCallCount ()
	Increment a counter to identify the service call being processed.
virtual unsigned long	serviceCallCount () const
	Return service call counter.
virtual bool	processConnection (DtRtiConnection *conn, MAKRti::DtTransportType trans)
	Read from the given connection and process the message (if received) Return boolean: message was received? (i.e.
virtual void	updateBufferSizes ()
	Update Buffer sizes from Rid params object.
virtual DtNetReadStatus	processMsg (const DtRtiMsg &msg)
	this function applies the callbacks to the message
virtual DtNetReadStatus	momProcessMsg (const DtRtiMsg &msg)
	apply MOM callbacks to message
DtFederateMgr *	fedMgr ()
	The federate manager.
DtPartnerMgr *	partnerMgr ()
	Partner manager.
virtual MAKRti::DtTransportType	internalTransportType () const
	Returns the TransportType associated for the internal connection.
virtual bool	setupSelectParams (DtSelectParam *params)
	adds Read File descriptors to a DtSelectParams Return boolean: file descriptor was added? In case no descriptors have been added, should sleep instead of select as there will be no input.
virtual bool	hasTransport (MAKRti::DtTransportType trans)
	returns true if the specified transport type is available
virtual DtRtiMsg *	create (DtRtiMsgKind kind)
	Request the RTI message factory for a msg.
virtual void	setMsgFactory (DtRtiMsgFactory *fact)
	Get/Set the message factory.
virtual DtRtiMsgFactory *	msgFactory () const
virtual void	forceDropMulticastGroup (const MAKRti::DtInetAddr &addr, const MAKRti::DtInetAddr &netInterface=MAKRti::DtInetAddr::inaddrAny())
	Override listen count and force drop multicast address.
virtual bool	repairFederationConnection ()
	Attempt to re-establish a broken connection to the federation Returns true if successful.
virtual RTI::FederateAmbassador *	fedAmb () const
	Return pointer to Federate Ambassador.
virtual void	addFedAmbWrapper (MAKRti::DtString const &name, DtFedAmbWrapper *fedAmb)
	Register a Federate Wrapper with the RTI A federate wrapper allows your plugin to monitor any RTI invoked services.
virtual bool	addFedAmbWrapperAtFront (MAKRti::DtString const &name, DtFedAmbWrapper *fedAmb)
	When the fedAmb Wrapper is installed make certain that this particular wrapper is the first to process the msg.
virtual DtFedAmbWrapper *	removeFedAmbWrapper (MAKRti::DtString const &name)
	Remove federate wrapper.
virtual unsigned long	connectionId () const
	Return connection ID.
virtual DtFederateHandle	fedHandle () const
	Return federate handle.
virtual unsigned long	fedExHandle () const
	Return federation execution handle.
virtual const MAKRti::DtString &	fedExName () const
	Return federation execution name.
virtual void	setFederateHandle (DtFederateHandle handle)
	set federate handle ( this is used by restore and should not be called otherwise )
virtual DtLogicalTimeFactory *	logicalTimeFactory (DtFederationHandle federationHandle=0) const
	Get the factory for the given federation that can create logical time/interval instances.
virtual void	addLogicalTimeFactory (DtFederationHandle federationHandle, DtLogicalTimeFactory *timeFactory)
	Add the factory for the given federation that can create logical time/interval instances.
virtual void	removeLogicalTimeFactory (DtFederationHandle federationHandle)
	Remove the factory for the given federation that can create logical time/interval instances.
virtual DtRtiMsgQueue *	msgQueue ()
	Set/Get the time managed message queue.
virtual void	setMsgQueue (DtRtiMsgQueue *msgQueuePtr)
virtual DtRetractInfoList *	retractList ()
	Set/Get the time managed retract list.
virtual void	setRetractList (DtRetractInfoList *listPtr)
virtual bool	saveInProgress () const
	Set/Get the flag indicating whether a save is in progress Unless a message is marked safe to process during a save a received message is queued for later processing.
virtual void	setSaveInProgress (bool saveIsInProgress)
virtual bool	restoreInProgress () const
	Set/Get the flag indicating whether a restore is in progress Unless a message is marked safe to process during a save a received message is queued for later processing.
virtual void	setRestoreInProgress (bool saveIsInProgress)
virtual bool	saveRestoreInProgress () const
	Return bool: Is save or restore in progress.
virtual void	setMetadataControl (DtMetadataType type, bool onOff)
	Set/Get metadata control indicators.
virtual bool	isMetadataEnabled (DtMetadataType type)
virtual void	sendShutdownForwarderMsg ()
	Called by the rtiExec when it is exiting, only if it started this forwarder.
virtual unsigned long	sequenceNumber () const
	Get the next sequence number.
virtual void	incrementSequenceNumber ()
	Increment the sequence number.
virtual void	setProcessingTick (bool processingTick)
	Set/Get tick processing state.
virtual bool	processingTick () const
	Set/Get tick processing state.
virtual void	setEvokingCallbacks (bool evokingCbs)
	Set/Get the evoke callbacks state.
virtual bool	evokingCallbacks () const
	Set/Get the evoke callbacks state.
virtual void	addPendingMsg (DtRtiMsg *msg)
	Add/get/process a pending message Messages will be processed during the next tick.
virtual bool	processPendingMsg ()
	Add/get/process a pending message Messages will be processed during the next tick.
virtual DtRtiMsg *	nextPendingMsg ()
	Add/get/process a pending message Messages will be processed during the next tick.
virtual void	emptyPendingMsgList ()
	Add/get/process a pending message Messages will be processed during the next tick.
virtual int	pendingMsgCount ()
	Add/get/process a pending message Messages will be processed during the next tick.
virtual void	addMsgCallback (DtRtiMsgKind msgKind, DtRtiMsgCbMgr::DtCallbackFcn fcn, void *usr, bool isMomCallback=false)
	Message Callbacks These callback functions operate on all of the connections.
virtual void	removeMsgCallback (DtRtiMsgKind msgKind, DtRtiMsgCbMgr::DtCallbackFcn fcn, void *usr, bool isMomCallback=false)
	Message Callbacks These callback functions operate on all of the connections.
virtual void	addWildcardMsgCallback (DtRtiMsgCbMgr::DtCallbackFcn fcn, void *usr, bool isMomCallback=false)
	Message Callbacks These callback functions operate on all of the connections.
virtual void	removeWildcardMsgCallback (DtRtiMsgCbMgr::DtCallbackFcn fcn, void *usr, bool isMomCallback=false)
	Message Callbacks These callback functions operate on all of the connections.
virtual DtRtiConnection *	reliableConn () const
	Returns the connection created by createTcpConn().
virtual DtRtiConnection *	bestEffortConn () const
	Returns the connection created by createBestEffortConn().
virtual void	listenToMulticastGroup (const MAKRti::DtInetAddr &addr, const MAKRti::DtInetAddr &netInterface=MAKRti::DtInetAddr::inaddrAny())
	Add/Drop multicast groups from the best effort connection Listens are accumulated and drops decrement.
virtual void	dropMulticastGroup (const MAKRti::DtInetAddr &addr, const MAKRti::DtInetAddr &netInterface=MAKRti::DtInetAddr::inaddrAny())
	Add/Drop multicast groups from the best effort connection Listens are accumulated and drops decrement.
virtual bool	lockServiceCall ()
	Called by asynchronous processing thread to gain mutually exclusive access to RTI managers.
virtual void	unlockServiceCall ()
	Called by asychronous processing thread to release mutually exclusive access to RTI managers.
virtual bool	serviceCallLocked ()
	Called by RTI Ambassador services query if mutex was set using lockServiceCall()
virtual bool	enterServiceCall ()
	Called by RTI Ambassador services to gain mutually exclusive access to RTI managers.
virtual void	exitServiceCall ()
	Called by RTI Ambassador services to release mutually exclusive access to RTI managers.
virtual bool	inServiceCall ()
	Called by RTI Ambassador services query if mutex was set using enterServiceCall()

Static Public Member Functions
static DtConnectionMgr *	create (DtRIDParameters *p, bool isFederate=false, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient=DtBoost::shared_ptr< DtRtiAssistantLrcClient >())
	Creator function.
static void *	run (void *usr)
	thread start calls worker thread
Static Public Member Functions inherited from DtConnectionMgr
static void	setCreatorFunction (DtConnectionMgrCreator fn)
	Register a creator function.
static void	setInternalCreatorFunction (DtConnectionMgrCreator fn)
	Register alternate internal creators.

Protected Member Functions
	DtAsyncConnectionMgr (DtRIDParameters *params, bool isFederate=false, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient=DtBoost::shared_ptr< DtRtiAssistantLrcClient >())
virtual void	doDisconnectFederation ()
	Perform actual disconnect.
virtual bool	doWait (MAKRti::DtTime period)
	Perform actual wait, called by wait function.
virtual void	processCallbackMsg (const DtFedAmbCallbackMsg &callbackMsg)
	Message callback.
virtual DtQueuePacket *	getPacket ()
	Get a packet off of receive buffer Receive buffer is refreshed if empty.
virtual bool	sendPackets ()
	Send buffered packets.
virtual DtNetReadStatus	receivePacket (DtRtiConnection *conn, MAKRti::DtTransportType transportType, unsigned int &receivedPacketCount)
	Process a packet from the given connection.
virtual bool	receivePackets ()
	Process connections and either place packets in receive queue or process messages directly if asynchronous callbacks are enabled.
virtual DtNetReadStatus	processMsgQueueCallbacks (DtRtiMsg &msg, unsigned int &receivedPacketCount)
	Process message but queue any resulting federate ambassador callbacks.
virtual void	processPendingMsgQueueCallbacks ()
	Process a pending message but queue any resulting federate ambassador callbacks.
virtual void	processPendingMsgMakeCallbacks ()
	Process a pending message and make any resulting federate ambassador callbacks.
virtual void	setMessageTracking (DtRtiMsg &msg)
	Set the appropriate tracking values in the message.
virtual void	waitOnIO (DtSelectParamWithWrite &params)
	Make processing wait on IO.
virtual void	destroyPackets ()
	Destroy any packets in the send and receive buffers and queues.
virtual void	destroyRelConn ()
	Destroy reliable connection.
virtual void	destroyAncillaryRelConn (DtRtiConnection *conn)
	Destroy the given ancillary reliable connection.
virtual void	destroyAncillaryRelConns ()
	Destroy ancillary reliable connections.
virtual void	startAsynchronousProcessing ()
	Start asynchronous processing.
virtual void	stopAsynchronousProcessing ()
	Stop asynchronous processing.
Protected Member Functions inherited from DtConnectionMgr
	DtConnectionMgr (DtRIDParameters *params, bool isFederate=false, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient=DtBoost::shared_ptr< DtRtiAssistantLrcClient >())
	Constructor is performed through create.
virtual int	initConnections ()
	Initialize the RTI's exercise connections Users who wish to override the MAK RTI's network connections should override this function.
virtual bool	createBestEffortConn ()
	Create best effort connection; Returns true if successful Could be that it already exist in which case it is still used.
virtual void	destroyBestEffortConn ()
	Destroy best effort connection.
virtual bool	createRelConn ()
	Create reliable connection; Returns true if successful.
virtual unsigned int	createAncillaryRelConns ()
	Create ancillary reliable connections; Returns count of successful connections.
virtual unsigned int	ancillaryReliableConnsCount () const
	Report number of ancillary reliable connections successfully established.
virtual bool	checkRelConn ()
	Check the reliable connection status.
virtual void	processReadResult (int readError)
	Process read result to print error diagnostics for example.
virtual int	sendStampedUtilityFunction (DtRtiMsg *msg, MAKRti::DtTransportType transport, bool performDelete, bool isAnonymous, const MAKRti::DtInetAddr &addr)
	Called by sendStamped, sendStampedAndDelete, sendAnonymousStamped, etc.

Static Protected Member Functions
static void	processCallbackMsg (const DtFedAmbCallbackMsg &callbackMsg, void *usr)
	Message callback.

Protected Attributes
bool	myTimeToQuit
bool	myThreadActivated
bool	myAsynchronous
bool	myAsynchronousCallbacks
bool	myAsynchronousProcessMsg
bool	myReserved
bool	myMoreToFlush
bool	myDoDisconnect
DtMutex *	mySendLock
DtMutex *	myReceiveLock
pthread_t	myThreadHandle
int	mySendEvent [2]
int	myRecvEvent [2]
float	myIoPeriod
float	myTickWaitPeriod
unsigned int	myMaxQueue
unsigned int	myMaxCount
unsigned int	myLockQueue
long	myReceivedBufferCurrent
	Federate thread buffers.
long	myReceivedBufferCount
DtQueuePacket **	myReceivedBuffer
unsigned int	myCurrentSendPacket
	IO thread buffers.
unsigned int	myPacketsToSendCount
std::vector< DtQueuePacket * >	mySendPacketBuffer
std::vector< DtQueuePacket * >	myRecvPacketBuffer
unsigned int	myReadPacketCount
	Number of packets read until time to yield (== max count)
MAKRti::DtClock	myBestEffortRetryTimer
	Mechanism to retry best effort transmits which block.
unsigned int	myBestEffortRetryAttempts
MAKRti::DtTime	myBestEffortTimeToRetry
MAKRti::DtList *	mySendQueue
	Exchange queues between federate and IO threads these lists are used in asynchronous mode.
MAKRti::DtList *	myReceiveQueue
DtCallbackQueue *	myCallbackQueue
	A federate ambassador wrapper that queues up federate ambassador calls.
DtThreadSafe< bool >	myAsynchronousConnectionIsOk
unsigned int	myNextReliableConnToRead
	Mechanism to track which reliable connection to fetch packets from when multiple ancillary reliable connections exist.
Protected Attributes inherited from DtConnectionMgr
DtRtiMsgFactory *	myMsgFactory
	The message factory.
DtRtiConnection *	myBestEffortConn
	The best effort connection.
DtRtiConnection *	myPrimaryReliableConn
	The primary reliable connection.
DtRtiConnectionList	myReliableConns
DtRIDParameters *	myParams
	The RTI initialization parameters.
DtFederateMgr *	myFedMgr
	The federate manager.
std::map< MAKRti::DtInetAddr, DtMulticastEntry * >	myMulticastGroups
	LRC listening to these multicast groups.
DtFedAmbWrapperChain	myFedAmbChain
	Chain of Federate Ambassador Wrappers.
DtDfltMsgFactory	myDfltMsgFactory
	Default message factory.
DtRtiMsgCbMgr	myMsgCbMgr
	Message callback manager.
DtRtiMsgCbMgr	myMomMsgCbMgr
	MOM message callback manager.
MAKRti::DtTransportType	myInternalTransportType
	Transport type used for internal messages.
bool	myAddTransportTypeMetadata
	Metadata control indicators.
bool	myAddMcastMetadata
std::map< DtFederationHandle, DtLogicalTimeFactory * >	myLogicalTimeFactories
	Factories for creating logical time instances.
DtRtiMsgQueue *	myMsgQueue
	Message queue.
DtRetractInfoList *	myRetractList
	Message retractions.
std::list< DtRtiMsg * >	myPendingMessages
	Pending messages.
bool	mySaveInProgress
	Save status.
bool	myRestoreInProgress
	Restore status.
unsigned long	myConnectionId
	"unique" identifier for this connMgr (if there is a good source of unique ids)
MAKRti::DtString	myFedExName
	Federation execution name.
DtFederateHandle	myFedExHandle
	Federation execution handle.
DtFederateHandle	myFederateHandle
	Federate handle.
unsigned long	myReceivedMsgCount
	Number of received messages.
unsigned long	mySentMsgCount
	Number of sent messages.
MAKRti::DtList	myWorkingMsgId
	Diagnostic message ID stack.
DtMessageThrottle *	myMessageThrottle
	Message output throttle.
bool	myAllProvideUpdateRequestsDelayed
	Extend auto provide delay to all attribute update requests.
DtMutex *	myCallbackMutex
	Mutex to synchronize access to RTI and Federate Ambassadors.
unsigned int	myLockService
	RTI is processing a message.
unsigned int	myInService
	RTI is processing a service call.
MAKRti::DtClock	myClock
	Clock for timing.
DtBoost::shared_ptr < DtRtiAssistantLrcClient >	myAssistantClient
	The assistant client.
bool	myIsFederate
	Whether this manager is for a federate.
unsigned long	myVersionConflictCount
	The count of message version conflicts.
MAKRti::DtTime	myVersionConflictNoticationTimer
unsigned long	mySizeMismatchCount
	The count of message size mismatches.
MAKRti::DtTime	mySizeMismatchNoticationTimer
DtPartnerMgr *	myPartnerMgr
unsigned long	myServiceCallCount
	Service call counter - increment before processing each service call.
bool	myProcessingTick
	Tick processing state.
bool	myEvokingCallbacks
	Indicates if callbacks are being evoked.
bool	myProcessingMessage
	Indicates if message is being processed.
bool	myShutdown
	Shutdown requested.
bool	myShuttingDown
	Shutdown acknowledged.

Additional Inherited Members
Public Types inherited from DtConnectionMgr
typedef DtConnectionMgr (	DtConnectionMgrCreator )(DtRIDParameters *p, bool isFederate, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient)
	Connection Manager Creator.
Protected Types inherited from DtConnectionMgr
typedef std::list < DtRtiConnection * >	DtRtiConnectionList
	List of all reliable connections (for forwarder load balancing)
Static Protected Attributes inherited from DtConnectionMgr
static DtConnectionMgrCreator	theCreator = 0
	The plugin creator.
static DtConnectionMgrCreator	theInternalCreator = 0
	The internal creator.

Detailed Description

the Asynchronous Connection Mgr adds asynchronous I/O to the connectionMgr class.

A thread is created to manage the send and receive queues. It can operate in a synchronous mode if the myAsynchronous flag is set to false.

Constructor & Destructor Documentation

DtAsyncConnectionMgr::DtAsyncConnectionMgr	(	DtRIDParameters *	params,
		bool	isFederate = `false`,
		DtBoost::shared_ptr< DtRtiAssistantLrcClient >	assistantClient = `DtBoost::shared_ptr<DtRtiAssistantLrcClient>()`
	)

protected

References DtRIDParameters::forwarderGroupSize(), myReceiveLock, myRecvEvent, mySendEvent, and mySendLock.

Referenced by create().

DtAsyncConnectionMgr::~DtAsyncConnectionMgr ( )

virtual

References destroyPackets(), DtWaitEvent_AncillaryReliableConnStart, DtWaitEvent_BestEffortConn, DtWaitEvent_PrimaryReliableConn, DtWaitEvent_Send, isAsynchronous(), DtConnectionMgr::myCallbackMutex, myCallbackQueue, myReceivedBuffer, myReceiveLock, myReceiveQueue, mySendLock, mySendQueue, processCallbackMsg(), DtFedAmbCallbackMsg::removeCallback(), DtConnectionMgr::removeFedAmbWrapper(), and stopAsynchronousProcessing().

Member Function Documentation

void DtAsyncConnectionMgr::clearReceiveEvent ( )

virtual

Clear receive event Used by federate thread to clear signal.

References myRecvEvent.

Referenced by doWait(), and getPacket().

void DtAsyncConnectionMgr::clearSendEvent ( )

virtual

Clear send event Used by IO thread to clear signal.

References mySendEvent.

Referenced by workerThread().

void DtAsyncConnectionMgr::connectFederation	(	DtLogicalTimeFactory *	logicalTimeFactoryPtr,
		MAKRti::DtString	fedExName,
		DtFederateHandle	federateHandle,
		int	fedExHandle
	)

virtual

The LRC associates its federation information with its network connections.

If the LRC is communicating with the rtiexec through a reliable connection, then the best effort connection is created here.

Reimplemented from DtConnectionMgr.

DtConnectionMgr * DtAsyncConnectionMgr::create	(	DtRIDParameters *	p,
		bool	isFederate = `false`,
		DtBoost::shared_ptr< DtRtiAssistantLrcClient >	assistantClient = `DtBoost::shared_ptr<DtRtiAssistantLrcClient>()`
	)

static

Creator function.

Reimplemented from DtConnectionMgr.

Reimplemented in DtNetStatsAsyncConnMgr.

References DtAsyncConnectionMgr().

Referenced by DtRtiAmbassadorBaseImplementor::setupConnection().

void DtAsyncConnectionMgr::destroyAncillaryRelConn ( DtRtiConnection * conn )

protectedvirtual

Destroy the given ancillary reliable connection.

Reimplemented from DtConnectionMgr.

References myNextReliableConnToRead.

void DtAsyncConnectionMgr::destroyAncillaryRelConns ( )

protectedvirtual

Destroy ancillary reliable connections.

Reimplemented from DtConnectionMgr.

References myNextReliableConnToRead.

void DtAsyncConnectionMgr::destroyPackets ( )

protectedvirtual

Destroy any packets in the send and receive buffers and queues.

The buffers and queues themselves are not destroyed

References isAsynchronous(), myCurrentSendPacket, myLockQueue, myPacketsToSendCount, myReceivedBuffer, myReceivedBufferCount, myReceivedBufferCurrent, myReceiveQueue, myRecvPacketBuffer, mySendPacketBuffer, and mySendQueue.

Referenced by workerThread(), and ~DtAsyncConnectionMgr().

void DtAsyncConnectionMgr::destroyRelConn ( )

protectedvirtual

Destroy reliable connection.

Reimplemented from DtConnectionMgr.

References myNextReliableConnToRead.

Referenced by receivePackets(), and sendPackets().

void DtAsyncConnectionMgr::disconnectFederation ( )

virtual

The LRC disassociates its connections from the federation.

If the LRC is communicating with the rtiexec through a reliable connection, then the best effort connection is destroyed here.

Reimplemented from DtConnectionMgr.

References myDoDisconnect.

Referenced by doDisconnectFederation().

void DtAsyncConnectionMgr::doDisconnectFederation ( )

protectedvirtual

Perform actual disconnect.

References disconnectFederation(), and myDoDisconnect.

Referenced by workerThread().

bool DtAsyncConnectionMgr::doWait ( MAKRti::DtTime period )

protectedvirtual

Perform actual wait, called by wait function.

Reimplemented from DtConnectionMgr.

References clearReceiveEvent(), myRecvEvent, myTickWaitPeriod, DtConnectionMgr::params(), and signalSendEvent().

Referenced by wait().

bool DtAsyncConnectionMgr::flush ( )

virtual

Does nothing in Async.

I/O mode In sync. I/O mode, Flush the send queues Send buffered messages. Returns indication of whether flush is complete or incomplete.

Reimplemented from DtConnectionMgr.

References myThreadActivated.

DtRtiMsg * DtAsyncConnectionMgr::getMessage ( )

virtual

Get a message if one exists Message must be destroyed by caller.

Reimplemented from DtConnectionMgr.

Reimplemented in DtNetStatsAsyncConnMgr.

References DtRtiMsg::cloneWithTransport(), getPacket(), DtQueuePacket::msg, and myThreadActivated.

DtQueuePacket * DtAsyncConnectionMgr::getPacket ( )

protectedvirtual

Get a packet off of receive buffer Receive buffer is refreshed if empty.

References clearReceiveEvent(), myLockQueue, myReceivedBuffer, myReceivedBufferCount, myReceivedBufferCurrent, myReceiveLock, myReceiveQueue, and myThreadActivated.

Referenced by getMessage(), and processConnections().

DtNetReadStatus DtAsyncConnectionMgr::handleMsg ( DtRtiMsg & msg )

virtual

Handle this message by either processing it or queueing it if save pending.

Reimplemented from DtConnectionMgr.

References DtNET_READ_SUCCESS, DtConnectionMgr::lockServiceCall(), myAsynchronousCallbacks, myDoDisconnect, DtConnectionMgr::myFedMgr, DtConnectionMgr::myShuttingDown, DtFederateMgr::posttick(), and DtConnectionMgr::unlockServiceCall().

Referenced by DtNetStatsAsyncConnMgr::processConnection(), DtRtiShmQNetMgr::processConnection(), processConnections(), processMsgQueueCallbacks(), and receivePacket().

int DtAsyncConnectionMgr::init ( DtRIDParameters * params )

virtual

Initialize the RTI's exercise connections Users who wish to override the MAK RTI's network connections should override this function After the network connections are set it up creates a thread to monitor the sockets.

Reimplemented from DtConnectionMgr.

Reimplemented in DtRtiShmQNetMgr.

References DtFedAmbCallbackMsg::addCallback(), DtRIDParameters::DtAsynchronousCallbacks, DtRIDParameters::DtSynchronousMode, DtWaitEvent_AncillaryReliableConnStart, DtWaitEvent_BestEffortConn, DtWaitEvent_PrimaryReliableConn, DtWaitEvent_Send, DtRIDParameters::IOLockQueue, DtRIDParameters::maxIOCount, myAsynchronous, myAsynchronousCallbacks, myBestEffortRetryTimer, DtConnectionMgr::myCallbackMutex, myCurrentSendPacket, myIoPeriod, myLockQueue, myMaxCount, myMaxQueue, myPacketsToSendCount, myReadPacketCount, myReceivedBuffer, myReceivedBufferCount, myReceivedBufferCurrent, myReceiveQueue, myRecvEvent, myRecvPacketBuffer, mySendEvent, mySendPacketBuffer, mySendQueue, myTickWaitPeriod, processCallbackMsg(), DtRIDParameters::processingModel(), and startAsynchronousProcessing().

bool DtAsyncConnectionMgr::isAsynchronous ( )

virtual

return if in asynchronous mode

References myAsynchronous.

Referenced by destroyPackets(), and ~DtAsyncConnectionMgr().

void DtAsyncConnectionMgr::processCallbackMsg ( const DtFedAmbCallbackMsg & callbackMsg )

protectedvirtual

Message callback.

References DtToWString(), DtFedAmbCallbackMsg::evokeCallback(), and DtConnectionMgr::fedAmb().

Referenced by init(), and ~DtAsyncConnectionMgr().

void DtAsyncConnectionMgr::processCallbackMsg	(	const DtFedAmbCallbackMsg &	callbackMsg,
		void *	usr
	)

staticprotected

Message callback.

bool DtAsyncConnectionMgr::processConnections ( )

virtual

Check all the connections and process any incomming messages Return boolean: message was received? (i.e.

could be more input). method uses a mutex to receive the send queue while adding a packet to the queue

Reimplemented from DtConnectionMgr.

References getPacket(), handleMsg(), DtQueuePacket::msg, myAsynchronousConnectionIsOk, and myThreadActivated.

DtNetReadStatus DtAsyncConnectionMgr::processMsgQueueCallbacks	(	DtRtiMsg &	msg,
		unsigned int &	receivedPacketCount
	)

protectedvirtual

Process message but queue any resulting federate ambassador callbacks.

Packet count is incremented if messages placed on receive buffer. Return status of message processing.

References DtTestManager::addAsyncQueueMsgOnRecieve(), DtNET_READ_NO_PACKETS, DtNET_READ_SUCCESS, handleMsg(), DtConnectionMgr::lockServiceCall(), myCallbackQueue, DtConnectionMgr::myFedMgr, myLockQueue, myRecvPacketBuffer, DtFederateMgr::posttick(), DtFederateMgr::testMgr(), and DtConnectionMgr::unlockServiceCall().

Referenced by receivePacket().

void DtAsyncConnectionMgr::processPendingMsgMakeCallbacks ( )

protectedvirtual

Process a pending message and make any resulting federate ambassador callbacks.

References DtConnectionMgr::lockServiceCall(), DtConnectionMgr::myFedMgr, DtConnectionMgr::myShutdown, myTimeToQuit, DtFederateMgr::posttick(), DtConnectionMgr::processPendingMsg(), DtConnectionMgr::setEvokingCallbacks(), and DtConnectionMgr::unlockServiceCall().

Referenced by workerThread().

void DtAsyncConnectionMgr::processPendingMsgQueueCallbacks ( )

protectedvirtual

Process a pending message but queue any resulting federate ambassador callbacks.

Any resulting callback messages are put on receive queue.

References DtConnectionMgr::lockServiceCall(), myCallbackQueue, DtConnectionMgr::myFedMgr, myReceiveLock, myReceiveQueue, DtConnectionMgr::myShutdown, myTimeToQuit, DtFederateMgr::posttick(), DtConnectionMgr::processPendingMsg(), signalReceiveEvent(), and DtConnectionMgr::unlockServiceCall().

Referenced by workerThread().

void DtAsyncConnectionMgr::queueMsg	(	DtRtiMsg *	msg,
		MAKRti::DtTransportType	transport,
		const MAKRti::DtInetAddr &	addr = `MAKRti::DtInetAddr::inaddrAny()`
	)

virtual

method uses a mutex to lock the send queue while adding a a packet to the queue

References DtConnectionMgr::myFedMgr, myIoPeriod, myMaxQueue, mySendLock, mySendQueue, myThreadActivated, DtTestManager::queueMsgForSend(), signalSendEvent(), and DtFederateMgr::testMgr().

Referenced by send(), and sendAndDelete().

int DtAsyncConnectionMgr::readFileDescriptor ( RTI::TransportType transport )

virtual

Returns a file descriptor on which data will be present for the given transport type whenever there is incoming data waiting to be read.

Returns -1 if no such file descriptor.

On windows, always returns -1, use readFileEvent instead. On unix returns the file descriptor of the pipe used for inter-thread communication instead of the socket file descriptor. Transport type is ignored.

Reimplemented from DtConnectionMgr.

References DtConnectionMgr::readFileDescriptor().

DtNetReadStatus DtAsyncConnectionMgr::receivePacket	(	DtRtiConnection *	conn,
		MAKRti::DtTransportType	transportType,
		unsigned int &	receivedPacketCount
	)

protectedvirtual

Process a packet from the given connection.

Depending on processing mode and the packet contents, the packet may result in messages placed on receive buffer. Packet count is incremented if messages are placed on receive buffer. Returns status of read on connection

References DtTestManager::addReceiveTimeStampIfNecessary(), DtRtiMsg::clone(), DtNET_READ_NO_PACKETS, handleMsg(), myAsynchronousCallbacks, myAsynchronousProcessMsg, myCallbackQueue, DtConnectionMgr::myFedMgr, myLockQueue, myReadPacketCount, myRecvPacketBuffer, DtRtiConnection::netRead(), processMsgQueueCallbacks(), DtConnectionMgr::processReadResult(), DtRtiMsg::setTransportType(), and DtFederateMgr::testMgr().

Referenced by receivePackets().

bool DtAsyncConnectionMgr::receivePackets ( )

protectedvirtual

Process connections and either place packets in receive queue or process messages directly if asynchronous callbacks are enabled.

Number processed packets is governed by lock queue ceiling Returns bool: more packets to read?

References DtTestManager::addAsyncQueueMsgOnRecieve(), DtConnectionMgr::bestEffortConn(), DtConnectionMgr::checkRelConn(), destroyRelConn(), DtNET_READ_NO_PACKETS, DtRtiConnection::isOk(), DtQueuePacket::msg, myAsynchronousConnectionIsOk, DtConnectionMgr::myFedMgr, myLockQueue, myMoreToFlush, myNextReliableConnToRead, myReceiveLock, myReceiveQueue, myRecvPacketBuffer, DtConnectionMgr::myReliableConns, DtConnectionMgr::myShutdown, myTimeToQuit, receivePacket(), signalReceiveEvent(), and DtFederateMgr::testMgr().

Referenced by workerThread().

void * DtAsyncConnectionMgr::run ( void * usr )

static

thread start calls worker thread

References workerThread().

Referenced by startAsynchronousProcessing().

int DtAsyncConnectionMgr::send	(	const DtRtiMsg &	msg,
		MAKRti::DtTransportType	transport,
		const MAKRti::DtInetAddr &	addr = `MAKRti::DtInetAddr::inaddrAny()`
	)

virtual

Send a message.

Reimplemented from DtConnectionMgr.

References DtRtiMsg::clone(), DtRtiMsg::fedExHandle(), DtFederateMgr::isTicking(), DtConnectionMgr::logicalTimeFactory(), DtConnectionMgr::myClock, DtConnectionMgr::myFedMgr, DtConnectionMgr::mySentMsgCount, myThreadActivated, DtConnectionMgr::params(), DtRtiMsg::print(), queueMsg(), setMessageTracking(), and DtFederateMgr::tickCount().

int DtAsyncConnectionMgr::sendAndDelete	(	DtRtiMsg *	msg,
		MAKRti::DtTransportType	transport,
		const MAKRti::DtInetAddr &	addr = `MAKRti::DtInetAddr::inaddrAny()`
	)

virtual

Send a message and delete the message after it has been sent Retraction record of timestamped messages must made here.

Reimplemented from DtConnectionMgr.

References DtRIDParameters::destAddr(), DtRtiMsg::fedExHandle(), DtFederateMgr::isTicking(), DtConnectionMgr::logicalTimeFactory(), DtConnectionMgr::myClock, DtConnectionMgr::myFedMgr, DtConnectionMgr::mySentMsgCount, myThreadActivated, DtConnectionMgr::params(), DtRtiMsg::print(), queueMsg(), setMessageTracking(), and DtFederateMgr::tickCount().

bool DtAsyncConnectionMgr::sendPackets ( )

protectedvirtual

Send buffered packets.

Moves a block of packets from send queue to send packet buffer and sends them on network. If blocked sending, then holds packets in buffer for next attempt. Flushes connections on exit. Returns bool: packets sent without being blocked (including no sends)?

References DtQueuePacket::addr, DtTestManager::addSendTimeStampMetaDataIfNecessary(), DtConnectionMgr::bestEffortConn(), DtRIDParameters::bestEffortSendRetryWaitUsec, DtConnectionMgr::checkRelConn(), destroyRelConn(), DtMetadataTypeMcastAddr, DtMetadataTypeTransport, DtRtiConnection::flush(), DtConnectionMgr::isMetadataEnabled(), DtRtiConnection::isOk(), DtQueuePacket::msg, myAsynchronousConnectionIsOk, myBestEffortRetryAttempts, myBestEffortRetryTimer, myBestEffortTimeToRetry, myCurrentSendPacket, DtConnectionMgr::myFedMgr, myLockQueue, myMoreToFlush, myPacketsToSendCount, mySendLock, mySendPacketBuffer, mySendQueue, DtConnectionMgr::params(), DtConnectionMgr::reliableConn(), DtRtiConnection::send(), DtRtiMtdTransportType::set(), DtRtiMtdMcastAddr::set(), DtFederateMgr::testMgr(), and DtRtiMsg::transportType().

Referenced by workerThread().

void DtAsyncConnectionMgr::setFederateMgr ( DtFederateMgr * fedMgrPtr )

virtual

Set the federate manager.

Reimplemented from DtConnectionMgr.

References DtConnectionMgr::addFedAmbWrapper(), DtConnectionMgr::addFedAmbWrapperAtFront(), DtRIDParameters::DtAsynchronousProcessMessage, myAsynchronousProcessMsg, DtConnectionMgr::myCallbackMutex, myCallbackQueue, DtConnectionMgr::myFedMgr, and DtConnectionMgr::params().

void DtAsyncConnectionMgr::setMessageTracking ( DtRtiMsg & msg )

protectedvirtual

Set the appropriate tracking values in the message.

References DtConnectionMgr::inServiceCall(), myAsynchronousCallbacks, DtConnectionMgr::myProcessingMessage, DtConnectionMgr::myReceivedMsgCount, DtConnectionMgr::mySentMsgCount, DtConnectionMgr::myServiceCallCount, DtConnectionMgr::processingTick(), DtRtiMsg::setSequenceNumber(), DtRtiMsg::setServiceCallNumber(), and DtRtiMsg::setTriggerMessageNumber().

Referenced by send(), and sendAndDelete().

void DtAsyncConnectionMgr::shutdown ( )

virtual

Request shutdown of communication activities.

Reimplemented from DtConnectionMgr.

References DtConnectionMgr::myShutdown.

void DtAsyncConnectionMgr::signalReceiveEvent ( )

virtual

Signal the receive event Used by IO thread to signal federate thread.

References myRecvEvent, and myThreadActivated.

Referenced by processPendingMsgQueueCallbacks(), and receivePackets().

void DtAsyncConnectionMgr::signalSendEvent ( )

virtual

Signal the send event Used by federate thread to signal IO thread.

References DtWaitEvent_Send, mySendEvent, and myThreadActivated.

Referenced by doWait(), queueMsg(), and yield().

void DtAsyncConnectionMgr::startAsynchronousProcessing ( )

protectedvirtual

Start asynchronous processing.

References DtWaitEvent_AncillaryReliableConnStart, DtWaitEvent_BestEffortConn, DtWaitEvent_PrimaryReliableConn, DtWaitEvent_Send, myAsynchronous, myMoreToFlush, myReceivedBuffer, myThreadActivated, myThreadHandle, myTimeToQuit, NULL, DtConnectionMgr::reliableConn(), and run().

Referenced by init().

void DtAsyncConnectionMgr::stopAsynchronousProcessing ( )

protectedvirtual

Stop asynchronous processing.

References myThreadActivated, myThreadHandle, and myTimeToQuit.

Referenced by ~DtAsyncConnectionMgr().

bool DtAsyncConnectionMgr::tick ( )

virtual

Process the connections for sychronous IO or callbacks.

Reimplemented from DtConnectionMgr.

References myAsynchronousCallbacks, myThreadActivated, and yield().

bool DtAsyncConnectionMgr::wait	(	MAKRti::DtTime	periodInSeconds,
		bool	unlockWhileWaiting = `false`
	)

virtual

Wait for data to be ready or the given period of time to expire Return boolean: data is ready for reading?

Reimplemented from DtConnectionMgr.

References doWait(), DtConnectionMgr::enterServiceCall(), DtConnectionMgr::exitServiceCall(), DtConnectionMgr::inServiceCall(), DtConnectionMgr::lockServiceCall(), myReceivedBufferCount, myReceiveQueue, myThreadActivated, DtConnectionMgr::serviceCallLocked(), and DtConnectionMgr::unlockServiceCall().

int DtAsyncConnectionMgr::waitEvent ( )

virtual

return the waiting handle

References myRecvEvent.

void DtAsyncConnectionMgr::waitOnIO ( DtSelectParamWithWrite & params )

protectedvirtual

Make processing wait on IO.

References myIoPeriod, myMoreToFlush, mySendEvent, and DtConnectionMgr::reliableConn().

Referenced by workerThread().

void DtAsyncConnectionMgr::workerThread ( )

virtual

worker thread (called by run)

References DtConnectionMgr::bestEffortConn(), clearSendEvent(), DtMsgSocket::descriptor(), destroyPackets(), doDisconnectFederation(), DtWaitEvent_BestEffortConn, DtConnectionMgr::lockServiceCall(), myAsynchronousCallbacks, myAsynchronousConnectionIsOk, myAsynchronousProcessMsg, myCurrentSendPacket, myDoDisconnect, DtConnectionMgr::myFedMgr, myMaxCount, myMoreToFlush, myPacketsToSendCount, myReadPacketCount, DtConnectionMgr::myReliableConns, mySendEvent, mySendQueue, DtConnectionMgr::myShutdown, DtConnectionMgr::myShuttingDown, myThreadActivated, myTimeToQuit, DtConnectionMgr::params(), DtConnectionMgr::pendingMsgCount(), DtFederateMgr::posttick(), processPendingMsgMakeCallbacks(), processPendingMsgQueueCallbacks(), receivePackets(), sendPackets(), DtRtiConnection::socket(), DtConnectionMgr::unlockServiceCall(), and waitOnIO().

Referenced by run().

void DtAsyncConnectionMgr::yield ( )

virtual

Yield processing to allow more data to arrive.

Reimplemented from DtConnectionMgr.

References signalSendEvent().

Referenced by tick().

Member Data Documentation

bool DtAsyncConnectionMgr::myAsynchronous

protected

Referenced by init(), isAsynchronous(), and startAsynchronousProcessing().

bool DtAsyncConnectionMgr::myAsynchronousCallbacks

protected

Referenced by handleMsg(), init(), receivePacket(), setMessageTracking(), tick(), and workerThread().

DtThreadSafe<bool> DtAsyncConnectionMgr::myAsynchronousConnectionIsOk

protected

Referenced by processConnections(), receivePackets(), sendPackets(), and workerThread().

bool DtAsyncConnectionMgr::myAsynchronousProcessMsg

protected

Referenced by receivePacket(), setFederateMgr(), and workerThread().

unsigned int DtAsyncConnectionMgr::myBestEffortRetryAttempts

protected

Referenced by sendPackets().

MAKRti::DtClock DtAsyncConnectionMgr::myBestEffortRetryTimer

protected

Mechanism to retry best effort transmits which block.

Referenced by init(), and sendPackets().

MAKRti::DtTime DtAsyncConnectionMgr::myBestEffortTimeToRetry

protected

Referenced by sendPackets().

DtCallbackQueue* DtAsyncConnectionMgr::myCallbackQueue

protected

A federate ambassador wrapper that queues up federate ambassador calls.

Referenced by processMsgQueueCallbacks(), processPendingMsgQueueCallbacks(), receivePacket(), setFederateMgr(), and ~DtAsyncConnectionMgr().

unsigned int DtAsyncConnectionMgr::myCurrentSendPacket

protected

IO thread buffers.

Referenced by destroyPackets(), init(), sendPackets(), and workerThread().

bool DtAsyncConnectionMgr::myDoDisconnect

protected

Referenced by disconnectFederation(), doDisconnectFederation(), handleMsg(), and workerThread().

float DtAsyncConnectionMgr::myIoPeriod

protected

Referenced by init(), queueMsg(), and waitOnIO().

unsigned int DtAsyncConnectionMgr::myLockQueue

protected

Referenced by destroyPackets(), getPacket(), init(), processMsgQueueCallbacks(), receivePacket(), receivePackets(), and sendPackets().

unsigned int DtAsyncConnectionMgr::myMaxCount

protected

Referenced by init(), and workerThread().

unsigned int DtAsyncConnectionMgr::myMaxQueue

protected

Referenced by init(), and queueMsg().

bool DtAsyncConnectionMgr::myMoreToFlush

protected

Referenced by receivePackets(), sendPackets(), startAsynchronousProcessing(), waitOnIO(), and workerThread().

unsigned int DtAsyncConnectionMgr::myNextReliableConnToRead

protected

Mechanism to track which reliable connection to fetch packets from when multiple ancillary reliable connections exist.

Must be set to zero whenever reliable connection is deleted.

Referenced by destroyAncillaryRelConn(), destroyAncillaryRelConns(), destroyRelConn(), and receivePackets().

unsigned int DtAsyncConnectionMgr::myPacketsToSendCount

protected

Referenced by destroyPackets(), init(), sendPackets(), and workerThread().

unsigned int DtAsyncConnectionMgr::myReadPacketCount

protected

Number of packets read until time to yield (== max count)

Referenced by init(), receivePacket(), and workerThread().

DtQueuePacket** DtAsyncConnectionMgr::myReceivedBuffer

protected

Referenced by destroyPackets(), getPacket(), init(), startAsynchronousProcessing(), and ~DtAsyncConnectionMgr().

long DtAsyncConnectionMgr::myReceivedBufferCount

protected

Referenced by destroyPackets(), getPacket(), init(), and wait().

long DtAsyncConnectionMgr::myReceivedBufferCurrent

protected

Federate thread buffers.

Referenced by destroyPackets(), getPacket(), and init().

DtMutex* DtAsyncConnectionMgr::myReceiveLock

protected

Referenced by DtAsyncConnectionMgr(), getPacket(), processPendingMsgQueueCallbacks(), receivePackets(), and ~DtAsyncConnectionMgr().

MAKRti::DtList* DtAsyncConnectionMgr::myReceiveQueue

protected

Referenced by destroyPackets(), getPacket(), init(), processPendingMsgQueueCallbacks(), receivePackets(), wait(), and ~DtAsyncConnectionMgr().

int DtAsyncConnectionMgr::myRecvEvent[2]

protected

Referenced by clearReceiveEvent(), doWait(), DtAsyncConnectionMgr(), init(), signalReceiveEvent(), and waitEvent().

std::vector<DtQueuePacket*> DtAsyncConnectionMgr::myRecvPacketBuffer

protected

Referenced by destroyPackets(), init(), processMsgQueueCallbacks(), receivePacket(), and receivePackets().

bool DtAsyncConnectionMgr::myReserved

protected

int DtAsyncConnectionMgr::mySendEvent[2]

protected

Referenced by clearSendEvent(), DtAsyncConnectionMgr(), init(), signalSendEvent(), waitOnIO(), and workerThread().

DtMutex* DtAsyncConnectionMgr::mySendLock

protected

Referenced by DtAsyncConnectionMgr(), queueMsg(), sendPackets(), and ~DtAsyncConnectionMgr().

std::vector<DtQueuePacket*> DtAsyncConnectionMgr::mySendPacketBuffer

protected

Referenced by destroyPackets(), init(), and sendPackets().

MAKRti::DtList* DtAsyncConnectionMgr::mySendQueue

protected

Exchange queues between federate and IO threads these lists are used in asynchronous mode.

They contain pointers to DtQueuePacket's. They are not used when not operating asynchronously

Referenced by destroyPackets(), init(), queueMsg(), sendPackets(), workerThread(), and ~DtAsyncConnectionMgr().

bool DtAsyncConnectionMgr::myThreadActivated

protected

Referenced by flush(), getMessage(), getPacket(), DtNetStatsAsyncConnMgr::processConnection(), processConnections(), DtNetStatsAsyncConnMgr::processMsg(), queueMsg(), send(), sendAndDelete(), signalReceiveEvent(), signalSendEvent(), startAsynchronousProcessing(), stopAsynchronousProcessing(), tick(), wait(), and workerThread().

pthread_t DtAsyncConnectionMgr::myThreadHandle

protected

Referenced by startAsynchronousProcessing(), and stopAsynchronousProcessing().

float DtAsyncConnectionMgr::myTickWaitPeriod

protected

Referenced by doWait(), and init().

bool DtAsyncConnectionMgr::myTimeToQuit

protected

Referenced by processPendingMsgMakeCallbacks(), processPendingMsgQueueCallbacks(), receivePackets(), startAsynchronousProcessing(), stopAsynchronousProcessing(), and workerThread().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
