DtNetFedFileMsg Class Reference

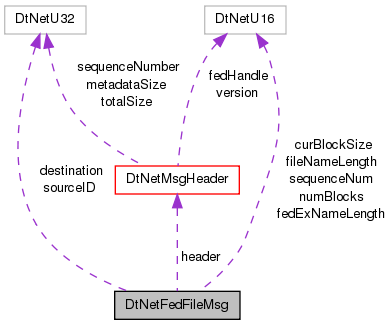

Collaboration diagram for DtNetFedFileMsg:

Public Attributes
DtNetMsgHeader	header
DtNetU32	destination
	Destination Federate ID for message.
DtNetU32	sourceID
	Source Federate ID for message.
DtNetU16	fileNameLength
	Length of File Name String (includes null term.)
DtNetU16	fedExNameLength
	Length of Federation Name String.
DtNetU16	curBlockSize
	Length of contained block of Fed File.
DtNetU16	numBlocks
	Number of blocks required to reconstruct file.
DtNetU16	sequenceNum
	Fed File block number.

Member Data Documentation

DtNetU16 DtNetFedFileMsg::curBlockSize

Length of contained block of Fed File.

Referenced by DtFomModuleDistributionMsg::blockSize(), and DtFomModuleDistributionMsg::setBlockSize().

DtNetU32 DtNetFedFileMsg::destination

Destination Federate ID for message.

Referenced by DtFomModuleDistributionMsg::destination(), and DtFomModuleDistributionMsg::setDestination().

DtNetU16 DtNetFedFileMsg::fedExNameLength

Length of Federation Name String.

Referenced by DtFomModuleDistributionMsg::fedExNameLength(), and DtFomModuleDistributionMsg::setFullFedExName().

DtNetU16 DtNetFedFileMsg::fileNameLength

Length of File Name String (includes null term.)

Referenced by DtFomModuleDistributionMsg::fomModuleNameLength(), and DtFomModuleDistributionMsg::setFomModuleName().

DtNetMsgHeader DtNetFedFileMsg::header

Referenced by DtFomModuleDistributionMsg::DtFomModuleDistributionMsg().

DtNetU16 DtNetFedFileMsg::numBlocks

Number of blocks required to reconstruct file.

Referenced by DtFomModuleDistributionMsg::numFomModuleBlocks(), and DtFomModuleDistributionMsg::setNumFomModuleBlocks().

DtNetU16 DtNetFedFileMsg::sequenceNum

Fed File block number.

Referenced by DtFomModuleDistributionMsg::seqNum(), and DtFomModuleDistributionMsg::setSequenceNum().

DtNetU32 DtNetFedFileMsg::sourceID

Source Federate ID for message.

Referenced by DtFomModuleDistributionMsg::setSourceID(), and DtFomModuleDistributionMsg::sourceID().

---

The documentation for this class was generated from the following file:

• netFedFileMsg.h
