The DtPeerToPeerTcpSockMgr adds the ability to act as a client as well as a server to the DtTcpMsgSocketMgr base class. More...

Inheritance diagram for DtPeerToPeerTcpSockMgr:

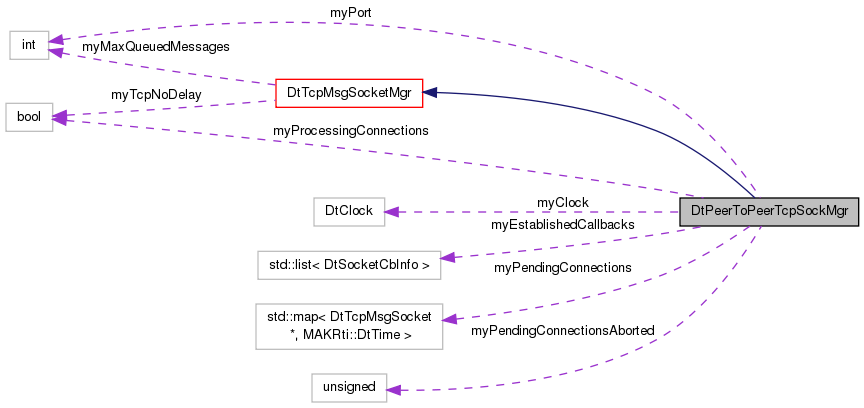

Collaboration diagram for DtPeerToPeerTcpSockMgr:

Public Member Functions
	DtPeerToPeerTcpSockMgr (int port, DtBoost::shared_ptr< DtMsgHeaderReader > hdrRdr, size_t recvBufferSize, int maxForwarderQueue)
	Constructor, networkInterface defaults to INADDR_ANY.
virtual	~DtPeerToPeerTcpSockMgr ()
	Destructor.
virtual DtTcpMsgSocket *	connectToPeer (const MAKRti::DtInetAddr &addr, DtInetDevice *hostIf=0)
	Establish a new connection to a remote host at port = myPort.
virtual DtTcpMsgSocket *	connectToPeer (const MAKRti::DtInetAddr &addr, int port, DtInetDevice *hostIf=0)
	Establish a new connection to a remote host at port Returns a socket pending connection (ie - may not be fully connected yet) (returned socket will be valid but unusable until non-blocking conn status can be resolved)
virtual void	removeAndDeletePeerConnection (DtTcpMsgSocket *sock, bool abort=true)
	Remove a peer socket connection (may still be pending)
unsigned int	abortPendingConnections ()
	Remove all pending peer sockets.
unsigned int	pendingConnectionsAborted ()
	Return count of aborted connections.
virtual void	processConnections ()
	Check to see if any clients or peers are trying to connect.
virtual void	addSocketEstablishedCallback (DtSocketEstablishedCallback cb, void *usr)
	Call this method when a new socket connection is established to add a callback to the socket established function which will be called when a new socket connection is accepted and vetted.
virtual void	removeSocketEstablishedCallback (DtSocketEstablishedCallback cb, void *usr)
	Call this method when a socket connection is deleted to remove the callback to the socket established function which was added when the connection was created.
Public Member Functions inherited from DtTcpMsgSocketMgr
	DtTcpMsgSocketMgr (DtBoost::shared_ptr< DtMsgHeaderReader > hdrReader, size_t recvBufferSize=20000, int maxQueuedMsgs=-1)
	Constructor. Will not open a server socket.
virtual	~DtTcpMsgSocketMgr ()
	Destructor.
virtual bool	openServerSocket (DtU16 localPort, DtInetDevice *hostIf=NULL, DtInetUtils::DtInetAddrFamily family=DtInetUtils::DtInetAddrFamily_IPv4, DtU32 flags=(DtDefaultSockOpts\|DtSockOptNonBlocking))
	Opens a server socket if not already open.
virtual void	addSocket (DtTcpMsgSocket *sock)
	Add a new socket to be managed that was created and opened outside of this class.
bool	socketAdded (DtInetSocket *sock)
bool	socketRemoved (DtInetSocket *sock)
virtual void	removeAndDelete (DtTcpMsgSocket *sock)
	Remove the specified socket from the list and delete it.
virtual void	enableBundling (size_t maxBundleSize)
	Enables message bundling and sets the maximum bundle size.
virtual void	disableBundling ()
	Disables message bundling.
virtual void	enableCompression (DtU8 compressionLevel)
	Enables message compression and sets the compression level.
virtual void	disableCompression ()
	Disables message compression.
virtual void	setTcpNoDelay (bool enable)
	Changes the setting of the TCP_NODELAY option.
virtual void	setSendBufferSize (DtU32 size)
	Sets the socket send buffer size.
virtual void	setRecvBufferSize (DtU32 size)
	Sets the socket receive buffer size.
virtual DtInetSockState	serverSocketState () const
	Returns the state of the server socket.
virtual DtU32	maxMsgSize () const
	Gets the maximum message size.
DtTcpMsgSocketMap &	socketSet ()
	Returns the list of sockets managed by this manager.
DtTcpMsgSocketMap::iterator	socketIter (DtTcpMsgSocket *sock)
	Returns the iterator for the given socket, if the socket is managed by this manager.
DtString	getLastError () const
	Get a description of the last error.
bool	isListening () const
	Returns true if the socket is open.
virtual void	addSocketAdditionCallback (DtTcpSocketAdditionCallback cb, void *usr)
virtual void	removeSocketAdditionCallback (DtTcpSocketAdditionCallback cb, void *usr)
virtual void	addSocketRemovalCallback (DtTcpSocketRemovalCallback cb, void *usr)
virtual void	removeSocketRemovalCallback (DtTcpSocketRemovalCallback cb, void *usr)

Protected Attributes
int	myPort
	Data Members.
MAKRti::DtClock	myClock
	Clock used for socket timeouts.
unsigned int	myPendingConnectionsAborted
	Count of socket connections which were aborted before successful establishment.
std::map< DtTcpMsgSocket *, MAKRti::DtTime >	myPendingConnections
	Map of outgoing peer connections that have not been fully established to the time at which they were initiated.
bool	myProcessingConnections
	When processing an add connection callback, prevent recursive connection processing.
std::list< DtSocketCbInfo >	myEstablishedCallbacks
	list of callbacks to call when sockets become established
Protected Attributes inherited from DtTcpMsgSocketMgr
std::auto_ptr< DtInetSocketMgr >	mySocketMgr
	The underlying socket manager.
DtTcpMsgSocketMap	mySockets
	List of sockets managed by this manager, mapped by the underlying DtInetTcpSocket.
DtBoost::shared_ptr < DtMsgHeaderReader >	myHeaderReader
	The message header reader to be used by all managed sockets.
int	myMaxQueuedMessages
	The maximum size the send queue for each socket is allowed to reach.
size_t	myRecvBufferSize
	The size of the sockets' receive buffers.
bool	myTcpNoDelay
	The sockets' TCP_NODELAY setting.
size_t	myMaxBundleSize
	The maximum size of outgoing message bundles.
MAKRti::DtU8	myCompressionLevel
	The maximum size of outgoing message bundles.
MAKRti::DtU32	mySockRecvBufferSize
	The receive buffer size for managed sockets.
MAKRti::DtU32	mySockSendBufferSize
	The send buffer size for managed sockets.
std::list< DtTcpSocketMgrCbInfo >	myAdditionCallbacks
	Socket addition callbacks.
std::list< DtTcpSocketMgrCbInfo >	myRemovalCallbacks
	Socket removal callbacks.
DtString	myLastError
	Description of the last error.

Private Member Functions
	DtPeerToPeerTcpSockMgr (const DtPeerToPeerTcpSockMgr &orig)
	Copy Constructor and Assignment operator not implemented. Copy not allowed.
DtPeerToPeerTcpSockMgr &	operator= (const DtPeerToPeerTcpSockMgr &orig)

Additional Inherited Members
Static Public Member Functions inherited from DtTcpMsgSocketMgr
static bool	socketAdded (DtInetSocket sock, void usr)
	Callback handler for socket addition callbacks from DtInetSocketMgr.
static bool	socketRemoved (DtInetSocket sock, void usr)
	Callback handler for socket removal callbacks from DtInetSocketMgr.

Detailed Description

The DtPeerToPeerTcpSockMgr adds the ability to act as a client as well as a server to the DtTcpMsgSocketMgr base class.

This socket manager is able to actively create socket connections as well as passively listen. It also supports creation of specialized sockets. All socket addition and removal callbacks will be called for actively opened connections as well as incoming connections.

Constructor & Destructor Documentation

DtPeerToPeerTcpSockMgr::DtPeerToPeerTcpSockMgr	(	int	port,
		DtBoost::shared_ptr< DtMsgHeaderReader >	hdrRdr,
		size_t	recvBufferSize,
		int	maxForwarderQueue
	)

Constructor, networkInterface defaults to INADDR_ANY.

References myClock.

DtPeerToPeerTcpSockMgr::~DtPeerToPeerTcpSockMgr ( )

virtual

Destructor.

DtPeerToPeerTcpSockMgr::DtPeerToPeerTcpSockMgr ( const DtPeerToPeerTcpSockMgr & orig )

private

Copy Constructor and Assignment operator not implemented. Copy not allowed.

Member Function Documentation

unsigned int DtPeerToPeerTcpSockMgr::abortPendingConnections ( )

Remove all pending peer sockets.

References myPendingConnections, myPendingConnectionsAborted, and removeAndDeletePeerConnection().

Referenced by DtInOutForwarderPort::abortPendingConnections().

void DtPeerToPeerTcpSockMgr::addSocketEstablishedCallback	(	DtSocketEstablishedCallback	cb,
		void *	usr
	)

virtual

Call this method when a new socket connection is established to add a callback to the socket established function which will be called when a new socket connection is accepted and vetted.

References myEstablishedCallbacks.

Referenced by DtInOutForwarderPort::DtInOutForwarderPort().

DtTcpMsgSocket * DtPeerToPeerTcpSockMgr::connectToPeer	(	const MAKRti::DtInetAddr &	addr,
		DtInetDevice *	hostIf = `0`
	)

virtual

Establish a new connection to a remote host at port = myPort.

References myPort.

Referenced by DtInOutForwarderPort::addSocketUsingRoutesFile(), and DtInOutForwarderPort::connectToPeer().

DtTcpMsgSocket * DtPeerToPeerTcpSockMgr::connectToPeer	(	const MAKRti::DtInetAddr &	addr,
		int	port,
		DtInetDevice *	hostIf = `0`
	)

virtual

Establish a new connection to a remote host at port Returns a socket pending connection (ie - may not be fully connected yet) (returned socket will be valid but unusable until non-blocking conn status can be resolved)

DtPeerToPeerTcpSockMgr& DtPeerToPeerTcpSockMgr::operator= ( const DtPeerToPeerTcpSockMgr & orig )

private

unsigned int DtPeerToPeerTcpSockMgr::pendingConnectionsAborted ( )

Return count of aborted connections.

References myPendingConnectionsAborted.

Referenced by DtInOutForwarderPort::pendingConnectionsAborted().

void DtPeerToPeerTcpSockMgr::processConnections ( )

virtual

Check to see if any clients or peers are trying to connect.

If so, add new DtTcpSockets to handle the connections. Check to see if any pending outgoing connections have been established. If so, add them to the list of connections.

Reimplemented from DtTcpMsgSocketMgr.

References DtTcpMsgSocketMgr::addSocket(), DtTcpMsgSocket::destination(), DtTcpMsgSocket::isConnected(), DtTcpMsgSocket::isConnectionInProgress(), myEstablishedCallbacks, myPendingConnections, myPendingConnectionsAborted, myProcessingConnections, DtTcpMsgSocketMgr::myRemovalCallbacks, and DtTcpMsgSocket::testConnectionStatus().

Referenced by DtInOutForwarderPort::checkConnectionStatus(), DtInOutForwarderPort::getNextMsg(), DtInOutForwarderPort::processInitializationMessages(), and DtInOutForwarderPort::updateRoutes().

void DtPeerToPeerTcpSockMgr::removeAndDeletePeerConnection	(	DtTcpMsgSocket *	sock,
		bool	abort = `true`
	)

virtual

Remove a peer socket connection (may still be pending)

References DtTcpMsgSocketMgr::addSocket(), myPendingConnections, myPendingConnectionsAborted, and DtTcpMsgSocketMgr::removeAndDelete().

Referenced by abortPendingConnections(), DtInOutForwarderPort::addSocketUsingRoutesFile(), DtInOutForwarderPort::socketAdditionCb(), and DtInOutForwarderPort::socketEstablishedCb().

void DtPeerToPeerTcpSockMgr::removeSocketEstablishedCallback	(	DtSocketEstablishedCallback	cb,
		void *	usr
	)

virtual

Call this method when a socket connection is deleted to remove the callback to the socket established function which was added when the connection was created.

References myEstablishedCallbacks.

Referenced by DtInOutForwarderPort::~DtInOutForwarderPort().
