Instances of DtSmConnectionMgr manage the communication objects that the RTI will use to communicate via shared memory or communicate with the LRC application (using the federate ambassador pointer). More...

Inheritance diagram for DtSmConnectionMgr:

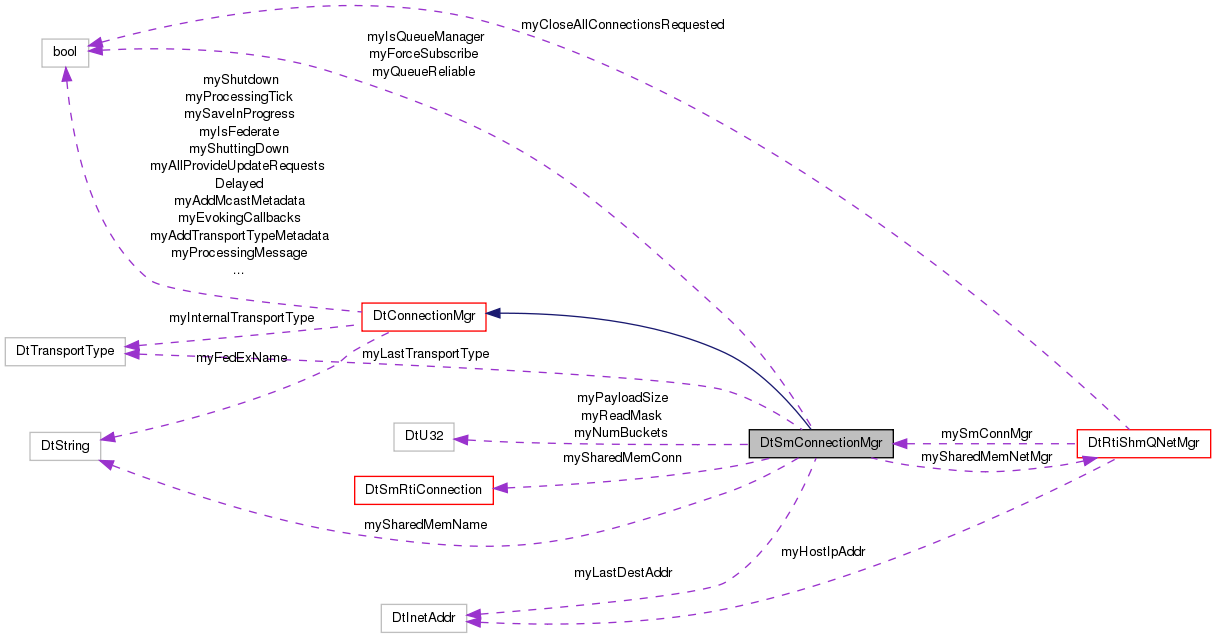

Collaboration diagram for DtSmConnectionMgr:

Public Member Functions
virtual	~DtSmConnectionMgr ()
virtual void	initQMgr (DtU32 numBuckets, DtU32 payloadSize, bool reliable, bool forceMgrSubscribe)
	This method is called by the queue manager to setup the queue.
virtual int	send (const DtRtiMsg &msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	Sending.
virtual bool	flush ()
	Send buffered messages.
virtual bool	processConnection (DtRtiConnection *conn, MAKRti::DtTransportType trans)
	Receiving.
virtual bool	processConnections ()
	Override of base class method.
virtual DtRtiMsg *	getMessage ()
	Get a message if one exists Message must be destroyed by caller.
virtual DtRtiMsg *	getMessageWithNetInfo (MAKRti::DtInetAddr addr, MAKRti::DtTransportType trans, DtU32 *priority=NULL)
	These methods return the network information (destination address, transport method, and priority - if any) associated with a message in shared memory.
virtual MAKRti::DtInetAddr	getLastDestAddr () const
virtual MAKRti::DtTransportType	getLastTransportType () const
virtual int	readFileDescriptor (RTI::TransportType transport)
	Returns a file descriptor on which data will be present for the given transport type whenever there is incoming data waiting to be read.
virtual DtSmRtiConnection *	sharedMemConn () const
	Returns the connection created by createSharedMemConn().
virtual void	setNetConnMgr (DtRtiShmQNetMgr *smNetConnMgr)
	Shared memory queue manager will allow messages to be exchanged between the shared memory connection manager and the network I/O connection manager.
virtual bool	sm_shutdown (bool ruthless=false)
	Attempts to shutdown shared memory queue.
virtual bool	setupSelectParams (DtSelectParam *params)
	adds Read File descriptors to a DtSelectParams
virtual void	setMsgFactory (DtRtiMsgFactory *fact)
	Get/Set the message factory.
virtual void	listenToMulticastGroup (const MAKRti::DtInetAddr &addr, const MAKRti::DtInetAddr &netInterface=MAKRti::DtInetAddr::inaddrAny())
	Add/Drop multicast groups from the best effort connection.
virtual void	dropMulticastGroup (const MAKRti::DtInetAddr &addr, const MAKRti::DtInetAddr &netInterface=MAKRti::DtInetAddr::inaddrAny())
	Add/Drop multicast groups from the best effort connection Listens are accumulated and drops decrement.
virtual void	forceDropMulticastGroup (const MAKRti::DtInetAddr &addr, const MAKRti::DtInetAddr &netInterface=MAKRti::DtInetAddr::inaddrAny())
	Override listen count and force drop multicast address.
virtual void	connectFederation (RTI::FederateAmbassador fedAmb, DtLogicalTimeFactory logicalTimeFactoryPtr, MAKRti::DtString fedExName, DtFederateHandle fedHandle, int fedExHandle)
	The LRC associates its federation information with its network connections.
virtual bool	repairFederationConnection ()
	Attempt to re-establish a broken connection to the federation Returns true if successful.
virtual void	disconnectFederation ()
	The LRC disassociates its connections from the federation.
virtual bool	wait (MAKRti::DtTime period=0.0, bool unlockWhileWaiting=false)
	Wait for data to be ready or the given period of time to expire Return boolean: data is ready for reading?
virtual int	subscriberCount () const
	Return a count of the number of subscribers currently attached to the shared memory queue.
Public Member Functions inherited from DtConnectionMgr
virtual	~DtConnectionMgr ()
	Destructor.
virtual int	init (DtRIDParameters *params)
	Initialize the RTI's exercise parameters and connections Users who wish to override the MAK RTI's network connections should override this function or initConnections()
virtual void	initParams (DtRIDParameters *params)
	Initialize the parameters used by the connection manager.
virtual void	enableSmartForwarding (bool enable, int maxNumFederates)
	Enables or disables smart forwarding.
virtual DtRIDParameters *	params ()
	Get a pointer to the RID parameters.
virtual void	setFederateMgr (DtFederateMgr *fedMgrPtr)
	Set the federate manager.
virtual void	shutdown ()
	Request shutdown of communication activities.
virtual bool	isShuttingDown ()
	Shutdown acknowledged.
virtual int	sendStamped (const DtRtiMsg &msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &=MAKRti::DtInetAddr::inaddrAny())
	Send a message stamped with fedEx name and federate ID Retraction record of timestamped messages made here.
virtual int	sendStampedAnonymous (const DtRtiMsg &msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	Send a message stamped with fedEx name, but not federate ID Does not make retraction record of sent messages.
virtual int	sendAndDelete (DtRtiMsg *msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	Send a message and delete the message after it has been sent Returns the size of the data sent.
virtual int	sendStampedAndDelete (DtRtiMsg *msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &=MAKRti::DtInetAddr::inaddrAny())
	Send and delete a message stamped with fedEx name and federate ID Retraction record of timestamped messages made here.
virtual int	sendStampedAnonymousAndDelete (DtRtiMsg *msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	Send and delete a message stamped with fedEx name, but not federate ID Does not make retraction record of sent messages.
virtual void	sendLoopback (DtRtiMsg *msg)
	Send a message to be processed by this federate.
virtual bool	drainBacklog (MAKRti::DtTime timeout=0.0)
	Attempts to flush backlogged messages repeatedly until either all messages are sent or the timeout expires.
virtual void	activateTransmitDelay ()
	Activate a delay timer (based on RID) used by managers to control transmission of internal state Expired delays disable activation for current tick.
virtual bool	delayTransmit () const
	Return true if retransmission of internal state should be delayed.
virtual void	testTransmitDelay ()
	Test if retransmit delay time has expired.
virtual void	activateAutoProvideDelay ()
	Activate a delay timer (based on RID) used by managers to control timing for autoprovide callbacks Expired delays disable activation for current tick.
virtual bool	delayAutoProvide () const
	Return true if autoprovides should be delayed.
bool	allProvideUpdateRequestsDelayed () const
	Return true if all provide update calls should be delayed (not just auto provide).
virtual void	testAutoProvideDelay ()
	Test if autoprovide delay time has expired.
virtual void	processQueuedMessages ()
	Process queued messages that are being sent at specified rate.
virtual void	flushQueuedMessages ()
	Process queued messages.
virtual unsigned long	incrementServiceCallCount ()
	Increment a counter to identify the service call being processed.
virtual unsigned long	serviceCallCount () const
	Return service call counter.
virtual bool	tick ()
	Receiving.
virtual void	updateBufferSizes ()
	Update Buffer sizes from Rid params object.
virtual DtNetReadStatus	handleMsg (DtRtiMsg &msg)
	Handle this message by either processing it or queuing it if save pending.
virtual DtNetReadStatus	processMsg (const DtRtiMsg &msg)
	this function applies the callbacks to the message
virtual DtNetReadStatus	momProcessMsg (const DtRtiMsg &msg)
	apply MOM callbacks to message
DtFederateMgr *	fedMgr ()
	The federate manager.
DtPartnerMgr *	partnerMgr ()
	Partner manager.
virtual MAKRti::DtTransportType	internalTransportType () const
	Returns the TransportType associated for the internal connection.
virtual bool	hasTransport (MAKRti::DtTransportType trans)
	returns true if the specified transport type is available
virtual DtRtiMsg *	create (DtRtiMsgKind kind)
	Request the RTI message factory for a msg.
virtual DtRtiMsgFactory *	msgFactory () const
virtual void	connectFederation (DtLogicalTimeFactory *logicalTimeFactoryPtr, MAKRti::DtString fedExName, DtFederateHandle federateHandle, int fedExHandle)
	The LRC associates its federation information with its network connections.
virtual RTI::FederateAmbassador *	fedAmb () const
	Return pointer to Federate Ambassador.
virtual void	addFedAmbWrapper (MAKRti::DtString const &name, DtFedAmbWrapper *fedAmb)
	Register a Federate Wrapper with the RTI A federate wrapper allows your plugin to monitor any RTI invoked services.
virtual bool	addFedAmbWrapperAtFront (MAKRti::DtString const &name, DtFedAmbWrapper *fedAmb)
	When the fedAmb Wrapper is installed make certain that this particular wrapper is the first to process the msg.
virtual DtFedAmbWrapper *	removeFedAmbWrapper (MAKRti::DtString const &name)
	Remove federate wrapper.
virtual unsigned long	connectionId () const
	Return connection ID.
virtual DtFederateHandle	fedHandle () const
	Return federate handle.
virtual unsigned long	fedExHandle () const
	Return federation execution handle.
virtual const MAKRti::DtString &	fedExName () const
	Return federation execution name.
virtual void	setFederateHandle (DtFederateHandle handle)
	set federate handle ( this is used by restore and should not be called otherwise )
virtual DtLogicalTimeFactory *	logicalTimeFactory (DtFederationHandle federationHandle=0) const
	Get the factory for the given federation that can create logical time/interval instances.
virtual void	addLogicalTimeFactory (DtFederationHandle federationHandle, DtLogicalTimeFactory *timeFactory)
	Add the factory for the given federation that can create logical time/interval instances.
virtual void	removeLogicalTimeFactory (DtFederationHandle federationHandle)
	Remove the factory for the given federation that can create logical time/interval instances.
virtual DtRtiMsgQueue *	msgQueue ()
	Set/Get the time managed message queue.
virtual void	setMsgQueue (DtRtiMsgQueue *msgQueuePtr)
virtual DtRetractInfoList *	retractList ()
	Set/Get the time managed retract list.
virtual void	setRetractList (DtRetractInfoList *listPtr)
virtual void	yield ()
	Yield processing to allow more data to arrive.
virtual bool	saveInProgress () const
	Set/Get the flag indicating whether a save is in progress Unless a message is marked safe to process during a save a received message is queued for later processing.
virtual void	setSaveInProgress (bool saveIsInProgress)
virtual bool	restoreInProgress () const
	Set/Get the flag indicating whether a restore is in progress Unless a message is marked safe to process during a save a received message is queued for later processing.
virtual void	setRestoreInProgress (bool saveIsInProgress)
virtual bool	saveRestoreInProgress () const
	Return bool: Is save or restore in progress.
virtual void	setMetadataControl (DtMetadataType type, bool onOff)
	Set/Get metadata control indicators.
virtual bool	isMetadataEnabled (DtMetadataType type)
virtual void	sendShutdownForwarderMsg ()
	Called by the rtiExec when it is exiting, only if it started this forwarder.
virtual unsigned long	sequenceNumber () const
	Get the next sequence number.
virtual void	incrementSequenceNumber ()
	Increment the sequence number.
virtual void	setProcessingTick (bool processingTick)
	Set/Get tick processing state.
virtual bool	processingTick () const
	Set/Get tick processing state.
virtual void	setEvokingCallbacks (bool evokingCbs)
	Set/Get the evoke callbacks state.
virtual bool	evokingCallbacks () const
	Set/Get the evoke callbacks state.
virtual void	addPendingMsg (DtRtiMsg *msg)
	Add/get/process a pending message Messages will be processed during the next tick.
virtual bool	processPendingMsg ()
	Add/get/process a pending message Messages will be processed during the next tick.
virtual DtRtiMsg *	nextPendingMsg ()
	Add/get/process a pending message Messages will be processed during the next tick.
virtual void	emptyPendingMsgList ()
	Add/get/process a pending message Messages will be processed during the next tick.
virtual int	pendingMsgCount ()
	Add/get/process a pending message Messages will be processed during the next tick.
virtual void	addMsgCallback (DtRtiMsgKind msgKind, DtRtiMsgCbMgr::DtCallbackFcn fcn, void *usr, bool isMomCallback=false)
	Message Callbacks These callback functions operate on all of the connections.
virtual void	removeMsgCallback (DtRtiMsgKind msgKind, DtRtiMsgCbMgr::DtCallbackFcn fcn, void *usr, bool isMomCallback=false)
	Message Callbacks These callback functions operate on all of the connections.
virtual void	addWildcardMsgCallback (DtRtiMsgCbMgr::DtCallbackFcn fcn, void *usr, bool isMomCallback=false)
	Message Callbacks These callback functions operate on all of the connections.
virtual void	removeWildcardMsgCallback (DtRtiMsgCbMgr::DtCallbackFcn fcn, void *usr, bool isMomCallback=false)
	Message Callbacks These callback functions operate on all of the connections.
virtual DtRtiConnection *	reliableConn () const
	Returns the connection created by createTcpConn().
virtual DtRtiConnection *	bestEffortConn () const
	Returns the connection created by createBestEffortConn().
virtual bool	lockServiceCall ()
	Called by asynchronous processing thread to gain mutually exclusive access to RTI managers.
virtual void	unlockServiceCall ()
	Called by asychronous processing thread to release mutually exclusive access to RTI managers.
virtual bool	serviceCallLocked ()
	Called by RTI Ambassador services query if mutex was set using lockServiceCall()
virtual bool	enterServiceCall ()
	Called by RTI Ambassador services to gain mutually exclusive access to RTI managers.
virtual void	exitServiceCall ()
	Called by RTI Ambassador services to release mutually exclusive access to RTI managers.
virtual bool	inServiceCall ()
	Called by RTI Ambassador services query if mutex was set using enterServiceCall()

Static Public Member Functions
static DtConnectionMgr *	create (DtRIDParameters *p, bool isFederate=false, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient=DtBoost::shared_ptr< DtRtiAssistantLrcClient >())
	Creates an instance of a DtSmConnectionMgr; If an alternate creator function has been set, that creator function will be called from within this function.
static DtConnectionMgr *	createQMgr (DtRIDParameters params, DtU32 numBuckets, DtU32 payloadSize, bool queueReliable, bool forceMgrSubscribe, bool isFederate=false, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient=DtBoost::shared_ptr< DtRtiAssistantLrcClient >(), DtRtiShmQNetMgr smNetConnMgr=0)
	Creates an instance of a DtSmConnectionMgr which acts on behalf of the shared memory queue manager.
Static Public Member Functions inherited from DtConnectionMgr
static void	setCreatorFunction (DtConnectionMgrCreator fn)
	Register a creator function.
static void	setInternalCreatorFunction (DtConnectionMgrCreator fn)
	Register alternate internal creators.

Protected Member Functions
	DtSmConnectionMgr (DtRIDParameters *params, bool isFederate=false, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient=DtBoost::shared_ptr< DtRtiAssistantLrcClient >())
virtual void	startSharedMemMgr ()
	Launch detached process to create the shared memory pool, subscribable message queue, and shared memory manager.
virtual int	initConnections ()
	Initialize the RTI's exercise connections Users who wish to override the MAK RTI's shared memory connections should override these functions.
virtual bool	createSharedMemConn ()
	Create connection (attach) to subscribable shared memory queue; Returns true if successful.
Protected Member Functions inherited from DtConnectionMgr
	DtConnectionMgr (DtRIDParameters *params, bool isFederate=false, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient=DtBoost::shared_ptr< DtRtiAssistantLrcClient >())
	Constructor is performed through create.
virtual bool	doWait (MAKRti::DtTime period)
	perform actual wait. Called by wait
virtual bool	createBestEffortConn ()
	Create best effort connection; Returns true if successful Could be that it already exist in which case it is still used.
virtual void	destroyBestEffortConn ()
	Destroy best effort connection.
virtual bool	createRelConn ()
	Create reliable connection; Returns true if successful.
virtual void	destroyRelConn ()
	Destroy reliable connection.
virtual unsigned int	createAncillaryRelConns ()
	Create ancillary reliable connections; Returns count of successful connections.
virtual void	destroyAncillaryRelConn (DtRtiConnection *conn)
	Destroy the given ancillary reliable connection.
virtual void	destroyAncillaryRelConns ()
	Destroy ancillary reliable connections.
virtual unsigned int	ancillaryReliableConnsCount () const
	Report number of ancillary reliable connections successfully established.
virtual bool	checkRelConn ()
	Check the reliable connection status.
virtual void	processReadResult (int readError)
	Process read result to print error diagnostics for example.
virtual int	sendStampedUtilityFunction (DtRtiMsg *msg, MAKRti::DtTransportType transport, bool performDelete, bool isAnonymous, const MAKRti::DtInetAddr &addr)
	Called by sendStamped, sendStampedAndDelete, sendAnonymousStamped, etc.

Protected Attributes
DtSmRtiConnection *	mySharedMemConn
MAKRti::DtString	mySharedMemName
DtRtiShmQNetMgr *	mySharedMemNetMgr
bool	myIsQueueManager
	These members are specific to the queue manager's connection manager.
DtU32	myNumBuckets
	indicates this is the queue manager
DtU32	myPayloadSize
	number of message slots in shared memory queue
bool	myQueueReliable
	number of bytes available in each message slot
bool	myForceSubscribe
	indicates shared mem queue in reliable mode
DtU32	myReadMask
	should only be used by queue manager
MAKRti::DtInetAddr	myLastDestAddr
	controls what type of messages are read/skipped
MAKRti::DtTransportType	myLastTransportType
Protected Attributes inherited from DtConnectionMgr
DtRtiMsgFactory *	myMsgFactory
	The message factory.
DtRtiConnection *	myBestEffortConn
	The best effort connection.
DtRtiConnection *	myPrimaryReliableConn
	The primary reliable connection.
DtRtiConnectionList	myReliableConns
DtRIDParameters *	myParams
	The RTI initialization parameters.
DtFederateMgr *	myFedMgr
	The federate manager.
std::map< MAKRti::DtInetAddr, DtMulticastEntry * >	myMulticastGroups
	LRC listening to these multicast groups.
DtFedAmbWrapperChain	myFedAmbChain
	Chain of Federate Ambassador Wrappers.
DtDfltMsgFactory	myDfltMsgFactory
	Default message factory.
DtRtiMsgCbMgr	myMsgCbMgr
	Message callback manager.
DtRtiMsgCbMgr	myMomMsgCbMgr
	MOM message callback manager.
MAKRti::DtTransportType	myInternalTransportType
	Transport type used for internal messages.
bool	myAddTransportTypeMetadata
	Metadata control indicators.
bool	myAddMcastMetadata
std::map< DtFederationHandle, DtLogicalTimeFactory * >	myLogicalTimeFactories
	Factories for creating logical time instances.
DtRtiMsgQueue *	myMsgQueue
	Message queue.
DtRetractInfoList *	myRetractList
	Message retractions.
std::list< DtRtiMsg * >	myPendingMessages
	Pending messages.
bool	mySaveInProgress
	Save status.
bool	myRestoreInProgress
	Restore status.
unsigned long	myConnectionId
	"unique" identifier for this connMgr (if there is a good source of unique ids)
MAKRti::DtString	myFedExName
	Federation execution name.
DtFederateHandle	myFedExHandle
	Federation execution handle.
DtFederateHandle	myFederateHandle
	Federate handle.
unsigned long	myReceivedMsgCount
	Number of received messages.
unsigned long	mySentMsgCount
	Number of sent messages.
MAKRti::DtList	myWorkingMsgId
	Diagnostic message ID stack.
DtMessageThrottle *	myMessageThrottle
	Message output throttle.
bool	myAllProvideUpdateRequestsDelayed
	Extend auto provide delay to all attribute update requests.
DtMutex *	myCallbackMutex
	Mutex to synchronize access to RTI and Federate Ambassadors.
unsigned int	myLockService
	RTI is processing a message.
unsigned int	myInService
	RTI is processing a service call.
MAKRti::DtClock	myClock
	Clock for timing.
DtBoost::shared_ptr < DtRtiAssistantLrcClient >	myAssistantClient
	The assistant client.
bool	myIsFederate
	Whether this manager is for a federate.
unsigned long	myVersionConflictCount
	The count of message version conflicts.
MAKRti::DtTime	myVersionConflictNoticationTimer
unsigned long	mySizeMismatchCount
	The count of message size mismatches.
MAKRti::DtTime	mySizeMismatchNoticationTimer
DtPartnerMgr *	myPartnerMgr
unsigned long	myServiceCallCount
	Service call counter - increment before processing each service call.
bool	myProcessingTick
	Tick processing state.
bool	myEvokingCallbacks
	Indicates if callbacks are being evoked.
bool	myProcessingMessage
	Indicates if message is being processed.
bool	myShutdown
	Shutdown requested.
bool	myShuttingDown
	Shutdown acknowledged.

Additional Inherited Members
Public Types inherited from DtConnectionMgr
typedef DtConnectionMgr (	DtConnectionMgrCreator )(DtRIDParameters *p, bool isFederate, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient)
	Connection Manager Creator.
Protected Types inherited from DtConnectionMgr
typedef std::list < DtRtiConnection * >	DtRtiConnectionList
	List of all reliable connections (for forwarder load balancing)
Static Protected Attributes inherited from DtConnectionMgr
static DtConnectionMgrCreator	theCreator = 0
	The plugin creator.
static DtConnectionMgrCreator	theInternalCreator = 0
	The internal creator.

Detailed Description

Instances of DtSmConnectionMgr manage the communication objects that the RTI will use to communicate via shared memory or communicate with the LRC application (using the federate ambassador pointer).

Override this class to change the way in which the MAK RTI communicates with other LRC components (or the rtiexec) using shared memory. Refer to DtConnectionMgr for other methods of communication.

Constructor & Destructor Documentation

DtSmConnectionMgr::DtSmConnectionMgr	(	DtRIDParameters *	params,
		bool	isFederate = `false`,
		DtBoost::shared_ptr< DtRtiAssistantLrcClient >	assistantClient = `DtBoost::shared_ptr<DtRtiAssistantLrcClient>()`
	)

protected

Referenced by create(), and createQMgr().

DtSmConnectionMgr::~DtSmConnectionMgr ( )

virtual

References DtConnectionMgr::create(), DtDisconnectMsgKind, DtSmEnrollmentMsgKind, DtSmUnregister, DtConnectionMgr::emptyPendingMsgList(), DtConnectionMgr::internalTransportType(), DtConnectionMgr::myBestEffortConn, DtConnectionMgr::myConnectionId, DtConnectionMgr::myFederateHandle, DtConnectionMgr::myFedExHandle, DtConnectionMgr::myPrimaryReliableConn, mySharedMemConn, DtConnectionMgr::sendAndDelete(), DtSmEnrollmentMsg::set(), DtConnectMsg::setConnectionHandle(), DtRtiMsg::setFederateHandle(), DtRtiMsg::setFedEx(), and DtRtiConnection::socket().

Member Function Documentation

void DtSmConnectionMgr::connectFederation	(	RTI::FederateAmbassador *	fedAmb,
		DtLogicalTimeFactory *	logicalTimeFactoryPtr,
		MAKRti::DtString	fedExName,
		DtFederateHandle	fedHandle,
		int	fedExHandle
	)

virtual

The LRC associates its federation information with its network connections.

If the LRC is communicating with the rtiexec through a reliable connection, then the best effort connection is created here.

DtConnectionMgr * DtSmConnectionMgr::create	(	DtRIDParameters *	p,
		bool	isFederate = `false`,
		DtBoost::shared_ptr< DtRtiAssistantLrcClient >	assistantClient = `DtBoost::shared_ptr<DtRtiAssistantLrcClient>()`
	)

static

Creates an instance of a DtSmConnectionMgr; If an alternate creator function has been set, that creator function will be called from within this function.

Reimplemented from DtConnectionMgr.

References DtSmConnectionMgr().

Referenced by DtRtiExec::DtRtiExec(), and DtRtiAmbassadorBaseImplementor::setupConnection().

DtConnectionMgr * DtSmConnectionMgr::createQMgr	(	DtRIDParameters *	params,
		DtU32	numBuckets,
		DtU32	payloadSize,
		bool	queueReliable,
		bool	forceMgrSubscribe,
		bool	isFederate = `false`,
		DtBoost::shared_ptr< DtRtiAssistantLrcClient >	assistantClient = `DtBoost::shared_ptr<DtRtiAssistantLrcClient>()`,
		DtRtiShmQNetMgr *	smNetConnMgr = `0`
	)

static

Creates an instance of a DtSmConnectionMgr which acts on behalf of the shared memory queue manager.

This function prototype is intentionally different than the nominal DtConnectionMgr create method to make it incompatible with the setCreator() method. This will prevent it being set as the default creator of DtConnectionMgr objects. Only one shared memory queue manager should be created (per shared memory queue).

References DtSmConnectionMgr(), DtConnectionMgr::init(), initQMgr(), and setNetConnMgr().

bool DtSmConnectionMgr::createSharedMemConn ( )

protectedvirtual

Create connection (attach) to subscribable shared memory queue; Returns true if successful.

References DtRtiSmSocket::initializeSmQueue(), DtConnectionMgr::msgFactory(), myForceSubscribe, myIsQueueManager, myNumBuckets, myPayloadSize, myQueueReliable, myReadMask, mySharedMemConn, mySharedMemName, DtRtiConnection::setMsgFactory(), DtRtiSmSocket::setReceiveMask(), and sharedMemConn().

Referenced by connectFederation(), initConnections(), and repairFederationConnection().

void DtSmConnectionMgr::disconnectFederation ( )

virtual

The LRC disassociates its connections from the federation.

If the LRC is communicating with the rtiexec through a reliable connection, then the best effort connection is destroyed here.

Reimplemented from DtConnectionMgr.

void DtSmConnectionMgr::dropMulticastGroup	(	const MAKRti::DtInetAddr &	addr,
		const MAKRti::DtInetAddr &	netInterface = `MAKRti::DtInetAddr::inaddrAny()`
	)

virtual

Add/Drop multicast groups from the best effort connection Listens are accumulated and drops decrement.

The multicast is not actually dropped until the listen count goes to zero.

Reimplemented from DtConnectionMgr.

References DtConnectionMgr::bestEffortConn(), DtMulticastEntry::count, DtConnectionMgr::create(), DtMcastConfigureMsgKind, DtMcastDrop, DtConnectionMgr::myFederateHandle, DtConnectionMgr::myInternalTransportType, DtConnectionMgr::myMulticastGroups, DtConnectionMgr::sendAndDelete(), and DtMcastConfigureMsg::set().

bool DtSmConnectionMgr::flush ( )

virtual

Send buffered messages.

Returns indication of whether the flush is complete or incomplete.

Reimplemented from DtConnectionMgr.

References sharedMemConn().

Referenced by getMessage().

void DtSmConnectionMgr::forceDropMulticastGroup	(	const MAKRti::DtInetAddr &	addr,
		const MAKRti::DtInetAddr &	netInterface = `MAKRti::DtInetAddr::inaddrAny()`
	)

virtual

Override listen count and force drop multicast address.

Listen count goes to zero.

Reimplemented from DtConnectionMgr.

References DtConnectionMgr::bestEffortConn(), DtConnectionMgr::create(), DtMcastConfigureMsgKind, DtMcastDrop, DtConnectionMgr::myFederateHandle, DtConnectionMgr::myInternalTransportType, DtConnectionMgr::myMulticastGroups, DtConnectionMgr::sendAndDelete(), and DtMcastConfigureMsg::set().

MAKRti::DtInetAddr DtSmConnectionMgr::getLastDestAddr ( ) const

virtual

References myLastDestAddr.

MAKRti::DtTransportType DtSmConnectionMgr::getLastTransportType ( ) const

virtual

References myLastTransportType.

DtRtiMsg * DtSmConnectionMgr::getMessage ( )

virtual

Get a message if one exists Message must be destroyed by caller.

Reimplemented from DtConnectionMgr.

References DtRtiMsg::cloneWithTransport(), DtNET_READ_NO_PACKETS, flush(), DtRtiConnection::netRead(), DtConnectionMgr::processReadResult(), DtRtiMsg::setTransportType(), and sharedMemConn().

Referenced by getMessageWithNetInfo().

DtRtiMsg * DtSmConnectionMgr::getMessageWithNetInfo	(	MAKRti::DtInetAddr *	addr,
		MAKRti::DtTransportType *	trans,
		DtU32 *	priority = `NULL`
	)

virtual

These methods return the network information (destination address, transport method, and priority - if any) associated with a message in shared memory.

References getMessage(), and sharedMemConn().

int DtSmConnectionMgr::initConnections ( )

protectedvirtual

Initialize the RTI's exercise connections Users who wish to override the MAK RTI's shared memory connections should override these functions.

Reimplemented from DtConnectionMgr.

References createSharedMemConn(), DtMAX_SHMEMCONN_TRIES, DtSM_WAIT_FOR_SHMMGR, DtConnectionMgr::myBestEffortConn, DtConnectionMgr::myConnectionId, DtConnectionMgr::myInternalTransportType, myIsQueueManager, DtConnectionMgr::myParams, DtConnectionMgr::myPrimaryReliableConn, mySharedMemName, DtAssistantPopupHelper::popupAssistantMessage(), DtRIDParameters::responseInterval, sharedMemConn(), DtRtiConnection::socket(), startSharedMemMgr(), and DtRIDParameters::useRtiExec.

void DtSmConnectionMgr::initQMgr	(	DtU32	numBuckets,
		DtU32	payloadSize,
		bool	reliable,
		bool	forceMgrSubscribe
	)

virtual

This method is called by the queue manager to setup the queue.

It must be called ONLY by the queue manager and must be called before calling the init() method to ensure proper initialization of the queue manager.

References DtMetadataTypeMcastAddr, DtMetadataTypeTransport, DtSMQ_SKIP_MINE, myForceSubscribe, myIsQueueManager, myNumBuckets, myPayloadSize, myQueueReliable, myReadMask, and DtConnectionMgr::setMetadataControl().

Referenced by createQMgr().

void DtSmConnectionMgr::listenToMulticastGroup	(	const MAKRti::DtInetAddr &	addr,
		const MAKRti::DtInetAddr &	netInterface = `MAKRti::DtInetAddr::inaddrAny()`
	)

virtual

Add/Drop multicast groups from the best effort connection.

Reimplemented from DtConnectionMgr.

References DtConnectionMgr::bestEffortConn(), DtMulticastEntry::count, DtConnectionMgr::create(), DtMcastConfigureMsgKind, DtMcastListen, DtConnectionMgr::myFederateHandle, DtConnectionMgr::myInternalTransportType, DtConnectionMgr::myMulticastGroups, DtConnectionMgr::sendAndDelete(), and DtMcastConfigureMsg::set().

bool DtSmConnectionMgr::processConnection	(	DtRtiConnection *	conn,
		MAKRti::DtTransportType	trans
	)

virtual

Receiving.

Read from the given connection and process the message (if received) Return boolean: message was received? (i.e. could be more input).

Reimplemented from DtConnectionMgr.

References DtNET_READ_NO_PACKETS, DtNET_READ_SUCCESS, DtConnectionMgr::handleMsg(), myLastDestAddr, myLastTransportType, DtRtiConnection::netRead(), and DtRtiMsg::setTransportType().

Referenced by processConnections().

bool DtSmConnectionMgr::processConnections ( )

virtual

Override of base class method.

Shared memory only has one connection to worry about, not multiple. Return true if there is more backlogged data to send, false if done.

Reimplemented from DtConnectionMgr.

References DtSmRtiConnection::flush(), DtConnectionMgr::myInternalTransportType, DtConnectionMgr::params(), processConnection(), repairFederationConnection(), and sharedMemConn().

int DtSmConnectionMgr::readFileDescriptor ( RTI::TransportType transport )

virtual

Returns a file descriptor on which data will be present for the given transport type whenever there is incoming data waiting to be read.

Returns -1 if no such file descriptor.

Reimplemented from DtConnectionMgr.

bool DtSmConnectionMgr::repairFederationConnection ( )

virtual

Attempt to re-establish a broken connection to the federation Returns true if successful.

Reimplemented from DtConnectionMgr.

References DtConnectionMgr::create(), createSharedMemConn(), DtSmEnrollmentMsgKind, DtSmRegister, DtSmUnregister, federateReconnectPause, DtConnectionMgr::myBestEffortConn, DtConnectionMgr::myFederateHandle, DtConnectionMgr::myFedExHandle, DtConnectionMgr::myFedExName, DtConnectionMgr::myInternalTransportType, DtConnectionMgr::myPrimaryReliableConn, mySharedMemConn, DtConnectionMgr::params(), rtiExecReconnectPause, DtConnectionMgr::sendAndDelete(), DtSmEnrollmentMsg::set(), DtRtiConnection::setFederateHandle(), DtRtiConnection::setFedExHandle(), DtRtiConnection::setFedExName(), sharedMemConn(), and useRtiExec.

Referenced by processConnections().

int DtSmConnectionMgr::send	(	const DtRtiMsg &	msg,
		MAKRti::DtTransportType	transport,
		const MAKRti::DtInetAddr &	addr = `MAKRti::DtInetAddr::inaddrAny()`
	)

virtual

Sending.

Send a message Returns the size of the data sent.

Reimplemented from DtConnectionMgr.

References DtMetadataTypeMcastAddr, DtMetadataTypeTransport, DtRtiMsg::fedExHandle(), DtConnectionMgr::isMetadataEnabled(), DtSmRtiConnection::isReliable(), DtConnectionMgr::logicalTimeFactory(), DtRtiMsg::print(), DtSmRtiConnection::send(), DtRtiMtdTransportType::set(), DtRtiMtdMcastAddr::set(), and sharedMemConn().

void DtSmConnectionMgr::setMsgFactory ( DtRtiMsgFactory * fact )

virtual

Get/Set the message factory.

Reimplemented from DtConnectionMgr.

References DtConnectionMgr::myMsgFactory, DtRtiConnection::setMsgFactory(), and sharedMemConn().

void DtSmConnectionMgr::setNetConnMgr ( DtRtiShmQNetMgr * smNetConnMgr )

virtual

Shared memory queue manager will allow messages to be exchanged between the shared memory connection manager and the network I/O connection manager.

References mySharedMemNetMgr.

Referenced by createQMgr().

bool DtSmConnectionMgr::setupSelectParams ( DtSelectParam * params )

virtual

adds Read File descriptors to a DtSelectParams

Reimplemented from DtConnectionMgr.

DtSmRtiConnection * DtSmConnectionMgr::sharedMemConn ( ) const

virtual

Returns the connection created by createSharedMemConn().

References mySharedMemConn.

Referenced by connectFederation(), createSharedMemConn(), disconnectFederation(), flush(), getMessage(), getMessageWithNetInfo(), initConnections(), processConnections(), repairFederationConnection(), send(), setMsgFactory(), sm_shutdown(), subscriberCount(), and wait().

bool DtSmConnectionMgr::sm_shutdown ( bool ruthless = false )

virtual

Attempts to shutdown shared memory queue.

References myIsQueueManager, sharedMemConn(), and DtSmRtiConnection::sm_shutdown().

void DtSmConnectionMgr::startSharedMemMgr ( )

protectedvirtual

Launch detached process to create the shared memory pool, subscribable message queue, and shared memory manager.

Will fork new child process, but child will never return control to parent. If a shared memory mgr process is already running the forked process will simply exit, but will not signal the parent.

References DtCreateProcess__rti__(), DtProcFullyDetached__rti__, DtRtiSearchPathList(), DtSHMQMGR_EXEC, DtRIDParameters::getFullPathToRidFile(), and DtConnectionMgr::params().

Referenced by initConnections().

int DtSmConnectionMgr::subscriberCount ( ) const

virtual

Return a count of the number of subscribers currently attached to the shared memory queue.

References sharedMemConn(), and DtSmRtiConnection::subscriberCount().

bool DtSmConnectionMgr::wait	(	MAKRti::DtTime	period = `0.0`,
		bool	unlockWhileWaiting = `false`
	)

virtual

Wait for data to be ready or the given period of time to expire Return boolean: data is ready for reading?

Reimplemented from DtConnectionMgr.

References DtConnectionMgr::enterServiceCall(), DtConnectionMgr::exitServiceCall(), DtConnectionMgr::inServiceCall(), DtConnectionMgr::lockServiceCall(), DtConnectionMgr::serviceCallLocked(), sharedMemConn(), DtConnectionMgr::unlockServiceCall(), and DtSmRtiConnection::waitForMessages().

Member Data Documentation

bool DtSmConnectionMgr::myForceSubscribe

protected

indicates shared mem queue in reliable mode

Referenced by createSharedMemConn(), and initQMgr().

bool DtSmConnectionMgr::myIsQueueManager

protected

These members are specific to the queue manager's connection manager.

Referenced by createSharedMemConn(), initConnections(), initQMgr(), and sm_shutdown().

MAKRti::DtInetAddr DtSmConnectionMgr::myLastDestAddr

protected

controls what type of messages are read/skipped

This member is part of an ugly hack to get the destination address from the next message in the shared memory queue so the network I/O manager within the shared memory queue manager knows where to send messages retrieved from shared memory.

Referenced by getLastDestAddr(), and processConnection().

MAKRti::DtTransportType DtSmConnectionMgr::myLastTransportType

protected

Referenced by getLastTransportType(), and processConnection().

DtU32 DtSmConnectionMgr::myNumBuckets

protected

indicates this is the queue manager

Referenced by createSharedMemConn(), and initQMgr().

DtU32 DtSmConnectionMgr::myPayloadSize

protected

number of message slots in shared memory queue

Referenced by createSharedMemConn(), and initQMgr().
