DtAddrMap Class Reference

Maintain mappings between handles and network addresses The mappings are assumed to be propogated through the network to be used for establishing multicast groups. More...

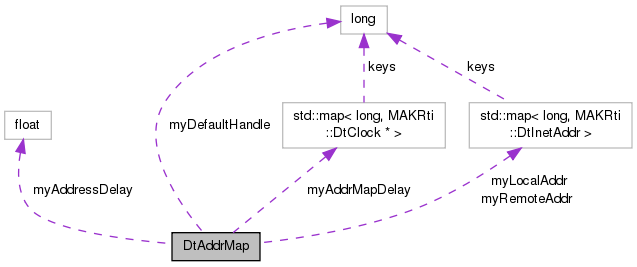

Collaboration diagram for DtAddrMap:

Public Member Functions
	DtAddrMap (long defaultHandle, float delayValue)
	Constructor.
virtual	~DtAddrMap ()
	Destructor.
virtual void	setDelay (float delayValue)
	Set/Get address delay.
virtual float	delay ()
virtual void	addLocalAddrMap (long handle, const MAKRti::DtInetAddr &addr)
	Add/Remove/Get mappings between handles and network addresses.
virtual void	removeLocalAddrMap (long handle)
virtual MAKRti::DtInetAddr	localAddrMap (long handle)
virtual void	addRemoteAddrMap (long handle, const MAKRti::DtInetAddr &addr)
virtual void	removeRemoteAddrMap (long handle)
virtual MAKRti::DtInetAddr	remoteAddrMap (long handle)
virtual void	addAddrMapDelay (long handle)
	Add/Remove/Query the delay status of an address map.
virtual void	removeAddrMapDelay (long handle)
virtual bool	addrMapDelayExpired (long handle)
virtual void	empty ()
	Empty mappings.

Protected Attributes
float	myAddressDelay
long	myDefaultHandle
std::map< long, MAKRti::DtInetAddr >	myLocalAddr
std::map< long, MAKRti::DtInetAddr >	myRemoteAddr
std::map< long, MAKRti::DtClock * >	myAddrMapDelay

Detailed Description

Maintain mappings between handles and network addresses The mappings are assumed to be propogated through the network to be used for establishing multicast groups.

The mappings are delayed to allow the propgation to take effect.

Constructor & Destructor Documentation

DtAddrMap::DtAddrMap	(	long	defaultHandle,
		float	delayValue
	)

Constructor.

References addLocalAddrMap(), and myDefaultHandle.

DtAddrMap::~DtAddrMap ( )

virtual

Destructor.

References empty().

Member Function Documentation

void DtAddrMap::addAddrMapDelay ( long  handle )

virtual

Add/Remove/Query the delay status of an address map.

Address maps require some time to propagate to remote federates. Addresses used for sending data should be added to the delay pool. Query the pool to determine if the address can be used. Deleted or expired addressed should be removed.

References myAddrMapDelay.

Referenced by addLocalAddrMap().

void DtAddrMap::addLocalAddrMap ( long  handle, const MAKRti::DtInetAddr &  addr  )

virtual

Add/Remove/Get mappings between handles and network addresses.

References addAddrMapDelay(), and myLocalAddr.

Referenced by DtAddrMap().

void DtAddrMap::addRemoteAddrMap ( long  handle, const MAKRti::DtInetAddr &  addr  )

virtual

References myRemoteAddr.

bool DtAddrMap::addrMapDelayExpired ( long  handle )

virtual

References myAddressDelay, myAddrMapDelay, and removeAddrMapDelay().

Referenced by localAddrMap().

float DtAddrMap::delay ( )

inlinevirtual

References myAddressDelay.

void DtAddrMap::empty ( )

virtual

Empty mappings.

References myAddrMapDelay, myLocalAddr, and myRemoteAddr.

Referenced by DtObjectMgr::destroyObjectLists(), and ~DtAddrMap().

MAKRti::DtInetAddr DtAddrMap::localAddrMap ( long  handle )

virtual

References addrMapDelayExpired(), and myLocalAddr.

MAKRti::DtInetAddr DtAddrMap::remoteAddrMap ( long  handle )

virtual

References myRemoteAddr.

void DtAddrMap::removeAddrMapDelay ( long  handle )

virtual

References myAddrMapDelay.

Referenced by addrMapDelayExpired(), and removeLocalAddrMap().

void DtAddrMap::removeLocalAddrMap ( long  handle )

virtual

References myLocalAddr, and removeAddrMapDelay().

void DtAddrMap::removeRemoteAddrMap ( long  handle )

virtual

References myRemoteAddr.

void DtAddrMap::setDelay ( float  delayValue )

virtual

Set/Get address delay.

References myAddressDelay.

Member Data Documentation

float DtAddrMap::myAddressDelay

protected

Referenced by addrMapDelayExpired(), delay(), and setDelay().

std::map<long, MAKRti::DtClock*> DtAddrMap::myAddrMapDelay

protected

Referenced by addAddrMapDelay(), addrMapDelayExpired(), empty(), and removeAddrMapDelay().

long DtAddrMap::myDefaultHandle

protected

Referenced by DtAddrMap().

std::map<long, MAKRti::DtInetAddr> DtAddrMap::myLocalAddr

protected

Referenced by addLocalAddrMap(), empty(), localAddrMap(), and removeLocalAddrMap().

std::map<long, MAKRti::DtInetAddr> DtAddrMap::myRemoteAddr

protected

Referenced by addRemoteAddrMap(), empty(), remoteAddrMap(), and removeRemoteAddrMap().

---

The documentation for this class was generated from the following files:

• addrMap.h
• addrMap.cxx
