Qt dialog which allows a user to change the Assistant configuration. More...

Inheritance diagram for DtAssistantConfigDialog:

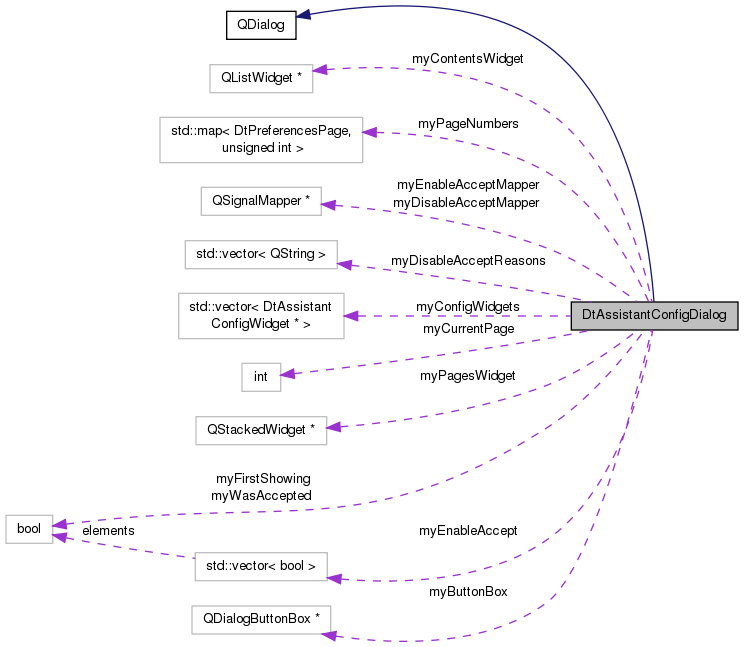

Collaboration diagram for DtAssistantConfigDialog:

Public Slots
virtual void	changePage (QListWidgetItem current, QListWidgetItem previous)
	Changes which page is currently displayed.
virtual void	enableAccept (int)
	Enable the accept button due to the validity of the current settings.
virtual void	disableAccept (int)
	Disable the accept button due to the validity of the current settings.

Signals
void	applied ()
	Emitted when the apply button is clicked.

Public Member Functions
	DtAssistantConfigDialog (QWidget *parent=0, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtAssistantConfigDialog ()
	Destructor.
virtual void	addConfigWidget (DtAssistantConfigWidget *widget, const QIcon &icon, const QString &name, DtPreferencesPage pageId)
	Adds a widget to a new page in the dialog, using the given icon and name for the contents bar on the side.
virtual void	completeDialogSetup ()
	Completes the setup of the dialog.
virtual QWidget *	configWidget (DtPreferencesPage pageId)
	Returns the widget on the given page.
virtual void	setPage (DtPreferencesPage pageId)
	Sets the currently displayed page.

Protected Member Functions
virtual void	enableOrDisableAccept ()
	Enables or disables the accept button, as appropriate.
virtual void	showEvent (QShowEvent *event)
	Catch show events so that the first time the dialog is shown we can do some additional configuration.

Protected Attributes
bool	myWasAccepted
	Stores the acceptance state of the last execution.
QListWidget *	myContentsWidget
	The contents panel which allows the user to select the configuration page they would like to view.
QStackedWidget *	myPagesWidget
	The stacked widget which holds all of the configuration pages and displays the currently selected one.
std::map< DtPreferencesPage, unsigned int >	myPageNumbers
	Mapping of page IDs to page numbers.
QDialogButtonBox *	myButtonBox
	The dialogs button box.
std::vector < DtAssistantConfigWidget * >	myConfigWidgets
	Widgets for each configuration page in the dialog.
std::vector< bool >	myEnableAccept
	The current settings for each widget on whether or not acceptance of the dialog should be allowed.
std::vector< QString >	myDisableAcceptReasons
	The current reasons for each widget why acceptance of the dialog should not be allowed.
QSignalMapper *	myEnableAcceptMapper
	Maps signals from configuration widgets to enable the accept button button.
QSignalMapper *	myDisableAcceptMapper
	Maps signals from configuration widgets to disable the accept button.
int	myCurrentPage
	The current page.
bool	myFirstShowing
	The first time the dialog is shown, do some additional configuration.

Private Member Functions
	DtAssistantConfigDialog (DtAssistantConfigDialog const &)
	Copy constructor not implemented.
DtAssistantConfigDialog &	operator= (DtAssistantConfigDialog const &)
	Assignment operator not implemented.

Detailed Description

Qt dialog which allows a user to change the Assistant configuration.

Constructor & Destructor Documentation

DtAssistantConfigDialog::DtAssistantConfigDialog	(	QWidget *	parent = `0`,
		Qt::WindowFlags	f = `0`
	)

Constructor.

References applied(), changePage(), connect(), disableAccept(), enableAccept(), myButtonBox, myContentsWidget, myDisableAcceptMapper, myEnableAcceptMapper, and myPagesWidget.

DtAssistantConfigDialog::~DtAssistantConfigDialog ( )

virtual

Destructor.

DtAssistantConfigDialog::DtAssistantConfigDialog ( DtAssistantConfigDialog const & )

private

Copy constructor not implemented.

Member Function Documentation

void DtAssistantConfigDialog::addConfigWidget	(	DtAssistantConfigWidget *	widget,
		const QIcon &	icon,
		const QString &	name,
		DtPreferencesPage	pageId
	)

virtual

Adds a widget to a new page in the dialog, using the given icon and name for the contents bar on the side.

Widgets will be added and paged in order as this method is called.

References connect(), myConfigWidgets, myContentsWidget, myDisableAcceptMapper, myDisableAcceptReasons, myEnableAccept, myEnableAcceptMapper, myPageNumbers, and myPagesWidget.

Referenced by DtAssistantPreferencesViewMgr::initialize().

void DtAssistantConfigDialog::applied ( )

signal

Emitted when the apply button is clicked.

Referenced by DtAssistantConfigDialog().

void DtAssistantConfigDialog::changePage	(	QListWidgetItem *	current,
		QListWidgetItem *	previous
	)

virtualslot

Changes which page is currently displayed.

References myButtonBox, myContentsWidget, myCurrentPage, and myPagesWidget.

Referenced by DtAssistantConfigDialog().

void DtAssistantConfigDialog::completeDialogSetup ( )

virtual

Completes the setup of the dialog.

All widgets should be added with addConfigWidget prior to calling this method.

References DtConnectionsPage, myButtonBox, myContentsWidget, myPagesWidget, and setPage().

Referenced by DtAssistantPreferencesViewMgr::initialize().

QWidget * DtAssistantConfigDialog::configWidget ( DtPreferencesPage pageId )

virtual

Returns the widget on the given page.

References myConfigWidgets, and myPageNumbers.

void DtAssistantConfigDialog::disableAccept ( int page )

virtualslot

Disable the accept button due to the validity of the current settings.

References enableOrDisableAccept(), myConfigWidgets, myDisableAcceptReasons, and myEnableAccept.

Referenced by DtAssistantConfigDialog().

void DtAssistantConfigDialog::enableAccept ( int page )

virtualslot

Enable the accept button due to the validity of the current settings.

References enableOrDisableAccept(), myDisableAcceptReasons, and myEnableAccept.

Referenced by DtAssistantConfigDialog().

void DtAssistantConfigDialog::enableOrDisableAccept ( )

protectedvirtual

Enables or disables the accept button, as appropriate.

References myButtonBox, myDisableAcceptReasons, and myEnableAccept.

Referenced by disableAccept(), and enableAccept().

DtAssistantConfigDialog& DtAssistantConfigDialog::operator= ( DtAssistantConfigDialog const & )

private

Assignment operator not implemented.

void DtAssistantConfigDialog::setPage ( DtPreferencesPage pageId )

virtual

Sets the currently displayed page.

References myContentsWidget, and myPageNumbers.

Referenced by completeDialogSetup(), and DtAssistantPreferencesViewMgr::showConfigDialog().

void DtAssistantConfigDialog::showEvent ( QShowEvent * event )

protectedvirtual

Catch show events so that the first time the dialog is shown we can do some additional configuration.

References myContentsWidget, and myFirstShowing.

Member Data Documentation

QDialogButtonBox* DtAssistantConfigDialog::myButtonBox

protected

The dialogs button box.

Referenced by changePage(), completeDialogSetup(), DtAssistantConfigDialog(), and enableOrDisableAccept().

std::vector<DtAssistantConfigWidget*> DtAssistantConfigDialog::myConfigWidgets

protected

Widgets for each configuration page in the dialog.

Referenced by addConfigWidget(), configWidget(), and disableAccept().

QListWidget* DtAssistantConfigDialog::myContentsWidget

protected

The contents panel which allows the user to select the configuration page they would like to view.

Referenced by addConfigWidget(), changePage(), completeDialogSetup(), DtAssistantConfigDialog(), setPage(), and showEvent().

int DtAssistantConfigDialog::myCurrentPage

protected

The current page.

Referenced by changePage().

QSignalMapper* DtAssistantConfigDialog::myDisableAcceptMapper

protected

Maps signals from configuration widgets to disable the accept button.

Referenced by addConfigWidget(), and DtAssistantConfigDialog().

std::vector<QString> DtAssistantConfigDialog::myDisableAcceptReasons

protected

The current reasons for each widget why acceptance of the dialog should not be allowed.

Referenced by addConfigWidget(), disableAccept(), enableAccept(), and enableOrDisableAccept().

std::vector<bool> DtAssistantConfigDialog::myEnableAccept

protected

The current settings for each widget on whether or not acceptance of the dialog should be allowed.

Referenced by addConfigWidget(), disableAccept(), enableAccept(), and enableOrDisableAccept().

QSignalMapper* DtAssistantConfigDialog::myEnableAcceptMapper

protected

Maps signals from configuration widgets to enable the accept button button.

Referenced by addConfigWidget(), and DtAssistantConfigDialog().

bool DtAssistantConfigDialog::myFirstShowing

protected

The first time the dialog is shown, do some additional configuration.

Referenced by showEvent().

std::map<DtPreferencesPage, unsigned int> DtAssistantConfigDialog::myPageNumbers

protected

Mapping of page IDs to page numbers.

Referenced by addConfigWidget(), configWidget(), and setPage().

QStackedWidget* DtAssistantConfigDialog::myPagesWidget

protected

The stacked widget which holds all of the configuration pages and displays the currently selected one.

Referenced by addConfigWidget(), changePage(), completeDialogSetup(), and DtAssistantConfigDialog().

bool DtAssistantConfigDialog::myWasAccepted

protected

Stores the acceptance state of the last execution.

The documentation for this class was generated from the following files:
