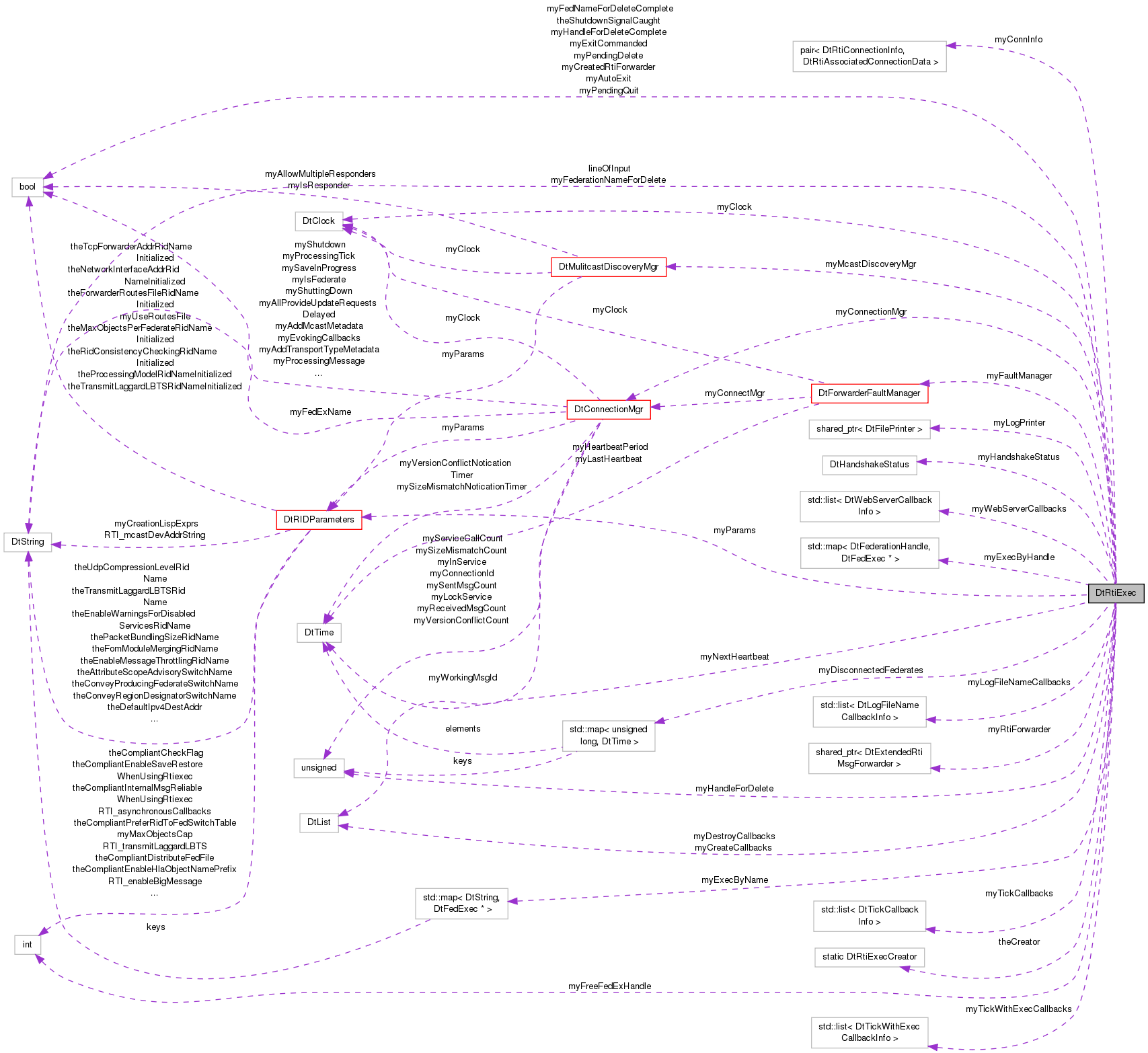

Collaboration diagram for DtRtiExec:

Public Member Functions
virtual	~DtRtiExec ()
	Destructor.
virtual void	shutdownForwarderIfCreated ()
virtual void	checkVersion (const DtString &version) const
	Called by the exec application to make sure that the RTI Version matches.
virtual void	processCreate (const DtCreateMsg &msg)
	Called when a createFedEx message is received.
virtual void	processDestroy (const DtDestroyMsg &msg)
	Called when a destroyFedEx message is received.
virtual void	processListFederations (const DtListFederationsMsg &msg)
	Called when a list federations message is received.
virtual void	processJoin (const DtJoinMsg &msg)
	Called when a Join message is received.
virtual void	processDisconnect (const DtDisconnectMsg &msg)
	Called when a disconnect message is received Actually used to capture broken connection.
virtual void	processQueueFull (const DtQueueFullMsg &msg)
	Called when a queue full message is received.
virtual void	processReconnect (const DtReconnectMsg &msg)
	Called when a reconnect message is received Actually used to recover from a broken connection.
virtual DtFedExec *	createFedEx (DtConnectionMgr connMgr, const std::vector< unsigned int > &crcs, const char fedExName, std::string const &timeImplName, MAKRti::DtFomType fedType, const std::vector< DtString > &fedFileName, const DtString &momModuleName, int fedExHandle, DtRIDParameters *params, unsigned int momModuleCrc)
	Returns a new fed ex instance, Override this function to replace the default federation execution object.
DtConnectionMgr *	connectMgr ()
	Returns the connection manager Not virtual because referenced in both ctors and dtors.
virtual bool	exists (const DtString &fedExName)
	Returns true if the name fedex exists, false otherwise.
virtual void	destroyFederationByName (const DtString &fullFedexName, bool sendDestroyResponse=true, bool forceDestroy=false)
	Attempt to destroy a federation.
int	processQuit ()
	User request to quit is processed.
virtual void	listFederates ()
	Respond to a request to list federates through interactive input.
virtual void	parseDeleteCommand (const DtString &command, unsigned int &handle, DtString &federationName) const
	Respond to a request to delete a federate through interactive input.
virtual int	deleteFederate (unsigned int handle, const DtString &federationName)
virtual void	processUpdateNotifyLevel (DtNotifyLevelType level)
	Updates the rtiexec notify level.
virtual void	exit ()
	Causes the rtiexec to exit.
virtual void	enableLogging ()
	Enables logging.
virtual void	enableWebSpy (const DtInetAddr &webSpyIpAddr, int webSpyPort)
	Sets the web spy connection status as enabled and connected.
DtFedExec *	fedExec (const DtString &fedExName)
	Search for a fed executive by name.
const DtFedExec *	fedExec (const DtString &fedExName) const
const std::map< DtString, DtFedExec * > &	fedExecs () const
	Returns a reference to the entire map of federations.
const DtRIDParameters &	params () const
	Returns a handle to the current RID Params.
virtual void	run ()
	main loop
virtual bool	tick (bool noCallbacks=false)
	Work performed here for each cycle in main loop.
virtual void	wait (DtTime intervalInSeconds)
	Wait for input or until the the given interval expires.
virtual void	addFedExCreatedCallback (DtFedExCbFn fn, void *usr)
	Register a callback to be triggered whenever a new federation execution is created.
virtual void	removeFedExCreatedCallback (DtFedExCbFn fn, void *usr)
virtual void	addFedExDestroyedCallback (DtFedExCbFn fn, void *usr)
	Register a callback to be triggered whenever an existing federation execution is destroyed.
virtual void	removeFedExDestroyedCallback (DtFedExCbFn fn, void *usr)
virtual void	addLogFileNameUpdatedCallback (DtLogFileNameCbFn fn, void *usr)
	Register a callback to be triggered whenever the log file name for the rtiexec is updated.
virtual void	removeLogFileNameUpdatedCallback (DtLogFileNameCbFn fn, void *usr)
virtual void	addWebServerUpdatedCallback (DtWebServerCbFn fn, void *usr)
	Register a callback to be triggered whenever the web server for the rtiexec is updated.
virtual void	removeWebServerUpdatedCallback (DtWebServerCbFn fn, void *usr)
virtual void	addTickCallback (DtTickCbFn fn, void *usr, DtTime interval)
	Register a callback to be called during tick, but only at the given interval.
virtual void	removeTickCallback (DtTickCbFn fn, void *usr)
virtual void	addTickCallback (DtTickWithExecCbFn fn, void *usr, DtTime interval)
	Register a callback to be called during tick, but only at the given interval.
virtual void	removeTickCallback (DtTickWithExecCbFn fn, void *usr)
virtual void	sendCreateResponseMsg (const unsigned long destinationID, DtCreateResponseFlag flag, MAKRti::DtString const &errorString)
	Send RTI messages.
virtual void	sendDestroyResponseMsg (const char *fedExName, DtDestroyResponseFlag flag)
virtual void	sendReportFederationsMsg (unsigned long destId, const std::vector< DtString > &federationNames, const std::vector< DtString > &timeImplNames)
virtual void	sendJoinResponseMsg (unsigned long destinationIDValue, unsigned short requestID, unsigned int crc, DtFederateHandle handle, const char fedName, int fedExHandle, const char fedExName, const DtString &momModule, const std::vector< DtString > &fedFileName, unsigned long flags, bool allowNetworkTesting, MAKRti::DtString const &errorString, DtJoinResponseMsg::errorCodes errorValue=DtJoinResponseMsg::DT_NO_ERROR)
virtual void	ridRequestCb (const DtRidTestRequestMsg &msg)
	The RID request callback is processed by the RTI in response to a ridTestRequest.

Static Public Member Functions
static DtRtiExec *	create (DtRIDParameters *p, DtBoost::shared_ptr< DtFilePrinter > logPrinter, bool autoExit=false, const DtRtiConnectionInfoDataPair &connInfo=DtRtiConnectionInfoDataPair())
	Creates an instance of a DtRtiExec;.
static void	setCreatorFunction (DtRtiExecCreator fn)
	Call this function to set an alternate creator function With this function, users can replace this DtRtiExec with their own derived class.
static void	processRtiExecHandshakeMsg (const DtRtiExecHandshakeMsg &msg, void *usr)
	Handshake message callback.
static void	processCreate (const DtCreateMsg &msg, void *usr)
	Callback on the createFedEx message.
static void	processDestroy (const DtDestroyMsg &msg, void *usr)
	Callback on the destroyFedEx message.
static void	processListFederations (const DtListFederationsMsg &msg, void *usr)
	Callback on the list federations message.
static void	processJoin (const DtJoinMsg &msg, void *usr)
	Callback on the Join message.
static void	processDisconnect (const DtDisconnectMsg &msg, void *usr)
	Callback on the Disconnect message.
static void	processQueueFull (const DtQueueFullMsg &msg, void *usr)
	Callback on the Queue Full message.
static void	processReconnect (const DtReconnectMsg &msg, void *usr)
	Callback on the Reconnect message.
static void	ridRequestCb (const DtRidTestRequestMsg &msg, void *usr)
	RID File Received callback.
static bool	shutdownSignalCaught ()
static void	caughtShutdownSignal ()

Protected Types
enum	DtStartRtiForwarderResult { ForwarderSuccessfullyStarted, RetryStartingForwarder, ForwarderStartupFailed }
typedef std::map< unsigned long, DtTime >	DtConnIdToTimeMap

Protected Member Functions
	DtRtiExec (DtRIDParameters *p, DtBoost::shared_ptr< DtFilePrinter > logPrinter, bool autoExit, const DtRtiConnectionInfoDataPair &connInfo)
	Constructor.
void	cleanupConstructorException ()
	Clean up before constructor throws an exception Not virtual since it is called by constructor.
virtual void	rtiExecToForwarderHandshake ()
	Inform RTI Forwarder that Exec is connected, and verify that this is the ONLY Exec connected.
virtual void	sendRtiExecHandshakeMsg (DtHandle destId, DtRtiExecHandshakeMsg::DtHandshakeStatus status)
	Send RTI Forwarder connection response msg.
virtual void	processRtiExecHandshakeMsg (const DtRtiExecHandshakeMsg &msg)
	Process the RTI Forwarder's Handshake response.
virtual void	performMulticastDiscovery (bool reliableTransportDisabled)
	Attempt to discover either the RTI Forwarder or other rtiexecs.
virtual void	removeDroppedFederateConnections ()
	Force resign a federate.
virtual DtStartRtiForwarderResult	startRtiForwarder (const DtRIDParameters *params)
	Starts forwarder if the exec is configured to do so.

Protected Attributes
DtConnectionMgr *	myConnectionMgr
std::map< DtString, DtFedExec * >	myExecByName
std::map< DtFederationHandle, DtFedExec * >	myExecByHandle
DtString	lineOfInput
bool	myHandleForDeleteComplete
bool	myFedNameForDeleteComplete
DtString	myFederationNameForDelete
unsigned int	myHandleForDelete
bool	myCreatedRtiForwarder
bool	myPendingDelete
bool	myPendingQuit
int	myFreeFedExHandle
DtList	myCreateCallbacks
DtList	myDestroyCallbacks
std::list< DtTickCallbackInfo >	myTickCallbacks
	List of tick callbacks.
std::list < DtTickWithExecCallbackInfo >	myTickWithExecCallbacks
	List of tick callbacks with DtRtiExec reference.
std::list < DtLogFileNameCallbackInfo >	myLogFileNameCallbacks
	List of log file name update callbacks.
std::list < DtWebServerCallbackInfo >	myWebServerCallbacks
	List of log file name update callbacks.
DtClock	myClock
DtRtiExecHandshakeMsg::DtHandshakeStatus	myHandshakeStatus
DtTime	myNextHeartbeat
DtRtiMsgForwarderSP	myRtiForwarder
DtForwarderFaultManager *	myFaultManager
DtMulitcastDiscoveryMgr *	myMcastDiscoveryMgr
DtConnIdToTimeMap	myDisconnectedFederates
	Map of dropped Federate to timestamp of drop.
DtRIDParameters *	myParams
bool	myAutoExit
bool	myExitCommanded
	Flag indicating that an exit command was received.
DtBoost::shared_ptr < DtFilePrinter >	myLogPrinter
	Printer which prints output to a log file.
DtRtiConnectionInfoDataPair	myConnInfo

Static Protected Attributes
static bool	theShutdownSignalCaught = false
static DtRtiExecCreator	theCreator = NULL

Member Typedef Documentation

typedef std::map< unsigned long, DtTime > DtRtiExec::DtConnIdToTimeMap

protected

Member Enumeration Documentation

enum DtRtiExec::DtStartRtiForwarderResult

protected

Enumerator:

ForwarderSuccessfullyStarted
RetryStartingForwarder
ForwarderStartupFailed

Constructor & Destructor Documentation

DtRtiExec::DtRtiExec	(	DtRIDParameters *	p,
		DtBoost::shared_ptr< DtFilePrinter >	logPrinter,
		bool	autoExit,
		const DtRtiConnectionInfoDataPair &	connInfo
	)

protected

Constructor.

References DtDisconnectMsg::addCallback(), DtQueueFullMsg::addCallback(), DtListFederationsMsg::addCallback(), DtRidTestRequestMsg::addCallback(), DtDestroyMsg::addCallback(), DtReconnectMsg::addCallback(), DtRtiExecHandshakeMsg::addCallback(), DtCreateMsg::addCallback(), DtJoinMsg::addCallback(), cleanupConstructorException(), DtRIDParameters::clearAncillaryForwarderGroupAddrs(), connectMgr(), DtSmConnectionMgr::create(), create(), DtRIDParameters::DtFomTransportTypeUseBestEffort, DtIsIpOfLocalInterface(), DtRIDParameters::DtSynchronousMode, DtTHROW_PROPAGATE, ForwarderSuccessfullyStarted, myClock, myConnectionMgr, myFaultManager, myNextHeartbeat, myParams, DtRIDParameters::notifyLevel, performMulticastDiscovery(), DtAssistantPopupHelper::popupsDisabled(), processCreate(), processDestroy(), processDisconnect(), processJoin(), processListFederations(), processQueueFull(), processReconnect(), processRtiExecHandshakeMsg(), RetryStartingForwarder, ridRequestCb(), rtiExecToForwarderHandshake(), DtConnectionMgr::setInternalCreatorFunction(), DtAssistantPopupHelper::setPopupsDisabled(), DtRIDParameters::setProcessingModel(), startRtiForwarder(), DtRIDParameters::tcpForwarderAddr(), DtRIDParameters::useRtiExec, and DtRIDParameters::useSharedMem.

Referenced by create().

Member Function Documentation

void DtRtiExec::addFedExCreatedCallback	(	DtFedExCbFn	fn,
		void *	usr
	)

virtual

Register a callback to be triggered whenever a new federation execution is created.

References myCreateCallbacks.

void DtRtiExec::addFedExDestroyedCallback	(	DtFedExCbFn	fn,
		void *	usr
	)

virtual

Register a callback to be triggered whenever an existing federation execution is destroyed.

References myDestroyCallbacks.

void DtRtiExec::addLogFileNameUpdatedCallback	(	DtLogFileNameCbFn	fn,
		void *	usr
	)

virtual

Register a callback to be triggered whenever the log file name for the rtiexec is updated.

References myLogFileNameCallbacks.

void DtRtiExec::addTickCallback	(	DtTickCbFn	fn,
		void *	usr,
		DtTime	interval
	)

virtual

Register a callback to be called during tick, but only at the given interval.

References myTickCallbacks.

void DtRtiExec::addTickCallback	(	DtTickWithExecCbFn	fn,
		void *	usr,
		DtTime	interval
	)

virtual

Register a callback to be called during tick, but only at the given interval.

For callbacks which will be passed a reference to the calling DtRtiExec.

References myTickWithExecCallbacks.

void DtRtiExec::addWebServerUpdatedCallback	(	DtWebServerCbFn	fn,
		void *	usr
	)

virtual

Register a callback to be triggered whenever the web server for the rtiexec is updated.

References myWebServerCallbacks.

void DtRtiExec::caughtShutdownSignal ( )

static

Referenced by unixShutdownSignalHandler().

void DtRtiExec::checkVersion ( const DtString & version ) const

virtual

Called by the exec application to make sure that the RTI Version matches.

References DtVersion.

void DtRtiExec::cleanupConstructorException ( )

protected

Clean up before constructor throws an exception Not virtual since it is called by constructor.

References DtConnectionMgr::flush(), myConnectionMgr, myCreatedRtiForwarder, myFaultManager, and DtConnectionMgr::sendShutdownForwarderMsg().

Referenced by DtRtiExec().

DtConnectionMgr * DtRtiExec::connectMgr ( )

inline

Returns the connection manager Not virtual because referenced in both ctors and dtors.

References myConnectionMgr.

Referenced by createFedEx(), DtRtiExec(), processCreate(), processRtiExecHandshakeMsg(), ridRequestCb(), rtiExecToForwarderHandshake(), sendCreateResponseMsg(), sendDestroyResponseMsg(), sendJoinResponseMsg(), sendReportFederationsMsg(), sendRtiExecHandshakeMsg(), tick(), wait(), and ~DtRtiExec().

DtRtiExec * DtRtiExec::create	(	DtRIDParameters *	p,
		DtBoost::shared_ptr< DtFilePrinter >	logPrinter,
		bool	autoExit = `false`,
		const DtRtiConnectionInfoDataPair &	connInfo = `DtRtiConnectionInfoDataPair()`
	)

static

Creates an instance of a DtRtiExec;.

References DtRtiExec(), params(), and theCreator.

Referenced by createFedEx(), DtRtiExec(), and setCreatorFunction().

DtFedExec * DtRtiExec::createFedEx	(	DtConnectionMgr *	connMgr,
		const std::vector< unsigned int > &	crcs,
		const char *	fedExName,
		std::string const &	timeImplName,
		MAKRti::DtFomType	fedType,
		const std::vector< DtString > &	fedFileName,
		const DtString &	momModuleName,
		int	fedExHandle,
		DtRIDParameters *	params,
		unsigned int	momModuleCrc
	)

virtual

Returns a new fed ex instance, Override this function to replace the default federation execution object.

References connectMgr(), and create().

Referenced by processCreate().

int DtRtiExec::deleteFederate	(	unsigned int	handle,
		const DtString &	federationName
	)

virtual

References DtUserForcedResign, exists(), DtFedExec::fedExName(), DtFedExec::getFederate(), myExecByName, NULL, and DtFedExec::resignFederate().

void DtRtiExec::destroyFederationByName	(	const DtString &	fullFedexName,
		bool	sendDestroyResponse = `true`,
		bool	forceDestroy = `false`
	)

virtual

Attempt to destroy a federation.

By default, if destruction fails, a destroy response is sent. If this is being called in response to a command at the rtiexec GUI, then no response needs to be sent. If forceDestroy is set, federation is destroyed regardless of whether it has joined federates.

References DtDRExecDestroyed, DtDRExecDoesNotExist, DtDRFederatesJoined, exists(), DtFedExec::fedExHandle(), myConnectionMgr, DtFedExCallbackInfo::myData, myDestroyCallbacks, myExecByHandle, myExecByName, DtFedExCallbackInfo::myFn, DtFedExec::numFederates(), DtConnectionMgr::removeLogicalTimeFactory(), and sendDestroyResponseMsg().

Referenced by processDestroy(), removeDroppedFederateConnections(), and tick().

void DtRtiExec::enableLogging ( )

virtual

Enables logging.

References myLogFileNameCallbacks, and myLogPrinter.

void DtRtiExec::enableWebSpy	(	const DtInetAddr &	webSpyIpAddr,
		int	webSpyPort
	)

virtual

Sets the web spy connection status as enabled and connected.

References DtDefaultInterfaceAddr(), myWebServerCallbacks, DtRIDParameters::networkInterfaceAddr(), and params().

bool DtRtiExec::exists ( const DtString & fedExName )

virtual

Returns true if the name fedex exists, false otherwise.

References myExecByName.

Referenced by deleteFederate(), destroyFederationByName(), processCreate(), and processJoin().

void DtRtiExec::exit ( )

virtual

Causes the rtiexec to exit.

References myExitCommanded.

DtFedExec * DtRtiExec::fedExec ( const DtString & fedExName )

Search for a fed executive by name.

Returns NULL if none are found.

References myExecByName.

Referenced by DtRtiexecObserverForAssistant::processTimeStateEvent().

const DtFedExec * DtRtiExec::fedExec ( const DtString & fedExName ) const

References myExecByName.

const std::map< DtString, DtFedExec * > & DtRtiExec::fedExecs ( ) const

Returns a reference to the entire map of federations.

References myExecByName.

void DtRtiExec::listFederates ( )

virtual

Respond to a request to list federates through interactive input.

References myExecByName.

const DtRIDParameters & DtRtiExec::params ( ) const

inline

Returns a handle to the current RID Params.

References myParams.

Referenced by create(), enableWebSpy(), processDisconnect(), processJoin(), rtiExecToForwarderHandshake(), and sendRtiExecHandshakeMsg().

void DtRtiExec::parseDeleteCommand	(	const DtString &	command,
		unsigned int &	handle,
		DtString &	federationName
	)		const

virtual

Respond to a request to delete a federate through interactive input.

void DtRtiExec::performMulticastDiscovery ( bool reliableTransportDisabled )

protectedvirtual

Attempt to discover either the RTI Forwarder or other rtiexecs.

References DtMulitcastDiscoveryMgr::discover(), DtMulticastDiscoveryMsg::DtDiscoverRtiExec, DtMulticastDiscoveryMsg::DtDiscoverTcpForwarder, DtMulitcastDiscoveryMgr::init(), myMcastDiscoveryMgr, myParams, DtAssistantPopupHelper::popupAssistantMessage(), and DtRIDParameters::setTcpForwarderAddr().

Referenced by DtRtiExec().

void DtRtiExec::processCreate ( const DtCreateMsg & msg )

virtual

void DtRtiExec::processCreate	(	const DtCreateMsg &	msg,
		void *	usr
	)

static

Callback on the createFedEx message.

void DtRtiExec::processDestroy ( const DtDestroyMsg & msg )

virtual

Called when a destroyFedEx message is received.

References destroyFederationByName(), and DtDestroyMsg::fullFedExName().

Referenced by DtRtiExec(), and ~DtRtiExec().

void DtRtiExec::processDestroy	(	const DtDestroyMsg &	msg,
		void *	usr
	)

static

Callback on the destroyFedEx message.

void DtRtiExec::processDisconnect ( const DtDisconnectMsg & msg )

virtual

Called when a disconnect message is received Actually used to capture broken connection.

References DtConnectMsg::connectionHandle(), DtFedExec::disconnectFederate(), DtFedExec::federateHandleOfConnection(), DtRIDParameters::federateReconnectPause, DtFedExec::fedExName(), DtFederate::getDescription(), DtFedExec::getFederate(), interval, myClock, myDisconnectedFederates, myExecByName, myParams, params(), and DtRIDParameters::responseInterval.

Referenced by DtRtiExec(), and ~DtRtiExec().

void DtRtiExec::processDisconnect	(	const DtDisconnectMsg &	msg,
		void *	usr
	)

static

Callback on the Disconnect message.

void DtRtiExec::processJoin ( const DtJoinMsg & msg )

virtual

Called when a Join message is received.

References DtJoinResponseMsg::DT_FEDEX_DOES_NOT_EXIST, DtRIDParameters::enableNetworkTesting, exists(), DtJoinMsg::fullFedExName(), params(), DtJoinMsg::requestID(), sendJoinResponseMsg(), and DtJoinMsg::sourceID().

Referenced by DtRtiExec(), and ~DtRtiExec().

void DtRtiExec::processJoin	(	const DtJoinMsg &	msg,
		void *	usr
	)

static

Callback on the Join message.

void DtRtiExec::processListFederations ( const DtListFederationsMsg & msg )

virtual

Called when a list federations message is received.

References DtListFederationsMsg::destinationID(), myExecByName, and sendReportFederationsMsg().

Referenced by DtRtiExec(), and ~DtRtiExec().

void DtRtiExec::processListFederations	(	const DtListFederationsMsg &	msg,
		void *	usr
	)

static

Callback on the list federations message.

void DtRtiExec::processQueueFull ( const DtQueueFullMsg & msg )

virtual

Called when a queue full message is received.

References DtForwarderQueueFullResign, DtRtiMsg::federateHandle(), DtRtiMsg::fedExHandle(), DtFedExec::fedExHandle(), myExecByName, and DtFedExec::resignFederate().

Referenced by DtRtiExec().

void DtRtiExec::processQueueFull	(	const DtQueueFullMsg &	msg,
		void *	usr
	)

static

Callback on the Queue Full message.

int DtRtiExec::processQuit ( )

User request to quit is processed.

If there are no federations, quit is granted immediately. Otherwise, a pending quit status is set to true and the user is prompted to confirm the quit request. Return -1 if quit should be granted immediately.

References myExecByName, and myPendingQuit.

void DtRtiExec::processReconnect ( const DtReconnectMsg & msg )

virtual

Called when a reconnect message is received Actually used to recover from a broken connection.

References DtReconnectMsg::DtReconnectAccepted, DtReconnectMsg::DtReconnectRequest, DtReconnectMsg::federateHandle(), DtRtiMsg::fedExHandle(), DtFedExec::getFederate(), myDisconnectedFederates, myExecByHandle, myExecByName, DtReconnectMsg::newConnectionHandle(), DtReconnectMsg::oldConnectionHandle(), DtFedExec::reconnectFederateFailed(), DtFedExec::reconnectFederateSucceeded(), DtReconnectMsg::reconnectStatus(), and DtFedExec::restoreFederateConnection().

Referenced by DtRtiExec(), and ~DtRtiExec().

void DtRtiExec::processReconnect	(	const DtReconnectMsg &	msg,
		void *	usr
	)

static

Callback on the Reconnect message.

void DtRtiExec::processRtiExecHandshakeMsg	(	const DtRtiExecHandshakeMsg &	msg,
		void *	usr
	)

static

Handshake message callback.

Referenced by DtRtiExec().

void DtRtiExec::processRtiExecHandshakeMsg ( const DtRtiExecHandshakeMsg & msg )

protectedvirtual

Process the RTI Forwarder's Handshake response.

References DtConnectionMgr::connectionId(), connectMgr(), DtRtiExecHandshakeMsg::destConnectionHandle(), DtRtiExecHandshakeMsg::handshakeStatus(), DtRtiExecHandshakeMsg::HsRequest, DtRtiExecHandshakeMsg::HsResponseDenied, DtRtiExecHandshakeMsg::HsResponseGranted, myHandshakeStatus, sendRtiExecHandshakeMsg(), and DtRtiExecHandshakeMsg::srcConnectionHandle().

void DtRtiExec::processUpdateNotifyLevel ( DtNotifyLevelType level )

virtual

Updates the rtiexec notify level.

void DtRtiExec::removeDroppedFederateConnections ( )

protectedvirtual

Force resign a federate.

References DtFedExec::creatorID(), destroyFederationByName(), false, DtFedExec::fedExName(), DtFedExec::fullyCreated(), myClock, myDisconnectedFederates, myExecByName, and DtFedExec::removeFederateConnection().

Referenced by tick().

void DtRtiExec::removeFedExCreatedCallback	(	DtFedExCbFn	fn,
		void *	usr
	)

virtual

References myCreateCallbacks, DtFedExCallbackInfo::myData, DtFedExCallbackInfo::myFn, and NULL.

void DtRtiExec::removeFedExDestroyedCallback	(	DtFedExCbFn	fn,
		void *	usr
	)

virtual

References DtFedExCallbackInfo::myData, myDestroyCallbacks, DtFedExCallbackInfo::myFn, and NULL.

void DtRtiExec::removeLogFileNameUpdatedCallback	(	DtLogFileNameCbFn	fn,
		void *	usr
	)

virtual

References myLogFileNameCallbacks.

void DtRtiExec::removeTickCallback	(	DtTickCbFn	fn,
		void *	usr
	)

virtual

References myTickCallbacks.

void DtRtiExec::removeTickCallback	(	DtTickWithExecCbFn	fn,
		void *	usr
	)

virtual

References myTickWithExecCallbacks.

void DtRtiExec::removeWebServerUpdatedCallback	(	DtWebServerCbFn	fn,
		void *	usr
	)

virtual

References myWebServerCallbacks.

void DtRtiExec::ridRequestCb ( const DtRidTestRequestMsg & msg )

virtual

The RID request callback is processed by the RTI in response to a ridTestRequest.

It fills up a ridResponse with the number of RID parameters that it wants consistent and sends the response back to the federate that requested it.

References connectMgr(), DtMessageFactory< T_Message, T_MessageKind, T_NetworkHeader >::create(), DtRidTestRequestMsg::destinationID(), DtTransferRidParamsMsgKind, DtRtiMsg::federateHandle(), DtRtiMsg::fedExHandle(), DtConnectionMgr::msgFactory(), myParams, DtRIDParameters::ridsToConsistencyCheck(), DtConnectionMgr::sendAndDelete(), DtTransferRidParamsMsg::setDestinationID(), DtRtiMsg::setFederateHandle(), DtRtiMsg::setFedEx(), and DtTransferRidParamsMsg::writeRidTestBlock().

Referenced by DtRtiExec(), ridRequestCb(), and ~DtRtiExec().

void DtRtiExec::ridRequestCb	(	const DtRidTestRequestMsg &	msg,
		void *	usr
	)

static

RID File Received callback.

References ridRequestCb().

void DtRtiExec::rtiExecToForwarderHandshake ( )

protectedvirtual

Inform RTI Forwarder that Exec is connected, and verify that this is the ONLY Exec connected.

References DtConnectionMgr::connectionId(), connectMgr(), DtRIDParameters::getFullPathToRidFile(), DtRtiExecHandshakeMsg::HsRequest, DtRtiExecHandshakeMsg::HsResponseDenied, DtRtiExecHandshakeMsg::HsResponseGranted, interval, myClock, myHandshakeStatus, params(), DtRIDParameters::responseInterval, sendRtiExecHandshakeMsg(), DtRIDParameters::tcpForwarderAddr(), DtRIDParameters::tcpPort, DtConnectionMgr::tick(), and DtConnectionMgr::yield().

Referenced by DtRtiExec().

void DtRtiExec::run ( )

virtual

main loop

References myAutoExit, myExecByHandle, myExitCommanded, shutdownSignalCaught(), tick(), unixShutdownSignalHandler(), and wait().

void DtRtiExec::sendCreateResponseMsg	(	const unsigned long	destinationID,
		DtCreateResponseFlag	flag,
		MAKRti::DtString const &	errorString
	)

virtual

Send RTI messages.

References connectMgr(), DtConnectionMgr::create(), DtCreateResponseMsgKind, DtConnectionMgr::sendAndDelete(), and DtCreateResponseMsg::set().

Referenced by processCreate().

void DtRtiExec::sendDestroyResponseMsg	(	const char *	fedExName,
		DtDestroyResponseFlag	flag
	)

virtual

References connectMgr(), DtConnectionMgr::create(), DtDestroyResponseMsgKind, DtConnectionMgr::sendAndDelete(), and DtDestroyResponseMsg::set().

Referenced by destroyFederationByName().

void DtRtiExec::sendJoinResponseMsg	(	unsigned long	destinationIDValue,
		unsigned short	requestID,
		unsigned int	crc,
		DtFederateHandle	handle,
		const char *	fedName,
		int	fedExHandle,
		const char *	fedExName,
		const DtString &	momModule,
		const std::vector< DtString > &	fedFileName,
		unsigned long	flags,
		bool	allowNetworkTesting,
		MAKRti::DtString const &	errorString,
		DtJoinResponseMsg::errorCodes	errorValue = `DtJoinResponseMsg::DT_NO_ERROR`
	)

virtual

References connectMgr(), DtConnectionMgr::create(), DtJoinResponseMsgKind, DtConnectionMgr::sendAndDelete(), and DtJoinResponseMsg::set().

Referenced by processJoin().

void DtRtiExec::sendReportFederationsMsg	(	unsigned long	destId,
		const std::vector< DtString > &	federationNames,
		const std::vector< DtString > &	timeImplNames
	)

virtual

References connectMgr(), DtConnectionMgr::create(), DtReportFederationsMsgKind, DtConnectionMgr::sendAndDelete(), and DtReportFederationsMsg::set().

Referenced by processListFederations().

void DtRtiExec::sendRtiExecHandshakeMsg	(	DtHandle	destId,
		DtRtiExecHandshakeMsg::DtHandshakeStatus	status
	)

protectedvirtual

Send RTI Forwarder connection response msg.

References connectMgr(), DtConnectionMgr::create(), DtGetLocalHostName(), DtRtiExecHandshakeMsgKind, params(), DtConnectionMgr::sendAndDelete(), and DtRtiExecHandshakeMsg::set().

Referenced by processRtiExecHandshakeMsg(), and rtiExecToForwarderHandshake().

void DtRtiExec::setCreatorFunction ( DtRtiExecCreator fn )

static

Call this function to set an alternate creator function With this function, users can replace this DtRtiExec with their own derived class.

References create(), DtBindCreator(), and theCreator.

void DtRtiExec::shutdownForwarderIfCreated ( )

virtual

References DtConnectionMgr::flush(), myConnectionMgr, myCreatedRtiForwarder, and DtConnectionMgr::sendShutdownForwarderMsg().

bool DtRtiExec::shutdownSignalCaught ( )

static

References theShutdownSignalCaught.

Referenced by run().

DtRtiExec::DtStartRtiForwarderResult DtRtiExec::startRtiForwarder ( const DtRIDParameters * params )

protectedvirtual

Starts forwarder if the exec is configured to do so.

return zero on error.

References DtCreateProcess__rti__(), DtProcFgInteractive__rti__, DtRtiLibPath(), ForwarderStartupFailed, ForwarderSuccessfullyStarted, myClock, myConnInfo, myCreatedRtiForwarder, DtRIDParameters::networkInterfaceAddr(), NULL, DtRIDParameters::responseInterval, RetryStartingForwarder, DtRIDParameters::tcpPort, and DtRIDParameters::useRoutesFile().

Referenced by DtRtiExec().

bool DtRtiExec::tick ( bool noCallbacks = false )

virtual

Work performed here for each cycle in main loop.

Primarily processing messages and ticking each federation execution. Returns boolean: tick processed a message? If noCallbacks is true, no tick callbacks will be called

References connectMgr(), destroyFederationByName(), false, DtFedExec::fedExName(), myClock, myDisconnectedFederates, myExecByName, myMcastDiscoveryMgr, myNextHeartbeat, myParams, myTickCallbacks, myTickWithExecCallbacks, removeDroppedFederateConnections(), DtConnectionMgr::send(), DtMulitcastDiscoveryMgr::tick(), DtFedExec::tick(), and DtConnectionMgr::tick().
