MAK RTIspy API Documentation for HLA Evolved
List of all members | Public Member Functions | Static Public Member Functions | Private Member Functions | Private Attributes | Static Private Attributes
simpleTime1516.SimpleTime1516 Class Reference
+ Inheritance diagram for simpleTime1516.SimpleTime1516:

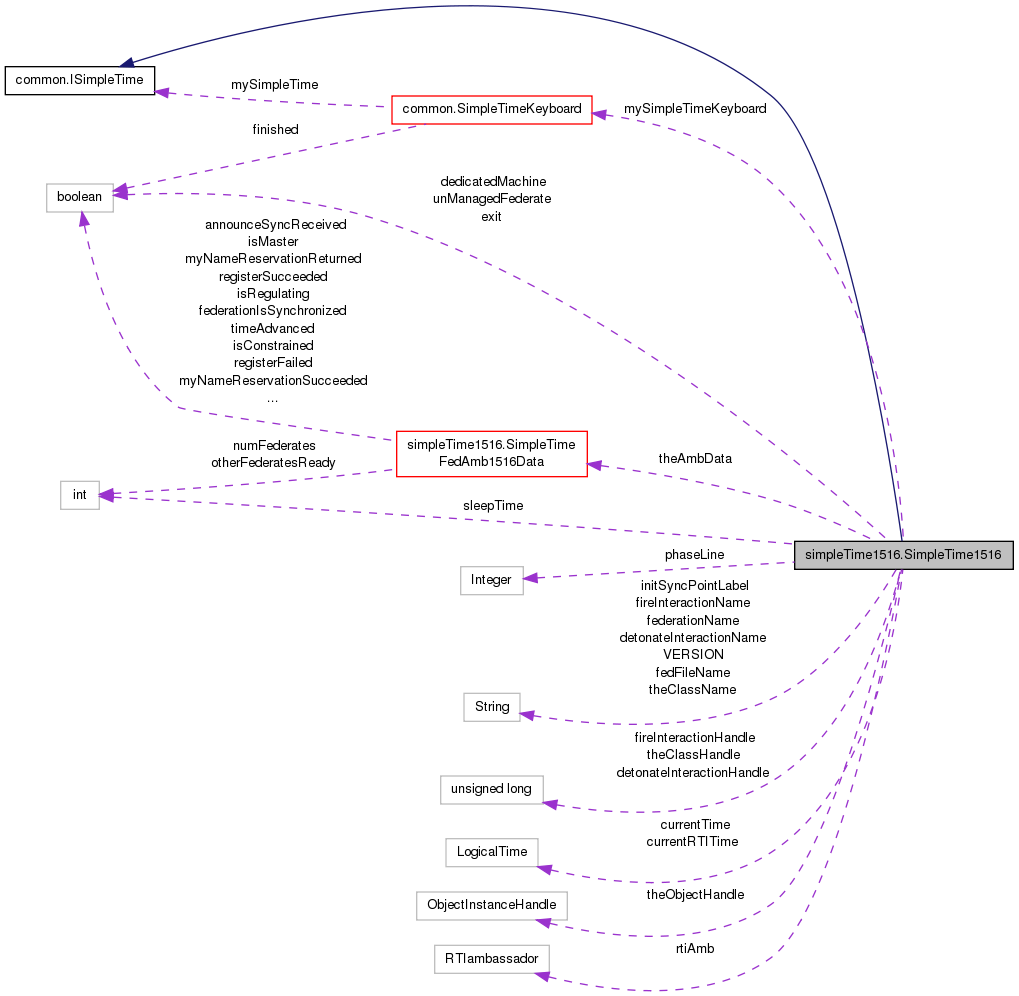

+ Collaboration diagram for simpleTime1516.SimpleTime1516:

Public Member Functions

 SimpleTime1516 ()
void performExit ()
 This should perform actions to close the program (stop threads, disconnect, resign, exit(0), etc)
boolean parseCmdLine (String[] args)
 This will parse CommandLine Arguments.
void start (String[] args) throws FederateNotExecutionMember, RTIinternalError, IllegalTimeArithmetic, ObjectInstanceNotKnown, AttributeNotDefined, AttributeNotOwned, SaveInProgress, RestoreInProgress, InteractionClassNotPublished, InteractionClassNotDefined, InteractionParameterNotDefined, TimeRegulationIsNotEnabled
 This is the entry point for the main of each SimpleTime Implementation.
void usage ()
 This prints to Standard out the usage (command line arguments you pass in and what they do)
void performFire ()
String version ()

Static Public Member Functions

static void main (String[] args) throws Exception

Private Member Functions

void sleepFunction ()
void yieldFunction ()
void cleanUpProgram (RTIambassador rtiAmb)
void isExiting (RTIambassador rtiAmb)
boolean publishAndSubscribeInteraction (RTIambassador rtiAmb) throws FederateNotExecutionMember
void synchronizeFederation (RTIambassador rtiAmb) throws FederateNotExecutionMember, RTIinternalError, SaveInProgress, RestoreInProgress
void minimalSleepFunction ()
int getIdentifier ()
String getHostname () throws UnknownHostException
void resignAndDestroy (RTIambassador rtiAmb)
boolean publishSubscribeAndRegisterObject (RTIambassador rtiAmb) throws FederateNotExecutionMember
void becomeConstrainedAndRegulating (RTIambassador rtiAmb, LogicalTime currentTime2, LogicalTimeInterval lookAhead)
void joinFedEx (RTIambassador rtiAmb, SimpleTimeFedAmb1516 fedAmb, String federateType)
void createFedEx (RTIambassador rtiAmb, String federationName2, String fedFileName2)
void exit ()
void printOutFedTime (LogicalTime time)
void printOutFedTime (LogicalTimeInterval time)

Private Attributes

LogicalTime currentRTITime
LogicalTime currentTime
boolean dedicatedMachine = false
InteractionClassHandle detonateInteractionHandle
String detonateInteractionName = "MunitionDetonation"
String federationName = "MAKsimpletime"
String fedFileName = "MAKsimpletime.xml"
InteractionClassHandle fireInteractionHandle
String fireInteractionName = "WeaponFire"
String initSyncPointLabel = "begin"
SimpleTimeKeyboard mySimpleTimeKeyboard
Integer phaseLine
int sleepTime = 850
SimpleTimeFedAmb1516Data theAmbData
ObjectClassHandle theClassHandle
String theClassName = "BaseEntity"
ObjectInstanceHandle theObjectHandle
boolean unManagedFederate = false
boolean exit
RTIambassador rtiAmb

Static Private Attributes

static final String VERSION = "SIMPLE_TIME_HLA1516"

Constructor & Destructor Documentation

simpleTime1516.SimpleTime1516.SimpleTime1516 ( )
inline

References simpleTime1516.SimpleTime1516.theAmbData.

Referenced by simpleTime1516.SimpleTime1516.main().

Member Function Documentation

void simpleTime1516.SimpleTime1516.becomeConstrainedAndRegulating ( RTIambassador  rtiAmb,
LogicalTime  currentTime2,
LogicalTimeInterval  lookAhead
)
inlineprivate

References simpleTime1516.SimpleTime1516.cleanUpProgram(), simpleTime1516.SimpleTime1516.exit(), simpleTime1516.SimpleTimeFedAmb1516Data.isConstrained, simpleTime1516.SimpleTime1516.isExiting(), simpleTime1516.SimpleTimeFedAmb1516Data.isRegulating, simpleTime1516.SimpleTime1516.minimalSleepFunction(), simpleTime1516.SimpleTime1516.theAmbData, and simpleTime1516.SimpleTime1516.yieldFunction().

Referenced by simpleTime1516.SimpleTime1516.start().

void simpleTime1516.SimpleTime1516.cleanUpProgram ( RTIambassador  rtiAmb)
inlineprivate

References simpleTime1516.SimpleTime1516.resignAndDestroy().

Referenced by simpleTime1516.SimpleTime1516.becomeConstrainedAndRegulating(), simpleTime1516.SimpleTime1516.isExiting(), simpleTime1516.SimpleTime1516.performExit(), simpleTime1516.SimpleTime1516.start(), and simpleTime1516.SimpleTime1516.synchronizeFederation().

void simpleTime1516.SimpleTime1516.createFedEx ( RTIambassador  rtiAmb,
String  federationName2,
String  fedFileName2
)
inlineprivate

References simpleTime1516.SimpleTime1516.federationName, simpleTime1516.SimpleTime1516.fedFileName, and common.StringUtil.findLocalFedFile().

Referenced by simpleTime1516.SimpleTime1516.start().

void simpleTime1516.SimpleTime1516.exit ( )
inlineprivate

Referenced by simpleTime1516.SimpleTime1516.becomeConstrainedAndRegulating(), simpleTime1516.SimpleTime1516.isExiting(), simpleTime1516.SimpleTime1516.performExit(), simpleTime1516.SimpleTime1516.start(), and simpleTime1516.SimpleTime1516.synchronizeFederation().

String simpleTime1516.SimpleTime1516.getHostname ( ) throws UnknownHostException
inlineprivate

Referenced by simpleTime1516.SimpleTime1516.synchronizeFederation().

int simpleTime1516.SimpleTime1516.getIdentifier ( )
inlineprivate

Referenced by simpleTime1516.SimpleTime1516.publishSubscribeAndRegisterObject(), and simpleTime1516.SimpleTime1516.synchronizeFederation().

void simpleTime1516.SimpleTime1516.isExiting ( RTIambassador  rtiAmb)
inlineprivate

References simpleTime1516.SimpleTime1516.cleanUpProgram(), and simpleTime1516.SimpleTime1516.exit().

Referenced by simpleTime1516.SimpleTime1516.becomeConstrainedAndRegulating(), simpleTime1516.SimpleTime1516.start(), and simpleTime1516.SimpleTime1516.synchronizeFederation().

void simpleTime1516.SimpleTime1516.joinFedEx ( RTIambassador  rtiAmb,
SimpleTimeFedAmb1516  fedAmb,
String  federateType
)
inlineprivate

References simpleTime1516.SimpleTime1516.federationName, and simpleTime1516.SimpleTime1516.performExit().

Referenced by simpleTime1516.SimpleTime1516.start().

static void simpleTime1516.SimpleTime1516.main ( String[]  args) throws Exception
inlinestatic

References simpleTime1516.SimpleTime1516.SimpleTime1516(), and simpleTime1516.SimpleTime1516.start().

void simpleTime1516.SimpleTime1516.minimalSleepFunction ( )
inlineprivate

Referenced by simpleTime1516.SimpleTime1516.becomeConstrainedAndRegulating(), and simpleTime1516.SimpleTime1516.synchronizeFederation().

boolean simpleTime1516.SimpleTime1516.parseCmdLine ( String[]  args)
inline

This will parse CommandLine Arguments.

Parameters
args
Returns
Exceptions

Implements common.ISimpleTime.

References simpleTime1516.SimpleTime1516.dedicatedMachine, simpleTime1516.SimpleTime1516.fedFileName, simpleTime1516.SimpleTimeFedAmb1516Data.getTimeManagedObject(), simpleTime1516.SimpleTime1516.phaseLine, simpleTime1516.SimpleTimeFedAmb1516Data.setMaster(), simpleTime1516.SimpleTimeFedAmb1516Data.setNumFederates(), simpleTime1516.SimpleTime1516.sleepTime, simpleTime1516.SimpleTime1516.theAmbData, simpleTime1516.SimpleTime1516.unManagedFederate, and simpleTime1516.SimpleTime1516.usage().

Referenced by simpleTime1516.SimpleTime1516.start().

void simpleTime1516.SimpleTime1516.performExit ( )
inlinevirtual

This should perform actions to close the program (stop threads, disconnect, resign, exit(0), etc)

Implements common.ISimpleTime.

References simpleTime1516.SimpleTime1516.cleanUpProgram(), simpleTime1516.SimpleTime1516.exit(), and simpleTime1516.SimpleTime1516.rtiAmb.

Referenced by simpleTime1516.SimpleTime1516.joinFedEx().

void simpleTime1516.SimpleTime1516.performFire ( )
inline

Implements common.ISimpleTime.

References simpleTime1516.SimpleTime1516.currentRTITime, simpleTime1516.SimpleTimeFedAmb1516Data.getTimeManagedObject(), simpleTime1516.SimpleTime1516.printOutFedTime(), and simpleTime1516.SimpleTime1516.theAmbData.

void simpleTime1516.SimpleTime1516.printOutFedTime ( LogicalTime  time)
inlineprivate

Referenced by simpleTime1516.SimpleTime1516.performFire(), and simpleTime1516.SimpleTime1516.start().

void simpleTime1516.SimpleTime1516.printOutFedTime ( LogicalTimeInterval  time)
inlineprivate
boolean simpleTime1516.SimpleTime1516.publishAndSubscribeInteraction ( RTIambassador  rtiAmb) throws FederateNotExecutionMember
inlineprivate

References simpleTime1516.SimpleTime1516.detonateInteractionHandle, simpleTime1516.SimpleTime1516.detonateInteractionName, simpleTime1516.SimpleTime1516.fireInteractionHandle, simpleTime1516.SimpleTime1516.fireInteractionName, simpleTime1516.SimpleTimeFedAmb1516Data.getInteractionClassMap(), simpleTime1516.SimpleTimeFedAmb1516Data.getOurParms(), simpleTime1516.SimpleTimeFedAmb1516Data.getParamValues(), simpleTime1516.SimpleTimeFedAmb1516Data.getTheParamNameHandleMap(), simpleTime1516.SimpleTime1516.rtiAmb, simpleTime1516.SimpleTimeFedAmb1516Data.setParamValues(), simpleTime1516.SimpleTime1516.theAmbData, and simpleTime1516.SimpleTime1516.theClassName.

Referenced by simpleTime1516.SimpleTime1516.start().

boolean simpleTime1516.SimpleTime1516.publishSubscribeAndRegisterObject ( RTIambassador  rtiAmb) throws FederateNotExecutionMember
inlineprivate

References simpleTime1516.SimpleTimeFedAmb1516Data.getAttrValues(), simpleTime1516.SimpleTime1516.getIdentifier(), simpleTime1516.SimpleTimeFedAmb1516Data.getObjectClassMap(), simpleTime1516.SimpleTimeFedAmb1516Data.getObjectInstanceMap(), simpleTime1516.SimpleTimeFedAmb1516Data.getOurAttrs(), simpleTime1516.SimpleTimeFedAmb1516Data.getTheAttrNameHandleMap(), simpleTime1516.SimpleTimeFedAmb1516Data.isMyNameReservationReturned(), simpleTime1516.SimpleTimeFedAmb1516Data.isMyNameReservationSucceeded(), simpleTime1516.SimpleTime1516.rtiAmb, simpleTime1516.SimpleTimeFedAmb1516Data.setAttrValues(), simpleTime1516.SimpleTimeFedAmb1516Data.setMyNameReservationReturned(), simpleTime1516.SimpleTimeFedAmb1516Data.setMyNameReservationSucceeded(), simpleTime1516.SimpleTime1516.theAmbData, simpleTime1516.SimpleTime1516.theClassHandle, simpleTime1516.SimpleTime1516.theClassName, and simpleTime1516.SimpleTime1516.theObjectHandle.

Referenced by simpleTime1516.SimpleTime1516.start().

void simpleTime1516.SimpleTime1516.resignAndDestroy ( RTIambassador  rtiAmb)
inlineprivate

References simpleTime1516.SimpleTime1516.federationName.

Referenced by simpleTime1516.SimpleTime1516.cleanUpProgram(), and simpleTime1516.SimpleTime1516.start().

void simpleTime1516.SimpleTime1516.sleepFunction ( )
inlineprivate

References simpleTime1516.SimpleTime1516.dedicatedMachine, and simpleTime1516.SimpleTime1516.sleepTime.

Referenced by simpleTime1516.SimpleTime1516.start().

void simpleTime1516.SimpleTime1516.start ( String[]  args) throws FederateNotExecutionMember, RTIinternalError, IllegalTimeArithmetic, ObjectInstanceNotKnown, AttributeNotDefined, AttributeNotOwned, SaveInProgress, RestoreInProgress, InteractionClassNotPublished, InteractionClassNotDefined, InteractionParameterNotDefined, TimeRegulationIsNotEnabled
inline

This is the entry point for the main of each SimpleTime Implementation.

Parameters
args

Implements common.ISimpleTime.

References simpleTime1516.SimpleTime1516.becomeConstrainedAndRegulating(), simpleTime1516.SimpleTime1516.cleanUpProgram(), simpleTime1516.SimpleTime1516.createFedEx(), simpleTime1516.SimpleTime1516.currentRTITime, simpleTime1516.SimpleTime1516.currentTime, simpleTime1516.SimpleTime1516.detonateInteractionHandle, simpleTime1516.SimpleTime1516.exit(), simpleTime1516.SimpleTime1516.federationName, simpleTime1516.SimpleTime1516.fedFileName, simpleTime1516.SimpleTime1516.fireInteractionHandle, simpleTime1516.SimpleTimeFedAmb1516Data.getAttrValues(), simpleTime1516.SimpleTimeFedAmb1516Data.getParamValues(), simpleTime1516.SimpleTimeFedAmb1516Data.getTheParamNameHandleMap(), simpleTime1516.SimpleTimeFedAmb1516Data.getTimeManagedObject(), simpleTime1516.SimpleTime1516.isExiting(), simpleTime1516.SimpleTimeFedAmb1516Data.isRegulating, simpleTime1516.SimpleTimeFedAmb1516Data.isTimeAdvanced(), simpleTime1516.SimpleTime1516.joinFedEx(), simpleTime1516.SimpleTime1516.mySimpleTimeKeyboard, simpleTime1516.SimpleTime1516.parseCmdLine(), simpleTime1516.SimpleTime1516.printOutFedTime(), simpleTime1516.SimpleTime1516.publishAndSubscribeInteraction(), simpleTime1516.SimpleTime1516.publishSubscribeAndRegisterObject(), simpleTime1516.SimpleTime1516.resignAndDestroy(), simpleTime1516.SimpleTime1516.rtiAmb, simpleTime1516.SimpleTimeFedAmb1516Data.setTimeAdvanced(), simpleTime1516.SimpleTime1516.sleepFunction(), common.SimpleTimeKeyboard.startKeyboardScanner(), common.SimpleTimeKeyboard.stopKeyboardScanner(), simpleTime1516.SimpleTime1516.synchronizeFederation(), simpleTime1516.SimpleTime1516.theAmbData, simpleTime1516.SimpleTime1516.theObjectHandle, simpleTime1516.SimpleTime1516.unManagedFederate, and simpleTime1516.SimpleTime1516.yieldFunction().

Referenced by simpleTime1516.SimpleTime1516.main().

void simpleTime1516.SimpleTime1516.synchronizeFederation ( RTIambassador  rtiAmb) throws FederateNotExecutionMember, RTIinternalError, SaveInProgress, RestoreInProgress
inlineprivate

References simpleTime1516.SimpleTime1516.cleanUpProgram(), simpleTime1516.SimpleTime1516.exit(), simpleTime1516.SimpleTime1516.getHostname(), simpleTime1516.SimpleTime1516.getIdentifier(), simpleTime1516.SimpleTimeFedAmb1516Data.getNumFederates(), simpleTime1516.SimpleTimeFedAmb1516Data.getOtherFederatesReady(), simpleTime1516.SimpleTime1516.initSyncPointLabel, simpleTime1516.SimpleTimeFedAmb1516Data.isAnnounceSyncReceived(), simpleTime1516.SimpleTime1516.isExiting(), simpleTime1516.SimpleTimeFedAmb1516Data.isFederationIsSynchronized(), simpleTime1516.SimpleTimeFedAmb1516Data.isMaster, simpleTime1516.SimpleTimeFedAmb1516Data.isRegisterFailed(), simpleTime1516.SimpleTimeFedAmb1516Data.isRegisterSucceeded(), simpleTime1516.SimpleTime1516.minimalSleepFunction(), simpleTime1516.SimpleTime1516.rtiAmb, simpleTime1516.SimpleTime1516.theAmbData, and simpleTime1516.SimpleTime1516.yieldFunction().

Referenced by simpleTime1516.SimpleTime1516.start().

void simpleTime1516.SimpleTime1516.usage ( )
inline

This prints to Standard out the usage (command line arguments you pass in and what they do)

Implements common.ISimpleTime.

Referenced by simpleTime1516.SimpleTime1516.parseCmdLine().

String simpleTime1516.SimpleTime1516.version ( )
inline

Implements common.ISimpleTime.

References simpleTime1516.SimpleTime1516.VERSION.

void simpleTime1516.SimpleTime1516.yieldFunction ( )
inlineprivate

References simpleTime1516.SimpleTime1516.dedicatedMachine, and simpleTime1516.SimpleTime1516.sleepTime.

Referenced by simpleTime1516.SimpleTime1516.becomeConstrainedAndRegulating(), simpleTime1516.SimpleTime1516.start(), and simpleTime1516.SimpleTime1516.synchronizeFederation().

Member Data Documentation

LogicalTime simpleTime1516.SimpleTime1516.currentRTITime
private

Referenced by simpleTime1516.SimpleTime1516.performFire(), and simpleTime1516.SimpleTime1516.start().

LogicalTime simpleTime1516.SimpleTime1516.currentTime
private

Referenced by simpleTime1516.SimpleTime1516.start().

boolean simpleTime1516.SimpleTime1516.dedicatedMachine = false
private

Referenced by simpleTime1516.SimpleTime1516.parseCmdLine(), simpleTime1516.SimpleTime1516.sleepFunction(), and simpleTime1516.SimpleTime1516.yieldFunction().

InteractionClassHandle simpleTime1516.SimpleTime1516.detonateInteractionHandle
private

Referenced by simpleTime1516.SimpleTime1516.publishAndSubscribeInteraction(), and simpleTime1516.SimpleTime1516.start().

String simpleTime1516.SimpleTime1516.detonateInteractionName = "MunitionDetonation"
private

Referenced by simpleTime1516.SimpleTime1516.publishAndSubscribeInteraction().

boolean simpleTime1516.SimpleTime1516.exit
private
String simpleTime1516.SimpleTime1516.federationName = "MAKsimpletime"
private

Referenced by simpleTime1516.SimpleTime1516.createFedEx(), simpleTime1516.SimpleTime1516.joinFedEx(), simpleTime1516.SimpleTime1516.resignAndDestroy(), and simpleTime1516.SimpleTime1516.start().

String simpleTime1516.SimpleTime1516.fedFileName = "MAKsimpletime.xml"
private

Referenced by simpleTime1516.SimpleTime1516.createFedEx(), simpleTime1516.SimpleTime1516.parseCmdLine(), and simpleTime1516.SimpleTime1516.start().

InteractionClassHandle simpleTime1516.SimpleTime1516.fireInteractionHandle
private

Referenced by simpleTime1516.SimpleTime1516.publishAndSubscribeInteraction(), and simpleTime1516.SimpleTime1516.start().

String simpleTime1516.SimpleTime1516.fireInteractionName = "WeaponFire"
private

Referenced by simpleTime1516.SimpleTime1516.publishAndSubscribeInteraction().

String simpleTime1516.SimpleTime1516.initSyncPointLabel = "begin"
private

Referenced by simpleTime1516.SimpleTime1516.synchronizeFederation().

SimpleTimeKeyboard simpleTime1516.SimpleTime1516.mySimpleTimeKeyboard
private

Referenced by simpleTime1516.SimpleTime1516.start().

Integer simpleTime1516.SimpleTime1516.phaseLine
private

Referenced by simpleTime1516.SimpleTime1516.parseCmdLine().

RTIambassador simpleTime1516.SimpleTime1516.rtiAmb
private

Referenced by simpleTime1516.SimpleTime1516.performExit(), simpleTime1516.SimpleTime1516.publishAndSubscribeInteraction(), simpleTime1516.SimpleTime1516.publishSubscribeAndRegisterObject(), simpleTime1516.SimpleTime1516.start(), and simpleTime1516.SimpleTime1516.synchronizeFederation().

int simpleTime1516.SimpleTime1516.sleepTime = 850
private

Referenced by simpleTime1516.SimpleTime1516.parseCmdLine(), simpleTime1516.SimpleTime1516.sleepFunction(), and simpleTime1516.SimpleTime1516.yieldFunction().

SimpleTimeFedAmb1516Data simpleTime1516.SimpleTime1516.theAmbData
private

Referenced by simpleTime1516.SimpleTime1516.becomeConstrainedAndRegulating(), simpleTime1516.SimpleTime1516.parseCmdLine(), simpleTime1516.SimpleTime1516.performFire(), simpleTime1516.SimpleTime1516.publishAndSubscribeInteraction(), simpleTime1516.SimpleTime1516.publishSubscribeAndRegisterObject(), simpleTime1516.SimpleTime1516.SimpleTime1516(), simpleTime1516.SimpleTime1516.start(), and simpleTime1516.SimpleTime1516.synchronizeFederation().

ObjectClassHandle simpleTime1516.SimpleTime1516.theClassHandle
private

Referenced by simpleTime1516.SimpleTime1516.publishSubscribeAndRegisterObject().

String simpleTime1516.SimpleTime1516.theClassName = "BaseEntity"
private

Referenced by simpleTime1516.SimpleTime1516.publishAndSubscribeInteraction(), and simpleTime1516.SimpleTime1516.publishSubscribeAndRegisterObject().

ObjectInstanceHandle simpleTime1516.SimpleTime1516.theObjectHandle
private

Referenced by simpleTime1516.SimpleTime1516.publishSubscribeAndRegisterObject(), and simpleTime1516.SimpleTime1516.start().

boolean simpleTime1516.SimpleTime1516.unManagedFederate = false
private

Referenced by simpleTime1516.SimpleTime1516.parseCmdLine(), and simpleTime1516.SimpleTime1516.start().

final String simpleTime1516.SimpleTime1516.VERSION = "SIMPLE_TIME_HLA1516"
staticprivate

Referenced by simpleTime1516.SimpleTime1516.version().

The documentation for this class was generated from the following file:
