DtBaseConfig Class Reference

Stores the base configuration information and handles saving and loading this information from an XML file. More...

Inheritance diagram for DtBaseConfig:

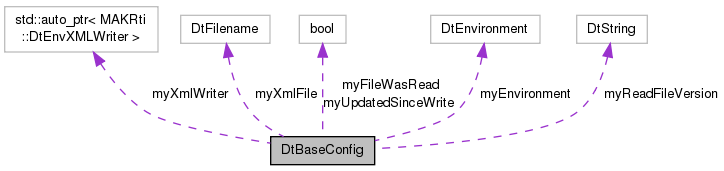

Collaboration diagram for DtBaseConfig:

Public Member Functions
	DtBaseConfig (const MAKRti::DtFilename &xmlFile)
	Constructor.
virtual	~DtBaseConfig ()
	Destructor.
virtual void	writeToFile ()
	Writes the configuration to the default XML file specified at creation.
virtual void	writeToFile (const MAKRti::DtFilename &xmlFile)
	Writes the configuration to the specified XML file.
virtual bool	getFileVersion (MAKRti::DtString &version) const
	Returns the RTI version of the file that was read.
virtual bool	isFileVersionOld () const
	is the file read version different than the current version
virtual void	needsUpdate ()
	sets the update flag
virtual std::ostream &	print (std::ostream &ostr) const
	Prints the configuration to the given output stream.

Protected Member Functions
virtual void	setDefaultConfig ()=0
	Sets the default configuration.
MAKRti::DtEnvValueSP	setParam (const MAKRti::DtString &name, const MAKRti::DtString &val, const MAKRti::DtString &comment=MAKRti::DtString::nullString())
	Sets (or adds) the given parameter to the configuration.
MAKRti::DtEnvValueSP	getParam (const MAKRti::DtString &name)
	Gets the parameter with the given name.

Protected Attributes
MAKRti::DtEnvironment	myEnvironment
	The Base configuration environment.
std::auto_ptr < MAKRti::DtEnvXMLWriter >	myXmlWriter
	Document writer - used to convert the document to XML in memory or file myXmlWriter is persistent so that the XML memory buffer does not re-allocate as often.
MAKRti::DtFilename	myXmlFile
	The name of the default XML file to read from and write to.
bool	myUpdatedSinceWrite
	Flag indicating if the environment has changed since the last time it was written to the default file.
MAKRti::DtString	myReadFileVersion
	The version of the file that was read.
bool	myFileWasRead
	Indicates whether a cache file was found and read.

Private Member Functions
	DtBaseConfig (const DtBaseConfig &)
	Copy and assignment not allowed.
DtBaseConfig &	operator= (const DtBaseConfig &)

Detailed Description

Stores the base configuration information and handles saving and loading this information from an XML file.

Constructor & Destructor Documentation

DtBaseConfig::DtBaseConfig

(

const MAKRti::DtFilename &

xmlFile

)

Constructor.

Creates an Base configuration from the given XML file. If the file cannot be found, a default configuration is created. In this case the file name will be saved as the default file if the configuration needs to be written later.

DtBaseConfig::~DtBaseConfig ( )

virtual

Destructor.

DtBaseConfig::DtBaseConfig ( const DtBaseConfig &  )

private

Copy and assignment not allowed.

Member Function Documentation

bool DtBaseConfig::getFileVersion ( MAKRti::DtString &  version ) const

virtual

Returns the RTI version of the file that was read.

Returns false if no file was read.

References myFileWasRead, and myReadFileVersion.

Referenced by isFileVersionOld().

DtEnvValueSP DtBaseConfig::getParam ( const MAKRti::DtString &  name )

protected

Gets the parameter with the given name.

References myEnvironment.

Referenced by DtExecConfig::constrainedColumnInfo(), DtExecConfig::currentTimeColumnInfo(), DtExecConfig::federateHandleColumnInfo(), DtExecConfig::federateNameColumnInfo(), DtExecConfig::federationFederateColumnInfo(), DtExecConfig::hlaVersionColumnInfo(), DtExecConfig::ipAddressColumnInfo(), DtExecConfig::lBTSColumnInfo(), DtExecConfig::lookaheadColumnInfo(), DtExecConfig::regulatingColumnInfo(), DtForwarderConfig::rtiForwarderConsoleVisible(), DtExecConfig::testCountColumnInfo(), and DtExecConfig::testStatusColumnInfo().

bool DtBaseConfig::isFileVersionOld ( ) const

virtual

is the file read version different than the current version

References DtRtiVersionNumber, and getFileVersion().

void DtBaseConfig::needsUpdate ( )

virtual

sets the update flag

References myUpdatedSinceWrite.

DtBaseConfig& DtBaseConfig::operator= ( const DtBaseConfig &  )

private

std::ostream & DtBaseConfig::print ( std::ostream &  ostr ) const

virtual

Prints the configuration to the given output stream.

References myEnvironment.

Referenced by operator<<().

virtual void DtBaseConfig::setDefaultConfig ( )

protectedpure virtual

Sets the default configuration.

Implemented in DtExecConfig, and DtForwarderConfig.

DtEnvValueSP DtBaseConfig::setParam ( const MAKRti::DtString &  name, const MAKRti::DtString &  val, const MAKRti::DtString &  comment = MAKRti::DtString::nullString()  )

protected

Sets (or adds) the given parameter to the configuration.

An optional comment may be specified, but it will only be added if the parameter is new.

References myEnvironment.

Referenced by DtExecConfig::setConstrainedColumnInfoPosition(), DtExecConfig::setConstrainedColumnInfoVisible(), DtExecConfig::setCurrentTimeColumnInfoPosition(), DtExecConfig::setCurrentTimeColumnInfoVisible(), DtExecConfig::setFederateHandleColumnInfoPosition(), DtExecConfig::setFederateHandleColumnInfoVisible(), DtExecConfig::setFederateNameColumnInfoPosition(), DtExecConfig::setFederateNameColumnInfoVisible(), DtExecConfig::setFederationFederateColumnInfoPosition(), DtExecConfig::setFederationFederateColumnInfoVisible(), DtExecConfig::setHlaVersionColumnInfoPosition(), DtExecConfig::setHlaVersionColumnInfoVisible(), DtExecConfig::setIpAddressColumnInfoPosition(), DtExecConfig::setIpAddressColumnInfoVisible(), DtExecConfig::setLBTSColumnInfoPosition(), DtExecConfig::setLBTSColumnInfoVisible(), DtExecConfig::setLookaheadColumnInfoPosition(), DtExecConfig::setLookaheadColumnInfoVisible(), DtExecConfig::setRegulatingColumnInfoPosition(), DtExecConfig::setRegulatingColumnInfoVisible(), DtForwarderConfig::setRtiForwarderConsoleVisible(), DtExecConfig::setTestCountColumnInfoPosition(), DtExecConfig::setTestCountColumnInfoVisible(), DtExecConfig::setTestStatusColumnInfoPosition(), and DtExecConfig::setTestStatusColumnInfoVisible().

void DtBaseConfig::writeToFile ( )

virtual

Writes the configuration to the default XML file specified at creation.

References myUpdatedSinceWrite, and myXmlFile.

virtual void DtBaseConfig::writeToFile ( const MAKRti::DtFilename &  xmlFile )

virtual

Writes the configuration to the specified XML file.

Member Data Documentation

MAKRti::DtEnvironment DtBaseConfig::myEnvironment

protected

The Base configuration environment.

Referenced by getParam(), print(), and setParam().

bool DtBaseConfig::myFileWasRead

protected

Indicates whether a cache file was found and read.

Referenced by getFileVersion().

MAKRti::DtString DtBaseConfig::myReadFileVersion

protected

The version of the file that was read.

Referenced by getFileVersion().

bool DtBaseConfig::myUpdatedSinceWrite

protected

Flag indicating if the environment has changed since the last time it was written to the default file.

Referenced by needsUpdate(), DtExecConfig::setConstrainedColumnInfoPosition(), DtExecConfig::setConstrainedColumnInfoVisible(), DtExecConfig::setCurrentTimeColumnInfoPosition(), DtExecConfig::setCurrentTimeColumnInfoVisible(), DtExecConfig::setFederateHandleColumnInfoPosition(), DtExecConfig::setFederateHandleColumnInfoVisible(), DtExecConfig::setFederateNameColumnInfoPosition(), DtExecConfig::setFederateNameColumnInfoVisible(), DtExecConfig::setFederationFederateColumnInfoPosition(), DtExecConfig::setFederationFederateColumnInfoVisible(), DtExecConfig::setHlaVersionColumnInfoPosition(), DtExecConfig::setHlaVersionColumnInfoVisible(), DtExecConfig::setIpAddressColumnInfoPosition(), DtExecConfig::setIpAddressColumnInfoVisible(), DtExecConfig::setLBTSColumnInfoPosition(), DtExecConfig::setLBTSColumnInfoVisible(), DtExecConfig::setLookaheadColumnInfoPosition(), DtExecConfig::setLookaheadColumnInfoVisible(), DtExecConfig::setRegulatingColumnInfoPosition(), DtExecConfig::setRegulatingColumnInfoVisible(), DtForwarderConfig::setRtiForwarderConsoleVisible(), DtExecConfig::setTestCountColumnInfoPosition(), DtExecConfig::setTestCountColumnInfoVisible(), DtExecConfig::setTestStatusColumnInfoPosition(), DtExecConfig::setTestStatusColumnInfoVisible(), and writeToFile().

MAKRti::DtFilename DtBaseConfig::myXmlFile

protected

The name of the default XML file to read from and write to.

Referenced by writeToFile().

std::auto_ptr< MAKRti::DtEnvXMLWriter > DtBaseConfig::myXmlWriter

protected

Document writer - used to convert the document to XML in memory or file myXmlWriter is persistent so that the XML memory buffer does not re-allocate as often.

---

The documentation for this class was generated from the following files:

• baseConfig.h
• baseConfig.cxx
