DtLanForwarderPort Class Reference

The DtForwarderPort is an Abstract Base Class which provides the interface to a collection of connections from which messages may be read and to which messages may be sent. More...

Inheritance diagram for DtLanForwarderPort:

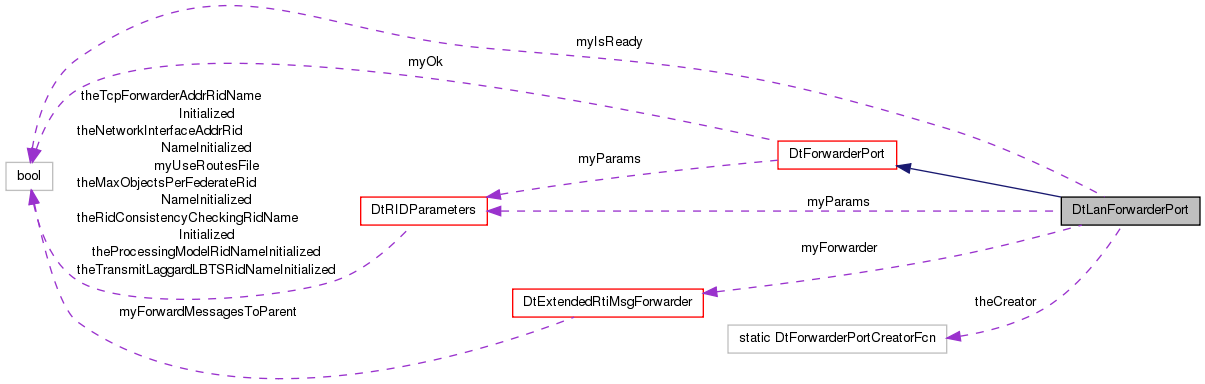

Collaboration diagram for DtLanForwarderPort:

Public Member Functions
virtual	~DtLanForwarderPort ()
virtual bool	isReady () const
	Is the Port fully usable and available?
virtual DtAddressMsgPair	getNextMsg ()
	Get the next message to forward and the source connection.
virtual void	sendByTransport (const DtForwarderMsg &msg) const
	Check transport metadata and send message to appropriate destinations.
virtual void	sendToAllReliable (const DtForwarderMsg &msg) const
	Send a message via reliable transport to all available destinations.
virtual void	sendToListReliable (const DtForwarderMsg &msg, const DtAddressPortList &destinations) const
	Send a message via reliable transport to the specified list of destinations.
virtual bool	flush ()
	Flush any unsent/buffered packets; return true if flush sent data.
virtual void	setForwarderId (unsigned long id)
	Set forwarder ID.
virtual void	selectParams (MAKRti::DtSelectParamWithWrite &selectParams)
	Add this port's current select() notification set to the passed set.
virtual void	updateRoutes ()
	Handle changes to the Routing map.
virtual int	checkConnectionStatus (const DtInetAddrAndPort *target=0)
	Test for lost connections - returns true if targeted connection is active or if no target specified returns false if at least one drop detected.
virtual void	clearNeededConnections ()
	Clear the list of connections that this forwarder needs to establish.
virtual unsigned int	abortPendingConnections ()
	Abort any embryonic connections.
unsigned int	pendingConnectionsAborted ()
	Return count of aborted connections.
virtual DtAddressPortList	connections () const
	Get the list of all current connections to this port.
virtual void	listenToMulticastGroup (const MAKRti::DtInetAddr &mcastAddr)
	Listen / drop multicast groups (LAN-port-only)
virtual void	dropMulticastGroup (const MAKRti::DtInetAddr &mcastAddr)
virtual bool	updateFederateConnectionId (unsigned long orig, unsigned long final)
	Update locally connected federate connection ID (LAN-port-only)
virtual const DtFederateTrackingFilter *	fedTrackingFilter () const
	return federateTrackingFilter
virtual bool	populateConnectionInformation (unsigned int &numForwarderClientConns, unsigned int &numForwarderExecConns, std::vector< MAKRti::DtString > &clientConnectionHostNames, std::vector< MAKRti::DtInetAddr > &clientConnectionAddrs) const
Public Member Functions inherited from DtForwarderPort
virtual	~DtForwarderPort ()
virtual bool	isOk () const
	Is the Port still alive?
virtual void	addConnectionEstablishedCb (DtConnectionChangeCb callback, void *usr)
	Register/Unregister a callback for new connections.
virtual void	removeConnectionEstablishedCb (DtConnectionChangeCb callback, void *usr)
virtual void	addConnectionLostCb (DtConnectionChangeCb callback, void *usr)
	Register/Unregister a callback for dropped connections.
virtual void	removeConnectionLostCb (DtConnectionChangeCb callback, void *usr)
virtual void	addForwarderPortReadyCb (DtPortReadyCb callback, void *usr)
virtual void	removeForwarderPortReadyCb (DtPortReadyCb callback, void *usr)
virtual void	addFederateJoinedCb (DtFederateAddedCb callback, void *usr)
virtual void	removeFederateJoinedCb (DtFederateAddedCb callback, void *usr)
virtual void	addFederateResignedCb (DtFederateRemovedCb callback, void *usr)
virtual void	removeFederateResignedCb (DtFederateRemovedCb callback, void *usr)
virtual void	addSocketQueueCb (DtSocketQueueCb callback, void *usr)
	Register/Unregister a callback for socket queuing.
virtual void	removeSocketQueueCb (DtSocketQueueCb callback, void *usr)
virtual void	addWaitingForForwarderConnectionsCb (DtWaitingForFwsCb callback, void *usr)
	Register/Unregister a callback for entrance to the "waiting for forwarder connections" state.
virtual void	removeWaitingForForwarderConnectionsCb (DtWaitingForFwsCb callback, void *usr)
virtual void	addNotWaitingForForwarderConnectionsCb (DtNotWaitingForFwsCb callback, void *usr)
	Register/Unregister a callback for exit from the "waiting for forwarder connections" state.
virtual void	removeNotWaitingForForwarderConnectionsCb (DtNotWaitingForFwsCb callback, void *usr)
virtual void	addExecConnectionEstablishedCb (DtExecAddChangeCb callback, void *usr)
virtual void	removeExecConnectionEstablishedCb (DtExecAddChangeCb callback, void *usr)
virtual void	addExecDisconnectedCb (DtExecRemovedChangeCb callback, void *usr)
virtual void	removeExecDisconnectedCb (DtExecRemovedChangeCb callback, void *usr)
virtual int	execConnected (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr, const MAKRti::DtString &hostName, bool fullyCompliant)
virtual int	execDisconnected (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr)
virtual int	socketQueueStatus (unsigned int connId, int connQueueStatus)
virtual void	forwarderNodeIsReady (unsigned long id)
virtual void	waitingForForwarderConnections (const DtConnAndNameMap &allNeededFws, const DtConnAndNameMap &stillNeededFws)
	Specifies that this port is waiting for other forwarder connections.
virtual void	notWaitingForForwarderConnections ()

Static Public Member Functions
static DtForwarderPort *	create (const DtRIDParameters *params, const DtBoost::shared_ptr< DtRouteMap > routes, const MAKRti::DtInetAddr &host, int forwarderPort, const MAKRti::DtInetAddr &forwardertoConnectTo)
	Creates an instance of a DtLanForwarderPort.
static void	setCreatorFunction (DtForwarderPortCreatorFcn creator)
	Call this function to set an alternate creator function With this function, users can replace this DtLanForwarderPort with their own derived class.

Protected Member Functions
	DtLanForwarderPort (const DtRIDParameters *params, DtBoost::shared_ptr< DtRouteMap > routes, const MAKRti::DtInetAddr &host, int forwarderPort, const MAKRti::DtInetAddr &forwardertoConnectTo)
	Base Ctor - called by default creator.
	DtLanForwarderPort ()
	Default Ctor, Copy Ctor, Assignment - unimplemented.
	DtLanForwarderPort (const DtLanForwarderPort &orig)
DtLanForwarderPort &	operator= (const DtLanForwarderPort &orig)
Protected Member Functions inherited from DtForwarderPort
	DtForwarderPort (const DtRIDParameters *params, DtBoost::shared_ptr< DtRouteMap > routes, MAKRti::DtInetAddr host, int forwarderPort, MAKRti::DtInetAddr addnlConnection)
virtual int	connectionEstablished (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr)
	Call the appropriate callbacks for New or Lost connections.
virtual int	connectionLost (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr)
virtual void	federateResigned (const MAKRti::DtString &connName, const MAKRti::DtString &connType, unsigned int connID, unsigned int fedHandle, const DtInetAddrAndPort &addr)
virtual void	federateJoined (const MAKRti::DtString &connName, const MAKRti::DtString &connType, const MAKRti::DtString &federationName, unsigned int connID, unsigned int fedHandle, const DtInetAddrAndPort &addr, const MAKRti::DtString &hostName, unsigned int processId, const MAKRti::DtString &processName, const MAKRti::DtString &commandArgs, DtHlaVersionId hlaVersion)

Protected Attributes
const DtRIDParameters *	myParams
DtExtendedRtiMsgForwarder *	myForwarder
bool	myIsReady
Protected Attributes inherited from DtForwarderPort
const DtRIDParameters *	myParams
DtBoost::shared_ptr< DtRouteMap >	myRoutes
const MAKRti::DtInetAddr	myAddress
bool	myOk
int	myPortToUse
MAKRti::DtInetAddr	myAdditionalAddrToConnectTo
DtCallbackList	myConnectionEstablishedCbs
DtCallbackList	myConnectionLostCbs
DtFederateAddedCallbackList	myFederateJoinedCbs
DtFederateRemovedCallbackList	myFederateResignedCbs
DtPortReadyCallbackList	myPortReadyCbs
DtExecAddedCallbackList	myExecConnectedCbs
DtExecRemovedCallbackList	myExecDisconnectedCbs
DtSocketQueueCallbackList	mySocketQueueCbs
DtWaitingForFwsCallbackList	myWaitingForFwsCbs
DtNotWaitingForFwsCallbackList	myNotWaitingForFwsCbs

Static Protected Attributes
static DtForwarderPortCreatorFcn	theCreator = 0

Additional Inherited Members
Public Types inherited from DtForwarderPort
typedef DtForwarderPort *(*	DtForwarderPortCreatorFcn )(const DtRIDParameters *, const DtBoost::shared_ptr< DtRouteMap >, const MAKRti::DtInetAddr &, int, const MAKRti::DtInetAddr &)
	DtForwarderPort creator signature.
typedef DtRouteMap::DtAddressPortList	DtAddressPortList
typedef DtRouteMap::DtAddressList	DtAddressList
typedef DtRouteMap::DtInterfaceAddrSet	DtInterfaceAddrSet
typedef std::vector < DtTcpMsgSocket * >	DtSocketList
typedef std::set < DtTcpMsgSocket * >	DtSocketSet
typedef std::pair < DtInetAddrAndPort, DtForwarderMsg >	DtAddressMsgPair
typedef std::pair < DtTcpMsgSocket *, DtForwarderMsg >	DtSockMsgPair
typedef std::map < DtInetAddrAndPort, DtTcpMsgSocket * >	DtAddrToConnMap
typedef std::map < DtInetAddrAndPort, MAKRti::DtString >	DtConnAndNameMap
typedef int(*	DtConnectionChangeCb )(const MAKRti::DtString &, unsigned int, const DtInetAddrAndPort &, void *)
typedef void(*	DtFederateAddedCb )(const MAKRti::DtString &, const MAKRti::DtString &, const MAKRti::DtString &, unsigned int, unsigned int, const DtInetAddrAndPort &, const MAKRti::DtString &, unsigned int, const MAKRti::DtString &, const MAKRti::DtString &, DtHlaVersionId, void *)
typedef void(*	DtFederateRemovedCb )(const MAKRti::DtString &, const MAKRti::DtString &, unsigned int, unsigned int, const DtInetAddrAndPort &, void *)
typedef void(*	DtPortReadyCb )(unsigned long, void *)
typedef int(*	DtExecAddChangeCb )(const MAKRti::DtString &, unsigned int, const DtInetAddrAndPort &, const MAKRti::DtString &, bool, void *)
typedef int(*	DtExecRemovedChangeCb )(const MAKRti::DtString &, unsigned int, const DtInetAddrAndPort &, void *)
typedef int(*	DtSocketQueueCb )(unsigned int, int, void *)
typedef void(*	DtWaitingForFwsCb )(const DtConnAndNameMap &, const DtConnAndNameMap &, void *)
typedef void(*	DtNotWaitingForFwsCb )(void *)
typedef std::vector< std::pair < DtConnectionChangeCb, void * > >	DtCallbackList
typedef std::vector< std::pair < DtFederateAddedCb, void * > >	DtFederateAddedCallbackList
typedef std::vector< std::pair < DtFederateRemovedCb, void * > >	DtFederateRemovedCallbackList
typedef std::vector< std::pair < DtPortReadyCb, void * > >	DtPortReadyCallbackList
typedef std::vector< std::pair < DtExecAddChangeCb, void * > >	DtExecAddedCallbackList
typedef std::vector< std::pair < DtExecRemovedChangeCb, void * > >	DtExecRemovedCallbackList
typedef std::vector< std::pair < DtSocketQueueCb, void * > >	DtSocketQueueCallbackList
typedef std::vector< std::pair < DtWaitingForFwsCb, void * > >	DtWaitingForFwsCallbackList
typedef std::vector< std::pair < DtNotWaitingForFwsCb, void * > >	DtNotWaitingForFwsCallbackList
Static Protected Member Functions inherited from DtForwarderPort
static int	connectionEstablished (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr, void *usr)
static int	connectionLost (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr, void *usr)
static void	federateJoined (const MAKRti::DtString &connName, const MAKRti::DtString &connType, const MAKRti::DtString &federationName, unsigned int connID, unsigned int fedHandle, const DtInetAddrAndPort &addr, const MAKRti::DtString &hostName, unsigned int processId, const MAKRti::DtString &processName, const MAKRti::DtString &commandArgs, DtHlaVersionId hlaVersion, void *usr)
static void	federateResigned (const MAKRti::DtString &connName, const MAKRti::DtString &connType, unsigned int connID, unsigned int fedHandle, const DtInetAddrAndPort &addr, void *usr)
static int	execConnected (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr, const MAKRti::DtString &hostName, bool fullyCompliant, void *usr)
static int	execDisconnected (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr, void *usr)
static int	socketQueueStatus (unsigned int connId, int connQueueStatus, void *usr)
static void	forwarderNodeIsReady (unsigned long id, void *usr)

Detailed Description

The DtForwarderPort is an Abstract Base Class which provides the interface to a collection of connections from which messages may be read and to which messages may be sent.

Constructor & Destructor Documentation

DtLanForwarderPort::DtLanForwarderPort ( const DtRIDParameters *  params, DtBoost::shared_ptr< DtRouteMap >  routes, const MAKRti::DtInetAddr &  host, int  forwarderPort, const MAKRti::DtInetAddr &  forwardertoConnectTo  )

protected

Base Ctor - called by default creator.

References DtExtendedRtiMsgForwarder::addExecConnectionEstablishedCb(), DtExtendedRtiMsgForwarder::addExecConnectionLostCb(), DtExtendedRtiMsgForwarder::addFederateJoinedCb(), DtExtendedRtiMsgForwarder::addFederateResignedCb(), DtExtendedRtiMsgForwarder::addSocketAdditionCb(), DtExtendedRtiMsgForwarder::addSocketRemovalCb(), DtExtendedRtiMsgForwarder::applyFilters(), DtForwarderPort::connectionEstablished(), DtForwarderPort::connectionLost(), DtForwarderPort::execConnected(), DtForwarderPort::execDisconnected(), DtForwarderPort::federateJoined(), DtForwarderPort::federateResigned(), myForwarder, myIsReady, and DtForwarderPort::myRoutes.

DtLanForwarderPort::~DtLanForwarderPort ( )

virtual

References DtForwarderPort::execConnected(), DtForwarderPort::execDisconnected(), myForwarder, DtExtendedRtiMsgForwarder::removeExecConnectionEstablishedCb(), and DtExtendedRtiMsgForwarder::removeExecConnectionLostCb().

DtLanForwarderPort::DtLanForwarderPort ( )

protected

Default Ctor, Copy Ctor, Assignment - unimplemented.

Referenced by create().

DtLanForwarderPort::DtLanForwarderPort ( const DtLanForwarderPort &  orig )

protected

Member Function Documentation

unsigned int DtLanForwarderPort::abortPendingConnections ( )

virtual

Abort any embryonic connections.

Since LAN port does not initiate connections it cannot abort them either, so this method always returns 0

Implements DtForwarderPort.

int DtLanForwarderPort::checkConnectionStatus ( const DtInetAddrAndPort *  target = 0 )

virtual

Test for lost connections - returns true if targeted connection is active or if no target specified returns false if at least one drop detected.

Implements DtForwarderPort.

References myForwarder, and DtRtiMsgForwarder::shouldStop().

void DtLanForwarderPort::clearNeededConnections ( )

virtual

Clear the list of connections that this forwarder needs to establish.

Since the LAN port does not try to establish connections, this method does nothing.

Implements DtForwarderPort.

DtForwarderPort::DtAddressPortList DtLanForwarderPort::connections ( ) const

virtual

Get the list of all current connections to this port.

Implements DtForwarderPort.

References DtExtendedRtiMsgForwarder::connections(), and myForwarder.

Referenced by populateConnectionInformation().

DtForwarderPort * DtLanForwarderPort::create ( const DtRIDParameters *  params, const DtBoost::shared_ptr< DtRouteMap >  routes, const MAKRti::DtInetAddr &  host, int  forwarderPort, const MAKRti::DtInetAddr &  forwardertoConnectTo  )

static

Creates an instance of a DtLanForwarderPort.

References DtLanForwarderPort(), and theCreator.

Referenced by setCreatorFunction().

void DtLanForwarderPort::dropMulticastGroup ( const MAKRti::DtInetAddr &  mcastAddr )

virtual

Implements DtForwarderPort.

References DtExtendedRtiMsgForwarder::dropMulticastGroup(), and myForwarder.

const DtFederateTrackingFilter * DtLanForwarderPort::fedTrackingFilter ( ) const

virtual

return federateTrackingFilter

References DtExtendedRtiMsgForwarder::fedHandleTrackingFilter(), and myForwarder.

bool DtLanForwarderPort::flush ( )

inlinevirtual

Flush any unsent/buffered packets; return true if flush sent data.

Reimplemented from DtForwarderPort.

References DtExtendedRtiMsgForwarder::flush(), myForwarder, and DtRtiMsgForwarder::updateTcpForwarderQueuedSockets().

DtForwarderPort::DtAddressMsgPair DtLanForwarderPort::getNextMsg ( )

virtual

Get the next message to forward and the source connection.

Implements DtForwarderPort.

References DtExtendedRtiMsgForwarder::getNextMsg(), DtRtiMsg::kindToString(), DtForwarderPort::myAddress, myForwarder, and DtForwarderPort::myPortToUse.

bool DtLanForwarderPort::isReady ( ) const

virtual

Is the Port fully usable and available?

Implements DtForwarderPort.

References myIsReady.

void DtLanForwarderPort::listenToMulticastGroup ( const MAKRti::DtInetAddr &  mcastAddr )

virtual

Listen / drop multicast groups (LAN-port-only)

Implements DtForwarderPort.

References DtExtendedRtiMsgForwarder::listenToMulticastGroup(), and myForwarder.

DtLanForwarderPort& DtLanForwarderPort::operator= ( const DtLanForwarderPort &  orig )

protected

unsigned int DtLanForwarderPort::pendingConnectionsAborted ( )

virtual

Return count of aborted connections.

Since LAN port does not initiate connections it cannot abort them either, so this method always returns 0

Implements DtForwarderPort.

bool DtLanForwarderPort::populateConnectionInformation ( unsigned int &  numForwarderClientConns, unsigned int &  numForwarderExecConns, std::vector< MAKRti::DtString > &  clientConnectionHostNames, std::vector< MAKRti::DtInetAddr > &  clientConnectionAddrs  ) const

virtual

References connections(), DtRtiMsgForwarder::getConnToConnInfoMap(), DtRtiMsgForwarder::hasExec(), and myForwarder.

Referenced by DtForwarderNode::connectionInformation().

void DtLanForwarderPort::selectParams ( MAKRti::DtSelectParamWithWrite &  selectParams )

virtual

Add this port's current select() notification set to the passed set.

Implements DtForwarderPort.

References myForwarder, and DtExtendedRtiMsgForwarder::selectParams().

void DtLanForwarderPort::sendByTransport ( const DtForwarderMsg &  msg ) const

virtual

Check transport metadata and send message to appropriate destinations.

Implements DtForwarderPort.

References myForwarder, and DtExtendedRtiMsgForwarder::sendByTransport().

void DtLanForwarderPort::sendToAllReliable ( const DtForwarderMsg &  msg ) const

virtual

Send a message via reliable transport to all available destinations.

Implements DtForwarderPort.

References myForwarder, and DtExtendedRtiMsgForwarder::sendToAllReliable().

void DtLanForwarderPort::sendToListReliable ( const DtForwarderMsg &  msg, const DtAddressPortList &  destinations  ) const

virtual

Send a message via reliable transport to the specified list of destinations.

Implements DtForwarderPort.

References myForwarder, and DtExtendedRtiMsgForwarder::sendToAllReliable().

void DtLanForwarderPort::setCreatorFunction ( DtForwarderPortCreatorFcn  creator )

static

Call this function to set an alternate creator function With this function, users can replace this DtLanForwarderPort with their own derived class.

References create(), DtBindCreator(), and theCreator.

void DtLanForwarderPort::setForwarderId ( unsigned long  id )

virtual

Set forwarder ID.

When forwarder is configured via routes files, forwarderID is known at construction, but when configured dynamically it is determined by interactions between peer forwarders and must be set.

Reimplemented from DtForwarderPort.

References myForwarder, myIsReady, DtForwarderPort::myRoutes, and DtRtiMsgForwarder::setForwarderId().

bool DtLanForwarderPort::updateFederateConnectionId ( unsigned long  orig, unsigned long  final  )

virtual

Update locally connected federate connection ID (LAN-port-only)

Implements DtForwarderPort.

References myForwarder, and DtRtiMsgForwarder::updateFederateConnectionId().

void DtLanForwarderPort::updateRoutes ( )

virtual

Handle changes to the Routing map.

Implements DtForwarderPort.

Member Data Documentation

DtExtendedRtiMsgForwarder* DtLanForwarderPort::myForwarder

protected

Referenced by checkConnectionStatus(), connections(), dropMulticastGroup(), DtLanForwarderPort(), fedTrackingFilter(), flush(), getNextMsg(), listenToMulticastGroup(), populateConnectionInformation(), selectParams(), sendByTransport(), sendToAllReliable(), sendToListReliable(), setForwarderId(), updateFederateConnectionId(), and ~DtLanForwarderPort().

bool DtLanForwarderPort::myIsReady

protected

Referenced by DtLanForwarderPort(), isReady(), and setForwarderId().

const DtRIDParameters* DtLanForwarderPort::myParams

protected

DtForwarderPort::DtForwarderPortCreatorFcn DtLanForwarderPort::theCreator = 0

staticprotected

Referenced by create(), and setCreatorFunction().

---

The documentation for this class was generated from the following files:

• lanForwarderPort.h
• lanForwarderPort.cxx
