Includes -------------------------—. More...

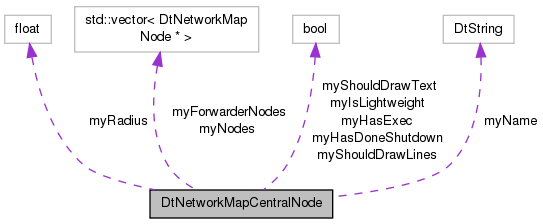

Collaboration diagram for DtNetworkMapCentralNode:

Public Member Functions
	DtNetworkMapCentralNode ()
	Constructor.
virtual	~DtNetworkMapCentralNode ()
	Destructor.
DtNetworkMapNode *	addNode (int fedId, const MAKRti::DtString &federationName, const MAKRti::DtString &processName, const MAKRti::DtString &fedType, const MAKRti::DtString &fedName, float rad)
	Adds a basic node.
DtNetworkMapNode *	addForwarderNode (int id, const MAKRti::DtString &name, float rad)
	Adds a forwarder node.
void	update (float delta)
	Updates all the nodes.
void	shutdown ()
	Does proper shutting down.
bool	searchNodes (int fedId, const MAKRti::DtString &federationName, int &resultIndex)
	search nodes
void	updateFederatePositions ()
	Calculates where the federates should be placed.
void	updateForwarderPositions ()
	Updates the forwarder positions.
void	setCentralNode (const MAKRti::DtString &name, const MAKRti::DtString &displayName, int id, float radius, bool isLightweight)
	Set the central node.
DtNetworkMapNode *	getNode (unsigned int index)
	index into the nodes
DtNetworkMapNode *	getNodeByFederateHandle (unsigned int fedHandle, const MAKRti::DtString &federationName)
	gets a node by its federate handle
DtNetworkMapNode *	getNodeByFederateName (const MAKRti::DtString &fedName, const MAKRti::DtString &federationName)
	gets a node by its federate name
DtNetworkMapNode *	getForwarderNode (unsigned int index)
	index into the nodes
DtNetworkMapNode *	getForwarderNodeByName (const MAKRti::DtString &forwarderName)
	get a forwarder by name
int	removeNode (unsigned int fedHandle, const MAKRti::DtString &federationName)
	Removes a node by its federate handle.
void	clearList ()
	clear the nodes
void	clearTouchedNodes ()
	Clears nodes that have been touched.
void	searchForDeadNodes ()
	Searches for dead nodes.
bool	drawLines ()
	Do we draw the lines?
bool	drawText ()
	Do we draw the id text?
unsigned int	getSize ()
	return the size
unsigned int	getFwdSize ()
const std::vector < DtNetworkMapNode * >	getNodes ()
	get the nodes
MAKRti::DtString	getCentralNodeName ()
	Gets the central node name string.
bool	isLightweight ()
	Gets whether we are viewing a lightweight connection.
bool	hasRtiExec ()
	Gets whether we have an rtiexec.
void	setHasExec (bool hasAnExec)
	Sets whether we have an exec or not.

Protected Member Functions
DtNetworkMapNode *	insertCentralNode (int id, const MAKRti::DtString &displayName, float rad, bool isLightweight)
	Inserts the central node.
DtNetworkMapNode *	insertCentralForwarderNode (int id, const MAKRti::DtString &name, float rad)
	Inserts the forwarder node for the central node.
void	setIsLightweight (bool isLw)
	Sets whether we are viewing a lightweight connection.
void	setCentralNodeName (const MAKRti::DtString &string)
	Set the central node name.
_vec2	calcFederateDestination (int max_federates, int federate_no)
	Calculates the destination.

Protected Attributes
bool	myHasExec
bool	myIsLightweight
bool	myShouldDrawLines
bool	myShouldDrawText
bool	myHasDoneShutdown
float	myRadius
MAKRti::DtString	myName
std::vector< DtNetworkMapNode * >	myNodes
std::vector< DtNetworkMapNode * >	myForwarderNodes

Private Member Functions
void	updatePositions (std::vector< DtNetworkMapNode * > &myNodes, bool areForwarders=false)
	private function that does the updating of a vector of nodes that are passed in

Detailed Description

Includes -------------------------—.

Constructor & Destructor Documentation

DtNetworkMapCentralNode::DtNetworkMapCentralNode ( )

Constructor.

References myName, and myNodes.

DtNetworkMapCentralNode::~DtNetworkMapCentralNode ( )

virtual

Destructor.

References myNodes, and shutdown().

Member Function Documentation

DtNetworkMapNode * DtNetworkMapCentralNode::addForwarderNode	(	int	id,
		const MAKRti::DtString &	name,
		float	rad
	)

Adds a forwarder node.

References myForwarderNodes.

Referenced by DtNetworkMapWidget::addPeerForwarderNode().

DtNetworkMapNode * DtNetworkMapCentralNode::addNode	(	int	fedId,
		const MAKRti::DtString &	federationName,
		const MAKRti::DtString &	processName,
		const MAKRti::DtString &	fedType,
		const MAKRti::DtString &	fedName,
		float	rad
	)

Adds a basic node.

References myNodes, and searchNodes().

Referenced by DtNetworkMapWidget::addExecNode(), and DtNetworkMapWidget::addFederateNode().

_vec2 DtNetworkMapCentralNode::calcFederateDestination	(	int	max_federates,
		int	federate_no
	)

protected

Calculates the destination.

Calculate the destination.

References _vec2::x, and _vec2::y.

Referenced by updatePositions().

void DtNetworkMapCentralNode::clearList ( )

clear the nodes

References myForwarderNodes, myHasExec, myIsLightweight, myName, and myNodes.

Referenced by DtNetworkMapWidget::clearList(), and shutdown().

void DtNetworkMapCentralNode::clearTouchedNodes ( )

Clears nodes that have been touched.

References myNodes.

bool DtNetworkMapCentralNode::drawLines ( )

inline

Do we draw the lines?

References myShouldDrawLines.

Referenced by DtNetworkMapWidget::drawLines(), and DtNetworkMapWidget::selectAndHoverText().

bool DtNetworkMapCentralNode::drawText ( )

inline

Do we draw the id text?

References myShouldDrawText.

Referenced by DtNetworkMapWidget::drawText().

MAKRti::DtString DtNetworkMapCentralNode::getCentralNodeName ( )

inline

Gets the central node name string.

References myName.

Referenced by DtNetworkMapWidget::checkAndAddLightweight(), DtNetworkMapWidget::checkAndAddMainForwarder(), and DtNetworkMapWidget::selection().

DtNetworkMapNode * DtNetworkMapCentralNode::getForwarderNode ( unsigned int index )

index into the nodes

References myForwarderNodes, and NULL.

Referenced by DtNetworkMapWidget::drawForwarderNodeLines(), DtNetworkMapWidget::drawForwarderNodes(), DtNetworkMapWidget::drawText(), DtNetworkMapWidget::forceForwarderSelection(), DtNetworkMapWidget::mouseDoubleClickEvent(), and DtNetworkMapWidget::selection().

DtNetworkMapNode * DtNetworkMapCentralNode::getForwarderNodeByName ( const MAKRti::DtString & forwarderName )

get a forwarder by name

References myForwarderNodes, myName, and NULL.

Referenced by DtNetworkMapWidget::forceForwarderSelection().

unsigned int DtNetworkMapCentralNode::getFwdSize ( )

inline

References myForwarderNodes.

Referenced by DtNetworkMapWidget::drawForwarderNodeLines(), DtNetworkMapWidget::drawForwarderNodes(), DtNetworkMapWidget::drawText(), and DtNetworkMapWidget::forceForwarderSelection().

DtNetworkMapNode * DtNetworkMapCentralNode::getNode ( unsigned int index )

index into the nodes

References myNodes, and NULL.

Referenced by DtNetworkMapWidget::drawLines(), DtNetworkMapWidget::drawNodes(), DtNetworkMapWidget::drawText(), DtNetworkMapWidget::forceFederateSelection(), DtNetworkMapWidget::forceRtiexecSelection(), DtNetworkMapWidget::getSelectedNodeInfo(), DtNetworkMapWidget::mouseDoubleClickEvent(), and DtNetworkMapWidget::selection().

DtNetworkMapNode * DtNetworkMapCentralNode::getNodeByFederateHandle	(	unsigned int	fedHandle,
		const MAKRti::DtString &	federationName
	)

gets a node by its federate handle

References federationName(), myNodes, and NULL.

Referenced by DtNetworkMapWidget::clearFederateFlags(), DtNetworkMapWidget::doesFederateExist(), DtNetworkMapWidget::doesRtiexecExist(), DtNetworkMapWidget::forceFederateSelection(), DtNetworkMapWidget::forceRtiexecSelection(), and DtNetworkMapWidget::updateFederateInfo().

DtNetworkMapNode * DtNetworkMapCentralNode::getNodeByFederateName	(	const MAKRti::DtString &	fedName,
		const MAKRti::DtString &	federationName
	)

gets a node by its federate name

References federationName(), myNodes, and NULL.

const std::vector<DtNetworkMapNode*> DtNetworkMapCentralNode::getNodes ( )

inline

get the nodes

References myNodes.

unsigned int DtNetworkMapCentralNode::getSize ( )

inline

return the size

Referenced by DtNetworkMapWidget::drawLines(), DtNetworkMapWidget::drawNodes(), DtNetworkMapWidget::drawText(), DtNetworkMapWidget::forceFederateSelection(), DtNetworkMapWidget::forceRtiexecSelection(), and DtNetworkMapWidget::keyPressEvent().

bool DtNetworkMapCentralNode::hasRtiExec ( )

inline

Gets whether we have an rtiexec.

References myHasExec.

DtNetworkMapNode * DtNetworkMapCentralNode::insertCentralForwarderNode	(	int	id,
		const MAKRti::DtString &	name,
		float	rad
	)

protected

Inserts the forwarder node for the central node.

References myForwarderNodes.

Referenced by insertCentralNode().

DtNetworkMapNode * DtNetworkMapCentralNode::insertCentralNode	(	int	id,
		const MAKRti::DtString &	displayName,
		float	rad,
		bool	isLightweight
	)

protected

Inserts the central node.

References insertCentralForwarderNode(), myNodes, DtNetworkMapNode::setIsCentralForwarder(), and DtNetworkMapNode::setIsLightweightCenter().

Referenced by setCentralNode().

bool DtNetworkMapCentralNode::isLightweight ( )

inline

Gets whether we are viewing a lightweight connection.

References myIsLightweight.

Referenced by DtNetworkMapWidget::drawLines().

int DtNetworkMapCentralNode::removeNode	(	unsigned int	fedHandle,
		const MAKRti::DtString &	federationName
	)

Removes a node by its federate handle.

Returns the index of the node that was removed.

References federationName(), and myNodes.

Referenced by DtNetworkMapWidget::removeExecNode(), DtNetworkMapWidget::removeFederateNode(), and searchForDeadNodes().

void DtNetworkMapCentralNode::searchForDeadNodes ( )

Searches for dead nodes.

References false, myNodes, removeNode(), and true.

bool DtNetworkMapCentralNode::searchNodes	(	int	fedId,
		const MAKRti::DtString &	federationName,
		int &	resultIndex
	)

search nodes

References federationName(), and myNodes.

Referenced by addNode().

void DtNetworkMapCentralNode::setCentralNode	(	const MAKRti::DtString &	name,
		const MAKRti::DtString &	displayName,
		int	id,
		float	radius,
		bool	isLightweight
	)
