DtRtiexecObserverMgr Class Reference

The DtRtiexecObserverMgr is the class which manages all rtiexec observers. More...

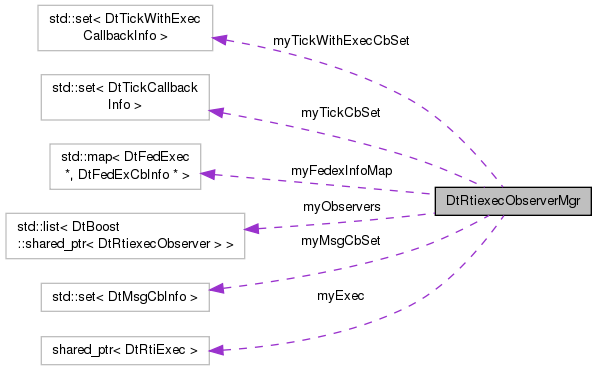

Collaboration diagram for DtRtiexecObserverMgr:

Public Member Functions
	DtRtiexecObserverMgr ()
	Constructor.
virtual	~DtRtiexecObserverMgr ()
	Destructor.
virtual void	setExec (DtBoost::shared_ptr< DtRtiExec > exec)
	Sets the exec to be observed.
virtual void	addObserver (DtBoost::shared_ptr< DtRtiexecObserver > observer)
	Add a new rtiexec observer.
virtual void	removeObserver (DtBoost::shared_ptr< DtRtiexecObserver > observer)
	Remove rtiexec observer.
virtual void	removeAllObservers ()
	Remove all rtiexec observers.
virtual void	addRtiMsgCallback (DtRtiMsgKind msgKind, DtRtiMsgCbMgr::DtCallbackFcn fcn, DtRtiexecObserver *observer, bool isMomCallback)
	Add callback for incoming RTI message.
virtual void	removeRtiMsgCallback (DtRtiMsgKind msgKind, DtRtiMsgCbMgr::DtCallbackFcn fcn, DtRtiexecObserver *observer, bool isMomCallback)
	Remove callback for incoming RTI message.
virtual void	addTickCallback (DtTickCbFn fcn, DtRtiexecObserver *observer, DtTime interval)
	Add a tick callback function to be called periodically at the given time interval.
virtual void	removeTickCallback (DtTickCbFn fcn, DtRtiexecObserver *observer)
	Remove tick callback.
virtual void	addTickCallback (DtTickWithExecCbFn fcn, DtRtiexecObserver *observer, DtTime interval)
	Add a tick callback function that takes a reference to a DtRtiExec to be called periodically at the given time interval.
virtual void	removeTickCallback (DtTickWithExecCbFn fcn, DtRtiexecObserver *observer)
	Remove tick callback that takes a reference to a DtRtiExec.
void	federationCreatedCallback (DtFedExec *exec)
void	federationDestroyedCallback (DtFedExec *exec)
void	federateJoinedCallback (DtFedExec *exec, DtFederate *federate)
void	federateResignedCallback (DtFedExec *exec, DtFederate *federate)
void	syncPtRegisteredCallback (DtFedExec *exec, DtSyncPt *pt)
void	federationSynchronizedCallback (DtFedExec *exec, DtSyncPt *pt)
void	syncPtAchievedCallback (DtFedExec *exec, DtFederate *fed, DtSyncPt *pt)
void	federateDisconnectedCallback (DtFedExec *exec, DtFederate *fed)
void	federateReconnectSucceededCallback (DtFedExec *exec, DtFederate *fed)
void	federateReconnectFailedCallback (DtFedExec *exec, DtFederate *fed)
void	updateLogFileNameCallback (const DtFilename &logFile)
virtual unsigned long	connectionId () const
	Get the connection ID for this exec.

Static Public Member Functions
static void	federationCreatedCallback (DtFedExec *exec, void *usr)
	Callback for new federations.
static void	federationDestroyedCallback (DtFedExec *exec, void *usr)
	Callback for destroyed federations.
static void	federateJoinedCallback (DtFederate *federate, void *usr)
	Callback for joined federates.
static void	federateResignedCallback (DtFederate *federate, void *usr)
	Callback for resigned federates.
static void	syncPtRegisteredCallback (DtSyncPt *pt, void *usr)
	Callback for registered sync. points.
static void	federationSynchronizedCallback (DtSyncPt *pt, void *usr)
	Callback for federation synchronized announcements.
static void	syncPtAchievedCallback (DtFederate *fed, DtSyncPt *pt, void *usr)
	Callback for achieved sync. points.
static void	federateDisconnectedCallback (DtFederate *fed, void *usr)
	Callback for disconnected federate connections.
static void	federateReconnectSucceededCallback (DtFederate *fed, void *usr)
	Callback for successfully reconnected federate connections.
static void	federateReconnectFailedCallback (DtFederate *fed, void *usr)
	Callback for unsuccessfully reconnected federate connections.
static void	updateLogFileNameCallback (const DtFilename &logFile, void *usr)
	Callback for updated log file name.

Protected Types
typedef std::map< DtFedExec *, DtFedExCbInfo * >	DtFedexToCbInfoMap
typedef std::set< DtMsgCbInfo >	DtMsgCbSet
typedef std::set < DtTickCallbackInfo >	DtTickCbSet
typedef std::set < DtTickWithExecCallbackInfo >	DtTickWithExecCbSet
typedef std::list < DtBoost::shared_ptr < DtRtiexecObserver > >	DtExecObsList

Protected Member Functions
	DtRtiexecObserverMgr (const DtRtiexecObserverMgr &orig)
	Copy constructor unimplemented.
DtRtiexecObserverMgr &	operator= (const DtRtiexecObserverMgr &orig)
	Assignment unimplemented.

Protected Attributes
DtBoost::shared_ptr< DtRtiExec >	myExec
	The rtiexec which is being observed.
DtExecObsList	myObservers
	List of rtiexec observers.
DtMsgCbSet	myMsgCbSet
	Set of all registered message callbacks.
DtTickCbSet	myTickCbSet
	Set of all registered tick callbacks.
DtTickWithExecCbSet	myTickWithExecCbSet
	Set of all registered tick callbacks that take a DtRtiExec reference.
DtFedexToCbInfoMap	myFedexInfoMap
	Map from fedex to fedex callback info.

Detailed Description

The DtRtiexecObserverMgr is the class which manages all rtiexec observers.

Member Typedef Documentation

typedef std::list< DtBoost::shared_ptr<DtRtiexecObserver> > DtRtiexecObserverMgr::DtExecObsList

protected

typedef std::map<DtFedExec*, DtFedExCbInfo*> DtRtiexecObserverMgr::DtFedexToCbInfoMap

protected

typedef std::set<DtMsgCbInfo> DtRtiexecObserverMgr::DtMsgCbSet

protected

typedef std::set<DtTickCallbackInfo> DtRtiexecObserverMgr::DtTickCbSet

protected

typedef std::set<DtTickWithExecCallbackInfo> DtRtiexecObserverMgr::DtTickWithExecCbSet

protected

Constructor & Destructor Documentation

DtRtiexecObserverMgr::DtRtiexecObserverMgr

(

)

Constructor.

DtRtiexecObserverMgr::~DtRtiexecObserverMgr ( )

virtual

Destructor.

References federationCreatedCallback(), federationDestroyedCallback(), myExec, removeAllObservers(), and updateLogFileNameCallback().

DtRtiexecObserverMgr::DtRtiexecObserverMgr ( const DtRtiexecObserverMgr &  orig )

protected

Copy constructor unimplemented.

Member Function Documentation

void DtRtiexecObserverMgr::addObserver ( DtBoost::shared_ptr< DtRtiexecObserver >  observer )

virtual

Add a new rtiexec observer.

References myObservers.

void DtRtiexecObserverMgr::addRtiMsgCallback ( DtRtiMsgKind  msgKind, DtRtiMsgCbMgr::DtCallbackFcn  fcn, DtRtiexecObserver *  observer, bool  isMomCallback  )

virtual

Add callback for incoming RTI message.

References myExec, and myMsgCbSet.

Referenced by DtRtiexecObserver::addRtiMsgCallback().

void DtRtiexecObserverMgr::addTickCallback ( DtTickCbFn  fcn, DtRtiexecObserver *  observer, DtTime  interval  )

virtual

Add a tick callback function to be called periodically at the given time interval.

References myExec, and myTickCbSet.

Referenced by DtRtiexecObserver::addTickCallback().

void DtRtiexecObserverMgr::addTickCallback ( DtTickWithExecCbFn  fcn, DtRtiexecObserver *  observer, DtTime  interval  )

virtual

Add a tick callback function that takes a reference to a DtRtiExec to be called periodically at the given time interval.

References myExec, and myTickWithExecCbSet.

unsigned long DtRtiexecObserverMgr::connectionId ( ) const

virtual

Get the connection ID for this exec.

References myExec.

Referenced by DtRtiexecObserver::connectionId().

void DtRtiexecObserverMgr::federateDisconnectedCallback ( DtFederate *  fed, void *  usr  )

static

Callback for disconnected federate connections.

References federateDisconnectedCallback(), DtFedExCbInfo::myExec, and DtFedExCbInfo::myObserverMgr.

Referenced by federateDisconnectedCallback(), federationCreatedCallback(), and federationDestroyedCallback().

void DtRtiexecObserverMgr::federateDisconnectedCallback	(	DtFedExec *	exec,
		DtFederate *	fed
	)

References myObservers.

void DtRtiexecObserverMgr::federateJoinedCallback ( DtFederate *  federate, void *  usr  )

static

Callback for joined federates.

References federateJoinedCallback(), DtFedExCbInfo::myExec, and DtFedExCbInfo::myObserverMgr.

Referenced by federateJoinedCallback(), federationCreatedCallback(), and federationDestroyedCallback().

void DtRtiexecObserverMgr::federateJoinedCallback	(	DtFedExec *	exec,
		DtFederate *	federate
	)

References myObservers.

void DtRtiexecObserverMgr::federateReconnectFailedCallback ( DtFederate *  fed, void *  usr  )

static

Callback for unsuccessfully reconnected federate connections.

References federateReconnectFailedCallback(), DtFedExCbInfo::myExec, and DtFedExCbInfo::myObserverMgr.

Referenced by federateReconnectFailedCallback(), federationCreatedCallback(), and federationDestroyedCallback().

void DtRtiexecObserverMgr::federateReconnectFailedCallback	(	DtFedExec *	exec,
		DtFederate *	fed
	)

References myObservers.

void DtRtiexecObserverMgr::federateReconnectSucceededCallback ( DtFederate *  fed, void *  usr  )

static

Callback for successfully reconnected federate connections.

References federateReconnectSucceededCallback(), DtFedExCbInfo::myExec, and DtFedExCbInfo::myObserverMgr.

Referenced by federateReconnectSucceededCallback(), federationCreatedCallback(), and federationDestroyedCallback().

void DtRtiexecObserverMgr::federateReconnectSucceededCallback	(	DtFedExec *	exec,
		DtFederate *	fed
	)

References myObservers.

void DtRtiexecObserverMgr::federateResignedCallback ( DtFederate *  federate, void *  usr  )

static

Callback for resigned federates.

References federateResignedCallback(), DtFedExCbInfo::myExec, and DtFedExCbInfo::myObserverMgr.

Referenced by federateResignedCallback(), federationCreatedCallback(), and federationDestroyedCallback().

void DtRtiexecObserverMgr::federateResignedCallback	(	DtFedExec *	exec,
		DtFederate *	federate
	)

References myObservers.

void DtRtiexecObserverMgr::federationCreatedCallback ( DtFedExec *  exec, void *  usr  )

static

Callback for new federations.

Referenced by setExec(), and ~DtRtiexecObserverMgr().

void DtRtiexecObserverMgr::federationCreatedCallback

(

DtFedExec *

exec

)

References DtFedExec::addFederateDisconnectedCallback(), DtFedExec::addFederateJoinedCallback(), DtFedExec::addFederateReconnectFailedCallback(), DtFedExec::addFederateReconnectSucceededCallback(), DtFedExec::addFederateResignedCallback(), DtFedExec::addFederationSynchronizedCallback(), DtFedExec::addSyncPtAchievedCallback(), DtFedExec::addSyncPtRegisteredCallback(), federateDisconnectedCallback(), federateJoinedCallback(), federateReconnectFailedCallback(), federateReconnectSucceededCallback(), federateResignedCallback(), federationSynchronizedCallback(), myExec, myFedexInfoMap, myObservers, syncPtAchievedCallback(), and syncPtRegisteredCallback().

void DtRtiexecObserverMgr::federationDestroyedCallback ( DtFedExec *  exec, void *  usr  )

static

Callback for destroyed federations.

Referenced by setExec(), and ~DtRtiexecObserverMgr().

void DtRtiexecObserverMgr::federationDestroyedCallback

(

DtFedExec *

exec

)

References federateDisconnectedCallback(), federateJoinedCallback(), federateReconnectFailedCallback(), federateReconnectSucceededCallback(), federateResignedCallback(), federationSynchronizedCallback(), myExec, myFedexInfoMap, myObservers, DtFedExec::removeFederateDisconnectedCallback(), DtFedExec::removeFederateJoinedCallback(), DtFedExec::removeFederateReconnectFailedCallback(), DtFedExec::removeFederateReconnectSucceededCallback(), DtFedExec::removeFederateResignedCallback(), DtFedExec::removeFederationSynchronizedCallback(), DtFedExec::removeSyncPtAchievedCallback(), DtFedExec::removeSyncPtRegisteredCallback(), syncPtAchievedCallback(), and syncPtRegisteredCallback().

void DtRtiexecObserverMgr::federationSynchronizedCallback ( DtSyncPt *  pt, void *  usr  )

static

Callback for federation synchronized announcements.

References federationSynchronizedCallback(), DtFedExCbInfo::myExec, and DtFedExCbInfo::myObserverMgr.

Referenced by federationCreatedCallback(), federationDestroyedCallback(), and federationSynchronizedCallback().

void DtRtiexecObserverMgr::federationSynchronizedCallback	(	DtFedExec *	exec,
		DtSyncPt *	pt
	)

References myObservers.

DtRtiexecObserverMgr& DtRtiexecObserverMgr::operator= ( const DtRtiexecObserverMgr &  orig )

protected

Assignment unimplemented.

void DtRtiexecObserverMgr::removeAllObservers ( )

virtual

Remove all rtiexec observers.

References myObservers.

Referenced by ~DtRtiexecObserverMgr().

void DtRtiexecObserverMgr::removeObserver ( DtBoost::shared_ptr< DtRtiexecObserver >  observer )

virtual

Remove rtiexec observer.

References myObservers.

void DtRtiexecObserverMgr::removeRtiMsgCallback ( DtRtiMsgKind  msgKind, DtRtiMsgCbMgr::DtCallbackFcn  fcn, DtRtiexecObserver *  observer, bool  isMomCallback  )

virtual

Remove callback for incoming RTI message.

References myExec, and myMsgCbSet.

Referenced by DtRtiexecObserver::removeRtiMsgCallback().

void DtRtiexecObserverMgr::removeTickCallback ( DtTickCbFn  fcn, DtRtiexecObserver *  observer  )

virtual

Remove tick callback.

References myExec, and myTickCbSet.

Referenced by DtRtiexecObserver::removeTickCallback().

void DtRtiexecObserverMgr::removeTickCallback ( DtTickWithExecCbFn  fcn, DtRtiexecObserver *  observer  )

virtual

Remove tick callback that takes a reference to a DtRtiExec.

References myExec, and myTickWithExecCbSet.

void DtRtiexecObserverMgr::setExec ( DtBoost::shared_ptr< DtRtiExec >  exec )

virtual

Sets the exec to be observed.

References federationCreatedCallback(), federationDestroyedCallback(), myExec, myMsgCbSet, myObservers, myTickCbSet, myTickWithExecCbSet, and updateLogFileNameCallback().

void DtRtiexecObserverMgr::syncPtAchievedCallback ( DtFederate *  fed, DtSyncPt *  pt, void *  usr  )

static

Callback for achieved sync. points.

References DtFedExCbInfo::myExec, DtFedExCbInfo::myObserverMgr, and syncPtAchievedCallback().

Referenced by federationCreatedCallback(), federationDestroyedCallback(), and syncPtAchievedCallback().

void DtRtiexecObserverMgr::syncPtAchievedCallback	(	DtFedExec *	exec,
		DtFederate *	fed,
		DtSyncPt *	pt
	)

References myObservers.

void DtRtiexecObserverMgr::syncPtRegisteredCallback ( DtSyncPt *  pt, void *  usr  )

static

Callback for registered sync. points.

References DtFedExCbInfo::myExec, DtFedExCbInfo::myObserverMgr, and syncPtRegisteredCallback().

Referenced by federationCreatedCallback(), federationDestroyedCallback(), and syncPtRegisteredCallback().

void DtRtiexecObserverMgr::syncPtRegisteredCallback	(	DtFedExec *	exec,
		DtSyncPt *	pt
	)

References myObservers.

static void DtRtiexecObserverMgr::updateLogFileNameCallback ( const DtFilename &  logFile, void *  usr  )

static

Callback for updated log file name.

Referenced by setExec(), and ~DtRtiexecObserverMgr().

void DtRtiexecObserverMgr::updateLogFileNameCallback

(

const DtFilename &

logFile

)

Member Data Documentation

DtBoost::shared_ptr<DtRtiExec> DtRtiexecObserverMgr::myExec

protected

The rtiexec which is being observed.

Referenced by addRtiMsgCallback(), addTickCallback(), connectionId(), federationCreatedCallback(), federationDestroyedCallback(), removeRtiMsgCallback(), removeTickCallback(), setExec(), and ~DtRtiexecObserverMgr().

DtFedexToCbInfoMap DtRtiexecObserverMgr::myFedexInfoMap

protected

Map from fedex to fedex callback info.

Referenced by federationCreatedCallback(), and federationDestroyedCallback().

DtMsgCbSet DtRtiexecObserverMgr::myMsgCbSet

protected

Set of all registered message callbacks.

Referenced by addRtiMsgCallback(), removeRtiMsgCallback(), and setExec().

DtExecObsList DtRtiexecObserverMgr::myObservers

protected

List of rtiexec observers.

Referenced by addObserver(), federateDisconnectedCallback(), federateJoinedCallback(), federateReconnectFailedCallback(), federateReconnectSucceededCallback(), federateResignedCallback(), federationCreatedCallback(), federationDestroyedCallback(), federationSynchronizedCallback(), removeAllObservers(), removeObserver(), setExec(), syncPtAchievedCallback(), and syncPtRegisteredCallback().

DtTickCbSet DtRtiexecObserverMgr::myTickCbSet

protected

Set of all registered tick callbacks.

Referenced by addTickCallback(), removeTickCallback(), and setExec().

DtTickWithExecCbSet DtRtiexecObserverMgr::myTickWithExecCbSet

protected

Set of all registered tick callbacks that take a DtRtiExec reference.

Referenced by addTickCallback(), removeTickCallback(), and setExec().

---

The documentation for this class was generated from the following files:

• execObserverMgr.h
• execObserverMgr.cxx
