Base class for a Dialog that allows a user to enter connection information.d. More...

Inheritance diagram for DtAssistantAddConnDialog:

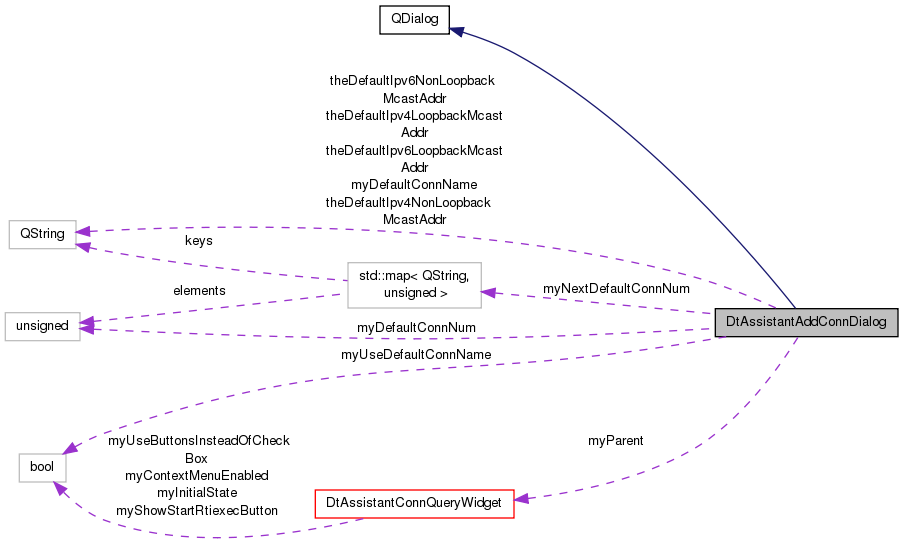

Collaboration diagram for DtAssistantAddConnDialog:

Public Slots
virtual void	enableDefaultConnName ()
	Enables the construction of the default connection name, instead using user entered name.
virtual void	disableDefaultConnName ()
	Disables the construction of the default connection name, instead using user entered name.
void	storeNextDefaultConnNum ()
	Saves the next default connection number to be used for the current default connection name.
void	clearDefaultConnNum ()
	Saves the next connection number to be used for the current default connection name.
virtual bool	isLoopbackAddress (const QString &address) const
	Returns true if the given IP address is a loopback address.
virtual bool	isIpv6Address (const QString &address) const
	Returns true if the given IP address is an IPv6 address.
virtual bool	isLoopbackDestination (const QString &address) const
	Returns true if the given destination IP address is a loopback multicast, broadcast, or unicast address.

Public Member Functions
	DtAssistantAddConnDialog (DtAssistantConnQueryWidget *parent, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtAssistantAddConnDialog ()
	Destructor.

Protected Member Functions
virtual bool	getDefaultRtiexecConnName (QString &name, const QString &host)
	Determines the new default connection name for an rtiexec connection.
virtual bool	getDefaultLightweightConnName (QString &name)
	Determines the new default connection name for a lightweight connection.

Protected Attributes
DtAssistantConnQueryWidget *	myParent
	The parent of this dialog.
bool	myUseDefaultConnName
	Indicates that no user supplied connection name was specified, so the default should be displayed and used.
std::map< QString, unsigned >	myNextDefaultConnNum
	The next number to use to differentiate connections with the same default name, mapped by name.
unsigned	myDefaultConnNum
	The default connection name number currently being used.
QString	myDefaultConnName
	The base string for the default connection name currently being used.

Static Protected Attributes

static const QString	theDefaultIpv4LoopbackMcastAddr
	Default multicast addresses for loopback and non-loopback interfaces.
static const QString	theDefaultIpv4NonLoopbackMcastAddr
	Default multicast addresses for loopback and non-loopback interfaces.
static const QString	theDefaultIpv6LoopbackMcastAddr
	Default multicast addresses for loopback and non-loopback interfaces.
static const QString	theDefaultIpv6NonLoopbackMcastAddr
	Default multicast addresses for loopback and non-loopback interfaces.

Detailed Description

Base class for a Dialog that allows a user to enter connection information.d.

Constructor & Destructor Documentation

DtAssistantAddConnDialog::DtAssistantAddConnDialog	(	DtAssistantConnQueryWidget *	parent,
		Qt::WindowFlags	f = `0`
	)

Constructor.

DtAssistantAddConnDialog::~DtAssistantAddConnDialog ( )

virtual

Destructor.

Member Function Documentation

void DtAssistantAddConnDialog::clearDefaultConnNum ( )

slot

Saves the next connection number to be used for the current default connection name.

References myDefaultConnName, and myDefaultConnNum.

Referenced by disableDefaultConnName(), DtAssistantAddLrcConnDialog::DtAssistantAddLrcConnDialog(), DtAssistantAddRtiexecConnDialog::DtAssistantAddRtiexecConnDialog(), enableDefaultConnName(), and storeNextDefaultConnNum().

void DtAssistantAddConnDialog::disableDefaultConnName ( )

virtualslot

Disables the construction of the default connection name, instead using user entered name.

References clearDefaultConnNum(), and myUseDefaultConnName.

Referenced by DtAssistantAddLrcConnDialog::DtAssistantAddLrcConnDialog(), DtAssistantAddRtiexecConnDialog::DtAssistantAddRtiexecConnDialog(), DtAssistantAddRtiexecConnDialog::setName(), and DtAssistantAddLrcConnDialog::setName().

void DtAssistantAddConnDialog::enableDefaultConnName ( )

virtualslot

Enables the construction of the default connection name, instead using user entered name.

References clearDefaultConnNum(), and myUseDefaultConnName.

Referenced by DtAssistantAddRtiexecConnDialog::setData(), and DtAssistantAddLrcConnDialog::setData().

bool DtAssistantAddConnDialog::getDefaultLightweightConnName ( QString & name )

protectedvirtual

Determines the new default connection name for a lightweight connection.

Returns false if use of the default name has been disabled.

References DtAssistantConnQueryWidget::isConnectionNameInUse(), myDefaultConnName, myDefaultConnNum, myNextDefaultConnNum, myParent, and myUseDefaultConnName.

Referenced by DtAssistantAddLrcConnDialog::udpateDefaultConnName().

bool DtAssistantAddConnDialog::getDefaultRtiexecConnName	(	QString &	name,
		const QString &	host
	)

protectedvirtual

Determines the new default connection name for an rtiexec connection.

Returns false if use of the default name has been disabled.

References DtAssistantConnQueryWidget::isConnectionNameInUse(), myDefaultConnName, myDefaultConnNum, myNextDefaultConnNum, myParent, and myUseDefaultConnName.

Referenced by DtAssistantAddRtiexecConnDialog::udpateDefaultConnName(), and DtAssistantAddLrcConnDialog::udpateDefaultConnName().

bool DtAssistantAddConnDialog::isIpv6Address ( const QString & address ) const

virtualslot

Returns true if the given IP address is an IPv6 address.

Referenced by DtAssistantAddRtiexecConnDialog::selectBestEffortAddrForNetworkInterface(), and DtAssistantAddLrcConnDialog::selectBestEffortAddrForNetworkInterface().

bool DtAssistantAddConnDialog::isLoopbackAddress ( const QString & address ) const

virtualslot

Returns true if the given IP address is a loopback address.

Referenced by DtAssistantAddLrcConnDialog::DtAssistantAddLrcConnDialog(), DtAssistantAddRtiexecConnDialog::DtAssistantAddRtiexecConnDialog(), DtAssistantAddRtiexecConnDialog::selectBestEffortAddrForNetworkInterface(), and DtAssistantAddLrcConnDialog::selectBestEffortAddrForNetworkInterface().

bool DtAssistantAddConnDialog::isLoopbackDestination ( const QString & address ) const

virtualslot

Returns true if the given destination IP address is a loopback multicast, broadcast, or unicast address.

Referenced by DtAssistantAddRtiexecConnDialog::selectBestEffortAddrForNetworkInterface(), and DtAssistantAddLrcConnDialog::selectBestEffortAddrForNetworkInterface().

void DtAssistantAddConnDialog::storeNextDefaultConnNum ( )

slot

Saves the next default connection number to be used for the current default connection name.

References clearDefaultConnNum(), myDefaultConnName, myDefaultConnNum, and myNextDefaultConnNum.

Referenced by DtAssistantAddLrcConnDialog::DtAssistantAddLrcConnDialog(), and DtAssistantAddRtiexecConnDialog::DtAssistantAddRtiexecConnDialog().

Member Data Documentation

QString DtAssistantAddConnDialog::myDefaultConnName

protected

The base string for the default connection name currently being used.

Referenced by clearDefaultConnNum(), getDefaultLightweightConnName(), getDefaultRtiexecConnName(), and storeNextDefaultConnNum().

unsigned DtAssistantAddConnDialog::myDefaultConnNum

protected

The default connection name number currently being used.

Referenced by clearDefaultConnNum(), getDefaultLightweightConnName(), getDefaultRtiexecConnName(), and storeNextDefaultConnNum().

std::map<QString, unsigned> DtAssistantAddConnDialog::myNextDefaultConnNum

protected

The next number to use to differentiate connections with the same default name, mapped by name.

Referenced by getDefaultLightweightConnName(), getDefaultRtiexecConnName(), and storeNextDefaultConnNum().

DtAssistantConnQueryWidget* DtAssistantAddConnDialog::myParent

protected

The parent of this dialog.

Referenced by getDefaultLightweightConnName(), and getDefaultRtiexecConnName().

bool DtAssistantAddConnDialog::myUseDefaultConnName

protected

Indicates that no user supplied connection name was specified, so the default should be displayed and used.

Referenced by disableDefaultConnName(), enableDefaultConnName(), getDefaultLightweightConnName(), and getDefaultRtiexecConnName().

const QString DtAssistantAddConnDialog::theDefaultIpv4LoopbackMcastAddr

staticprotected

Default multicast addresses for loopback and non-loopback interfaces.

Referenced by DtAssistantAddRtiexecConnDialog::selectBestEffortAddrForNetworkInterface(), and DtAssistantAddLrcConnDialog::selectBestEffortAddrForNetworkInterface().

const QString DtAssistantAddConnDialog::theDefaultIpv4NonLoopbackMcastAddr

staticprotected

Default multicast addresses for loopback and non-loopback interfaces.

Referenced by DtAssistantAddRtiexecConnDialog::selectBestEffortAddrForNetworkInterface(), and DtAssistantAddLrcConnDialog::selectBestEffortAddrForNetworkInterface().

const QString DtAssistantAddConnDialog::theDefaultIpv6LoopbackMcastAddr

staticprotected

Default multicast addresses for loopback and non-loopback interfaces.

Referenced by DtAssistantAddRtiexecConnDialog::selectBestEffortAddrForNetworkInterface(), and DtAssistantAddLrcConnDialog::selectBestEffortAddrForNetworkInterface().

const QString DtAssistantAddConnDialog::theDefaultIpv6NonLoopbackMcastAddr

staticprotected

Default multicast addresses for loopback and non-loopback interfaces.

Referenced by DtAssistantAddRtiexecConnDialog::selectBestEffortAddrForNetworkInterface(), and DtAssistantAddLrcConnDialog::selectBestEffortAddrForNetworkInterface().

The documentation for this class was generated from the following files:
