The DtAssistantInfoMsg defines a wrapper for the RTI Assistant information message used by the Assistants to share settings and known rtiexec and forwarder information with one another. More...

Inheritance diagram for DtAssistantInfoMsg:

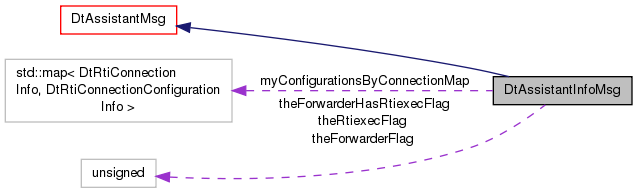

Collaboration diagram for DtAssistantInfoMsg:

Public Member Functions
	DtAssistantInfoMsg (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Constructors.
	DtAssistantInfoMsg (const DtNetAssistantInfoMsg *netRepMsg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
virtual	~DtAssistantInfoMsg ()
	Destructor.
virtual DtAssistantMsg *	clone (bool copy=true) const
	Return a copy/empty object of the same type as this.
virtual void	setRtiexecsAndForwarders (const DtRtiConnectionAndConfiguration &rtiexecsAndForwarders)
	Set/Get rtiexec and forwarder information.
virtual void	getRtiexecsAndForwarders (DtRtiConnectionAndConfiguration &rtiexecsAndForwarders, const MAKRti::DtInetAddr &interfaceReceivedOn) const
virtual bool	isRemoval () const
	Get/Set whether the message is indicating the removal of the specified rtiexecs and license servers.
virtual void	setRemoval (bool val)
virtual bool	remoteCmdsAccepted () const
	Get/Set whether the sending assistant is accepting remote commands (e.g.
virtual void	setRemoteCmdsAccepted (bool val)
virtual unsigned int	assistantInfoMemoryPeriod () const
	Get / Set the assistant information memory period.
virtual void	setAssistantInfoMemoryPeriod (unsigned int interval)
virtual void	printData () const
	Print the data section.
Public Member Functions inherited from DtAssistantMsg
virtual	~DtAssistantMsg ()
	Destructor.
virtual DtNetAssistantMsgHeader *	netHeader () const
	Get header of network representation.
virtual int	version () const
	Return the message version.
virtual bool	isValidVersion () const
	Returns bool: message version is valid?
virtual DtAssistantMsgKind	msgKind () const
	Get the message kind.
virtual void	print () const
	Printing functions.
virtual void	printHeader () const
virtual bool	isOk () const
	Message is good?
bool	isAssistantToAssistantMessage () const
	Returns whether or not this message contains source/destination information included in messages sent between assistants.
virtual MAKRti::DtInetAddr	sourceAddr () const
	Get/Set the IP address of the source of this message.
virtual void	setSourceAddr (const MAKRti::DtInetAddr &addr)
virtual int	sourceId () const
	Get/Set the ID of the source of this message.
virtual void	setSourceId (int id)
virtual MAKRti::DtString	sourceHost () const
	Get/Set the host name of the source of this message.
virtual void	setSourceHost (const MAKRti::DtString &addr)
virtual MAKRti::DtInetAddr	destAddr () const
	Get/Set the IP address of the destination of this message.
virtual void	setDestAddr (const MAKRti::DtInetAddr &addr)
virtual int	destId () const
	Get/Set the ID of the destination of this message.
virtual void	setDestId (int id)
virtual int	compId () const
	Get/Set the related component's connection ID.
virtual void	setCompId (int compId)

Static Public Member Functions
static DtAssistantMsg *	create (const DtNetAssistantMsgHeader *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Creators.
static DtAssistantMsg *	create (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
static void	addCallback (DtRtiAssistantPeer conn, DtAssistantInfoCb cb, void usr)
	Adds or removes a callback with the given Assistant peer for this message type.
static void	removeCallback (DtRtiAssistantPeer conn, DtAssistantInfoCb cb, void usr)
Static Public Member Functions inherited from DtAssistantMsg
static const char *	kindToString (DtAssistantMsgKind kind)
	Returns the name of the message, by kind enumeration.

Protected Member Functions
virtual DtNetAssistantInfoMsg *	netAssistantInfoMsg ()
	The network representation for the message.
virtual const DtNetAssistantInfoMsg *	netAssistantInfoMsg () const
virtual DtAssistantMsgKind	internalMsgKind ()
	Returns the kind of a DtAssistantInfoMsg message.
virtual int	minSize () const
	Returns minimum size of a message, including header.
virtual void	setRtiexecForwarderCount (unsigned long count)
	Set/Get number of rtiexecs/forwarders included in message.
virtual unsigned long	rtiexecForwarderCount () const
virtual const DtNetU128 *	reliableAddrsPtr () const
	Return pointer to location of rtiexec/forwarder reliable addresses in message.
virtual DtNetU128 *	reliableAddrsPtr ()
virtual const DtNetU128 *	bestEffortAddrsPtr () const
	Return pointer to location of rtiexec/forwarder best effort addresses in message.
virtual DtNetU128 *	bestEffortAddrsPtr ()
virtual const DtNetU32 *	addressFamiliesPtr () const
	Return pointer to location of address families in message.
virtual DtNetU32 *	addressFamiliesPtr ()
virtual const DtNetU32 *	rtiexecCompIdsPtr () const
	Return pointer to location of rtiexec component IDs in message.
virtual DtNetU32 *	rtiexecCompIdsPtr ()
virtual const DtNetU32 *	forwarderCompIdsPtr () const
	Return pointer to location of forwarder component IDs in message.
virtual DtNetU32 *	forwarderCompIdsPtr ()
virtual const DtNetU16 *	tcpPortsPtr () const
	Return pointer to location of rtiexec/forwarder TCP ports in message.
virtual DtNetU16 *	tcpPortsPtr ()
virtual const DtNetU16 *	udpPortsPtr () const
	Return pointer to location of rtiexec/forwarder UDP ports in message.
virtual DtNetU16 *	udpPortsPtr ()
virtual const DtNetU16 *	forwarderPortsPtr () const
	Return pointer to location of forwarder-to-forwarder ports in the message.
virtual DtNetU16 *	forwarderPortsPtr ()
virtual const DtNetU8 *	fullCompliancePtr () const
	Return pointer to location of rtiexec/forwarder full compliance settings in message.
virtual DtNetU8 *	fullCompliancePtr ()
virtual const DtNetU8 *	rtiexecForwarderFlagPtr () const
	Return pointer to location of flags which indicate if each included rtiexec/forwarder is an rtiexec, forwarder, or both.
virtual DtNetU8 *	rtiexecForwarderFlagPtr ()
virtual void	setRtiexecForwarderNamesSize (unsigned long size)
	Set/Get rtiexec/forwarder connection names text size.
virtual unsigned long	rtiexecForwarderNamesSize () const
virtual const char *	rtiexecForwarderNamesPtr () const
	Return pointer to rtiexec/forwarder conn names location in msg.
virtual char *	rtiexecForwarderNamesPtr ()
virtual void	setHostNamesSize (unsigned long size)
	Set/Get rtiexec/forwarder host names text size.
virtual unsigned long	hostNamesSize () const
virtual const char *	hostNamesPtr () const
	Return pointer to rtiexec/forwarder host names location in msg.
virtual char *	hostNamesPtr ()
virtual void	setOwnerHostSize (unsigned size)
	Set/Get owning host names text size.
virtual unsigned	ownerHostSize () const
virtual const char *	ownerHostsPtr () const
	Return pointer to host names of the machines that own the conns.
virtual char *	ownerHostsPtr ()
Protected Member Functions inherited from DtAssistantMsg
	DtAssistantMsg ()
	Constructor.
virtual void	sizeChanged (int size)
	Called whenever size is changed using changeSize, or insert/deleteBytes.
void	initAssistantMsg (int size, DtAssistantMsgKind msgKindVal, DtBufferPtr buffer)
	Called by ctor, so not virtual.
void	initAssistantMsg (const void *initial, int size, DtBufferPtr buffer)
void	initAssistantMsg (const DtNetAssistantMsgHeader *header, DtBufferPtr buffer)
virtual void	adjustBytes (int offset, int numBytes)
	Adjust numBytes bytes at the indicated offset in the net rep.
virtual void	adjustBytes (void *address, int numBytes)
	Adjust the numBytes starting at the indicated address.
virtual void	resizeForSrcDestInfo ()
	Allocates memory at the end of the message for source/destination information needed when sending messages between assistants.
virtual const DtNetAssistantSrcDestInfo *	srcDestInfoPtr () const
	Return pointer to source/destination information in the message.
virtual DtNetAssistantSrcDestInfo *	srcDestInfoPtr ()
virtual void	setSourceHostSize (unsigned long size)
	Set/Get source host name text size.
virtual unsigned long	sourceHostSize () const
virtual const char *	sourceHostPtr () const
	Return pointer to source host name in message.
virtual char *	sourceHostPtr ()

Protected Attributes
std::map< DtRtiConnectionInfo, DtRtiConnectionConfigurationInfo >	myConfigurationsByConnectionMap

Static Protected Attributes
static const unsigned	theRtiexecFlag = 0x1
	Flag indicating that an entry is an rtiexec.
static const unsigned	theForwarderFlag = 0x2
	Flag indicating that an entry is a forwarder.
static const unsigned	theForwarderHasRtiexecFlag = 0x4
	Flag indicating that, if entry is for a forwarder, the forwarder is also aware of an rtiexec in its network.

Detailed Description

The DtAssistantInfoMsg defines a wrapper for the RTI Assistant information message used by the Assistants to share settings and known rtiexec and forwarder information with one another.

Constructor & Destructor Documentation

DtAssistantInfoMsg::DtAssistantInfoMsg ( DtBufferPtr buffer = DtUSE_INTERNAL_BUFFER )

Constructors.

References DtAssistantMsg::initAssistantMsg(), internalMsgKind(), and minSize().

Referenced by clone(), and create().

DtAssistantInfoMsg::DtAssistantInfoMsg	(	const DtNetAssistantInfoMsg *	netRepMsg,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`
	)

References DtNetAssistantInfoMsg::header, and DtAssistantMsg::initAssistantMsg().

DtAssistantInfoMsg::~DtAssistantInfoMsg ( )

virtual

Destructor.

Member Function Documentation

void DtAssistantInfoMsg::addCallback	(	DtRtiAssistantPeer *	conn,
		DtAssistantInfoCb	cb,
		void *	usr
	)

static

Adds or removes a callback with the given Assistant peer for this message type.

References DtRtiAssistantPeer::addMsgCallback(), and DtAssistantInfoMsgKind.

Referenced by DtAssistantConnectionInfoMgr::DtAssistantConnectionInfoMgr().

const DtNetU32 * DtAssistantInfoMsg::addressFamiliesPtr ( ) const

protectedvirtual

Return pointer to location of address families in message.

References bestEffortAddrsPtr(), and rtiexecForwarderCount().

Referenced by getRtiexecsAndForwarders(), rtiexecCompIdsPtr(), and setRtiexecsAndForwarders().

DtNetU32 * DtAssistantInfoMsg::addressFamiliesPtr ( )

protectedvirtual

References bestEffortAddrsPtr(), and rtiexecForwarderCount().

unsigned int DtAssistantInfoMsg::assistantInfoMemoryPeriod ( ) const

virtual

Get / Set the assistant information memory period.

References DtNetAssistantInfoMsg::assistantInfoMemoryPeriod, and netAssistantInfoMsg().

Referenced by DtAssistantConnectionInfoMgr::processInfoMsg().

const DtNetU128 * DtAssistantInfoMsg::bestEffortAddrsPtr ( ) const

protectedvirtual

Return pointer to location of rtiexec/forwarder best effort addresses in message.

References reliableAddrsPtr(), and rtiexecForwarderCount().

Referenced by addressFamiliesPtr(), getRtiexecsAndForwarders(), and setRtiexecsAndForwarders().

DtNetU128 * DtAssistantInfoMsg::bestEffortAddrsPtr ( )

protectedvirtual

References reliableAddrsPtr(), and rtiexecForwarderCount().

DtAssistantMsg * DtAssistantInfoMsg::clone ( bool copy = true ) const

virtual

Return a copy/empty object of the same type as this.

Implements DtAssistantMsg.

References DtAssistantInfoMsg(), and netAssistantInfoMsg().

DtAssistantMsg * DtAssistantInfoMsg::create	(	const DtNetAssistantMsgHeader *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`
	)

static

Creators.

References DtAssistantInfoMsg().

DtAssistantMsg * DtAssistantInfoMsg::create ( DtBufferPtr buffer = DtUSE_INTERNAL_BUFFER )

static

References DtAssistantInfoMsg().

const DtNetU32 * DtAssistantInfoMsg::forwarderCompIdsPtr ( ) const

protectedvirtual

Return pointer to location of forwarder component IDs in message.

References rtiexecCompIdsPtr(), and rtiexecForwarderCount().

Referenced by getRtiexecsAndForwarders(), setRtiexecsAndForwarders(), and udpPortsPtr().

DtNetU32 * DtAssistantInfoMsg::forwarderCompIdsPtr ( )

protectedvirtual

References rtiexecCompIdsPtr(), and rtiexecForwarderCount().

const DtNetU16 * DtAssistantInfoMsg::forwarderPortsPtr ( ) const

protectedvirtual

Return pointer to location of forwarder-to-forwarder ports in the message.

References rtiexecForwarderCount(), and tcpPortsPtr().

Referenced by fullCompliancePtr(), getRtiexecsAndForwarders(), and setRtiexecsAndForwarders().

DtNetU16 * DtAssistantInfoMsg::forwarderPortsPtr ( )

protectedvirtual

References rtiexecForwarderCount(), and tcpPortsPtr().

const DtNetU8 * DtAssistantInfoMsg::fullCompliancePtr ( ) const

protectedvirtual

Return pointer to location of rtiexec/forwarder full compliance settings in message.

References forwarderPortsPtr(), and rtiexecForwarderCount().

Referenced by getRtiexecsAndForwarders(), rtiexecForwarderFlagPtr(), and setRtiexecsAndForwarders().

DtNetU8 * DtAssistantInfoMsg::fullCompliancePtr ( )

protectedvirtual

References forwarderPortsPtr(), and rtiexecForwarderCount().

void DtAssistantInfoMsg::getRtiexecsAndForwarders	(	DtRtiConnectionAndConfiguration &	rtiexecsAndForwarders,
		const MAKRti::DtInetAddr &	interfaceReceivedOn
	)		const

virtual

const char * DtAssistantInfoMsg::hostNamesPtr ( ) const

protectedvirtual

Return pointer to rtiexec/forwarder host names location in msg.

References rtiexecForwarderNamesPtr(), and rtiexecForwarderNamesSize().

Referenced by getRtiexecsAndForwarders(), ownerHostsPtr(), and setRtiexecsAndForwarders().

char * DtAssistantInfoMsg::hostNamesPtr ( )

protectedvirtual

References rtiexecForwarderNamesPtr(), and rtiexecForwarderNamesSize().

unsigned long DtAssistantInfoMsg::hostNamesSize ( ) const

protectedvirtual

References DtNetAssistantInfoMsg::hostNamesSize, and netAssistantInfoMsg().

Referenced by ownerHostsPtr(), and setRtiexecsAndForwarders().

DtAssistantMsgKind DtAssistantInfoMsg::internalMsgKind ( )

protectedvirtual

Returns the kind of a DtAssistantInfoMsg message.

Implements DtAssistantMsg.

References DtAssistantInfoMsgKind.

Referenced by DtAssistantInfoMsg().

bool DtAssistantInfoMsg::isRemoval ( ) const

virtual

Get/Set whether the message is indicating the removal of the specified rtiexecs and license servers.

If not, it is for addition.

References netAssistantInfoMsg(), and DtNetAssistantInfoMsg::removal.

Referenced by DtAssistantConnectionInfoMgr::processInfoMsg().

int DtAssistantInfoMsg::minSize ( ) const

protectedvirtual

Returns minimum size of a message, including header.

Referenced by DtAssistantInfoMsg().

DtNetAssistantInfoMsg * DtAssistantInfoMsg::netAssistantInfoMsg ( )

protectedvirtual

The network representation for the message.

Referenced by assistantInfoMemoryPeriod(), clone(), hostNamesSize(), isRemoval(), ownerHostSize(), reliableAddrsPtr(), remoteCmdsAccepted(), rtiexecForwarderCount(), rtiexecForwarderNamesSize(), setAssistantInfoMemoryPeriod(), setHostNamesSize(), setOwnerHostSize(), setRemoteCmdsAccepted(), setRemoval(), setRtiexecForwarderCount(), and setRtiexecForwarderNamesSize().

const DtNetAssistantInfoMsg * DtAssistantInfoMsg::netAssistantInfoMsg ( ) const

protectedvirtual

unsigned DtAssistantInfoMsg::ownerHostSize ( ) const

protectedvirtual

References netAssistantInfoMsg(), and DtNetAssistantInfoMsg::ownerHostSize.

Referenced by setRtiexecsAndForwarders().

const char * DtAssistantInfoMsg::ownerHostsPtr ( ) const

protectedvirtual

Return pointer to host names of the machines that own the conns.

References hostNamesPtr(), and hostNamesSize().

Referenced by getRtiexecsAndForwarders(), and setRtiexecsAndForwarders().

char * DtAssistantInfoMsg::ownerHostsPtr ( )

protectedvirtual

References hostNamesPtr(), and hostNamesSize().

void DtAssistantInfoMsg::printData ( ) const

virtual

Print the data section.

Reimplemented from DtAssistantMsg.

const DtNetU128 * DtAssistantInfoMsg::reliableAddrsPtr ( ) const

protectedvirtual

Return pointer to location of rtiexec/forwarder reliable addresses in message.

References netAssistantInfoMsg().

Referenced by bestEffortAddrsPtr(), getRtiexecsAndForwarders(), and setRtiexecsAndForwarders().

DtNetU128 * DtAssistantInfoMsg::reliableAddrsPtr ( )

protectedvirtual

References netAssistantInfoMsg().

bool DtAssistantInfoMsg::remoteCmdsAccepted ( ) const

virtual

Get/Set whether the sending assistant is accepting remote commands (e.g.

starting & shutding down rtiexecs).

References DtNetAssistantInfoMsg::acceptsRemoteCmds, and netAssistantInfoMsg().

Referenced by DtAssistantConnectionInfoMgr::processInfoMsg().

void DtAssistantInfoMsg::removeCallback	(	DtRtiAssistantPeer *	conn,
		DtAssistantInfoCb	cb,
		void *	usr
	)

static

References DtAssistantInfoMsgKind, and DtRtiAssistantPeer::removeMsgCallback().

Referenced by DtAssistantConnectionInfoMgr::~DtAssistantConnectionInfoMgr().

const DtNetU32 * DtAssistantInfoMsg::rtiexecCompIdsPtr ( ) const

protectedvirtual

Return pointer to location of rtiexec component IDs in message.

References addressFamiliesPtr(), and rtiexecForwarderCount().

Referenced by forwarderCompIdsPtr(), getRtiexecsAndForwarders(), and setRtiexecsAndForwarders().

DtNetU32 * DtAssistantInfoMsg::rtiexecCompIdsPtr ( )

protectedvirtual

References addressFamiliesPtr(), and rtiexecForwarderCount().

unsigned long DtAssistantInfoMsg::rtiexecForwarderCount ( ) const

protectedvirtual

References netAssistantInfoMsg(), and DtNetAssistantInfoMsg::rtiexecForwarderCount.

Referenced by addressFamiliesPtr(), bestEffortAddrsPtr(), forwarderCompIdsPtr(), forwarderPortsPtr(), fullCompliancePtr(), getRtiexecsAndForwarders(), rtiexecCompIdsPtr(), rtiexecForwarderFlagPtr(), rtiexecForwarderNamesPtr(), setRtiexecsAndForwarders(), tcpPortsPtr(), and udpPortsPtr().

const DtNetU8 * DtAssistantInfoMsg::rtiexecForwarderFlagPtr ( ) const

protectedvirtual

Return pointer to location of flags which indicate if each included rtiexec/forwarder is an rtiexec, forwarder, or both.

References fullCompliancePtr(), and rtiexecForwarderCount().

Referenced by getRtiexecsAndForwarders(), rtiexecForwarderNamesPtr(), and setRtiexecsAndForwarders().

DtNetU8 * DtAssistantInfoMsg::rtiexecForwarderFlagPtr ( )

protectedvirtual

References fullCompliancePtr(), and rtiexecForwarderCount().

const char * DtAssistantInfoMsg::rtiexecForwarderNamesPtr ( ) const

protectedvirtual

Return pointer to rtiexec/forwarder conn names location in msg.

References rtiexecForwarderCount(), and rtiexecForwarderFlagPtr().

Referenced by getRtiexecsAndForwarders(), hostNamesPtr(), and setRtiexecsAndForwarders().

char * DtAssistantInfoMsg::rtiexecForwarderNamesPtr ( )

protectedvirtual

References rtiexecForwarderCount(), and rtiexecForwarderFlagPtr().

unsigned long DtAssistantInfoMsg::rtiexecForwarderNamesSize ( ) const

protectedvirtual

References netAssistantInfoMsg(), and DtNetAssistantInfoMsg::rtiexecForwarderNamesSize.

Referenced by hostNamesPtr(), and setRtiexecsAndForwarders().

void DtAssistantInfoMsg::setAssistantInfoMemoryPeriod ( unsigned int interval )

virtual

References DtNetAssistantInfoMsg::assistantInfoMemoryPeriod, and netAssistantInfoMsg().

Referenced by DtRtiAssistantPeer::sendInfoMsg().

void DtAssistantInfoMsg::setHostNamesSize ( unsigned long size )

protectedvirtual

Set/Get rtiexec/forwarder host names text size.

References DtNetAssistantInfoMsg::hostNamesSize, and netAssistantInfoMsg().

Referenced by setRtiexecsAndForwarders().

void DtAssistantInfoMsg::setOwnerHostSize ( unsigned size )

protectedvirtual

Set/Get owning host names text size.

References netAssistantInfoMsg(), and DtNetAssistantInfoMsg::ownerHostSize.

Referenced by setRtiexecsAndForwarders().

void DtAssistantInfoMsg::setRemoteCmdsAccepted ( bool val )

virtual

References DtNetAssistantInfoMsg::acceptsRemoteCmds, and netAssistantInfoMsg().

Referenced by DtRtiAssistantPeer::sendInfoMsg().

void DtAssistantInfoMsg::setRemoval ( bool val )

virtual

References netAssistantInfoMsg(), and DtNetAssistantInfoMsg::removal.

Referenced by DtRtiAssistantPeer::sendInfoMsg().

void DtAssistantInfoMsg::setRtiexecForwarderCount ( unsigned long count )

protectedvirtual

Set/Get number of rtiexecs/forwarders included in message.

References netAssistantInfoMsg(), and DtNetAssistantInfoMsg::rtiexecForwarderCount.

Referenced by setRtiexecsAndForwarders().

void DtAssistantInfoMsg::setRtiexecForwarderNamesSize ( unsigned long size )

protectedvirtual

Set/Get rtiexec/forwarder connection names text size.

References netAssistantInfoMsg(), and DtNetAssistantInfoMsg::rtiexecForwarderNamesSize.

Referenced by setRtiexecsAndForwarders().

void DtAssistantInfoMsg::setRtiexecsAndForwarders ( const DtRtiConnectionAndConfiguration & rtiexecsAndForwarders )

virtual

const DtNetU16 * DtAssistantInfoMsg::tcpPortsPtr ( ) const

protectedvirtual

Return pointer to location of rtiexec/forwarder TCP ports in message.

References rtiexecForwarderCount(), and udpPortsPtr().

Referenced by forwarderPortsPtr(), getRtiexecsAndForwarders(), and setRtiexecsAndForwarders().

DtNetU16 * DtAssistantInfoMsg::tcpPortsPtr ( )

protectedvirtual

References rtiexecForwarderCount(), and udpPortsPtr().

const DtNetU16 * DtAssistantInfoMsg::udpPortsPtr ( ) const

protectedvirtual

Return pointer to location of rtiexec/forwarder UDP ports in message.

References forwarderCompIdsPtr(), and rtiexecForwarderCount().

Referenced by getRtiexecsAndForwarders(), setRtiexecsAndForwarders(), and tcpPortsPtr().

DtNetU16 * DtAssistantInfoMsg::udpPortsPtr ( )

protectedvirtual

References forwarderCompIdsPtr(), and rtiexecForwarderCount().

Member Data Documentation

std::map<DtRtiConnectionInfo, DtRtiConnectionConfigurationInfo> DtAssistantInfoMsg::myConfigurationsByConnectionMap

protected

const unsigned DtAssistantInfoMsg::theForwarderFlag = 0x2

staticprotected

Flag indicating that an entry is a forwarder.

Referenced by getRtiexecsAndForwarders(), and setRtiexecsAndForwarders().

const unsigned DtAssistantInfoMsg::theForwarderHasRtiexecFlag = 0x4

staticprotected

Flag indicating that, if entry is for a forwarder, the forwarder is also aware of an rtiexec in its network.

Referenced by getRtiexecsAndForwarders(), and setRtiexecsAndForwarders().

const unsigned DtAssistantInfoMsg::theRtiexecFlag = 0x1

staticprotected

Flag indicating that an entry is an rtiexec.

Referenced by getRtiexecsAndForwarders(), and setRtiexecsAndForwarders().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
