A QwtPlot Widget customized for use in plotting GPS accuracies. More...

Inheritance diagram for DtAssistantPlot:

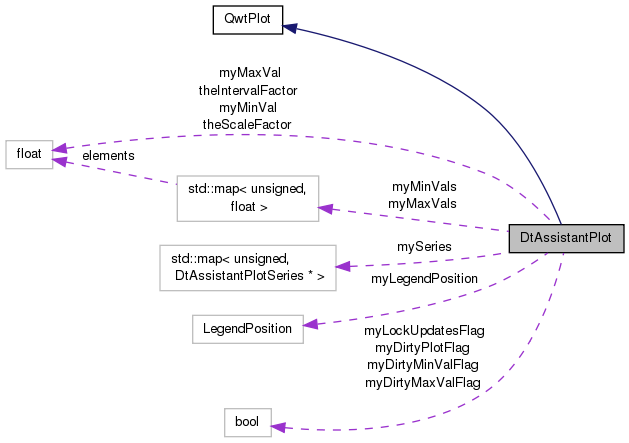

Collaboration diagram for DtAssistantPlot:

Classes
class	TimeScaleDraw
	Custom QwtScaleDraw for displaying x axis values as times. More...

Public Member Functions
virtual void	initialize (bool showLegend, const QString &unitLabel)
	Applies styles to the plot.
virtual	~DtAssistantPlot ()
	Virtual DTOR.
virtual void	setShowTimeLabels (bool show)
	Sets whether the X-Axis time labels are visible.
virtual void	setLockUpdates (bool lock)
	Sets whether updates.
virtual DtAssistantPlotSeries *	createPlotSeries (const QColor &color, unsigned seriesId, Qt::PenStyle style, const QString &dispName=QString())
	Creates a new series to display on the plot.
virtual DtAssistantPlotSeries *	findSeries (unsigned seriesId)
	Finds the series with the given ID and returns it.
virtual QwtLegend *	createLegend ()
virtual void	updateSeries (unsigned seriesId, double t, double val)
	Updates the given series with the given values Updates the series with the given values, updates the plot's scaling, and performs a replot.
virtual void	updateAxisScaling ()
	Updates the y axis scaling to show the most recent n seconds Updates the y axis scaling so the most recently plotted value is visible and only myNumSecondsVisible seconds are visible (earlier plotted values will be hidden).
virtual void	updateAxisScalingIfNeeded ()
	Updates the y axis scaling to show the most recent n seconds Does not rescale if maximum value can still be displayed on the graph.
virtual float	getMaxVal ()
virtual float	getMaxVal (unsigned seriesId)
virtual float	getMinVal ()
virtual float	getMinVal (unsigned seriesId)
virtual void	setBaseTime (double baseTime)
virtual void	setSeriesEnabled (unsigned seriesId, bool enabled)
virtual void	setSeriesEnabled (QwtPlotItem *item, bool enabled)
virtual void	clear ()

Static Public Member Functions
static DtAssistantPlot *	create (const QString &unitLabel=QString())
	Instantiates and initializes a new DtAssistantPlot.
static DtAssistantPlot *	create (LegendPosition legendPos, const QString &unitLabel=QString())
	Instantiates and initializes a new DtAssistantPlot.

Protected Types
typedef std::map< unsigned, DtAssistantPlotSeries * >	SeriesMap
typedef std::map< unsigned, float >	SeriesMaxValMap
typedef SeriesMaxValMap	SeriesMinValMap

Protected Member Functions
	DtAssistantPlot (const QString &unitLabel=QString())
	Protected CTOR (use create(..)) This CTOR creates a plot with no legend.
	DtAssistantPlot (LegendPosition legendPos, const QString &unitLabel=QString())
	Protected CTOR (use create(..)) Instantiates a new plot with grid lines and scrolling.
virtual void	connectToSignals ()
virtual QPen	createPen (const QColor &color, Qt::PenStyle style=Qt::SolidLine, qreal width=0)
	Utility method for creating a pen with the given color and width.

Protected Attributes
SeriesMap	mySeries
SeriesMaxValMap	myMaxVals
float	myMaxVal
SeriesMinValMap	myMinVals
float	myMinVal
LegendPosition	myLegendPosition
bool	myDirtyMaxValFlag
bool	myDirtyMinValFlag
bool	myLockUpdatesFlag
bool	myDirtyPlotFlag

Static Protected Attributes

static const float	theScaleFactor = 1.2f
	Constants used in scaling y axis.
static const float	theIntervalFactor = 0.001f
	Constants used in scaling y axis.

Detailed Description

A QwtPlot Widget customized for use in plotting GPS accuracies.

Member Typedef Documentation

typedef std::map<unsigned,DtAssistantPlotSeries*> DtAssistantPlot::SeriesMap

protected

typedef std::map<unsigned,float> DtAssistantPlot::SeriesMaxValMap

protected

typedef SeriesMaxValMap DtAssistantPlot::SeriesMinValMap

protected

Constructor & Destructor Documentation

DtAssistantPlot::~DtAssistantPlot ( )

virtual

Virtual DTOR.

References mySeries.

DtAssistantPlot::DtAssistantPlot ( const QString & unitLabel = QString() )

protected

Protected CTOR (use create(..)) This CTOR creates a plot with no legend.

Instantiates a new plot with grid lines and scrolling

Parameters

unitLabel label for the units of the y axis.

Referenced by create().

DtAssistantPlot::DtAssistantPlot	(	LegendPosition	legendPos,
		const QString &	unitLabel = `QString()`
	)

protected

Protected CTOR (use create(..)) Instantiates a new plot with grid lines and scrolling.

Parameters

legendPos	where to position the legend relative to the plot.
unitLabel	label for the units of the y axis.

Member Function Documentation

void DtAssistantPlot::clear ( )

virtual

References myDirtyMaxValFlag, myDirtyMinValFlag, mySeries, and updateAxisScaling().

Referenced by DtAssistantPlotWidget::clear().

void DtAssistantPlot::connectToSignals ( )

protectedvirtual

References connect().

Referenced by initialize().

DtAssistantPlot * DtAssistantPlot::create ( const QString & unitLabel = QString() )

static

Instantiates and initializes a new DtAssistantPlot.

Parameters

unitLabel label for the units of the y axis.

References DtAssistantPlot(), and initialize().

Referenced by DtAssistantPlotWidget::layoutTab().

DtAssistantPlot * DtAssistantPlot::create	(	LegendPosition	legendPos,
		const QString &	unitLabel = `QString()`
	)

static

Instantiates and initializes a new DtAssistantPlot.

Parameters

legendPos	where to position the legend relative to the plot.
unitLabel	label for the units of the y axis.

References DtAssistantPlot(), and initialize().

QwtLegend * DtAssistantPlot::createLegend ( )

virtual

References myLegendPosition, mySeries, and setSeriesEnabled().

Referenced by initialize().

QPen DtAssistantPlot::createPen	(	const QColor &	color,
		Qt::PenStyle	style = `Qt::SolidLine`,
		qreal	width = `0`
	)

protectedvirtual

Utility method for creating a pen with the given color and width.

Parameters

color	the color to make the pen
style	the style of line to draw
width	the width of the pen

Referenced by createPlotSeries(), and initialize().

DtAssistantPlotSeries * DtAssistantPlot::createPlotSeries	(	const QColor &	color,
		unsigned	seriesId,
		Qt::PenStyle	style,
		const QString &	dispName = `QString()`
	)

virtual

Creates a new series to display on the plot.

Parameters

color	the color of the series lines
seriesId	an integer ID uniquely identifying the series
dispName	a logical name for the series (to be displayed on the legend)

References createPen(), findSeries(), mySeries, DtAssistantPlotSeries::setEnabled(), and DtAssistantPlotSeries::updateLegend().

Referenced by DtAssistantPlotWidget::createNewSeries().

DtAssistantPlotSeries * DtAssistantPlot::findSeries ( unsigned seriesId )

virtual

Finds the series with the given ID and returns it.

Returns: returns the series with the given ID or NULL if there wasn't one

References mySeries, and NULL.

Referenced by createPlotSeries(), DtAssistantPlotWidget::setSeriesData(), and updateSeries().

float DtAssistantPlot::getMaxVal ( )

virtual

References myDirtyMaxValFlag, myMaxVal, and mySeries.

Referenced by updateAxisScaling(), updateAxisScalingIfNeeded(), and updateSeries().

float DtAssistantPlot::getMaxVal ( unsigned seriesId )

virtual

References myMaxVals.

float DtAssistantPlot::getMinVal ( )

virtual

References myDirtyMinValFlag, myMinVal, and mySeries.

Referenced by updateAxisScaling(), updateAxisScalingIfNeeded(), and updateSeries().

float DtAssistantPlot::getMinVal ( unsigned seriesId )

virtual

References myMinVals.

void DtAssistantPlot::initialize	(	bool	showLegend,
		const QString &	unitLabel
	)

virtual

Applies styles to the plot.

Parameters

showLegend	whether the plot's legend should be visible.
legendPos	where to position the legend relative to the plot.
unitLabel	label for the units of the y axis.

References connectToSignals(), createLegend(), createPen(), setShowTimeLabels(), and updateAxisScaling().

Referenced by create().

void DtAssistantPlot::setBaseTime ( double baseTime )

virtual

References DtAssistantPlot::TimeScaleDraw::setBaseTime().

Referenced by DtAssistantPlotWidget::updateSeries().

void DtAssistantPlot::setLockUpdates ( bool lock )

virtual

Sets whether updates.

References myDirtyPlotFlag, myLockUpdatesFlag, and updateAxisScalingIfNeeded().

Referenced by DtAssistantPlotWidget::updateSeries().

void DtAssistantPlot::setSeriesEnabled	(	unsigned	seriesId,
		bool	enabled
	)

virtual

References mySeries.

Referenced by createLegend(), and DtAssistantPlotWidget::createNewSeries().

void DtAssistantPlot::setSeriesEnabled	(	QwtPlotItem *	item,
		bool	enabled
	)

virtual

References myDirtyMaxValFlag, myDirtyMinValFlag, and updateAxisScaling().

void DtAssistantPlot::setShowTimeLabels ( bool show )

virtual

Sets whether the X-Axis time labels are visible.

Referenced by initialize().

void DtAssistantPlot::updateAxisScaling ( )

virtual

Updates the y axis scaling to show the most recent n seconds Updates the y axis scaling so the most recently plotted value is visible and only myNumSecondsVisible seconds are visible (earlier plotted values will be hidden).

References getMaxVal(), getMinVal(), interval, theIntervalFactor, and theScaleFactor.

Referenced by clear(), initialize(), setSeriesEnabled(), and updateAxisScalingIfNeeded().

void DtAssistantPlot::updateAxisScalingIfNeeded ( )

virtual

Updates the y axis scaling to show the most recent n seconds Does not rescale if maximum value can still be displayed on the graph.

References getMaxVal(), getMinVal(), and updateAxisScaling().

Referenced by setLockUpdates(), and updateSeries().
