Stores the cached connections which the Assistant can provide to components if necessary. More...

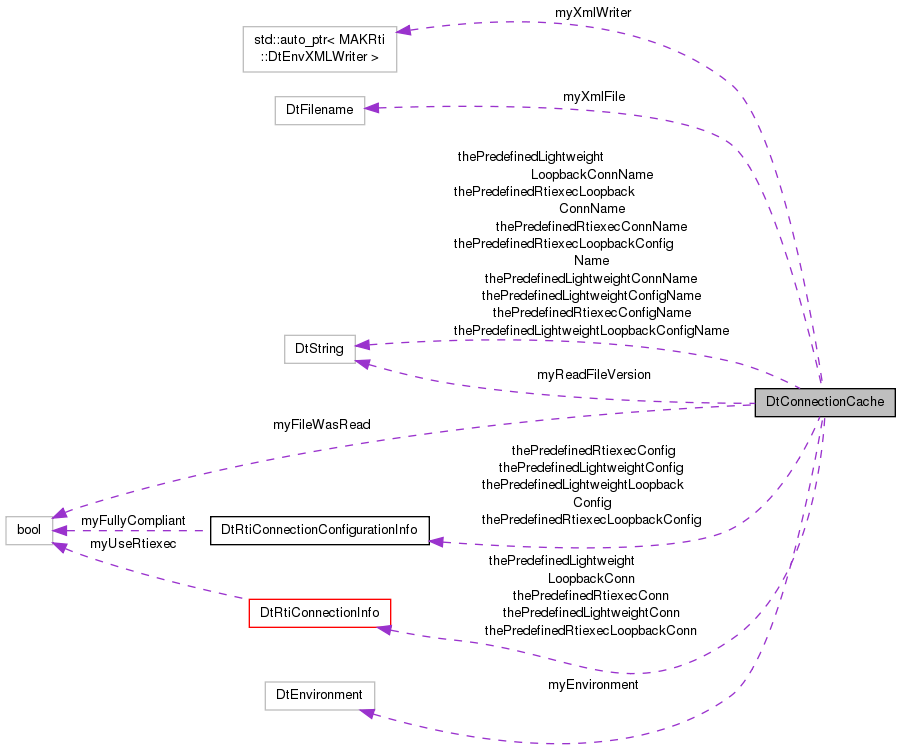

Collaboration diagram for DtConnectionCache:

Public Member Functions
	DtConnectionCache (const MAKRti::DtFilename &xmlFile)
	Constructor.
virtual	~DtConnectionCache ()
	Destructor.
virtual bool	writeToFile ()
	Writes the cache to the default XML file specified at creation.
virtual bool	writeToFile (const MAKRti::DtFilename &xmlFile)
	Writes the cache to the specified XML file. Returns true if successful.
virtual std::ostream &	print (std::ostream &ostr) const
	Prints the cache to the given output stream.
virtual void	getConnections (DtRtiConnectionAndConfiguration &connsAndConfigs)
	Retrieve the connections.
virtual bool	setConnections (const DtRtiConnectionAndConfiguration &conns)
	Set the connections. Returns true on success.
virtual void	clearConnections ()
	Clear all connections.
virtual bool	fileWasRead () const
	Returns true if the cache file was found and read.
virtual bool	getFileVersion (MAKRti::DtString &version) const
	Returns the RTI version of the file that was read.
virtual bool	isCacheVersionOld () const
	Was the cache read from an older file version?

Protected Member Functions
virtual void	getRtiexecConnectionsFromEnv (DtRtiConnectionAndConfiguration &connsAndConfigs)
	Retrieve the rtiexec connections from the XML environment.
virtual void	getLightweightConnectionsFromEnv (DtRtiConnectionAndConfiguration &connsAndConfigs)
	Retrieve the lightweight connections from the XML environment.
virtual void	getConfigurationsFromEnv (DtRtiConnectionAndConfiguration &connsAndConfigs)
	Retrieves the configurations from the XML environment.
virtual MAKRti::DtEnvValueSP	addConnectionToEnv (const DtRtiConnectionInfoDataPair &conn)
	Add a connection/config to the XML environment.
virtual MAKRti::DtEnvValueSP	addConfigurationToEnv (const DtRtiConfigurationInfoDataPair &config)
virtual void	removeConnectionFromEnv (const DtRtiConnectionInfoDataPair &conn)
	Remove a connection from the XML environment.
virtual void	removeConfigurationFromEnv (const DtRtiConfigurationInfoDataPair &config)
void	setConnFromEnv (DtRtiConnectionInfoDataPair &conn, MAKRti::DtEnvValueSP val)
	Sets the connection info from the environment value.
void	setConfigFromEnv (DtRtiConfigurationInfoDataPair &config, MAKRti::DtEnvValueSP val)
	Sets the connection info from the environment value.
bool	parseFile (const MAKRti::DtFilename &filename)
	Build document starting from existing file Non-virtual since this may be called from the constructor.

Protected Attributes
MAKRti::DtEnvironment	myEnvironment
	The cached license environment.
std::auto_ptr < MAKRti::DtEnvXMLWriter >	myXmlWriter
	Document writer - used to convert the document to XML in memory or file myXmlWriter is persistent so that the XML memory buffer does not re-allocate as often.
MAKRti::DtFilename	myXmlFile
	The name of the default XML file to read from and write to.
MAKRti::DtString	myReadFileVersion
	The version of the file that was read.
bool	myFileWasRead
	Indicates whether a cache file was found and read.

Static Protected Attributes
Predefined lightweight connection information
static MAKRti::DtString	thePredefinedLightweightConnName
	The predefined lightweight connection name.
static DtRtiConnectionInfo	thePredefinedLightweightConn
	The predefined lightweight connection.
static MAKRti::DtString	thePredefinedLightweightConfigName
	The predefined lightweight configuration name.
static DtRtiConnectionConfigurationInfo	thePredefinedLightweightConfig
	The predefined lightweight configuration.
Predefined rtiexec connection information
static MAKRti::DtString	thePredefinedRtiexecConnName
	The predefined rtiexec connection name.
static DtRtiConnectionInfo	thePredefinedRtiexecConn
	The predefined rtiexec connection.
static MAKRti::DtString	thePredefinedRtiexecConfigName
	The predefined rtiexec configuration name.
static DtRtiConnectionConfigurationInfo	thePredefinedRtiexecConfig
	The predefined rtiexec configuration.
Predefined lightweight loopback connection information
static MAKRti::DtString	thePredefinedLightweightLoopbackConnName
	The predefined lightweight loopback connection name.
static DtRtiConnectionInfo	thePredefinedLightweightLoopbackConn
	The predefined lightweight loopback connection.
static MAKRti::DtString	thePredefinedLightweightLoopbackConfigName
	The predefined lightweight loopback configuration name.
static DtRtiConnectionConfigurationInfo	thePredefinedLightweightLoopbackConfig
	The predefined lightweight loopback configuration.
Predefined rtiexec loopback connection information
static MAKRti::DtString	thePredefinedRtiexecLoopbackConnName
	The predefined rtiexec loopback connection name.
static DtRtiConnectionInfo	thePredefinedRtiexecLoopbackConn
	The predefined rtiexec loopback connection.
static MAKRti::DtString	thePredefinedRtiexecLoopbackConfigName
	The predefined rtiexec loopback configuration name.
static DtRtiConnectionConfigurationInfo	thePredefinedRtiexecLoopbackConfig
	The predefined rtiexec loopback configuration.

Private Member Functions
	DtConnectionCache (const DtConnectionCache &)
	Copy and assignment not allowed.
DtConnectionCache &	operator= (const DtConnectionCache &)

Detailed Description

Stores the cached connections which the Assistant can provide to components if necessary.

Handles reading and loading this information from an XML file.

Constructor & Destructor Documentation

DtConnectionCache::DtConnectionCache ( const MAKRti::DtFilename & xmlFile )

Constructor.

Creates an Assistant connections cache from the given XML file. If the file cannot be found, an empty cache is created. In this case the file name will be saved as the default file if the cache needs to be written later.

References DtConnectionsVersionString, myEnvironment, myFileWasRead, myReadFileVersion, and myXmlFile.

DtConnectionCache::~DtConnectionCache ( )

virtual

Destructor.

DtConnectionCache::DtConnectionCache ( const DtConnectionCache & )

private

Copy and assignment not allowed.

Member Function Documentation

MAKRti::DtEnvValueSP DtConnectionCache::addConfigurationToEnv ( const DtRtiConfigurationInfoDataPair & config )

protectedvirtual

References DtConnectionsChosenString, DtConnectionsConfigString, DtConnectionsFullyCompliantString, and myEnvironment.

Referenced by setConnections().

MAKRti::DtEnvValueSP DtConnectionCache::addConnectionToEnv ( const DtRtiConnectionInfoDataPair & conn )

protectedvirtual

Add a connection/config to the XML environment.

References DtConnectionsAdditionalForwarderConnString, DtConnectionsBestEffortIPString, DtConnectionsBestEffortPortString, DtConnectionsChosenString, DtConnectionsForwarderPortString, DtConnectionsGivenNameString, DtConnectionsHostString, DtConnectionsLightweightString, DtConnectionsNetworkInterfaceAddrString, DtConnectionsOwnerHostString, DtConnectionsReliableIPString, DtConnectionsReliablePortString, DtConnectionsRtiExecString, and myEnvironment.

Referenced by setConnections().

void DtConnectionCache::clearConnections ( )

virtual

Clear all connections.

References DtConnectionsConnectionString, and myEnvironment.

bool DtConnectionCache::fileWasRead ( ) const

virtual

Returns true if the cache file was found and read.

References myFileWasRead.

void DtConnectionCache::getConfigurationsFromEnv ( DtRtiConnectionAndConfiguration & connsAndConfigs )

protectedvirtual

Retrieves the configurations from the XML environment.

References DtRtiConnectionAndConfiguration::addConfiguration(), DtRtiConnectionAndConfiguration::connections(), DtConnectionsConfigString, myEnvironment, setConfigFromEnv(), DtRtiConnectionAndConfiguration::setConnectionConfigMapping(), thePredefinedLightweightConfig, thePredefinedLightweightConfigName, thePredefinedLightweightLoopbackConfig, thePredefinedLightweightLoopbackConfigName, thePredefinedRtiexecConfig, thePredefinedRtiexecConfigName, thePredefinedRtiexecLoopbackConfig, and thePredefinedRtiexecLoopbackConfigName.

Referenced by getConnections().

void DtConnectionCache::getConnections ( DtRtiConnectionAndConfiguration & connsAndConfigs )

virtual

Retrieve the connections.

References getConfigurationsFromEnv(), getLightweightConnectionsFromEnv(), and getRtiexecConnectionsFromEnv().

bool DtConnectionCache::getFileVersion ( MAKRti::DtString & version ) const

virtual

Returns the RTI version of the file that was read.

Returns false if no file was read.

References myFileWasRead, and myReadFileVersion.

Referenced by isCacheVersionOld().

void DtConnectionCache::getLightweightConnectionsFromEnv ( DtRtiConnectionAndConfiguration & connsAndConfigs )

protectedvirtual

Retrieve the lightweight connections from the XML environment.

Referenced by getConnections().

void DtConnectionCache::getRtiexecConnectionsFromEnv ( DtRtiConnectionAndConfiguration & connsAndConfigs )

protectedvirtual

Retrieve the rtiexec connections from the XML environment.

Referenced by getConnections().

bool DtConnectionCache::isCacheVersionOld ( ) const

virtual

Was the cache read from an older file version?

References DtRtiVersionNumber, and getFileVersion().

DtConnectionCache& DtConnectionCache::operator= ( const DtConnectionCache & )

private

bool DtConnectionCache::parseFile ( const MAKRti::DtFilename & filename )

protected

Build document starting from existing file Non-virtual since this may be called from the constructor.

std::ostream & DtConnectionCache::print ( std::ostream & ostr ) const

virtual

Prints the cache to the given output stream.

References myEnvironment.

Referenced by operator<<().

void DtConnectionCache::removeConfigurationFromEnv ( const DtRtiConfigurationInfoDataPair & config )

protectedvirtual

References DtConnectionsConfigString, and myEnvironment.

void DtConnectionCache::removeConnectionFromEnv ( const DtRtiConnectionInfoDataPair & conn )

protectedvirtual

Remove a connection from the XML environment.

References DtConnectionsLightweightString, DtConnectionsRtiExecString, and myEnvironment.

void DtConnectionCache::setConfigFromEnv	(	DtRtiConfigurationInfoDataPair &	config,
		MAKRti::DtEnvValueSP	val
	)

protected

Sets the connection info from the environment value.

References DtConnectionsChosenString, DtConnectionsFullyCompliantString, and myEnvironment.

Referenced by getConfigurationsFromEnv().

bool DtConnectionCache::setConnections ( const DtRtiConnectionAndConfiguration & conns )

virtual

Set the connections. Returns true on success.

References addConfigurationToEnv(), addConnectionToEnv(), DtRtiConnectionAndConfiguration::configs(), DtRtiConnectionAndConfiguration::connections(), DtConnectionsVersionString, DtRtiVersionNumber, and myEnvironment.

void DtConnectionCache::setConnFromEnv	(	DtRtiConnectionInfoDataPair &	conn,
		MAKRti::DtEnvValueSP	val
	)

protected

Sets the connection info from the environment value.

References DtConnectionsAdditionalForwarderConnString, DtConnectionsBestEffortIPString, DtConnectionsBestEffortPortString, DtConnectionsChosenString, DtConnectionsForwarderPortString, DtConnectionsGivenNameString, DtConnectionsHostString, DtConnectionsNetworkInterfaceAddrString, DtConnectionsOwnerHostString, DtConnectionsPortString, DtConnectionsReliableIPString, DtConnectionsReliablePortString, DtDefaultInterfaceAddr(), DtGetLocalHostName(), and myEnvironment.

Referenced by getLightweightConnectionsFromEnv(), and getRtiexecConnectionsFromEnv().

bool DtConnectionCache::writeToFile ( )

virtual

Writes the cache to the default XML file specified at creation.

Returns true if successful.

References myXmlFile.

bool DtConnectionCache::writeToFile ( const MAKRti::DtFilename & xmlFile )

virtual

Writes the cache to the specified XML file. Returns true if successful.

References myEnvironment, and myXmlWriter.

Member Data Documentation

MAKRti::DtEnvironment DtConnectionCache::myEnvironment

protected

The cached license environment.

Referenced by addConfigurationToEnv(), addConnectionToEnv(), clearConnections(), DtConnectionCache(), getConfigurationsFromEnv(), getLightweightConnectionsFromEnv(), getRtiexecConnectionsFromEnv(), print(), removeConfigurationFromEnv(), removeConnectionFromEnv(), setConfigFromEnv(), setConnections(), setConnFromEnv(), and writeToFile().

bool DtConnectionCache::myFileWasRead

protected

Indicates whether a cache file was found and read.

Referenced by DtConnectionCache(), fileWasRead(), and getFileVersion().

MAKRti::DtString DtConnectionCache::myReadFileVersion

protected

The version of the file that was read.

Referenced by DtConnectionCache(), and getFileVersion().

MAKRti::DtFilename DtConnectionCache::myXmlFile

protected

The name of the default XML file to read from and write to.

Referenced by DtConnectionCache(), and writeToFile().

std::auto_ptr< MAKRti::DtEnvXMLWriter > DtConnectionCache::myXmlWriter

protected

Document writer - used to convert the document to XML in memory or file myXmlWriter is persistent so that the XML memory buffer does not re-allocate as often.

Referenced by writeToFile().

DtRtiConnectionConfigurationInfo DtConnectionCache::thePredefinedLightweightConfig

staticprotected

The predefined lightweight configuration.

Referenced by getConfigurationsFromEnv().

MAKRti::DtString DtConnectionCache::thePredefinedLightweightConfigName

staticprotected

The predefined lightweight configuration name.

Referenced by getConfigurationsFromEnv().

DtRtiConnectionInfo DtConnectionCache::thePredefinedLightweightConn

staticprotected

The predefined lightweight connection.
