Inheritance diagram for DtNetworkMapWidget:

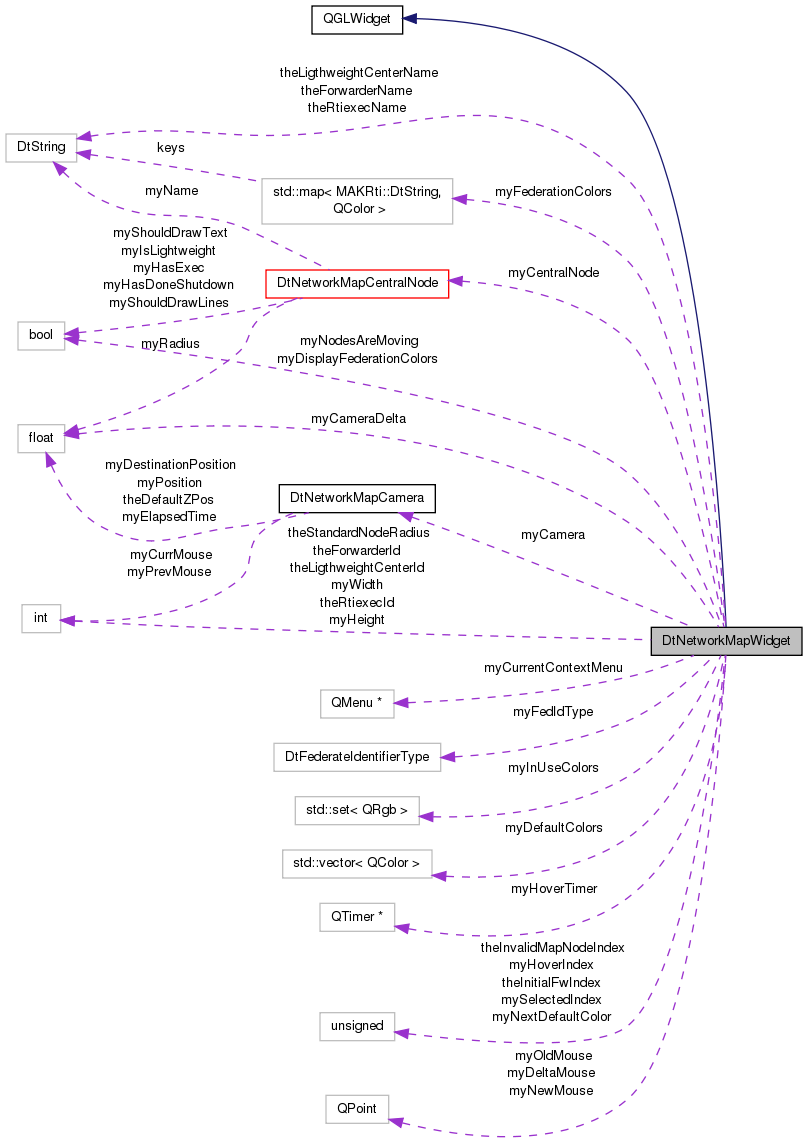

Collaboration diagram for DtNetworkMapWidget:

Public Slots
void	selectAndHoverText ()
	SLOT: called when we need to select the hovered object.
void	showContextMenu (const QPoint &pos)
	Called when the user requests a context menu in the network map.

Signals
void	federateSelected (const MAKRti::DtString &federationName, int federateHandle)
	Emitted when a federate node is selected.
void	rtiexecSelected ()
	Emitted when the rtiexec node is selected.
void	forwarderSelected (const MAKRti::DtString &forwarderName)
	Emitted when the central forwarder node is selected.
void	peerForwarderSelected (const MAKRti::DtString &forwarderName)
	Emitted when a peer forwarder node is selected.
void	lightweightSelected ()
	Emitted when the lightweight center node is selected.
void	nothingSelected ()
	Emitted when selection is cleared.

Public Member Functions
	DtNetworkMapWidget (QWidget *parent)
	Constructor.
virtual	~DtNetworkMapWidget ()
	Destructor.
virtual QSize	sizeHint () const
	Returns the recommended size for the widget.
void	addPeerForwarderNode (const MAKRti::DtString &forwarderName)
	Adds a particular node.
void	removeForwarderNode (const MAKRti::DtString &forwarderName)
void	addExecNode ()
void	removeExecNode ()
void	addFederateNode (int fedHandle, const MAKRti::DtString &federationName, const MAKRti::DtString &processName, const MAKRti::DtString &fedType, const MAKRti::DtString &fedName, bool notJoined=false, bool isDropped=false)
void	removeFederateNode (int fedHandle, const MAKRti::DtString &federationName)
void	checkAndAddMainForwarder (const MAKRti::DtString &forwarderName)
void	checkAndAddLightweight (const MAKRti::DtString &connName)
void	updateFederateInfo (int fedHandle, const MAKRti::DtString &federationName, int queueStatus, bool disconnected, bool reconnecting, bool inErrorState=false)
void	refreshPositions ()
bool	doesFederateExist (int fedHandle, const MAKRti::DtString &federationName)
	Does this federate exist?
bool	doesRtiexecExist ()
	Does the rtiexec exist?
void	clearFederateFlags (int fedHandle, const MAKRti::DtString &federationName)
	clear this federates flags
void	forceFederateSelection (int fedHandle, const MAKRti::DtString &federationName)
	For the widget to select the specified federate.
void	forceRtiexecSelection ()
	For the widget to select the rtiexec.
void	forceForwarderSelection (const MAKRti::DtString &forwarderName)
	For the widget to select the central forwarder.
void	forceClearSelection ()
	For the widget to clear the current selection.
virtual void	tick (float delta)
	Update.
virtual void	selection (int x, int y, bool onHover=false)
	checks for selection
virtual void	clearList ()
	Clears the nodes.
virtual bool	hasSelection ()
	Checks for a selected node.
virtual int	getSelectedHandle ()
	Returns the selected index.
virtual void	getSelectedNodeInfo (MAKRti::DtString &federationName, int &federateHandle, bool &isForwarder, bool &isExec, bool &isLightweightCenter)
	Gets the selected node information.
virtual QColor	getFederationColor (const MAKRti::DtString &federationName)
	Gets the federation color.
virtual void	changeFederationColor (const MAKRti::DtString &federationName, const QColor &newColor)
	Changes the federation names color mapping.
virtual void	enableFederationColors (bool enable)
	Enable or disable display of federation colors.
virtual void	setFederateIdentifierType (DtFederateIdentifierType fedIdType)
	Choose type of text to be used to identify federates.
virtual void	setContextMenu (QMenu *contextMenu)
	Set the context menu to use when activated.

Protected Member Functions
virtual void	resizeEvent (QResizeEvent *evt)
	Resize event.
virtual void	closeEvent (QCloseEvent *evt)
	close event
virtual void	wheelEvent (QWheelEvent *evt)
	Wheel Event for zooming.
virtual void	mouseMoveEvent (QMouseEvent *evt)
	Mouse Movement for Panning.
virtual void	keyPressEvent (QKeyEvent *evt)
	Key Press for resetting Pan.
virtual void	mousePressEvent (QMouseEvent *evt)
	Mouse press event.
virtual void	mouseDoubleClickEvent (QMouseEvent *evt)
	Mouse double click.
virtual void	initializeGL ()
	Initializes the OpenGL data.
virtual void	paintGL ()
	Paint's the OpenGL Scene.
virtual void	drawLines ()
	Draws the lines.
virtual void	drawNodes ()
	Draws the nodes.
virtual void	drawForwarderNodes ()
	Draws the forwarder nodes.
virtual void	drawForwarderNodeLines ()
	Draws the forwarder node lines.
virtual void	drawText ()
	Draws node text.
virtual QColor	addFederationColor (const MAKRti::DtString &federationName)
	Adds a federation name -> color mapping.
virtual void	drawWarning (int textIndex)
	Draws the warning/error/disconnect texture.

Protected Attributes
int	myWidth
int	myHeight
unsigned	mySelectedIndex
unsigned	myHoverIndex
float	myCameraDelta
QPoint	myOldMouse
QPoint	myNewMouse
QPoint	myDeltaMouse
DtNetworkMapCentralNode *	myCentralNode
DtNetworkMapCamera *	myCamera
DtFederateIdentifierType	myFedIdType
	The identifying text to be used to identify federates.
std::vector< QColor >	myDefaultColors
	Available default colors.
bool	myDisplayFederationColors
	Whether the federation colors are displayed.
bool	myNodesAreMoving
	Whether nodes are currently moving.
unsigned	myNextDefaultColor
	Index of next color to use.
std::set< QRgb >	myInUseColors
	Colors currently in use.
QTimer *	myHoverTimer
std::map< MAKRti::DtString, QColor >	myFederationColors
	map that holds federation names to colors
QMenu *	myCurrentContextMenu
	The context menu to display for the current selected node, if requested.

Static Protected Attributes
static const int	theStandardNodeRadius = 2
	The standard radius for all nodes.
static const unsigned	theInvalidMapNodeIndex = 0xFFFFFFFF
	Represents an invalid map node index.
static const unsigned	theInitialFwIndex = 0x80000000
	The first forwarder node index.

static const int	theRtiexecId = 999999
	Standard IDs to use for non-federate nodes.
static const int	theForwarderId = 999998
	Standard IDs to use for non-federate nodes.
static const int	theLigthweightCenterId = 999997
	Standard IDs to use for non-federate nodes.

static const MAKRti::DtString	theRtiexecName = "rtiexec"
	Standard names to use for non-federate nodes.
static const MAKRti::DtString	theForwarderName = "RTI Forwarder"
	Standard names to use for non-federate nodes.
static const MAKRti::DtString	theLigthweightCenterName = "Lightweight Connection"
	Standard names to use for non-federate nodes.

Detailed Description

Uses an QGLWidget for rendering in OpenGL

Constructor & Destructor Documentation

DtNetworkMapWidget::DtNetworkMapWidget ( QWidget * parent )

Constructor.

References connect(), myCamera, myDefaultColors, myFederationColors, myHoverTimer, selectAndHoverText(), and showContextMenu().

DtNetworkMapWidget::~DtNetworkMapWidget ( )

virtual

Destructor.

References myCamera, myCentralNode, NULL, and DtNetworkMapCentralNode::shutdown().

Member Function Documentation

void DtNetworkMapWidget::addExecNode ( )

References DtNetworkMapCentralNode::addNode(), myCentralNode, DtNetworkMapNode::setIsExec(), theRtiexecId, theRtiexecName, and theStandardNodeRadius.

Referenced by DtFederationsViewDialog::addNetworkMapRtiexecNode().

void DtNetworkMapWidget::addFederateNode	(	int	fedHandle,
		const MAKRti::DtString &	federationName,
		const MAKRti::DtString &	processName,
		const MAKRti::DtString &	fedType,
		const MAKRti::DtString &	fedName,
		bool	notJoined = `false`,
		bool	isDropped = `false`
	)

References addFederationColor(), DtNetworkMapCentralNode::addNode(), myCentralNode, DtNetworkMapNode::showError(), DtNetworkMapNode::showNotJoined(), and theStandardNodeRadius.

Referenced by DtFederationsViewDialog::addNetworkMapFederateNode().

QColor DtNetworkMapWidget::addFederationColor ( const MAKRti::DtString & federationName )

protectedvirtual

Adds a federation name -> color mapping.

References federationName(), myDefaultColors, myFederationColors, myInUseColors, and myNextDefaultColor.

Referenced by addFederateNode(), and getFederationColor().

void DtNetworkMapWidget::addPeerForwarderNode ( const MAKRti::DtString & forwarderName )

Adds a particular node.

References DtNetworkMapCentralNode::addForwarderNode(), myCentralNode, DtNetworkMapNode::setIsPeerForwarder(), theForwarderId, and theStandardNodeRadius.

Referenced by DtFederationsViewDialog::addNetworkMapForwarderNode().

void DtNetworkMapWidget::changeFederationColor	(	const MAKRti::DtString &	federationName,
		const QColor &	newColor
	)

virtual

Changes the federation names color mapping.

References myFederationColors.

Referenced by DtFederationsViewDialog::changeFederationColor().

void DtNetworkMapWidget::checkAndAddLightweight ( const MAKRti::DtString & connName )

References DtNetworkMapCentralNode::getCentralNodeName(), myCentralNode, NULL, DtNetworkMapCentralNode::setCentralNode(), theLigthweightCenterId, theLigthweightCenterName, and theStandardNodeRadius.

Referenced by DtFederationsViewDialog::checkAndAddLightweight().

void DtNetworkMapWidget::checkAndAddMainForwarder ( const MAKRti::DtString & forwarderName )

References DtNetworkMapCentralNode::getCentralNodeName(), myCentralNode, NULL, DtNetworkMapCentralNode::setCentralNode(), theForwarderId, theForwarderName, and theStandardNodeRadius.

Referenced by DtFederationsViewDialog::checkAndAddMainForwarder().

void DtNetworkMapWidget::clearFederateFlags	(	int	fedHandle,
		const MAKRti::DtString &	federationName
	)

clear this federates flags

References DtNetworkMapCentralNode::getNodeByFederateHandle(), myCentralNode, NULL, and DtNetworkMapNode::resetTextureId().

void DtNetworkMapWidget::clearList ( )

virtual

Clears the nodes.

References DtNetworkMapCentralNode::clearList(), myCentralNode, and NULL.

Referenced by DtFederationsViewDialog::clearNetworkMap().

void DtNetworkMapWidget::closeEvent ( QCloseEvent * evt )

protectedvirtual

close event

bool DtNetworkMapWidget::doesFederateExist	(	int	fedHandle,
		const MAKRti::DtString &	federationName
	)

Does this federate exist?

References DtNetworkMapCentralNode::getNodeByFederateHandle(), myCentralNode, and NULL.

bool DtNetworkMapWidget::doesRtiexecExist ( )

Does the rtiexec exist?

References DtNetworkMapCentralNode::getNodeByFederateHandle(), myCentralNode, NULL, and theRtiexecId.

Referenced by DtFederationsViewDialog::enableOrDisableMenuActions().

void DtNetworkMapWidget::drawForwarderNodeLines ( )

protectedvirtual

Draws the forwarder node lines.

References DtNetworkMapCentralNode::getForwarderNode(), DtNetworkMapCentralNode::getFwdSize(), DtNetworkMapNode::getPosition(), myCentralNode, _vec2::x, and _vec2::y.

Referenced by paintGL().

void DtNetworkMapWidget::drawForwarderNodes ( )

protectedvirtual

Draws the forwarder nodes.

References DtForwarderTexture, DtNetworkMapCentralNode::getForwarderNode(), DtNetworkMapCentralNode::getFwdSize(), DtIconAndTextureManager::getInstance(), DtNetworkMapNode::getPosition(), myCentralNode, mySelectedIndex, theInitialFwIndex, theInvalidMapNodeIndex, _vec2::x, and _vec2::y.

Referenced by paintGL(), and selection().

void DtNetworkMapWidget::drawLines ( )

protectedvirtual

Draws the lines.

References DtNetworkMapCentralNode::drawLines(), DtNetworkMapCentralNode::getNode(), DtNetworkMapNode::getPosition(), DtNetworkMapCentralNode::getSize(), DtNetworkMapNode::isDisconnected(), DtNetworkMapCentralNode::isLightweight(), myCentralNode, mySelectedIndex, theInvalidMapNodeIndex, _vec2::x, and _vec2::y.

Referenced by paintGL().

void DtNetworkMapWidget::drawNodes ( )

protectedvirtual

void DtNetworkMapWidget::drawText ( )

protectedvirtual

void DtNetworkMapWidget::drawWarning ( int textIndex )

protectedvirtual

Draws the warning/error/disconnect texture.

References DtWarningTexture, and DtIconAndTextureManager::getInstance().

Referenced by drawNodes().

void DtNetworkMapWidget::enableFederationColors ( bool enable )

virtual

Enable or disable display of federation colors.

References myDisplayFederationColors.

Referenced by DtFederationsViewDialog::enableFederationColors().

void DtNetworkMapWidget::federateSelected	(	const MAKRti::DtString &	federationName,
		int	federateHandle
	)

signal

Emitted when a federate node is selected.

Referenced by selection().

void DtNetworkMapWidget::forceClearSelection ( )

For the widget to clear the current selection.

References mySelectedIndex, and theInvalidMapNodeIndex.

Referenced by DtFederationsViewDialog::clearData(), DtFederationsViewDialog::clearSelection(), and DtFederationsViewDialog::selectFederation().

void DtNetworkMapWidget::forceFederateSelection	(	int	fedHandle,
		const MAKRti::DtString &	federationName
	)

For the widget to select the specified federate.

References DtNetworkMapCentralNode::getNode(), DtNetworkMapCentralNode::getNodeByFederateHandle(), DtNetworkMapCentralNode::getSize(), myCentralNode, and mySelectedIndex.

Referenced by DtFederationsViewDialog::selectDeadFederate(), and DtFederationsViewDialog::selectFederate().

void DtNetworkMapWidget::forceForwarderSelection ( const MAKRti::DtString & forwarderName )

For the widget to select the central forwarder.

References DtNetworkMapCentralNode::getForwarderNode(), DtNetworkMapCentralNode::getForwarderNodeByName(), DtNetworkMapCentralNode::getFwdSize(), myCentralNode, mySelectedIndex, and theInitialFwIndex.

Referenced by DtFederationsViewDialog::selectForwarder(), and DtFederationsViewDialog::selectPeerForwarder().

void DtNetworkMapWidget::forceRtiexecSelection ( )

For the widget to select the rtiexec.

References DtNetworkMapCentralNode::getNode(), DtNetworkMapCentralNode::getNodeByFederateHandle(), DtNetworkMapCentralNode::getSize(), myCentralNode, mySelectedIndex, and theRtiexecId.

Referenced by DtFederationsViewDialog::selectRtiexec().

void DtNetworkMapWidget::forwarderSelected ( const MAKRti::DtString & forwarderName )

signal

Emitted when the central forwarder node is selected.

Referenced by selection().

QColor DtNetworkMapWidget::getFederationColor ( const MAKRti::DtString & federationName )

virtual

Gets the federation color.

References addFederationColor(), and myFederationColors.

Referenced by drawNodes(), DtFederationsViewDialog::showFederateInfo(), DtFederationsViewDialog::showFederationInfo(), and DtFederationsViewDialog::updateFederation().

virtual int DtNetworkMapWidget::getSelectedHandle ( )

inlinevirtual

Returns the selected index.

void DtNetworkMapWidget::getSelectedNodeInfo	(	MAKRti::DtString &	federationName,
		int &	federateHandle,
		bool &	isForwarder,
		bool &	isExec,
		bool &	isLightweightCenter
	)

virtual

Gets the selected node information.

References DtNetworkMapNode::getFederateId(), DtNetworkMapNode::getFederationName(), DtNetworkMapCentralNode::getNode(), DtNetworkMapNode::IsCentralForwarder(), DtNetworkMapNode::IsExec(), DtNetworkMapNode::IsLightweightCenter(), DtNetworkMapNode::IsPeerForwarder(), myCentralNode, mySelectedIndex, NULL, and theInvalidMapNodeIndex.

bool DtNetworkMapWidget::hasSelection ( )

virtual

Checks for a selected node.

References mySelectedIndex, and theInvalidMapNodeIndex.

void DtNetworkMapWidget::initializeGL ( )

protectedvirtual

Initializes the OpenGL data.

References myHeight, and myWidth.

void DtNetworkMapWidget::keyPressEvent ( QKeyEvent * evt )

protectedvirtual

Key Press for resetting Pan.

For resetting the panning.

References DtNetworkMapCentralNode::getSize(), myCamera, myCentralNode, NULL, and DtNetworkMapCamera::resetToDefault().

void DtNetworkMapWidget::lightweightSelected ( )

signal

Emitted when the lightweight center node is selected.

Referenced by selection().

void DtNetworkMapWidget::mouseDoubleClickEvent ( QMouseEvent * evt )

protectedvirtual

Mouse double click.

References DtNetworkMapCamera::getDistance(), DtNetworkMapCentralNode::getForwarderNode(), DtNetworkMapCentralNode::getNode(), DtNetworkMapNode::getPosition(), myCamera, myCentralNode, mySelectedIndex, NULL, DtNetworkMapCamera::reset(), selection(), theInitialFwIndex, theInvalidMapNodeIndex, _vec2::x, and _vec2::y.

void DtNetworkMapWidget::mouseMoveEvent ( QMouseEvent * evt )

protectedvirtual

Mouse Movement for Panning.

For Panning.

References myCamera, myHoverIndex, myHoverTimer, NULL, DtNetworkMapCamera::pan(), and DtNetworkMapCamera::updateMouse().

void DtNetworkMapWidget::mousePressEvent ( QMouseEvent * evt )

protectedvirtual

Mouse press event.

References myCentralNode, NULL, and selection().

void DtNetworkMapWidget::nothingSelected ( )

signal

Emitted when selection is cleared.

Referenced by removeFederateNode(), and selection().

void DtNetworkMapWidget::paintGL ( )

protectedvirtual

Paint's the OpenGL Scene.

References DtNetworkMapCamera::displayCamera(), drawForwarderNodeLines(), drawForwarderNodes(), drawLines(), drawNodes(), drawText(), myCamera, and myCentralNode.

void DtNetworkMapWidget::peerForwarderSelected ( const MAKRti::DtString & forwarderName )

signal

Emitted when a peer forwarder node is selected.

Referenced by selection().

void DtNetworkMapWidget::refreshPositions ( )

References myCentralNode, DtNetworkMapCentralNode::updateFederatePositions(), and DtNetworkMapCentralNode::updateForwarderPositions().

Referenced by DtFederationsViewDialog::refreshNetworkMap().

void DtNetworkMapWidget::removeExecNode ( )

References myCentralNode, DtNetworkMapCentralNode::removeNode(), and theRtiexecId.

Referenced by DtFederationsViewDialog::removeNetworkMapRtiexecNode().

void DtNetworkMapWidget::removeFederateNode	(	int	fedHandle,
		const MAKRti::DtString &	federationName
	)

References myCentralNode, mySelectedIndex, nothingSelected(), DtNetworkMapCentralNode::removeNode(), and theInvalidMapNodeIndex.

Referenced by DtFederationsViewDialog::removeNetworkMapFederateNode().

void DtNetworkMapWidget::removeForwarderNode ( const MAKRti::DtString & forwarderName )

Referenced by DtFederationsViewDialog::removeNetworkMapForwarderNode().

void DtNetworkMapWidget::resizeEvent ( QResizeEvent * evt )

protectedvirtual

Resize event.

References myHeight, and myWidth.

void DtNetworkMapWidget::rtiexecSelected ( )

signal

Emitted when the rtiexec node is selected.

Referenced by selection().

void DtNetworkMapWidget::selectAndHoverText ( )

slot

SLOT: called when we need to select the hovered object.

References DtNetworkMapCentralNode::drawLines(), myCentralNode, myHoverTimer, NULL, selection(), and true.

Referenced by DtNetworkMapWidget().

void DtNetworkMapWidget::selection	(	int	x,
		int	y,
		bool	onHover = `false`
	)

virtual

void DtNetworkMapWidget::setContextMenu ( QMenu * contextMenu )

virtual

Set the context menu to use when activated.

References myCurrentContextMenu.

Referenced by DtFederationsViewDialog::clearSelection(), DtFederationsViewDialog::selectDeadFederate(), DtFederationsViewDialog::selectFederate(), DtFederationsViewDialog::selectFederation(), DtFederationsViewDialog::selectForwarder(), DtFederationsViewDialog::selectLightweight(), DtFederationsViewDialog::selectPeerForwarder(), and DtFederationsViewDialog::selectRtiexec().

void DtNetworkMapWidget::setFederateIdentifierType ( DtFederateIdentifierType fedIdType )

virtual

Choose type of text to be used to identify federates.

References myFedIdType.

Referenced by DtFederationsViewDialog::setFederateIdentifierType().

void DtNetworkMapWidget::showContextMenu ( const QPoint & pos )

slot

Called when the user requests a context menu in the network map.

References myCentralNode, myCurrentContextMenu, NULL, and selection().

Referenced by DtNetworkMapWidget().

QSize DtNetworkMapWidget::sizeHint ( ) const

virtual

Returns the recommended size for the widget.

void DtNetworkMapWidget::tick ( float delta )

virtual

Update.

References myCamera, myCentralNode, DtNetworkMapCamera::update(), and DtNetworkMapCentralNode::update().

Referenced by DtFederationsViewDialog::tick().

void DtNetworkMapWidget::updateFederateInfo	(	int	fedHandle,
		const MAKRti::DtString &	federationName,
		int	queueStatus,
		bool	disconnected,
		bool	reconnecting,
		bool	inErrorState = `false`
	)

References DtNetworkMapCentralNode::getNodeByFederateHandle(), myCentralNode, NULL, DtNetworkMapNode::resetTextureId(), DtNetworkMapNode::showDisconnect(), and DtNetworkMapNode::showWarning().

Referenced by DtFederationsViewDialog::updateNetworkMapFederateNode().

void DtNetworkMapWidget::wheelEvent ( QWheelEvent * evt )

protectedvirtual

Wheel Event for zooming.

References myCamera, and DtNetworkMapCamera::zoom().

Member Data Documentation

DtNetworkMapCamera* DtNetworkMapWidget::myCamera

protected

Referenced by drawText(), DtNetworkMapWidget(), keyPressEvent(), mouseDoubleClickEvent(), mouseMoveEvent(), paintGL(), selection(), tick(), wheelEvent(), and ~DtNetworkMapWidget().

float DtNetworkMapWidget::myCameraDelta

protected

QMenu* DtNetworkMapWidget::myCurrentContextMenu

protected

The context menu to display for the current selected node, if requested.

Referenced by setContextMenu(), and showContextMenu().

std::vector<QColor> DtNetworkMapWidget::myDefaultColors

protected

Available default colors.

Referenced by addFederationColor(), and DtNetworkMapWidget().

QPoint DtNetworkMapWidget::myDeltaMouse

protected

bool DtNetworkMapWidget::myDisplayFederationColors

protected

Whether the federation colors are displayed.

Referenced by drawNodes(), and enableFederationColors().

std::map< MAKRti::DtString, QColor > DtNetworkMapWidget::myFederationColors

protected

map that holds federation names to colors

Referenced by addFederationColor(), changeFederationColor(), DtNetworkMapWidget(), and getFederationColor().

DtFederateIdentifierType DtNetworkMapWidget::myFedIdType

protected

The identifying text to be used to identify federates.

Referenced by drawText(), and setFederateIdentifierType().

int DtNetworkMapWidget::myHeight

protected

Referenced by initializeGL(), and resizeEvent().

unsigned DtNetworkMapWidget::myHoverIndex

protected

Referenced by drawText(), mouseMoveEvent(), and selection().

QTimer* DtNetworkMapWidget::myHoverTimer

protected

Referenced by DtNetworkMapWidget(), mouseMoveEvent(), and selectAndHoverText().

std::set<QRgb> DtNetworkMapWidget::myInUseColors

protected

Colors currently in use.

Referenced by addFederationColor().

QPoint DtNetworkMapWidget::myNewMouse

protected

unsigned DtNetworkMapWidget::myNextDefaultColor

protected

Index of next color to use.

Referenced by addFederationColor().

bool DtNetworkMapWidget::myNodesAreMoving

protected

Whether nodes are currently moving.

Referenced by drawNodes().

QPoint DtNetworkMapWidget::myOldMouse

protected

unsigned DtNetworkMapWidget::mySelectedIndex

protected

Referenced by drawForwarderNodes(), drawLines(), drawNodes(), drawText(), forceClearSelection(), forceFederateSelection(), forceForwarderSelection(), forceRtiexecSelection(), getSelectedNodeInfo(), hasSelection(), mouseDoubleClickEvent(), removeFederateNode(), and selection().

int DtNetworkMapWidget::myWidth

protected

Referenced by initializeGL(), and resizeEvent().

const int DtNetworkMapWidget::theForwarderId = 999998

staticprotected

Standard IDs to use for non-federate nodes.

Includes.

Referenced by addPeerForwarderNode(), and checkAndAddMainForwarder().

const MAKRti::DtString DtNetworkMapWidget::theForwarderName = "RTI Forwarder"

staticprotected

Standard names to use for non-federate nodes.

Referenced by checkAndAddMainForwarder().

const unsigned DtNetworkMapWidget::theInitialFwIndex = 0x80000000

staticprotected

The first forwarder node index.

Referenced by drawForwarderNodes(), drawNodes(), drawText(), forceForwarderSelection(), mouseDoubleClickEvent(), and selection().

const unsigned DtNetworkMapWidget::theInvalidMapNodeIndex = 0xFFFFFFFF

staticprotected

Represents an invalid map node index.

Referenced by drawForwarderNodes(), drawLines(), drawNodes(), forceClearSelection(), getSelectedNodeInfo(), hasSelection(), mouseDoubleClickEvent(), removeFederateNode(), and selection().

const int DtNetworkMapWidget::theLigthweightCenterId = 999997

staticprotected

Standard IDs to use for non-federate nodes.

Includes.

Referenced by checkAndAddLightweight().

const MAKRti::DtString DtNetworkMapWidget::theLigthweightCenterName = "Lightweight Connection"

staticprotected

Standard names to use for non-federate nodes.

Referenced by checkAndAddLightweight().

const int DtNetworkMapWidget::theRtiexecId = 999999

staticprotected

Standard IDs to use for non-federate nodes.

Includes.

Referenced by addExecNode(), doesRtiexecExist(), forceRtiexecSelection(), and removeExecNode().

const MAKRti::DtString DtNetworkMapWidget::theRtiexecName = "rtiexec"

staticprotected

Standard names to use for non-federate nodes.

Referenced by addExecNode().

const int DtNetworkMapWidget::theStandardNodeRadius = 2

staticprotected

The standard radius for all nodes.

Referenced by addExecNode(), addFederateNode(), addPeerForwarderNode(), checkAndAddLightweight(), and checkAndAddMainForwarder().

The documentation for this class was generated from the following files:

Public Slots

Signals

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
