DtObjectMgr Class Reference

The object manager class processes the object management services. More...

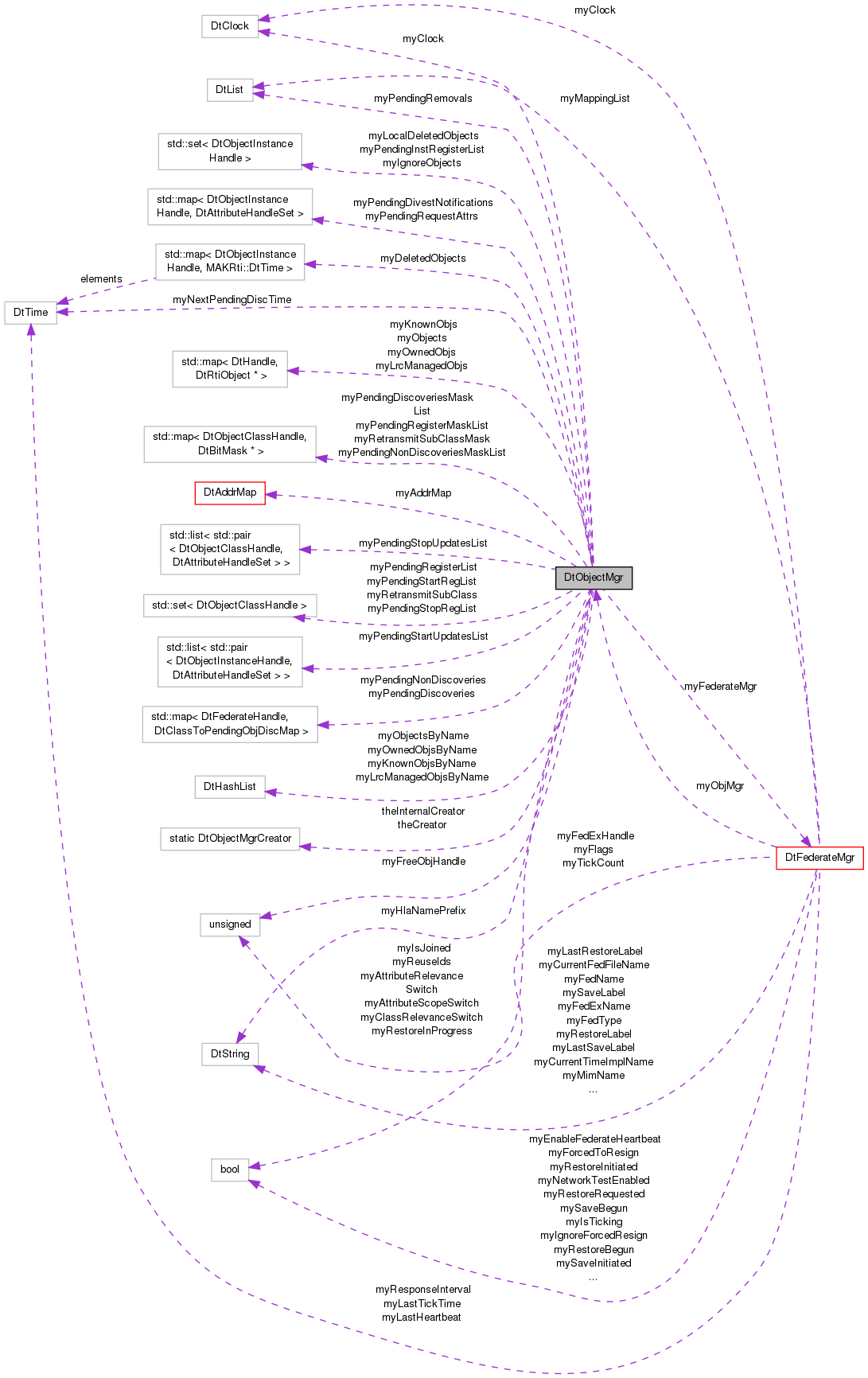

Collaboration diagram for DtObjectMgr:

Public Types
typedef DtObjectMgr *(*	DtObjectMgrCreator )(DtFederateMgr *fedMgr)
	Object manager creator type.
typedef std::map < DtObjectInstanceHandle, DtAttributeHandleSet >	DtPendingRequestAttrMap
	Map of requested attributes.

Public Member Functions
virtual	~DtObjectMgr ()
	Destructor.
virtual void	postJoinInit ()
	Post join processing. All managers shall have been created and initialized.
virtual bool	isPostJoined () const
	Return bool: Was the post join initialization perfomerd?
virtual DtFederateMgr *	federateMgr ()
	Access to the federate manager.
virtual DtFederateMgr *	federateMgr () const
virtual DtConnectionMgr *	connectMgr ()
	Returns pointer to network connection mgr.
virtual DtConnectionMgr *	connectMgr () const
virtual bool	useHlaNamePrefix ()
	Get switch to use HLA prefix for object names.
virtual DtObjectInstanceHandle	objectHandle (const char *name)
	Get objectHandle from name.
virtual const char *	objectName (DtObjectInstanceHandle handle)
	Get object name from handle.
virtual DtObjectClassHandle	objectClass (DtObjectInstanceHandle handle)
	Get an object's class.
virtual int	subscribed (DtObjectClassHandle handle)
	Returns 1 if subscribed to the class, 0 otherwise.
virtual int	published (DtObjectClassHandle handle)
	Returns 1 if published the class, 0 otherwise.
virtual void	publish (DtObjectClassHandle theObject, const DtAttributeHandleSet &attributeList)
	Publish specified class attributes.
virtual void	unpublishClass (DtObjectClassHandle theObject)
	Unpublishes all attributes but privilege to delete is implicit.
virtual void	unpublishAttributes (DtObjectClassHandle theClass, DtAttributeHandleSet const &attributeList)
	Explicit unpublish of specified attributes.
virtual void	unpublishAttributes (DtObjectClassInfo &classDesc, DtAttributeHandleSet const &attributeList, bool implicitlyUnpublishPrivilegeToDelete)
	Explicit unpublish of specified attributes Except privilege to delete is implicit if so designated.
virtual void	subscribe (DtObjectClassHandle theClass, const DtAttributeHandleSet &attributeList, bool active)
	Subscribe specified class attributes.
virtual void	unsubscribeClass (DtObjectClassHandle theClass)
	Unsubscribe from all attributes of specified class.
virtual void	unsubscribeAttributes (DtObjectClassHandle theClass, DtAttributeHandleSet const &attributeList)
	Unsubscribe specified class attributes.
virtual void	unsubscribeAttributes (DtObjectClassInfo &classDesc, DtAttributeHandleSet const &attributeList)
	Unsubscribe specified class attributes.
virtual DtObjectInstanceHandle	registerObj (DtObjectClassHandle theClass, const char *name)
	Register a locally simulated object.
virtual DtObjectInstanceHandle	registerObj (DtObjectClassHandle theClass)
	Register a locally simulated object.
virtual unsigned long	deleteObj (DtObjectInstanceHandle objectID, RTI::FedTime const *theTime, char const *theTag)
	Delete a locally simulated object Return retraction handle serial number.
virtual void	localDeleteObj (DtObjectInstanceHandle obj)
	Implements the localDeleteObjectInstance service.
virtual void	requestObjectUpdate (DtObjectInstanceHandle theObject, const DtAttributeHandleSet &theAttributes, char const *tag=DtRtiMsg::theDefaultTag)
	Request an attribute value update for an object.
virtual void	requestClassUpdate (DtObjectClassHandle theClass, const DtAttributeHandleSet &theAttributes, char const *tag=DtRtiMsg::theDefaultTag, DtHandle regionSetHandle=DtDefaultRegionSetHandle)
	Request an attribute value update for a class of objects.
virtual unsigned long	sendUpdate (DtObjectInstanceHandle theObject, const DtAhvps &theAttrs, RTI::FedTime const *theTime, char const *tag)
	Implements update attribute values Checks attributes definition and ownership Return retraction handle serial number.
virtual unsigned long	sendUpdate (DtRtiObject *theObject, const DtAhvps &theAttrs, RTI::FedTime const *theTime, char const *tag)
	Generate and transmit update attribute value messages Return retraction handle serial number.
virtual void	acquireAttrs (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &desiredAttributes, bool onlyIfAvail, char const *tag=DtRtiMsg::theDefaultTag)
	Process an attribute acquisition.
virtual void	cancelAcquire (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs)
	Cancel an attribute acquisition.
virtual void	divestOwnership (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs, DtDivestCondition condition, char const *tag=DtRtiMsg::theDefaultTag)
	Process a attribute divestiture.
virtual void	cancelDivest (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs)
	Cancel an attribute divestiture.
virtual DtAttributeHandleSet *	releaseResponse (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs)
	Respond to an attribute acquisition.
virtual void	removeFromAllLists (DtRtiObject *object)
	Remove an object from all lists.
virtual void	queryOwnership (DtObjectInstanceHandle obj, DtAttributeHandle attr)
	Implements the queryAttributeOwnership service.
virtual bool	isAcquistionPending ()
	Return true if ownership acquistion is pending for remote attrs.
virtual void	autoProvideAttrValueUpdate ()
	Invoke provide for all owned attributes.
virtual void	sendRegister (DtRtiObject *obj)
	Sends register information, if DDM is active then this information could include region and region association information.
virtual void	resendRegister (DtRtiObject *obj, DtBitMask *sendMask=0)
	Re-sends register information, if DDM is active then this information could include region and region association information.
virtual void	resendMultiRegister (DtObjectClassHandle classHandle)
	Re-sends register information for all objects of a specific class if DDM is active then this information could include region and region association information.
virtual void	addPendingStartUpdates (DtObjectInstanceHandle obj, const DtAttributeHandleSet &attributeList)
	Add pending startUpdates that will get called during the next tick.
virtual void	addPendingStopUpdates (DtObjectClassHandle theClass, const DtAttributeHandleSet &attributeList)
	Add pending stopUpdates that will get called during the next tick.
virtual void	addPendingStartReg (DtObjectClassHandle theClass)
	Add pending startRegistration that will get processed during the next tick.
virtual void	addPendingStopReg (DtObjectClassHandle theClass)
	Add pending stopRegistration that will get processed during the next tick.
virtual void	addPendingRegister (DtObjectClassHandle theClass, DtFederateHandle fedHandle=0)
	Add pending Register that will get processed during the next tick.
virtual void	addPendingSubscription (DtObjectClassHandle theClass, DtFederateHandle fedHandle=0)
	Add pending subscription class retransmissions that will get processed during next tick.
virtual void	addPendingRegisterForObject (DtObjectInstanceHandle objHandle)
	Add pending Register for the given object that will get processed during next tick.
virtual void	addPendingRemoval (DtObjectInstanceHandle id)
	Add pending object removals that will get processed during the next tick.
virtual void	addPendingRequestAttrs (DtObjectInstanceHandle objectHandle, DtAttributeHandleSet attributes)
	Add pending request attribute value that will get processed during the next tick.
virtual void	addPendingDivestNotification (DtObjectInstanceHandle objectHandle, DtAttributeHandleSet attributes)
	Add pending divest notification that will get processed during the next tick.
virtual void	addPendingDiscovery (DtObjectInstanceHandle objectHandle, DtObjectClassHandle classHandle, DtFederateHandle federate, bool isNonDiscovery)
	Add pending discovery/non-discovery.
virtual void	processResign (const DtResignMsg &msg)
	Process the resign message.
virtual void	preTick ()
	Called before processing messages in RTI ambassador tick / evoke callbacks.
virtual void	postTick ()
	Called after processing messages in RTI ambassador tick / evoke callbacks.
virtual void	setClassRelevanceSwitch (bool enableSwitch)
	Set/Get value of classRelevanceAdvisorySwitch.
virtual bool	classRelevanceSwitch ()
virtual void	setAttributeRelevanceSwitch (bool enableSwitch)
	Set/Get value of attributeRelevanceAdvisorySwitch.
virtual bool	attributeRelevanceSwitch ()
virtual void	setAttributeScopeSwitch (bool enableSwitch)
	Set/Get value of attributeScopeAdvisorySwitch.
virtual bool	attributeScopeSwitch ()
virtual void	turnUpdatesOn (DtRtiObject const &object, DtAttributeHandleSet const &oldOnSet)
	Turn updates on for any attribute now on but it is not in old on set.
virtual void	turnUpdatesOff (DtRtiObject const &object, DtAttributeHandleSet const &oldOnSet)
	Turn updates off for any attribute now off but it is in old on set.
virtual DtObjectInstanceHandle	uniqueHandle ()
	Returns an ObjectHandle that is unique across the federation.
virtual void	getUniqueName (DtObjectInstanceHandle handle, MAKRti::DtString &objectName)
	Use the supplied object handle to construct a unique object name and assign a unique name to the supplied string.
virtual bool	objectWasCreatedByFederate (DtRtiObject const &obj, DtFederateHandle const &fedHandle)
	Query the object manager to determine whether the specified federate was the initial creator of the specified object.
virtual DtRtiObject *	processNewObj (DtObjectInstanceHandle objHand, DtObjectClassHandle realClass, const char *name, const DtAttributeHandleSet &inSet, DtHandle regSetHandle, DtFederateHandle sourceFederate)
	Assumes we have not yet discovered objHand.
virtual DtObjectClassInfo *	firstSubscribedClass (DtObjectClassInfo *classDesc, DtHandle regSetHandle)
	Returns most specific superclass of class, to which we are subscribed.
virtual int	numObjectsOwned ()
	return the number of owned objects
virtual void	setAttributeTransportType (DtObjectInstanceHandle theObject, const DtAttributeHandleSet &theAttributes, MAKRti::DtTransportType theType)
	Set the transport type of the attribute instance.
virtual void	setAttributeOrderType (DtObjectInstanceHandle theObject, const DtAttributeHandleSet &theAttributes, MAKRti::DtOrderType theType)
	Set the order type of the attribute instance.
virtual bool	save (DtRtiSaveFile &file)
	DDM.
virtual void	prepareToRestore ()
	Prepare the state information to be restored (i.e., clear out existing data).
virtual bool	restore (DtRtiSaveFile &file)
	Restore the state information from the given file.
virtual void	sendNotDiscoveredMsgForSmartForwarding (DtObjectInstanceHandle handle, const DtObjectClassInfo &classInfo, DtFederateHandle federate, const DtAttributeHandleSet *attributes=0)
	Send a message removing this federate from remote federate's smart forwarding list for the given object.
virtual void	sendNotDiscoveredMsgForSmartForwarding (DtObjectInstanceHandle handle, const DtObjectClassInfo &classInfo, DtFederateHandle federate, const DtAhvps *attributes)
virtual void	ignoreNextUpdate (DtObjectInstanceHandle hdl)
	Tells the object manager to ignore the next update for the given object.
virtual DtRIDParameters *	params ()
	Return pointer to RID parameters.
virtual DtRIDParameters *	params () const
	Return pointer to RID parameters.
virtual DtFomClassMgr *	fom ()
	Return fom pointer.
virtual DtFomClassMgr *	fom () const
	Return fom pointer.
virtual void	addAllObj (DtRtiObject *obj)
	Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.
virtual void	removeAllObj (DtObjectInstanceHandle obj)
	Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.
virtual const DtRtiObjectMap &	allObjects () const
	Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.
virtual DtRtiObject *	allObj (DtObjectInstanceHandle id)
	Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.
virtual DtRtiObject *	allObj (const char *name)
	Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.
virtual void	addKnownObj (DtRtiObject *obj)
	Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.
virtual void	removeKnownObj (DtObjectInstanceHandle obj)
	Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.
virtual const DtRtiObjectMap &	knownObjects () const
	Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.
virtual DtRtiObject *	knownObj (DtObjectInstanceHandle id)
	Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.
virtual DtRtiObject *	knownObj (const char *name)
	Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.
virtual void	addOwnedObj (DtRtiObject *obj)
	Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.
virtual void	removeOwnedObj (DtObjectInstanceHandle obj)
	Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.
virtual const DtRtiObjectMap &	ownedObjects () const
	Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.
virtual DtRtiObject *	ownedObj (DtObjectInstanceHandle id)
	Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.
virtual DtRtiObject *	ownedObj (const char *name)
	Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.
virtual void	addLrcManagedObj (DtRtiObject *obj)
	Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.
virtual void	removeLrcManagedObj (DtObjectInstanceHandle obj)
	Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.
virtual const DtRtiObjectMap &	lrcManagedObjects () const
	Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.
virtual DtRtiObject *	lrcManagedObj (DtObjectInstanceHandle id)
	Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.
virtual DtRtiObject *	lrcManagedObj (const char *name)
	Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.
void	testResign (RTI::ResignAction const &theAction)
	Called when resigning from a federation to test conditions and to delete owned objects.
void	prepareToResign (RTI::ResignAction const &theAction)
	Called when resigning from a federation to test conditions and to delete owned objects.
virtual void	setRestoreInProgress (bool isRestore)
	Note: The advisory switches are disabled by a restore in progress.
virtual bool	restoreInProgress () const
	Note: The advisory switches are disabled by a restore in progress.
virtual void	enableClassRelevanceSwitch ()
	Enable/Disable classRelevanceAdvisorySwitch 1516 throws exception if call is redundant.
virtual void	disableClassRelevanceSwitch ()
	Enable/Disable classRelevanceAdvisorySwitch 1516 throws exception if call is redundant.
virtual void	enableAttributeRelevanceSwitch ()
	Enable/Disable attributeRelevanceAdvisorySwitch 1516 throws exception if call is redundant.
virtual void	disableAttributeRelevanceSwitch ()
	Enable/Disable attributeRelevanceAdvisorySwitch 1516 throws exception if call is redundant.
virtual void	enableAttributeScopeSwitch ()
	Enable/Disable attributeScopeAdvisorySwitch 1516 throws exception if call is redundant.
virtual void	disableAttributeScopeSwitch ()
	Enable/Disable attributeScopeAdvisorySwitch 1516 throws exception if call is redundant.

Static Public Member Functions
static DtObjectMgr *	create (DtFederateMgr *fedMgr)
	A Object Manager instance is created and its pointer is returned.
static void	setCreatorFunction (DtObjectMgrCreator creator)
	Register a creator function.
static void	setInternalCreatorFunction (DtObjectMgrCreator fn)
	Register alternate internal creators.

Protected Types
typedef std::set < DtObjectClassHandle >	DtObjectClassHandleSet
typedef std::set < DtObjectInstanceHandle >	DtObjectInstanceHandleSet
typedef std::map < DtObjectClassHandle, DtBitMask * >	DtObjectClassMaskMap
typedef std::map < DtObjectInstanceHandle, DtBitMask * >	DtObjectInstanceMaskMap
typedef std::list< std::pair < DtObjectClassHandle, DtAttributeHandleSet > >	DtObjClassAttrSetPairList
typedef std::list< std::pair < DtObjectInstanceHandle, DtAttributeHandleSet > >	DtObjInstAttrSetPairList
typedef std::set < DtObjectInstanceHandle >	DtObjHandleSet
	Pending discoveries and non-discoveries.
typedef std::map < DtObjectClassHandle, DtObjHandleSet >	DtClassToPendingObjDiscMap
typedef std::map < DtFederateHandle, DtClassToPendingObjDiscMap >	DtFederateToPendingObjDiscMap

Protected Member Functions
	DtObjectMgr (DtFederateMgr *fedMgr)
	Constructor.
virtual void	insertRegBitMask (DtObjectClassHandle classHandle, DtFederateHandle fedHandle)
virtual void	insertSubBitMask (DtObjectClassHandle classHandle, DtFederateHandle fedHandle)
virtual void	insertDiscBitMask (DtObjectClassHandle classHandle, DtFederateHandle fedHandle)
virtual void	insertNonDiscBitMask (DtObjectClassHandle classHandle, DtFederateHandle fedHandle)
virtual void	provideAttrValueUpdate (const DtRtiObject *obj, const DtAttributeHandleSet &attrHandles, char const *tag)
	Make the fedAmb call to provide attrValUpdate for this object.
virtual void	remoteSubscribe (DtObjectClassInfo &classDesc, const DtAttributeHandleSet &attrs, DtFederateHandle fedHandle, bool isReplacement)
	Add a remote subscription to object known database and determine effects on advisories.
virtual void	remotePassiveSubscribe (DtObjectClassInfo &classDesc, const DtAttributeHandleSet &attrs, DtFederateHandle fedHandle, bool isReplacement)
	Track passive subscriptions ( no effect on advisories )
virtual void	remoteUnsubscribe (DtObjectClassHandle classHandle, const DtAttributeHandleSet &attrs, DtFederateHandle fedHandle)
	Remove a remote subscription to object known database and determine effects on advisories.
virtual void	setDiscoveredClass (DtRtiObject &object, DtFederateHandle federateHandle, DtObjectClassHandle classHandle)
	Set the remote federate's discovered class and update the object's remote subscription information.
virtual void	processAcquire (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs, DtFederateHandle fed, bool onlyIfAvail, char const *tag)
	Process a remote attribute acquisition.
virtual void	processCancelAcquire (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs, DtFederateHandle fed)
	Process a remote cancel attribute acquisition.
virtual void	processConfirmCancelAcquire (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs)
	Process a remote confirm attribute acquisition.
virtual void	processDivest (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs, DtFederateHandle fed, bool negotiated, char const *tag=DtRtiMsg::theDefaultTag)
	Process a remote attribute divestiture.
virtual void	notifyDivestedAttributes (DtObjectClassHandle objectClass, DtAttributeHandleSet const &attrs)
	Find any divested attributes instances that match (is of) the supplied class and set.
virtual void	processQueryOwner (DtObjectInstanceHandle objHand, DtAttributeHandle attr, DtFederateHandle requestor)
	Process a remote attribute ownership queury.
virtual void	processNotifyAcquire (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs, char const *tag=DtRtiMsg::theDefaultTag, bool forceAcquire=false)
	Process a remote notify attribute acquisition.
virtual void	processGiveToLrc (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs, char const *tag, DtHandle hand)
	Give the supplied attributes to the local RTI component.
virtual void	resetOwner (DtFederateHandle fedHandle, DtObjectInstanceHandle objHandle)
	Reset the owner of the object.
virtual void	sendPendingStartUpdates ()
	Send pending startUpdates.
virtual void	sendPendingStopUpdates ()
	Send pending stopUpdates.
virtual void	sendPendingStartReg ()
	Send pending startRegistration.
virtual void	sendPendingStopReg ()
	Send pending stopRegistration.
virtual void	sendPendingRegister ()
	Send pending Register.
virtual void	sendPendingSubscription ()
	Send pending subscription class retransmissions.
virtual void	sendPendingRemovals ()
	Send pending object removals.
virtual void	sendPendingRequestAttributes ()
	Send pending request attribute value.
virtual void	sendPendingDiscoveries ()
	Send pending discoveries.
virtual void	invokePendingDivestNotification ()
	Invoke pending divest notification.
virtual void	purgeDeletedObjects ()
	Purge entries for recently deleted objects that have timed out.
virtual void	throwIfAcquisitionPending (DtObjectClassHandle classHand, const DtAttributeHandleSet &attrs)
	If an acquisition request is pending for an attributes in attrs for any objects known at class classHand, throw RTI::OwnershipAcquisitionPending.
virtual void	divestAllInstances (DtObjectClassHandle classHand, const DtAttributeHandleSet &attrs)
	Divest ownership (unconditionally) of all owned attributes in attrs for each object that's known at class classHand.
virtual void	divestAllInstances ()
	Divest ownership (unconditionally) of all owned attributes of all objects.
virtual void	releaseAllAttributes (DtRtiObject *object)
	Release (unconditionally) all owned and LRC managed attributes Only used during a resign.
virtual void	releaseOwnership (DtRtiObject *obj, const DtAttributeHandleSet &attrs)
	Releases ownership of the specified attributes to the LRC Used when unpublishing.
virtual void	sendUpdateMessage (DtUpdateMsg *update, DtObjectClassInfo *classDesc, DtUpdateType updateType, MAKRti::DtTransportType trans, unsigned int numberAttrs, MAKRti::DtInetAddr destAddr=DtInetAddr::inaddrAny(), unsigned int offset=0)
	Send update message.
virtual void	deleteAllOwnedObjects ()
	Delete all objects for which we own the privilege.
virtual void	deleteObj (DtRtiObject *obj, bool isLocalDelete=false)
	Remove object from all lists and delete it.
virtual void	retainTsoDeletedObj (DtRtiObject *obj, RTI::FedTime const &time)
	TSO deleted object was prematurely deleted when regulation disabled Hold onto it until deletion time passes in order to process discovery.
virtual void	retainTsoRemovedObj (DtRtiObject *obj, RTI::FedTime const &time)
	TSO removed object may be discovered by other federates but should not be rediscovered by this federate.
virtual bool	removedObjectIsRetained (DtObjectInstanceHandle objectHandle)
	Check list of objects that have been removed via TSO delete and are unknown to the federate but whose delete time has not passed yet.
virtual void	removeObjectAssociations (DtRtiObject &object)
	Remove associations to this object (e.g., regions)
virtual void	collectRemoteSubscriptions (DtRtiObject &object)
	Collect existing remote subscriptions and apply them to given object Supports attribute advisories when not distributing discovered class.
virtual DtFederateHandle	federateHandleFromObjectID (DtObjectInstanceHandle id) const
	Return the federate handle used to construct the given object ID.
virtual unsigned long	nextOffsetId ()
	Return the next offset ID.
virtual DtObjectInstanceHandle	findReusableHandle ()
	Attempt to find an instance handle that can be re-assigned to a new registration Returns a 0 handle if no free handle found.
virtual DtRtiObject *	registerObj (DtObjectClassHandle theClass, DtObjectInstanceHandle objHandle, const char *name)
	Register a locally simulated object.
virtual DtRtiObject *	processNewObj (DtObjectInstanceHandle objHand, DtObjectClassInfo *actualClass, DtObjectClassInfo *subscribedClass, const char *name, const DtAhvps &inSet, DtHandle regSetHandle, DtFederateHandle sourceFederate)
	Assumes we have not yet discovered objHand.
virtual DtRtiObject *	discoverObject (DtObjectInstanceHandle objHandle, const char *objName, DtObjectClassInfo *actualClass, DtObjectClassInfo *discoveredClass, const DtAttributeHandleSet &attrSet, DtFederateHandle federateHandle, bool federateOwnsPrivilegeToDelete)
	Discover this object using the actual and discovered class and the supplied attributes that intersect the federate's subscription(s) Return object if discover successful; otherwise, NULL.
virtual void	invokeReflect (DtFederateHandle federateHandle, DtObjectInstanceHandle objectHandle, DtAhvps const &reflectedValues, DtTransportHandle transportType, DtOrderHandle sentOrder, char const *tag=0, RTI::FedTime const *time=0, unsigned long serialNumber=0)
	Invoke the reflect attribute values update call.
virtual bool	acceptObjectChannel (unsigned long channel)
	Return true if the channel (region set handle) should be accepted NOTE: This always returns true when DDM is disabled.
virtual bool	acceptRequestChannel (unsigned long channel)
	Return true if the channel (region set handle) should be accepted NOTE: This always returns true when DDM is disabled.
virtual bool	saveObjectList (DtRtiSaveFile &file)
	save out the list of of known and owned objects
virtual bool	restoreObjectList (DtRtiSaveFile &file)
	restore the list of known and owned objects
virtual void	destroyObjectLists ()
	Destroy all the object lists and their elements.
virtual unsigned long	savePacketLength ()
	Return the length of buffer needed to save the state data.
virtual void	processUpdate (const DtUpdateMsg &msg)
	Process messages.
virtual void	processRegister (const DtRegObjMsg &msg)
	Process messages.
virtual void	processMultiRegister (const DtMultiRegObjMsg &msg)
	Process messages.
virtual void	processDiscover (const DtDiscObjMsg &msg)
	Process messages.
virtual void	processRequestDiscover (const DtReqDiscObjMsg &msg)
	Process messages.
virtual void	processDelete (const DtDeleteRoMsg &msg)
	Process messages.
virtual void	processLocDelete (const DtLocDelMsg &msg)
	Process messages.
virtual void	processPub (const DtPubObjMsg &msg)
	Process messages.
virtual void	processUnpub (const DtUnpubObjMsg &msg)
	Process messages.
virtual void	processSub (const DtSubObjMsg &msg)
	Process messages.
virtual void	processUnsub (const DtUnsubObjMsg &msg)
	Process messages.
virtual void	processRequest (const DtRequestMsg &msg)
	Process messages.
virtual void	processOwnership (const DtOwnershipMsg &msg)
	Process messages.
virtual void	sendPublishMsg (DtObjectClassHandle handle, const DtAttributeHandleSet &theSet)
	Send various types of RTI messages.
virtual void	sendUnpublishMsg (DtObjectInstanceHandle handle, const DtAttributeHandleSet &theSet)
	Send various types of RTI messages.
virtual void	sendUnsubscribeMsg (DtObjectClassHandle handle, const DtAttributeHandleSet &theSet)
	Send various types of RTI messages.
virtual void	sendSubscribeMsg (DtObjectClassHandle theObj, bool isPassive, bool replacement, const DtAttributeHandleSet &theSet, DtFederateHandle fedHandle)
	Send various types of RTI messages.
virtual void	sendSubscribeMsg (DtObjectClassHandle theObj, bool isPassive, bool replacement, const DtAttributeHandleSet &theSet, DtBitMask *sendMask=0)
	Send various types of RTI messages.
virtual void	sendRegisterMsg (DtRtiObject *object, DtBitMask *sendMask=0)
	Send various types of RTI messages.
virtual void	sendRegisterMsg (DtRtiMsg *msg, DtRtiObject *object, DtBitMask *sendMask=0)
	Send various types of RTI messages.
virtual void	sendLocalDeleteMsg (DtObjectInstanceHandle handle)
	Send various types of RTI messages.
virtual void	sendDiscoverMsg (DtObjectInstanceHandle objHandle, DtObjectClassHandle classHandle, DtFederateHandle owner)
	Send various types of RTI messages.
virtual void	sendRequestDiscoverMsg (DtObjectInstanceHandle objHandle, DtObjectClassHandle classHandle)
	Send various types of RTI messages.
virtual void	sendRemoveDiscoverMsg (DtObjectInstanceHandle objHandle, DtObjectClassHandle classHandle, DtFederateHandle fedHandle)
	Send various types of RTI messages.
virtual void	sendBestEffortUpdateMsg (DtRtiObject *obj, const DtAhvps &theAttrs, DtOrderHandle orderType, RTI::FedTime const *theTime, char const *tag, unsigned long serialNumber, const MAKRti::DtInetAddr &destAddr, unsigned int offset=0)
	Send various types of RTI messages.
virtual void	sendReliableUpdateMsg (DtRtiObject *obj, const DtAhvps &theAttrs, DtOrderHandle orderType, RTI::FedTime const *theTime, char const *tag, unsigned long serialNumber)
	Send various types of RTI messages.
virtual void	sendRequestMsg (DtRequestType type, unsigned long idOrClass, const DtAttributeHandleSet &theSet, char const *tag, bool anonymous, DtHandle regionSetHandle=DtRtiMsg::theDefaultRegionSetHandle, DtFederateHandle fedHandle=0)
	Send various types of RTI messages.
virtual unsigned long	sendDeleteMsg (DtObjectInstanceHandle handle, DtOrderHandle orderType, RTI::FedTime const *theTime, char const *tag)
	Send various types of RTI messages.
virtual void	sendOwnershipMsg (DtOwnerMsgKind kind, DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs, DtFederateHandle targetFed=0, char const *tag=DtRtiMsg::theDefaultTag)
	Send various types of RTI messages.
virtual void	sendOwnershipMsg (DtOwnerMsgKind kind, DtObjectInstanceHandle objHand, const DtAttributeHandle attr, DtFederateHandle targetFed=0, char const *tag=DtRtiMsg::theDefaultTag)
	Send various types of RTI messages.
virtual void	addClassMulticast (DtObjectClassInfo *classDesc, float rate=-1.0)
	Recursively add and remove the DM multicast address of this class and all its subclasses The Rate determines which update rate multicast offsets to join and drop A rate less than zero indicates rate should be retrieved from class A rate equal zero indicates no rate should be used and all offsets are affected.
virtual void	removeClassMulticast (DtObjectClassInfo *classDesc, float rate=-1.0)
	Recursively add and remove the DM multicast address of this class and all its subclasses The Rate determines which update rate multicast offsets to join and drop A rate less than zero indicates rate should be retrieved from class A rate equal zero indicates no rate should be used and all offsets are affected.

Static Protected Member Functions
static void	processUpdate (const DtUpdateMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processRegister (const DtRegObjMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processMultiRegister (const DtMultiRegObjMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processDiscover (const DtDiscObjMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processRequestDiscover (const DtReqDiscObjMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processDelete (const DtDeleteRoMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processLocDelete (const DtLocDelMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processPub (const DtPubObjMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processUnpub (const DtUnpubObjMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processSub (const DtSubObjMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processUnsub (const DtUnsubObjMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processRequest (const DtRequestMsg &msg, void *usr)
	Message callback methods to register with connection manager.
static void	processOwnership (const DtOwnershipMsg &msg, void *usr)
	Message callback methods to register with connection manager.

Protected Attributes
DtFederateMgr *	myFederateMgr
	Access to the federate manager.
MAKRti::DtString	myHlaNamePrefix
	The HLA object instance name prefix.
DtRtiObjectMap	myObjects
	List of all objects by handle.
MAKRti::DtHashList	myObjectsByName
	List of all objects by name.
DtRtiObjectMap	myKnownObjs
	List of known objects by handle.
MAKRti::DtHashList	myKnownObjsByName
	List of known objects by name.
DtRtiObjectMap	myOwnedObjs
	List of owned objects by handle.
MAKRti::DtHashList	myOwnedObjsByName
	List of owned objects by name.
DtRtiObjectMap	myLrcManagedObjs
	List of LRC owned objects by handle.
MAKRti::DtHashList	myLrcManagedObjsByName
	List of LRC owned objects by name.
DtAddrMap	myAddrMap
	Map of routing addresses by region set handle.
std::map < DtObjectInstanceHandle, MAKRti::DtTime >	myDeletedObjects
	Set of objects that have been recently deleted that will not be discovered via update.
DtHandle	myFreeObjHandle
	The next free object handle.
bool	myIsJoined
	Manager has performed join processing.
bool	myRestoreInProgress
	Status of restore.
bool	myReuseIds
	Unique object IDs have been exhausted, attempt to reuse IDs.
MAKRti::DtClock	myClock
	Clock for timing.
DtFederateToPendingObjDiscMap	myPendingDiscoveries
DtObjectClassMaskMap	myPendingDiscoveriesMaskList
DtFederateToPendingObjDiscMap	myPendingNonDiscoveries
DtObjectClassMaskMap	myPendingNonDiscoveriesMaskList
DtTime	myNextPendingDiscTime
	Next time we should send pending discovery messages.
DtObjHandleSet	myIgnoreObjects
	Set of object handles whose next updates should be ignored.
DtObjectClassHandleSet	myRetransmitSubClass
	Post processing lists.
DtObjectClassMaskMap	myRetransmitSubClassMask
	Post processing lists.
DtObjectInstanceHandleSet	myLocalDeletedObjects
	Post processing lists.
DtObjInstAttrSetPairList	myPendingStartUpdatesList
	Post processing lists.
DtObjClassAttrSetPairList	myPendingStopUpdatesList
	Post processing lists.
DtObjectClassHandleSet	myPendingStartRegList
	Post processing lists.
DtObjectClassHandleSet	myPendingStopRegList
	Post processing lists.
DtObjectClassHandleSet	myPendingRegisterList
	Post processing lists.
DtObjectClassMaskMap	myPendingRegisterMaskList
	Post processing lists.
DtObjectInstanceHandleSet	myPendingInstRegisterList
	Post processing lists.
MAKRti::DtList	myPendingRemovals
	Post processing lists.
DtPendingRequestAttrMap	myPendingRequestAttrs
	Post processing lists.
DtPendingRequestAttrMap	myPendingDivestNotifications
	Post processing lists.
bool	myClassRelevanceSwitch
	Advisory switches.
bool	myAttributeRelevanceSwitch
	Advisory switches.
bool	myAttributeScopeSwitch
	Advisory switches.

Static Protected Attributes
static DtObjectMgrCreator	theCreator = 0
	The plugin creator.
static DtObjectMgrCreator	theInternalCreator = 0
	The internal creator.

Private Member Functions
	DtObjectMgr (DtObjectMgr const &)
	Copy Constructor not implemented – Copy Not Allowed!
DtObjectMgr &	operator= (DtObjectMgr const &)
	Assignment not implemented – Assignment Not Allowed!

Detailed Description

The object manager class processes the object management services.

The object manager manages all the objects in a federation. It handles registers, discovers, updates, reflects, subscriptions, publications, and ownership management.

Member Typedef Documentation

typedef std::map<DtObjectClassHandle, DtObjHandleSet> DtObjectMgr::DtClassToPendingObjDiscMap

protected

typedef std::map<DtFederateHandle, DtClassToPendingObjDiscMap> DtObjectMgr::DtFederateToPendingObjDiscMap

protected

typedef std::list< std::pair< DtObjectClassHandle, DtAttributeHandleSet > > DtObjectMgr::DtObjClassAttrSetPairList

protected

typedef std::set< DtObjectClassHandle > DtObjectMgr::DtObjectClassHandleSet

protected

typedef std::map< DtObjectClassHandle,DtBitMask*> DtObjectMgr::DtObjectClassMaskMap

protected

typedef std::set< DtObjectInstanceHandle > DtObjectMgr::DtObjectInstanceHandleSet

protected

typedef std::map< DtObjectInstanceHandle,DtBitMask*> DtObjectMgr::DtObjectInstanceMaskMap

protected

typedef DtObjectMgr*(* DtObjectMgr::DtObjectMgrCreator)(DtFederateMgr *fedMgr)

Object manager creator type.

typedef std::set<DtObjectInstanceHandle> DtObjectMgr::DtObjHandleSet

protected

Pending discoveries and non-discoveries.

typedef std::list< std::pair< DtObjectInstanceHandle, DtAttributeHandleSet > > DtObjectMgr::DtObjInstAttrSetPairList

protected

typedef std::map<DtObjectInstanceHandle, DtAttributeHandleSet> DtObjectMgr::DtPendingRequestAttrMap

Map of requested attributes.

Constructor & Destructor Documentation

DtObjectMgr::DtObjectMgr ( DtFederateMgr *  fedMgr )

protected

Constructor.

References DtLocDelMsg::addCallback(), DtReqDiscObjMsg::addCallback(), DtUnpubObjMsg::addCallback(), DtUnsubObjMsg::addCallback(), DtPubObjMsg::addCallback(), DtMultiNameReservedMsg::addCallback(), DtMultiRegObjMsg::addCallback(), DtDeleteRoMsg::addCallback(), DtQueryInterTransportMsg::addCallback(), DtUpdateRoMsg::addCallback(), DtSubObjMsg::addCallback(), DtRegObjMsg::addCallback(), DtDiscObjMsg::addCallback(), DtQueryTransportMsg::addCallback(), DtRequestMsg::addCallback(), DtOwnershipMsg::addCallback(), connectMgr(), DtHlaNamePrefix, fom(), myAttributeRelevanceSwitch, myAttributeScopeSwitch, myClassRelevanceSwitch, myFederateMgr, myHlaNamePrefix, params(), processDelete(), processDiscover(), processLocDelete(), processMultiRegister(), processOwnership(), processPub(), processRegister(), processRequest(), processRequestDiscover(), processSub(), processUnpub(), processUnsub(), processUpdate(), DtUpdateMsg::setChannelIncluded(), DtRtiObject::setUseDiscoveredClass(), useHlaNamePrefix(), and useRtiExec.

Referenced by create().

DtObjectMgr::~DtObjectMgr ( )

virtual

Destructor.

References connectMgr(), destroyObjectLists(), myPendingDiscoveriesMaskList, myPendingNonDiscoveriesMaskList, myPendingRegisterMaskList, myRetransmitSubClassMask, processDelete(), processDiscover(), processLocDelete(), processMultiRegister(), processOwnership(), processPub(), processRegister(), processRequest(), processRequestDiscover(), processSub(), processUnpub(), processUnsub(), processUpdate(), DtLocDelMsg::removeCallback(), DtReqDiscObjMsg::removeCallback(), DtUnpubObjMsg::removeCallback(), DtUnsubObjMsg::removeCallback(), DtPubObjMsg::removeCallback(), DtMultiRegObjMsg::removeCallback(), DtMultiNameReservedMsg::removeCallback(), DtDeleteRoMsg::removeCallback(), DtUpdateRoMsg::removeCallback(), DtQueryInterTransportMsg::removeCallback(), DtSubObjMsg::removeCallback(), DtRegObjMsg::removeCallback(), DtDiscObjMsg::removeCallback(), DtQueryTransportMsg::removeCallback(), DtRequestMsg::removeCallback(), and DtOwnershipMsg::removeCallback().

DtObjectMgr::DtObjectMgr ( DtObjectMgr const &  )

private

Copy Constructor not implemented – Copy Not Allowed!

Member Function Documentation

bool DtObjectMgr::acceptObjectChannel ( unsigned long  channel )

protectedvirtual

Return true if the channel (region set handle) should be accepted NOTE: This always returns true when DDM is disabled.

Referenced by processUpdate().

bool DtObjectMgr::acceptRequestChannel ( unsigned long  channel )

protectedvirtual

Return true if the channel (region set handle) should be accepted NOTE: This always returns true when DDM is disabled.

void DtObjectMgr::acquireAttrs ( DtObjectInstanceHandle  objHand, const DtAttributeHandleSet &  desiredAttributes, bool  onlyIfAvail, char const *  tag = DtRtiMsg::theDefaultTag  )

virtual

Process an attribute acquisition.

References DtRtiObject::acquireRemoteSubscriptions(), DtRtiObject::actualClassHandle(), DtRtiObject::addRequest(), DtObjectClassInfo::allAttrs(), DtAcquire, DtAcquireIfAvail, DtAttributeHandleSet::getHandle(), DtRtiObject::id(), DtAttributeHandleSet::isEmpty(), DtAttributeHandleSet::isEmptySet(), DtAttributeHandleSet::isMember(), DtRtiObject::knownClass(), DtRtiObject::lrcManagedAttrs(), DtRtiObject::objHandle(), DtRtiObject::owned(), DtRtiObject::ownedAttrs(), DtRtiObject::pendingUncondRequest(), DtObjectClassInfo::published(), DtObjectClassInfo::publishedAttrs(), DtObjectClassInfo::relevantAttrs(), DtAttributeHandleSet::removeSetIntersection(), DtRtiObject::rtiOwnedAttrs(), DtRtiObject::setAllDestinations(), DtAttributeHandleSet::setIntersection(), DtRtiObject::setTimeToUseDestinations(), DtAttributeHandleSet::size(), DtRtiObject::takeFromLrc(), and DtRtiObject::updateOnAttrs().

void DtObjectMgr::addAllObj ( DtRtiObject *  obj )

virtual

Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.

References myObjects, myObjectsByName, DtRtiObject::objHandle(), and DtRtiObject::objName().

Referenced by discoverObject(), processGiveToLrc(), registerObj(), and restoreObjectList().

void DtObjectMgr::addClassMulticast ( DtObjectClassInfo *  classDesc, float  rate = -1.0  )

protectedvirtual

Recursively add and remove the DM multicast address of this class and all its subclasses The Rate determines which update rate multicast offsets to join and drop A rate less than zero indicates rate should be retrieved from class A rate equal zero indicates no rate should be used and all offsets are affected.

References connectMgr(), DtObjectClassInfo::destinationAddress(), DtObjectClassInfo::destinationDevice(), DtRIDParameters::enableUpdateRateReduction, fom(), DtConnectionMgr::listenToMulticastGroup(), DtObjectClassInfo::maxSubscribedRate(), params(), DtFomClassMgr::positionOfRate(), and DtObjectClassInfo::subclasses().

Referenced by subscribe().

void DtObjectMgr::addKnownObj ( DtRtiObject *  obj )

virtual

Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.

References myKnownObjs, myKnownObjsByName, DtRtiObject::objHandle(), DtRtiObject::objName(), and DtRtiObject::setIsKnown().

Referenced by discoverObject(), registerObj(), and restoreObjectList().

void DtObjectMgr::addLrcManagedObj ( DtRtiObject *  obj )

virtual

Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.

References myLrcManagedObjs, myLrcManagedObjsByName, DtRtiObject::objHandle(), and DtRtiObject::objName().

Referenced by processGiveToLrc(), registerObj(), and restoreObjectList().

void DtObjectMgr::addOwnedObj ( DtRtiObject *  obj )

virtual

Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.

References myOwnedObjs, myOwnedObjsByName, DtRtiObject::objHandle(), and DtRtiObject::objName().

Referenced by processNotifyAcquire(), registerObj(), and restoreObjectList().

void DtObjectMgr::addPendingDiscovery ( DtObjectInstanceHandle  objectHandle, DtObjectClassHandle  classHandle, DtFederateHandle  federate, bool  isNonDiscovery  )

virtual

Add pending discovery/non-discovery.

References insertDiscBitMask(), insertNonDiscBitMask(), myPendingDiscoveries, myPendingNonDiscoveries, sendDiscoverMsg(), and sendRemoveDiscoverMsg().

Referenced by discoverObject(), processRequestDiscover(), and sendNotDiscoveredMsgForSmartForwarding().

void DtObjectMgr::addPendingDivestNotification ( DtObjectInstanceHandle  objectHandle, DtAttributeHandleSet  attributes  )

virtual

Add pending divest notification that will get processed during the next tick.

References myPendingDivestNotifications, and DtAttributeHandleSet::setUnion().

void DtObjectMgr::addPendingRegister ( DtObjectClassHandle  theClass, DtFederateHandle  fedHandle = 0  )

virtual

Add pending Register that will get processed during the next tick.

References DtConnectionMgr::activateTransmitDelay(), DtFomClassMgr::classByHandle(), connectMgr(), fom(), DtObjectClassInfo::handle(), insertRegBitMask(), DtRIDParameters::internalMsgSmartForwardingWhenUsingRtiexec, internalMsgSmartForwardingWhenUsingRtiexec, DtObjectClassInfo::isOfClass(), myPendingRegisterList, myPendingRegisterMaskList, params(), restoreInProgress(), and useRtiExec.

Referenced by DtObjectClassInfo::remotePassiveSubscribe(), DtObjectClassInfo::remoteSubscribe(), and DtObjectClassInfo::updateRelevance().

void DtObjectMgr::addPendingRegisterForObject ( DtObjectInstanceHandle  objHandle )

virtual

Add pending Register for the given object that will get processed during next tick.

References myPendingInstRegisterList, and restoreInProgress().

Referenced by processNotifyAcquire().

void DtObjectMgr::addPendingRemoval ( DtObjectInstanceHandle  id )

virtual

Add pending object removals that will get processed during the next tick.

References myPendingRemovals.

void DtObjectMgr::addPendingRequestAttrs ( DtObjectInstanceHandle  objectHandle, DtAttributeHandleSet  attributes  )

virtual

Add pending request attribute value that will get processed during the next tick.

References myPendingRequestAttrs, and DtAttributeHandleSet::setUnion().

Referenced by processRequest().

void DtObjectMgr::addPendingStartReg ( DtObjectClassHandle  theClass )

virtual

Add pending startRegistration that will get processed during the next tick.

References classRelevanceSwitch(), and myPendingStartRegList.

Referenced by DtObjectClassInfo::publish(), and DtObjectClassInfo::updateRelevance().

void DtObjectMgr::addPendingStartUpdates ( DtObjectInstanceHandle  obj, const DtAttributeHandleSet &  attributeList  )

virtual

Add pending startUpdates that will get called during the next tick.

References attributeRelevanceSwitch(), and myPendingStartUpdatesList.

void DtObjectMgr::addPendingStopReg ( DtObjectClassHandle  theClass )

virtual

Add pending stopRegistration that will get processed during the next tick.

References classRelevanceSwitch(), and myPendingStopRegList.

Referenced by DtObjectClassInfo::publish(), and DtObjectClassInfo::updateRelevance().

void DtObjectMgr::addPendingStopUpdates ( DtObjectClassHandle  theClass, const DtAttributeHandleSet &  attributeList  )

virtual

Add pending stopUpdates that will get called during the next tick.

References attributeRelevanceSwitch(), and myPendingStopUpdatesList.

void DtObjectMgr::addPendingSubscription ( DtObjectClassHandle  theClass, DtFederateHandle  fedHandle = 0  )

virtual

Add pending subscription class retransmissions that will get processed during next tick.

References insertSubBitMask(), internalMsgSmartForwardingWhenUsingRtiexec, myRetransmitSubClass, params(), and useRtiExec.

Referenced by processPub().

DtRtiObject * DtObjectMgr::allObj ( DtObjectInstanceHandle  id )

virtual

Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.

References myObjects, and NULL.

Referenced by discoverObject(), processGiveToLrc(), processOwnership(), processQueryOwner(), registerObj(), removeAllObj(), and resetOwner().

DtRtiObject * DtObjectMgr::allObj ( const char *  name )

virtual

Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.

References myObjectsByName.

const DtRtiObjectMap & DtObjectMgr::allObjects ( ) const

virtual

Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.

References myObjects.

bool DtObjectMgr::attributeRelevanceSwitch ( )

virtual

References myAttributeRelevanceSwitch, and restoreInProgress().

Referenced by addPendingStartUpdates(), addPendingStopUpdates(), collectRemoteSubscriptions(), disableAttributeRelevanceSwitch(), enableAttributeRelevanceSwitch(), processDiscover(), processNotifyAcquire(), processResign(), remoteSubscribe(), and remoteUnsubscribe().

bool DtObjectMgr::attributeScopeSwitch ( )

virtual

References myAttributeScopeSwitch, and restoreInProgress().

Referenced by disableAttributeScopeSwitch(), discoverObject(), and enableAttributeScopeSwitch().

void DtObjectMgr::autoProvideAttrValueUpdate ( )

virtual

Invoke provide for all owned attributes.

References myOwnedObjs, provideAttrValueUpdate(), DtAttributeHandleSet::size(), and DtRtiObject::updateOnAttrs().

void DtObjectMgr::cancelAcquire ( DtObjectInstanceHandle  objHand, const DtAttributeHandleSet &  attrs  )

virtual

Cancel an attribute acquisition.

References DtObjectClassInfo::allAttrs(), DtCancelAcquire, DtAttributeHandleSet::getHandle(), DtAttributeHandleSet::isMember(), DtRtiObject::knownClass(), knownObj(), DtRtiObject::owned(), DtRtiObject::pendingUncondRequest(), sendOwnershipMsg(), and DtAttributeHandleSet::size().

void DtObjectMgr::cancelDivest ( DtObjectInstanceHandle  objHand, const DtAttributeHandleSet &  attrs  )

virtual

Cancel an attribute divestiture.

References DtObjectClassInfo::allAttrs(), DtRtiObject::cancelDivest(), DtRtiObject::divestingAttrs(), DtAttributeHandleSet::getHandle(), DtAttributeHandleSet::isMember(), DtRtiObject::knownClass(), knownObj(), DtRtiObject::owned(), and DtAttributeHandleSet::size().

bool DtObjectMgr::classRelevanceSwitch ( )

virtual

References myClassRelevanceSwitch, and restoreInProgress().

Referenced by addPendingStartReg(), addPendingStopReg(), disableClassRelevanceSwitch(), and enableClassRelevanceSwitch().

void DtObjectMgr::collectRemoteSubscriptions ( DtRtiObject &  object )

protectedvirtual

Collect existing remote subscriptions and apply them to given object Supports attribute advisories when not distributing discovered class.

Actually can report more attributes than required.

References attributeRelevanceSwitch(), DtObjectClassInfo::baseClass(), DtIsFound(), DtObjectClassInfo::handle(), setDiscoveredClass(), DtObjectClassInfo::subscribedFederates(), turnUpdatesOff(), and turnUpdatesOn().

Referenced by processLocDelete(), processMultiRegister(), and processRegister().

DtConnectionMgr * DtObjectMgr::connectMgr ( )

virtual

Returns pointer to network connection mgr.

References DtFederateMgr::connectMgr(), and federateMgr().

Referenced by addClassMulticast(), addPendingRegister(), discoverObject(), DtObjectMgr(), invokePendingDivestNotification(), invokeReflect(), nextOffsetId(), postJoinInit(), processCancelAcquire(), processConfirmCancelAcquire(), processDelete(), processDiscover(), processGiveToLrc(), processMultiRegister(), processNotifyAcquire(), processOwnership(), processPub(), processRegister(), processRequest(), processRequestDiscover(), processResign(), processSub(), processUnpub(), processUnsub(), processUpdate(), queryOwnership(), registerObj(), releaseAllAttributes(), releaseOwnership(), removeClassMulticast(), resendMultiRegister(), retainTsoDeletedObj(), retainTsoRemovedObj(), sendBestEffortUpdateMsg(), sendDiscoverMsg(), sendLocalDeleteMsg(), sendPendingDiscoveries(), sendPendingRegister(), sendPendingRemovals(), sendPendingRequestAttributes(), sendPendingStartReg(), sendPendingStartUpdates(), sendPendingStopReg(), sendPendingStopUpdates(), sendPendingSubscription(), sendPublishMsg(), sendRegisterMsg(), sendReliableUpdateMsg(), sendRemoveDiscoverMsg(), sendRequestDiscoverMsg(), sendSubscribeMsg(), sendUnpublishMsg(), sendUnsubscribeMsg(), sendUpdateMessage(), setAttributeTransportType(), turnUpdatesOff(), turnUpdatesOn(), and ~DtObjectMgr().

DtConnectionMgr * DtObjectMgr::connectMgr ( ) const

virtual

References DtFederateMgr::connectMgr(), and federateMgr().

DtObjectMgr * DtObjectMgr::create ( DtFederateMgr *  fedMgr )

static

A Object Manager instance is created and its pointer is returned.

A registered creator is used if present; otherwise, an internal class is instantiated.

References DtObjectMgr(), theCreator, and theInternalCreator.

Referenced by setCreatorFunction(), and setInternalCreatorFunction().

void DtObjectMgr::deleteAllOwnedObjects ( )

protectedvirtual

Delete all objects for which we own the privilege.

References deleteObj(), myOwnedObjs, NULL, DtRtiObject::objHandle(), DtRtiObject::ownPriviledgeToDelete(), and DtRtiMsg::theDefaultTag.

unsigned long DtObjectMgr::deleteObj ( DtObjectInstanceHandle  objectID, RTI::FedTime const *  theTime, char const *  theTag  )

virtual

Delete a locally simulated object Return retraction handle serial number.

References DtRtiObject::attrOrder(), DtPrivilegeToDelete, and DtRtiObject::ownPriviledgeToDelete().

Referenced by deleteAllOwnedObjects(), destroyObjectLists(), localDeleteObj(), processDelete(), and processResign().

void DtObjectMgr::deleteObj ( DtRtiObject *  obj, bool  isLocalDelete = false  )

protectedvirtual

Remove object from all lists and delete it.

References DtRtiObject::objHandle(), DtRtiObject::objName(), params(), removeAllObj(), removeKnownObj(), removeLrcManagedObj(), and removeOwnedObj().

void DtObjectMgr::destroyObjectLists ( )

protectedvirtual

Destroy all the object lists and their elements.

References deleteObj(), DtPrivilegeToDelete, DtAddrMap::empty(), myAddrMap, myOwnedObjs, DtRtiObject::objHandle(), removeAllObj(), removeKnownObj(), removeLrcManagedObj(), removeObjectAssociations(), removeOwnedObj(), and DtRtiObject::rtiOwned().

Referenced by prepareToRestore(), and ~DtObjectMgr().

void DtObjectMgr::disableAttributeRelevanceSwitch ( )

virtual

Enable/Disable attributeRelevanceAdvisorySwitch 1516 throws exception if call is redundant.

References attributeRelevanceSwitch(), and setAttributeRelevanceSwitch().

void DtObjectMgr::disableAttributeScopeSwitch ( )

virtual

Enable/Disable attributeScopeAdvisorySwitch 1516 throws exception if call is redundant.

References attributeScopeSwitch(), and setAttributeScopeSwitch().

void DtObjectMgr::disableClassRelevanceSwitch ( )

virtual

Enable/Disable classRelevanceAdvisorySwitch 1516 throws exception if call is redundant.

References classRelevanceSwitch(), and setClassRelevanceSwitch().

DtRtiObject * DtObjectMgr::discoverObject ( DtObjectInstanceHandle  objHandle, const char *  objName, DtObjectClassInfo *  actualClass, DtObjectClassInfo *  discoveredClass, const DtAttributeHandleSet &  attrSet, DtFederateHandle  federateHandle, bool  federateOwnsPrivilegeToDelete  )

protectedvirtual

Discover this object using the actual and discovered class and the supplied attributes that intersect the federate's subscription(s) Return object if discover successful; otherwise, NULL.

References addAllObj(), addKnownObj(), addPendingDiscovery(), allObj(), attributeScopeSwitch(), RTI::FederateAmbassador::attributesInScope(), connectMgr(), DtRtiObject::createDiscoveredObject(), RTI::FederateAmbassador::discoverObjectInstance(), DtRIDParameters::discoveryMsgBundlingDelay, DtAutoRequestById, DtToWString(), DtConnectionMgr::fedAmb(), fom(), DtRtiObject::knownClassHandle(), knownObj(), NULL, params(), removedObjectIsRetained(), sendDiscoverMsg(), and sendRequestMsg().

Referenced by processMultiRegister(), processNewObj(), and processRegister().

void DtObjectMgr::divestAllInstances ( DtObjectClassHandle  classHand, const DtAttributeHandleSet &  attrs  )

protectedvirtual

Divest ownership (unconditionally) of all owned attributes in attrs for each object that's known at class classHand.

References DtRtiObject::knownClassHandle(), myOwnedObjs, DtRtiObject::ownedAttrs(), releaseOwnership(), DtAttributeHandleSet::setIntersection(), and DtAttributeHandleSet::size().

void DtObjectMgr::divestAllInstances ( )

protectedvirtual

Divest ownership (unconditionally) of all owned attributes of all objects.

References myOwnedObjs, DtRtiObject::ownedAttrs(), and releaseOwnership().

Referenced by publish(), and unpublishAttributes().

void DtObjectMgr::divestOwnership ( DtObjectInstanceHandle  objHand, const DtAttributeHandleSet &  attrs, DtDivestCondition  condition, char const *  tag = DtRtiMsg::theDefaultTag  )

virtual

Process a attribute divestiture.

References DtRtiObject::addDivesting(), DtObjectClassInfo::allAttrs(), DtRtiObject::divestingAttrs(), DtRtiObject::divestRemoteSubscriptions(), DtRtiObject::divestToLrc(), DtDivestNegotiated, DtDivestUnconditional, DtNegotiatedDivest, DtNotifyAcquire, DtUncondDivest, DtAttributeHandleSet::empty(), DtAttributeHandleSet::getHandle(), DtRtiObject::giveToLrc(), DtAttributeHandleSet::isEmpty(), DtAttributeHandleSet::isMember(), DtRtiObject::knownClass(), DtRtiObject::objHandle(), DtRtiObject::owned(), DtRtiObject::ownedAttrs(), DtRtiObject::releaseRequested(), DtRtiObject::removeRequest(), DtAttributeHandleSet::removeSetIntersection(), DtAttributeHandleSet::setUnion(), and DtAttributeHandleSet::size().

void DtObjectMgr::enableAttributeRelevanceSwitch ( )

virtual

Enable/Disable attributeRelevanceAdvisorySwitch 1516 throws exception if call is redundant.

References attributeRelevanceSwitch(), and setAttributeRelevanceSwitch().

void DtObjectMgr::enableAttributeScopeSwitch ( )

virtual

Enable/Disable attributeScopeAdvisorySwitch 1516 throws exception if call is redundant.

References attributeScopeSwitch(), and setAttributeScopeSwitch().

void DtObjectMgr::enableClassRelevanceSwitch ( )

virtual

Enable/Disable classRelevanceAdvisorySwitch 1516 throws exception if call is redundant.

References classRelevanceSwitch(), and setClassRelevanceSwitch().

DtFederateHandle DtObjectMgr::federateHandleFromObjectID ( DtObjectInstanceHandle  id ) const

protectedvirtual

Return the federate handle used to construct the given object ID.

References DtRIDParameters::maxObjectsPerFederate(), and params().

Referenced by objectWasCreatedByFederate().

DtFederateMgr * DtObjectMgr::federateMgr ( )

virtual

Access to the federate manager.

References myFederateMgr.

Referenced by connectMgr(), fom(), params(), processResign(), and sendPendingRemovals().

DtFederateMgr * DtObjectMgr::federateMgr ( ) const

virtual

References myFederateMgr.

DtObjectInstanceHandle DtObjectMgr::findReusableHandle ( )

protectedvirtual

Attempt to find an instance handle that can be re-assigned to a new registration Returns a 0 handle if no free handle found.

References myFreeObjHandle, myKnownObjs, and nextOffsetId().

Referenced by uniqueHandle().

DtObjectClassInfo * DtObjectMgr::firstSubscribedClass ( DtObjectClassInfo *  classDesc, DtHandle  regSetHandle  )

virtual

Returns most specific superclass of class, to which we are subscribed.

References DtObjectClassInfo::baseClass(), NULL, and DtObjectClassInfo::subscribed().

Referenced by processMultiRegister(), processNewObj(), processRegister(), and processUpdate().

DtFomClassMgr * DtObjectMgr::fom ( )

virtual

Return fom pointer.

References federateMgr(), and DtFederateMgr::fom().

Referenced by addClassMulticast(), addPendingRegister(), discoverObject(), DtObjectMgr(), processDelete(), processGiveToLrc(), processMultiRegister(), processNewObj(), processNotifyAcquire(), processPub(), processRegister(), processResign(), processSub(), processUnsub(), processUpdate(), publish(), published(), registerObj(), removeClassMulticast(), requestClassUpdate(), restoreObjectList(), sendPendingRemovals(), sendPendingStopReg(), sendPendingSubscription(), setDiscoveredClass(), subscribe(), subscribed(), unpublishAttributes(), unpublishClass(), unsubscribeAttributes(), and unsubscribeClass().

DtFomClassMgr * DtObjectMgr::fom ( ) const

virtual

Return fom pointer.

References federateMgr(), and DtFederateMgr::fom().

void DtObjectMgr::getUniqueName ( DtObjectInstanceHandle  handle, MAKRti::DtString &  objectName  )

virtual

Use the supplied object handle to construct a unique object name and assign a unique name to the supplied string.

References myHlaNamePrefix.

Referenced by registerObj().

void DtObjectMgr::ignoreNextUpdate ( DtObjectInstanceHandle  hdl )

virtual

Tells the object manager to ignore the next update for the given object.

References myIgnoreObjects.

void DtObjectMgr::insertDiscBitMask ( DtObjectClassHandle  classHandle, DtFederateHandle  fedHandle  )

protectedvirtual

References DtRtiMtdDestinationList::getMaxDestinations(), myPendingDiscoveriesMaskList, DtBitMask::reset(), and DtBitMask::setBit().

Referenced by addPendingDiscovery().

void DtObjectMgr::insertNonDiscBitMask ( DtObjectClassHandle  classHandle, DtFederateHandle  fedHandle  )

protectedvirtual

References DtRtiMtdDestinationList::getMaxDestinations(), myPendingNonDiscoveriesMaskList, DtBitMask::reset(), and DtBitMask::setBit().

Referenced by addPendingDiscovery().

void DtObjectMgr::insertRegBitMask ( DtObjectClassHandle  classHandle, DtFederateHandle  fedHandle  )

protectedvirtual

References DtRtiMtdDestinationList::getMaxDestinations(), myPendingRegisterMaskList, DtBitMask::reset(), and DtBitMask::setBit().

Referenced by addPendingRegister().

void DtObjectMgr::insertSubBitMask ( DtObjectClassHandle  classHandle, DtFederateHandle  fedHandle  )

protectedvirtual

References DtRtiMtdDestinationList::getMaxDestinations(), myRetransmitSubClassMask, DtBitMask::reset(), and DtBitMask::setBit().

Referenced by addPendingSubscription().

void DtObjectMgr::invokePendingDivestNotification ( )

protectedvirtual

Invoke pending divest notification.

References RTI::FederateAmbassador::attributeOwnershipDivestitureNotification(), connectMgr(), DtConnectionMgr::fedAmb(), myPendingDivestNotifications, and ownedObj().

Referenced by postTick(), and preTick().

void DtObjectMgr::invokeReflect ( DtFederateHandle  federateHandle, DtObjectInstanceHandle  objectHandle, DtAhvps const &  reflectedValues, DtTransportHandle  transportType, DtOrderHandle  sentOrder, char const *  tag = 0, RTI::FedTime const *  time = 0, unsigned long  serialNumber = 0  )

protectedvirtual

Invoke the reflect attribute values update call.

References connectMgr(), DtConnectionMgr::fedAmb(), and RTI::FederateAmbassador::reflectAttributeValues().

Referenced by processUpdate().

bool DtObjectMgr::isAcquistionPending ( )

virtual

Return true if ownership acquistion is pending for remote attrs.

References DtRtiObject::ifAvailRequestedAttrs(), myObjects, DtAttributeHandleSet::size(), and DtRtiObject::uncondRequestedAttrs().

bool DtObjectMgr::isPostJoined ( ) const

virtual

Return bool: Was the post join initialization perfomerd?

References myIsJoined.

DtRtiObject * DtObjectMgr::knownObj ( DtObjectInstanceHandle  id )

virtual

Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.

References myKnownObjs, and NULL.

Referenced by cancelAcquire(), cancelDivest(), discoverObject(), localDeleteObj(), objectClass(), objectHandle(), objectName(), processCancelAcquire(), processConfirmCancelAcquire(), processDelete(), processMultiRegister(), processNotifyAcquire(), processOwnership(), processRegister(), processRequestDiscover(), processUpdate(), queryOwnership(), releaseResponse(), removeKnownObj(), setAttributeOrderType(), and setAttributeTransportType().

DtRtiObject * DtObjectMgr::knownObj ( const char *  name )

virtual

Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.

References myKnownObjsByName.

const DtRtiObjectMap & DtObjectMgr::knownObjects ( ) const

virtual

Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.

References myKnownObjs.

void DtObjectMgr::localDeleteObj ( DtObjectInstanceHandle  obj )

virtual

Implements the localDeleteObjectInstance service.

References deleteObj(), DtRtiObject::ifAvailRequestedAttrs(), knownObj(), lrcManagedObj(), myLocalDeletedObjects, DtRtiObject::ownedAttrs(), params(), removeKnownObj(), removeObjectAssociations(), DtRtiObject::rtiOwnedAttrs(), sendLocalDeleteMsg(), DtAttributeHandleSet::size(), and DtRtiObject::uncondRequestedAttrs().

DtRtiObject * DtObjectMgr::lrcManagedObj ( DtObjectInstanceHandle  id )

virtual

Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.

References myLrcManagedObjs, and NULL.

Referenced by localDeleteObj(), processGiveToLrc(), and removeLrcManagedObj().

DtRtiObject * DtObjectMgr::lrcManagedObj ( const char *  name )

virtual

Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.

References myLrcManagedObjsByName.

const DtRtiObjectMap & DtObjectMgr::lrcManagedObjects ( ) const

virtual

Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.

References myLrcManagedObjs.

unsigned long DtObjectMgr::nextOffsetId ( )

protectedvirtual

Return the next offset ID.

An invalid ID of 0 is returned if this next offset exceeded the maximum.

References connectMgr(), DtConnectionMgr::fedHandle(), DtRIDParameters::maxObjectsPerFederate(), myFreeObjHandle, and params().

Referenced by findReusableHandle(), and uniqueHandle().

void DtObjectMgr::notifyDivestedAttributes ( DtObjectClassHandle  objectClass, DtAttributeHandleSet const &  attrs  )

protectedvirtual

Find any divested attributes instances that match (is of) the supplied class and set.

Send a notify divest for them.

References DtRtiObject::actualClass(), DtRtiObject::divestedAttrs(), DtUncondDivest, DtObjectClassInfo::isOfClass(), myOwnedObjs, DtRtiObject::objHandle(), sendOwnershipMsg(), DtAttributeHandleSet::setIntersection(), and DtAttributeHandleSet::size().

Referenced by processPub().

int DtObjectMgr::numObjectsOwned ( )

virtual

return the number of owned objects

References myOwnedObjs, and DtRtiObject::ownPriviledgeToDelete().

Referenced by testResign().

DtObjectClassHandle DtObjectMgr::objectClass ( DtObjectInstanceHandle  handle )

virtual

Get an object's class.

References DtRtiObject::knownClassHandle(), and knownObj().

DtObjectInstanceHandle DtObjectMgr::objectHandle ( const char *  name )

virtual

Get objectHandle from name.

References knownObj(), and DtRtiObject::objHandle().

Referenced by removedObjectIsRetained().

const char * DtObjectMgr::objectName ( DtObjectInstanceHandle  handle )

virtual

Get object name from handle.

Returns pointer to internal memory.

References knownObj(), and DtRtiObject::objName().

Referenced by registerObj().

bool DtObjectMgr::objectWasCreatedByFederate ( DtRtiObject const &  obj, DtFederateHandle const &  fedHandle  )

virtual

Query the object manager to determine whether the specified federate was the initial creator of the specified object.

References federateHandleFromObjectID(), and DtRtiObject::id().

Referenced by processResign().

DtObjectMgr& DtObjectMgr::operator= ( DtObjectMgr const &  )

private

Assignment not implemented – Assignment Not Allowed!

DtRtiObject * DtObjectMgr::ownedObj ( DtObjectInstanceHandle  id )

virtual

Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.

References myOwnedObjs, and NULL.

Referenced by invokePendingDivestNotification(), processDiscover(), processLocDelete(), processRequest(), removeOwnedObj(), sendPendingRegister(), sendPendingRequestAttributes(), and sendPendingStartUpdates().

DtRtiObject * DtObjectMgr::ownedObj ( const char *  name )

virtual

Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.

References myOwnedObjsByName.

const DtRtiObjectMap & DtObjectMgr::ownedObjects ( ) const

virtual

Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.

References myOwnedObjs.

Referenced by remotePassiveSubscribe(), remoteSubscribe(), remoteUnsubscribe(), and testResign().

DtRIDParameters * DtObjectMgr::params ( )

virtual

Return pointer to RID parameters.

References federateMgr(), and DtFederateMgr::params().

Referenced by addClassMulticast(), addPendingRegister(), addPendingSubscription(), deleteObj(), discoverObject(), DtObjectMgr(), federateHandleFromObjectID(), localDeleteObj(), nextOffsetId(), postJoinInit(), processDelete(), processLocDelete(), processMultiRegister(), processNotifyAcquire(), processRegister(), processRequestDiscover(), processUpdate(), DtObjectClassInfo::publish(), publish(), registerObj(), remotePassiveSubscribe(), remoteSubscribe(), removeClassMulticast(), sendBestEffortUpdateMsg(), sendDiscoverMsg(), sendNotDiscoveredMsgForSmartForwarding(), sendPendingDiscoveries(), sendRegisterMsg(), sendReliableUpdateMsg(), sendRemoveDiscoverMsg(), sendRequestDiscoverMsg(), setAttributeOrderType(), setAttributeTransportType(), subscribe(), uniqueHandle(), unsubscribeAttributes(), and useHlaNamePrefix().

DtRIDParameters * DtObjectMgr::params ( ) const

virtual

Return pointer to RID parameters.

References federateMgr(), and DtFederateMgr::params().

void DtObjectMgr::postJoinInit ( )

virtual

Post join processing. All managers shall have been created and initialized.

References connectMgr(), myIsJoined, and params().

void DtObjectMgr::postTick ( )

virtual

Called after processing messages in RTI ambassador tick / evoke callbacks.

References invokePendingDivestNotification(), purgeDeletedObjects(), sendPendingDiscoveries(), sendPendingRegister(), sendPendingRemovals(), sendPendingRequestAttributes(), sendPendingStartReg(), sendPendingStartUpdates(), sendPendingStopReg(), sendPendingStopUpdates(), and sendPendingSubscription().

Referenced by DtFederateMgr::posttick().

void DtObjectMgr::prepareToResign

(

RTI::ResignAction const &

theAction

)

Called when resigning from a federation to test conditions and to delete owned objects.

References RTI::Exception::_name, RTI::Exception::_reason, rti1516::CANCEL_PENDING_OWNERSHIP_ACQUISITIONS, rti1516e::CANCEL_PENDING_OWNERSHIP_ACQUISITIONS, rti1516::CANCEL_THEN_DELETE_THEN_DIVEST, rti1516e::CANCEL_THEN_DELETE_THEN_DIVEST, rti1516::DELETE_OBJECTS, rti1516e::DELETE_OBJECTS, RTI::DELETE_OBJECTS, RTI::DELETE_OBJECTS_AND_RELEASE_ATTRIBUTES, rti1516::DELETE_OBJECTS_THEN_DIVEST, rti1516e::DELETE_OBJECTS_THEN_DIVEST, DtCancelAcquire, DtDivestUnconditional, DtRtiObject::id(), DtRtiObject::ifAvailRequestedAttrs(), NULL, DtRtiObject::objHandle(), DtRtiObject::objName(), DtRtiObject::ownedAttrs(), DtRtiObject::ownPriviledgeToDelete(), RTI::RELEASE_ATTRIBUTES, DtRtiObject::rtiOwnedAttrs(), DtAttributeHandleSet::setUnion(), DtAttributeHandleSet::size(), DtRtiMsg::theDefaultTag, rti1516::UNCONDITIONALLY_DIVEST_ATTRIBUTES, rti1516e::UNCONDITIONALLY_DIVEST_ATTRIBUTES, and DtRtiObject::uncondRequestedAttrs().

void DtObjectMgr::prepareToRestore ( )

virtual

Prepare the state information to be restored (i.e., clear out existing data).

References destroyObjectLists().

Referenced by DtRtiExecFederateMgr::prepareToRestoreLRC().

void DtObjectMgr::preTick ( )

virtual

Called before processing messages in RTI ambassador tick / evoke callbacks.

References invokePendingDivestNotification().

Referenced by DtFederateMgr::pretick().

void DtObjectMgr::processAcquire ( DtObjectInstanceHandle  objHand, const DtAttributeHandleSet &  attrs, DtFederateHandle  fed, bool  onlyIfAvail, char const *  tag  )

protectedvirtual

Process a remote attribute acquisition.

References DtRtiObject::addPendingConfirm(), DtRtiObject::addRemoteRequest(), DtRtiObject::canceledRequestSet(), DtRtiObject::divestingAttrs(), DtRtiObject::divestRemoteSubscriptions(), DtNotifyAcquire, DtOwnershipUnavail, DtAttributeHandleSet::isEmpty(), DtRtiObject::lrcManagedAttrs(), DtRtiObject::lrcUnmanage(), DtRtiObject::objHandle(), DtRtiObject::ownedAttrs(), DtRtiObject::pendingConfirmAttributes(), DtRtiObject::pendingConfirmByFed(), DtRtiObject::releaseAttrs(), DtRtiObject::removePendingConfirm(), DtAttributeHandleSet::removeSetIntersection(), DtRtiObject::requestedAttributes(), DtRtiObject::requestedByFed(), DtAttributeHandleSet::setIntersection(), DtAttributeHandleSet::setUnion(), and DtAttributeHandleSet::size().

Referenced by processOwnership().

void DtObjectMgr::processCancelAcquire ( DtObjectInstanceHandle  objHand, const DtAttributeHandleSet &  attrs, DtFederateHandle  fed  )

protectedvirtual

Process a remote cancel attribute acquisition.

References DtRtiObject::cancelRemoteRequest(), connectMgr(), DtRtiObject::divestingAttrs(), DtConfirmCancelAcquire, knownObj(), DtRtiObject::ownedAttrs(), DtAttributeHandleSet::removeSetIntersection(), DtRtiObject::requestedByFed(), sendOwnershipMsg(), DtAttributeHandleSet::setIntersection(), DtAttributeHandleSet::setUnion(), and DtAttributeHandleSet::size().

Referenced by processOwnership().

void DtObjectMgr::processConfirmCancelAcquire ( DtObjectInstanceHandle  objHand, const DtAttributeHandleSet &  attrs  )

protectedvirtual

Process a remote confirm attribute acquisition.

References RTI::FederateAmbassador::confirmAttributeOwnershipAcquisitionCancellation(), connectMgr(), DtConnectionMgr::fedAmb(), knownObj(), and DtRtiObject::removeRequest().

Referenced by processOwnership().

void DtObjectMgr::processDelete ( const DtDeleteRoMsg &  msg )

protectedvirtual

Process messages.

References connectMgr(), deleteObj(), DtConnectionMgr::fedAmb(), DtRtiMsg::federateHandle(), DtConnectionMgr::fedExHandle(), DtConnectionMgr::fedHandle(), fom(), rti1516e::SupplementalRemoveInfo::hasProducingFederate, DtDeleteRoMsg::id(), knownObj(), myClock, myDeletedObjects, DtRtiObject::objHandle(), params(), processUnknownUpdatesForDiscovery, rti1516e::SupplementalRemoveInfo::producingFederate, rti1516::RECEIVE, removeObjectAssociations(), RTI::FederateAmbassador::removeObjectInstance(), and DtDeleteMsg::tag().

Referenced by DtObjectMgr(), and ~DtObjectMgr().

void DtObjectMgr::processDelete ( const DtDeleteRoMsg &  msg, void *  usr  )

staticprotected

Message callback methods to register with connection manager.

void DtObjectMgr::processDiscover ( const DtDiscObjMsg &  msg )

protectedvirtual

Process messages.

References attributeRelevanceSwitch(), DtDiscObjMsg::classHandle(), connectMgr(), DtPrivilegeToDelete, DtResetOwner, DtRtiMsg::federateHandle(), DtConnectionMgr::fedHandle(), DtDiscObjMsg::getObjHandles(), DtRtiObject::objHandle(), ownedObj(), DtDiscObjMsg::ownerHandle(), DtRtiObject::ownerHandle(), DtDiscObjMsg::removeDiscover(), sendOwnershipMsg(), setDiscoveredClass(), turnUpdatesOff(), and turnUpdatesOn().

Referenced by DtObjectMgr(), and ~DtObjectMgr().

void DtObjectMgr::processDiscover ( const DtDiscObjMsg &  msg, void *  usr  )

staticprotected

Message callback methods to register with connection manager.

void DtObjectMgr::processDivest ( DtObjectInstanceHandle  objHand, const DtAttributeHandleSet &  attrs, DtFederateHandle  fed, bool  negotiated, char const *  tag = DtRtiMsg::theDefaultTag  )

protectedvirtual

Process a remote attribute divestiture.

References DtRtiObject::knownClass(), DtObjectClassInfo::publishedAttrs(), DtAttributeHandleSet::setIntersection(), and DtAttributeHandleSet::size().

Referenced by processOwnership().

void DtObjectMgr::processGiveToLrc ( DtObjectInstanceHandle  objHand, const DtAttributeHandleSet &  attrs, char const *  tag, DtHandle  hand  )

protectedvirtual

Give the supplied attributes to the local RTI component.

References addAllObj(), addLrcManagedObj(), allObj(), DtFomClassMgr::classByHandle(), connectMgr(), DtRtiObject::createDiscoveredObject(), DtPrivilegeToDelete, DtResetOwner, DtConnectionMgr::fedHandle(), fom(), DtRtiObject::giveToLrc(), DtAttributeHandleSet::isMember(), lrcManagedObj(), DtRtiObject::objHandle(), sendOwnershipMsg(), and DtRtiObject::setOwnerHandle().

Referenced by processOwnership().

void DtObjectMgr::processLocDelete ( const DtLocDelMsg &  msg )

protectedvirtual

Process messages.

References collectRemoteSubscriptions(), DtLocDelMsg::objHandle(), DtRtiObject::ownedAttrs(), ownedObj(), params(), resendRegister(), and DtAttributeHandleSet::size().

Referenced by DtObjectMgr(), and ~DtObjectMgr().

void DtObjectMgr::processLocDelete ( const DtLocDelMsg &  msg, void *  usr  )

staticprotected

Message callback methods to register with connection manager.

void DtObjectMgr::processMultiRegister ( const DtMultiRegObjMsg &  msg )

protectedvirtual

Process messages.

References DtMultiRegObjMsg::attrHandles(), DtFomClassMgr::classByHandle(), DtMultiRegObjMsg::classHandle(), collectRemoteSubscriptions(), connectMgr(), discoverObject(), DtDefaultRegionSetHandle, DtIsFound(), DtPrivilegeToDelete, DtRtiMsg::federateHandle(), DtConnectionMgr::fedHandle(), firstSubscribedClass(), fom(), DtNetObjIdentifier::handle, DtAttributeHandleSet::isMember(), knownObj(), myLocalDeletedObjects, DtNetObjIdentifier::nameSize, DtMultiRegObjMsg::objectCount(), DtMultiRegObjMsg::objectPointer(), params(), DtRIDParameters::sendDiscoveredClass, sendNotDiscoveredMsgForSmartForwarding(), sendRemoveDiscoverMsg(), DtAttributeHandleSet::setIntersection(), DtRtiObject::setOwnerHandle(), DtAttributeHandleSet::size(), and DtObjectClassInfo::subscribedAttrs().

Referenced by DtObjectMgr(), and ~DtObjectMgr().

void DtObjectMgr::processMultiRegister ( const DtMultiRegObjMsg &  msg, void *  usr  )

staticprotected

Message callback methods to register with connection manager.

DtRtiObject * DtObjectMgr::processNewObj ( DtObjectInstanceHandle  objHand, DtObjectClassHandle  realClass, const char *  name, const DtAttributeHandleSet &  inSet, DtHandle  regSetHandle, DtFederateHandle  sourceFederate  )

virtual

Assumes we have not yet discovered objHand.

If the object meets our discovery criteria, create a new object, add to the list of known objects, and call discover RTI service. Returns the new object if discovered; otherwise, NULL.

References DtFomClassMgr::classByHandle(), discoverObject(), DtPrivilegeToDelete, firstSubscribedClass(), fom(), DtAttributeHandleSet::isMember(), NULL, DtAttributeHandleSet::setIntersection(), DtAttributeHandleSet::size(), and DtObjectClassInfo::subscribedAttrs().

Referenced by processUpdate().

DtRtiObject * DtObjectMgr::processNewObj ( DtObjectInstanceHandle  objHand, DtObjectClassInfo *  actualClass, DtObjectClassInfo *  subscribedClass, const char *  name, const DtAhvps &  inSet, DtHandle  regSetHandle, DtFederateHandle  sourceFederate  )

protectedvirtual

Assumes we have not yet discovered objHand.

If the object meets our discovery criteria, create a new object, add to the list of known objects, and call discover RTI service. Returns the new object if discovered; otherwise, NULL.

References DtAttributeHandleSet::add(), discoverObject(), DtAttributeHandleSet::getHandle(), DtObjectClassInfo::isSubscribed(), NULL, and DtAttributeHandleSet::size().

void DtObjectMgr::processNotifyAcquire ( DtObjectInstanceHandle  objHand, const DtAttributeHandleSet &  attrs, char const *  tag = DtRtiMsg::theDefaultTag, bool  forceAcquire = false  )

protectedvirtual

Process a remote notify attribute acquisition.

References DtRtiObject::acquireRemoteSubscriptions(), DtRtiObject::actualClassHandle(), addOwnedObj(), addPendingRegisterForObject(), RTI::FederateAmbassador::attributeOwnershipAcquisitionNotification(), attributeRelevanceSwitch(), connectMgr(), DtPrivilegeToDelete, DtResetOwner, DtConnectionMgr::fedAmb(), DtConnectionMgr::fedHandle(), fom(), DtRtiObject::ifAvailRequestedAttrs(), DtAttributeHandleSet::isEmpty(), DtRtiObject::knownClass(), knownObj(), myClock, DtRtiObject::objHandle(), DtRtiObject::ownedAttrs(), DtRtiObject::ownPriviledgeToDelete(), params(), DtObjectClassInfo::relevantAttrs(), DtAttributeHandleSet::removeSetIntersection(), sendOwnershipMsg(), sendRequestDiscoverMsg(), DtRtiObject::setAllDestinations(), DtAttributeHandleSet::setIntersection(), DtRtiObject::setTimeToUseDestinations(), DtAttributeHandleSet::size(), DtRtiObject::takeAttrs(), turnUpdatesOn(), DtRtiObject::uncondRequestedAttrs(), and DtRtiObject::updateOnAttrs().

Referenced by processOwnership().

void DtObjectMgr::processOwnership ( const DtOwnershipMsg &  msg )

protectedvirtual

Process messages.

References allObj(), DtOwnershipMsg::attrHandles(), RTI::FederateAmbassador::attributeIsNotOwned(), RTI::FederateAmbassador::attributeOwnedByRTI(), RTI::FederateAmbassador::attributeOwnershipUnavailable(), DtRtiObject::attrTransport(), DtOwnershipMsg::classHandle(), connectMgr(), DtAcquire, DtAcquireIfAvail, DtCancelAcquire, DtCancelNegotiatedDivest, DtConfirmCancelAcquire, DtGiveToLRC, DtInformOwner, DtMomTransfer, DtNegotiatedDivest, DtNotifyAcquire, DtNotOwned, DtOwnedByRti, DtOwnershipUnavail, DtQueryAttrTransportType, DtQueryOwner, DtResetOwner, DtUncondDivest, DtConnectionMgr::fedAmb(), DtRtiMsg::federateHandle(), DtConnectionMgr::fedExHandle(), DtConnectionMgr::fedHandle(), DtAttributeHandleSet::getHandle(), DtRtiObject::ifAvailRequestedAttrs(), RTI::FederateAmbassador::informAttributeOwnership(), DtAttributeHandleSet::isEmpty(), knownObj(), DtRtiObject::lrcManagedAttrs(), DtOwnershipMsg::objHandle(), DtRtiObject::objHandle(), DtRtiObject::owned(), DtRtiObject::ownedAttrs(), DtOwnershipMsg::ownerMsgKind(), processAcquire(), processCancelAcquire(), processConfirmCancelAcquire(), processDivest(), processGiveToLrc(), processNotifyAcquire(), processQueryOwner(), DtOwnershipMsg::recipientFederate(), removeLrcManagedObj(), removeOwnedObj(), resetOwner(), DtAttributeHandleSet::setIntersection(), DtAttributeHandleSet::size(), and DtOwnershipMsg::tag().

Referenced by DtObjectMgr(), and ~DtObjectMgr().

void DtObjectMgr::processOwnership ( const DtOwnershipMsg &  msg, void *  usr  )

staticprotected

Message callback methods to register with connection manager.

void DtObjectMgr::processPub ( const DtPubObjMsg &  msg )

protectedvirtual

Process messages.

References DtConnectionMgr::activateTransmitDelay(), addPendingSubscription(), DtPubObjMsg::attrHandles(), DtObjectClassInfo::baseClass(), DtFomClassMgr::classByHandle(), connectMgr(), DtRtiMsg::federateHandle(), DtConnectionMgr::fedHandle(), fom(), DtObjectClassInfo::handle(), notifyDivestedAttributes(), DtPubObjMsg::objectClassHandle(), sendSubscribeMsg(), DtAttributeHandleSet::setIntersection(), DtAttributeHandleSet::size(), and DtObjectClassInfo::subscribedActiveAttrs().

Referenced by DtObjectMgr(), and ~DtObjectMgr().

void DtObjectMgr::processPub ( const DtPubObjMsg &  msg, void *  usr  )

staticprotected

Message callback methods to register with connection manager.

void DtObjectMgr::processQueryOwner ( DtObjectInstanceHandle  objHand, DtAttributeHandle  attr, DtFederateHandle  requestor  )

protectedvirtual

Process a remote attribute ownership queury.

References allObj(), DtInformOwner, DtNotOwned, DtOwnedByRti, DtRtiObject::lrcManaged(), DtRtiObject::owned(), DtRtiObject::rtiOwned(), and sendOwnershipMsg().

Referenced by processOwnership().

void DtObjectMgr::processRegister ( const DtRegObjMsg &  msg )

protectedvirtual

Process messages.

References DtRegObjMsg::attrHandles(), DtFomClassMgr::classByHandle(), DtRegObjMsg::classHandle(), collectRemoteSubscriptions(), connectMgr(), discoverObject(), DtDefaultRegionSetHandle, DtIsFound(), DtPrivilegeToDelete, DtRtiMsg::federateHandle(), DtConnectionMgr::fedHandle(), firstSubscribedClass(), fom(), DtAttributeHandleSet::isMember(), knownObj(), myLocalDeletedObjects, DtRegObjMsg::objHandle(), DtRegObjMsg::objName(), params(), DtRIDParameters::sendDiscoveredClass, sendNotDiscoveredMsgForSmartForwarding(), sendRemoveDiscoverMsg(), DtAttributeHandleSet::setIntersection(), DtRtiObject::setOwnerHandle(), DtAttributeHandleSet::size(), and DtObjectClassInfo::subscribedAttrs().

Referenced by DtObjectMgr(), and ~DtObjectMgr().

void DtObjectMgr::processRegister ( const DtRegObjMsg &  msg, void *  usr  )

staticprotected

Message callback methods to register with connection manager.

void DtObjectMgr::processRequest ( const DtRequestMsg &  msg )

protectedvirtual

Process messages.

References DtConnectionMgr::activateAutoProvideDelay(), addPendingRequestAttrs(), DtConnectionMgr::allProvideUpdateRequestsDelayed(), DtRequestMsg::attrHandles(), connectMgr(), DtConnectionMgr::delayAutoProvide(), DtAutoRequestById, DtRequestById, DtRtiMsg::federateHandle(), DtConnectionMgr::fedHandle(), DtRtiObject::filterOwned(), DtRequestMsg::id(), DtAttributeHandleSet::isEmpty(), DtRtiObject::isOfActualClass(), myOwnedObjs, DtRequestMsg::objectClassHandle(), DtRtiObject::objHandle(), ownedObj(), provideAttrValueUpdate(), DtRequestMsg::requestType(), and DtRequestMsg::tag().

Referenced by DtObjectMgr(), and ~DtObjectMgr().

void DtObjectMgr::processRequest ( const DtRequestMsg &  msg, void *  usr  )

staticprotected

Message callback methods to register with connection manager.

void DtObjectMgr::processRequestDiscover ( const DtReqDiscObjMsg &  msg )

protectedvirtual

Process messages.

References addPendingDiscovery(), connectMgr(), DtRIDParameters::discoveryMsgBundlingDelay, DtRtiMsg::federateHandle(), DtConnectionMgr::fedHandle(), knownObj(), DtReqDiscObjMsg::objHandle(), DtRtiObject::objHandle(), params(), DtRIDParameters::routeToAllByDefault, sendDiscoverMsg(), sendNotDiscoveredMsgForSmartForwarding(), and DtRIDParameters::smartForwardingLevel.

Referenced by DtObjectMgr(), and ~DtObjectMgr().

void DtObjectMgr::processRequestDiscover ( const DtReqDiscObjMsg &  msg, void *  usr  )

staticprotected

Message callback methods to register with connection manager.

void DtObjectMgr::processResign ( const DtResignMsg &  msg )

virtual

Process the resign message.

References attributeRelevanceSwitch(), DtFederateMgr::automaticResignDirective(), DtRtiObject::cancelAllRemoteRequests(), DtFomClassMgr::classByHandle(), connectMgr(), deleteObj(), DtConnectionMgr::fedAmb(), DtRtiMsg::federateHandle(), federateMgr(), fom(), rti1516e::SupplementalRemoveInfo::hasProducingFederate, DtRtiObject::id(), DtAttributeHandleSet::isEmpty(), myObjects, DtFomClassMgr::numClasses(), objectWasCreatedByFederate(), DtRtiObject::ownedAttrs(), DtRtiObject::ownerHandle(), rti1516e::SupplementalRemoveInfo::producingFederate, rti1516::RECEIVE, rti1516e::RECEIVE, DtRtiObject::removeDiscoveredClass(), RTI::FederateAmbassador::removeObjectInstance(), DtObjectClassInfo::removeSubscriptions(), DtRtiObject::requestedByFed(), DtResignMsg::resignAction(), DtAttributeHandleSet::size(), turnUpdatesOff(), and DtRtiObject::updateOnAttrs().

Referenced by DtFederateMgr::processResign().

void DtObjectMgr::processSub ( const DtSubObjMsg &  msg )

protectedvirtual

Process messages.

References DtSubObjMsg::attrHandles(), DtFomClassMgr::classByHandle(), connectMgr(), false, DtRtiMsg::federateHandle(), fom(), DtSubObjMsg::isPassive(), DtSubObjMsg::objectClassHandle(), DtObjectClassInfo::remotePassiveSubscribe(), remotePassiveSubscribe(), DtObjectClassInfo::remoteSubscribe(), remoteSubscribe(), remoteUnsubscribe(), DtSubObjMsg::replacement(), and true.

Referenced by DtObjectMgr(), and ~DtObjectMgr().

void DtObjectMgr::processSub ( const DtSubObjMsg &  msg, void *  usr  )

staticprotected

Message callback methods to register with connection manager.

void DtObjectMgr::processUnpub ( const DtUnpubObjMsg &  msg )

protectedvirtual

Process messages.

References connectMgr(), DtRtiMsg::federateHandle(), and DtConnectionMgr::fedHandle().

Referenced by DtObjectMgr(), and ~DtObjectMgr().

void DtObjectMgr::processUnpub ( const DtUnpubObjMsg &  msg, void *  usr  )

staticprotected

Message callback methods to register with connection manager.

void DtObjectMgr::processUnsub ( const DtUnsubObjMsg &  msg )

protectedvirtual

Process messages.

References DtUnsubObjMsg::attrHandles(), DtFomClassMgr::classByHandle(), connectMgr(), DtRtiMsg::federateHandle(), fom(), DtUnsubObjMsg::objectClassHandle(), remoteUnsubscribe(), and DtObjectClassInfo::remoteUnsubscribeAttributes().

Referenced by DtObjectMgr(), and ~DtObjectMgr().

void DtObjectMgr::processUnsub ( const DtUnsubObjMsg &  msg, void *  usr  )

staticprotected

Message callback methods to register with connection manager.

void DtObjectMgr::processUpdate ( const DtUpdateMsg &  msg )

protectedvirtual

Process messages.

References acceptObjectChannel(), DtObjectClassInfo::attrByHandle(), DtUpdateMsg::channel(), DtFomClassMgr::classByHandle(), DtUpdateMsg::classHandle(), connectMgr(), DtAttrInfo::dimensions(), DtRtiMsg::federateHandle(), DtConnectionMgr::fedHandle(), firstSubscribedClass(), fom(), DtUpdateMsg::getAttrs(), DtRtiMsg::hasTime(), invokeReflect(), DtRtiObject::knownClass(), knownObj(), DtRtiObject::markAsReflected(), myDeletedObjects, myIgnoreObjects, DtUpdateMsg::numAttrs(), DtUpdateMsg::objHandle(), DtUpdateMsg::objName(), DtRtiMsg::orderType(), params(), processNewObj(), rti1516::RECEIVE, DtRIDParameters::receiveTolerance, DtRIDParameters::routeToAllByDefault, sendNotDiscoveredMsgForSmartForwarding(), DtRtiMsg::serialNumber(), DtRIDParameters::smartForwardingLevel, DtUpdateMsg::tag(), DtRtiMsg::time(), rti1516::TIMESTAMP, rti1516e::TIMESTAMP, and DtRtiMsg::transportType().

Referenced by DtObjectMgr(), and ~DtObjectMgr().

void DtObjectMgr::processUpdate ( const DtUpdateMsg &  msg, void *  usr  )

staticprotected

Message callback methods to register with connection manager.

void DtObjectMgr::provideAttrValueUpdate ( const DtRtiObject *  obj, const DtAttributeHandleSet &  attrHandles, char const *  tag  )

protectedvirtual

Make the fedAmb call to provide attrValUpdate for this object.

References DtRtiObject::filterOwned(), DtAttributeHandleSet::isEmpty(), and DtRtiObject::objHandle().

Referenced by autoProvideAttrValueUpdate(), and processRequest().

void DtObjectMgr::publish ( DtObjectClassHandle  theObject, const DtAttributeHandleSet &  attributeList  )

virtual

Publish specified class attributes.

References DtAttributeHandleSet::add(), DtObjectClassInfo::attrByHandle(), DtFomClassMgr::classByHandle(), divestAllInstances(), DtPrivilegeToDelete, errorChecking, fom(), DtAttributeHandleSet::getHandle(), DtAttributeHandleSet::isMember(), params(), DtObjectClassInfo::publish(), DtObjectClassInfo::publishedAttrs(), DtAttributeHandleSet::removeSetIntersection(), sendPublishMsg(), DtAttributeHandleSet::size(), and throwIfAcquisitionPending().

int DtObjectMgr::published ( DtObjectClassHandle  handle )

virtual

Returns 1 if published the class, 0 otherwise.

References DtFomClassMgr::classByHandle(), fom(), and DtObjectClassInfo::published().

void DtObjectMgr::purgeDeletedObjects ( )

protectedvirtual

Purge entries for recently deleted objects that have timed out.

References myClock, and myDeletedObjects.

Referenced by postTick().

void DtObjectMgr::queryOwnership ( DtObjectInstanceHandle  obj, DtAttributeHandle  attr  )

virtual

Implements the queryAttributeOwnership service.

References DtObjectClassInfo::attrByHandle(), RTI::FederateAmbassador::attributeIsNotOwned(), RTI::FederateAmbassador::attributeOwnedByRTI(), connectMgr(), DtQueryOwner, DtConnectionMgr::fedAmb(), RTI::FederateAmbassador::informAttributeOwnership(), DtRtiObject::knownClass(), knownObj(), DtRtiObject::lrcManaged(), DtRtiObject::owned(), DtRtiObject::rtiOwned(), and sendOwnershipMsg().

DtObjectInstanceHandle DtObjectMgr::registerObj ( DtObjectClassHandle  theClass, const char *  name  )

virtual

Register a locally simulated object.

References uniqueHandle(), and useHlaNamePrefix().

Referenced by registerObj().

DtObjectInstanceHandle DtObjectMgr::registerObj ( DtObjectClassHandle  theClass )

virtual

Register a locally simulated object.

References getUniqueName(), objectName(), registerObj(), and uniqueHandle().

DtRtiObject * DtObjectMgr::registerObj ( DtObjectClassHandle  theClass, DtObjectInstanceHandle  objHandle, const char *  name  )

protectedvirtual

Register a locally simulated object.

References addAllObj(), addKnownObj(), addLrcManagedObj(), addOwnedObj(), allObj(), DtFomClassMgr::classByHandle(), connectMgr(), DtRtiObject::createRegisteredObject(), DtPrivilegeToDelete, DtResetOwner, DtConnectionMgr::fedHandle(), fom(), DtRtiObject::initUpdateRates(), DtRtiObject::lrcManagedAttrs(), myClock, DtRtiObject::objHandle(), DtRtiObject::ownPriviledgeToDelete(), params(), DtObjectClassInfo::published(), sendOwnershipMsg(), sendRegister(), DtRtiObject::setAllDestinations(), DtRtiObject::setOwnerHandle(), DtRtiObject::setTimeToUseDestinations(), and DtAttributeHandleSet::size().

void DtObjectMgr::releaseAllAttributes ( DtRtiObject *  object )

protectedvirtual

Release (unconditionally) all owned and LRC managed attributes Only used during a resign.

References DtRtiObject::actualClassHandle(), connectMgr(), DtConnectionMgr::create(), DtGiveToLRC, DtOwnershipMsgKind, DtRtiObject::lrcManagedAttrs(), DtRtiObject::objHandle(), DtRtiObject::objName(), DtRtiObject::ownedAttrs(), DtRtiObject::rtiOwnedAttrs(), DtConnectionMgr::sendStampedAndDelete(), DtOwnershipMsg::set(), DtOwnershipMsg::setClassHandle(), DtAttributeHandleSet::setUnion(), and DtAttributeHandleSet::size().

void DtObjectMgr::releaseOwnership ( DtRtiObject *  obj, const DtAttributeHandleSet &  attrs  )

protectedvirtual

Releases ownership of the specified attributes to the LRC Used when unpublishing.

References RTI::FederateAmbassador::attributeOwnershipDivestitureNotification(), connectMgr(), DtRtiObject::divestRemoteSubscriptions(), DtNotifyAcquire, DtUncondDivest, DtConnectionMgr::fedAmb(), DtRtiObject::giveToLrc(), DtAttributeHandleSet::isEmpty(), DtRtiObject::objHandle(), DtRtiObject::ownedAttrs(), DtRtiObject::releaseRequested(), removeOwnedObj(), DtAttributeHandleSet::removeSetIntersection(), sendOwnershipMsg(), DtAttributeHandleSet::setUnion(), and DtAttributeHandleSet::size().

Referenced by divestAllInstances().

DtAttributeHandleSet * DtObjectMgr::releaseResponse ( DtObjectInstanceHandle  objHand, const DtAttributeHandleSet &  attrs  )

virtual

Respond to an attribute acquisition.

References DtObjectClassInfo::allAttrs(), DtNotifyAcquire, DtAttributeHandleSet::getHandle(), DtAttributeHandleSet::isMember(), DtRtiObject::isRequestCanceled(), DtRtiObject::knownClass(), knownObj(), DtRtiObject::owned(), DtRtiObject::pendingRemoteRequest(), DtRtiObject::releaseRequested(), sendOwnershipMsg(), DtAttributeHandleSet::setUnion(), and DtAttributeHandleSet::size().

void DtObjectMgr::remotePassiveSubscribe ( DtObjectClassInfo &  classDesc, const DtAttributeHandleSet &  attrs, DtFederateHandle  fedHandle, bool  isReplacement  )

protectedvirtual

Track passive subscriptions ( no effect on advisories )

References DtRtiObject::discoveredClass(), DtObjectClassInfo::handle(), ownedObjects(), and params().

Referenced by processSub().

void DtObjectMgr::remoteSubscribe ( DtObjectClassInfo &  classDesc, const DtAttributeHandleSet &  attrs, DtFederateHandle  fedHandle, bool  isReplacement  )

protectedvirtual

Add a remote subscription to object known database and determine effects on advisories.

References attributeRelevanceSwitch(), DtRtiObject::discoveredClass(), DtObjectClassInfo::handle(), ownedObjects(), params(), DtObjectClassInfo::remoteSubscription(), DtRtiObject::remoteUnsubscribe(), DtAttributeHandleSet::removeSetIntersection(), DtAttributeHandleSet::size(), turnUpdatesOff(), and turnUpdatesOn().

Referenced by processSub().

void DtObjectMgr::remoteUnsubscribe ( DtObjectClassHandle  classHandle, const DtAttributeHandleSet &  attrs, DtFederateHandle  fedHandle  )

protectedvirtual

Remove a remote subscription to object known database and determine effects on advisories.

References attributeRelevanceSwitch(), DtRtiObject::isDiscovered(), ownedObjects(), and turnUpdatesOff().

Referenced by processSub(), and processUnsub().

void DtObjectMgr::removeAllObj ( DtObjectInstanceHandle  obj )

virtual

Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.

References allObj(), myObjects, myObjectsByName, DtRtiObject::objHandle(), and DtRtiObject::objName().

Referenced by deleteObj(), destroyObjectLists(), removeFromAllLists(), retainTsoDeletedObj(), and retainTsoRemovedObj().

void DtObjectMgr::removeClassMulticast ( DtObjectClassInfo *  classDesc, float  rate = -1.0  )

protectedvirtual

Recursively add and remove the DM multicast address of this class and all its subclasses The Rate determines which update rate multicast offsets to join and drop A rate less than zero indicates rate should be retrieved from class A rate equal zero indicates no rate should be used and all offsets are affected.

References connectMgr(), DtObjectClassInfo::destinationAddress(), DtConnectionMgr::dropMulticastGroup(), DtRIDParameters::enableUpdateRateReduction, fom(), DtObjectClassInfo::maxSubscribedRate(), params(), DtFomClassMgr::positionOfRate(), and DtObjectClassInfo::subclasses().

Referenced by unsubscribeAttributes().

bool DtObjectMgr::removedObjectIsRetained ( DtObjectInstanceHandle  objectHandle )

protectedvirtual

Check list of objects that have been removed via TSO delete and are unknown to the federate but whose delete time has not passed yet.

Return boolean: is the specified object retained?

References objectHandle().

Referenced by discoverObject().

void DtObjectMgr::removeFromAllLists ( DtRtiObject *  object )

virtual

Remove an object from all lists.

References DtRtiObject::objHandle(), removeAllObj(), removeKnownObj(), removeLrcManagedObj(), and removeOwnedObj().

void DtObjectMgr::removeKnownObj ( DtObjectInstanceHandle  obj )

virtual

Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.

References knownObj(), myKnownObjs, myKnownObjsByName, DtRtiObject::objHandle(), DtRtiObject::objName(), and DtRtiObject::setIsKnown().

Referenced by deleteObj(), destroyObjectLists(), localDeleteObj(), removeFromAllLists(), retainTsoDeletedObj(), and retainTsoRemovedObj().

void DtObjectMgr::removeLrcManagedObj ( DtObjectInstanceHandle  obj )

virtual

Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.

References lrcManagedObj(), myLrcManagedObjs, myLrcManagedObjsByName, DtRtiObject::objHandle(), and DtRtiObject::objName().

Referenced by deleteObj(), destroyObjectLists(), processOwnership(), removeFromAllLists(), retainTsoDeletedObj(), and retainTsoRemovedObj().

void DtObjectMgr::removeObjectAssociations ( DtRtiObject &  object )

protectedvirtual

Remove associations to this object (e.g., regions)

Referenced by destroyObjectLists(), localDeleteObj(), and processDelete().

void DtObjectMgr::removeOwnedObj ( DtObjectInstanceHandle  obj )

virtual

Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.

References myOwnedObjs, myOwnedObjsByName, DtRtiObject::objHandle(), DtRtiObject::objName(), and ownedObj().

Referenced by deleteObj(), destroyObjectLists(), processOwnership(), releaseOwnership(), removeFromAllLists(), retainTsoDeletedObj(), and retainTsoRemovedObj().

void DtObjectMgr::requestClassUpdate ( DtObjectClassHandle  theClass, const DtAttributeHandleSet &  theAttributes, char const *  tag = DtRtiMsg::theDefaultTag, DtHandle  regionSetHandle = DtDefaultRegionSetHandle  )

virtual

Request an attribute value update for a class of objects.

References DtObjectClassInfo::attrByHandle(), DtFomClassMgr::classByHandle(), DtRequestByClass, fom(), DtAttributeHandleSet::getHandle(), sendRequestMsg(), and DtAttributeHandleSet::size().

void DtObjectMgr::requestObjectUpdate ( DtObjectInstanceHandle  theObject, const DtAttributeHandleSet &  theAttributes, char const *  tag = DtRtiMsg::theDefaultTag  )

virtual

Request an attribute value update for an object.

References DtObjectClassInfo::allAttrs(), DtRequestById, DtRtiObject::knownClass(), DtAttributeHandleSet::removeSetIntersection(), and DtAttributeHandleSet::size().

void DtObjectMgr::resendMultiRegister ( DtObjectClassHandle  classHandle )

virtual

Re-sends register information for all objects of a specific class if DDM is active then this information could include region and region association information.

Overridden in DtObjectDataDistMgr

References DtRtiObject::actualClass(), connectMgr(), DtConnectionMgr::create(), DtMultiRegObjMsg::DtMAX_OBJECTS, DtMultiRegObjMsgKind, DtMultiRegObjMsg::insertObject(), DtObjectClassInfo::isOfClass(), myOwnedObjs, myPendingRegisterMaskList, DtRtiObject::objHandle(), DtRtiObject::objName(), DtRtiObject::ownedAttrs(), DtRtiObject::rtiOwnedAttrs(), sendRegisterMsg(), DtMultiRegObjMsg::setAttrHandles(), DtMultiRegObjMsg::setClassHandle(), and DtAttributeHandleSet::setUnion().

Referenced by sendPendingRegister().

void DtObjectMgr::resendRegister ( DtRtiObject *  obj, DtBitMask *  sendMask = 0  )

virtual

Re-sends register information, if DDM is active then this information could include region and region association information.

Overridden in DtObjectDataDistMgr

References sendRegisterMsg().

Referenced by processLocDelete(), and sendPendingRegister().

void DtObjectMgr::resetOwner ( DtFederateHandle  fedHandle, DtObjectInstanceHandle  objHandle  )

protectedvirtual

Reset the owner of the object.

References allObj(), and DtRtiObject::setOwnerHandle().

Referenced by processOwnership().

bool DtObjectMgr::restore ( DtRtiSaveFile &  file )

virtual

Restore the state information from the given file.

References DtObjectMgrPacket::attributeRelevance, DtObjectMgrPacket::attributeScope, DtObjectMgrPacket::classRelevance, DtRtiSaveObjMgrType, DtObjectMgrPacket::freeObjHandle, DtObjectMgrPacket::header, myAttributeRelevanceSwitch, myAttributeScopeSwitch, myClassRelevanceSwitch, myFreeObjHandle, DtObjectMgrPacket::numberNamesInUse, DtObjectMgrPacket::numberReservedNames, DtObjectMgrPacket::numberReservedNamesInUse, DtSaveDataHeader::packetType, DtRtiSaveFile::readNextPacket(), and restoreObjectList().

Referenced by DtRtiExecFederateMgr::restoreLRC().

bool DtObjectMgr::restoreInProgress ( ) const

virtual

Note: The advisory switches are disabled by a restore in progress.

They are restored to saved state upon completion of restore. Set/Get restore in progress status

References myRestoreInProgress.

Referenced by addPendingRegister(), addPendingRegisterForObject(), attributeRelevanceSwitch(), attributeScopeSwitch(), and classRelevanceSwitch().

bool DtObjectMgr::restoreObjectList ( DtRtiSaveFile &  file )

protectedvirtual

restore the list of known and owned objects

References addAllObj(), addKnownObj(), addLrcManagedObj(), addOwnedObj(), DtRtiObject::createEmptyObject(), DtRtiObject::decode(), DtRtiSaveObjectType, DtRtiSaveTerminateType, fom(), DtObjectPacket::header, DtRtiObject::isKnown(), DtRtiObject::lrcManagedAttrs(), DtRtiObject::ownedAttrs(), DtSaveDataHeader::packetType, DtRtiSaveFile::readNextPacket(), and DtAttributeHandleSet::size().

Referenced by restore().

void DtObjectMgr::retainTsoDeletedObj ( DtRtiObject *  obj, RTI::FedTime const &  time  )

protectedvirtual

TSO deleted object was prematurely deleted when regulation disabled Hold onto it until deletion time passes in order to process discovery.

References connectMgr(), DtConnectionMgr::logicalTimeFactory(), DtLogicalTimeFactory::makeInitial(), DtRtiObject::objHandle(), removeAllObj(), removeKnownObj(), removeLrcManagedObj(), and removeOwnedObj().

void DtObjectMgr::retainTsoRemovedObj ( DtRtiObject *  obj, RTI::FedTime const &  time  )

protectedvirtual

TSO removed object may be discovered by other federates but should not be rediscovered by this federate.

Hold onto it until deletion time passes in order to prevent rediscovery

References connectMgr(), DtConnectionMgr::logicalTimeFactory(), DtLogicalTimeFactory::makeInitial(), DtRtiObject::objHandle(), removeAllObj(), removeKnownObj(), removeLrcManagedObj(), and removeOwnedObj().

bool DtObjectMgr::save ( DtRtiSaveFile &  file )

virtual

DDM.

Save the state information to the given file

References DtObjectMgrPacket::attributeRelevance, DtObjectMgrPacket::attributeScope, DtObjectMgrPacket::classRelevance, DtRtiSaveObjMgrType, DtObjectMgrPacket::freeObjHandle, DtObjectMgrPacket::header, myAttributeRelevanceSwitch, myAttributeScopeSwitch, myClassRelevanceSwitch, myFreeObjHandle, DtObjectMgrPacket::numberNamesInUse, DtObjectMgrPacket::numberReservedNames, DtObjectMgrPacket::numberReservedNamesInUse, DtSaveDataHeader::packetSize, DtSaveDataHeader::packetType, saveObjectList(), savePacketLength(), and DtRtiSaveFile::writePacket().

Referenced by DtRtiExecFederateMgr::saveLRC().

bool DtObjectMgr::saveObjectList ( DtRtiSaveFile &  file )

protectedvirtual

save out the list of of known and owned objects

References DtPrivilegeToDelete, DtRtiSaveTerminateType, DtRtiObject::encode(), DtRtiObject::encodedLength(), myObjects, NULL, DtSaveDataHeader::packetSize, DtSaveDataHeader::packetType, DtRtiObject::rtiOwned(), and DtRtiSaveFile::writePacket().

Referenced by save().

unsigned long DtObjectMgr::savePacketLength ( )

protectedvirtual

Return the length of buffer needed to save the state data.

Referenced by save().

void DtObjectMgr::sendBestEffortUpdateMsg ( DtRtiObject *  obj, const DtAhvps &  theAttrs, DtOrderHandle  orderType, RTI::FedTime const *  theTime, char const *  tag, unsigned long  serialNumber, const MAKRti::DtInetAddr &  destAddr, unsigned int  offset = 0  )

protectedvirtual

Send various types of RTI messages.

References DtRtiObject::actualClass(), DtRtiObject::actualClassHandle(), connectMgr(), DtConnectionMgr::create(), DtUpdateRoMsgKind, DtUpdateTsoMsgKind, DtRtiObject::getDestinations(), DtBitMask::isEmpty(), DtRtiMsg::kindToString(), DtRtiMsg::msgKind(), NULL, DtRtiObject::objHandle(), DtRtiObject::objName(), params(), sendUpdateMessage(), DtUpdateRoMsg::set(), DtRIDParameters::smartForwardingLevel, and DtRtiObject::updateType().

unsigned long DtObjectMgr::sendDeleteMsg ( DtObjectInstanceHandle  handle, DtOrderHandle  orderType, RTI::FedTime const *  theTime, char const *  tag  )

protectedvirtual

Send various types of RTI messages.

References DtMultiNameReservedMsg::create(), DtDeleteRoMsgKind, DtDeleteTsoMsgKind, NULL, DtDeleteRoMsg::set(), and DtRtiMsg::setFederateHandle().

void DtObjectMgr::sendDiscoverMsg ( DtObjectInstanceHandle  objHandle, DtObjectClassHandle  classHandle, DtFederateHandle  owner  )

protectedvirtual

Send various types of RTI messages.

References connectMgr(), DtConnectionMgr::create(), DtDiscObjMsgKind, params(), DtConnectionMgr::sendDirectedStampedAndDelete(), and DtDiscObjMsg::set().

Referenced by addPendingDiscovery(), discoverObject(), and processRequestDiscover().

void DtObjectMgr::sendLocalDeleteMsg ( DtObjectInstanceHandle  handle )

protectedvirtual

Send various types of RTI messages.

References connectMgr(), DtConnectionMgr::create(), DtLocDelMsgKind, DtConnectionMgr::sendStampedAndDelete(), and DtLocDelMsg::set().

Referenced by localDeleteObj().

void DtObjectMgr::sendNotDiscoveredMsgForSmartForwarding ( DtObjectInstanceHandle  handle, const DtObjectClassInfo &  classInfo, DtFederateHandle  federate, const DtAttributeHandleSet *  attributes = 0  )

virtual

Send a message removing this federate from remote federate's smart forwarding list for the given object.

References addPendingDiscovery(), DtObjectClassInfo::allAttrs(), DtObjectClassInfo::attrTransport(), DtRIDParameters::discoveryMsgBundlingDelay, DtRIDParameters::DtFomTransportTypeUseReliable, DtAttributeHandleSet::getHandle(), DtObjectClassInfo::handle(), params(), sendRemoveDiscoverMsg(), and DtAttributeHandleSet::size().

Referenced by processMultiRegister(), processRegister(), processRequestDiscover(), processUpdate(), and sendNotDiscoveredMsgForSmartForwarding().

void DtObjectMgr::sendNotDiscoveredMsgForSmartForwarding ( DtObjectInstanceHandle  handle, const DtObjectClassInfo &  classInfo, DtFederateHandle  federate, const DtAhvps *  attributes  )

virtual

References addPendingDiscovery(), DtObjectClassInfo::attrTransport(), DtRIDParameters::discoveryMsgBundlingDelay, DtRIDParameters::DtFomTransportTypeUseReliable, DtObjectClassInfo::handle(), params(), sendNotDiscoveredMsgForSmartForwarding(), and sendRemoveDiscoverMsg().

void DtObjectMgr::sendOwnershipMsg ( DtOwnerMsgKind  kind, DtObjectInstanceHandle  objHand, const DtAttributeHandleSet &  attrs, DtFederateHandle  targetFed = 0, char const *  tag = DtRtiMsg::theDefaultTag  )

protectedvirtual

Send various types of RTI messages.

References DtQueryInterTransportMsg::create(), DtOwnershipMsgKind, and DtOwnershipMsg::set().

Referenced by cancelAcquire(), notifyDivestedAttributes(), processCancelAcquire(), processDiscover(), processGiveToLrc(), processNotifyAcquire(), processQueryOwner(), queryOwnership(), registerObj(), releaseOwnership(), and releaseResponse().

void DtObjectMgr::sendOwnershipMsg ( DtOwnerMsgKind  kind, DtObjectInstanceHandle  objHand, const DtAttributeHandle  attr, DtFederateHandle  targetFed = 0, char const *  tag = DtRtiMsg::theDefaultTag  )

protectedvirtual

Send various types of RTI messages.

References DtQueryInterTransportMsg::create(), DtOwnershipMsgKind, and DtOwnershipMsg::set().

void DtObjectMgr::sendPendingDiscoveries ( )

protectedvirtual

Send pending discoveries.

References connectMgr(), DtConnectionMgr::create(), DtRIDParameters::discoveryMsgBundlingDelay, DtDiscObjMsgKind, myClock, myNextPendingDiscTime, myPendingDiscoveries, myPendingDiscoveriesMaskList, myPendingNonDiscoveries, myPendingNonDiscoveriesMaskList, params(), DtConnectionMgr::sendDirectedStampedAndDelete(), DtDiscObjMsg::setClassHandle(), DtDiscObjMsg::setObjHandles(), DtDiscObjMsg::setOwnerHandle(), and DtDiscObjMsg::setRemoveDiscover().

Referenced by postTick().

void DtObjectMgr::sendPendingRegister ( )

protectedvirtual

Send pending Register.

References DtRtiObject::actualClass(), connectMgr(), DtObjectClassInfo::isOfClass(), myPendingInstRegisterList, myPendingRegisterList, myPendingRegisterMaskList, NULL, ownedObj(), resendMultiRegister(), and resendRegister().

Referenced by postTick().

void DtObjectMgr::sendPendingRemovals ( )

protectedvirtual

Send pending object removals.

References connectMgr(), DtConnectionMgr::fedAmb(), federateMgr(), fom(), rti1516e::SupplementalRemoveInfo::hasProducingFederate, myPendingRemovals, NULL, rti1516e::SupplementalRemoveInfo::producingFederate, rti1516::RECEIVE, rti1516e::RECEIVE, and RTI::FederateAmbassador::removeObjectInstance().

Referenced by postTick().

void DtObjectMgr::sendPendingRequestAttributes ( )

protectedvirtual

Send pending request attribute value.

References connectMgr(), DtConnectionMgr::fedAmb(), DtRtiObject::filterOwned(), DtAttributeHandleSet::isEmpty(), myPendingRequestAttrs, DtRtiObject::objHandle(), ownedObj(), and RTI::FederateAmbassador::provideAttributeValueUpdate().

Referenced by postTick().

void DtObjectMgr::sendPendingStartReg ( )

protectedvirtual

Send pending startRegistration.

References connectMgr(), DtConnectionMgr::fedAmb(), myPendingStartRegList, and RTI::FederateAmbassador::startRegistrationForObjectClass().

Referenced by postTick().

void DtObjectMgr::sendPendingStartUpdates ( )

protectedvirtual

Send pending startUpdates.

References connectMgr(), DtConnectionMgr::fedAmb(), myPendingStartUpdatesList, DtRtiObject::objHandle(), DtRtiObject::ownedAttrs(), ownedObj(), DtAttributeHandleSet::setIntersection(), and RTI::FederateAmbassador::turnUpdatesOnForObjectInstance().

Referenced by postTick().

void DtObjectMgr::sendPendingStopReg ( )

protectedvirtual

Send pending stopRegistration.

References DtFomClassMgr::classByHandle(), connectMgr(), DtConnectionMgr::fedAmb(), fom(), myPendingStopRegList, DtObjectClassInfo::published(), and RTI::FederateAmbassador::stopRegistrationForObjectClass().

Referenced by postTick().

void DtObjectMgr::sendPendingStopUpdates ( )

protectedvirtual

Send pending stopUpdates.

References connectMgr(), DtConnectionMgr::fedAmb(), DtRtiObject::knownClassHandle(), myOwnedObjs, myPendingStopUpdatesList, DtRtiObject::objHandle(), DtRtiObject::ownedAttrs(), DtAttributeHandleSet::setIntersection(), and RTI::FederateAmbassador::turnUpdatesOffForObjectInstance().

Referenced by postTick().

void DtObjectMgr::sendPendingSubscription ( )

protectedvirtual

Send pending subscription class retransmissions.

References DtFomClassMgr::classByHandle(), connectMgr(), fom(), DtObjectClassInfo::handle(), DtAttributeHandleSet::isEmpty(), myRetransmitSubClass, myRetransmitSubClassMask, sendSubscribeMsg(), and DtObjectClassInfo::subscribedActiveAttrs().

Referenced by postTick().

void DtObjectMgr::sendPublishMsg ( DtObjectClassHandle  handle, const DtAttributeHandleSet &  theSet  )

protectedvirtual

Send various types of RTI messages.

References connectMgr(), DtConnectionMgr::create(), DtPubObjMsgKind, DtConnectionMgr::sendStampedAndDelete(), and DtPubObjMsg::set().

Referenced by publish().

void DtObjectMgr::sendRegister ( DtRtiObject *  obj )

virtual

Sends register information, if DDM is active then this information could include region and region association information.

Overridden in DtObjectDataDistMgr

References sendRegisterMsg().

Referenced by registerObj().

void DtObjectMgr::sendRegisterMsg ( DtRtiObject *  object, DtBitMask *  sendMask = 0  )

protectedvirtual

Send various types of RTI messages.

References connectMgr(), DtConnectionMgr::create(), DtRegObjMsgKind, DtRtiObject::objHandle(), DtRtiObject::ownedAttrs(), and DtRegObjMsg::set().

Referenced by resendMultiRegister(), resendRegister(), and sendRegister().

void DtObjectMgr::sendRegisterMsg ( DtRtiMsg *  msg, DtRtiObject *  object, DtBitMask *  sendMask = 0  )

protectedvirtual

Send various types of RTI messages.

References connectMgr(), DtUpdateFederateObject, DtUpdateMomFederateObject, DtUpdateMomFederationObject, DtRtiMtdDestinationList::getMaxDestinations(), DtConnectionMgr::handleMsg(), DtConnectionMgr::incrementSequenceNumber(), DtRIDParameters::internalMsgSmartForwardingWhenUsingRtiexec, params(), DtBitMask::reset(), DtConnectionMgr::sendDirectedStampedAndDelete(), DtConnectionMgr::sendStampedAnonymousAndDelete(), DtRtiMtdDestinationList::set(), DtRtiMsg::setFederateHandle(), DtRtiMsg::setSequenceNumber(), and DtRtiObject::updateType().

void DtObjectMgr::sendReliableUpdateMsg ( DtRtiObject *  obj, const DtAhvps &  theAttrs, DtOrderHandle  orderType, RTI::FedTime const *  theTime, char const *  tag, unsigned long  serialNumber  )

protectedvirtual

Send various types of RTI messages.

References DtRtiObject::actualClass(), DtRtiObject::actualClassHandle(), connectMgr(), DtConnectionMgr::create(), DtUpdateRoMsgKind, DtUpdateTsoMsgKind, DtRtiObject::getDestinations(), DtRtiMsg::kindToString(), DtRtiMsg::msgKind(), NULL, DtRtiObject::objHandle(), DtRtiObject::objName(), params(), sendUpdateMessage(), DtRtiMtdDestinationList::set(), DtUpdateRoMsg::set(), DtRIDParameters::smartForwardingLevel, and DtRtiObject::updateType().

void DtObjectMgr::sendRemoveDiscoverMsg ( DtObjectInstanceHandle  objHandle, DtObjectClassHandle  classHandle, DtFederateHandle  fedHandle  )

protectedvirtual

Send various types of RTI messages.

References connectMgr(), DtConnectionMgr::create(), DtDiscObjMsgKind, params(), DtConnectionMgr::sendDirectedStampedAndDelete(), and DtDiscObjMsg::set().

Referenced by addPendingDiscovery(), processMultiRegister(), processRegister(), and sendNotDiscoveredMsgForSmartForwarding().

void DtObjectMgr::sendRequestDiscoverMsg ( DtObjectInstanceHandle  objHandle, DtObjectClassHandle  classHandle  )

protectedvirtual

Send various types of RTI messages.

References connectMgr(), DtConnectionMgr::create(), DtReqDiscObjMsgKind, params(), DtConnectionMgr::sendStampedAndDelete(), and DtReqDiscObjMsg::set().

Referenced by processNotifyAcquire().

void DtObjectMgr::sendRequestMsg ( DtRequestType  type, unsigned long  idOrClass, const DtAttributeHandleSet &  theSet, char const *  tag, bool  anonymous, DtHandle  regionSetHandle = DtRtiMsg::theDefaultRegionSetHandle, DtFederateHandle  fedHandle = 0  )

protectedvirtual

Send various types of RTI messages.

References DtMultiNameReservedMsg::create(), DtRequestMsgKind, and DtRequestMsg::set().

Referenced by discoverObject(), and requestClassUpdate().

void DtObjectMgr::sendSubscribeMsg ( DtObjectClassHandle  theObj, bool  isPassive, bool  replacement, const DtAttributeHandleSet &  theSet, DtFederateHandle  fedHandle  )

protectedvirtual

Send various types of RTI messages.

References connectMgr(), DtConnectionMgr::create(), DtSubObjMsgKind, DtConnectionMgr::sendDirectedStampedAndDelete(), and DtSubObjMsg::set().

Referenced by processPub(), sendPendingSubscription(), and subscribe().

void DtObjectMgr::sendSubscribeMsg ( DtObjectClassHandle  theObj, bool  isPassive, bool  replacement, const DtAttributeHandleSet &  theSet, DtBitMask *  sendMask = 0  )

protectedvirtual

Send various types of RTI messages.

References connectMgr(), DtConnectionMgr::create(), DtSubObjMsgKind, DtBitMask::reset(), DtConnectionMgr::sendDirectedStampedAndDelete(), and DtSubObjMsg::set().

void DtObjectMgr::sendUnpublishMsg ( DtObjectInstanceHandle  handle, const DtAttributeHandleSet &  theSet  )

protectedvirtual

Send various types of RTI messages.

References connectMgr(), DtConnectionMgr::create(), DtUnpubObjMsgKind, DtConnectionMgr::sendStampedAndDelete(), and DtUnpubObjMsg::set().

Referenced by unpublishAttributes().

void DtObjectMgr::sendUnsubscribeMsg ( DtObjectClassHandle  handle, const DtAttributeHandleSet &  theSet  )

protectedvirtual

Send various types of RTI messages.

References connectMgr(), DtConnectionMgr::create(), DtUnsubObjMsgKind, DtConnectionMgr::sendStampedAndDelete(), and DtUnsubObjMsg::set().

Referenced by unsubscribeAttributes().

unsigned long DtObjectMgr::sendUpdate ( DtObjectInstanceHandle  theObject, const DtAhvps &  theAttrs, RTI::FedTime const *  theTime, char const *  tag  )

virtual

Implements update attribute values Checks attributes definition and ownership Return retraction handle serial number.

References DtRtiObject::actualClass(), DtObjectClassInfo::attrByHandle(), errorChecking, and DtRtiObject::owned().

unsigned long DtObjectMgr::sendUpdate ( DtRtiObject *  theObject, const DtAhvps &  theAttrs, RTI::FedTime const *  theTime, char const *  tag  )

virtual

Generate and transmit update attribute value messages Return retraction handle serial number.

References DtAttrSetLists::add(), DtRtiObject::attrHasDimensions(), DtRIDParameters::DtFomTransportTypeUseBestEffort, DtRIDParameters::DtFomTransportTypeUseFomSettings, DtRIDParameters::DtFomTransportTypeUseReliable, DtUpdateMomFederateObject, DtUpdateMomFederationObject, enableUpdateRateReduction, DtObjectClassInfo::handle(), NULL, DtRtiObject::regionSetHandle(), DtRtiObject::updateType(), and useRtiExec.

void DtObjectMgr::sendUpdateMessage ( DtUpdateMsg *  update, DtObjectClassInfo *  classDesc, DtUpdateType  updateType, MAKRti::DtTransportType  trans, unsigned int  numberAttrs, MAKRti::DtInetAddr  destAddr = DtInetAddr::inaddrAny(), unsigned int  offset = 0  )

protectedvirtual

Send update message.

References connectMgr(), DtObjectClassInfo::destinationAddress(), DtUpdateMomFederateObject, DtUpdateMomFederationObject, DtObjectClassInfo::handle(), DtConnectionMgr::handleMsg(), DtConnectionMgr::incrementSequenceNumber(), DtConnectionMgr::sendStampedAndDelete(), DtConnectionMgr::sendStampedAnonymousAndDelete(), DtRtiMsg::setSequenceNumber(), and DtRtiMsg::setTransportType().

Referenced by sendBestEffortUpdateMsg(), and sendReliableUpdateMsg().

void DtObjectMgr::setAttributeOrderType ( DtObjectInstanceHandle  theObject, const DtAttributeHandleSet &  theAttributes, MAKRti::DtOrderType  theType  )

virtual

Set the order type of the attribute instance.

References DtRIDParameters::errorChecking, DtAttributeHandleSet::getHandle(), knownObj(), DtRtiObject::owned(), params(), DtRtiObject::setAttrOrder(), and DtAttributeHandleSet::size().

void DtObjectMgr::setAttributeRelevanceSwitch ( bool  enableSwitch )

virtual

Set/Get value of attributeRelevanceAdvisorySwitch.

References myAttributeRelevanceSwitch.

Referenced by disableAttributeRelevanceSwitch(), and enableAttributeRelevanceSwitch().

void DtObjectMgr::setAttributeScopeSwitch ( bool  enableSwitch )

virtual

Set/Get value of attributeScopeAdvisorySwitch.

References myAttributeScopeSwitch.

Referenced by disableAttributeScopeSwitch(), and enableAttributeScopeSwitch().

void DtObjectMgr::setAttributeTransportType ( DtObjectInstanceHandle  theObject, const DtAttributeHandleSet &  theAttributes, MAKRti::DtTransportType  theType  )

virtual

Set the transport type of the attribute instance.

References connectMgr(), DtRIDParameters::errorChecking, DtConnectionMgr::fedAmb(), DtAttributeHandleSet::getHandle(), knownObj(), DtRtiObject::objHandle(), DtRtiObject::owned(), params(), DtRtiObject::setAttrTransport(), and DtAttributeHandleSet::size().

void DtObjectMgr::setClassRelevanceSwitch ( bool  enableSwitch )

virtual

Set/Get value of classRelevanceAdvisorySwitch.

References myClassRelevanceSwitch.

Referenced by disableClassRelevanceSwitch(), and enableClassRelevanceSwitch().

void DtObjectMgr::setCreatorFunction ( DtObjectMgrCreator  creator )

static

Register a creator function.

When set, it will be used to create the Object Manager.

References create(), DtBindCreator(), and theCreator.

void DtObjectMgr::setDiscoveredClass ( DtRtiObject &  object, DtFederateHandle  federateHandle, DtObjectClassHandle  classHandle  )

protectedvirtual

Set the remote federate's discovered class and update the object's remote subscription information.

References DtFomClassMgr::classByHandle(), and fom().

Referenced by collectRemoteSubscriptions(), and processDiscover().

void DtObjectMgr::setInternalCreatorFunction ( DtObjectMgrCreator  fn )

static

Register alternate internal creators.

The RTI proper uses this function to choose from various internal implementations. This function should not be used by plugins as the assignment may be overridden internally. Use the setCreatorFunction.

References create(), and theInternalCreator.

void DtObjectMgr::setRestoreInProgress ( bool  isRestore )

virtual

Note: The advisory switches are disabled by a restore in progress.

They are restored to saved state upon completion of restore. Set/Get restore in progress status

References myRestoreInProgress.

void DtObjectMgr::subscribe ( DtObjectClassHandle  theClass, const DtAttributeHandleSet &  attributeList, bool  active  )

virtual

Subscribe specified class attributes.

References addClassMulticast(), DtObjectClassInfo::attrByHandle(), DtFomClassMgr::classByHandle(), errorChecking, fom(), DtAttributeHandleSet::getHandle(), params(), sendSubscribeMsg(), DtAttributeHandleSet::size(), DtObjectClassInfo::subscribe(), and DtObjectClassInfo::subscribed().

int DtObjectMgr::subscribed ( DtObjectClassHandle  handle )

virtual

Returns 1 if subscribed to the class, 0 otherwise.

References DtFomClassMgr::classByHandle(), fom(), and DtObjectClassInfo::subscribed().

void DtObjectMgr::testResign

(

RTI::ResignAction const &

theAction

)

Called when resigning from a federation to test conditions and to delete owned objects.

References RTI::DELETE_OBJECTS, RTI::DELETE_OBJECTS_AND_RELEASE_ATTRIBUTES, RTI::NO_ACTION, numObjectsOwned(), ownedObjects(), and RTI::RELEASE_ATTRIBUTES.

Referenced by DtFederateMgr::testResign().

void DtObjectMgr::throwIfAcquisitionPending ( DtObjectClassHandle  classHand, const DtAttributeHandleSet &  attrs  )

protectedvirtual

If an acquisition request is pending for an attributes in attrs for any objects known at class classHand, throw RTI::OwnershipAcquisitionPending.

References DtRtiObject::ifAvailRequestedAttrs(), DtRtiObject::knownClassHandle(), myObjects, DtAttributeHandleSet::setIntersection(), DtAttributeHandleSet::setUnion(), DtAttributeHandleSet::size(), and DtRtiObject::uncondRequestedAttrs().

Referenced by publish(), and unpublishAttributes().

void DtObjectMgr::turnUpdatesOff ( DtRtiObject const &  object, DtAttributeHandleSet const &  oldOnSet  )

virtual

Turn updates off for any attribute now off but it is in old on set.

References connectMgr(), DtConnectionMgr::fedAmb(), DtAttributeHandleSet::removeSetIntersection(), DtAttributeHandleSet::size(), and RTI::FederateAmbassador::turnUpdatesOffForObjectInstance().

Referenced by collectRemoteSubscriptions(), processDiscover(), processResign(), remoteSubscribe(), and remoteUnsubscribe().

void DtObjectMgr::turnUpdatesOn ( DtRtiObject const &  object, DtAttributeHandleSet const &  oldOnSet  )

virtual

Turn updates on for any attribute now on but it is not in old on set.

References connectMgr(), DtConnectionMgr::fedAmb(), DtAttributeHandleSet::removeSetIntersection(), DtAttributeHandleSet::size(), and RTI::FederateAmbassador::turnUpdatesOnForObjectInstance().

Referenced by collectRemoteSubscriptions(), processDiscover(), processNotifyAcquire(), and remoteSubscribe().

DtObjectInstanceHandle DtObjectMgr::uniqueHandle ( )

virtual

Returns an ObjectHandle that is unique across the federation.

Uniqueness isn't truly guaranteed unless you're using rtiexec mode.

References DtToWString(), findReusableHandle(), DtRIDParameters::maxObjectsPerFederate(), myFreeObjHandle, myReuseIds, nextOffsetId(), params(), and DtAssistantPopupHelper::popupAssistantMessage().

Referenced by registerObj().

void DtObjectMgr::unpublishAttributes ( DtObjectClassHandle  theClass, DtAttributeHandleSet const &  attributeList  )

virtual

Explicit unpublish of specified attributes.

References DtFomClassMgr::classByHandle(), and fom().

Referenced by unpublishClass().

void DtObjectMgr::unpublishAttributes ( DtObjectClassInfo &  classDesc, DtAttributeHandleSet const &  attributeList, bool  implicitlyUnpublishPrivilegeToDelete  )

virtual

Explicit unpublish of specified attributes Except privilege to delete is implicit if so designated.

References DtAttributeHandleSet::add(), divestAllInstances(), DtPrivilegeToDelete, DtObjectClassInfo::handle(), DtAttributeHandleSet::isMember(), DtObjectClassInfo::published(), DtObjectClassInfo::publishedAttrs(), sendUnpublishMsg(), throwIfAcquisitionPending(), and DtObjectClassInfo::unpublishAttributes().

void DtObjectMgr::unpublishClass ( DtObjectClassHandle  theObject )

virtual

Unpublishes all attributes but privilege to delete is implicit.

References DtObjectClassInfo::allAttrs(), DtFomClassMgr::classByHandle(), fom(), and unpublishAttributes().

void DtObjectMgr::unsubscribeAttributes ( DtObjectClassHandle  theClass, DtAttributeHandleSet const &  attributeList  )

virtual

Unsubscribe specified class attributes.

References DtObjectClassInfo::attrByHandle(), DtFomClassMgr::classByHandle(), errorChecking, fom(), DtAttributeHandleSet::getHandle(), params(), DtAttributeHandleSet::size(), and DtObjectClassInfo::subscribed().

Referenced by unsubscribeClass().

void DtObjectMgr::unsubscribeAttributes ( DtObjectClassInfo &  classDesc, DtAttributeHandleSet const &  attributeList  )

virtual

Unsubscribe specified class attributes.

References DtObjectClassInfo::handle(), removeClassMulticast(), sendUnsubscribeMsg(), DtObjectClassInfo::subscribed(), and DtObjectClassInfo::unsubscribeAttributes().

void DtObjectMgr::unsubscribeClass ( DtObjectClassHandle  theClass )

virtual

Unsubscribe from all attributes of specified class.

References DtObjectClassInfo::allAttrs(), DtFomClassMgr::classByHandle(), fom(), DtObjectClassInfo::subscribed(), and unsubscribeAttributes().

bool DtObjectMgr::useHlaNamePrefix ( )

virtual

Get switch to use HLA prefix for object names.

References DtRIDParameters::enableHlaObjectNamePrefix, and params().

Referenced by DtObjectMgr(), and registerObj().

Member Data Documentation

DtAddrMap DtObjectMgr::myAddrMap

protected

Map of routing addresses by region set handle.

Referenced by destroyObjectLists().

bool DtObjectMgr::myAttributeRelevanceSwitch

protected

Advisory switches.

Referenced by attributeRelevanceSwitch(), DtObjectMgr(), restore(), save(), and setAttributeRelevanceSwitch().

bool DtObjectMgr::myAttributeScopeSwitch

protected

Advisory switches.

Referenced by attributeScopeSwitch(), DtObjectMgr(), restore(), save(), and setAttributeScopeSwitch().

bool DtObjectMgr::myClassRelevanceSwitch

protected

Advisory switches.

Referenced by classRelevanceSwitch(), DtObjectMgr(), restore(), save(), and setClassRelevanceSwitch().

MAKRti::DtClock DtObjectMgr::myClock

protected

Clock for timing.

Referenced by processDelete(), processNotifyAcquire(), purgeDeletedObjects(), registerObj(), and sendPendingDiscoveries().

std::map<DtObjectInstanceHandle, MAKRti::DtTime> DtObjectMgr::myDeletedObjects

protected

Set of objects that have been recently deleted that will not be discovered via update.

Referenced by processDelete(), processUpdate(), and purgeDeletedObjects().

DtFederateMgr* DtObjectMgr::myFederateMgr

protected

Access to the federate manager.

Referenced by DtObjectMgr(), and federateMgr().

DtHandle DtObjectMgr::myFreeObjHandle

protected

The next free object handle.

Referenced by findReusableHandle(), nextOffsetId(), restore(), save(), and uniqueHandle().

MAKRti::DtString DtObjectMgr::myHlaNamePrefix

protected

The HLA object instance name prefix.

Referenced by DtObjectMgr(), and getUniqueName().

DtObjHandleSet DtObjectMgr::myIgnoreObjects

protected

Set of object handles whose next updates should be ignored.

Referenced by ignoreNextUpdate(), and processUpdate().

bool DtObjectMgr::myIsJoined

protected

Manager has performed join processing.

Referenced by isPostJoined(), and postJoinInit().

DtRtiObjectMap DtObjectMgr::myKnownObjs

protected

List of known objects by handle.

Referenced by addKnownObj(), findReusableHandle(), knownObj(), knownObjects(), and removeKnownObj().

MAKRti::DtHashList DtObjectMgr::myKnownObjsByName

protected

List of known objects by name.

Referenced by addKnownObj(), knownObj(), and removeKnownObj().

DtObjectInstanceHandleSet DtObjectMgr::myLocalDeletedObjects

protected

Post processing lists.

Referenced by localDeleteObj(), processMultiRegister(), and processRegister().

DtRtiObjectMap DtObjectMgr::myLrcManagedObjs

protected

List of LRC owned objects by handle.

Referenced by addLrcManagedObj(), lrcManagedObj(), lrcManagedObjects(), and removeLrcManagedObj().

MAKRti::DtHashList DtObjectMgr::myLrcManagedObjsByName

protected

List of LRC owned objects by name.

Referenced by addLrcManagedObj(), lrcManagedObj(), and removeLrcManagedObj().

DtTime DtObjectMgr::myNextPendingDiscTime

protected

Next time we should send pending discovery messages.

Referenced by sendPendingDiscoveries().

DtRtiObjectMap DtObjectMgr::myObjects

protected

List of all objects by handle.

Referenced by addAllObj(), allObj(), allObjects(), isAcquistionPending(), processResign(), removeAllObj(), saveObjectList(), and throwIfAcquisitionPending().

MAKRti::DtHashList DtObjectMgr::myObjectsByName

protected

List of all objects by name.

Referenced by addAllObj(), allObj(), and removeAllObj().

DtRtiObjectMap DtObjectMgr::myOwnedObjs

protected

List of owned objects by handle.

Referenced by addOwnedObj(), autoProvideAttrValueUpdate(), deleteAllOwnedObjects(), destroyObjectLists(), divestAllInstances(), notifyDivestedAttributes(), numObjectsOwned(), ownedObj(), ownedObjects(), processRequest(), removeOwnedObj(), resendMultiRegister(), and sendPendingStopUpdates().

MAKRti::DtHashList DtObjectMgr::myOwnedObjsByName

protected

List of owned objects by name.

Referenced by addOwnedObj(), ownedObj(), and removeOwnedObj().

DtFederateToPendingObjDiscMap DtObjectMgr::myPendingDiscoveries

protected

Referenced by addPendingDiscovery(), and sendPendingDiscoveries().

DtObjectClassMaskMap DtObjectMgr::myPendingDiscoveriesMaskList

protected

Referenced by insertDiscBitMask(), sendPendingDiscoveries(), and ~DtObjectMgr().

DtPendingRequestAttrMap DtObjectMgr::myPendingDivestNotifications

protected

Post processing lists.

Referenced by addPendingDivestNotification(), and invokePendingDivestNotification().

DtObjectInstanceHandleSet DtObjectMgr::myPendingInstRegisterList

protected

Post processing lists.

Referenced by addPendingRegisterForObject(), and sendPendingRegister().

DtFederateToPendingObjDiscMap DtObjectMgr::myPendingNonDiscoveries

protected

Referenced by addPendingDiscovery(), and sendPendingDiscoveries().

DtObjectClassMaskMap DtObjectMgr::myPendingNonDiscoveriesMaskList

protected

Referenced by insertNonDiscBitMask(), sendPendingDiscoveries(), and ~DtObjectMgr().

DtObjectClassHandleSet DtObjectMgr::myPendingRegisterList

protected

Post processing lists.

Referenced by addPendingRegister(), and sendPendingRegister().

DtObjectClassMaskMap DtObjectMgr::myPendingRegisterMaskList

protected

Post processing lists.

Referenced by addPendingRegister(), insertRegBitMask(), resendMultiRegister(), sendPendingRegister(), and ~DtObjectMgr().

MAKRti::DtList DtObjectMgr::myPendingRemovals

protected

Post processing lists.

Referenced by addPendingRemoval(), and sendPendingRemovals().

DtPendingRequestAttrMap DtObjectMgr::myPendingRequestAttrs

protected

Post processing lists.

Referenced by addPendingRequestAttrs(), and sendPendingRequestAttributes().

DtObjectClassHandleSet DtObjectMgr::myPendingStartRegList

protected

Post processing lists.

Referenced by addPendingStartReg(), and sendPendingStartReg().

DtObjInstAttrSetPairList DtObjectMgr::myPendingStartUpdatesList

protected

Post processing lists.

Referenced by addPendingStartUpdates(), and sendPendingStartUpdates().

DtObjectClassHandleSet DtObjectMgr::myPendingStopRegList

protected

Post processing lists.

Referenced by addPendingStopReg(), and sendPendingStopReg().

DtObjClassAttrSetPairList DtObjectMgr::myPendingStopUpdatesList

protected

Post processing lists.

Referenced by addPendingStopUpdates(), and sendPendingStopUpdates().

bool DtObjectMgr::myRestoreInProgress

protected

Status of restore.

Referenced by restoreInProgress(), and setRestoreInProgress().

DtObjectClassHandleSet DtObjectMgr::myRetransmitSubClass

protected

Post processing lists.

Referenced by addPendingSubscription(), and sendPendingSubscription().

DtObjectClassMaskMap DtObjectMgr::myRetransmitSubClassMask

protected

Post processing lists.

Referenced by insertSubBitMask(), sendPendingSubscription(), and ~DtObjectMgr().

bool DtObjectMgr::myReuseIds

protected

Unique object IDs have been exhausted, attempt to reuse IDs.

Referenced by uniqueHandle().

DtObjectMgr::DtObjectMgrCreator DtObjectMgr::theCreator = 0

staticprotected

The plugin creator.

Referenced by create(), and setCreatorFunction().

DtObjectMgr::DtObjectMgrCreator DtObjectMgr::theInternalCreator = 0

staticprotected

The internal creator.

Referenced by create(), and setInternalCreatorFunction().

---

The documentation for this class was generated from the following files:

• objMgr.h
• objMgr.cxx
