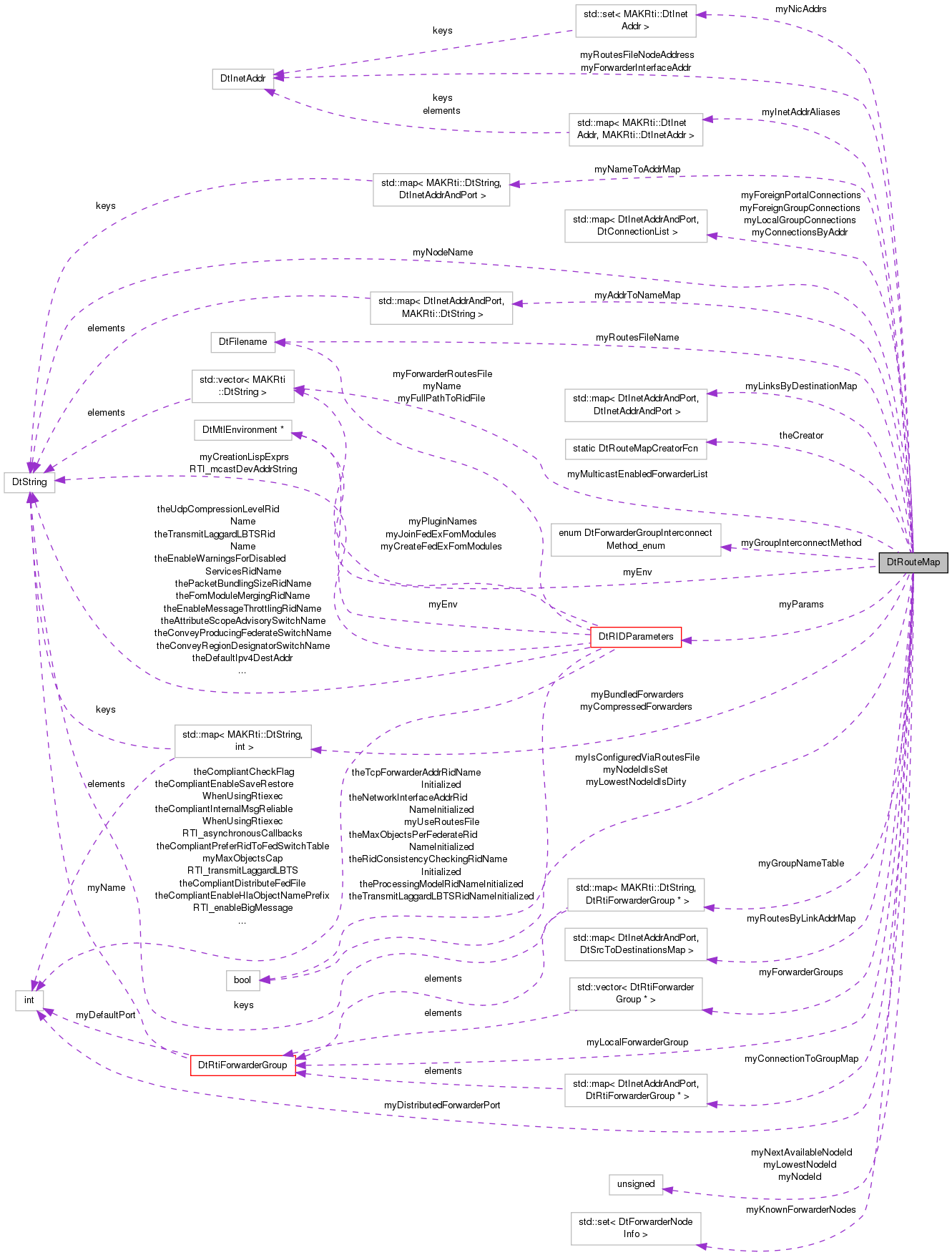

Collaboration diagram for DtRouteMap:

Public Types
typedef std::vector < DtInetAddrAndPort >	DtAddressPortList
typedef std::vector < MAKRti::DtInetAddr >	DtAddressList
typedef std::vector < MAKRti::DtString >	DtNodeList
typedef std::set < MAKRti::DtInetAddr >	DtInterfaceAddrSet
typedef std::vector < DtRtiForwarderGroup * >	DtForwarderGroupList
typedef DtBoost::shared_ptr < DtRouteMap >(*	DtRouteMapCreatorFcn )(const DtRIDParameters *, const MAKRti::DtInetAddr &)
	DtForwarderPort creator signature.

Public Member Functions
virtual void	rebuildRoutes ()
	when the routes file is first read, or if a forwarder is added/ or removed, we should rebuild our routes.
virtual bool	isConfiguredViaRoutesFile () const
	Indicate if this route map was built from a configuration file.
virtual bool	isEmpty () const
virtual	~DtRouteMap ()
virtual DtNodeList	nodeNames () const
	Get the complete list of nodes recognized by this DtRouteMap.
virtual DtAddressPortList	nodeAddresses () const
virtual unsigned long	nodeIdByAddress (const DtInetAddrAndPort &address) const
virtual unsigned long	nodeIdByName (const MAKRti::DtString &name) const
virtual void	setLocalNodeId (unsigned long newId)
virtual unsigned long	localNodeId () const
unsigned long	lowestNodeId () const
	returns the lowest known node Id.
virtual unsigned long	consumeNextAvailableNodeId ()
	returns the lowest known node Id and increments internal counter.
virtual MAKRti::DtString	nodeNameByAddress (const DtInetAddrAndPort &address) const
virtual MAKRti::DtString	nodeHostNameByAddres (const DtInetAddrAndPort &address) const
virtual DtInetAddrAndPort	nodeAddress (const MAKRti::DtString &name) const
virtual const MAKRti::DtString &	localNodeName () const
virtual DtForwarderGroupList	forwarderGroups () const
	Get a list of the recognized Forwarder Groups.
virtual DtRtiForwarderGroup *	localGroup () const
	Get a pointer to the local Forwarder Group.
virtual void	setForwarderPort (unsigned int port)
	Get/Set the forwarder port (generally set via the RID file)
virtual unsigned int	forwarderPort () const
virtual void	setForwarderInterfaceAddr (const MAKRti::DtInetAddr &addr)
	Get/Set the forwarder interface address (generally set via the routes file)
virtual const MAKRti::DtInetAddr &	forwarderInterfaceAddr () const
virtual DtAddressPortList	adjacencyList (const DtInetAddrAndPort &node) const
	Get the list of all nodes directly connected to node.
virtual DtAddressPortList	adjacencyList (const MAKRti::DtString &node) const
virtual void	destinationList (DtAddressPortList &destinations, const DtInetAddrAndPort &srcNode, const DtInetAddrAndPort &linkNode) const
	Add the list of destinations for msgs from source node through link node to the destination list supplied in the first argument.
virtual void	destinationList (DtAddressPortList &destinations, const MAKRti::DtString &srcNode, const MAKRti::DtString &linkNode) const
virtual void	allLinkDestinations (DtAddressPortList &destinations, const DtInetAddrAndPort &node) const
	Add the list of upstream / downstream destinations for the specified source node to the destination list supplied in the first argument.
virtual void	allLinkDestinations (DtAddressPortList &destinations, const MAKRti::DtString &node) const
virtual void	foreignPortalDestinations (DtAddressPortList &destinations, const DtInetAddrAndPort &node) const
	Add the list of portals in foreign Forwarder Groups to which the specified node will forward messages to the destination list supplied in the first argument.
virtual void	foreignPortalDestinations (DtAddressPortList &destinations, const MAKRti::DtString &node) const
virtual void	foreignGroupConnections (DtAddressPortList &foreignNodes, const DtInetAddrAndPort &node) const
	Add the list of forwarders in foreign Forwarder Groups which have a connection to the specified node to the node list supplied in the first argument.
virtual void	foreignGroupConnections (DtAddressPortList &foreignNodes, const MAKRti::DtString &node) const
virtual void	localGroupDestinations (DtAddressPortList &destinations, const DtInetAddrAndPort &node) const
	Add the list of other forwarders in the local Forwarder Group to the destination list supplied in the first argument.
virtual void	localGroupDestinations (DtAddressPortList &destinations, const MAKRti::DtString &node) const
virtual const DtInterfaceAddrSet &	getInterfaceAddrs () const
	Get the complete list of localhost interface addresses.
virtual bool	addForwarder (const MAKRti::DtString &forwarderName, const MAKRti::DtInetAddr &forwarderAddr, int port)
	Add a new Forwarder to the list by name and address and port.
virtual bool	addLocalForwarder (const MAKRti::DtString &forwarderName, const MAKRti::DtInetAddr &forwarderAddr, int port)
	Add self Forwarder to the list by name and address and port.
virtual bool	removeForwarder (const DtInetAddrAndPort &addr)
	Remove a forwarder from the known routes.
virtual bool	addForwarderConnection (const MAKRti::DtString &forwarderNameA, const MAKRti::DtString &forwarderNameB)
	Add a new Connection between two forwarders A<->B by name Returns false if forwarder name is unrecognized.
virtual bool	addForeignPortalConnection (const MAKRti::DtString &forwarder)
	Add a new connection from the local forwarder to a portal in a foreign forwarder group by name.
virtual bool	addForeignForwarderConnection (const MAKRti::DtString &forwarder)
	Add a new connection to a forwarder in a foreign forwarder group by name This should only be invoked by a portal forwarder.
virtual bool	addLocalGroupConnection (const MAKRti::DtString &peerForwarder)
	Add a new connection between the local forwarder and another member of the same Forwarder Group.
virtual bool	addForwarderRoute (const MAKRti::DtString &linkForwarderName, const MAKRti::DtString &forwarderNameA, const MAKRti::DtString &forwarderNameB)
	Create a new forwarding route between two forwarders through a third Connection is unidirectional, the reverse link must also be added if desired i.e.
virtual bool	addInterfaceAddr (const MAKRti::DtInetAddr &interfaceAddr)
	Add a new NIC address to the list of localhost addresses Returns false if address is invalid or a duplicate.
virtual DtRtiForwarderGroup *	addForwarderGroup (const MAKRti::DtString &groupName)
	Add a new load balancing / fault tolerance Forwarder Group.
virtual bool	addForwarderToGroup (const MAKRti::DtString &groupName, const MAKRti::DtString &forwarderName, const MAKRti::DtString &url, int isPortal)
	Add a forwarder to an established Forwarder Group.
virtual bool	enableDistributedUdpForwarding (const MAKRti::DtString &forwarder)
	Maintain a list of forwarders allowed to listen to and forward multicast messages when Distributed UDP Forwarding is enabled.
virtual bool	isMulticastMonitoringAllowed () const
	Return true if forwarder node is in the list of forwarders allowed to listen to and forward multicast messages.
virtual bool	enableCompression (const MAKRti::DtString &forwarder, int level)
	Enables compression from this forwarder to the given forwarder (only if this forwarder is configured to establish a connection to the forwarder).
virtual bool	enableBundling (const MAKRti::DtString &forwarder, int bundleSize)
	Enables bundling from this forwarder to the given forwarder (only if this forwarder is configured to establish a connection to the forwarder).
virtual int	compressionLevel (const DtInetAddrAndPort &forwarder)
	Returns the compression level for the given forwarder, or 0 if this forwarder connection should not be compressed.
virtual int	bundleSize (const DtInetAddrAndPort &forwarder)
	Returns the packet bundle size for the given forwarder, or 0 if this forwarder connection should not be bundled.
virtual bool	isLocalGroupMember (const DtInetAddrAndPort &forwarder) const
	Determine if the specified address belongs to a forwarder of the local Forwarder Group.
virtual DtInetAddrAndPort	locatePortal (const DtInetAddrAndPort &targetNode) const
	Find the portal forwarder for the group which the targeted node belongs to.
virtual DtInetAddrAndPort	locatePortal (const MAKRti::DtString &targetGroupName) const
virtual DtInetAddrAndPort	nextForwarderOnRoute (const DtInetAddrAndPort &targetNode) const
	Find the next forwarder in the route to the group which the targeted belongs to.
virtual DtInetAddrAndPort	nextForwarderOnRoute (const MAKRti::DtString &targetGroupName) const
virtual bool	forwardRtiexecMsgs () const
	Returns true if this forwarder should forward messages received from other forwarders which are destined for the rtiexec to the next forwarder in the path to the rtiexec.
virtual void	concatAddressList (DtAddressPortList &final, const DtAddressPortList &src) const
	Append one address list (vector) to another, eliminating duplicates.
virtual void	print () const
	Output the Routing Table.
virtual void	knownForwarderNodes (std::set< DtForwarderNodeInfo > &otherNodes) const
	Retrieves the forwarders known by this forwarder.
virtual void	addKnownForwarder (const MAKRti::DtInetAddr &addr, unsigned long nodeId, const MAKRti::DtString &fwName, const MAKRti::DtString &hostname, const std::set< DtForwarderNodeInfo > &peers)
	Adds a known forwarder. Dynamic forwarder configuration only.
virtual bool	updateForwarder (const MAKRti::DtInetAddr &fwAddr, unsigned long fwNodeId, const MAKRti::DtString &fwName, const MAKRti::DtString &fwHostName, const std::set< DtForwarderNodeInfo > &peers)
	Updates a known forwarder. Dynamic forwarder configuration only.
virtual void	updateForwarderNodeId (const MAKRti::DtInetAddr &fwAddr, unsigned long fwNodeId)
	Updates the node ID of a known forwarder. Dynamic forwarder configuration only.
virtual void	addAddressAlias (const MAKRti::DtInetAddr &knownAddr, const MAKRti::DtInetAddr &aliasAddr)
	Adds another IP address alias for a known address.
const MAKRti::DtInetAddr &	addressAlias (const MAKRti::DtInetAddr &knownAddr) const
	Looks up the alias for a given address.

Static Public Member Functions
static DtBoost::shared_ptr < DtRouteMap >	create (const DtRIDParameters *params, const MAKRti::DtInetAddr &fwAddrToConnectTo)
	Creates an instance of a DtRouteMap.
static void	setCreatorFunction (DtRouteMapCreatorFcn creator)
	Call this function to set an alternate creator function With this function, users can replace this DtRouteMap with their own derived class.

Protected Types
typedef std::map < DtInetAddrAndPort, MAKRti::DtString >	DtConnectionAddrToNameMap
typedef std::map < MAKRti::DtString, DtInetAddrAndPort >	DtConnectionNameToAddrMap
typedef std::pair< std::vector < MAKRti::DtString > , DtAddressPortList >	DtConnectionList
typedef std::map < DtInetAddrAndPort, DtConnectionList >	DtAddrToConnectionListMap
typedef std::multimap < DtInetAddrAndPort, DtInetAddrAndPort >	DtSrcToDestinationsMap
typedef std::map < DtInetAddrAndPort, DtInetAddrAndPort >	DtDestinationToLinkMap
typedef std::map < MAKRti::DtInetAddr, MAKRti::DtInetAddr >	DtInetAddrAliasMap
typedef std::map < DtInetAddrAndPort, DtSrcToDestinationsMap >	DtRoutingTable
typedef std::map < MAKRti::DtString, DtRtiForwarderGroup * >	DtGroupNameTable
typedef std::map < DtInetAddrAndPort, DtRtiForwarderGroup * >	DtForwarderGroupConnectionTable
typedef std::map < MAKRti::DtString, int >	DtForwarderCompressionMap
typedef std::map < MAKRti::DtString, int >	DtForwarderBundlingMap

Protected Member Functions
	DtRouteMap (const DtRIDParameters *params, const MAKRti::DtInetAddr &additionalForwarder)
virtual void	registerRoutesFileParams ()
	Register the commands to parse from the Routes file and calls openRoutesFile() to load the lisp file.
virtual void	setupDefaultRoutes ()
	Setup the default network of forwarders if the routes file does not specify any router connections.
virtual void	setupSinglePortalRoutes ()
virtual void	setupLoadBalanceRoutes ()
virtual void	openRoutesFile ()
	Open and Parse the route map file.
virtual void	initializeInterfaceList ()
	Add the IP address of the default interface to the network adapter interface list.
virtual DtForwarderGroupInterconnectMethod	setGroupInterconnectMethod (MAKRti::DtString methodString)
	Convert the Forwarder Group Interconnect method string to the equivalent enumerated value.
	DtRouteMap ()
	Default Ctor, Copy Ctor, Assignment - unimplemented.
	DtRouteMap (const DtRouteMap &orig)
virtual void	setupNodeName ()
DtRouteMap &	operator= (const DtRouteMap &orig)
virtual void	setupDestinationsMap ()
	Sets up the map from destinations to next forwarder in the route when routes are configured manually in the routes file.

Protected Attributes
const DtRIDParameters *	myParams
MAKRti::DtFilename	myRoutesFileName
MAKRti::DtMtlEnvironment *	myEnv
MAKRti::DtString	myNodeName
MAKRti::DtInetAddr	myRoutesFileNodeAddress
unsigned long	myNodeId
unsigned long	myLowestNodeId
unsigned long	myNextAvailableNodeId
bool	myLowestNodeIdIsDirty
bool	myNodeIdIsSet
bool	myIsConfiguredViaRoutesFile
int	myDistributedForwarderPort
	Port used for forwarder-to-forwarder connections.
MAKRti::DtInetAddr	myForwarderInterfaceAddr
	The interface used for forwarder-to-forwarder connections.
DtForwarderGroupInterconnectMethod	myGroupInterconnectMethod
DtNodeList	myMulticastEnabledForwarderList
	List of forwarders allowed to act as Distributed UDP Forwarders, meaning they are allowed to listen to and forward multicast messages from the LAN.
std::set< DtForwarderNodeInfo >	myKnownForwarderNodes
DtConnectionNameToAddrMap	myNameToAddrMap
DtConnectionAddrToNameMap	myAddrToNameMap
DtAddrToConnectionListMap	myConnectionsByAddr
DtAddrToConnectionListMap	myForeignPortalConnections
DtAddrToConnectionListMap	myForeignGroupConnections
DtAddrToConnectionListMap	myLocalGroupConnections
DtRoutingTable	myRoutesByLinkAddrMap
DtDestinationToLinkMap	myLinksByDestinationMap
DtInterfaceAddrSet	myNicAddrs
DtRtiForwarderGroup *	myLocalForwarderGroup
DtForwarderGroupList	myForwarderGroups
	the one I'm in
DtGroupNameTable	myGroupNameTable
	all groups
DtForwarderGroupConnectionTable	myConnectionToGroupMap
DtInetAddrAliasMap	myInetAddrAliases
	Some forwarders can be known by multiple addresses.
DtForwarderCompressionMap	myCompressedForwarders
	Set of forwarders to which we should have compression enabled.
DtForwarderBundlingMap	myBundledForwarders
	Set of forwarders to which we should have bundling enabled.

Static Protected Attributes
static DtRouteMapCreatorFcn	theCreator = 0

Member Typedef Documentation

typedef std::vector<MAKRti::DtInetAddr> DtRouteMap::DtAddressList

typedef std::vector< DtInetAddrAndPort > DtRouteMap::DtAddressPortList

typedef std::map< DtInetAddrAndPort, DtConnectionList > DtRouteMap::DtAddrToConnectionListMap

protected

typedef std::map< DtInetAddrAndPort, MAKRti::DtString > DtRouteMap::DtConnectionAddrToNameMap

protected

typedef std::pair< std::vector< MAKRti::DtString >, DtAddressPortList > DtRouteMap::DtConnectionList

protected

typedef std::map< MAKRti::DtString, DtInetAddrAndPort > DtRouteMap::DtConnectionNameToAddrMap

protected

typedef std::map< DtInetAddrAndPort, DtInetAddrAndPort > DtRouteMap::DtDestinationToLinkMap

protected

typedef std::map< MAKRti::DtString, int > DtRouteMap::DtForwarderBundlingMap

protected

typedef std::map< MAKRti::DtString, int > DtRouteMap::DtForwarderCompressionMap

protected

typedef std::map< DtInetAddrAndPort, DtRtiForwarderGroup* > DtRouteMap::DtForwarderGroupConnectionTable

protected

typedef std::vector< DtRtiForwarderGroup* > DtRouteMap::DtForwarderGroupList

typedef std::map< MAKRti::DtString, DtRtiForwarderGroup* > DtRouteMap::DtGroupNameTable

protected

typedef std::map< MAKRti::DtInetAddr, MAKRti::DtInetAddr > DtRouteMap::DtInetAddrAliasMap

protected

typedef std::set< MAKRti::DtInetAddr > DtRouteMap::DtInterfaceAddrSet

typedef std::vector< MAKRti::DtString > DtRouteMap::DtNodeList

typedef DtBoost::shared_ptr<DtRouteMap>(* DtRouteMap::DtRouteMapCreatorFcn)(const DtRIDParameters *, const MAKRti::DtInetAddr &)

DtForwarderPort creator signature.

typedef std::map< DtInetAddrAndPort, DtSrcToDestinationsMap > DtRouteMap::DtRoutingTable

protected

typedef std::multimap< DtInetAddrAndPort, DtInetAddrAndPort > DtRouteMap::DtSrcToDestinationsMap

protected

Constructor & Destructor Documentation

DtRouteMap::DtRouteMap	(	const DtRIDParameters *	params,
		const MAKRti::DtInetAddr &	additionalForwarder
	)

protected

References initializeInterfaceList(), myConnectionsByAddr, myIsConfiguredViaRoutesFile, myNodeName, nodeIdByName(), print(), registerRoutesFileParams(), setLocalNodeId(), setupDefaultRoutes(), setupDestinationsMap(), setupNodeName(), and DtRIDParameters::useRoutesFile().

DtRouteMap::~DtRouteMap ( )

virtual

References myEnv.

DtRouteMap::DtRouteMap ( )

protected

Default Ctor, Copy Ctor, Assignment - unimplemented.

Referenced by create().

DtRouteMap::DtRouteMap ( const DtRouteMap & orig )

protected

Member Function Documentation

void DtRouteMap::addAddressAlias	(	const MAKRti::DtInetAddr &	knownAddr,
		const MAKRti::DtInetAddr &	aliasAddr
	)

virtual

Adds another IP address alias for a known address.

This is necessary, for instance, when another forwarder is behind a router using NAT, such that this forwarder recognizes it as a different IP than what it recognizes itself as.

References myInetAddrAliases.

Referenced by setupNodeName().

bool DtRouteMap::addForeignForwarderConnection ( const MAKRti::DtString & forwarder )

virtual

Add a new connection to a forwarder in a foreign forwarder group by name This should only be invoked by a portal forwarder.

Returns false if foreign forwarder name is unrecognized

References myForeignGroupConnections, myNameToAddrMap, and myNodeName.

Referenced by setupLoadBalanceRoutes(), and setupSinglePortalRoutes().

bool DtRouteMap::addForeignPortalConnection ( const MAKRti::DtString & forwarder )

virtual

Add a new connection from the local forwarder to a portal in a foreign forwarder group by name.

Returns false if foreign portal name is unrecognized.

References myForeignPortalConnections, myNameToAddrMap, and myNodeName.

Referenced by setupLoadBalanceRoutes(), and setupSinglePortalRoutes().

bool DtRouteMap::addForwarder	(	const MAKRti::DtString &	forwarderName,
		const MAKRti::DtInetAddr &	forwarderAddr,
		int	port
	)

virtual

Add a new Forwarder to the list by name and address and port.

If specified port is DtUseDefaultForwarderPort, the default forwarder port specified in the RID file is used. Returns false if attempted to add an existing name or ip/port

References DtUseDefaultForwarderPort, myAddrToNameMap, myLowestNodeIdIsDirty, myNameToAddrMap, and myParams.

Referenced by DtAddForwarderFunction().

bool DtRouteMap::addForwarderConnection	(	const MAKRti::DtString &	forwarderNameA,
		const MAKRti::DtString &	forwarderNameB
	)

virtual

Add a new Connection between two forwarders A<->B by name Returns false if forwarder name is unrecognized.

References myConnectionsByAddr, and myNameToAddrMap.

Referenced by DtAddForwarderConnectionFunction().

DtRtiForwarderGroup * DtRouteMap::addForwarderGroup ( const MAKRti::DtString & groupName )

virtual

Add a new load balancing / fault tolerance Forwarder Group.

References create(), forwarderPort(), myForwarderGroups, and myGroupNameTable.

Referenced by DtAddForwarderGroupFunction(), and setupDefaultRoutes().

bool DtRouteMap::addForwarderRoute	(	const MAKRti::DtString &	linkForwarderName,
		const MAKRti::DtString &	forwarderNameA,
		const MAKRti::DtString &	forwarderNameB
	)

virtual

Create a new forwarding route between two forwarders through a third Connection is unidirectional, the reverse link must also be added if desired i.e.

A->Link->B does not imply A<-Link<-B Returns false if route is impossible due to missing connections

References myNameToAddrMap, and myRoutesByLinkAddrMap.

Referenced by DtAddForwarderRouteFunction().

bool DtRouteMap::addForwarderToGroup	(	const MAKRti::DtString &	groupName,
		const MAKRti::DtString &	forwarderName,
		const MAKRti::DtString &	url,
		int	isPortal
	)

virtual

Add a forwarder to an established Forwarder Group.

References DtRtiForwarderGroup::addForwarderToGroup(), myConnectionToGroupMap, myDistributedForwarderPort, myGroupNameTable, myLocalForwarderGroup, myNameToAddrMap, and myNicAddrs.

Referenced by DtAddForwarderToGroupFunction(), and setupDefaultRoutes().

bool DtRouteMap::addInterfaceAddr ( const MAKRti::DtInetAddr & interfaceAddr )

virtual

Add a new NIC address to the list of localhost addresses Returns false if address is invalid or a duplicate.

References myNicAddrs.

Referenced by initializeInterfaceList().

void DtRouteMap::addKnownForwarder	(	const MAKRti::DtInetAddr &	addr,
		unsigned long	nodeId,
		const MAKRti::DtString &	fwName,
		const MAKRti::DtString &	hostname,
		const std::set< DtForwarderNodeInfo > &	peers
	)

virtual

Adds a known forwarder. Dynamic forwarder configuration only.

References DtIsIpOfLocalInterface(), DtForwarderNodeInfo::myForwarderName, DtForwarderNodeInfo::myHostName, DtForwarderNodeInfo::myIpAddr, myKnownForwarderNodes, myNextAvailableNodeId, and DtForwarderNodeInfo::myNodeId.

Referenced by updateForwarder().

bool DtRouteMap::addLocalForwarder	(	const MAKRti::DtString &	forwarderName,
		const MAKRti::DtInetAddr &	forwarderAddr,
		int	port
	)

virtual

Add self Forwarder to the list by name and address and port.

If specified port is DtUseDefaultForwarderPort, the default forwarder port specified in the RID file is used. Returns false if attempted to add an existing name or ip

References DtUseDefaultForwarderPort, myAddrToNameMap, myLowestNodeIdIsDirty, myNameToAddrMap, and myParams.

bool DtRouteMap::addLocalGroupConnection ( const MAKRti::DtString & peerForwarder )

virtual

Add a new connection between the local forwarder and another member of the same Forwarder Group.

Returns false if peer forwarder name is unrecognized

References myLocalGroupConnections, myNameToAddrMap, and myNodeName.

Referenced by setupDefaultRoutes().

const MAKRti::DtInetAddr & DtRouteMap::addressAlias ( const MAKRti::DtInetAddr & knownAddr ) const

inline

Looks up the alias for a given address.

Return value will be INADDR_ANY if address could not be found in alias list.

References myInetAddrAliases.

Referenced by foreignPortalDestinations(), locatePortal(), and nextForwarderOnRoute().

DtRouteMap::DtAddressPortList DtRouteMap::adjacencyList ( const DtInetAddrAndPort & node ) const

virtual

Get the list of all nodes directly connected to node.

References concatAddressList(), myConnectionsByAddr, myForeignGroupConnections, myForeignPortalConnections, and myLocalGroupConnections.

Referenced by adjacencyList().

DtRouteMap::DtAddressPortList DtRouteMap::adjacencyList ( const MAKRti::DtString & node ) const

virtual

References adjacencyList(), and myNameToAddrMap.

void DtRouteMap::allLinkDestinations	(	DtAddressPortList &	destinations,
		const DtInetAddrAndPort &	node
	)		const

virtual

Add the list of upstream / downstream destinations for the specified source node to the destination list supplied in the first argument.

References concatAddressList(), and myConnectionsByAddr.

Referenced by allLinkDestinations().

void DtRouteMap::allLinkDestinations	(	DtRouteMap::DtAddressPortList &	destinations,
		const MAKRti::DtString &	node
	)		const

virtual

References allLinkDestinations(), and myNameToAddrMap.

int DtRouteMap::bundleSize ( const DtInetAddrAndPort & forwarder )

virtual

Returns the packet bundle size for the given forwarder, or 0 if this forwarder connection should not be bundled.

References myAddrToNameMap, and myBundledForwarders.

int DtRouteMap::compressionLevel ( const DtInetAddrAndPort & forwarder )

virtual

Returns the compression level for the given forwarder, or 0 if this forwarder connection should not be compressed.

References myAddrToNameMap, and myCompressedForwarders.

void DtRouteMap::concatAddressList	(	DtRouteMap::DtAddressPortList &	final,
		const DtAddressPortList &	src
	)		const

virtual

Append one address list (vector) to another, eliminating duplicates.

Referenced by adjacencyList(), allLinkDestinations(), foreignGroupConnections(), foreignPortalDestinations(), and localGroupDestinations().

unsigned long DtRouteMap::consumeNextAvailableNodeId ( )

virtual

returns the lowest known node Id and increments internal counter.

References myNextAvailableNodeId.

DtBoost::shared_ptr< DtRouteMap > DtRouteMap::create	(	const DtRIDParameters *	params,
		const MAKRti::DtInetAddr &	fwAddrToConnectTo
	)

static

Creates an instance of a DtRouteMap.

References DtRouteMap(), and theCreator.

Referenced by addForwarderGroup(), and setCreatorFunction().

void DtRouteMap::destinationList	(	DtAddressPortList &	destinations,
		const DtInetAddrAndPort &	srcNode,
		const DtInetAddrAndPort &	linkNode
	)		const

virtual

Add the list of destinations for msgs from source node through link node to the destination list supplied in the first argument.

References myRoutesByLinkAddrMap.

Referenced by destinationList().

void DtRouteMap::destinationList	(	DtAddressPortList &	destinations,
		const MAKRti::DtString &	srcNode,
		const MAKRti::DtString &	linkNode
	)		const

virtual

References destinationList(), and myNameToAddrMap.

bool DtRouteMap::enableBundling	(	const MAKRti::DtString &	forwarder,
		int	bundleSize
	)

virtual

Enables bundling from this forwarder to the given forwarder (only if this forwarder is configured to establish a connection to the forwarder).

References myBundledForwarders.

Referenced by DtEnableBundlingFunction().

bool DtRouteMap::enableCompression	(	const MAKRti::DtString &	forwarder,
		int	level
	)

virtual

Enables compression from this forwarder to the given forwarder (only if this forwarder is configured to establish a connection to the forwarder).

References myCompressedForwarders.

Referenced by DtEnableCompressionFunction().

bool DtRouteMap::enableDistributedUdpForwarding ( const MAKRti::DtString & forwarder )

virtual

Maintain a list of forwarders allowed to listen to and forward multicast messages when Distributed UDP Forwarding is enabled.

References myMulticastEnabledForwarderList.

Referenced by DtAllowMulticastForwardingFunction().

void DtRouteMap::foreignGroupConnections	(	DtAddressPortList &	foreignNodes,
		const DtInetAddrAndPort &	node
	)		const

virtual

Add the list of forwarders in foreign Forwarder Groups which have a connection to the specified node to the node list supplied in the first argument.

Note the naming convention – this is not called foreignGroupDestinations simply because the entries within it are not assumed to be destinations for forwarded messages, only a list of forwarders in other groups that are expected to send messages to this node.

References concatAddressList(), and myForeignGroupConnections.

Referenced by foreignGroupConnections().

void DtRouteMap::foreignGroupConnections	(	DtRouteMap::DtAddressPortList &	foreignNodes,
		const MAKRti::DtString &	node
	)		const

virtual

References foreignGroupConnections(), and myNameToAddrMap.

void DtRouteMap::foreignPortalDestinations	(	DtAddressPortList &	destinations,
		const DtInetAddrAndPort &	node
	)		const

virtual

Add the list of portals in foreign Forwarder Groups to which the specified node will forward messages to the destination list supplied in the first argument.

References addressAlias(), concatAddressList(), and myForeignPortalConnections.

Referenced by foreignPortalDestinations().

void DtRouteMap::foreignPortalDestinations	(	DtRouteMap::DtAddressPortList &	destinations,
		const MAKRti::DtString &	node
	)		const

virtual

References foreignPortalDestinations(), and myNameToAddrMap.

DtRouteMap::DtForwarderGroupList DtRouteMap::forwarderGroups ( ) const

virtual

Get a list of the recognized Forwarder Groups.

References myForwarderGroups.

Referenced by print().

const MAKRti::DtInetAddr & DtRouteMap::forwarderInterfaceAddr ( ) const

inlinevirtual

References myForwarderInterfaceAddr.

unsigned int DtRouteMap::forwarderPort ( ) const

virtual

References myDistributedForwarderPort.

Referenced by addForwarderGroup().

bool DtRouteMap::forwardRtiexecMsgs ( ) const

virtual

Returns true if this forwarder should forward messages received from other forwarders which are destined for the rtiexec to the next forwarder in the path to the rtiexec.

For single portal and load balancing networks, this can cause a message to be routed to the rtiexec more than once. rtiexec message forwarding should therefore only occur in manually configured forwarder networks.

References DtFwderGroupInterconnectManual, and myGroupInterconnectMethod.

const DtRouteMap::DtInterfaceAddrSet & DtRouteMap::getInterfaceAddrs ( ) const

virtual

Get the complete list of localhost interface addresses.

References myNicAddrs.

void DtRouteMap::initializeInterfaceList ( )

protectedvirtual

Add the IP address of the default interface to the network adapter interface list.

References addInterfaceAddr(), DtEnumerateInterfaces(), myNicAddrs, myParams, and DtRIDParameters::networkInterfaceAddr().

Referenced by DtRouteMap().

bool DtRouteMap::isConfiguredViaRoutesFile ( ) const

virtual

Indicate if this route map was built from a configuration file.

References myIsConfiguredViaRoutesFile.

Referenced by nodeIdByAddress().

bool DtRouteMap::isEmpty ( ) const

virtual

References myNameToAddrMap.

bool DtRouteMap::isLocalGroupMember ( const DtInetAddrAndPort & forwarder ) const

virtual

Determine if the specified address belongs to a forwarder of the local Forwarder Group.

References DtRtiForwarderGroup::isMember(), and myLocalForwarderGroup.

bool DtRouteMap::isMulticastMonitoringAllowed ( ) const

virtual

Return true if forwarder node is in the list of forwarders allowed to listen to and forward multicast messages.

References myIsConfiguredViaRoutesFile, myMulticastEnabledForwarderList, and myNodeName.

void DtRouteMap::knownForwarderNodes ( std::set< DtForwarderNodeInfo > & otherNodes ) const

virtual

Retrieves the forwarders known by this forwarder.

Dynamic forwarder configuration only.

References myKnownForwarderNodes.

DtRtiForwarderGroup * DtRouteMap::localGroup ( ) const

virtual

Get a pointer to the local Forwarder Group.

References myLocalForwarderGroup.

void DtRouteMap::localGroupDestinations	(	DtAddressPortList &	destinations,
		const DtInetAddrAndPort &	node
	)		const

virtual

Add the list of other forwarders in the local Forwarder Group to the destination list supplied in the first argument.

References concatAddressList(), and myLocalGroupConnections.

Referenced by localGroupDestinations().

void DtRouteMap::localGroupDestinations	(	DtRouteMap::DtAddressPortList &	destinations,
		const MAKRti::DtString &	node
	)		const

virtual

References localGroupDestinations(), and myNameToAddrMap.

unsigned long DtRouteMap::localNodeId ( ) const

virtual

References myNodeId, and myNodeIdIsSet.

const MAKRti::DtString & DtRouteMap::localNodeName ( ) const

virtual

References myNodeName.

DtInetAddrAndPort DtRouteMap::locatePortal ( const DtInetAddrAndPort & targetNode ) const

virtual

Find the portal forwarder for the group which the targeted node belongs to.

References addressAlias(), DtRtiForwarderGroup::isMember(), DtRtiForwarderGroup::members(), myForeignPortalConnections, myForwarderGroups, myLocalForwarderGroup, myNameToAddrMap, myNicAddrs, and myNodeName.

Referenced by nextForwarderOnRoute().

DtInetAddrAndPort DtRouteMap::locatePortal ( const MAKRti::DtString & targetGroupName ) const

virtual

References DtRtiForwarderGroup::members(), myForeignPortalConnections, myGroupNameTable, myLocalForwarderGroup, myNameToAddrMap, and myNodeName.

unsigned long DtRouteMap::lowestNodeId ( ) const

returns the lowest known node Id.

References myKnownForwarderNodes, myLowestNodeId, myLowestNodeIdIsDirty, and myNodeId.

DtInetAddrAndPort DtRouteMap::nextForwarderOnRoute ( const DtInetAddrAndPort & targetNode ) const

virtual

Find the next forwarder in the route to the group which the targeted belongs to.

References addressAlias(), locatePortal(), and myLinksByDestinationMap.

Referenced by nextForwarderOnRoute().

DtInetAddrAndPort DtRouteMap::nextForwarderOnRoute ( const MAKRti::DtString & targetGroupName ) const

virtual

References locatePortal(), DtRtiForwarderGroup::members(), myGroupNameTable, myLinksByDestinationMap, myLocalForwarderGroup, and nextForwarderOnRoute().

DtInetAddrAndPort DtRouteMap::nodeAddress ( const MAKRti::DtString & name ) const

virtual

References myNameToAddrMap.

Referenced by print().

DtRouteMap::DtAddressPortList DtRouteMap::nodeAddresses ( ) const

virtual

References myAddrToNameMap.

MAKRti::DtString DtRouteMap::nodeHostNameByAddres ( const DtInetAddrAndPort & address ) const

virtual

References DtForwarderNodeInfo::myIpAddr, myIsConfiguredViaRoutesFile, myKnownForwarderNodes, and nodeNameByAddress().

unsigned long DtRouteMap::nodeIdByAddress ( const DtInetAddrAndPort & address ) const

virtual

References isConfiguredViaRoutesFile(), DtForwarderNodeInfo::myIpAddr, myKnownForwarderNodes, nodeIdByName(), and nodeNameByAddress().

unsigned long DtRouteMap::nodeIdByName ( const MAKRti::DtString & name ) const

virtual

References myNameToAddrMap.

Referenced by DtRouteMap(), and nodeIdByAddress().

MAKRti::DtString DtRouteMap::nodeNameByAddress ( const DtInetAddrAndPort & address ) const

virtual

References myAddrToNameMap.

Referenced by nodeHostNameByAddres(), and nodeIdByAddress().

DtRouteMap::DtNodeList DtRouteMap::nodeNames ( ) const

virtual

Get the complete list of nodes recognized by this DtRouteMap.

References myNameToAddrMap.

void DtRouteMap::openRoutesFile ( )

protectedvirtual

Open and Parse the route map file.

References DtLocateConfigFile(), DtRIDParameters::forwarderRoutesFile(), myEnv, myParams, myRoutesFileName, and DtAssistantPopupHelper::popupAssistantMessage().

Referenced by registerRoutesFileParams().

DtRouteMap& DtRouteMap::operator= ( const DtRouteMap & orig )

protected

void DtRouteMap::print ( ) const

virtual

Output the Routing Table.

References DtFwderGroupInterconnectLoadBalance, DtFwderGroupInterconnectSinglePortal, forwarderGroups(), DtRtiForwarderGroup::forwarderIsAPortal(), DtRtiForwarderGroup::getForwarderAddrByName(), DtRtiForwarderGroup::groupName(), DtRtiForwarderGroup::members(), myAddrToNameMap, myConnectionsByAddr, myDistributedForwarderPort, myForeignGroupConnections, myForeignPortalConnections, myGroupInterconnectMethod, myLocalForwarderGroup, myLocalGroupConnections, myNodeName, myRoutesByLinkAddrMap, and nodeAddress().

Referenced by DtRouteMap().

void DtRouteMap::rebuildRoutes ( )

virtual

when the routes file is first read, or if a forwarder is added/ or removed, we should rebuild our routes.

References setupDefaultRoutes(), and setupNodeName().

void DtRouteMap::registerRoutesFileParams ( )

protectedvirtual

Register the commands to parse from the Routes file and calls openRoutesFile() to load the lisp file.

References DtAddForwarderConnectionFunction(), DtAddForwarderFunction(), DtAddForwarderGroupFunction(), DtAddForwarderRouteFunction(), DtAddForwarderToGroupFunction(), DtAllowMulticastForwardingFunction(), DtEnableBundlingFunction(), DtEnableCompressionFunction(), myEnv, myGroupInterconnectMethod, myIsConfiguredViaRoutesFile, openRoutesFile(), setForwarderInterfaceAddr(), setGroupInterconnectMethod(), and theParent.

Referenced by DtRouteMap().

bool DtRouteMap::removeForwarder ( const DtInetAddrAndPort & addr )

virtual

Remove a forwarder from the known routes.

returns whether it was successfully removed

References myAddrToNameMap, DtForwarderNodeInfo::myIpAddr, myKnownForwarderNodes, myLowestNodeIdIsDirty, and myNameToAddrMap.

void DtRouteMap::setCreatorFunction ( DtRouteMapCreatorFcn creator )

static

Call this function to set an alternate creator function With this function, users can replace this DtRouteMap with their own derived class.

References create(), DtBindCreator(), and theCreator.

void DtRouteMap::setForwarderInterfaceAddr ( const MAKRti::DtInetAddr & addr )

inlinevirtual

Get/Set the forwarder interface address (generally set via the routes file)

References myForwarderInterfaceAddr.

Referenced by registerRoutesFileParams().

void DtRouteMap::setForwarderPort ( unsigned int port )

virtual

Get/Set the forwarder port (generally set via the RID file)

References myDistributedForwarderPort.

DtForwarderGroupInterconnectMethod DtRouteMap::setGroupInterconnectMethod ( MAKRti::DtString methodString )

protectedvirtual

Convert the Forwarder Group Interconnect method string to the equivalent enumerated value.

References DtFwderGroupInterconnectLoadBalance, DtFwderGroupInterconnectManual, and DtFwderGroupInterconnectSinglePortal.

Referenced by registerRoutesFileParams().

void DtRouteMap::setLocalNodeId ( unsigned long newId )

virtual

References myLowestNodeIdIsDirty, myNodeId, and myNodeIdIsSet.

Referenced by DtRouteMap().

void DtRouteMap::setupDefaultRoutes ( )

protectedvirtual

Setup the default network of forwarders if the routes file does not specify any router connections.

References addForwarderGroup(), addForwarderToGroup(), addLocalGroupConnection(), DtFwderGroupInterconnectLoadBalance, DtFwderGroupInterconnectSinglePortal, DtRtiForwarderGroup::memberCount(), DtRtiForwarderGroup::members(), myConnectionsByAddr, myConnectionToGroupMap, myGroupInterconnectMethod, myLocalForwarderGroup, myNameToAddrMap, myNodeName, NULL, setupLoadBalanceRoutes(), and setupSinglePortalRoutes().

Referenced by DtRouteMap(), and rebuildRoutes().

void DtRouteMap::setupDestinationsMap ( )

protectedvirtual

Sets up the map from destinations to next forwarder in the route when routes are configured manually in the routes file.

References myConnectionsByAddr, myDistributedForwarderPort, myLinksByDestinationMap, myNicAddrs, and myRoutesByLinkAddrMap.

Referenced by DtRouteMap().

void DtRouteMap::setupLoadBalanceRoutes ( )

protectedvirtual

References addForeignForwarderConnection(), addForeignPortalConnection(), DtRtiForwarderGroup::memberCount(), DtRtiForwarderGroup::members(), myForwarderGroups, DtRtiForwarderGroup::DtRtiForwarderGroupMember::myName, and myNodeName.

Referenced by setupDefaultRoutes().

void DtRouteMap::setupNodeName ( )

protectedvirtual

References addAddressAlias(), myAddrToNameMap, myDistributedForwarderPort, myNicAddrs, and myNodeName.

Referenced by DtRouteMap(), and rebuildRoutes().

void DtRouteMap::setupSinglePortalRoutes ( )

protectedvirtual

References addForeignForwarderConnection(), addForeignPortalConnection(), DtRtiForwarderGroup::forwarderIsAPortal(), DtRtiForwarderGroup::memberCount(), DtRtiForwarderGroup::members(), myForwarderGroups, myLocalForwarderGroup, and myNodeName.

Referenced by setupDefaultRoutes().

bool DtRouteMap::updateForwarder	(	const MAKRti::DtInetAddr &	fwAddr,
		unsigned long	fwNodeId,
		const MAKRti::DtString &	fwName,
		const MAKRti::DtString &	fwHostName,
		const std::set< DtForwarderNodeInfo > &	peers
	)

virtual

Updates a known forwarder. Dynamic forwarder configuration only.

References addKnownForwarder(), DtIsIpOfLocalInterface(), DtForwarderNodeInfo::myForwarderName, DtForwarderNodeInfo::myHostName, DtForwarderNodeInfo::myIpAddr, myKnownForwarderNodes, myNextAvailableNodeId, and DtForwarderNodeInfo::myNodeId.

void DtRouteMap::updateForwarderNodeId	(	const MAKRti::DtInetAddr &	fwAddr,
		unsigned long	fwNodeId
	)

virtual

Updates the node ID of a known forwarder. Dynamic forwarder configuration only.

References DtForwarderNodeInfo::myExternalIPAddrs, DtForwarderNodeInfo::myForwarderName, DtForwarderNodeInfo::myHostName, DtForwarderNodeInfo::myIpAddr, myKnownForwarderNodes, myNextAvailableNodeId, and DtForwarderNodeInfo::myNodeId.

Member Data Documentation

DtConnectionAddrToNameMap DtRouteMap::myAddrToNameMap

protected

Referenced by addForwarder(), addLocalForwarder(), bundleSize(), compressionLevel(), nodeAddresses(), nodeNameByAddress(), print(), removeForwarder(), and setupNodeName().

DtForwarderBundlingMap DtRouteMap::myBundledForwarders

protected

Set of forwarders to which we should have bundling enabled.

Referenced by bundleSize(), and enableBundling().

DtForwarderCompressionMap DtRouteMap::myCompressedForwarders

protected

Set of forwarders to which we should have compression enabled.

Referenced by compressionLevel(), and enableCompression().

DtAddrToConnectionListMap DtRouteMap::myConnectionsByAddr

protected

Referenced by addForwarderConnection(), adjacencyList(), allLinkDestinations(), DtRouteMap(), print(), setupDefaultRoutes(), and setupDestinationsMap().

DtForwarderGroupConnectionTable DtRouteMap::myConnectionToGroupMap

protected

Referenced by addForwarderToGroup(), and setupDefaultRoutes().

int DtRouteMap::myDistributedForwarderPort

protected

Port used for forwarder-to-forwarder connections.

Referenced by addForwarderToGroup(), forwarderPort(), print(), setForwarderPort(), setupDestinationsMap(), and setupNodeName().

MAKRti::DtMtlEnvironment* DtRouteMap::myEnv

protected

Referenced by openRoutesFile(), registerRoutesFileParams(), and ~DtRouteMap().

DtAddrToConnectionListMap DtRouteMap::myForeignGroupConnections

protected

Referenced by addForeignForwarderConnection(), adjacencyList(), foreignGroupConnections(), and print().

DtAddrToConnectionListMap DtRouteMap::myForeignPortalConnections

protected

Referenced by addForeignPortalConnection(), adjacencyList(), foreignPortalDestinations(), locatePortal(), and print().

DtForwarderGroupList DtRouteMap::myForwarderGroups

protected

the one I'm in

Referenced by addForwarderGroup(), forwarderGroups(), locatePortal(), setupLoadBalanceRoutes(), and setupSinglePortalRoutes().

MAKRti::DtInetAddr DtRouteMap::myForwarderInterfaceAddr

protected

The interface used for forwarder-to-forwarder connections.

Referenced by forwarderInterfaceAddr(), and setForwarderInterfaceAddr().

DtForwarderGroupInterconnectMethod DtRouteMap::myGroupInterconnectMethod

protected

Referenced by forwardRtiexecMsgs(), print(), registerRoutesFileParams(), and setupDefaultRoutes().

DtGroupNameTable DtRouteMap::myGroupNameTable

protected

all groups

Referenced by addForwarderGroup(), addForwarderToGroup(), locatePortal(), and nextForwarderOnRoute().

DtInetAddrAliasMap DtRouteMap::myInetAddrAliases

protected

Some forwarders can be known by multiple addresses.

This is a mapping from known aliases to the primary address.

Referenced by addAddressAlias(), and addressAlias().

bool DtRouteMap::myIsConfiguredViaRoutesFile

protected

Referenced by DtRouteMap(), isConfiguredViaRoutesFile(), isMulticastMonitoringAllowed(), nodeHostNameByAddres(), and registerRoutesFileParams().

std::set<DtForwarderNodeInfo> DtRouteMap::myKnownForwarderNodes

protected

Referenced by addKnownForwarder(), knownForwarderNodes(), lowestNodeId(), nodeHostNameByAddres(), nodeIdByAddress(), removeForwarder(), updateForwarder(), and updateForwarderNodeId().

DtDestinationToLinkMap DtRouteMap::myLinksByDestinationMap

protected

Referenced by nextForwarderOnRoute(), and setupDestinationsMap().

DtRtiForwarderGroup* DtRouteMap::myLocalForwarderGroup

protected

Referenced by addForwarderToGroup(), isLocalGroupMember(), localGroup(), locatePortal(), nextForwarderOnRoute(), print(), setupDefaultRoutes(), and setupSinglePortalRoutes().

DtAddrToConnectionListMap DtRouteMap::myLocalGroupConnections

protected

Referenced by addLocalGroupConnection(), adjacencyList(), localGroupDestinations(), and print().

unsigned long DtRouteMap::myLowestNodeId

mutableprotected

Referenced by lowestNodeId().

bool DtRouteMap::myLowestNodeIdIsDirty

mutableprotected

Referenced by addForwarder(), addLocalForwarder(), lowestNodeId(), removeForwarder(), and setLocalNodeId().

DtNodeList DtRouteMap::myMulticastEnabledForwarderList

protected

List of forwarders allowed to act as Distributed UDP Forwarders, meaning they are allowed to listen to and forward multicast messages from the LAN.

The use must manually select which forwarders have this enabled to ensure that only a single copy of multicast messages are forwarded by one forwarder on each LAN.

Referenced by enableDistributedUdpForwarding(), and isMulticastMonitoringAllowed().
