DtRtiAssistantServer Class Reference

Manages the server connections of the RTI Assistant. More...

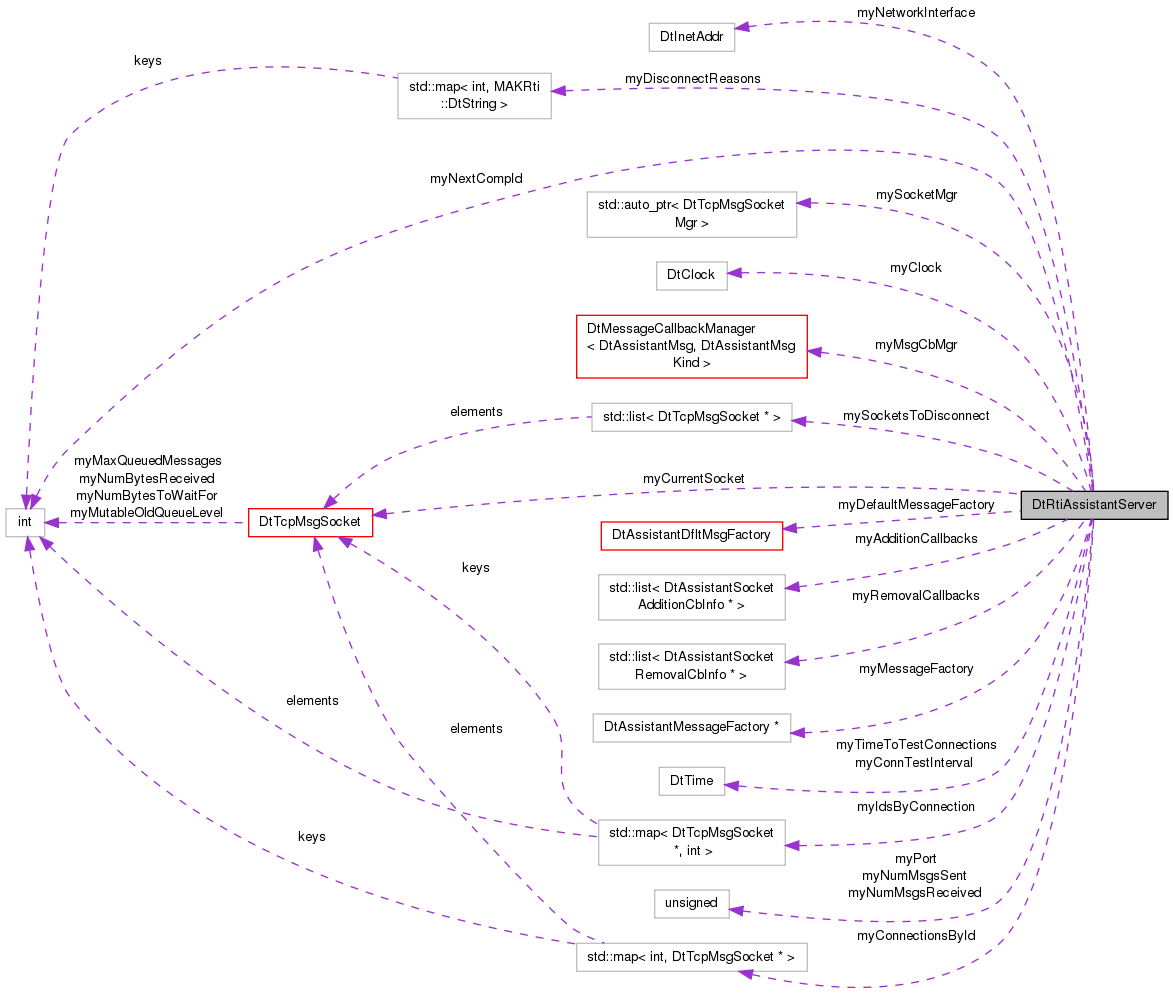

Collaboration diagram for DtRtiAssistantServer:

Public Member Functions
	DtRtiAssistantServer (DtNotifyLevelType level, int port=DtASSISTANT_DEFAULT_PORT, const MAKRti::DtInetAddr &networkInterface=MAKRti::DtInetAddr())
	Constructor, networkInterface defaults to INADDR_ANY.
virtual	~DtRtiAssistantServer ()
	Destructor.
bool	isOk () const
	Returns true if the server was successfully started.
virtual void	addMsgCallback (DtAssistantMsgKind msgKind, DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
	Message Callbacks These callback functions operate on all of the connections.
virtual void	removeMsgCallback (DtAssistantMsgKind msgKind, DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
virtual void	addWildcardMsgCallback (DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
virtual void	removeWildcardMsgCallback (DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
virtual void	addSocketAdditionCallback (DtAssistantSocketAdditionCb cb, void *usr)
	These functions add callbacks for notification of the addition or removal of Assistant socket connections.
virtual void	removeSocketAdditionCallback (DtAssistantSocketAdditionCb cb, void *usr)
virtual void	addSocketRemovalCallback (DtAssistantSocketRemovalCb cb, void *usr)
virtual void	removeSocketRemovalCallback (DtAssistantSocketRemovalCb cb, void *usr)
virtual bool	tick (double timeout=0)
	Do the actual message processing.
virtual unsigned int	numConnections () const
	Return the number of current RTI component connections.
virtual void	sendMsgOnConn (int compId, const DtAssistantMsg &msg)
	Send the message over the specified connection.
virtual void	sendBroadcast (const DtAssistantMsg &msg)
	Send the message over the all connections.
virtual void	sendConnMsg (int compId, bool disconnect=false, const MAKRti::DtString &display=MAKRti::DtString::nullString())
	Sends a component ID back to a connecting component.
virtual void	sendConnRespMsg (int compId, const DtRtiConnectionInfoDataPair &conn, const DtRtiConnectionConfigurationInfo &config, bool accepted)
	Sends a connection query response message.
virtual void	sendLicRespMsg (int compId, bool runUnlicensed, const MAKRti::DtString &server, int port, bool accepted)
	Sends a license query response message.
virtual void	sendAssistantCommandResponseMsg (int compId, const MAKRti::DtString &formattedData)
	Sends a response to an assistant command message.
virtual void	sendNtfyLvlUpdateMsg (int compId, DtNotifyLevelType notifyLevel)
	Sends a notify level update message.
virtual void	sendLatencyTestRequestMsg (int compId, bool runTest, bool continuous, bool shouldHalt, bool observing, unsigned int interactionPeriod, unsigned int numInteractions, unsigned int payloadBytes, unsigned long federationHandle=0, unsigned long initFedHandle=0)
	Sends an initiate latency test request message.
virtual void	sendNetworkTestEnableMsg (int compId, int federationHdl, bool enable)
	Sends a message enabling or disabling network testing for the given federation.
virtual void	sendLogEnableMsg (int compId, bool enable)
	Sends a logging enable message.
virtual void	sendObserveRtiexecMsg (int compId, bool isObserved, unsigned int timeStateIntervalMs)
	Sends a message to tell an rtiexec that it should either start or stop sending its information.
virtual void	sendObserveRtiexecLogMsg (int connId, bool isObserved)
	Sends a message to tell an rtiexec that it should either start or stop sending its log information.
virtual void	sendObserveRtiForwarderMsg (int compId, bool isObserved, unsigned int timeStateIntervalMs, int defunctRemovalTime)
	Sends a message to tell an RTI Forwarder that it should either start or stop sending its information.
virtual void	sendSingleObserveRtiExecMsg (int compId)
	Sends a message to tell a local rtiExec that it should send its data one time only.
virtual void	sendSingleObserveForwarderMsg (int compId)
	Sends a message to tell a local forwarder that it should send its data one time only.
virtual void	sendFederateResignMsg (int compId, int federationHdl, int federateHdl)
	Sends a force federate resign message to an rtiexec.
virtual void	sendFederationDestroyMsg (int compId, int federationHdl)
	Sends a force federation destroy message to an rtiexec.
virtual void	sendDeleteFederateMsg (int compId, DtU16 fedexHandle, DtU16 fedHandle)
	Sends a message to tell an rtiexec that it shold delete a federate.
virtual void	sendRidParamsRequestMsg (int compId)
	Sends a RID parameter request to an rtiexec.
virtual void	sendLogRequestMsg (int compId, unsigned maxLogSize)
	Sends a log request to an rtiexec.
virtual void	sendNetStatsObservationRequestMsg (DtAssistantObservationType observationType, int compId, bool observe=false, unsigned int interval=0)
	Sends a Observation Request to an local component.
virtual void	sendExitMsg (int compId=-1)
	Sends an exit command message for the specified component, or for all components if none specified.
virtual void	sendDoNotWaitForForwardersMsg (int compId)
	Sends a message to the specified forwarder telling it to proceed without waiting for any more forwarders to connect.
virtual void	forwardMsg (const DtAssistantMsg &msg)
	Forwards a message from a remote assistant to the local component that is its final destination.
virtual void	sendSignalTickIntervalMsg (int compId, float signalTickInterval)
	sends the signal tick interval
virtual int	currentCompId () const
	Returns the component ID from which the current message being processed was received, or -1 if there is no such message.
virtual void	closeConn (int compId)
	Close the connection with the given component ID.
virtual int	port () const
	Returns the Assistant server port.
virtual DtU32	maxMsgSize () const
	Gets the maximum message size.
virtual const DtInetAddr &	getNetworkAddr ()

Static Public Member Functions
static void	tcpSocketAdditionCb (DtTcpMsgSocket *sock, void *usr)
	Callbacks on addition/removal of TCP sockets.
static void	tcpSocketRemovalCb (DtTcpMsgSocket *sock, void *usr)

Protected Types
typedef std::map< int, DtTcpMsgSocket * >	CompIdToSocketMap
	Maps of the connections and component IDs.
typedef std::map < DtTcpMsgSocket *, int >	SocketToCompIdMap

Protected Member Functions
virtual void	sendMsg (DtTcpMsgSocket *sock, const DtAssistantMsg &msg)
	Sends the message over the specified socket.
virtual void	testConnections ()
	Verify connection status and mark bad connections for removal.
virtual bool	readAndProcess (DtTime maxTimePerSocket)
	Make a single pass over the socket list allocating up to max.
virtual void	tcpSocketAdditionCb (DtTcpMsgSocket *sock)
	Callbacks on addition/removal of TCP sockets.
virtual void	tcpSocketRemovalCb (DtTcpMsgSocket *sock)
virtual std::auto_ptr < DtAssistantMsg >	netRead (DtTcpMsgSocket *sock, int *retCode) const
	Read a message from a socket.
virtual void	setMsgFactory (DtAssistantMessageFactory *fact)
	Get/Set the message factory .
virtual DtAssistantMessageFactory *	msgFactory () const

Protected Attributes
SocketToCompIdMap	myIdsByConnection
	Map of component IDs by connection.
CompIdToSocketMap	myConnectionsById
	Map of connections by component ID.
int	myNextCompId
	Next component ID to use.
DtAssistantMessageFactory *	myMessageFactory
	The message factory.
DtAssistantDfltMsgFactory	myDefaultMessageFactory
	Default message factory.
DtTcpMsgSocket *	myCurrentSocket
	The socket on which the current message being processed was received.
unsigned int	myPort
	Port to which RTI components may connect.
DtClock	myClock
	Clock for timeouts.
DtTime	myConnTestInterval
	Interval at which connections should be tested.
DtTime	myTimeToTestConnections
	Next time to test connections.
std::auto_ptr< DtTcpMsgSocketMgr >	mySocketMgr
	Manager for the sockets.
MAKRti::DtInetAddr	myNetworkInterface
	Network Interface.
std::list< DtTcpMsgSocket * >	mySocketsToDisconnect
	List of sockets to be disconnected before next read.
DtAssistantMsgCbMgr	myMsgCbMgr
	Message callback manager.
std::map< int, MAKRti::DtString >	myDisconnectReasons
	List of reasons for socket disconnects.
DtAssistantSocketAdditionCallbackList	myAdditionCallbacks
	Lists of pointers to socket addition and socket removal callbacks.
DtAssistantSocketRemovalCallbackList	myRemovalCallbacks
unsigned	myNumMsgsSent
	Total messages sent.
unsigned	myNumMsgsReceived
	Total messages received.

Private Member Functions
	DtRtiAssistantServer (const DtRtiAssistantServer &)
	Copy and Assignment unimplemented.
DtRtiAssistantServer &	operator= (const DtRtiAssistantServer &)

Detailed Description

Manages the server connections of the RTI Assistant.

DtRtiAssistantServer manages the connections of the RTI Assistant. It also provides methods for packaging and sending messages to the connected RTI components.

Member Typedef Documentation

typedef std::map< int, DtTcpMsgSocket* > DtRtiAssistantServer::CompIdToSocketMap

protected

Maps of the connections and component IDs.

typedef std::map< DtTcpMsgSocket*, int > DtRtiAssistantServer::SocketToCompIdMap

protected

Constructor & Destructor Documentation

DtRtiAssistantServer::DtRtiAssistantServer	(	DtNotifyLevelType	level,
		int	port = DtASSISTANT_DEFAULT_PORT,
		const MAKRti::DtInetAddr &	networkInterface = MAKRti::DtInetAddr()
	)

Constructor, networkInterface defaults to INADDR_ANY.

References myPort, mySocketMgr, tcpSocketAdditionCb(), and tcpSocketRemovalCb().

DtRtiAssistantServer::~DtRtiAssistantServer ( )

virtual

Destructor.

References mySocketMgr, tcpSocketAdditionCb(), and tcpSocketRemovalCb().

DtRtiAssistantServer::DtRtiAssistantServer ( const DtRtiAssistantServer &  )

private

Copy and Assignment unimplemented.

Member Function Documentation

void DtRtiAssistantServer::addMsgCallback ( DtAssistantMsgKind  msgKind, DtAssistantMsgCbMgr::DtCallbackFcn  fcn, void *  usr  )

virtual

Message Callbacks These callback functions operate on all of the connections.

References myMsgCbMgr.

Referenced by DtAssistantSignalTickedMsg::addCallback(), DtAssistantForwarderStateMsg::addCallback(), DtAssistantExecStateMsg::addCallback(), DtAssistantAwaitingForwardersMsg::addCallback(), DtAssistantExecObserveRspMsg::addCallback(), DtAssistantTimeStateMsg::addCallback(), DtAssistantLogMsg::addCallback(), DtAssistantConnMsg::addCallback(), DtAssistantShutdownMsg::addCallback(), DtAssistantShowDialogMsg::addCallback(), DtAssistantNotifyMsg::addCallback(), DtAssistantPopupMsg::addCallback(), DtAssistantLicQueryMsg::addCallback(), DtAssistantSyncPtUpdateMsg::addCallback(), DtAssistantShmCompInfoMsg::addCallback(), DtAssistantLatencyReportMsg::addCallback(), DtAssistantRidParamsMsg::addCallback(), DtAssistantTestMgrStatusMsg::addCallback(), DtAssistantCommandMsg::addCallback(), DtAssistantFederationStateMsg::addCallback(), DtAssistantRtiForwarderCompInfoMsg::addCallback(), DtAssistantRtiexecCompInfoMsg::addCallback(), DtAssistantConnQueryMsg::addCallback(), DtAssistantFederateStateMsg::addCallback(), and DtAssistantLrcCompInfoMsg::addCallback().

void DtRtiAssistantServer::addSocketAdditionCallback ( DtAssistantSocketAdditionCb  cb, void *  usr  )

virtual

These functions add callbacks for notification of the addition or removal of Assistant socket connections.

References myAdditionCallbacks.

void DtRtiAssistantServer::addSocketRemovalCallback ( DtAssistantSocketRemovalCb  cb, void *  usr  )

virtual

References myRemovalCallbacks.

void DtRtiAssistantServer::addWildcardMsgCallback ( DtAssistantMsgCbMgr::DtCallbackFcn  fcn, void *  usr  )

virtual

References myMsgCbMgr.

void DtRtiAssistantServer::closeConn ( int  compId )

virtual

Close the connection with the given component ID.

References myConnectionsById, and mySocketsToDisconnect.

Referenced by readAndProcess().

int DtRtiAssistantServer::currentCompId ( ) const

virtual

Returns the component ID from which the current message being processed was received, or -1 if there is no such message.

References myCurrentSocket, and myIdsByConnection.

Referenced by readAndProcess().

void DtRtiAssistantServer::forwardMsg ( const DtAssistantMsg &  msg )

virtual

Forwards a message from a remote assistant to the local component that is its final destination.

References DtAssistantMsg::compId(), DtAssistantMsg::isAssistantToAssistantMessage(), and sendMsgOnConn().

const DtInetAddr & DtRtiAssistantServer::getNetworkAddr ( )

virtual

References myNetworkInterface.

bool DtRtiAssistantServer::isOk

(

)

const

Returns true if the server was successfully started.

References mySocketMgr.

DtU32 DtRtiAssistantServer::maxMsgSize ( ) const

virtual

Gets the maximum message size.

References mySocketMgr.

DtAssistantMessageFactory * DtRtiAssistantServer::msgFactory ( ) const

protectedvirtual

References myMessageFactory.

Referenced by netRead(), readAndProcess(), sendAssistantCommandResponseMsg(), sendConnMsg(), sendConnRespMsg(), sendDeleteFederateMsg(), sendDoNotWaitForForwardersMsg(), sendExitMsg(), sendFederateResignMsg(), sendFederationDestroyMsg(), sendLatencyTestRequestMsg(), sendLicRespMsg(), sendLogEnableMsg(), sendLogRequestMsg(), sendNetStatsObservationRequestMsg(), sendNetworkTestEnableMsg(), sendNtfyLvlUpdateMsg(), sendObserveRtiexecLogMsg(), sendObserveRtiexecMsg(), sendObserveRtiForwarderMsg(), sendRidParamsRequestMsg(), sendSignalTickIntervalMsg(), sendSingleObserveForwarderMsg(), and sendSingleObserveRtiExecMsg().

std::auto_ptr< DtAssistantMsg > DtRtiAssistantServer::netRead ( DtTcpMsgSocket *  sock, int *  retCode  ) const

protectedvirtual

Read a message from a socket.

References DtASSISTANT_BUFFER_TOO_SMALL, DtASSISTANT_INVALID_VERSION, DtASSISTANT_READ_BAD_PACKET, DtASSISTANT_READ_FILTERED_PACKET, DtASSISTANT_READ_NO_PACKETS, DtASSISTANT_READ_SIZE_MISMATCH, DtASSISTANT_READ_SUCCESS, DtASSISTANT_UNKNOWN_ERROR, DtAssistantMessageVersion, DtAssistantMsg::isOk(), DtAssistantMsg::kindToString(), msgFactory(), DtNetAssistantMsgHeader::msgKind, DtTcpMsgSocket::recvMessage(), DtNetAssistantMsgHeader::totalSize, DtNetAssistantMsgHeader::version, and DtNetAssistantMsgHeader::versionMatches().

Referenced by readAndProcess().

unsigned int DtRtiAssistantServer::numConnections ( ) const

virtual

Return the number of current RTI component connections.

References myIdsByConnection.

DtRtiAssistantServer& DtRtiAssistantServer::operator= ( const DtRtiAssistantServer &  )

private

int DtRtiAssistantServer::port ( ) const

virtual

Returns the Assistant server port.

References myPort.

bool DtRtiAssistantServer::readAndProcess ( DtTime  maxTimePerSocket )

protectedvirtual

Make a single pass over the socket list allocating up to max.

time per socket to each.

References closeConn(), currentCompId(), DtASSISTANT_INVALID_VERSION, DtASSISTANT_READ_NO_PACKETS, DtASSISTANT_READ_SUCCESS, DtAssistantConnMsgKind, DtTcpMsgSocket::inetTcpSocket(), DtTcpMsgSocket::isConnected(), DtAssistantMsg::kindToString(), msgFactory(), DtAssistantMsg::msgKind(), myClock, myCurrentSocket, myDisconnectReasons, myMsgCbMgr, myNumMsgsReceived, mySocketMgr, mySocketsToDisconnect, netRead(), sendMsg(), and DtAssistantConnMsg::setDisconnect().

Referenced by tick().

void DtRtiAssistantServer::removeMsgCallback ( DtAssistantMsgKind  msgKind, DtAssistantMsgCbMgr::DtCallbackFcn  fcn, void *  usr  )

virtual

References myMsgCbMgr.

Referenced by DtAssistantSignalTickedMsg::removeCallback(), DtAssistantForwarderStateMsg::removeCallback(), DtAssistantExecStateMsg::removeCallback(), DtAssistantAwaitingForwardersMsg::removeCallback(), DtAssistantExecObserveRspMsg::removeCallback(), DtAssistantTimeStateMsg::removeCallback(), DtAssistantLogMsg::removeCallback(), DtAssistantConnMsg::removeCallback(), DtAssistantShutdownMsg::removeCallback(), DtAssistantShowDialogMsg::removeCallback(), DtAssistantNotifyMsg::removeCallback(), DtAssistantPopupMsg::removeCallback(), DtAssistantLicQueryMsg::removeCallback(), DtAssistantSyncPtUpdateMsg::removeCallback(), DtAssistantShmCompInfoMsg::removeCallback(), DtAssistantLatencyReportMsg::removeCallback(), DtAssistantRidParamsMsg::removeCallback(), DtAssistantTestMgrStatusMsg::removeCallback(), DtAssistantCommandMsg::removeCallback(), DtAssistantFederationStateMsg::removeCallback(), DtAssistantRtiForwarderCompInfoMsg::removeCallback(), DtAssistantRtiexecCompInfoMsg::removeCallback(), DtAssistantConnQueryMsg::removeCallback(), DtAssistantFederateStateMsg::removeCallback(), and DtAssistantLrcCompInfoMsg::removeCallback().

void DtRtiAssistantServer::removeSocketAdditionCallback ( DtAssistantSocketAdditionCb  cb, void *  usr  )

virtual

References myAdditionCallbacks, DtAssistantSocketAdditionCbInfo::myCb, and DtAssistantSocketAdditionCbInfo::myUsr.

void DtRtiAssistantServer::removeSocketRemovalCallback ( DtAssistantSocketRemovalCb  cb, void *  usr  )

virtual

References DtAssistantSocketRemovalCbInfo::myCb, myRemovalCallbacks, and DtAssistantSocketRemovalCbInfo::myUsr.

void DtRtiAssistantServer::removeWildcardMsgCallback ( DtAssistantMsgCbMgr::DtCallbackFcn  fcn, void *  usr  )

virtual

References myMsgCbMgr.

void DtRtiAssistantServer::sendAssistantCommandResponseMsg ( int  compId, const MAKRti::DtString &  formattedData  )

virtual

Sends a response to an assistant command message.

References DtAssistantCommandMsgKind, msgFactory(), sendMsgOnConn(), and DtAssistantCommandMsg::setMessageString().

void DtRtiAssistantServer::sendBroadcast ( const DtAssistantMsg &  msg )

virtual

Send the message over the all connections.

References DtAssistantMsg::kindToString(), DtAssistantMsg::msgKind(), myNumMsgsSent, mySocketMgr, and sendMsg().

Referenced by sendExitMsg().

void DtRtiAssistantServer::sendConnMsg ( int  compId, bool  disconnect = false, const MAKRti::DtString &  display = MAKRti::DtString::nullString()  )

virtual

Sends a component ID back to a connecting component.

References DtAssistantConnMsgKind, msgFactory(), sendMsgOnConn(), DtAssistantMsg::setCompId(), DtAssistantConnMsg::setDisconnect(), and DtAssistantConnMsg::setDisplay().

void DtRtiAssistantServer::sendConnRespMsg ( int  compId, const DtRtiConnectionInfoDataPair &  conn, const DtRtiConnectionConfigurationInfo &  config, bool  accepted  )

virtual

Sends a connection query response message.

References DtAssistantConnQueryMsgKind, DtRtiConnectionConfigurationInfo::forceFullCompliance(), msgFactory(), sendMsgOnConn(), DtAssistantConnQueryMsg::setForwardingParameters(), and DtAssistantConnQueryMsg::setLRCParameters().

void DtRtiAssistantServer::sendDeleteFederateMsg ( int  compId, DtU16  fedexHandle, DtU16  fedHandle  )

virtual

Sends a message to tell an rtiexec that it shold delete a federate.

References DtAssistantDeleteFederateMsgKind, msgFactory(), sendMsgOnConn(), DtAssistantDeleteFederateMsg::setFederateHandle(), and DtAssistantDeleteFederateMsg::setFederationHandle().

void DtRtiAssistantServer::sendDoNotWaitForForwardersMsg ( int  compId )

virtual

Sends a message to the specified forwarder telling it to proceed without waiting for any more forwarders to connect.

References DtAssistantAwaitingForwardersMsgKind, msgFactory(), sendMsgOnConn(), and DtAssistantAwaitingForwardersMsg::setIsWaitingForForwarders().

void DtRtiAssistantServer::sendExitMsg ( int  compId = -1 )

virtual

Sends an exit command message for the specified component, or for all components if none specified.

References DtAssistantExitMsgKind, msgFactory(), sendBroadcast(), and sendMsgOnConn().

void DtRtiAssistantServer::sendFederateResignMsg ( int  compId, int  federationHdl, int  federateHdl  )

virtual

Sends a force federate resign message to an rtiexec.

References DtAssistantDeleteFederateMsgKind, msgFactory(), sendMsgOnConn(), DtAssistantDeleteFederateMsg::setFederateHandle(), and DtAssistantDeleteFederateMsg::setFederationHandle().

void DtRtiAssistantServer::sendFederationDestroyMsg ( int  compId, int  federationHdl  )

virtual

Sends a force federation destroy message to an rtiexec.

References DtAssistantDeleteFederationMsgKind, msgFactory(), sendMsgOnConn(), and DtAssistantDeleteFederationMsg::setFederationHandle().

void DtRtiAssistantServer::sendLatencyTestRequestMsg ( int  compId, bool  runTest, bool  continuous, bool  shouldHalt, bool  observing, unsigned int  interactionPeriod, unsigned int  numInteractions, unsigned int  payloadBytes, unsigned long  federationHandle = 0, unsigned long  initFedHandle = 0  )

virtual

Sends an initiate latency test request message.

Federation and initiating federate handles are only needed when recipient is an rtiexec.

References DtAssistantChangeLatencyTestModeMsgKind, msgFactory(), sendMsgOnConn(), DtAssistantChangeLatencyTestModeMsg::setContinuousUpdate(), DtAssistantChangeLatencyTestModeMsg::setFederationHandle(), DtAssistantChangeLatencyTestModeMsg::setInitFedHandle(), DtAssistantChangeLatencyTestModeMsg::setInteractionPeriod(), DtAssistantChangeLatencyTestModeMsg::setNumInteractions(), DtAssistantChangeLatencyTestModeMsg::setObservingResults(), DtAssistantChangeLatencyTestModeMsg::setPayloadBytes(), DtAssistantChangeLatencyTestModeMsg::setRunTest(), and DtAssistantChangeLatencyTestModeMsg::setShouldHaltContinuous().

void DtRtiAssistantServer::sendLicRespMsg ( int  compId, bool  runUnlicensed, const MAKRti::DtString &  server, int  port, bool  accepted  )

virtual

Sends a license query response message.

References DtAssistantLicQueryMsgKind, msgFactory(), sendMsgOnConn(), DtAssistantLicQueryMsg::setAccepted(), DtAssistantLicQueryMsg::setLicenseServerName(), DtAssistantLicQueryMsg::setPort(), and DtAssistantLicQueryMsg::setUnlicensed().

void DtRtiAssistantServer::sendLogEnableMsg ( int  compId, bool  enable  )

virtual

Sends a logging enable message.

References DtAssistantLogEnableMsgKind, msgFactory(), sendMsgOnConn(), and DtAssistantLogEnableMsg::setEnable().

void DtRtiAssistantServer::sendLogRequestMsg ( int  compId, unsigned  maxLogSize  )

virtual

Sends a log request to an rtiexec.

The response will contain either the entire rtiexec log, or at most recent maxLogSize bytes.

References DtAssistantLogRequestMsgKind, msgFactory(), sendMsgOnConn(), and DtAssistantLogRequestMsg::setMaxLogSize().

void DtRtiAssistantServer::sendMsg ( DtTcpMsgSocket *  sock, const DtAssistantMsg &  msg  )

protectedvirtual

Sends the message over the specified socket.

References myNumMsgsSent, and DtTcpMsgSocket::sendMessage().

Referenced by readAndProcess(), sendBroadcast(), and sendMsgOnConn().

void DtRtiAssistantServer::sendMsgOnConn ( int  compId, const DtAssistantMsg &  msg  )

virtual

Send the message over the specified connection.

References DtAssistantMsg::kindToString(), DtAssistantMsg::msgKind(), myConnectionsById, myNumMsgsSent, and sendMsg().

Referenced by forwardMsg(), sendAssistantCommandResponseMsg(), sendConnMsg(), sendConnRespMsg(), sendDeleteFederateMsg(), sendDoNotWaitForForwardersMsg(), sendExitMsg(), sendFederateResignMsg(), sendFederationDestroyMsg(), sendLatencyTestRequestMsg(), sendLicRespMsg(), sendLogEnableMsg(), sendLogRequestMsg(), sendNetStatsObservationRequestMsg(), sendNetworkTestEnableMsg(), sendNtfyLvlUpdateMsg(), sendObserveRtiexecLogMsg(), sendObserveRtiexecMsg(), sendObserveRtiForwarderMsg(), sendRidParamsRequestMsg(), sendSignalTickIntervalMsg(), sendSingleObserveForwarderMsg(), and sendSingleObserveRtiExecMsg().

void DtRtiAssistantServer::sendNetStatsObservationRequestMsg ( DtAssistantObservationType  observationType, int  compId, bool  observe = false, unsigned int  interval = 0  )

virtual

Sends a Observation Request to an local component.

It will either request that it observe and interval the federate should send, or tell the federate not observing.

References DtAssistantNetStatsObserveReqMsgKind, msgFactory(), sendMsgOnConn(), and DtAssistantMsg::setCompId().

void DtRtiAssistantServer::sendNetworkTestEnableMsg ( int  compId, int  federationHdl, bool  enable  )

virtual

Sends a message enabling or disabling network testing for the given federation.

References DtAssistantNetworkTestEnableMsgKind, msgFactory(), sendMsgOnConn(), DtAssistantNetworkTestEnableMsg::setEnableTesting(), and DtAssistantNetworkTestEnableMsg::setFederationHandle().

void DtRtiAssistantServer::sendNtfyLvlUpdateMsg ( int  compId, DtNotifyLevelType  notifyLevel  )

virtual

Sends a notify level update message.

References DtAssistantNtfyLvlUpdateMsgKind, msgFactory(), sendMsgOnConn(), and DtAssistantNtfyLvlUpdateMsg::setNotifyLevel().

void DtRtiAssistantServer::sendObserveRtiexecLogMsg ( int  connId, bool  isObserved  )

virtual

Sends a message to tell an rtiexec that it should either start or stop sending its log information.

References DtAssistantStateObserveFederationsOrRtiexec, DtAssistantStateObserveMsgKind, msgFactory(), sendMsgOnConn(), DtAssistantStateObserveMsg::setIsLogRequest(), DtAssistantStateObserveMsg::setIsObserved(), DtAssistantStateObserveMsg::setIsSingleView(), DtAssistantStateObserveMsg::setTargetType(), and DtAssistantStateObserveMsg::setTimeStateUpdateInterval().

void DtRtiAssistantServer::sendObserveRtiexecMsg ( int  compId, bool  isObserved, unsigned int  timeStateIntervalMs  )

virtual

Sends a message to tell an rtiexec that it should either start or stop sending its information.

References DtAssistantStateObserveFederationsOrRtiexec, DtAssistantStateObserveMsgKind, msgFactory(), sendMsgOnConn(), DtAssistantStateObserveMsg::setIsLogRequest(), DtAssistantStateObserveMsg::setIsObserved(), DtAssistantStateObserveMsg::setIsSingleView(), DtAssistantStateObserveMsg::setTargetType(), and DtAssistantStateObserveMsg::setTimeStateUpdateInterval().

void DtRtiAssistantServer::sendObserveRtiForwarderMsg ( int  compId, bool  isObserved, unsigned int  timeStateIntervalMs, int  defunctRemovalTime  )

virtual

Sends a message to tell an RTI Forwarder that it should either start or stop sending its information.

References DtAssistantStateObserveForwarderPersistent, DtAssistantStateObserveMsgKind, msgFactory(), sendMsgOnConn(), DtAssistantStateObserveMsg::setDefunctRemovalTime(), DtAssistantStateObserveMsg::setIsLogRequest(), DtAssistantStateObserveMsg::setIsObserved(), DtAssistantStateObserveMsg::setIsSingleView(), DtAssistantStateObserveMsg::setTargetType(), and DtAssistantStateObserveMsg::setTimeStateUpdateInterval().

void DtRtiAssistantServer::sendRidParamsRequestMsg ( int  compId )

virtual

Sends a RID parameter request to an rtiexec.

References DtAssistantRidParamsMsgKind, msgFactory(), sendMsgOnConn(), and DtAssistantRidParamsMsg::setIsRequest().

void DtRtiAssistantServer::sendSignalTickIntervalMsg ( int  compId, float  signalTickInterval  )

virtual

sends the signal tick interval

References DtAssistantFederateSignalTickIntervalMsgKind, msgFactory(), sendMsgOnConn(), and DtAssistantFederateSignalTickIntervalMsg::setSignalTickInterval().

void DtRtiAssistantServer::sendSingleObserveForwarderMsg ( int  compId )

virtual

Sends a message to tell a local forwarder that it should send its data one time only.

References DtAssistantStateObserveForwarder, DtAssistantStateObserveMsgKind, msgFactory(), sendMsgOnConn(), DtAssistantStateObserveMsg::setIsLogRequest(), DtAssistantStateObserveMsg::setIsObserved(), DtAssistantStateObserveMsg::setIsSingleView(), and DtAssistantStateObserveMsg::setTargetType().

void DtRtiAssistantServer::sendSingleObserveRtiExecMsg ( int  compId )

virtual

Sends a message to tell a local rtiExec that it should send its data one time only.

References DtAssistantStateObserveFederationsOrRtiexec, DtAssistantStateObserveMsgKind, msgFactory(), sendMsgOnConn(), DtAssistantStateObserveMsg::setIsLogRequest(), DtAssistantStateObserveMsg::setIsObserved(), DtAssistantStateObserveMsg::setIsSingleView(), and DtAssistantStateObserveMsg::setTargetType().

void DtRtiAssistantServer::setMsgFactory ( DtAssistantMessageFactory *  fact )

protectedvirtual

Get/Set the message factory .

References myMessageFactory.

void DtRtiAssistantServer::tcpSocketAdditionCb ( DtTcpMsgSocket *  sock, void *  usr  )

static

Callbacks on addition/removal of TCP sockets.

Referenced by DtRtiAssistantServer(), and ~DtRtiAssistantServer().

void DtRtiAssistantServer::tcpSocketAdditionCb ( DtTcpMsgSocket *  sock )

protectedvirtual

Callbacks on addition/removal of TCP sockets.

References interval, myAdditionCallbacks, DtAssistantSocketAdditionCbInfo::myCb, myClock, myConnectionsById, myIdsByConnection, myNextCompId, and DtAssistantSocketAdditionCbInfo::myUsr.

void DtRtiAssistantServer::tcpSocketRemovalCb ( DtTcpMsgSocket *  sock, void *  usr  )

static

Referenced by DtRtiAssistantServer(), and ~DtRtiAssistantServer().

void DtRtiAssistantServer::tcpSocketRemovalCb ( DtTcpMsgSocket *  sock )

protectedvirtual

References DtAssistantSocketRemovalCbInfo::myCb, myConnectionsById, myDisconnectReasons, myIdsByConnection, myRemovalCallbacks, and DtAssistantSocketRemovalCbInfo::myUsr.

void DtRtiAssistantServer::testConnections ( )

protectedvirtual

Verify connection status and mark bad connections for removal.

References mySocketMgr, and DtTcpMsgSocket::testConnectionStatus().

Referenced by tick().

bool DtRtiAssistantServer::tick ( double  timeout = 0 )

virtual

Do the actual message processing.

• RTI connections are treated as synchronous in main thread.

References myClock, myConnTestInterval, mySocketMgr, myTimeToTestConnections, readAndProcess(), and testConnections().

Member Data Documentation

DtAssistantSocketAdditionCallbackList DtRtiAssistantServer::myAdditionCallbacks

protected

Lists of pointers to socket addition and socket removal callbacks.

Referenced by addSocketAdditionCallback(), removeSocketAdditionCallback(), and tcpSocketAdditionCb().

DtClock DtRtiAssistantServer::myClock

protected

Clock for timeouts.

Referenced by readAndProcess(), tcpSocketAdditionCb(), and tick().

CompIdToSocketMap DtRtiAssistantServer::myConnectionsById

protected

Map of connections by component ID.

Referenced by closeConn(), sendMsgOnConn(), tcpSocketAdditionCb(), and tcpSocketRemovalCb().

DtTime DtRtiAssistantServer::myConnTestInterval

protected

Interval at which connections should be tested.

Referenced by tick().

DtTcpMsgSocket* DtRtiAssistantServer::myCurrentSocket

protected

The socket on which the current message being processed was received.

Responses to this message should use this socket.

Referenced by currentCompId(), and readAndProcess().

DtAssistantDfltMsgFactory DtRtiAssistantServer::myDefaultMessageFactory

protected

Default message factory.

std::map<int, MAKRti::DtString> DtRtiAssistantServer::myDisconnectReasons

protected

List of reasons for socket disconnects.

Referenced by readAndProcess(), and tcpSocketRemovalCb().

SocketToCompIdMap DtRtiAssistantServer::myIdsByConnection

protected

Map of component IDs by connection.

Referenced by currentCompId(), numConnections(), tcpSocketAdditionCb(), and tcpSocketRemovalCb().

DtAssistantMessageFactory* DtRtiAssistantServer::myMessageFactory

protected

The message factory.

Referenced by msgFactory(), and setMsgFactory().

DtAssistantMsgCbMgr DtRtiAssistantServer::myMsgCbMgr

protected

Message callback manager.

Referenced by addMsgCallback(), addWildcardMsgCallback(), readAndProcess(), removeMsgCallback(), and removeWildcardMsgCallback().

MAKRti::DtInetAddr DtRtiAssistantServer::myNetworkInterface

protected

Network Interface.

Referenced by getNetworkAddr().

int DtRtiAssistantServer::myNextCompId

protected

Next component ID to use.

Referenced by tcpSocketAdditionCb().

unsigned DtRtiAssistantServer::myNumMsgsReceived

protected

Total messages received.

Referenced by readAndProcess().

unsigned DtRtiAssistantServer::myNumMsgsSent

protected

Total messages sent.

Referenced by sendBroadcast(), sendMsg(), and sendMsgOnConn().

unsigned int DtRtiAssistantServer::myPort

protected

Port to which RTI components may connect.

Referenced by DtRtiAssistantServer(), and port().

DtAssistantSocketRemovalCallbackList DtRtiAssistantServer::myRemovalCallbacks

protected

Referenced by addSocketRemovalCallback(), removeSocketRemovalCallback(), and tcpSocketRemovalCb().

std::auto_ptr<DtTcpMsgSocketMgr> DtRtiAssistantServer::mySocketMgr

protected

Manager for the sockets.

Referenced by DtRtiAssistantServer(), isOk(), maxMsgSize(), readAndProcess(), sendBroadcast(), testConnections(), tick(), and ~DtRtiAssistantServer().

std::list< DtTcpMsgSocket* > DtRtiAssistantServer::mySocketsToDisconnect

protected

List of sockets to be disconnected before next read.

Referenced by closeConn(), and readAndProcess().

DtTime DtRtiAssistantServer::myTimeToTestConnections

protected

Next time to test connections.

Referenced by tick().

---

The documentation for this class was generated from the following files:

• rtiAssistantServer.h
• rtiAssistantServer.cxx
