DtRtiConnection Class Reference

This class represents a network connection with another RTI component. More...

Inheritance diagram for DtRtiConnection:

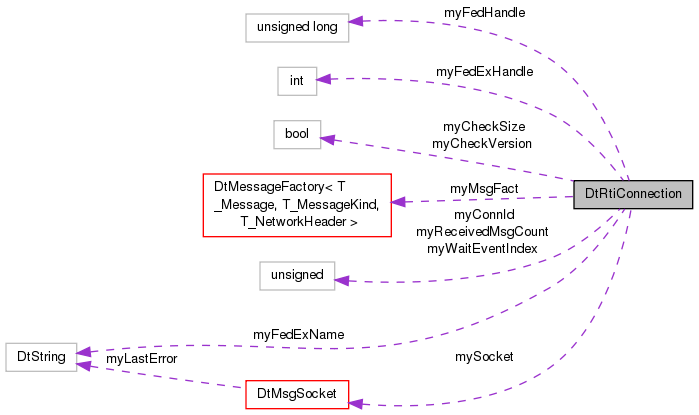

Collaboration diagram for DtRtiConnection:

Public Member Functions
	DtRtiConnection (DtMsgSocket *skt)
	Constructor.
virtual	~DtRtiConnection ()
	Destructor.
virtual void	setMsgFactory (DtRtiMsgFactory *fact)
	Set/Get the Message Factory used by this object.
virtual DtRtiMsgFactory *	rtiMsgFactory ()
virtual DtRtiMsg *	netRead (DtNetReadStatus *retCode=NULL)
	Note: netRead() creates a new DtRtiMsg using the message factory Caller is responsible for deleting it when through.
virtual int	send (const DtRtiMsg &msg, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr())
	Send a message.
virtual bool	flush ()
	Send buffered messages.
virtual int	isOk ()
	Return true if the status of the connection is OK.
virtual void	setCheckVersion (bool enableCheckVersion)
	Set/get whether to check message version.
virtual bool	checkVersion () const
virtual void	disableCheckSize ()
	Disable message size check.
virtual void	enableCheckSize ()
	Enable message size check.
virtual void	setFedExName (const MAKRti::DtString &newFedExName)
	Set/Get federation execution name. NULL means "all".
virtual const MAKRti::DtString &	fedExName () const
virtual void	setFedExHandle (int handle)
	Set/Get federation execution handle. 0 means "all".
virtual int	fedExHandle () const
virtual void	setFederateHandle (DtFederationHandle handle)
	Set/Get federate handle.
virtual DtFederationHandle	federateHandle () const
virtual void	setConnId (unsigned long connId)
	Set/Get the connection ID assigned to the connection.
virtual unsigned long	connId () const
virtual DtMsgSocket *	socket ()
	Returns our socket.

Protected Member Functions
void	init (DtMsgSocket *s)

Protected Attributes
MAKRti::DtString	myFedExName
int	myFedExHandle
DtFederationHandle	myFedHandle
DtMsgSocket *	mySocket
DtRtiMsgFactory *	myMsgFact
unsigned long	myReceivedMsgCount
bool	myCheckSize
bool	myCheckVersion
unsigned int	myWaitEventIndex
unsigned long	myConnId
	Win32 only.

Private Member Functions
	DtRtiConnection (const DtRtiConnection &orig)
	Copy CTOR not implemented.
DtRtiConnection &	operator= (DtRtiConnection const &orig)
	Assignment Operator not implemented.

Detailed Description

This class represents a network connection with another RTI component.

Constructor & Destructor Documentation

DtRtiConnection::DtRtiConnection

(

DtMsgSocket *

skt

)

Constructor.

References DtBindMessage(), and init().

DtRtiConnection::~DtRtiConnection ( )

virtual

Destructor.

DtRtiConnection::DtRtiConnection ( const DtRtiConnection &  orig )

private

Copy CTOR not implemented.

Member Function Documentation

bool DtRtiConnection::checkVersion ( ) const

virtual

References myCheckVersion.

Referenced by netRead().

unsigned long DtRtiConnection::connId ( ) const

inlinevirtual

References myConnId.

Referenced by DtConnectionMgr::processConnections(), and setConnId().

void DtRtiConnection::disableCheckSize ( )

virtual

Disable message size check.

References myCheckSize.

void DtRtiConnection::enableCheckSize ( )

virtual

Enable message size check.

References myCheckSize.

DtFederationHandle DtRtiConnection::federateHandle ( ) const

inlinevirtual

References myFedHandle.

int DtRtiConnection::fedExHandle ( ) const

inlinevirtual

References myFedExHandle.

const MAKRti::DtString & DtRtiConnection::fedExName ( ) const

inlinevirtual

References myFedExName.

bool DtRtiConnection::flush ( )

virtual

Send buffered messages.

Returns indication of whether the flush is complete or incomplete.

Reimplemented in DtSmRtiConnection.

References DtMsgSocket::flush(), isOk(), DtMsgSocket::lastError(), PERROR, DtMsgSocket::printStateToStream(), and socket().

Referenced by DtConnectionMgr::flush(), DtConnectionMgr::repairFederationConnection(), and DtAsyncConnectionMgr::sendPackets().

void DtRtiConnection::init ( DtMsgSocket *  s )

protected

References myFedExHandle, myFedExName, myFedHandle, myMsgFact, mySocket, NULL, and DtMsgSocket::state().

Referenced by DtRtiConnection().

int DtRtiConnection::isOk ( )

virtual

Return true if the status of the connection is OK.

References mySocket, and DtMsgSocket::state().

Referenced by DtConnectionMgr::destroyRelConn(), flush(), netRead(), DtConnectionMgr::processConnections(), DtAsyncConnectionMgr::receivePackets(), send(), and DtAsyncConnectionMgr::sendPackets().

DtRtiMsg * DtRtiConnection::netRead ( DtNetReadStatus *  retCode = NULL )

virtual

Note: netRead() creates a new DtRtiMsg using the message factory Caller is responsible for deleting it when through.

References checkVersion(), DtMessageFactory< T_Message, T_MessageKind, T_NetworkHeader >::create(), DtInvalidMsgKind, DtNET_BUFFER_TOO_SMALL, DtNET_READ_BAD_PACKET, DtNET_READ_FILTERED_PACKET, DtNET_READ_NO_PACKETS, DtNET_READ_SIZE_MISMATCH, DtNET_READ_SUCCESS, DtNET_READ_VERSION_MISMATCH, DtNET_READ_VERSION_UNKNOWN, DtNET_UNKNOWN_ERROR, DtRtiMessageVersion, DtRtiMessageVersionString(), DtNetMsgHeader::fedHandle, DtNetMsgHeader::isForExec(), isOk(), DtRtiMsg::kindToString(), DtMsgSocket::lastError(), MSG_STATUS_OK, DtNetMsgHeader::msgKind, myCheckSize, myFedExHandle, myFedExName, NULL, PERROR, DtMsgSocket::printStateToStream(), DtMsgSocket::recvMessage(), rtiMsgFactory(), socket(), DtRtiMsg::status(), DtNetMsgHeader::totalSize, DtNetMsgHeader::version, DtNetMsgHeader::versionCheck, and DtNetMsgHeader::versionMatches().

Referenced by DtConnectionMgr::createAncillaryRelConns(), DtConnectionMgr::createRelConn(), DtConnectionMgr::destroyRelConn(), DtSmConnectionMgr::getMessage(), DtConnectionMgr::getMessage(), DtNetStatsAsyncConnMgr::processConnection(), DtSmConnectionMgr::processConnection(), DtRtiShmQNetMgr::processConnection(), DtConnectionMgr::processConnection(), DtAsyncConnectionMgr::receivePacket(), and DtConnectionMgr::repairFederationConnection().

DtRtiConnection& DtRtiConnection::operator= ( DtRtiConnection const &  orig )

private

Assignment Operator not implemented.

DtRtiMsgFactory * DtRtiConnection::rtiMsgFactory ( )

inlinevirtual

References myMsgFact.

Referenced by netRead().

int DtRtiConnection::send ( const DtRtiMsg &  msg, const MAKRti::DtInetAddr &  addr = MAKRti::DtInetAddr()  )

virtual

Send a message.

Reimplemented in DtGsRtiConnection, and DtSmRtiConnection.

References DtUseFedObservers, DtNetMsgHeader::flags, isOk(), DtMsgSocket::lastError(), DtRtiMsg::netHeader(), PERROR, DtMsgSocket::printStateToStream(), DtMsgSocket::sendMessage(), and socket().

Referenced by DtConnectionMgr::createAncillaryRelConns(), DtConnectionMgr::destroyRelConn(), DtConnectionMgr::send(), and DtAsyncConnectionMgr::sendPackets().

void DtRtiConnection::setCheckVersion ( bool  enableCheckVersion )

virtual

Set/get whether to check message version.

This connection will filter invalid versions when enabled.

References enableCheckVersion, and myCheckVersion.

void DtRtiConnection::setConnId ( unsigned long  connId )

inlinevirtual

Set/Get the connection ID assigned to the connection.

References connId(), and myConnId.

Referenced by DtConnectionMgr::createAncillaryRelConns(), and DtConnectionMgr::createRelConn().

void DtRtiConnection::setFederateHandle ( DtFederationHandle  handle )

inlinevirtual

Set/Get federate handle.

References myFedHandle.

Referenced by DtSmConnectionMgr::connectFederation(), DtConnectionMgr::connectFederation(), DtSmConnectionMgr::disconnectFederation(), DtConnectionMgr::disconnectFederation(), DtSmConnectionMgr::repairFederationConnection(), DtConnectionMgr::repairFederationConnection(), and DtConnectionMgr::setFederateHandle().

void DtRtiConnection::setFedExHandle ( int  handle )

inlinevirtual

Set/Get federation execution handle. 0 means "all".

References myFedExHandle.

Referenced by DtSmConnectionMgr::connectFederation(), DtConnectionMgr::connectFederation(), DtSmConnectionMgr::disconnectFederation(), DtConnectionMgr::disconnectFederation(), DtSmConnectionMgr::repairFederationConnection(), and DtConnectionMgr::repairFederationConnection().

void DtRtiConnection::setFedExName ( const MAKRti::DtString &  newFedExName )

inlinevirtual

Set/Get federation execution name. NULL means "all".

References myFedExName.

Referenced by DtSmConnectionMgr::connectFederation(), DtConnectionMgr::connectFederation(), DtSmConnectionMgr::disconnectFederation(), DtConnectionMgr::disconnectFederation(), DtSmConnectionMgr::repairFederationConnection(), and DtConnectionMgr::repairFederationConnection().

void DtRtiConnection::setMsgFactory ( DtRtiMsgFactory *  fact )

virtual

Set/Get the Message Factory used by this object.

fact becomes property of this object, meaning it will be deleted when the factory is replaced, or when the DtRtiConnection is destroyed.

References myMsgFact.

Referenced by DtConnectionMgr::createAncillaryRelConns(), DtConnectionMgr::createBestEffortConn(), DtConnectionMgr::createRelConn(), DtSmConnectionMgr::createSharedMemConn(), DtSmConnectionMgr::setMsgFactory(), and DtConnectionMgr::setMsgFactory().

DtMsgSocket * DtRtiConnection::socket ( )

inlinevirtual

Returns our socket.

References mySocket.

Referenced by DtConnectionMgr::createAncillaryRelConns(), DtConnectionMgr::destroyAncillaryRelConn(), DtConnectionMgr::destroyAncillaryRelConns(), DtConnectionMgr::destroyBestEffortConn(), DtConnectionMgr::destroyRelConn(), DtConnectionMgr::disconnectFederation(), DtConnectionMgr::dropMulticastGroup(), flush(), DtConnectionMgr::flush(), DtConnectionMgr::forceDropMulticastGroup(), DtRtiShmQNetMgr::init(), DtSmConnectionMgr::initConnections(), DtConnectionMgr::listenToMulticastGroup(), netRead(), DtConnectionMgr::readFileDescriptor(), send(), DtConnectionMgr::updateBufferSizes(), DtAsyncConnectionMgr::workerThread(), and DtSmConnectionMgr::~DtSmConnectionMgr().

Member Data Documentation

bool DtRtiConnection::myCheckSize

protected

Referenced by disableCheckSize(), enableCheckSize(), and netRead().

bool DtRtiConnection::myCheckVersion

protected

Referenced by checkVersion(), and setCheckVersion().

unsigned long DtRtiConnection::myConnId

protected

Win32 only.

Referenced by connId(), and setConnId().

int DtRtiConnection::myFedExHandle

protected

Referenced by fedExHandle(), init(), netRead(), and setFedExHandle().

MAKRti::DtString DtRtiConnection::myFedExName

protected

Referenced by fedExName(), init(), netRead(), and setFedExName().

DtFederationHandle DtRtiConnection::myFedHandle

protected

Referenced by federateHandle(), init(), and setFederateHandle().

DtRtiMsgFactory* DtRtiConnection::myMsgFact

protected

Referenced by init(), rtiMsgFactory(), and setMsgFactory().

unsigned long DtRtiConnection::myReceivedMsgCount

protected

DtMsgSocket* DtRtiConnection::mySocket

protected

Referenced by init(), isOk(), and socket().

unsigned int DtRtiConnection::myWaitEventIndex

protected

---

The documentation for this class was generated from the following files:

• connection.h
• connection.cxx
