Dialog that allows a user to enter connection information. More...

Inheritance diagram for DtAssistantAddRtiexecConnDialog:

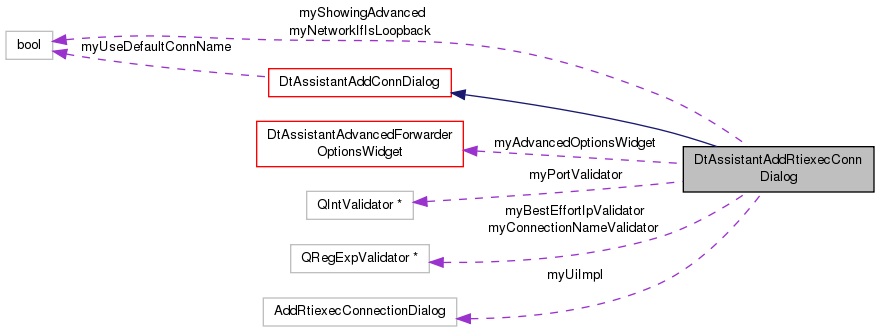

Collaboration diagram for DtAssistantAddRtiexecConnDialog:

Public Slots
void	udpateDefaultConnName ()
	Updates the default connection name, if in use.
void	toggleAdvanced ()
	Toggles between showing and hiding advanced config options.
virtual void	selectBestEffortAddrForNetworkInterface (int hostIndex)
	Decides if a new value should be set for the best-effort address based on a change to the network interface address.
Public Slots inherited from DtAssistantAddConnDialog
virtual void	enableDefaultConnName ()
	Enables the construction of the default connection name, instead using user entered name.
virtual void	disableDefaultConnName ()
	Disables the construction of the default connection name, instead using user entered name.
void	storeNextDefaultConnNum ()
	Saves the next default connection number to be used for the current default connection name.
void	clearDefaultConnNum ()
	Saves the next connection number to be used for the current default connection name.
virtual bool	isLoopbackAddress (const QString &address) const
	Returns true if the given IP address is a loopback address.
virtual bool	isIpv6Address (const QString &address) const
	Returns true if the given IP address is an IPv6 address.
virtual bool	isLoopbackDestination (const QString &address) const
	Returns true if the given destination IP address is a loopback multicast, broadcast, or unicast address.

Public Member Functions
	DtAssistantAddRtiexecConnDialog (DtAssistantConnQueryWidget *parent, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtAssistantAddRtiexecConnDialog ()
	Destructor.
virtual void	setNetworkInterfaceAddrs (const QStringList &networkInterfaceAddrs)
	Sets the list of possible network interface addresses to use.
virtual void	setData (const QString &host, int bestEffortPort, int reliablePort, const QString &bestEffortIp, const QString &networkInterfaceAddr, int forwarderPort, const QString &additionalForwarderToConnectTo)
	Sets the data in the dialog.
virtual void	setName (const QString &connName)
	Sets the name for the connection in the dialog.
virtual void	getData (QString &connName, int &bestEffortPort, int &reliablePort, QString &bestEffortIp, QString &networkInterfaceAddr, int &forwarderPort, QString &additionalForwarderToConnectTo)
	Gets the data in the dialog.
Public Member Functions inherited from DtAssistantAddConnDialog
	DtAssistantAddConnDialog (DtAssistantConnQueryWidget *parent, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtAssistantAddConnDialog ()
	Destructor.

Protected Attributes
Ui::AddRtiexecConnectionDialog	myUiImpl
	The GUI implementation of the widget.
bool	myShowingAdvanced
	Whether or not the advanced options are currently shown.
DtAssistantAdvancedForwarderOptionsWidget *	myAdvancedOptionsWidget
	Widget which displays advanced forwarder options.
bool	myNetworkIfIsLoopback
	Stores whether the previous network interface was a loopback address.

QRegExpValidator *	myBestEffortIpValidator
	Validators to check the input of the line edit boxes.
QIntValidator *	myPortValidator
	Validators to check the input of the line edit boxes.
QRegExpValidator *	myConnectionNameValidator
	Validators to check the input of the line edit boxes.
Protected Attributes inherited from DtAssistantAddConnDialog
DtAssistantConnQueryWidget *	myParent
	The parent of this dialog.
bool	myUseDefaultConnName
	Indicates that no user supplied connection name was specified, so the default should be displayed and used.
std::map< QString, unsigned >	myNextDefaultConnNum
	The next number to use to differentiate connections with the same default name, mapped by name.
unsigned	myDefaultConnNum
	The default connection name number currently being used.
QString	myDefaultConnName
	The base string for the default connection name currently being used.

Additional Inherited Members
Protected Member Functions inherited from DtAssistantAddConnDialog
virtual bool	getDefaultRtiexecConnName (QString &name, const QString &host)
	Determines the new default connection name for an rtiexec connection.
virtual bool	getDefaultLightweightConnName (QString &name)
	Determines the new default connection name for a lightweight connection.
Static Protected Attributes inherited from DtAssistantAddConnDialog
static const QString	theDefaultIpv4LoopbackMcastAddr
	Default multicast addresses for loopback and non-loopback interfaces.
static const QString	theDefaultIpv4NonLoopbackMcastAddr
	Default multicast addresses for loopback and non-loopback interfaces.
static const QString	theDefaultIpv6LoopbackMcastAddr
	Default multicast addresses for loopback and non-loopback interfaces.
static const QString	theDefaultIpv6NonLoopbackMcastAddr
	Default multicast addresses for loopback and non-loopback interfaces.

Detailed Description

Dialog that allows a user to enter connection information.

Constructor & Destructor Documentation

DtAssistantAddRtiexecConnDialog::DtAssistantAddRtiexecConnDialog	(	DtAssistantConnQueryWidget *	parent,
		Qt::WindowFlags	f = `0`
	)

Constructor.

DtAssistantAddRtiexecConnDialog::~DtAssistantAddRtiexecConnDialog ( )

virtual

Destructor.

void DtAssistantAddRtiexecConnDialog::getData	(	QString &	connName,
		int &	bestEffortPort,
		int &	reliablePort,
		QString &	bestEffortIp,
		QString &	networkInterfaceAddr,
		int &	forwarderPort,
		QString &	additionalForwarderToConnectTo
	)

virtual

Gets the data in the dialog.

void DtAssistantAddRtiexecConnDialog::selectBestEffortAddrForNetworkInterface ( int hostIndex )

virtualslot

Decides if a new value should be set for the best-effort address based on a change to the network interface address.

void DtAssistantAddRtiexecConnDialog::setData	(	const QString &	host,
		int	bestEffortPort,
		int	reliablePort,
		const QString &	bestEffortIp,
		const QString &	networkInterfaceAddr,
		int	forwarderPort,
		const QString &	additionalForwarderToConnectTo
	)
