Provides the GUI for a console which displays the contents of a log file. More...

Inheritance diagram for DtFileConsoleWidget:

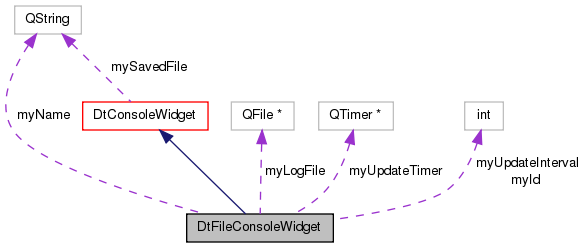

Collaboration diagram for DtFileConsoleWidget:

Public Slots
virtual void	updateConsole ()
	Reads the latest data from the log file and outputs to the console.
virtual void	updateNotifyLevel (MAKRti::DtNotifyLevelType level)
	Emits a signal when the notify level is updated with the new level and the name of this console widget.
Public Slots inherited from DtConsoleWidget
virtual void	processNotifyComboxBoxUpdate (int level)
	Catches the notify level combo box update and emits the notifyLevelUpdated signal with the new notifyLevel.
virtual void	processSave ()
	Processes the pressing of the save button.
virtual void	processPause ()
	Processes the pressing of the pause button.
virtual void	processResume ()
	Processes the pressing of the resume button.
virtual void	processSearch ()
	Processes the pressing of the search button.
virtual void	focusSearchEdit ()
	Focus on the search.

Signals
void	notifyLevelUpdated (int id, MAKRti::DtNotifyLevelType level)
	Signal emitted when the notify level is updated.
Signals inherited from DtConsoleWidget
void	notifyLevelUpdated (MAKRti::DtNotifyLevelType notifyLevel)
	Signals that the notify level has been updated by the user.

Public Member Functions
	DtFileConsoleWidget (int updateInterval=400, QWidget *parent=0, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtFileConsoleWidget ()
	Destructor.
virtual void	setLogFile (const QString &logFileName)
	Closes the current log file and opens the new one.
virtual QString	logFileName ()
	Returns the name and path of the log file.
virtual void	setName (const QString &name)
	Sets the name of this console widget, which will be used to create the window title.
virtual QString	name ()
	Gets the name of this console widget.
virtual void	setId (int id)
	Sets the ID of this console widget, which is used in the console's emitted signals to uniquely identify it.
virtual int	id ()
	Gets the ID of this console widget.
virtual void	setUpdateInterval (int interval)
	Changes the update interval to the new value (in msecs).
Public Member Functions inherited from DtConsoleWidget
	DtConsoleWidget (QWidget *parent=0, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtConsoleWidget ()
	Destructor.
virtual void	writeText (const QString &st, QColor color=Qt::black)
	Writes the text to the display in the specified color.
virtual void	clear ()
	Clears all of the text from the display.
virtual void	setNotifyLevel (MAKRti::DtNotifyLevelType notifyLevel)
	Sets the notify level in the combo box.
virtual void	setMaximumLines (int max)
	Sets the maximum number of lines which can be in the buffer.
virtual void	setDocument (QTextDocument *document)
	Sets the given document to be the document of the text edit.
virtual void	removeNotifyComboBox ()
	removes the notify level combo box
virtual void	showToolBar (bool showBar=true)
	Shows or hides the tool bar items.
virtual void	showClearButton (bool showButton=true)
	Shows or hides the tool bar items.
virtual void	showSaveButton (bool showButton=true)
	Shows or hides the tool bar items.
virtual void	showPauseResumeButton (bool showButton=true)
	Shows or hides the tool bar items.
virtual void	showNotifyLevelBox (bool showBox=true)
	Shows or hides the tool bar items.

Protected Member Functions
virtual void	hideEvent (QHideEvent *event)
	Handles hide events.
virtual void	showEvent (QShowEvent *event)
	Handles show events.
virtual void	saveToFile ()
	Copies the log file to the user designated file.

Protected Attributes
QFile *	myLogFile
	The log file used as input to the console display.
QString	myName
	Name given to this console.
int	myId
	ID used to identify this console in its emitted signals.
QTimer *	myUpdateTimer
	Console display refresh timer.
int	myUpdateInterval
	The interval, in msecs, at which the console will be refreshed.
Protected Attributes inherited from DtConsoleWidget
QToolBar *	myToolBar
	The tool bar for a console widget.
QAction *	myClearAction
	The tool bar action which clears the console.
QAction *	mySaveAction
	The tool bar action which saves the full log to a file.
QAction *	myPauseAction
	The tool bar action which pauses the console, preventing it from updating and scrolling.
QAction *	myResumeAction
	The tool bar action which resumes the console after it has been paused.
QComboBox *	myNotifyComboBox
	The tool bar combo box which will update the notify level.
QTextEdit *	myTextEdit
	The text edit box which displays the log.
QFrame *	myFrame
	The frame of the widget.
QGridLayout *	myLayout
	The layout of the widget.
QGridLayout *	myFrameLayout
	The layout of the frame.
QString	mySavedFile
	The previously saved file.
QLineEdit *	mySearchEdit
	The search edit box.
QPushButton *	mySearchPushButton
	The search button.
QSpacerItem *	mySpacer
	Spacer item for the grid layout.
QShortcut *	mySearchShortcut
	Search edit shortcut.
bool	myIsPaused
	Indicates if the console is currently paused.
DtTextAndColorList	myPauseText
	Used to store text while pause is on.

Private Member Functions
	DtFileConsoleWidget (DtFileConsoleWidget const &)
	Copy constructor not implemented.
DtFileConsoleWidget &	operator= (DtFileConsoleWidget const &)
	Assignment operator not implemented.

Additional Inherited Members
Protected Types inherited from DtConsoleWidget
typedef std::list< DtTextAndColor >	DtTextAndColorList

Detailed Description

Provides the GUI for a console which displays the contents of a log file.

DtFileConsoleWidget is derived from DtConsoleWidget. It updates the console display from a log file which is continuously updated.

Constructor & Destructor Documentation

DtFileConsoleWidget::DtFileConsoleWidget	(	int	updateInterval = `400`,
		QWidget *	parent = `0`,
		Qt::WindowFlags	f = `0`
	)

Constructor.

The log file will be opened and used as input for the console display.

References connect(), myLogFile, myUpdateTimer, notifyLevelUpdated(), DtConsoleWidget::setMaximumLines(), updateConsole(), and updateNotifyLevel().

DtFileConsoleWidget::~DtFileConsoleWidget ( )

virtual

Destructor.

References myLogFile.

DtFileConsoleWidget::DtFileConsoleWidget ( DtFileConsoleWidget const & )

private

Copy constructor not implemented.

Member Function Documentation

void DtFileConsoleWidget::hideEvent ( QHideEvent * event )

protectedvirtual

Handles hide events.

References myUpdateTimer.

int DtFileConsoleWidget::id ( )

virtual

Gets the ID of this console widget.

References myId.

Referenced by setId().

QString DtFileConsoleWidget::logFileName ( )

virtual

Returns the name and path of the log file.

References myLogFile.

Referenced by DtAssistantLogFileMgr::enableComponentLog().

QString DtFileConsoleWidget::name ( )

virtual

Gets the name of this console widget.

References myName.

Referenced by setName().

void DtFileConsoleWidget::notifyLevelUpdated	(	int	id,
		MAKRti::DtNotifyLevelType	level
	)

signal

Signal emitted when the notify level is updated.

Referenced by DtFileConsoleWidget(), and updateNotifyLevel().

DtFileConsoleWidget& DtFileConsoleWidget::operator= ( DtFileConsoleWidget const & )

private

Assignment operator not implemented.

void DtFileConsoleWidget::saveToFile ( )

protectedvirtual

Copies the log file to the user designated file.

Reimplemented from DtConsoleWidget.

References myLogFile, myName, and DtConsoleWidget::mySavedFile.

void DtFileConsoleWidget::setId ( int id )

virtual

Sets the ID of this console widget, which is used in the console's emitted signals to uniquely identify it.

References id(), and myId.

Referenced by DtAssistantLogFileMgr::enableComponentLog().

void DtFileConsoleWidget::setLogFile ( const QString & logFileName )

virtual

Closes the current log file and opens the new one.

References myLogFile, and updateConsole().

Referenced by DtAssistantLogFileMgr::enableComponentLog(), and DtAssistantPreferencesViewMgr::showAssistantLog().

void DtFileConsoleWidget::setName ( const QString & name )

virtual

Sets the name of this console widget, which will be used to create the window title.

References myName, and name().

Referenced by DtAssistantLogFileMgr::enableComponentLog(), DtAssistantLogFileMgr::renameComponent(), and DtAssistantPreferencesViewMgr::showAssistantLog().

void DtFileConsoleWidget::setUpdateInterval ( int interval )

virtual

Changes the update interval to the new value (in msecs).

References interval, myUpdateInterval, and myUpdateTimer.

Referenced by DtAssistantLogFileMgr::setLogUpdateInterval().

void DtFileConsoleWidget::showEvent ( QShowEvent * event )

protectedvirtual

Handles show events.

References myUpdateInterval, myUpdateTimer, and updateConsole().

void DtFileConsoleWidget::updateConsole ( )

virtualslot

Reads the latest data from the log file and outputs to the console.

References DtConsoleWidget::myIsPaused, myLogFile, and DtConsoleWidget::writeText().

Referenced by DtFileConsoleWidget(), setLogFile(), showEvent(), and DtAssistantPreferencesViewMgr::tick().

void DtFileConsoleWidget::updateNotifyLevel ( MAKRti::DtNotifyLevelType level )

virtualslot

Emits a signal when the notify level is updated with the new level and the name of this console widget.

References myId, and notifyLevelUpdated().

Referenced by DtFileConsoleWidget().

Member Data Documentation

int DtFileConsoleWidget::myId

protected

ID used to identify this console in its emitted signals.

Referenced by id(), setId(), and updateNotifyLevel().

QFile* DtFileConsoleWidget::myLogFile

protected

The log file used as input to the console display.

Referenced by DtFileConsoleWidget(), logFileName(), saveToFile(), setLogFile(), updateConsole(), and ~DtFileConsoleWidget().

QString DtFileConsoleWidget::myName

protected

Name given to this console.

Referenced by name(), saveToFile(), and setName().

int DtFileConsoleWidget::myUpdateInterval

protected

The interval, in msecs, at which the console will be refreshed.

Referenced by setUpdateInterval(), and showEvent().

QTimer* DtFileConsoleWidget::myUpdateTimer

protected

Console display refresh timer.

Referenced by DtFileConsoleWidget(), hideEvent(), setUpdateInterval(), and showEvent().

The documentation for this class was generated from the following files:
