Shows detailed statistics, presented as both trees and running graphs which can be populated from the tree data. More...

Inheritance diagram for DtFomTreeAndTableWidget:

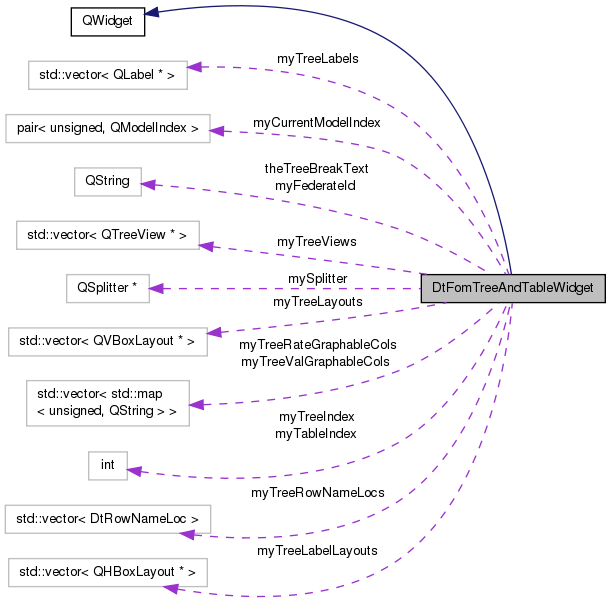

Collaboration diagram for DtFomTreeAndTableWidget:

Public Types
enum	DtRowNameLoc { DtRowNameIsHeader, DtRowNameIsFirstColumn, DtNoRowNames }
typedef std::pair< unsigned, QModelIndex >	DtTreeAndModelIndex
	Type which pairs the tree index and QModelIndex to uniquely identify an index across all trees in the widget.

Public Slots
void	processItemSelection (const QModelIndex &index)
	Processes item selection by enabling/disabling buttons and menu actions for the newly selected item.
void	processItemSelectionChange ()
	Process item selection change.
void	processCurrentChanged (const QModelIndex &, const QModelIndex &)
	Process current selection change.
void	updateSortingEnable ()
	Checks whether the trees should have sorting enabled or disabled.

Signals
void	treeItemSelected (const QModelIndex &index)

Public Member Functions
	DtFomTreeAndTableWidget (QWidget *parent=0, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtFomTreeAndTableWidget ()
	Destructor.
virtual QSize	sizeHint () const
	Returns the recommended size for the widget.
unsigned	addTree (const QString &name, QAbstractItemModel *model, DtRowNameLoc rowNameLoc, bool decorateRoot, bool hideHeader, bool alternateRowColor)
	Adds a new tree, must be called prior to initComplete.
void	addTreeAndTable (const QString &treeName, QAbstractItemModel treeModel, DtRowNameLoc treeRowNameLoc, const QString &TableName, QAbstractItemModel tableModel, DtRowNameLoc tableRowNameLoc)
void	initComplete ()
	Initializes the widget, adding trees with each of the given names.
void	saveGuiConfiguration (QFile &configFile)
	Saves the GUI configuration to the given file.
void	loadGuiConfiguration (QFile &configFile)
	Loads the GUI configuration from the given file.
void	setFederateId (const QString &federateId)
	Sets the federate identification text.
void	updateTreeLabel (const QString &name)
const QModelIndex	getCurrentSelection () const
void	expandTree () const
void	collapseItem (QStandardItem *item)
void	setSelectionBehaviorRow ()
void	refresh () const

Protected Types
enum	TableFileFormat { TextTableFormat, CsvTableFormat }

Protected Member Functions
void	initTrees ()
	Initializes all added trees.
void	connectSignals ()
	Connects our signals and slots.
void	getRowAndColNames (DtTreeAndModelIndex modelIndex, QString &rowName, QString &colName)
	Retrieves the names of the row and column for a given model index.
void	writeTreeToStream (const QTreeView *tree, QTextStream &fileStrm, TableFileFormat format)
	Writes the given tree's data as a table to the given file stream.

Protected Attributes
QSplitter *	mySplitter
	Main layout.
std::vector< QVBoxLayout * >	myTreeLayouts
	Layouts for each tree.
std::vector< QLabel * >	myTreeLabels
	Labels for each tree.
std::vector< QHBoxLayout * >	myTreeLabelLayouts
	Layouts for each tree label.
std::vector< QTreeView * >	myTreeViews
	The tree view for each tree.
unsigned int	myTreeIndex
unsigned int	myTableIndex
std::vector< DtRowNameLoc >	myTreeRowNameLocs
	The row name location for the tree.
std::vector< std::map < unsigned, QString > >	myTreeValGraphableCols
	The columns for which the value can be graphed and the units to be displayed on the y axis.
std::vector< std::map < unsigned, QString > >	myTreeRateGraphableCols
	The columns for which the rate can be graphed and the units to be displayed on the y axis.
DtTreeAndModelIndex	myCurrentModelIndex
	The model index for which to display the context menu.
QString	myFederateId
	Identifying text for the current federate.

Static Protected Attributes
static const QString	theTreeBreakText = "------------\n"
	Indicates the end of one tree's configuration data and the start of the next in a GUI config file.

Private Member Functions
	DtFomTreeAndTableWidget (const DtFomTreeAndTableWidget &)
	Copy Constructor not implemented.
DtFomTreeAndTableWidget &	operator= (const DtFomTreeAndTableWidget &)
	Assignment Operator not implemented.

Detailed Description

Shows detailed statistics, presented as both trees and running graphs which can be populated from the tree data.

Member Typedef Documentation

typedef std::pair<unsigned, QModelIndex> DtFomTreeAndTableWidget::DtTreeAndModelIndex

Type which pairs the tree index and QModelIndex to uniquely identify an index across all trees in the widget.

Member Enumeration Documentation

enum DtFomTreeAndTableWidget::DtRowNameLoc

Enumerator:

DtRowNameIsHeader
DtRowNameIsFirstColumn
DtNoRowNames

enum DtFomTreeAndTableWidget::TableFileFormat

protected

Enumerator:

TextTableFormat
CsvTableFormat

Constructor & Destructor Documentation

DtFomTreeAndTableWidget::DtFomTreeAndTableWidget	(	QWidget *	parent = `0`,
		Qt::WindowFlags	f = `0`
	)

Constructor.

References mySplitter.

DtFomTreeAndTableWidget::~DtFomTreeAndTableWidget ( )

virtual

Destructor.

DtFomTreeAndTableWidget::DtFomTreeAndTableWidget ( const DtFomTreeAndTableWidget & )

private

Copy Constructor not implemented.

Member Function Documentation

unsigned DtFomTreeAndTableWidget::addTree	(	const QString &	name,
		QAbstractItemModel *	model,
		DtRowNameLoc	rowNameLoc,
		bool	decorateRoot,
		bool	hideHeader,
		bool	alternateRowColor
	)

Adds a new tree, must be called prior to initComplete.

Specifies the tree name, column headers, and row headers. Returns the index of the tree.

References myTreeLabelLayouts, myTreeLabels, myTreeLayouts, myTreeRowNameLocs, and myTreeViews.

Referenced by addTreeAndTable().

void DtFomTreeAndTableWidget::addTreeAndTable	(	const QString &	treeName,
		QAbstractItemModel *	treeModel,
		DtRowNameLoc	treeRowNameLoc,
		const QString &	TableName,
		QAbstractItemModel *	tableModel,
		DtRowNameLoc	tableRowNameLoc
	)

References addTree(), myTableIndex, and myTreeIndex.

Referenced by DtFomStatisticsDialog::initInteractionStatsWidget(), and DtFomStatisticsDialog::initObjectStatsWidget().

void DtFomTreeAndTableWidget::collapseItem ( QStandardItem * item )

References myTreeIndex, and myTreeViews.

void DtFomTreeAndTableWidget::connectSignals ( )

protected

Connects our signals and slots.

References connect(), myTableIndex, myTreeIndex, myTreeViews, processCurrentChanged(), processItemSelection(), and updateSortingEnable().

Referenced by initComplete().

void DtFomTreeAndTableWidget::expandTree ( ) const

References myTreeIndex, and myTreeViews.

const QModelIndex DtFomTreeAndTableWidget::getCurrentSelection ( ) const

References myTreeIndex, and myTreeViews.

Referenced by processItemSelectionChange().

void DtFomTreeAndTableWidget::getRowAndColNames	(	DtTreeAndModelIndex	modelIndex,
		QString &	rowName,
		QString &	colName
	)

protected

Retrieves the names of the row and column for a given model index.

References DtRowNameIsFirstColumn, DtRowNameIsHeader, and myTreeRowNameLocs.

void DtFomTreeAndTableWidget::initComplete ( )

Initializes the widget, adding trees with each of the given names.

Trees are added in order and assigned indices, starting at 0, in order.

References connectSignals(), and initTrees().

Referenced by DtFomStatisticsDialog::initInteractionStatsWidget(), and DtFomStatisticsDialog::initObjectStatsWidget().

void DtFomTreeAndTableWidget::initTrees ( )

protected

Initializes all added trees.

References mySplitter, myTreeLabelLayouts, myTreeLayouts, and myTreeViews.

Referenced by initComplete().

void DtFomTreeAndTableWidget::loadGuiConfiguration ( QFile & configFile )

Loads the GUI configuration from the given file.

It's expected that the file will be open and ready to read the configuration.

References myTreeViews, and theTreeBreakText.

DtFomTreeAndTableWidget& DtFomTreeAndTableWidget::operator= ( const DtFomTreeAndTableWidget & )

private

Assignment Operator not implemented.

void DtFomTreeAndTableWidget::processCurrentChanged	(	const QModelIndex &	curr,
		const QModelIndex &	prev
	)

slot

Process current selection change.

References processItemSelection().

Referenced by connectSignals().

void DtFomTreeAndTableWidget::processItemSelection ( const QModelIndex & index )

slot

Processes item selection by enabling/disabling buttons and menu actions for the newly selected item.

References myCurrentModelIndex, myTreeIndex, myTreeViews, and treeItemSelected().

Referenced by connectSignals(), processCurrentChanged(), and processItemSelectionChange().

void DtFomTreeAndTableWidget::processItemSelectionChange ( )

slot

Process item selection change.

References getCurrentSelection(), and processItemSelection().

void DtFomTreeAndTableWidget::refresh ( ) const

void DtFomTreeAndTableWidget::saveGuiConfiguration ( QFile & configFile )

Saves the GUI configuration to the given file.

It's expected that the file will be open and ready to write to.

References myTreeViews, and theTreeBreakText.

void DtFomTreeAndTableWidget::setFederateId ( const QString & federateId )

inline

Sets the federate identification text.

Referenced by DtFomStatisticsDialog::updateFederateId().

void DtFomTreeAndTableWidget::setSelectionBehaviorRow ( )

References myTableIndex, myTreeIndex, and myTreeViews.

Referenced by DtFomStatisticsDialog::initInteractionStatsWidget(), and DtFomStatisticsDialog::initObjectStatsWidget().

QSize DtFomTreeAndTableWidget::sizeHint ( ) const

virtual

Returns the recommended size for the widget.

void DtFomTreeAndTableWidget::treeItemSelected ( const QModelIndex & index )

signal

Referenced by processItemSelection().

void DtFomTreeAndTableWidget::updateSortingEnable ( )

slot

Checks whether the trees should have sorting enabled or disabled.

References myTableIndex, and myTreeViews.

Referenced by connectSignals().

void DtFomTreeAndTableWidget::updateTreeLabel ( const QString & name )

References myTreeLabels.

void DtFomTreeAndTableWidget::writeTreeToStream	(	const QTreeView *	tree,
		QTextStream &	fileStrm,
		TableFileFormat	format
	)

protected

Writes the given tree's data as a table to the given file stream.

Must specify the format that should be used.

Member Data Documentation

DtTreeAndModelIndex DtFomTreeAndTableWidget::myCurrentModelIndex

protected

The model index for which to display the context menu.

Referenced by processItemSelection().

QString DtFomTreeAndTableWidget::myFederateId

protected

Identifying text for the current federate.

QSplitter* DtFomTreeAndTableWidget::mySplitter

protected

Main layout.

Referenced by DtFomTreeAndTableWidget(), and initTrees().

unsigned int DtFomTreeAndTableWidget::myTableIndex

protected

Referenced by addTreeAndTable(), connectSignals(), setSelectionBehaviorRow(), and updateSortingEnable().

unsigned int DtFomTreeAndTableWidget::myTreeIndex

protected

Referenced by addTreeAndTable(), collapseItem(), connectSignals(), expandTree(), getCurrentSelection(), processItemSelection(), and setSelectionBehaviorRow().

std::vector<QHBoxLayout*> DtFomTreeAndTableWidget::myTreeLabelLayouts

protected

Layouts for each tree label.

Referenced by addTree(), and initTrees().

std::vector<QLabel*> DtFomTreeAndTableWidget::myTreeLabels

protected

Labels for each tree.

Referenced by addTree(), and updateTreeLabel().

std::vector<QVBoxLayout*> DtFomTreeAndTableWidget::myTreeLayouts

protected

Layouts for each tree.

Referenced by addTree(), and initTrees().

std::vector<std::map<unsigned, QString> > DtFomTreeAndTableWidget::myTreeRateGraphableCols

protected

The columns for which the rate can be graphed and the units to be displayed on the y axis.

std::vector<DtRowNameLoc> DtFomTreeAndTableWidget::myTreeRowNameLocs

protected

The row name location for the tree.

Referenced by addTree(), and getRowAndColNames().

std::vector<std::map<unsigned, QString> > DtFomTreeAndTableWidget::myTreeValGraphableCols

protected

The columns for which the value can be graphed and the units to be displayed on the y axis.

std::vector<QTreeView*> DtFomTreeAndTableWidget::myTreeViews

protected

The tree view for each tree.

Referenced by addTree(), collapseItem(), connectSignals(), expandTree(), getCurrentSelection(), initTrees(), loadGuiConfiguration(), processItemSelection(), saveGuiConfiguration(), setSelectionBehaviorRow(), and updateSortingEnable().

const QString DtFomTreeAndTableWidget::theTreeBreakText = "------------\n"

staticprotected

Indicates the end of one tree's configuration data and the start of the next in a GUI config file.

Referenced by loadGuiConfiguration(), and saveGuiConfiguration().

The documentation for this class was generated from the following files:

Public Types

Public Slots

Signals

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
