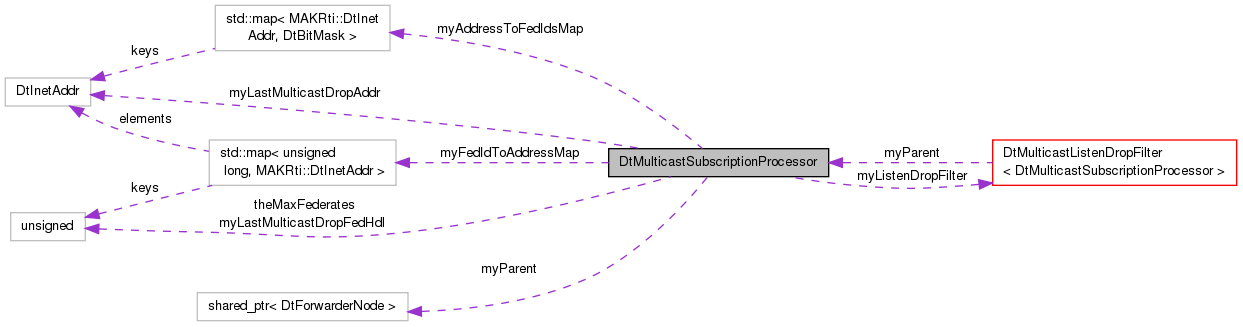

Collaboration diagram for DtMulticastSubscriptionProcessor:

Public Member Functions
	DtMulticastSubscriptionProcessor (DtBoost::shared_ptr< DtForwarderNode > parent)
	Constructor.
virtual	~DtMulticastSubscriptionProcessor ()
	Destructor.
bool	listenToMulticastGroup (const DtInetAddrAndPort &src, const DtNetMulticastConfigureMsg *msg)
	Multicast Configure 'listen' message received callback.
bool	dropMulticastGroup (const DtInetAddrAndPort &src, const DtNetMulticastConfigureMsg *msg)
	Multicast Configure 'drop' message received callback.
bool	processDestinationList (const DtInetAddrAndPort &src, DtForwarderPort::DtAddressPortList &destinations)
	Set forwarding destination list based on source (eg.
unsigned int	maxFederates () const

Static Public Member Functions
static void	setMaxFederates (unsigned int maxFederates)
	Set/Get size of bitmask utilized in DtAddrToIdMaskMap.

Protected Types
typedef std::map< unsigned long, MAKRti::DtInetAddr >	DtIdToAddrMap
	DtMulticastSubscriptionProcessor::DtIdToAddrMap defines a map indexed by federate handle associating remote federates with the multicast addresses that they are listening to on the forwarders LAN.
typedef std::map < MAKRti::DtInetAddr, DtBitMask >	DtAddrToIdMaskMap
	DtMulticastSubscriptionProcessor::DtAddrToIdMaskMap defines a map indexed by multicast addresses associating those addresses with remote federates (via a destination mask) which want the forwarder to listen on that address.

Protected Member Functions
virtual bool	forceDropMulticastGroup (const MAKRti::DtInetAddr &addr)
	TO DO – fault tolerance implementation deferred.
unsigned long	federateIndex (unsigned long federateHandle) const
	DtAddrToIdMaskMap helper routine.

Protected Attributes
DtBoost::shared_ptr < DtForwarderNode >	myParent
DtIdToAddrMap	myFedIdToAddressMap
DtAddrToIdMaskMap	myAddressToFedIdsMap
DtMulticastListenDropFilter < DtMulticastSubscriptionProcessor > *	myListenDropFilter
	Filter to detect DtMcastConfigureMsgKind messages.
unsigned long	myLastMulticastDropFedHdl
	It's possible for the DtMulticastSubscriptionProcessor to process the same message twice, once for sending to the LAN, once for sending to the other forwarders.
MAKRti::DtInetAddr	myLastMulticastDropAddr

Static Protected Attributes
static unsigned int	theMaxFederates = 100
	Count of maximum number of federates to include in DtAddrToIdMaskMap.

Private Member Functions
	DtMulticastSubscriptionProcessor ()
	Default constructor unimplemented.

Member Typedef Documentation

typedef std::map< MAKRti::DtInetAddr, DtBitMask > DtMulticastSubscriptionProcessor::DtAddrToIdMaskMap

protected

DtMulticastSubscriptionProcessor::DtAddrToIdMaskMap defines a map indexed by multicast addresses associating those addresses with remote federates (via a destination mask) which want the forwarder to listen on that address.

typedef std::map< unsigned long, MAKRti::DtInetAddr > DtMulticastSubscriptionProcessor::DtIdToAddrMap

protected

DtMulticastSubscriptionProcessor::DtIdToAddrMap defines a map indexed by federate handle associating remote federates with the multicast addresses that they are listening to on the forwarders LAN.

Constructor & Destructor Documentation

DtMulticastSubscriptionProcessor::DtMulticastSubscriptionProcessor ( )

private

Default constructor unimplemented.

DtMulticastSubscriptionProcessor::DtMulticastSubscriptionProcessor ( DtBoost::shared_ptr< DtForwarderNode > parent )

Constructor.

References dropMulticastGroup(), listenToMulticastGroup(), myListenDropFilter, myParent, and processDestinationList().

DtMulticastSubscriptionProcessor::~DtMulticastSubscriptionProcessor ( )

virtual

Destructor.

References myListenDropFilter, and myParent.

Member Function Documentation

bool DtMulticastSubscriptionProcessor::dropMulticastGroup	(	const DtInetAddrAndPort &	src,
		const DtNetMulticastConfigureMsg *	msg
	)

Multicast Configure 'drop' message received callback.

References federateIndex(), DtNetMsgHeader::fedHandle, DtNetMulticastConfigureMsg::header, DtNetMulticastConfigureMsg::inetAddrFamily, DtNetMulticastConfigureMsg::multicastAddr, myAddressToFedIdsMap, myFedIdToAddressMap, myLastMulticastDropAddr, myLastMulticastDropFedHdl, and myParent.

Referenced by DtMulticastSubscriptionProcessor().

unsigned long DtMulticastSubscriptionProcessor::federateIndex ( unsigned long federateHandle ) const

protected

DtAddrToIdMaskMap helper routine.

References maxFederates().

Referenced by dropMulticastGroup(), and listenToMulticastGroup().

bool DtMulticastSubscriptionProcessor::forceDropMulticastGroup ( const MAKRti::DtInetAddr & addr )

protectedvirtual

TO DO – fault tolerance implementation deferred.

TO DO – fault tolerance implementation deferred Force drop of multicast group if connection(s) lost

References myAddressToFedIdsMap, and myParent.

bool DtMulticastSubscriptionProcessor::listenToMulticastGroup	(	const DtInetAddrAndPort &	src,
		const DtNetMulticastConfigureMsg *	msg
	)

Multicast Configure 'listen' message received callback.

References federateIndex(), DtNetMsgHeader::fedHandle, DtNetMulticastConfigureMsg::header, DtNetMulticastConfigureMsg::inetAddrFamily, maxFederates(), DtNetMulticastConfigureMsg::multicastAddr, myAddressToFedIdsMap, myFedIdToAddressMap, myLastMulticastDropAddr, myLastMulticastDropFedHdl, and myParent.

Referenced by DtMulticastSubscriptionProcessor().

unsigned int DtMulticastSubscriptionProcessor::maxFederates ( ) const

References theMaxFederates.

Referenced by federateIndex(), listenToMulticastGroup(), and setMaxFederates().

bool DtMulticastSubscriptionProcessor::processDestinationList	(	const DtInetAddrAndPort &	src,
		DtForwarderPort::DtAddressPortList &	destinations
	)

Set forwarding destination list based on source (eg.

which inlet the message was received on) and forwarder network configuration

References myParent.

Referenced by DtMulticastSubscriptionProcessor().

void DtMulticastSubscriptionProcessor::setMaxFederates ( unsigned int maxFederates )

static

Set/Get size of bitmask utilized in DtAddrToIdMaskMap.

References maxFederates(), and theMaxFederates.

Member Data Documentation

DtAddrToIdMaskMap DtMulticastSubscriptionProcessor::myAddressToFedIdsMap

protected

Referenced by dropMulticastGroup(), forceDropMulticastGroup(), and listenToMulticastGroup().

DtIdToAddrMap DtMulticastSubscriptionProcessor::myFedIdToAddressMap

protected

Referenced by dropMulticastGroup(), and listenToMulticastGroup().

MAKRti::DtInetAddr DtMulticastSubscriptionProcessor::myLastMulticastDropAddr

protected

Referenced by dropMulticastGroup(), and listenToMulticastGroup().

unsigned long DtMulticastSubscriptionProcessor::myLastMulticastDropFedHdl

protected

It's possible for the DtMulticastSubscriptionProcessor to process the same message twice, once for sending to the LAN, once for sending to the other forwarders.

Keep track of the last message to prevent this.

Referenced by dropMulticastGroup(), and listenToMulticastGroup().

DtMulticastListenDropFilter<DtMulticastSubscriptionProcessor>* DtMulticastSubscriptionProcessor::myListenDropFilter

protected

Filter to detect DtMcastConfigureMsgKind messages.

Referenced by DtMulticastSubscriptionProcessor(), and ~DtMulticastSubscriptionProcessor().

DtBoost::shared_ptr<DtForwarderNode> DtMulticastSubscriptionProcessor::myParent

protected

Referenced by dropMulticastGroup(), DtMulticastSubscriptionProcessor(), forceDropMulticastGroup(), listenToMulticastGroup(), processDestinationList(), and ~DtMulticastSubscriptionProcessor().
