DtRtiShmQNetMgr Class Reference

The DtRtiShmQNetMgr class implements a network I/O socket manager to filter and exchange messages between a shared memory queue manager and the network. More...

Inheritance diagram for DtRtiShmQNetMgr:

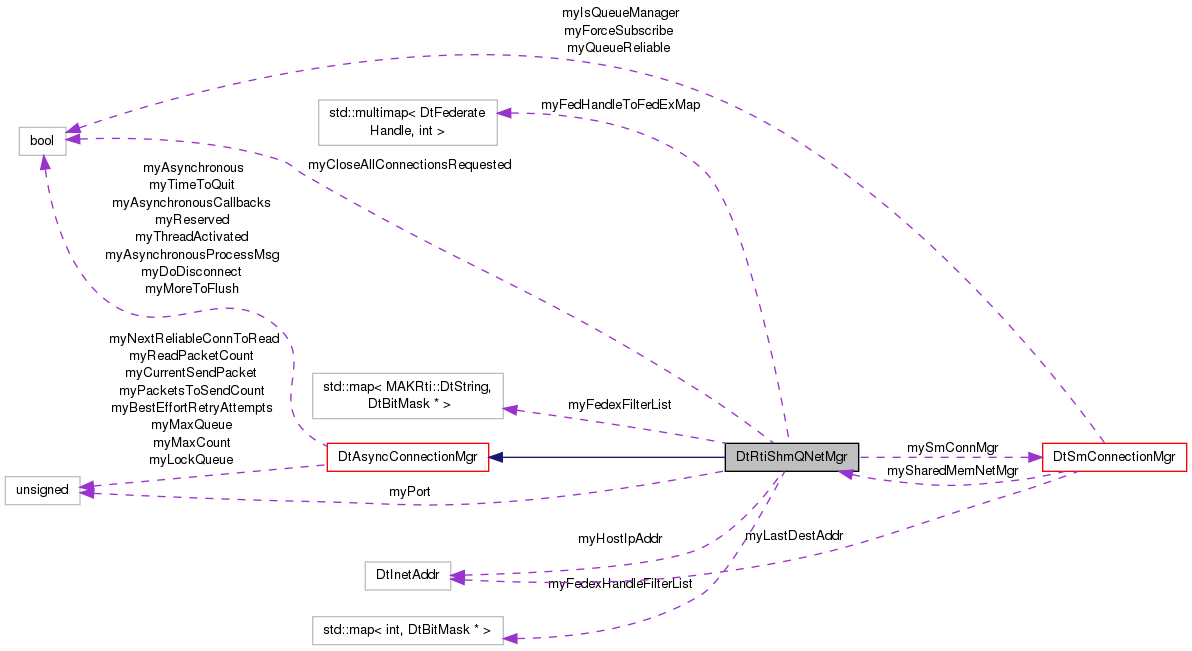

Collaboration diagram for DtRtiShmQNetMgr:

Public Member Functions
virtual	~DtRtiShmQNetMgr ()
	Destructor.
virtual int	init (DtRIDParameters *params)
	Initialize the RTI's exercise parameters and connections Users who wish to override the MAK RTI's network connections should override this function or initConnections()
virtual void	setSmConnMgr (DtSmConnectionMgr *smConnMgr)
	Allow the DtRtiShmQNetMgr to access the shared memory connection manager directly to simplify forwarding messages.
virtual void	enrollSmFederate (DtFederateHandle federateHandle, int fedExHandle)
	Maintanence methods for Federate to FedEx handle map.
virtual void	dropSmFederate (DtFederateHandle federateHandle, int fedExHandle)
Public Member Functions inherited from DtAsyncConnectionMgr
virtual	~DtAsyncConnectionMgr ()
virtual void	setFederateMgr (DtFederateMgr *fedMgrPtr)
	Set the federate manager.
virtual void	shutdown ()
	Request shutdown of communication activities.
virtual bool	isAsynchronous ()
	return if in asynchronous mode
virtual void	disconnectFederation ()
	The LRC disassociates its connections from the federation.
virtual void	connectFederation (DtLogicalTimeFactory *logicalTimeFactoryPtr, MAKRti::DtString fedExName, DtFederateHandle fedHandle, int fedExHandle)
	The LRC associates its federation information with its network connections.
virtual void	queueMsg (DtRtiMsg *msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	method uses a mutex to lock the send queue while adding a a packet to the queue
virtual int	send (const DtRtiMsg &msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	Send a message.
virtual int	sendAndDelete (DtRtiMsg *msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	Send a message and delete the message after it has been sent Retraction record of timestamped messages must made here.
virtual bool	tick ()
	Process the connections for sychronous IO or callbacks.
virtual bool	processConnections ()
	Check all the connections and process any incomming messages Return boolean: message was received? (i.e.
virtual DtRtiMsg *	getMessage ()
	Get a message if one exists Message must be destroyed by caller.
virtual DtNetReadStatus	handleMsg (DtRtiMsg &msg)
	Handle this message by either processing it or queueing it if save pending.
virtual bool	flush ()
	Does nothing in Async.
virtual void	workerThread ()
	worker thread (called by run)
virtual bool	wait (MAKRti::DtTime periodInSeconds, bool unlockWhileWaiting=false)
	Wait for data to be ready or the given period of time to expire Return boolean: data is ready for reading?
virtual int	readFileDescriptor (RTI::TransportType transport)
	Returns a file descriptor on which data will be present for the given transport type whenever there is incoming data waiting to be read.
virtual int	waitEvent ()
	return the waiting handle
virtual void	signalReceiveEvent ()
	Signal the receive event Used by IO thread to signal federate thread.
virtual void	clearReceiveEvent ()
	Clear receive event Used by federate thread to clear signal.
virtual void	signalSendEvent ()
	Signal the send event Used by federate thread to signal IO thread.
virtual void	clearSendEvent ()
	Clear send event Used by IO thread to clear signal.
virtual void	yield ()
	Yield processing to allow more data to arrive.
Public Member Functions inherited from DtConnectionMgr
virtual	~DtConnectionMgr ()
	Destructor.
virtual void	initParams (DtRIDParameters *params)
	Initialize the parameters used by the connection manager.
virtual void	enableSmartForwarding (bool enableSmartForwarding, bool enableInternalMessageSmartForwarding, int maxNumFederates)
	Enables or disables smart forwarding.
virtual DtRIDParameters *	params ()
	Get a pointer to the RID parameters.
virtual bool	isShuttingDown ()
	Shutdown acknowledged.
virtual int	sendStamped (const DtRtiMsg &msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &=MAKRti::DtInetAddr::inaddrAny())
	Send a message stamped with fedEx name and federate ID Retraction record of timestamped messages made here.
virtual int	sendStampedAnonymous (const DtRtiMsg &msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	Send a message stamped with fedEx name, but not federate ID Does not make retraction record of sent messages.
virtual int	sendDirectedAndDelete (DtRtiMsg *msg, MAKRti::DtTransportType transport, DtFederateHandle fedHandle, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	Send and delete a message stamped with federate ID These messages are sent to a specific entity by using internal smart forwarding if enabled.
virtual int	sendStampedAndDelete (DtRtiMsg *msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &=MAKRti::DtInetAddr::inaddrAny())
	Send and delete a message stamped with fedEx name and federate ID Retraction record of timestamped messages made here.
virtual void	sendLoopback (DtRtiMsg *msg)
	Send a message to be processed by this federate.
virtual bool	drainBacklog (MAKRti::DtTime timeout=0.0)
	Attempts to flush backlogged messages repeatedly until either all messages are sent or the timeout expires.
virtual void	activateTransmitDelay ()
	Activate a delay timer (based on RID) used by managers to control transmission of internal state Expired delays disable activation for current tick.
virtual bool	delayTransmit () const
	Return true if retransmission of internal state should be delayed.
virtual void	testTransmitDelay ()
	Test if retransmit delay time has expired.
virtual void	activateAutoProvideDelay ()
	Activate a delay timer (based on RID) used by managers to control timing for autoprovide callbacks Expired delays disable activation for current tick.
virtual bool	delayAutoProvide () const
	Return true if autoprovides should be delayed.
bool	allProvideUpdateRequestsDelayed () const
	Return true if all provide update calls should be delayed (not just auto provide).
virtual void	testAutoProvideDelay ()
	Test if autoprovide delay time has expired.
virtual void	processThrottledMessages ()
	Process messages in throttle queue that are being sent at specified rate.
virtual void	flushThrottledMessages ()
	Flush messages in throttle queue.
virtual unsigned long	incrementServiceCallCount ()
	Increment a counter to identify the service call being processed.
virtual unsigned long	serviceCallCount () const
	Return service call counter.
virtual void	updateBufferSizes ()
	Update Buffer sizes from Rid params object.
virtual DtNetReadStatus	momProcessMsg (const DtRtiMsg &msg)
	apply MOM callbacks to message
DtFederateMgr *	fedMgr ()
	The federate manager.
DtPartnerMgr *	partnerMgr ()
	Partner manager.
virtual MAKRti::DtTransportType	internalTransportType () const
	Returns the TransportType associated for the internal connection.
virtual bool	setupSelectParams (DtSelectParam *params)
	adds Read File descriptors to a DtSelectParams Return boolean: file descriptor was added? In case no descriptors have been added, should sleep instead of select as there will be no input.
virtual bool	hasTransport (MAKRti::DtTransportType trans)
	returns true if the specified transport type is available
virtual DtRtiMsg *	create (DtRtiMsgKind kind)
	Request the RTI message factory for a msg.
virtual void	setMsgFactory (DtRtiMsgFactory *fact)
	Get/Set the message factory.
virtual DtRtiMsgFactory *	msgFactory () const
virtual void	forceDropMulticastGroup (const MAKRti::DtInetAddr &addr, const MAKRti::DtInetAddr &netInterface=MAKRti::DtInetAddr::inaddrAny())
	Override listen count and force drop multicast address.
virtual bool	repairFederationConnection ()
	Attempt to re-establish a broken connection to the federation Returns true if successful.
virtual RTI::FederateAmbassador *	fedAmb () const
	Return pointer to Federate Ambassador.
virtual void	addFedAmbWrapper (MAKRti::DtString const &name, DtFedAmbWrapper *fedAmb)
	Register a Federate Wrapper with the RTI A federate wrapper allows your plugin to monitor any RTI invoked services.
virtual bool	addFedAmbWrapperAtFront (MAKRti::DtString const &name, DtFedAmbWrapper *fedAmb)
	When the fedAmb Wrapper is installed make certain that this particular wrapper is the first to process the msg.
virtual DtFedAmbWrapper *	removeFedAmbWrapper (MAKRti::DtString const &name)
	Remove federate wrapper.
virtual unsigned long	connectionId () const
	Return connection ID.
virtual DtFederateHandle	fedHandle () const
	Return federate handle.
virtual unsigned long	fedExHandle () const
	Return federation execution handle.
virtual const MAKRti::DtString &	fedExName () const
	Return federation execution name.
virtual void	setFederateHandle (DtFederateHandle handle)
	set federate handle ( this is used by restore and should not be called otherwise )
virtual DtLogicalTimeFactory *	logicalTimeFactory (DtFederationHandle federationHandle=0) const
	Get the factory for the given federation that can create logical time/interval instances.
virtual void	addLogicalTimeFactory (DtFederationHandle federationHandle, DtLogicalTimeFactory *timeFactory)
	Add the factory for the given federation that can create logical time/interval instances.
virtual void	removeLogicalTimeFactory (DtFederationHandle federationHandle)
	Remove the factory for the given federation that can create logical time/interval instances.
virtual DtRtiMsgQueue *	msgQueue ()
	Set/Get the time managed message queue.
virtual void	setMsgQueue (DtRtiMsgQueue *msgQueuePtr)
virtual DtRetractInfoList *	retractList ()
	Set/Get the time managed retract list.
virtual void	setRetractList (DtRetractInfoList *listPtr)
virtual bool	saveInProgress () const
	Set/Get the flag indicating whether a save is in progress Unless a message is marked safe to process during a save a received message is queued for later processing.
virtual void	setSaveInProgress (bool saveIsInProgress)
virtual bool	restoreInProgress () const
	Set/Get the flag indicating whether a restore is in progress Unless a message is marked safe to process during a save a received message is queued for later processing.
virtual void	setRestoreInProgress (bool saveIsInProgress)
virtual bool	saveRestoreInProgress () const
	Return bool: Is save or restore in progress.
virtual void	setMetadataControl (DtMetadataType type, bool onOff)
	Set/Get metadata control indicators.
virtual bool	isMetadataEnabled (DtMetadataType type)
virtual void	sendShutdownForwarderMsg ()
	Called by the rtiExec when it is exiting, only if it started this forwarder.
virtual unsigned long	sequenceNumber () const
	Get the next sequence number.
virtual void	incrementSequenceNumber ()
	Increment the sequence number.
virtual int	sendDirectedStampedAndDelete (DtRtiMsg *msg, MAKRti::DtTransportType transport, DtFederateHandle fedHandle, const MAKRti::DtInetAddr &=MAKRti::DtInetAddr::inaddrAny())
virtual int	sendDirectedStampedAndDelete (DtRtiMsg *msg, MAKRti::DtTransportType transport, DtBitMask *sendMask, const MAKRti::DtInetAddr &=MAKRti::DtInetAddr::inaddrAny())
virtual int	sendStampedAnonymousAndDelete (DtRtiMsg *msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
virtual int	sendDirectedStampedAnonymousAndDelete (DtRtiMsg *msg, MAKRti::DtTransportType transport, DtFederateHandle fedHandle, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
virtual void	setProcessingTick (bool processingTick)
	Set/Get tick processing state.
virtual bool	processingTick () const
	Set/Get tick processing state.
virtual void	setEvokingCallbacks (bool evokingCbs)
	Set/Get the evoke callbacks state.
virtual bool	evokingCallbacks () const
	Set/Get the evoke callbacks state.
virtual void	addPendingMsg (DtRtiMsg *msg)
	Add/get/process a pending message Messages will be processed during the next tick.
virtual bool	processPendingMsg ()
	Add/get/process a pending message Messages will be processed during the next tick.
virtual DtRtiMsg *	nextPendingMsg ()
	Add/get/process a pending message Messages will be processed during the next tick.
virtual void	emptyPendingMsgList ()
	Add/get/process a pending message Messages will be processed during the next tick.
virtual int	pendingMsgCount ()
	Add/get/process a pending message Messages will be processed during the next tick.
virtual void	addMsgCallback (DtRtiMsgKind msgKind, DtRtiMsgCbMgr::DtCallbackFcn fcn, void *usr, bool isMomCallback=false)
	Message Callbacks These callback functions operate on all of the connections.
virtual void	removeMsgCallback (DtRtiMsgKind msgKind, DtRtiMsgCbMgr::DtCallbackFcn fcn, void *usr, bool isMomCallback=false)
	Message Callbacks These callback functions operate on all of the connections.
virtual void	addWildcardMsgCallback (DtRtiMsgCbMgr::DtCallbackFcn fcn, void *usr, bool isMomCallback=false)
	Message Callbacks These callback functions operate on all of the connections.
virtual void	removeWildcardMsgCallback (DtRtiMsgCbMgr::DtCallbackFcn fcn, void *usr, bool isMomCallback=false)
	Message Callbacks These callback functions operate on all of the connections.
virtual DtRtiConnection *	reliableConn () const
	Returns the connection created by createTcpConn().
virtual DtRtiConnection *	bestEffortConn () const
	Returns the connection created by createBestEffortConn().
virtual void	listenToMulticastGroup (const MAKRti::DtInetAddr &addr, const MAKRti::DtInetAddr &netInterface=MAKRti::DtInetAddr::inaddrAny())
	Add/Drop multicast groups from the best effort connection Listens are accumulated and drops decrement.
virtual void	dropMulticastGroup (const MAKRti::DtInetAddr &addr, const MAKRti::DtInetAddr &netInterface=MAKRti::DtInetAddr::inaddrAny())
	Add/Drop multicast groups from the best effort connection Listens are accumulated and drops decrement.
virtual bool	lockServiceCall ()
	Called by asynchronous processing thread to gain mutually exclusive access to RTI managers.
virtual void	unlockServiceCall ()
	Called by asychronous processing thread to release mutually exclusive access to RTI managers.
virtual bool	serviceCallLocked ()
	Called by RTI Ambassador services query if mutex was set using lockServiceCall()
virtual bool	enterServiceCall ()
	Called by RTI Ambassador services to gain mutually exclusive access to RTI managers.
virtual void	exitServiceCall ()
	Called by RTI Ambassador services to release mutually exclusive access to RTI managers.
virtual bool	inServiceCall ()
	Called by RTI Ambassador services query if mutex was set using enterServiceCall()

Static Public Member Functions
static DtConnectionMgr *	create (DtRIDParameters *p)
	Creates an instance of a DtConnectionMgr; If an alternate creator function has been set, that creator function will be called from within this function.
Static Public Member Functions inherited from DtAsyncConnectionMgr
static DtConnectionMgr *	create (DtRIDParameters *p, bool isFederate=false, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient=DtBoost::shared_ptr< DtRtiAssistantLrcClient >())
	Creator function.
static void *	run (void *usr)
	thread start calls worker thread
Static Public Member Functions inherited from DtConnectionMgr
static void	setCreatorFunction (DtConnectionMgrCreator fn)
	Register a creator function.
static void	setInternalCreatorFunction (DtConnectionMgrCreator fn)
	Register alternate internal creators.

Protected Types
typedef std::multimap < DtFederateHandle, int >	DtFedHandleToFedExHandleMap
	Stores all FedEx handles associated with each Federate Handle serviced by shared memory queue manager.
typedef std::map< int, DtBitMask * >	DtRouteMaskFilterByFedexHandle
	Destination list masks.
typedef std::map < MAKRti::DtString, DtBitMask * >	DtRouteMaskFilterByFedexName

Protected Member Functions
	DtRtiShmQNetMgr (DtRIDParameters *params)
	Default Constructor.
	DtRtiShmQNetMgr (const DtRtiShmQNetMgr &orig)
	Copy Ctor and Assignment Operator unimplemented.
DtRtiShmQNetMgr &	operator= (const DtRtiShmQNetMgr &orig)
virtual bool	processConnection (DtRtiConnection *conn, MAKRti::DtTransportType trans)
	Override base class methods to allow special processing on inbound messages.
virtual DtNetReadStatus	processMsg (const DtRtiMsg &msg)
	this function applies the callbacks to the message
virtual void	applyOutboundMsgFilters (DtRtiMsg *msg)
	Special processing is needed on certain inbound and outbound messages.
virtual DtNetReadStatus	filterReliableLoopbacks (const DtRtiMsg &msg)
virtual bool	performMulticastDiscovery ()
	virtual void addOutboundMsgFilter( DtMessageFilter *filter ); virtual void removeOutboundMsgFilter( DtMessageFilter *filter );
Protected Member Functions inherited from DtAsyncConnectionMgr
	DtAsyncConnectionMgr (DtRIDParameters *params, bool isFederate=false, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient=DtBoost::shared_ptr< DtRtiAssistantLrcClient >())
virtual void	doDisconnectFederation ()
	Perform actual disconnect.
virtual bool	doWait (MAKRti::DtTime period)
	Perform actual wait, called by wait function.
virtual void	processCallbackMsg (const DtFedAmbCallbackMsg &callbackMsg)
	Message callback.
virtual DtQueuePacket *	getPacket ()
	Get a packet off of receive buffer Receive buffer is refreshed if empty.
virtual bool	sendPackets ()
	Send buffered packets.
virtual DtNetReadStatus	receivePacket (DtRtiConnection *conn, MAKRti::DtTransportType transportType, unsigned int &receivedPacketCount)
	Process a packet from the given connection.
virtual bool	receivePackets ()
	Process connections and either place packets in receive queue or process messages directly if asynchronous callbacks are enabled.
virtual DtNetReadStatus	processMsgQueueCallbacks (DtRtiMsg &msg, unsigned int &receivedPacketCount)
	Process message but queue any resulting federate ambassador callbacks.
virtual void	processPendingMsgQueueCallbacks ()
	Process a pending message but queue any resulting federate ambassador callbacks.
virtual void	processPendingMsgMakeCallbacks ()
	Process a pending message and make any resulting federate ambassador callbacks.
virtual void	setMessageTracking (DtRtiMsg &msg)
	Set the appropriate tracking values in the message.
virtual void	waitOnIO (DtSelectParamWithWrite &params)
	Make processing wait on IO.
virtual void	destroyPackets ()
	Destroy any packets in the send and receive buffers and queues.
virtual void	destroyRelConn ()
	Destroy reliable connection.
virtual void	destroyAncillaryRelConn (DtRtiConnection *conn)
	Destroy the given ancillary reliable connection.
virtual void	destroyAncillaryRelConns ()
	Destroy ancillary reliable connections.
virtual void	startAsynchronousProcessing ()
	Start asynchronous processing.
virtual void	stopAsynchronousProcessing ()
	Stop asynchronous processing.
Protected Member Functions inherited from DtConnectionMgr
	DtConnectionMgr (DtRIDParameters *params, bool isFederate=false, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient=DtBoost::shared_ptr< DtRtiAssistantLrcClient >())
	Constructor is performed through create.
virtual int	initConnections ()
	Initialize the RTI's exercise connections Users who wish to override the MAK RTI's network connections should override this function.
virtual bool	createBestEffortConn ()
	Create best effort connection; Returns true if successful Could be that it already exist in which case it is still used.
virtual void	destroyBestEffortConn ()
	Destroy best effort connection.
virtual bool	createRelConn ()
	Create reliable connection; Returns true if successful.
virtual unsigned int	createAncillaryRelConns ()
	Create ancillary reliable connections; Returns count of successful connections.
virtual unsigned int	ancillaryReliableConnsCount () const
	Report number of ancillary reliable connections successfully established.
virtual bool	checkRelConn ()
	Check the reliable connection status.
virtual void	processReadResult (int readError)
	Process read result to print error diagnostics for example.
virtual int	sendStampedUtilityFunction (DtRtiMsg *msg, MAKRti::DtTransportType transport, bool performDelete, bool isAnonymous, const MAKRti::DtInetAddr &addr)
	Called by sendStamped, sendStampedAndDelete, sendAnonymousStamped, etc.

Protected Attributes
MAKRti::DtInetAddr	myHostIpAddr
	Need to know host IP address and port used for outbound best effort messages so looped back multicast messages can be filtered.
unsigned int	myPort
DtSmConnectionMgr *	mySmConnMgr
bool	myCloseAllConnectionsRequested
	Connection shutdown requested?
DtFedHandleToFedExHandleMap	myFedHandleToFedExMap
DtRouteMaskFilterByFedexHandle	myFedexHandleFilterList
DtRouteMaskFilterByFedexName	myFedexFilterList
Protected Attributes inherited from DtAsyncConnectionMgr
bool	myTimeToQuit
bool	myThreadActivated
bool	myAsynchronous
bool	myAsynchronousCallbacks
bool	myAsynchronousProcessMsg
bool	myReserved
bool	myMoreToFlush
bool	myDoDisconnect
DtMutex *	mySendLock
DtMutex *	myReceiveLock
pthread_t	myThreadHandle
int	mySendEvent [2]
int	myRecvEvent [2]
float	myIoPeriod
float	myTickWaitPeriod
unsigned int	myMaxQueue
unsigned int	myMaxCount
unsigned int	myLockQueue
long	myReceivedBufferCurrent
	Federate thread buffers.
long	myReceivedBufferCount
DtQueuePacket **	myReceivedBuffer
unsigned int	myCurrentSendPacket
	IO thread buffers.
unsigned int	myPacketsToSendCount
std::vector< DtQueuePacket * >	mySendPacketBuffer
std::vector< DtQueuePacket * >	myRecvPacketBuffer
unsigned int	myReadPacketCount
	Number of packets read until time to yield (== max count)
MAKRti::DtClock	myBestEffortRetryTimer
	Mechanism to retry best effort transmits which block.
unsigned int	myBestEffortRetryAttempts
MAKRti::DtTime	myBestEffortTimeToRetry
MAKRti::DtList *	mySendQueue
	Exchange queues between federate and IO threads these lists are used in asynchronous mode.
MAKRti::DtList *	myReceiveQueue
DtCallbackQueue *	myCallbackQueue
	A federate ambassador wrapper that queues up federate ambassador calls.
DtThreadSafe< bool >	myAsynchronousConnectionIsOk
unsigned int	myNextReliableConnToRead
	Mechanism to track which reliable connection to fetch packets from when multiple ancillary reliable connections exist.
Protected Attributes inherited from DtConnectionMgr
DtRtiMsgFactory *	myMsgFactory
	The message factory.
DtRtiConnection *	myBestEffortConn
	The best effort connection.
DtRtiConnection *	myPrimaryReliableConn
	The primary reliable connection.
DtRtiConnectionList	myReliableConns
DtRIDParameters *	myParams
	The RTI initialization parameters.
DtFederateMgr *	myFedMgr
	The federate manager.
std::map< MAKRti::DtInetAddr, DtMulticastEntry * >	myMulticastGroups
	LRC listening to these multicast groups.
DtFedAmbWrapperChain	myFedAmbChain
	Chain of Federate Ambassador Wrappers.
DtDfltMsgFactory	myDfltMsgFactory
	Default message factory.
DtRtiMsgCbMgr	myMsgCbMgr
	Message callback manager.
DtRtiMsgCbMgr	myMomMsgCbMgr
	MOM message callback manager.
MAKRti::DtTransportType	myInternalTransportType
	Transport type used for internal messages.
bool	myAddTransportTypeMetadata
	Metadata control indicators.
bool	myAddMcastMetadata
std::map< DtFederationHandle, DtLogicalTimeFactory * >	myLogicalTimeFactories
	Factories for creating logical time instances.
DtRtiMsgQueue *	myMsgQueue
	Message queue.
DtRetractInfoList *	myRetractList
	Message retractions.
std::list< DtRtiMsg * >	myPendingMessages
	Pending messages.
bool	mySaveInProgress
	Save status.
bool	myRestoreInProgress
	Restore status.
unsigned long	myConnectionId
	"unique" identifier for this connMgr (if there is a good source of unique ids)
MAKRti::DtString	myFedExName
	Federation execution name.
DtFederateHandle	myFedExHandle
	Federation execution handle.
DtFederateHandle	myFederateHandle
	Federate handle.
unsigned long	myReceivedMsgCount
	Number of received messages.
unsigned long	mySentMsgCount
	Number of sent messages.
MAKRti::DtList	myWorkingMsgId
	Diagnostic message ID stack.
DtMessageThrottle *	myMessageThrottle
	Message output throttle.
bool	myAllProvideUpdateRequestsDelayed
	Extend auto provide delay to all attribute update requests.
DtMutex *	myCallbackMutex
	Mutex to synchronize access to RTI and Federate Ambassadors.
unsigned int	myLockService
	RTI is processing a message.
unsigned int	myInService
	RTI is processing a service call.
MAKRti::DtClock	myClock
	Clock for timing.
DtBoost::shared_ptr < DtRtiAssistantLrcClient >	myAssistantClient
	The assistant client.
bool	myIsFederate
	Whether this manager is for a federate.
unsigned long	myVersionConflictCount
	The count of message version conflicts.
MAKRti::DtTime	myVersionConflictNoticationTimer
unsigned long	mySizeMismatchCount
	The count of message size mismatches.
MAKRti::DtTime	mySizeMismatchNoticationTimer
DtPartnerMgr *	myPartnerMgr
unsigned long	myServiceCallCount
	Service call counter - increment before processing each service call.
bool	myProcessingTick
	Tick processing state.
bool	myEvokingCallbacks
	Indicates if callbacks are being evoked.
bool	myProcessingMessage
	Indicates if message is being processed.
bool	myShutdown
	Shutdown requested.
bool	myShuttingDown
	Shutdown acknowledged.

Additional Inherited Members
Public Types inherited from DtConnectionMgr
typedef DtConnectionMgr *(*	DtConnectionMgrCreator )(DtRIDParameters *p, bool isFederate, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient)
	Connection Manager Creator.
Static Protected Member Functions inherited from DtAsyncConnectionMgr
static void	processCallbackMsg (const DtFedAmbCallbackMsg &callbackMsg, void *usr)
	Message callback.
Static Protected Attributes inherited from DtConnectionMgr
static DtConnectionMgrCreator	theCreator = 0
	The plugin creator.
static DtConnectionMgrCreator	theInternalCreator = 0
	The internal creator.

Detailed Description

The DtRtiShmQNetMgr class implements a network I/O socket manager to filter and exchange messages between a shared memory queue manager and the network.

It is derived from the DtAsyncConnectionMgr class. DtRtiShmQNetMgr manages connections and message distribution between co-located federates communicating via shared memory and remote federates (via UDP multicast) and remote Forwarders (if any).

Member Typedef Documentation

typedef std::multimap< DtFederateHandle, int > DtRtiShmQNetMgr::DtFedHandleToFedExHandleMap

protected

Stores all FedEx handles associated with each Federate Handle serviced by shared memory queue manager.

Keyed by FedHandle since it is likely there will be multiple federates within the same FedEx sharing shared memory, so the federate handles will likely be more unique.

typedef std::map< int, DtBitMask* > DtRtiShmQNetMgr::DtRouteMaskFilterByFedexHandle

protected

Destination list masks.

For each federation execution which has federates serviced by the shared memory queue a destination list mask is maintained which can be used to alter the destination list in all outbound messages.

typedef std::map< MAKRti::DtString, DtBitMask* > DtRtiShmQNetMgr::DtRouteMaskFilterByFedexName

protected

Constructor & Destructor Documentation

DtRtiShmQNetMgr::DtRtiShmQNetMgr ( DtRIDParameters *  params )

protected

Default Constructor.

Referenced by create().

DtRtiShmQNetMgr::~DtRtiShmQNetMgr ( )

virtual

Destructor.

References myFedHandleToFedExMap.

DtRtiShmQNetMgr::DtRtiShmQNetMgr ( const DtRtiShmQNetMgr &  orig )

protected

Copy Ctor and Assignment Operator unimplemented.

Member Function Documentation

void DtRtiShmQNetMgr::applyOutboundMsgFilters ( DtRtiMsg *  msg )

protectedvirtual

Special processing is needed on certain inbound and outbound messages.

DtConnectionMgr * DtRtiShmQNetMgr::create ( DtRIDParameters *  p )

static

Creates an instance of a DtConnectionMgr; If an alternate creator function has been set, that creator function will be called from within this function.

References DtRtiShmQNetMgr(), DtConnectionMgr::init(), DtConnectionMgr::params(), and DtConnectionMgr::theCreator.

void DtRtiShmQNetMgr::dropSmFederate ( DtFederateHandle  federateHandle, int  fedExHandle  )

virtual

References myFedHandleToFedExMap.

void DtRtiShmQNetMgr::enrollSmFederate ( DtFederateHandle  federateHandle, int  fedExHandle  )

virtual

Maintanence methods for Federate to FedEx handle map.

References myFedHandleToFedExMap.

DtNetReadStatus DtRtiShmQNetMgr::filterReliableLoopbacks ( const DtRtiMsg &  msg )

protectedvirtual

References DtNET_READ_FILTERED_PACKET, DtNET_READ_SUCCESS, DtRtiMsg::federateHandle(), DtRtiMsg::fedExHandle(), myFedHandleToFedExMap, and DtRtiMsg::transportType().

Referenced by processMsg().

int DtRtiShmQNetMgr::init ( DtRIDParameters *  params )

virtual

Initialize the RTI's exercise parameters and connections Users who wish to override the MAK RTI's network connections should override this function or initConnections()

Reimplemented from DtAsyncConnectionMgr.

References DtConnectionMgr::bestEffortConn(), DtMetadataTypeMcastAddr, DtMetadataTypeTransport, DtConnectionMgr::myParams, performMulticastDiscovery(), DtConnectionMgr::setMetadataControl(), DtRtiConnection::socket(), and DtRIDParameters::udpPort.

DtRtiShmQNetMgr& DtRtiShmQNetMgr::operator= ( const DtRtiShmQNetMgr &  orig )

protected

bool DtRtiShmQNetMgr::performMulticastDiscovery ( )

protectedvirtual

virtual void addOutboundMsgFilter( DtMessageFilter *filter ); virtual void removeOutboundMsgFilter( DtMessageFilter *filter );

virtual void updateOutboundDestMask( DtBitMask& currentMask, DtFederateHandle fedHandle );

References DtMulitcastDiscoveryMgr::discover(), DtMulticastDiscoveryMsg::DtDiscoverTcpForwarder, DtRIDParameters::DtFomTransportTypeUseBestEffort, DtMulitcastDiscoveryMgr::init(), DtConnectionMgr::myParams, DtRIDParameters::setTcpForwarderAddr(), and DtRIDParameters::tcpForwarderAddrString().

Referenced by init().

bool DtRtiShmQNetMgr::processConnection ( DtRtiConnection *  conn, MAKRti::DtTransportType  trans  )

protectedvirtual

Override base class methods to allow special processing on inbound messages.

Reimplemented from DtConnectionMgr.

References DtNET_READ_NO_PACKETS, DtNET_READ_SUCCESS, DtAsyncConnectionMgr::handleMsg(), mySmConnMgr, DtRtiConnection::netRead(), NULL, DtConnectionMgr::sendAndDelete(), and DtRtiMsg::setTransportType().

DtNetReadStatus DtRtiShmQNetMgr::processMsg ( const DtRtiMsg &  msg )

protectedvirtual

this function applies the callbacks to the message

Reimplemented from DtConnectionMgr.

References DtNET_READ_SUCCESS, DtRtiMsg::federateHandle(), DtRtiMsg::fedExHandle(), filterReliableLoopbacks(), DtConnectionMgr::logicalTimeFactory(), DtRtiMsg::msgKind(), DtConnectionMgr::myFederateHandle, DtConnectionMgr::myMsgCbMgr, DtConnectionMgr::myReceivedMsgCount, DtConnectionMgr::myWorkingMsgId, DtMessageCallbackManager< T_Message, T_MessageKind >::numCallbacks(), DtRtiMsg::print(), and DtMessageCallbackManager< T_Message, T_MessageKind >::processMsg().

void DtRtiShmQNetMgr::setSmConnMgr ( DtSmConnectionMgr *  smConnMgr )

virtual

Allow the DtRtiShmQNetMgr to access the shared memory connection manager directly to simplify forwarding messages.

References mySmConnMgr.

Member Data Documentation

bool DtRtiShmQNetMgr::myCloseAllConnectionsRequested

protected

Connection shutdown requested?

DtRouteMaskFilterByFedexName DtRtiShmQNetMgr::myFedexFilterList

protected

DtRouteMaskFilterByFedexHandle DtRtiShmQNetMgr::myFedexHandleFilterList

protected

DtFedHandleToFedExHandleMap DtRtiShmQNetMgr::myFedHandleToFedExMap

protected

Referenced by dropSmFederate(), enrollSmFederate(), filterReliableLoopbacks(), and ~DtRtiShmQNetMgr().

MAKRti::DtInetAddr DtRtiShmQNetMgr::myHostIpAddr

protected

Need to know host IP address and port used for outbound best effort messages so looped back multicast messages can be filtered.

unsigned int DtRtiShmQNetMgr::myPort

protected

DtSmConnectionMgr* DtRtiShmQNetMgr::mySmConnMgr

protected

Referenced by processConnection(), and setSmConnMgr().

---

The documentation for this class was generated from the following files:

• rtiShmQNetMgr.h
• rtiShmQNetMgr.cxx
