DtFileDistributor Class Reference

Distributes fomModule files from initiating federate to RtiExec and then from RtiExec to all joining federates. More...

Inheritance diagram for DtFileDistributor:

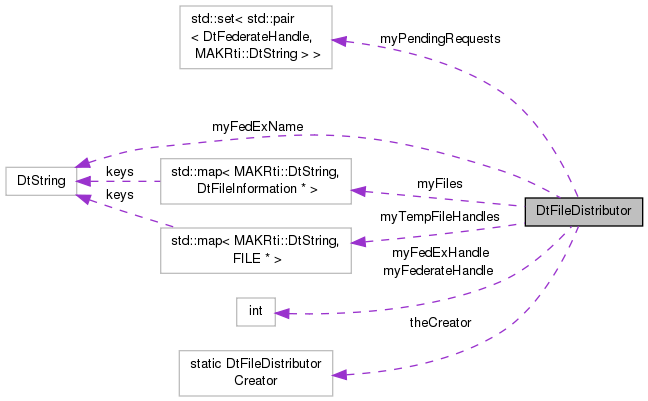

Collaboration diagram for DtFileDistributor:

Public Member Functions
virtual bool	sendFedFile (const std::vector< MAKRti::DtString > &modules)
	Override sendFedFile upload fed files passed in.
virtual bool	pushFedFile (DtConnectionMgr *connMgr, const MAKRti::DtString &fileName, const unsigned int fileSize, const char *fileBuffer, const DtFederateHandle destination=0)
	pushFedFile
virtual void	fedFileUploaded (const MAKRti::DtString fileUploaded)
	Called when Fom Module received successfully.
virtual bool	fileReceived (const DtFomModuleDistributionMsg &msg, bool &areAllHere)
virtual bool	fileRequested (const DtFomModuleRequestMsg &msg)
virtual void	removeFile (const MAKRti::DtString fileName)
	Remove all knowledge of this file from myFiles.
virtual void	removeFiles (const std::vector< MAKRti::DtString > &modules)
	Remove all knowledge of these file from myFiles.
virtual bool	fedFileReady (const MAKRti::DtString &fileName) const
	Does the distributor have a valid copy of this fom Module.
virtual bool	fedFilesReady (const std::vector< MAKRti::DtString > *fileNames) const
	Does the distributor have a valid copy of all of these fom Modules.
const FILE *	fedFilePtr (MAKRti::DtString fileName) const
	Get the fed file pointer.
const char *	fedFileBuff (MAKRti::DtString fileName) const
	Get the fed file buffer.
DtFileInformation *	takeFedFile (MAKRti::DtString fileName)
	Take ownership of the file.
unsigned int	fileSize (MAKRti::DtString fileName) const
FILE *	getTmpFile ()
void	setFedHandle (unsigned int newHandle)
	Set the Fed Handle of the distributor.
void	setFedexHandle (unsigned int newHandle)
bool	requestsPending () const
	Are there outstanding requests to be handled?

Static Public Member Functions
static void	setCreatorFunction (DtFileDistributorCreator fn)

Protected Types
typedef std::list< DtRtiMsg * >	rtiMsgList

Protected Member Functions
	DtFileDistributor (const int fedExHandle, const int federateHandle, const MAKRti::DtString &fedExName)
	Constructor.
virtual	~DtFileDistributor ()
	Destructor.

Protected Attributes
std::map< MAKRti::DtString, DtFileInformation * >	myFiles
	Map between files that have been uploaded to me and their 'file names'.
std::set< std::pair < DtFederateHandle, MAKRti::DtString > >	myPendingRequests
MAKRti::DtString	myFedExName
int	myFedExHandle
int	myFederateHandle
std::map< MAKRti::DtString, FILE * >	myTempFileHandles

Static Protected Attributes
static DtFileDistributorCreator	theCreator = 0

Private Member Functions
	DtFileDistributor ()
	DtFileDistributor (const DtFileDistributor &orig)
DtFileDistributor &	operator= (const DtFileDistributor &orig)

Detailed Description

Distributes fomModule files from initiating federate to RtiExec and then from RtiExec to all joining federates.

Member Typedef Documentation

typedef std::list< DtRtiMsg* > DtFileDistributor::rtiMsgList

protected

Constructor & Destructor Documentation

DtFileDistributor::DtFileDistributor ( const int  fedExHandle, const int  federateHandle, const MAKRti::DtString &  fedExName  )

protected

Constructor.

DtFileDistributor::~DtFileDistributor ( )

protectedvirtual

Destructor.

References myFiles, and myTempFileHandles.

DtFileDistributor::DtFileDistributor ( )

private

DtFileDistributor::DtFileDistributor ( const DtFileDistributor &  orig )

private

Member Function Documentation

const char * DtFileDistributor::fedFileBuff

(

MAKRti::DtString

fileName

)

const

Get the fed file buffer.

References myFiles.

const FILE * DtFileDistributor::fedFilePtr

(

MAKRti::DtString

fileName

)

const

Get the fed file pointer.

References myFiles.

Referenced by DtRtiExecFederateMgr::mergeFomModules().

bool DtFileDistributor::fedFileReady ( const MAKRti::DtString &  fileName ) const

virtual

Does the distributor have a valid copy of this fom Module.

References myFiles.

Referenced by fedFilesReady().

bool DtFileDistributor::fedFilesReady ( const std::vector< MAKRti::DtString > *  fileNames ) const

virtual

Does the distributor have a valid copy of all of these fom Modules.

References fedFileReady().

void DtFileDistributor::fedFileUploaded ( const MAKRti::DtString  fileUploaded )

virtual

Called when Fom Module received successfully.

References DtReadFile(), fileSize(), getTmpFile(), DtFileInformation::myBuffer, DtFileInformation::myFilePointer, myFiles, DtFileInformation::myFileSize, and NULL.

Referenced by DtSynchronousFileDistributor::multFileReceivedCb().

bool DtFileDistributor::fileReceived ( const DtFomModuleDistributionMsg &  msg, bool &  areAllHere  )

virtual

References DtFomModuleDistributionMsg::blockSize(), DtFomModuleDistributionMsg::destination(), DtRtiMsg::federateHandle(), DtFomModuleDistributionMsg::fomModuleName(), DtFomModuleDistributionMsg::fullFedExName(), maxBlockSize, myFederateHandle, myFedExName, myFiles, NULL, DtFomModuleDistributionMsg::numFomModuleBlocks(), DtFomModuleDistributionMsg::readFomModuleBlock(), DtFomModuleDistributionMsg::seqNum(), and DtFomModuleDistributionMsg::sourceID().

Referenced by DtSynchronousFileDistributor::multFileReceivedCb(), and DtAsyncFileDistributorRunnable::processFileReceived().

bool DtFileDistributor::fileRequested ( const DtFomModuleRequestMsg &  msg )

virtual

References DtFomModuleRequestMsg::destinationID(), DtFomModuleRequestMsg::fullFedExName(), myFederateHandle, and myFedExName.

Referenced by DtSynchronousFileDistributor::multFileRequestedCb(), and DtAsyncFileDistributorRunnable::processFileRequested().

unsigned int DtFileDistributor::fileSize

(

MAKRti::DtString

fileName

)

const

References myFiles.

Referenced by fedFileUploaded(), and pushFedFile().

FILE * DtFileDistributor::getTmpFile

(

)

References myTempFileHandles.

Referenced by fedFileUploaded().

DtFileDistributor& DtFileDistributor::operator= ( const DtFileDistributor &  orig )

private

bool DtFileDistributor::pushFedFile ( DtConnectionMgr *  connMgr, const MAKRti::DtString &  fileName, const unsigned int  fileSize, const char *  fileBuffer, const DtFederateHandle  destination = 0  )

virtual

pushFedFile

References DtMessageFactory< T_Message, T_MessageKind, T_NetworkHeader >::create(), DtFomModuleDistributionMsgKind, fileSize(), maxBlockSize, DtConnectionMgr::msgFactory(), myFederateHandle, myFedExHandle, myFedExName, NULL, DtConnectionMgr::sendStampedAndDelete(), DtFomModuleDistributionMsg::setBlock(), DtFomModuleDistributionMsg::setDestination(), DtRtiMsg::setFederateHandle(), DtRtiMsg::setFedEx(), DtFomModuleDistributionMsg::setFomModuleName(), DtFomModuleDistributionMsg::setFullFedExName(), DtFomModuleDistributionMsg::setSourceID(), and DtConnectionMgr::tick().

Referenced by DtFedExec::pushFomModuleToSingleFederate(), DtSynchronousFileDistributor::sendFedFile(), and DtSynchronousFileDistributor::tick().

void DtFileDistributor::removeFile ( const MAKRti::DtString  fileName )

virtual

Remove all knowledge of this file from myFiles.

References DtFileInformation::myFileOwned, DtFileInformation::myFilePointer, myFiles, and myTempFileHandles.

Referenced by removeFiles().

void DtFileDistributor::removeFiles ( const std::vector< MAKRti::DtString > &  modules )

virtual

Remove all knowledge of these file from myFiles.

References removeFile().

Referenced by DtFedexRemoveFileCmd::operator()().

bool DtFileDistributor::requestsPending

(

)

const

Are there outstanding requests to be handled?

Reimplemented in DtAsyncFileDistributorRunnable.

References myPendingRequests.

bool DtFileDistributor::sendFedFile ( const std::vector< MAKRti::DtString > &  modules )

virtual

Override sendFedFile upload fed files passed in.

Reimplemented in DtSynchronousFileDistributor.

References DtReadFile(), maxBlockSize, myFiles, DtFileInformation::myFomModFileName, NULL, and DtLibRTIUtil::openFedFile().

Referenced by DtSynchronousFileDistributor::sendFedFile(), and DtAsyncFileDistributorRunnable::sendFedFile().

void DtFileDistributor::setCreatorFunction ( DtFileDistributorCreator  fn )

static

References theCreator.

void DtFileDistributor::setFedexHandle

(

unsigned int

newHandle

)

References myFedExHandle.

Referenced by DtFedExec::createDistributor().

void DtFileDistributor::setFedHandle

(

unsigned int

newHandle

)

Set the Fed Handle of the distributor.

Because federates will use the distributor before they're joined, they'll need to reassign from the connectHandle to their Fed Handle once they're joined.

References myFederateHandle.

Referenced by DtFedExec::createDistributor().

DtFileInformation * DtFileDistributor::takeFedFile

(

MAKRti::DtString

fileName

)

Take ownership of the file.

retVal will be zero if file not complete (or nonexistent)

References myFiles.

Referenced by DtAsyncFileDistributorRunnable::processTakeFileCmd().

Member Data Documentation

int DtFileDistributor::myFederateHandle

protected

Referenced by fileReceived(), fileRequested(), DtSynchronousFileDistributor::pullEntireFedFile(), pushFedFile(), and setFedHandle().

int DtFileDistributor::myFedExHandle

protected

Referenced by DtSynchronousFileDistributor::pullEntireFedFile(), pushFedFile(), and setFedexHandle().

MAKRti::DtString DtFileDistributor::myFedExName

protected

Referenced by fileReceived(), fileRequested(), DtSynchronousFileDistributor::pullEntireFedFile(), and pushFedFile().

std::map<MAKRti::DtString, DtFileInformation*> DtFileDistributor::myFiles

protected

Map between files that have been uploaded to me and their 'file names'.

Referenced by fedFileBuff(), fedFilePtr(), fedFileReady(), fedFileUploaded(), fileReceived(), fileSize(), DtSynchronousFileDistributor::multFileReceivedCb(), DtAsyncFileDistributorRunnable::processFileReceived(), DtSynchronousFileDistributor::pullEntireFedFile(), removeFile(), DtSynchronousFileDistributor::sendFedFile(), DtAsyncFileDistributorRunnable::sendFedFile(), sendFedFile(), takeFedFile(), DtSynchronousFileDistributor::tick(), and ~DtFileDistributor().

std::set<std::pair<DtFederateHandle, MAKRti::DtString> > DtFileDistributor::myPendingRequests

protected

Referenced by DtSynchronousFileDistributor::multFileRequestedCb(), DtAsyncFileDistributorRunnable::requestsPending(), requestsPending(), and DtSynchronousFileDistributor::tick().

std::map<MAKRti::DtString, FILE* > DtFileDistributor::myTempFileHandles

protected

Referenced by getTmpFile(), removeFile(), and ~DtFileDistributor().

DtFileDistributorCreator DtFileDistributor::theCreator = 0

staticprotected

Referenced by setCreatorFunction().

---

The documentation for this class was generated from the following files:

• fileDistributor.h
• fileDistributor.cxx
