DtRtiMsgForwarder Class Reference

DtRtiMsgForwarder manages connections and message distribution to local federates and remote Forwarders (if any). More...

Inheritance diagram for DtRtiMsgForwarder:

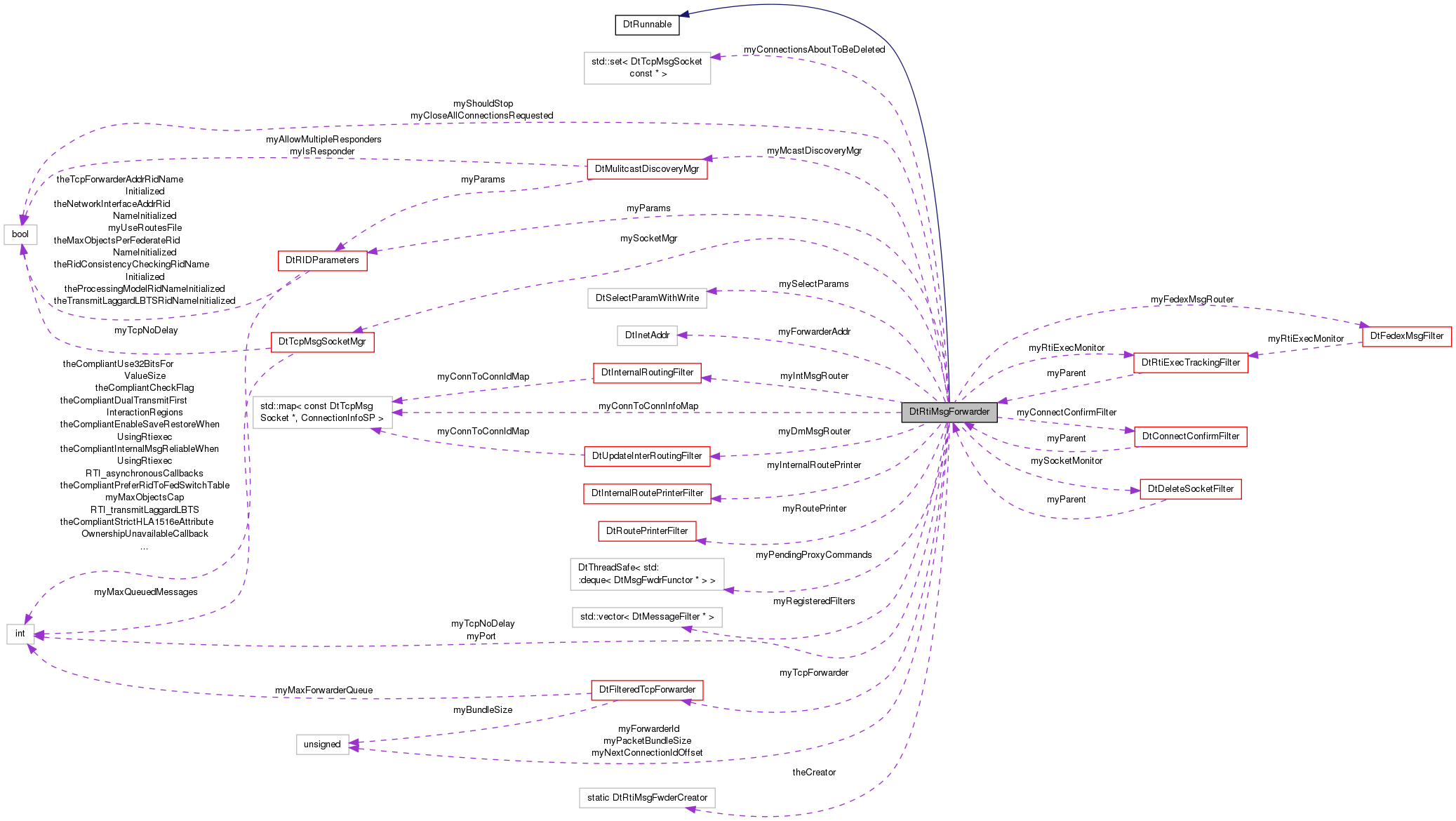

Collaboration diagram for DtRtiMsgForwarder:

Classes
struct	ConnectionInfo

Public Types
typedef DtBoost::shared_ptr < ConnectionInfo >	ConnectionInfoSP
typedef DtBoost::weak_ptr < ConnectionInfo >	ConnectionInfoWP
typedef std::map< const DtTcpMsgSocket *, ConnectionInfoSP >	SocketToConnInfoMap

Public Member Functions
virtual	~DtRtiMsgForwarder ()
	Destructor.
virtual void	init ()
	Initialize the forwarder (called by creator)
virtual bool	hasExec () const
	Query the rtiExec Handshake monitor for whether it has an exec.
virtual void	run ()
	Main execution routine.
virtual void	setEnableBundling (unsigned int maxBundleSize)
	Get the rtiexec's socket if known.
virtual void	setUseSmartForwarding (bool yesNo)
	Enable Smart DM Subscription Filtering.
virtual void	setUseInternalSmartForwarding (bool yesNo)
	Enable Smart DM Subscription Filtering for internal messages.
virtual void	setRouteFedexMessages (bool yesNo)
	Enable Smart Fedex Message Filtering.
virtual void	addPacketFilter (DtMessageFilter *filter)
	[Un]Register a forwarding filter on incoming packets
virtual void	removePacketFilter (DtMessageFilter *filter)
virtual unsigned long	forwarderId () const
	Return the forwarder ID (defines the address space for connIds for this forwarder)
virtual void	setForwarderId (unsigned long newId)
	set the forwarder ID.
void	updateTcpForwarderQueuedSockets ()
	update the tcp forwarders queued sockets
virtual const DtRtiMsgForwarder::SocketToConnInfoMap &	getConnToConnInfoMap () const
	WARNING: These methods are not thread-safe and may only be called by the back-end forwarder thread!
virtual ConnectionInfoSP	getConnectionInfoByConnId (unsigned long connId) const
	Get a shared pointer to the connection info for a connection by Conn ID.
virtual ConnectionInfoSP	getConnectionInfoByHandle (unsigned long federateHandle) const
	Get a shared pointer to the connection info for a connection by Federate Handle.
virtual ConnectionInfoSP	getConnectionInfoBySocket (const DtTcpMsgSocket *sock) const
	Get a shared pointer to the connection info for a connection by Socket.
virtual std::pair< bool, unsigned long >	rtiExecConnected () const
	Is the rtiexec connected and if so what is its connId?
virtual void	sendMessage (const DtRtiMsg &msg, const DtTcpMsgSocket *src=0)
	Send a message to all local sockets (filters will be applied)
virtual void	requestCloseAllConnections ()
	Disconnect all open connections after this pass through run-loop completes.
virtual void	requestKillSingleConnection (const DtTcpMsgSocket *sock)
	Disconnect the requestedTcpSocket.
virtual void	markConnectionAsAboutToBeDeleted (DtTcpMsgSocket const *socket, unsigned int connectionId)
	Mark the given socket as one that is to be deleted silently.
virtual bool	isConnectionMarkedForDeletion (unsigned int connectionId) const
	Return boolean: given connection has been marked for deletion?
virtual void	removeOldConnection (unsigned int connectionId)
	Remove the socket specified by the given connection.
virtual void	shutdownRequestedByExec ()
	Shutdown the forwarder application.
virtual bool	updateFederateConnectionId (unsigned long orig, unsigned long final)
	Set a locally connected federate's connId in the associated connection info struct.
virtual void	updateConnectionProcessParameters (unsigned long connId, unsigned long processId, MAKRti::DtString processName, MAKRti::DtString commandArgs)
	Set a connections process information.
virtual bool	shouldStop ()
	should this forwarder stop.

Static Public Member Functions
static DtRtiMsgForwarder *	create (unsigned long id, const DtRIDParameters &params)
	Create an instance of a DtRtiMsgForwarder.
static void	setCreatorFunction (DtRtiMsgFwderCreator fn)
	Call this function to set an alternate creator function With this function, users can replace this DtRtiMsgForwarder with their own derived class.
static void	tcpSocketAdditionCb (DtTcpMsgSocket *sock, void *usr)
	Callbacks on addition/removal of TCP sockets.
static void	tcpSocketRemovalCb (DtTcpMsgSocket *sock, void *usr)

Protected Member Functions
	DtRtiMsgForwarder (unsigned long id, const DtRIDParameters &params)
	Default Constructor.
virtual void	performMcastDiscovery ()
virtual void	applyRegisteredFilters ()
	Enable / Disable all filters registered with forwarder.
virtual void	disableRegisteredFilters ()
virtual void	waitForIo ()
	Wait on sockets for next IO event (allows RTIspy users to control the wait mechanism and period)
virtual void	tcpSocketAdditionCb (DtTcpMsgSocket *sock)
virtual void	tcpSocketRemovalCb (DtTcpMsgSocket *sock)
virtual unsigned long	consumeConnId ()
	Get and consume Connection ID.
virtual void	preRunLoopEvent ()
	Plug-in defined Run Loop operations Gives users the ability to add functionality to the Run() loop without over-riding it completely.
virtual void	runLoopEvent ()
virtual void	postRunLoopEvent ()
virtual bool	populateConnectionInformation (unsigned int &numForwarderToForwarderConns, std::vector< MAKRti::DtString > &forwarderIdentifiers, std::vector< MAKRti::DtString > &forwarderConnectionHostNames, std::vector< MAKRti::DtInetAddr > &forwarderConnectionAddrs, unsigned int &numForwarderClientConns, std::vector< MAKRti::DtString > &clientConnectionHostNames, std::vector< MAKRti::DtInetAddr > &clientConnectionAddrs) const
virtual void	closeAllConnectionsIfRequested ()
	Disconnect all open connections.
	DtRtiMsgForwarder (const DtRtiMsgForwarder &orig)
	Copy Ctor and Assignment Operator unimplemented.
DtRtiMsgForwarder &	operator= (const DtRtiMsgForwarder &orig)

Protected Attributes
unsigned long	myForwarderId
	Data Members.
MAKRti::DtInetAddr	myForwarderAddr
	Local host IP address (used by rtiExec monitor filter, among other uses)
bool	myCloseAllConnectionsRequested
	Connection shutdown requested?
DtFilteredTcpForwarder *	myTcpForwarder
	Tcp Forwarder with Filtering Capabilities.
DtTcpMsgSocketMgr *	mySocketMgr
	Tcp Socket Manager (handles passive connections to Federates)
int	myPort
	Port for local federate connections.
int	myTcpNoDelay
unsigned long	myNextConnectionIdOffset
	The ID to be assigned to the next Federate or Forwarder connection The IDs are offset from the forwarderId.
unsigned int	myPacketBundleSize
	Packet Bundle size (if bundle size = 0, bundling is disabled)
DtRtiExecTrackingFilter *	myRtiExecMonitor
	If registered, Monitors rtiexec connection life-cycle.
DtRoutePrinterFilter *	myRoutePrinter
	Smart DM Forwarding Filters.
DtInternalRoutePrinterFilter *	myInternalRoutePrinter
DtUpdateInterRoutingFilter *	myDmMsgRouter
DtInternalRoutingFilter *	myIntMsgRouter
DtFedexMsgFilter *	myFedexMsgRouter
	Fedex Routing Filter.
DtConnectConfirmFilter *	myConnectConfirmFilter
	Extracts info from connect confirm messages.
DtDeleteSocketFilter *	mySocketMonitor
	Marks sockets that are being disconnected normally so that no complaint is given when they disconnect versus abnormal disconnect.
const DtRIDParameters &	myParams
	Local access to the RID Parameters.
DtMulitcastDiscoveryMgr	myMcastDiscoveryMgr
DtThreadSafe< std::deque < DtMsgFwdrFunctor * > >	myPendingProxyCommands
std::vector< DtMessageFilter * >	myRegisteredFilters
	Registered Message Filters.
SocketToConnInfoMap	myConnToConnInfoMap
	Map from socket (conn) to ConnectionInfo object for that connection notes:
std::set< DtTcpMsgSocket const * >	myConnectionsAboutToBeDeleted
	Set of connections that when deleted there should be no complaint.
MAKRti::DtSelectParamWithWrite	mySelectParams
bool	myShouldStop
	should this forwarder stop.

Static Protected Attributes
static DtRtiMsgFwderCreator	theCreator = NULL

Detailed Description

DtRtiMsgForwarder manages connections and message distribution to local federates and remote Forwarders (if any).

It is designed to run as a thread, asynchronous to the main execution.

Member Typedef Documentation

typedef DtBoost::shared_ptr<ConnectionInfo> DtRtiMsgForwarder::ConnectionInfoSP

typedef DtBoost::weak_ptr<ConnectionInfo> DtRtiMsgForwarder::ConnectionInfoWP

typedef std::map< const DtTcpMsgSocket*, ConnectionInfoSP > DtRtiMsgForwarder::SocketToConnInfoMap

Constructor & Destructor Documentation

DtRtiMsgForwarder::DtRtiMsgForwarder ( unsigned long  id, const DtRIDParameters &  params  )

protected

Default Constructor.

References DtRIDParameters::notifyLevel, and setForwarderId().

Referenced by create().

DtRtiMsgForwarder::~DtRtiMsgForwarder ( )

virtual

Destructor.

References myConnectConfirmFilter, myConnToConnInfoMap, myDmMsgRouter, myFedexMsgRouter, myInternalRoutePrinter, myIntMsgRouter, myRoutePrinter, myRtiExecMonitor, mySocketMgr, mySocketMonitor, myTcpForwarder, DtTcpMsgSocketMgr::removeSocketAdditionCallback(), DtTcpMsgSocketMgr::removeSocketRemovalCallback(), tcpSocketAdditionCb(), and tcpSocketRemovalCb().

DtRtiMsgForwarder::DtRtiMsgForwarder ( const DtRtiMsgForwarder &  orig )

protected

Copy Ctor and Assignment Operator unimplemented.

Member Function Documentation

void DtRtiMsgForwarder::addPacketFilter ( DtMessageFilter *  filter )

virtual

[Un]Register a forwarding filter on incoming packets

• Filters directly modify the current Destination list

References myRegisteredFilters.

Referenced by init(), DtExtendedRtiMsgForwarder::init(), setRouteFedexMessages(), setUseInternalSmartForwarding(), and setUseSmartForwarding().

void DtRtiMsgForwarder::applyRegisteredFilters ( )

protectedvirtual

Enable / Disable all filters registered with forwarder.

• called only once at start and stop of run

References DtFilteredTcpForwarder::addPacketFilter(), myRegisteredFilters, and myTcpForwarder.

Referenced by DtExtendedRtiMsgForwarder::applyFilters(), and run().

void DtRtiMsgForwarder::closeAllConnectionsIfRequested ( )

protectedvirtual

Disconnect all open connections.

References myCloseAllConnectionsRequested, myTcpForwarder, DtTcpMsgSocketMgr::removeAndDelete(), DtTcpForwarder__vl__::socketMgr(), and DtTcpMsgSocketMgr::socketSet().

Referenced by DtExtendedRtiMsgForwarder::getNextMsg(), and run().

unsigned long DtRtiMsgForwarder::consumeConnId ( )

protectedvirtual

Get and consume Connection ID.

References myForwarderId, and myNextConnectionIdOffset.

Referenced by tcpSocketAdditionCb().

DtRtiMsgForwarder * DtRtiMsgForwarder::create ( unsigned long  id, const DtRIDParameters &  params  )

static

Create an instance of a DtRtiMsgForwarder.

References DtRtiMsgForwarder(), init(), and theCreator.

void DtRtiMsgForwarder::disableRegisteredFilters ( )

protectedvirtual

References myRegisteredFilters, myTcpForwarder, and DtFilteredTcpForwarder::removePacketFilter().

Referenced by run().

unsigned long DtRtiMsgForwarder::forwarderId ( ) const

inlinevirtual

Return the forwarder ID (defines the address space for connIds for this forwarder)

References myForwarderId.

DtRtiMsgForwarder::ConnectionInfoSP DtRtiMsgForwarder::getConnectionInfoByConnId ( unsigned long  connId ) const

virtual

Get a shared pointer to the connection info for a connection by Conn ID.

References myConnToConnInfoMap.

Referenced by DtFederateTrackingFilter::handleJoinConfirmMsg(), DtFederateTrackingFilter::handleJoinMsg(), DtFederateTrackingFilter::handleJoinResponseMsg(), isConnectionMarkedForDeletion(), DtRtiExecDistributedTrackingFilter::processHandshakeMsg(), and removeOldConnection().

DtRtiMsgForwarder::ConnectionInfoSP DtRtiMsgForwarder::getConnectionInfoByHandle ( unsigned long  federateHandle ) const

virtual

Get a shared pointer to the connection info for a connection by Federate Handle.

References myConnToConnInfoMap.

DtRtiMsgForwarder::ConnectionInfoSP DtRtiMsgForwarder::getConnectionInfoBySocket ( const DtTcpMsgSocket *  sock ) const

virtual

Get a shared pointer to the connection info for a connection by Socket.

References myConnToConnInfoMap.

Referenced by DtRtiExecTrackingFilter::processReconnectMsg(), DtRtiExecTrackingFilter::processRtiExecConnectMsg(), DtExtendedRtiMsgForwarder::tcpSocketAdditionCb(), and DtExtendedRtiMsgForwarder::tcpSocketRemovalCb().

const DtRtiMsgForwarder::SocketToConnInfoMap & DtRtiMsgForwarder::getConnToConnInfoMap ( ) const

inlinevirtual

WARNING: These methods are not thread-safe and may only be called by the back-end forwarder thread!

Get a handle to the connection to connId map

References myConnToConnInfoMap.

Referenced by DtLanForwarderPort::populateConnectionInformation().

bool DtRtiMsgForwarder::hasExec ( ) const

virtual

Query the rtiExec Handshake monitor for whether it has an exec.

References myRtiExecMonitor, and DtRtiExecTrackingFilter::rtiExecAvailable().

Referenced by DtLanForwarderPort::populateConnectionInformation().

void DtRtiMsgForwarder::init ( )

virtual

Initialize the forwarder (called by creator)

Reimplemented in DtExtendedRtiMsgForwarder.

References addPacketFilter(), DtDefaultInterfaceAddr(), DtRIDParameters::enableFedexMsgRouting, enableFedexMsgRouting, DtRIDParameters::internalMsgSmartForwardingWhenUsingRtiexec, DtRIDParameters::maxNumFederates, myConnectConfirmFilter, myForwarderAddr, myParams, myPort, myRtiExecMonitor, mySocketMgr, mySocketMonitor, myTcpForwarder, myTcpNoDelay, DtRIDParameters::networkInterfaceAddr(), performMcastDiscovery(), DtAssistantPopupHelper::popupAssistantMessage(), DtRtiMtdDestinationList::setMaxDestinations(), setRouteFedexMessages(), DtRtiMsg::setSmartForwardingEnabled(), setUseInternalSmartForwarding(), setUseSmartForwarding(), DtRIDParameters::smartForwardingLevel, DtTcpForwarder__vl__::socketMgr(), tcpSocketAdditionCb(), and tcpSocketRemovalCb().

Referenced by create().

bool DtRtiMsgForwarder::isConnectionMarkedForDeletion ( unsigned int  connectionId ) const

virtual

Return boolean: given connection has been marked for deletion?

References getConnectionInfoByConnId(), and myConnectionsAboutToBeDeleted.

Referenced by DtRtiExecTrackingFilter::processDisconnectMsg().

void DtRtiMsgForwarder::markConnectionAsAboutToBeDeleted ( DtTcpMsgSocket const *  socket, unsigned int  connectionId  )

virtual

Mark the given socket as one that is to be deleted silently.

The forwarder won't complain when the given socket disconnects. If known, the socket connection ID should be provided A confirmation message is returned through the socket.

References DtRIDParameters::distributedUdpForwarderMode, myConnectionsAboutToBeDeleted, myParams, sendMessage(), DtRtiMtdTransportType::set(), DtRtiMsg::setFederateHandle(), and DtRtiMsg::setFedEx().

Referenced by DtDeleteSocketFilter::handleDeleteSocketMsg().

DtRtiMsgForwarder& DtRtiMsgForwarder::operator= ( const DtRtiMsgForwarder &  orig )

protected

void DtRtiMsgForwarder::performMcastDiscovery ( )

protectedvirtual

References DtMulitcastDiscoveryMgr::discover(), DtIsIpOfLocalInterface(), DtRIDParameters::getFullPathToRidFile(), DtMulitcastDiscoveryMgr::init(), myMcastDiscoveryMgr, myParams, DtAssistantPopupHelper::popupAssistantMessage(), DtRIDParameters::tcpForwarderAddr(), and DtRIDParameters::tcpForwarderAddrString().

Referenced by init().

bool DtRtiMsgForwarder::populateConnectionInformation ( unsigned int &  numForwarderToForwarderConns, std::vector< MAKRti::DtString > &  forwarderIdentifiers, std::vector< MAKRti::DtString > &  forwarderConnectionHostNames, std::vector< MAKRti::DtInetAddr > &  forwarderConnectionAddrs, unsigned int &  numForwarderClientConns, std::vector< MAKRti::DtString > &  clientConnectionHostNames, std::vector< MAKRti::DtInetAddr > &  clientConnectionAddrs  ) const

protectedvirtual

References DtGetLocalHostName(), myForwarderAddr, and myForwarderId.

virtual void DtRtiMsgForwarder::postRunLoopEvent ( )

inlineprotectedvirtual

Referenced by run().

virtual void DtRtiMsgForwarder::preRunLoopEvent ( )

inlineprotectedvirtual

Plug-in defined Run Loop operations Gives users the ability to add functionality to the Run() loop without over-riding it completely.

Referenced by run().

void DtRtiMsgForwarder::removeOldConnection ( unsigned int  connectionId )

virtual

Remove the socket specified by the given connection.

Used by reconnect to clean up orphaned sockets where client detected break but server has not.

References DtMsgSocket::descriptor(), getConnectionInfoByConnId(), myConnectionsAboutToBeDeleted, myConnToConnInfoMap, and mySelectParams.

Referenced by DtRtiExecTrackingFilter::processReconnectMsg().

void DtRtiMsgForwarder::removePacketFilter ( DtMessageFilter *  filter )

virtual

References myRegisteredFilters.

Referenced by DtExtendedRtiMsgForwarder::init(), and DtExtendedRtiMsgForwarder::~DtExtendedRtiMsgForwarder().

void DtRtiMsgForwarder::requestCloseAllConnections ( )

virtual

Disconnect all open connections after this pass through run-loop completes.

• cannot immediately disconnect since this may be called from a RTI Forwarder callback

References myCloseAllConnectionsRequested.

Referenced by DtRtiExecTrackingFilter::processRtiExecDisconnectMsg().

void DtRtiMsgForwarder::requestKillSingleConnection ( const DtTcpMsgSocket *  sock )

virtual

Disconnect the requestedTcpSocket.

Introduced so that the rtiExecTrackingFilter can have connections deleted. The alternative is that the myTcpForwarder be made publicly accessible. Filter will call this on sockets from which it receives rtiExecReconnectMsgs when it is still connected to the rtiExec, and connect and disconnect messages from the exec when we are still connected and are not connected to the rtiExec respectively.

References DtTcpMsgSocket::destination(), myTcpForwarder, DtTcpMsgSocketMgr::removeAndDelete(), and DtTcpForwarder__vl__::socketMgr().

std::pair< bool, unsigned long > DtRtiMsgForwarder::rtiExecConnected ( ) const

virtual

Is the rtiexec connected and if so what is its connId?

References myRtiExecMonitor, DtRtiExecTrackingFilter::rtiExecAvailable(), and DtRtiExecTrackingFilter::rtiExecConnId().

void DtRtiMsgForwarder::run ( )

virtual

Main execution routine.

• Called by start() when run as a thread
• Can be called directly to run sequentially

References applyRegisteredFilters(), closeAllConnectionsIfRequested(), disableRegisteredFilters(), myMcastDiscoveryMgr, myParams, myRtiExecMonitor, mySocketMgr, myTcpForwarder, postRunLoopEvent(), preRunLoopEvent(), DtTcpMsgSocketMgr::processConnections(), DtRtiExecTrackingFilter::processTimeout(), DtFilteredTcpForwarder::readAndForward(), runLoopEvent(), shouldStop(), DtMulitcastDiscoveryMgr::tick(), and waitForIo().

virtual void DtRtiMsgForwarder::runLoopEvent ( )

inlineprotectedvirtual

Referenced by run().

void DtRtiMsgForwarder::sendMessage ( const DtRtiMsg &  msg, const DtTcpMsgSocket *  src = 0  )

virtual

Send a message to all local sockets (filters will be applied)

References DtRIDParameters::distributedUdpForwarderMode, DtFilteredTcpForwarder::filterAndSend(), myParams, myTcpForwarder, and DtRtiMtdTransportType::set().

Referenced by markConnectionAsAboutToBeDeleted(), DtRtiExecTrackingFilter::processDisconnectMsg(), DtRtiExecDistributedTrackingFilter::processHandshakeMsg(), DtRtiExecTrackingFilter::processHandshakeMsg(), DtRtiExecTrackingFilter::processReconnectMsg(), DtRtiExecTrackingFilter::processTimeout(), and tcpSocketRemovalCb().

void DtRtiMsgForwarder::setCreatorFunction ( DtRtiMsgFwderCreator  fn )

static

Call this function to set an alternate creator function With this function, users can replace this DtRtiMsgForwarder with their own derived class.

References DtBindCreator(), and theCreator.

void DtRtiMsgForwarder::setEnableBundling ( unsigned int  maxBundleSize )

virtual

Get the rtiexec's socket if known.

Enable Message Bundling optimization

References DtTcpMsgSocketMgr::enableBundling(), and mySocketMgr.

void DtRtiMsgForwarder::setForwarderId ( unsigned long  newId )

virtual

set the forwarder ID.

References myForwarderId.

Referenced by DtRtiMsgForwarder(), and DtLanForwarderPort::setForwarderId().

void DtRtiMsgForwarder::setRouteFedexMessages ( bool  yesNo )

virtual

Enable Smart Fedex Message Filtering.

References addPacketFilter(), myFedexMsgRouter, and myRtiExecMonitor.

Referenced by init().

void DtRtiMsgForwarder::setUseInternalSmartForwarding ( bool  yesNo )

virtual

Enable Smart DM Subscription Filtering for internal messages.

References addPacketFilter(), myConnToConnInfoMap, myInternalRoutePrinter, and myIntMsgRouter.

Referenced by init().

void DtRtiMsgForwarder::setUseSmartForwarding ( bool  yesNo )

virtual

Enable Smart DM Subscription Filtering.

References addPacketFilter(), myConnToConnInfoMap, myDmMsgRouter, and myRoutePrinter.

Referenced by init().

bool DtRtiMsgForwarder::shouldStop ( )

virtual

should this forwarder stop.

References myShouldStop.

Referenced by DtLanForwarderPort::checkConnectionStatus(), and run().

void DtRtiMsgForwarder::shutdownRequestedByExec ( )

virtual

Shutdown the forwarder application.

Triggered by the rtiExec sending a forwarderShutdown message to the RTI Forwarder.

References myShouldStop.

Referenced by DtRtiExecTrackingFilter::processShutdownMsg().

void DtRtiMsgForwarder::tcpSocketAdditionCb ( DtTcpMsgSocket *  sock, void *  usr  )

static

Callbacks on addition/removal of TCP sockets.

References tcpSocketAdditionCb().

Referenced by init(), tcpSocketAdditionCb(), and ~DtRtiMsgForwarder().

void DtRtiMsgForwarder::tcpSocketAdditionCb ( DtTcpMsgSocket *  sock )

protectedvirtual

Reimplemented in DtExtendedRtiMsgForwarder.

References consumeConnId(), DtMsgSocket::descriptor(), DtTcpMsgSocket::destination(), DtRIDParameters::distributedUdpForwarderMode, myConnToConnInfoMap, myForwarderAddr, myParams, mySelectParams, DtTcpMsgSocket::sendMessage(), DtRtiMtdTransportType::set(), DtConnectMsg::setConnectionHandle(), DtRtiMsg::setFederateHandle(), and DtRtiMsg::setFedEx().

void DtRtiMsgForwarder::tcpSocketRemovalCb ( DtTcpMsgSocket *  sock, void *  usr  )

static

References tcpSocketRemovalCb().

Referenced by init(), tcpSocketRemovalCb(), and ~DtRtiMsgForwarder().

void DtRtiMsgForwarder::tcpSocketRemovalCb ( DtTcpMsgSocket *  sock )

protectedvirtual

Reimplemented in DtExtendedRtiMsgForwarder.

References DtMsgSocket::descriptor(), myConnectionsAboutToBeDeleted, myConnToConnInfoMap, myRtiExecMonitor, mySelectParams, DtRtiExecTrackingFilter::rtiExecConnId(), sendMessage(), DtConnectMsg::setConnectionHandle(), DtRtiMsg::setFederateHandle(), and DtRtiMsg::setFedEx().

void DtRtiMsgForwarder::updateConnectionProcessParameters ( unsigned long  connId, unsigned long  processId, MAKRti::DtString  processName, MAKRti::DtString  commandArgs  )

virtual

Set a connections process information.

References myConnToConnInfoMap.

Referenced by DtConnectConfirmFilter::handleConnectConfirmMsg().

bool DtRtiMsgForwarder::updateFederateConnectionId ( unsigned long  orig, unsigned long  final  )

virtual

Set a locally connected federate's connId in the associated connection info struct.

This should only need to be invoked when the forwarder is part of the federate's Forwarder Group, but not its primary forwarder.

References myConnToConnInfoMap.

Referenced by DtLanForwarderPort::updateFederateConnectionId().

void DtRtiMsgForwarder::updateTcpForwarderQueuedSockets

(

)

update the tcp forwarders queued sockets

References myTcpForwarder, and DtFilteredTcpForwarder::updateQueuedSockets().

Referenced by DtLanForwarderPort::flush().

void DtRtiMsgForwarder::waitForIo ( )

protectedvirtual

Wait on sockets for next IO event (allows RTIspy users to control the wait mechanism and period)

References DtMsgSocket::descriptor(), DtTcpMsgSocket::flush(), mySelectParams, mySocketMgr, and DtTcpMsgSocketMgr::socketSet().

Referenced by run().

Member Data Documentation

bool DtRtiMsgForwarder::myCloseAllConnectionsRequested

protected

Connection shutdown requested?

Referenced by closeAllConnectionsIfRequested(), and requestCloseAllConnections().

DtConnectConfirmFilter* DtRtiMsgForwarder::myConnectConfirmFilter

protected

Extracts info from connect confirm messages.

Referenced by init(), and ~DtRtiMsgForwarder().

std::set<DtTcpMsgSocket const*> DtRtiMsgForwarder::myConnectionsAboutToBeDeleted

protected

Set of connections that when deleted there should be no complaint.

Referenced by isConnectionMarkedForDeletion(), markConnectionAsAboutToBeDeleted(), removeOldConnection(), and tcpSocketRemovalCb().

SocketToConnInfoMap DtRtiMsgForwarder::myConnToConnInfoMap

protected

Map from socket (conn) to ConnectionInfo object for that connection notes:

• infos may be shared by some registered filters (which is why the are SPs)
• lrcs which have not joined (or have resigned) will have empty fields)

Referenced by getConnectionInfoByConnId(), getConnectionInfoByHandle(), getConnectionInfoBySocket(), getConnToConnInfoMap(), DtExtendedRtiMsgForwarder::init(), removeOldConnection(), setUseInternalSmartForwarding(), setUseSmartForwarding(), tcpSocketAdditionCb(), tcpSocketRemovalCb(), updateConnectionProcessParameters(), updateFederateConnectionId(), and ~DtRtiMsgForwarder().

DtUpdateInterRoutingFilter* DtRtiMsgForwarder::myDmMsgRouter

protected

Referenced by setUseSmartForwarding(), and ~DtRtiMsgForwarder().

DtFedexMsgFilter* DtRtiMsgForwarder::myFedexMsgRouter

protected

Fedex Routing Filter.

Referenced by DtExtendedRtiMsgForwarder::init(), setRouteFedexMessages(), and ~DtRtiMsgForwarder().

MAKRti::DtInetAddr DtRtiMsgForwarder::myForwarderAddr

protected

Local host IP address (used by rtiExec monitor filter, among other uses)

Referenced by init(), DtExtendedRtiMsgForwarder::init(), populateConnectionInformation(), and tcpSocketAdditionCb().

unsigned long DtRtiMsgForwarder::myForwarderId

protected

Data Members.

Address space for connection IDs for this LAN (required to differentiate when there are multiple forwarders)

Referenced by consumeConnId(), forwarderId(), populateConnectionInformation(), and setForwarderId().

DtInternalRoutePrinterFilter* DtRtiMsgForwarder::myInternalRoutePrinter

protected

Referenced by setUseInternalSmartForwarding(), and ~DtRtiMsgForwarder().

DtInternalRoutingFilter* DtRtiMsgForwarder::myIntMsgRouter

protected

Referenced by setUseInternalSmartForwarding(), and ~DtRtiMsgForwarder().

DtMulitcastDiscoveryMgr DtRtiMsgForwarder::myMcastDiscoveryMgr

protected

Referenced by DtExtendedRtiMsgForwarder::getNextMsg(), performMcastDiscovery(), and run().

unsigned long DtRtiMsgForwarder::myNextConnectionIdOffset

protected

The ID to be assigned to the next Federate or Forwarder connection The IDs are offset from the forwarderId.

Referenced by consumeConnId().

unsigned int DtRtiMsgForwarder::myPacketBundleSize

protected

Packet Bundle size (if bundle size = 0, bundling is disabled)

const DtRIDParameters& DtRtiMsgForwarder::myParams

protected

Local access to the RID Parameters.

Referenced by DtExtendedRtiMsgForwarder::getNextMsg(), init(), DtExtendedRtiMsgForwarder::init(), markConnectionAsAboutToBeDeleted(), performMcastDiscovery(), run(), DtExtendedRtiMsgForwarder::sendBestEffort(), sendMessage(), DtExtendedRtiMsgForwarder::sendMessageToWan(), and tcpSocketAdditionCb().

DtThreadSafe< std::deque<DtMsgFwdrFunctor*> > DtRtiMsgForwarder::myPendingProxyCommands

protected

int DtRtiMsgForwarder::myPort

protected

Port for local federate connections.

Referenced by init(), and DtExtendedRtiMsgForwarder::init().

std::vector< DtMessageFilter* > DtRtiMsgForwarder::myRegisteredFilters

protected

Registered Message Filters.

Referenced by addPacketFilter(), applyRegisteredFilters(), disableRegisteredFilters(), and removePacketFilter().

DtRoutePrinterFilter* DtRtiMsgForwarder::myRoutePrinter

protected

Smart DM Forwarding Filters.

Referenced by setUseSmartForwarding(), and ~DtRtiMsgForwarder().

DtRtiExecTrackingFilter* DtRtiMsgForwarder::myRtiExecMonitor

protected

If registered, Monitors rtiexec connection life-cycle.

Referenced by DtExtendedRtiMsgForwarder::addExecConnectionEstablishedCb(), DtExtendedRtiMsgForwarder::addExecConnectionLostCb(), DtExtendedRtiMsgForwarder::getNextMsg(), hasExec(), init(), DtExtendedRtiMsgForwarder::init(), DtExtendedRtiMsgForwarder::removeExecConnectionEstablishedCb(), DtExtendedRtiMsgForwarder::removeExecConnectionLostCb(), rtiExecConnected(), run(), setRouteFedexMessages(), tcpSocketRemovalCb(), and ~DtRtiMsgForwarder().

MAKRti::DtSelectParamWithWrite DtRtiMsgForwarder::mySelectParams

protected

Referenced by removeOldConnection(), tcpSocketAdditionCb(), tcpSocketRemovalCb(), and waitForIo().

bool DtRtiMsgForwarder::myShouldStop

protected

should this forwarder stop.

Referenced by shouldStop(), and shutdownRequestedByExec().

DtTcpMsgSocketMgr* DtRtiMsgForwarder::mySocketMgr

protected

Tcp Socket Manager (handles passive connections to Federates)

Referenced by DtExtendedRtiMsgForwarder::getNextMsg(), init(), run(), setEnableBundling(), waitForIo(), and ~DtRtiMsgForwarder().

DtDeleteSocketFilter* DtRtiMsgForwarder::mySocketMonitor

protected

Marks sockets that are being disconnected normally so that no complaint is given when they disconnect versus abnormal disconnect.

Referenced by init(), and ~DtRtiMsgForwarder().

DtFilteredTcpForwarder* DtRtiMsgForwarder::myTcpForwarder

protected

Tcp Forwarder with Filtering Capabilities.

Referenced by applyRegisteredFilters(), closeAllConnectionsIfRequested(), disableRegisteredFilters(), DtExtendedRtiMsgForwarder::getNextMsg(), init(), requestKillSingleConnection(), run(), sendMessage(), DtExtendedRtiMsgForwarder::sendToAllReliable(), updateTcpForwarderQueuedSockets(), and ~DtRtiMsgForwarder().

int DtRtiMsgForwarder::myTcpNoDelay

protected

Referenced by init().

DtRtiMsgFwderCreator DtRtiMsgForwarder::theCreator = NULL

staticprotected

Referenced by create(), and setCreatorFunction().

---

The documentation for this class was generated from the following files:

• rtiMessageForwarder.h
• rtiMessageForwarder.cxx
