DtFederateTree Class Reference

Inheritance diagram for DtFederateTree:

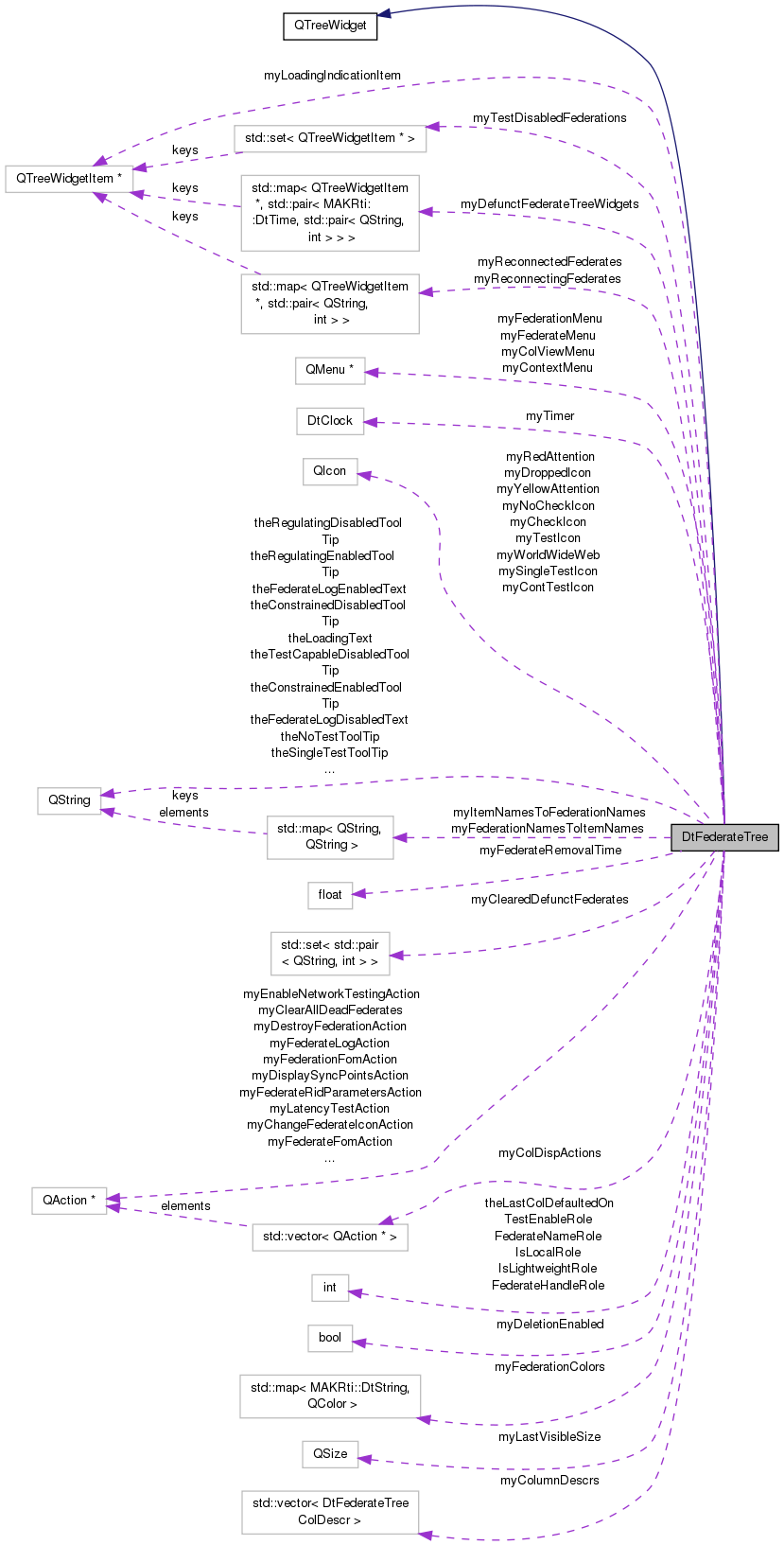

Collaboration diagram for DtFederateTree:

Classes
class	DtFederateTreeColDescr
	Structure for column description strings. More...

Public Types
enum	DtFederateTreeCol {   FederationNameIndex = 0, FederateTypeAndHandleIndex = 0, FederateProcessIndex, FederateNameIndex,   FederateHostNameIndex, FederateIPIndex, HlaVersionIndex, FederateQueueStatusIndex,   FederatePIDIndex, FederateCommandArgsIndex, RegulatingStateIndex, ConstrainedStateIndex,   LbtsIndex, LookAheadIndex, CurrentTimeIndex, TestStatusIndex,   TestCountIndex, NumFederateTreeCols }

Public Slots
void	showColumns ()
	Updates which columns are shown or hidden.
void	setAllColumns (const std::map< QString, std::pair< int, bool > > &columns)
	Set the columns that are currently shown.
void	allColumns (std::map< QString, std::pair< int, bool > > &columns)
	Get the columns and their position / visible value (cols in emptied and populated).
void	showColCustomizeDlg ()
	Displays the column view customize dialog.
void	deleteSelectedFed ()
	Emits the fedDeleteRequest signal for the selected federate.
void	destroySelectedFederations ()
	For each federation selected, resign the federates then emit federationDelete.
void	updateEnableNetworkTestingForSelectedFederations ()
	For each federation selected, enables or disables testing.
void	showLatencyTest ()
	Emits the showFedLatencyTest signal for the selected federate.
void	clearAllDefunctFederates ()
	Clears all defunct federates.
bool	hasValidFederates () const
	returns whether any federates are valid.
void	clearCurrDefunctFederates ()
	Clear only the currently selected defunct federates.
void	refreshMenus ()
	Refresh the currently available menu options.
void	signalSelectionChange ()
	Determines what the new selection is and emits the appropriate signal.
void	showContextMenu (const QPoint &)
	Shows the context menu at the given position.

Signals
void	fedDeleteRequest (int, const QString &)
void	federationDeleteRequest (const QString &fedexName)
void	enableNetworkTestingRequest (const QString &)
void	disableNetworkTestingRequest (const QString &)
void	showFedLatencyTest (const QString &, int)
void	federateSelected (const MAKRti::DtString &federation, int federateHandle)
	Emitted when a single federate is selected.
void	federationSelected (const MAKRti::DtString &name)
	Emitted when a single federation is selected.
void	nothingSelected ()
	Emitted when selection is cleared.
void	multipleItemsSelected ()
	Emitted when multiple items are selected.
void	defunctFederateRemoved (const MAKRti::DtString &federation, int federateHandle)
	Emitted when a defunct federate must be removed.

Public Member Functions
	DtFederateTree (QWidget *parent)
virtual	~DtFederateTree ()
virtual QSize	sizeHint () const
	Returns the recommended size for the widget.
virtual void	hideEvent (QHideEvent *event)
	Override hideEvent to store the size of the dialog when it is hidden.
virtual bool	updateFederation (const DtAssistantFederationInfo *federation, const DtAssistantForwarderInfo *forwarderInfo)
	Updates or adds a federation to the tree.
virtual bool	removeFederation (const QString &name)
	Removes the federation with the given name from the tree.
virtual void	removeAllFederations ()
	Removes all of the federations from the tree.
virtual void	updateFederationColor (const MAKRti::DtString &federationName, const QColor &color)
	Set the color of the specified federation.
virtual bool	updateFederate (const DtAssistantFederateInfo &federate, const DtAssistantForwarderInfo *forwarderInfo, const QString &fedexName)
	Updates or adds a federate to an existing federation in the tree.
virtual bool	removeFederate (int federateHandle, const QString &fedexName, bool clearedDefunct=false)
	Removes a federate from an existing federation in the tree.
virtual void	displayLoadingIndication ()
	Displays a message that the current federation information is loading.
virtual void	removeLoadingIndication ()
	Removes the loading indication messages.
bool	isFederateValid (int federateHandle, const QString &fedexName) const
	Is this federate valid?
void	processInvalidList ()
	Process the list of Invalid federates for automatic removal.
QMenu *	columnViewMenu ()
	Returns a pointer to the menu which allows users to hide/display any columns in the tree.
QMenu *	federateMenu ()
	Returns a pointer to the menu which allows users to perform actions related to the currently selected federates.
QMenu *	federationMenu ()
	Returns a pointer to the menu which allows users to perform actions related to the current selected federations.
void	setFederateRemovalTime (float newTime)
	Change the time after which a federate that fails to reconnect will be removed from the rtiexec federate tree.
float	getFederateRemovalTime () const
	Get the time for the federate removal.
void	enableDeletion (bool enable)
	Enables or disables federate and federation deletion options.
QString	getTreeFederationName (const MAKRti::DtString &federationName)
	Get the federation name the tree uses ( with the handle )
void	forceFederateSelection (int federateHandle, const MAKRti::DtString &federation)
	Forces selection of the specified federate.
void	forceFederationSelection (const MAKRti::DtString &federation)
	Forces selection of the specified federation.
void	forceClearSelection ()
	Forces the selection to be cleared.
void	saveGuiConfiguration (const MAKRti::DtFilename &configFile)
	Saves the GUI configuration to the given file.
void	loadGuiConfiguration (const MAKRti::DtFilename &configFile)
	Loads the GUI configuration from the given file.
void	initializeQtToolTips ()
QAction *	statisticsAction ()
	Returns a pointer to the specific action from the federate menu.
QAction *	latencyTestAction ()
	Returns a pointer to the specific action from the federate menu.
QAction *	federateRidParamAction ()
	Returns a pointer to the specific action from the federate menu.
QAction *	federateFomAction ()
	Returns a pointer to the specific action from the federate menu.
QAction *	federateLogAction ()
	Returns a pointer to the specific action from the federate menu.
QAction *	changeFederateIconAction ()
	Returns a pointer to the specific action from the federate menu.
QAction *	resignFederateAction ()
	Returns a pointer to the specific action from the federate menu.
QAction *	federationFomAction ()
	Returns a pointer to the specific action from the federate menu.
QAction *	syncPointsAction ()
	Returns a pointer to the specific action from the federate menu.
QAction *	destroyFederationAction ()
	Returns a pointer to the specific action from the federate menu.

Public Attributes
QString	theRegulatingEnabledToolTip
	Tool tip strings.
QString	theRegulatingDisabledToolTip
	Tool tip strings.
QString	theConstrainedEnabledToolTip
	Tool tip strings.
QString	theConstrainedDisabledToolTip
	Tool tip strings.
QString	theTestCapableEnabledToolTip
	Tool tip strings.
QString	theTestCapableDisabledToolTip
	Tool tip strings.
QString	theNoTestToolTip
	Tool tip strings.
QString	theContinuousTestToolTip
	Tool tip strings.
QString	theSingleTestToolTip
	Tool tip strings.
QString	theFederateLogEnabledText
	Tool tip strings.
QString	theFederateLogDisabledText
	Tool tip strings.

Static Public Attributes
static const QString	theLoadingText = DtFederateTree::tr("Loading...")
	The message that indicates information is being loaded.

Protected Member Functions
virtual void	updateFederateItems (const DtFederateInfoByHandleMap &federates, const DtAssistantForwarderInfo *forwarderInfo, QTreeWidgetItem *fedexItem)
	Updates the federate items for the given federation item.
virtual void	updateFederateItem (const DtAssistantFederateInfo &federate, const DtAssistantForwarderInfo *forwarderInfo, const QString &fedexName, QTreeWidgetItem *fedItem)
	Updates the federate item with the given information.
virtual void	updateFederateItemFromForwarderInformation (const DtAssistantFederateInfo &federate, const DtAssistantForwarderInfo *forwarderInfo, const QString &fedexName, QTreeWidgetItem *fedItem)
	Updates the federate item with forwarder information.
virtual void	removeAllFederateItems (QTreeWidgetItem *fedexItem)
	Removes all of federate items from the given federation item.
virtual void	removeFederateItem (QTreeWidgetItem *fedItem, QTreeWidgetItem *fedexItem, bool clearedDefunct=false)
	Removes and deletes the given federate item from the given federation item.
bool	isFederateValid (QTreeWidgetItem *item) const
	Is the federate represented by this QTreeWidgetItem valid.
bool	isFederateLocal (QTreeWidgetItem *item) const
	Is the federate represented by this QTreeWidgetItem locally hosted.
bool	isFederateLightweight (QTreeWidgetItem *item) const
	Is the federate represented by this QTreeWidgetItem using a lightweight connection.
bool	isFederationLightweight (QTreeWidgetItem *item) const
	Is the federation represented by this QTreeWidgetItem using a lightweight connection.

Protected Attributes
std::vector < DtFederateTreeColDescr >	myColumnDescrs
	List of descriptions for each column.
QMenu *	myColViewMenu
	Column view menu.
std::vector< QAction * >	myColDispActions
	Column view actions.
QAction *	myColCustomizeAction
QMenu *	myContextMenu
	Context Menu.
QMenu *	myFederateMenu
QMenu *	myFederationMenu
std::map< QString, QString >	myFederationNamesToItemNames
	Map of federation names to the names used in the tree.
std::map< QString, QString >	myItemNamesToFederationNames
	Map of federation names to the names used in the tree.
std::map< QTreeWidgetItem *, std::pair< MAKRti::DtTime, std::pair< QString, int > > >	myDefunctFederateTreeWidgets
	Items are added to myDefunctFederateTreeWidgets when their socket breaks.
std::map< QTreeWidgetItem *, std::pair< QString, int > >	myReconnectingFederates
	Federates that are currently attempting to reconnect.
std::map< QTreeWidgetItem *, std::pair< QString, int > >	myReconnectedFederates
	Federates that have successfully reconnected.
std::set< std::pair< QString, int > >	myClearedDefunctFederates
	Defunct federates that have been cleared from the display.
std::set< QTreeWidgetItem * >	myTestDisabledFederations
	Federations that have testing disabled.
std::map< MAKRti::DtString, QColor >	myFederationColors
	Map of federation names to their colors.
float	myFederateRemovalTime
	Time after which defunct federates will automatically be removed from the tree.
QTreeWidgetItem *	myLoadingIndicationItem
	Item that indicates federation information is currently being loaded.
bool	myDeletionEnabled
	Indicates whether or not federate and federation deletion is enabled.
MAKRti::DtClock	myTimer
QSize	myLastVisibleSize
	The size of the dialog the last time it was visible.
QAction *	myStatisticsAction
	Federate menu actions.
QAction *	myLatencyTestAction
	Federate menu actions.
QAction *	myFederateRidParametersAction
	Federate menu actions.
QAction *	myFederateFomAction
	Federate menu actions.
QAction *	myFederateLogAction
	Federate menu actions.
QAction *	myChangeFederateIconAction
	Federate menu actions.
QAction *	myResignFederateAction
	Federate menu actions.
QAction *	myClearCurrDefunctFederate
	Federate menu actions.
QAction *	myFederationFomAction
	Federation menu actions.
QAction *	myDisplaySyncPointsAction
	Federation menu actions.
QAction *	myEnableNetworkTestingAction
	Federation menu actions.
QAction *	myDestroyFederationAction
	Federation menu actions.
QAction *	myClearAllDeadFederates
	Federation menu actions.
QIcon	myCheckIcon
	Icons to be used in the federate tree.
QIcon	myNoCheckIcon
	Icons to be used in the federate tree.
QIcon	myContTestIcon
	Icons to be used in the federate tree.
QIcon	mySingleTestIcon
	Icons to be used in the federate tree.
QIcon	myYellowAttention
	Icons to be used in the federate tree.
QIcon	myRedAttention
	Icons to be used in the federate tree.
QIcon	myWorldWideWeb
	Icons to be used in the federate tree.
QIcon	myTestIcon
	Icons to be used in the federate tree.
QIcon	myDroppedIcon
	The dropped Icon.

Static Protected Attributes
static const int	FederateNameRole = Qt::UserRole
static const int	FederateHandleRole = DtFederateTree::FederateNameRole+1
static const int	TestEnableRole = DtFederateTree::FederateHandleRole+1
static const int	IsLocalRole = DtFederateTree::TestEnableRole+1
static const int	IsLightweightRole = DtFederateTree::IsLocalRole+1
static const int	theLastColDefaultedOn = FederatePIDIndex
	The number of the last column which is displayed by default the first time the dialog is shown.

Private Member Functions
	DtFederateTree (DtFederateTree const &)
	Copy constructor not implemented – Copy not allowed!
DtFederateTree &	operator= (DtFederateTree const &)
	Assignment operator not implemented – Assignment not allowed!

Member Enumeration Documentation

enum DtFederateTree::DtFederateTreeCol

Enumerator:

FederationNameIndex
FederateTypeAndHandleIndex
FederateProcessIndex
FederateNameIndex
FederateHostNameIndex
FederateIPIndex
HlaVersionIndex
FederateQueueStatusIndex
FederatePIDIndex
FederateCommandArgsIndex
RegulatingStateIndex
ConstrainedStateIndex
LbtsIndex
LookAheadIndex
CurrentTimeIndex
TestStatusIndex
TestCountIndex
NumFederateTreeCols

Constructor & Destructor Documentation

DtFederateTree::DtFederateTree

(

QWidget *

parent

)

References clearAllDefunctFederates(), clearCurrDefunctFederates(), connect(), ConstrainedStateIndex, CurrentTimeIndex, deleteSelectedFed(), destroySelectedFederations(), FederateCommandArgsIndex, FederateHostNameIndex, FederateIPIndex, FederateNameIndex, FederatePIDIndex, FederateProcessIndex, FederateQueueStatusIndex, FederateTypeAndHandleIndex, FederationNameIndex, DtIconAndTextureManager::getIcon(), DtIconAndTextureManager::getInstance(), HlaVersionIndex, initializeQtToolTips(), LbtsIndex, LookAheadIndex, myChangeFederateIconAction, myCheckIcon, myClearAllDeadFederates, myClearCurrDefunctFederate, myColCustomizeAction, myColDispActions, myColumnDescrs, myColViewMenu, myContextMenu, myContTestIcon, myDestroyFederationAction, myDisplaySyncPointsAction, myDroppedIcon, myEnableNetworkTestingAction, myFederateFomAction, myFederateLogAction, myFederateMenu, myFederateRidParametersAction, myFederationFomAction, myFederationMenu, myLatencyTestAction, myLoadingIndicationItem, myRedAttention, myResignFederateAction, mySingleTestIcon, myStatisticsAction, myTestIcon, myTimer, myWorldWideWeb, myYellowAttention, NumFederateTreeCols, refreshMenus(), RegulatingStateIndex, showColCustomizeDlg(), showColumns(), showContextMenu(), showLatencyTest(), signalSelectionChange(), TestCountIndex, TestStatusIndex, theLastColDefaultedOn, theLoadingText, and updateEnableNetworkTestingForSelectedFederations().

DtFederateTree::~DtFederateTree ( )

virtual

References myLoadingIndicationItem.

DtFederateTree::DtFederateTree ( DtFederateTree const &  )

private

Copy constructor not implemented – Copy not allowed!

Member Function Documentation

void DtFederateTree::allColumns ( std::map< QString, std::pair< int, bool > > &  columns )

slot

Get the columns and their position / visible value (cols in emptied and populated).

References myColDispActions.

QAction* DtFederateTree::changeFederateIconAction ( )

inline

Returns a pointer to the specific action from the federate menu.

Referenced by DtFederationsViewDialog::setupMenus().

void DtFederateTree::clearAllDefunctFederates ( )

slot

Clears all defunct federates.

References defunctFederateRemoved(), myClearAllDeadFederates, myDefunctFederateTreeWidgets, myFederationMenu, and removeFederate().

Referenced by DtFederateTree().

void DtFederateTree::clearCurrDefunctFederates ( )

slot

Clear only the currently selected defunct federates.

References defunctFederateRemoved(), FederateHandleRole, FederateTypeAndHandleIndex, FederationNameIndex, myDefunctFederateTreeWidgets, myItemNamesToFederationNames, removeFederate(), and true.

Referenced by DtFederateTree().

QMenu* DtFederateTree::columnViewMenu ( )

inline

Returns a pointer to the menu which allows users to hide/display any columns in the tree.

Referenced by DtFederationsViewDialog::setupMenus().

void DtFederateTree::defunctFederateRemoved ( const MAKRti::DtString &  federation, int  federateHandle  )

signal

Emitted when a defunct federate must be removed.

Referenced by clearAllDefunctFederates(), clearCurrDefunctFederates(), and processInvalidList().

void DtFederateTree::deleteSelectedFed ( )

slot

Emits the fedDeleteRequest signal for the selected federate.

References fedDeleteRequest(), FederateHandleRole, FederateTypeAndHandleIndex, FederationNameIndex, isFederateValid(), and myItemNamesToFederationNames.

Referenced by DtFederateTree().

QAction* DtFederateTree::destroyFederationAction ( )

inline

Returns a pointer to the specific action from the federate menu.

Referenced by DtFederationsViewDialog::setupMenus().

void DtFederateTree::destroySelectedFederations ( )

slot

For each federation selected, resign the federates then emit federationDelete.

References fedDeleteRequest(), FederateHandleRole, FederateTypeAndHandleIndex, federationDeleteRequest(), FederationNameIndex, and myItemNamesToFederationNames.

Referenced by DtFederateTree().

void DtFederateTree::disableNetworkTestingRequest ( const QString &  )

signal

Referenced by updateEnableNetworkTestingForSelectedFederations().

void DtFederateTree::displayLoadingIndication ( )

virtual

Displays a message that the current federation information is loading.

References myLoadingIndicationItem, and removeAllFederations().

Referenced by DtFederationsViewDialog::displayLoadingIndication().

void DtFederateTree::enableDeletion

(

bool

enable

)

Enables or disables federate and federation deletion options.

References myDeletionEnabled, and refreshMenus().

void DtFederateTree::enableNetworkTestingRequest ( const QString &  )

signal

Referenced by updateEnableNetworkTestingForSelectedFederations().

void DtFederateTree::fedDeleteRequest ( int  , const QString &    )

signal

Referenced by deleteSelectedFed(), and destroySelectedFederations().

QAction* DtFederateTree::federateFomAction ( )

inline

Returns a pointer to the specific action from the federate menu.

Referenced by DtFederationsViewDialog::setupMenus().

QAction* DtFederateTree::federateLogAction ( )

inline

Returns a pointer to the specific action from the federate menu.

Referenced by DtFederationsViewDialog::setupMenus().

QMenu* DtFederateTree::federateMenu ( )

inline

Returns a pointer to the menu which allows users to perform actions related to the currently selected federates.

Referenced by DtFederationsViewDialog::setupMenus().

QAction* DtFederateTree::federateRidParamAction ( )

inline

Returns a pointer to the specific action from the federate menu.

Referenced by DtFederationsViewDialog::setupMenus().

void DtFederateTree::federateSelected ( const MAKRti::DtString &  federation, int  federateHandle  )

signal

Emitted when a single federate is selected.

Referenced by signalSelectionChange().

void DtFederateTree::federationDeleteRequest ( const QString &  fedexName )

signal

Referenced by destroySelectedFederations().

QAction* DtFederateTree::federationFomAction ( )

inline

Returns a pointer to the specific action from the federate menu.

Referenced by DtFederationsViewDialog::setupMenus().

QMenu* DtFederateTree::federationMenu ( )

inline

Returns a pointer to the menu which allows users to perform actions related to the current selected federations.

Referenced by DtFederationsViewDialog::setupMenus().

void DtFederateTree::federationSelected ( const MAKRti::DtString &  name )

signal

Emitted when a single federation is selected.

Referenced by signalSelectionChange().

void DtFederateTree::forceClearSelection

(

)

Forces the selection to be cleared.

Referenced by DtFederationsViewDialog::clearSelection(), DtFederationsViewDialog::selectForwarder(), DtFederationsViewDialog::selectLightweight(), DtFederationsViewDialog::selectPeerForwarder(), DtFederationsViewDialog::selectRtiexec(), and DtFederationsViewDialog::showForwarderInfo().

void DtFederateTree::forceFederateSelection	(	int	federateHandle,
		const MAKRti::DtString &	federation
	)

Forces selection of the specified federate.

References FederateHandleRole, FederateTypeAndHandleIndex, and myFederationNamesToItemNames.

Referenced by DtFederationsViewDialog::selectDeadFederate(), and DtFederationsViewDialog::selectFederate().

void DtFederateTree::forceFederationSelection

(

const MAKRti::DtString &

federation

)

Forces selection of the specified federation.

References myFederationNamesToItemNames.

float DtFederateTree::getFederateRemovalTime

(

)

const

Get the time for the federate removal.

References myFederateRemovalTime.

QString DtFederateTree::getTreeFederationName

(

const MAKRti::DtString &

federationName

)

Get the federation name the tree uses ( with the handle )

References myFederationNamesToItemNames.

Referenced by DtFederationsViewDialog::removeFederation().

bool DtFederateTree::hasValidFederates ( ) const

slot

returns whether any federates are valid.

References isFederateValid().

void DtFederateTree::hideEvent ( QHideEvent *  event )

virtual

Override hideEvent to store the size of the dialog when it is hidden.

References myLastVisibleSize.

void DtFederateTree::initializeQtToolTips

(

)

References theConstrainedDisabledToolTip, theConstrainedEnabledToolTip, theContinuousTestToolTip, theFederateLogDisabledText, theFederateLogEnabledText, theNoTestToolTip, theRegulatingDisabledToolTip, theRegulatingEnabledToolTip, theSingleTestToolTip, theTestCapableDisabledToolTip, and theTestCapableEnabledToolTip.

Referenced by DtFederateTree().

bool DtFederateTree::isFederateLightweight ( QTreeWidgetItem *  item ) const

protected

Is the federate represented by this QTreeWidgetItem using a lightweight connection.

References isFederationLightweight().

Referenced by refreshMenus().

bool DtFederateTree::isFederateLocal ( QTreeWidgetItem *  item ) const

protected

Is the federate represented by this QTreeWidgetItem locally hosted.

References FederateHostNameIndex, and IsLocalRole.

Referenced by refreshMenus().

bool DtFederateTree::isFederateValid	(	int	federateHandle,
		const QString &	fedexName
	)		const

Is this federate valid?

References FederateHandleRole, FederateTypeAndHandleIndex, and myFederationNamesToItemNames.

Referenced by deleteSelectedFed(), hasValidFederates(), refreshMenus(), and signalSelectionChange().

bool DtFederateTree::isFederateValid ( QTreeWidgetItem *  item ) const

protected

Is the federate represented by this QTreeWidgetItem valid.

References myDefunctFederateTreeWidgets, and myReconnectingFederates.

bool DtFederateTree::isFederationLightweight ( QTreeWidgetItem *  item ) const

protected

Is the federation represented by this QTreeWidgetItem using a lightweight connection.

References FederationNameIndex, and IsLightweightRole.

Referenced by isFederateLightweight(), and refreshMenus().

QAction* DtFederateTree::latencyTestAction ( )

inline

Returns a pointer to the specific action from the federate menu.

Referenced by DtFederationsViewDialog::setupMenus().

void DtFederateTree::loadGuiConfiguration

(

const MAKRti::DtFilename &

configFile

)

Loads the GUI configuration from the given file.

References myColDispActions, and showColumns().

Referenced by DtFederationsViewDialog::loadGuiConfiguration().

void DtFederateTree::multipleItemsSelected ( )

signal

Emitted when multiple items are selected.

Referenced by signalSelectionChange().

void DtFederateTree::nothingSelected ( )

signal

Emitted when selection is cleared.

Referenced by signalSelectionChange().

DtFederateTree& DtFederateTree::operator= ( DtFederateTree const &  )

private

Assignment operator not implemented – Assignment not allowed!

void DtFederateTree::processInvalidList

(

)

Process the list of Invalid federates for automatic removal.

References defunctFederateRemoved(), myClearAllDeadFederates, myDefunctFederateTreeWidgets, myFederateRemovalTime, myFederationMenu, myTimer, and removeFederate().

Referenced by DtFederationsViewDialog::tick().

void DtFederateTree::refreshMenus ( )

slot

Refresh the currently available menu options.

References isFederateLightweight(), isFederateLocal(), isFederateValid(), isFederationLightweight(), myChangeFederateIconAction, myClearCurrDefunctFederate, myContextMenu, myDeletionEnabled, myDestroyFederationAction, myDisplaySyncPointsAction, myEnableNetworkTestingAction, myFederateFomAction, myFederateLogAction, myFederateMenu, myFederateRidParametersAction, myFederationFomAction, myFederationMenu, myLatencyTestAction, myResignFederateAction, myStatisticsAction, myTestDisabledFederations, TestEnableRole, TestStatusIndex, theFederateLogDisabledText, and theFederateLogEnabledText.

Referenced by DtFederateTree(), enableDeletion(), removeAllFederations(), removeFederate(), removeFederation(), showContextMenu(), updateFederate(), and updateFederation().

void DtFederateTree::removeAllFederateItems ( QTreeWidgetItem *  fedexItem )

protectedvirtual

Removes all of federate items from the given federation item.

References removeFederateItem().

Referenced by removeAllFederations(), and removeFederation().

void DtFederateTree::removeAllFederations ( )

virtual

Removes all of the federations from the tree.

References myFederationColors, myFederationNamesToItemNames, myItemNamesToFederationNames, refreshMenus(), removeAllFederateItems(), and removeLoadingIndication().

Referenced by displayLoadingIndication(), and DtFederationsViewDialog::removeAllFederations().

bool DtFederateTree::removeFederate ( int  federateHandle, const QString &  fedexName, bool  clearedDefunct = false  )

virtual

Removes a federate from an existing federation in the tree.

Returns true if successful. If clearedDefunct flag is true, the federate item will not be removed, but instead be placed in the list of cleared defunct federates.

References FederateHandleRole, FederateTypeAndHandleIndex, myFederationNamesToItemNames, refreshMenus(), and removeFederateItem().

Referenced by clearAllDefunctFederates(), clearCurrDefunctFederates(), processInvalidList(), and DtFederationsViewDialog::removeFederate().

void DtFederateTree::removeFederateItem ( QTreeWidgetItem *  fedItem, QTreeWidgetItem *  fedexItem, bool  clearedDefunct = false  )

protectedvirtual

Removes and deletes the given federate item from the given federation item.

The item will be added to the list of cleared defunct federates if the clearedDefunct flag is true.

References FederateHandleRole, FederateTypeAndHandleIndex, FederationNameIndex, myClearedDefunctFederates, myItemNamesToFederationNames, myReconnectedFederates, and myReconnectingFederates.

Referenced by removeAllFederateItems(), removeFederate(), and updateFederateItems().

bool DtFederateTree::removeFederation ( const QString &  name )

virtual

Removes the federation with the given name from the tree.

Returns true if successful.

References myFederationColors, myFederationNamesToItemNames, myItemNamesToFederationNames, refreshMenus(), and removeAllFederateItems().

Referenced by DtFederationsViewDialog::removeFederation().

void DtFederateTree::removeLoadingIndication ( )

virtual

Removes the loading indication messages.

References myLoadingIndicationItem.

Referenced by removeAllFederations(), DtFederationsViewDialog::removeLoadingIndication(), and updateFederation().

QAction* DtFederateTree::resignFederateAction ( )

inline

Returns a pointer to the specific action from the federate menu.

Referenced by DtFederationsViewDialog::setupMenus().

void DtFederateTree::saveGuiConfiguration

(

const MAKRti::DtFilename &

configFile

)

Saves the GUI configuration to the given file.

Referenced by DtFederationsViewDialog::saveGuiConfiguration().

void DtFederateTree::setAllColumns ( const std::map< QString, std::pair< int, bool > > &  columns )

slot

Set the columns that are currently shown.

References myColDispActions, and showColumns().

void DtFederateTree::setFederateRemovalTime

(

float

newTime

)

Change the time after which a federate that fails to reconnect will be removed from the rtiexec federate tree.

References myFederateRemovalTime.

Referenced by DtFederationsViewDialog::updateFederateRemovalTime().

void DtFederateTree::showColCustomizeDlg ( )

slot

Displays the column view customize dialog.

References myColDispActions.

Referenced by DtFederateTree().

void DtFederateTree::showColumns ( )

slot

Updates which columns are shown or hidden.

References myColDispActions.

Referenced by DtFederateTree(), loadGuiConfiguration(), and setAllColumns().

void DtFederateTree::showContextMenu ( const QPoint &  pos )

slot

Shows the context menu at the given position.

References myContextMenu, and refreshMenus().

Referenced by DtFederateTree().

void DtFederateTree::showFedLatencyTest ( const QString &  , int    )

signal

Referenced by showLatencyTest().

void DtFederateTree::showLatencyTest ( )

slot

Emits the showFedLatencyTest signal for the selected federate.

References FederateHandleRole, FederateTypeAndHandleIndex, FederationNameIndex, myItemNamesToFederationNames, and showFedLatencyTest().

Referenced by DtFederateTree().

void DtFederateTree::signalSelectionChange ( )

slot

Determines what the new selection is and emits the appropriate signal.

References FederateHandleRole, federateSelected(), FederateTypeAndHandleIndex, FederationNameIndex, federationSelected(), isFederateValid(), multipleItemsSelected(), myItemNamesToFederationNames, and nothingSelected().

Referenced by DtFederateTree().

QSize DtFederateTree::sizeHint ( ) const

virtual

Returns the recommended size for the widget.

References myLastVisibleSize.

QAction* DtFederateTree::statisticsAction ( )

inline

Returns a pointer to the specific action from the federate menu.

Referenced by DtFederationsViewDialog::setupMenus().

QAction* DtFederateTree::syncPointsAction ( )

inline

Returns a pointer to the specific action from the federate menu.

Referenced by DtFederationsViewDialog::setupMenus().

void DtFederateTree::updateEnableNetworkTestingForSelectedFederations ( )

slot

For each federation selected, enables or disables testing.

References disableNetworkTestingRequest(), enableNetworkTestingRequest(), FederateHandleRole, FederateTypeAndHandleIndex, FederationNameIndex, myItemNamesToFederationNames, and myTestDisabledFederations.

Referenced by DtFederateTree().

bool DtFederateTree::updateFederate ( const DtAssistantFederateInfo &  federate, const DtAssistantForwarderInfo *  forwarderInfo, const QString &  fedexName  )

virtual

Updates or adds a federate to an existing federation in the tree.

Returns true if a new federation was added.

References ConstrainedStateIndex, CurrentTimeIndex, FederateCommandArgsIndex, DtAssistantFederateInfo::federateHandle(), FederateHandleRole, FederateHostNameIndex, FederateIPIndex, FederateNameIndex, FederatePIDIndex, FederateProcessIndex, FederateQueueStatusIndex, FederateTypeAndHandleIndex, HlaVersionIndex, LbtsIndex, LookAheadIndex, myColumnDescrs, myFederationNamesToItemNames, refreshMenus(), RegulatingStateIndex, TestCountIndex, TestStatusIndex, theConstrainedDisabledToolTip, theNoTestToolTip, theRegulatingDisabledToolTip, and updateFederateItem().

Referenced by DtFederationsViewDialog::updateFederate().

void DtFederateTree::updateFederateItem ( const DtAssistantFederateInfo &  federate, const DtAssistantForwarderInfo *  forwarderInfo, const QString &  fedexName, QTreeWidgetItem *  fedItem  )

protectedvirtual

Updates the federate item with the given information.

References ConstrainedStateIndex, DtAssistantFederateInfo::continuousTest(), CurrentTimeIndex, DtHla13, DtHla13DLC, DtHla1516, DtHlaEvolved, DtAssistantFederateInfo::federateHandle(), FederateHandleRole, DtAssistantFederateInfo::federateHostAddr(), DtAssistantFederateInfo::federateHostName(), FederateHostNameIndex, FederateIPIndex, DtAssistantFederateInfo::federateName(), FederateNameIndex, FederateNameRole, DtAssistantFederateInfo::federateType(), FederateTypeAndHandleIndex, DtAssistantFederateInfo::hlaVersion(), HlaVersionIndex, DtAssistantFederateInfo::isConstrained(), DtAssistantFederateInfo::isDisconnected(), DtAssistantFederateInfo::isLocalComp(), IsLocalRole, DtAssistantFederateInfo::isReconnecting(), DtAssistantFederateInfo::isRegulating(), LbtsIndex, DtAssistantFederateInfo::lbtsString(), LookAheadIndex, DtAssistantFederateInfo::lookAheadString(), myCheckIcon, myClearAllDeadFederates, myContTestIcon, myDefunctFederateTreeWidgets, myFederationMenu, myReconnectedFederates, myReconnectingFederates, myRedAttention, mySingleTestIcon, myTimer, myYellowAttention, DtAssistantFederateInfo::numInitiatedTests(), DtAssistantFederateInfo::numTestReports(), RegulatingStateIndex, TestCountIndex, DtAssistantFederateInfo::testEnabled(), TestEnableRole, DtAssistantFederateInfo::testInProgress(), TestStatusIndex, theConstrainedDisabledToolTip, theConstrainedEnabledToolTip, theContinuousTestToolTip, theNoTestToolTip, theRegulatingDisabledToolTip, theRegulatingEnabledToolTip, theSingleTestToolTip, DtAssistantFederateInfo::timeString(), and updateFederateItemFromForwarderInformation().

Referenced by updateFederate(), and updateFederateItems().

void DtFederateTree::updateFederateItemFromForwarderInformation ( const DtAssistantFederateInfo &  federate, const DtAssistantForwarderInfo *  forwarderInfo, const QString &  fedexName, QTreeWidgetItem *  fedItem  )

protectedvirtual

Updates the federate item with forwarder information.

References FederateCommandArgsIndex, DtAssistantFederateInfo::federateHandle(), FederatePIDIndex, FederateProcessIndex, FederateQueueStatusIndex, DtAssistantForwarderInfo::federates(), and myDroppedIcon.

Referenced by updateFederateItem().

void DtFederateTree::updateFederateItems ( const DtFederateInfoByHandleMap &  federates, const DtAssistantForwarderInfo *  forwarderInfo, QTreeWidgetItem *  fedexItem  )

protectedvirtual

Updates the federate items for the given federation item.

References ConstrainedStateIndex, CurrentTimeIndex, FederateHandleRole, FederateIPIndex, FederateNameIndex, FederateTypeAndHandleIndex, FederationNameIndex, HlaVersionIndex, LbtsIndex, LookAheadIndex, myClearedDefunctFederates, myColumnDescrs, myItemNamesToFederationNames, RegulatingStateIndex, removeFederateItem(), TestCountIndex, TestStatusIndex, theConstrainedDisabledToolTip, theNoTestToolTip, theRegulatingDisabledToolTip, and updateFederateItem().

Referenced by updateFederation().

bool DtFederateTree::updateFederation ( const DtAssistantFederationInfo *  federation, const DtAssistantForwarderInfo *  forwarderInfo  )

virtual

Updates or adds a federation to the tree.

Returns true if a new federation was added.

References DtAssistantFederationInfo::federates(), DtAssistantFederationInfo::federationHandle(), DtAssistantFederationInfo::federationName(), FederationNameIndex, IsLightweightRole, myColumnDescrs, myFederationNamesToItemNames, myItemNamesToFederationNames, myTestDisabledFederations, refreshMenus(), removeLoadingIndication(), DtAssistantFederationInfo::testingEnabled(), and updateFederateItems().

Referenced by DtFederationsViewDialog::updateFederation().

void DtFederateTree::updateFederationColor ( const MAKRti::DtString &  federationName, const QColor &  color  )

virtual

Set the color of the specified federation.

References FederationNameIndex, myFederationColors, and myFederationNamesToItemNames.

Referenced by DtFederationsViewDialog::changeFederationColor(), and DtFederationsViewDialog::updateFederation().

Member Data Documentation

const int DtFederateTree::FederateHandleRole = DtFederateTree::FederateNameRole+1

staticprotected

Referenced by clearCurrDefunctFederates(), deleteSelectedFed(), destroySelectedFederations(), forceFederateSelection(), isFederateValid(), removeFederate(), removeFederateItem(), showLatencyTest(), signalSelectionChange(), updateEnableNetworkTestingForSelectedFederations(), updateFederate(), updateFederateItem(), and updateFederateItems().

const int DtFederateTree::FederateNameRole = Qt::UserRole

staticprotected

Referenced by updateFederateItem().

const int DtFederateTree::IsLightweightRole = DtFederateTree::IsLocalRole+1

staticprotected

Referenced by isFederationLightweight(), and updateFederation().

const int DtFederateTree::IsLocalRole = DtFederateTree::TestEnableRole+1

staticprotected

Referenced by isFederateLocal(), and updateFederateItem().

QAction* DtFederateTree::myChangeFederateIconAction

protected

Federate menu actions.

Referenced by DtFederateTree(), and refreshMenus().

QIcon DtFederateTree::myCheckIcon

protected

Icons to be used in the federate tree.

Referenced by DtFederateTree(), and updateFederateItem().

QAction* DtFederateTree::myClearAllDeadFederates

protected

Federation menu actions.

Referenced by clearAllDefunctFederates(), DtFederateTree(), processInvalidList(), and updateFederateItem().

QAction* DtFederateTree::myClearCurrDefunctFederate

protected

Federate menu actions.

Referenced by DtFederateTree(), and refreshMenus().

std::set< std::pair<QString, int > > DtFederateTree::myClearedDefunctFederates

protected

Defunct federates that have been cleared from the display.

Referenced by removeFederateItem(), and updateFederateItems().

QAction* DtFederateTree::myColCustomizeAction

protected

Referenced by DtFederateTree().

std::vector< QAction* > DtFederateTree::myColDispActions

protected

Column view actions.

Referenced by allColumns(), DtFederateTree(), loadGuiConfiguration(), setAllColumns(), showColCustomizeDlg(), and showColumns().

std::vector<DtFederateTreeColDescr> DtFederateTree::myColumnDescrs

protected

List of descriptions for each column.

Referenced by DtFederateTree(), updateFederate(), updateFederateItems(), and updateFederation().

QMenu* DtFederateTree::myColViewMenu

protected

Column view menu.

Referenced by DtFederateTree().

QMenu* DtFederateTree::myContextMenu

protected

Context Menu.

Referenced by DtFederateTree(), refreshMenus(), and showContextMenu().

QIcon DtFederateTree::myContTestIcon

protected

Icons to be used in the federate tree.

Referenced by DtFederateTree(), and updateFederateItem().

std::map<QTreeWidgetItem*, std::pair<MAKRti::DtTime, std::pair<QString, int> > > DtFederateTree::myDefunctFederateTreeWidgets

protected

Items are added to myDefunctFederateTreeWidgets when their socket breaks.

These federates are removed if: 1) They fail to reconnect and are manually removed 2) They fail to reconnect and are automatically removed by timer 3) The federation is destroyed

Referenced by clearAllDefunctFederates(), clearCurrDefunctFederates(), isFederateValid(), processInvalidList(), and updateFederateItem().

bool DtFederateTree::myDeletionEnabled

protected

Indicates whether or not federate and federation deletion is enabled.

Referenced by enableDeletion(), and refreshMenus().

QAction* DtFederateTree::myDestroyFederationAction

protected

Federation menu actions.

Referenced by DtFederateTree(), and refreshMenus().

QAction* DtFederateTree::myDisplaySyncPointsAction

protected

Federation menu actions.

Referenced by DtFederateTree(), and refreshMenus().

QIcon DtFederateTree::myDroppedIcon

protected

The dropped Icon.

Referenced by DtFederateTree(), and updateFederateItemFromForwarderInformation().

QAction* DtFederateTree::myEnableNetworkTestingAction

protected

Federation menu actions.

Referenced by DtFederateTree(), and refreshMenus().

QAction* DtFederateTree::myFederateFomAction

protected

Federate menu actions.

Referenced by DtFederateTree(), and refreshMenus().

QAction* DtFederateTree::myFederateLogAction

protected

Federate menu actions.

Referenced by DtFederateTree(), and refreshMenus().

QMenu* DtFederateTree::myFederateMenu

protected

Referenced by DtFederateTree(), and refreshMenus().

float DtFederateTree::myFederateRemovalTime

protected

Time after which defunct federates will automatically be removed from the tree.

Referenced by getFederateRemovalTime(), processInvalidList(), and setFederateRemovalTime().

QAction* DtFederateTree::myFederateRidParametersAction

protected

Federate menu actions.

Referenced by DtFederateTree(), and refreshMenus().

std::map< MAKRti::DtString, QColor > DtFederateTree::myFederationColors

protected

Map of federation names to their colors.

Referenced by removeAllFederations(), removeFederation(), and updateFederationColor().

QAction* DtFederateTree::myFederationFomAction

protected

Federation menu actions.

Referenced by DtFederateTree(), and refreshMenus().

QMenu* DtFederateTree::myFederationMenu

protected

Referenced by clearAllDefunctFederates(), DtFederateTree(), processInvalidList(), refreshMenus(), and updateFederateItem().

std::map<QString, QString> DtFederateTree::myFederationNamesToItemNames

protected

Map of federation names to the names used in the tree.

Referenced by forceFederateSelection(), forceFederationSelection(), getTreeFederationName(), isFederateValid(), removeAllFederations(), removeFederate(), removeFederation(), updateFederate(), updateFederation(), and updateFederationColor().

std::map<QString, QString> DtFederateTree::myItemNamesToFederationNames

protected

Map of federation names to the names used in the tree.

Referenced by clearCurrDefunctFederates(), deleteSelectedFed(), destroySelectedFederations(), removeAllFederations(), removeFederateItem(), removeFederation(), showLatencyTest(), signalSelectionChange(), updateEnableNetworkTestingForSelectedFederations(), updateFederateItems(), and updateFederation().

QSize DtFederateTree::myLastVisibleSize

protected

The size of the dialog the last time it was visible.

Referenced by hideEvent(), and sizeHint().

QAction* DtFederateTree::myLatencyTestAction

protected

Federate menu actions.

Referenced by DtFederateTree(), and refreshMenus().

QTreeWidgetItem* DtFederateTree::myLoadingIndicationItem

protected

Item that indicates federation information is currently being loaded.

Referenced by displayLoadingIndication(), DtFederateTree(), removeLoadingIndication(), and ~DtFederateTree().

QIcon DtFederateTree::myNoCheckIcon

protected

Icons to be used in the federate tree.

std::map<QTreeWidgetItem*, std::pair<QString, int> > DtFederateTree::myReconnectedFederates

protected

Federates that have successfully reconnected.

Referenced by removeFederateItem(), and updateFederateItem().

std::map<QTreeWidgetItem*, std::pair<QString, int> > DtFederateTree::myReconnectingFederates

protected

Federates that are currently attempting to reconnect.

Referenced by isFederateValid(), removeFederateItem(), and updateFederateItem().

QIcon DtFederateTree::myRedAttention

protected

Icons to be used in the federate tree.

Referenced by DtFederateTree(), and updateFederateItem().

QAction* DtFederateTree::myResignFederateAction

protected

Federate menu actions.

Referenced by DtFederateTree(), and refreshMenus().

QIcon DtFederateTree::mySingleTestIcon

protected

Icons to be used in the federate tree.

Referenced by DtFederateTree(), and updateFederateItem().

QAction* DtFederateTree::myStatisticsAction

protected

Federate menu actions.

Referenced by DtFederateTree(), and refreshMenus().

std::set<QTreeWidgetItem* > DtFederateTree::myTestDisabledFederations

protected

Federations that have testing disabled.

Referenced by refreshMenus(), updateEnableNetworkTestingForSelectedFederations(), and updateFederation().

QIcon DtFederateTree::myTestIcon

protected

Icons to be used in the federate tree.

Referenced by DtFederateTree().

MAKRti::DtClock DtFederateTree::myTimer

protected

Referenced by DtFederateTree(), processInvalidList(), and updateFederateItem().

QIcon DtFederateTree::myWorldWideWeb

protected

Icons to be used in the federate tree.

Referenced by DtFederateTree().

QIcon DtFederateTree::myYellowAttention

protected

Icons to be used in the federate tree.

Referenced by DtFederateTree(), and updateFederateItem().

const int DtFederateTree::TestEnableRole = DtFederateTree::FederateHandleRole+1

staticprotected

Referenced by refreshMenus(), and updateFederateItem().

QString DtFederateTree::theConstrainedDisabledToolTip

Tool tip strings.

Referenced by initializeQtToolTips(), updateFederate(), updateFederateItem(), and updateFederateItems().

QString DtFederateTree::theConstrainedEnabledToolTip

Tool tip strings.

Referenced by initializeQtToolTips(), and updateFederateItem().

QString DtFederateTree::theContinuousTestToolTip

Tool tip strings.

Referenced by initializeQtToolTips(), and updateFederateItem().

QString DtFederateTree::theFederateLogDisabledText

Tool tip strings.

Referenced by initializeQtToolTips(), and refreshMenus().

QString DtFederateTree::theFederateLogEnabledText

Tool tip strings.

Referenced by initializeQtToolTips(), and refreshMenus().

const int DtFederateTree::theLastColDefaultedOn = FederatePIDIndex

staticprotected

The number of the last column which is displayed by default the first time the dialog is shown.

Referenced by DtFederateTree().

const QString DtFederateTree::theLoadingText = DtFederateTree::tr("Loading...")

static

The message that indicates information is being loaded.

Referenced by DtFederateTree().

QString DtFederateTree::theNoTestToolTip

Tool tip strings.

Referenced by initializeQtToolTips(), updateFederate(), updateFederateItem(), and updateFederateItems().

QString DtFederateTree::theRegulatingDisabledToolTip

Tool tip strings.

Referenced by initializeQtToolTips(), updateFederate(), updateFederateItem(), and updateFederateItems().

QString DtFederateTree::theRegulatingEnabledToolTip

Tool tip strings.

Referenced by initializeQtToolTips(), and updateFederateItem().

QString DtFederateTree::theSingleTestToolTip

Tool tip strings.

Referenced by initializeQtToolTips(), and updateFederateItem().

QString DtFederateTree::theTestCapableDisabledToolTip

Tool tip strings.

Referenced by initializeQtToolTips().

QString DtFederateTree::theTestCapableEnabledToolTip

Tool tip strings.

Referenced by initializeQtToolTips().

---

The documentation for this class was generated from the following files:

• federateTree.h
• federateTree.cxx
