The DtMsgSocket provides a wrapper around the DtInetSocket class to operate on messages rather than just raw data. More...

Inheritance diagram for DtMsgSocket:

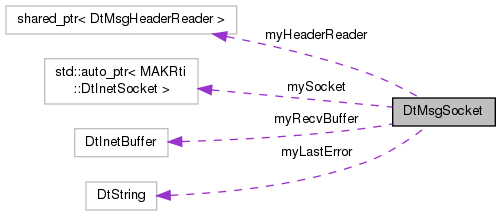

Collaboration diagram for DtMsgSocket:

Public Member Functions
	DtMsgSocket (DtBoost::shared_ptr< DtMsgHeaderReader > hdrReader, size_t recvBuffSize)
	Constructor.
	DtMsgSocket (std::auto_ptr< DtInetSocket > socket, DtBoost::shared_ptr< DtMsgHeaderReader > hdrReader, size_t recvBuffSize)
	Constructor which takes a pre-created DtInetSocket pointer.
virtual	~DtMsgSocket ()
	Destructor.
virtual int	sendMessage (caddr_t msg, size_t msgSize, bool deleteAfterSend, const DtInetAddr &destAddr=DtInetAddr::inaddrAny())=0
	Sends a message.
virtual bool	flush ()=0
	Attempts to send any queued messages and bundled messages.
virtual int	recvMessage (caddr_t *buffptr)=0
	Gets the next message from the incoming data.
virtual int	recvMessageWithSrc (caddr_t *buffptr, DtInetEndpoint &src)=0
	Gets the next message from the stream of incoming data and sets the source of the message.
virtual bool	closeSocket ()
	Close a socket. Returns true on successful close or false on failure.
virtual DtInetSockState	state () const
	Returns the state of the socket.
void	printStateToStream (MAKRti::DtOutputStream &stream) const
	prints state to stream
const DtString &	lastError () const
	Returns a description of the last error.
virtual void	enableBundling (size_t maxBundleSize)=0
	Enables message bundling and sets the maximum bundle size.
virtual void	disableBundling ()=0
	Disables message bundling.
virtual void	enableCompression (DtU8 compressionLevel)=0
	Enables message compression and sets the compression level.
virtual void	disableCompression ()=0
	Disables message compression.
const DtInetEndpoint &	localEndpoint () const
	Gets the local endpoint for the socket.
void	setSendBufferSize (DtU32 size)
	Sets the socket send buffer size.
void	setRecvBufferSize (DtU32 size)
	Sets the socket receive buffer size.
DtU32	maxSendMsgSize () const
	Gets the maximum socket send size.
unsigned int	descriptor () const
	Get's the socket file descriptor.
DtInetSocket *	inetSocket ()
	Returns a pointer to the DtInetSocket.

Protected Member Functions
void	expandRecvBuffer (size_t sizeNeeded)
	Expands the receive buffer to accommodate the given size message.

Protected Attributes
std::auto_ptr < MAKRti::DtInetSocket >	mySocket
	The socket.
DtInetBuffer	myRecvBuffer
	The buffer to store received data in.
DtString	myLastError
	Description of last error.
DtBoost::shared_ptr < DtMsgHeaderReader >	myHeaderReader
	Reads data from message header.

Private Member Functions
	DtMsgSocket (const DtMsgSocket &)
	Not copyable.
DtMsgSocket &	operator= (const DtMsgSocket &)

Detailed Description

The DtMsgSocket provides a wrapper around the DtInetSocket class to operate on messages rather than just raw data.

Constructor & Destructor Documentation

DtMsgSocket::DtMsgSocket	(	DtBoost::shared_ptr< DtMsgHeaderReader >	hdrReader,
		size_t	recvBuffSize
	)

Constructor.

Requires a header reader to extract information from message headers.

DtMsgSocket::DtMsgSocket	(	std::auto_ptr< DtInetSocket >	socket,
		DtBoost::shared_ptr< DtMsgHeaderReader >	hdrReader,
		size_t	recvBuffSize
	)

Constructor which takes a pre-created DtInetSocket pointer.

Gives ownership and responsibility of the socket to the DtMsgSocket object.

DtMsgSocket::~DtMsgSocket ( )

virtual

Destructor.

DtMsgSocket::DtMsgSocket ( const DtMsgSocket & )

private

Not copyable.

Member Function Documentation

bool DtMsgSocket::closeSocket ( )

virtual

Close a socket. Returns true on successful close or false on failure.

References mySocket.

unsigned int DtMsgSocket::descriptor ( ) const

inline

Get's the socket file descriptor.

Referenced by DtConnectionMgr::readFileDescriptor(), DtAsyncConnectionMgr::receiveThread(), DtRtiMsgForwarder::removeOldConnection(), DtExtendedRtiMsgForwarder::selectParams(), DtExtendedRtiMsgForwarder::tcpSocketAdditionCb(), DtRtiMsgForwarder::tcpSocketAdditionCb(), DtExtendedRtiMsgForwarder::tcpSocketRemovalCb(), DtRtiMsgForwarder::tcpSocketRemovalCb(), and DtRtiMsgForwarder::waitForIo().

virtual void DtMsgSocket::disableBundling ( )

pure virtual

Disables message bundling.

Implemented in DtTcpMsgSocket, DtSmSocket__rti__, and DtUdpMsgSocket.

virtual void DtMsgSocket::disableCompression ( )

pure virtual

Disables message compression.

Implemented in DtTcpMsgSocket, DtSmSocket__rti__, and DtUdpMsgSocket.

virtual void DtMsgSocket::enableBundling ( size_t maxBundleSize )

pure virtual

Enables message bundling and sets the maximum bundle size.

Implemented in DtTcpMsgSocket, DtSmSocket__rti__, and DtUdpMsgSocket.

virtual void DtMsgSocket::enableCompression ( DtU8 compressionLevel )

pure virtual

Enables message compression and sets the compression level.

Implemented in DtTcpMsgSocket, DtSmSocket__rti__, and DtUdpMsgSocket.

void DtMsgSocket::expandRecvBuffer ( size_t sizeNeeded )

inlineprotected

Expands the receive buffer to accommodate the given size message.

Referenced by DtTcpMsgSocket::recvMessage().

virtual bool DtMsgSocket::flush ( )

pure virtual

Attempts to send any queued messages and bundled messages.

Returns true if all queued and bundled messages were sent.

Implemented in DtTcpMsgSocket, DtSmSocket__rti__, DtUdpMsgSocket, and DtRtiSmSocket.

Referenced by DtRtiConnection::flush(), and DtConnectionMgr::flush().

DtInetSocket * DtMsgSocket::inetSocket ( )

inline

Returns a pointer to the DtInetSocket.

Referenced by DtTcpMsgSocketMgr::removeAndDelete().

const DtString & DtMsgSocket::lastError ( ) const

inline

Returns a description of the last error.

Referenced by DtRtiConnection::flush(), DtRtiConnection::netRead(), and DtRtiConnection::send().

const DtInetEndpoint& DtMsgSocket::localEndpoint ( ) const

inline

Gets the local endpoint for the socket.

Referenced by DtExtendedRtiMsgForwarder::init(), and DtInOutForwarderPort::sendPortMsg().

DtU32 DtMsgSocket::maxSendMsgSize ( ) const

inline

Gets the maximum socket send size.

Referenced by DtRtiAssistantExecClient::sendLogMsg().

DtMsgSocket& DtMsgSocket::operator= ( const DtMsgSocket & )

private

void DtMsgSocket::printStateToStream ( MAKRti::DtOutputStream & stream ) const

inline

prints state to stream

Referenced by DtRtiConnection::flush(), DtRtiConnection::netRead(), and DtRtiConnection::send().

virtual int DtMsgSocket::recvMessage ( caddr_t * buffptr )

pure virtual

Gets the next message from the incoming data.

Implemented in DtTcpMsgSocket, and DtUdpMsgSocket.

Referenced by DtRtiConnection::netRead().

virtual int DtMsgSocket::recvMessageWithSrc	(	caddr_t *	buffptr,
		DtInetEndpoint &	src
	)

pure virtual

Gets the next message from the stream of incoming data and sets the source of the message.

Implemented in DtTcpMsgSocket, and DtUdpMsgSocket.

Referenced by DtInOutForwarderPort::getInitializationMsg().

virtual int DtMsgSocket::sendMessage	(	caddr_t	msg,
		size_t	msgSize,
		bool	deleteAfterSend,
		const DtInetAddr &	destAddr = `DtInetAddr::inaddrAny()`
	)

pure virtual

Sends a message.

Implemented in DtTcpMsgSocket, DtSmSocket__rti__, and DtUdpMsgSocket.

Referenced by DtRtiConnection::send().

void DtMsgSocket::setRecvBufferSize ( DtU32 size )

inline

Sets the socket receive buffer size.

Referenced by DtPeerToPeerTcpSockMgr::connectToPeer(), DtConnectionMgr::createAncillaryRelConns(), DtConnectionMgr::createBestEffortConn(), DtConnectionMgr::createRelConn(), DtMulitcastDiscoveryMgr::init(), DtExtendedRtiMsgForwarder::init(), DtInOutForwarderPort::initializeConnections(), DtTcpMsgSocketMgr::socketAdded(), and DtConnectionMgr::updateBufferSizes().

void DtMsgSocket::setSendBufferSize ( DtU32 size )

inline

Sets the socket send buffer size.

Referenced by DtPeerToPeerTcpSockMgr::connectToPeer(), DtConnectionMgr::createAncillaryRelConns(), DtConnectionMgr::createBestEffortConn(), DtConnectionMgr::createRelConn(), DtMulitcastDiscoveryMgr::init(), DtExtendedRtiMsgForwarder::init(), DtTcpMsgSocketMgr::socketAdded(), and DtConnectionMgr::updateBufferSizes().

DtInetSockState DtMsgSocket::state ( ) const

inlinevirtual

Returns the state of the socket.

Reimplemented in DtRtiSmSocket.

Referenced by DtRtiConnection::init(), and DtRtiConnection::isOk().

Member Data Documentation

DtBoost::shared_ptr<DtMsgHeaderReader> DtMsgSocket::myHeaderReader

protected

Reads data from message header.

Referenced by DtTcpMsgSocket::recvMessage(), DtTcpMsgSocket::resizeTestPacket(), and DtUdpMsgSocket::sendMessage().

DtString DtMsgSocket::myLastError

protected

Description of last error.

Referenced by DtTcpMsgSocket::openClientSocket(), DtTcpMsgSocket::openServerSocket(), DtUdpMsgSocket::openSocket(), DtTcpMsgSocket::queueMessage(), DtUdpMsgSocket::recv(), DtTcpMsgSocket::recvMessage(), DtTcpMsgSocket::sendData(), DtUdpMsgSocket::sendMessage(), and DtTcpMsgSocket::sendMessage().

DtInetBuffer DtMsgSocket::myRecvBuffer

protected

The buffer to store received data in.

Referenced by DtSmSocket__rti__::recv(), DtRtiSmSocket::recv(), DtUdpMsgSocket::recv(), and DtTcpMsgSocket::recvMessage().

The documentation for this class was generated from the following files:
