DtFederationsViewDialog Class Reference

Inheritance diagram for DtFederationsViewDialog:

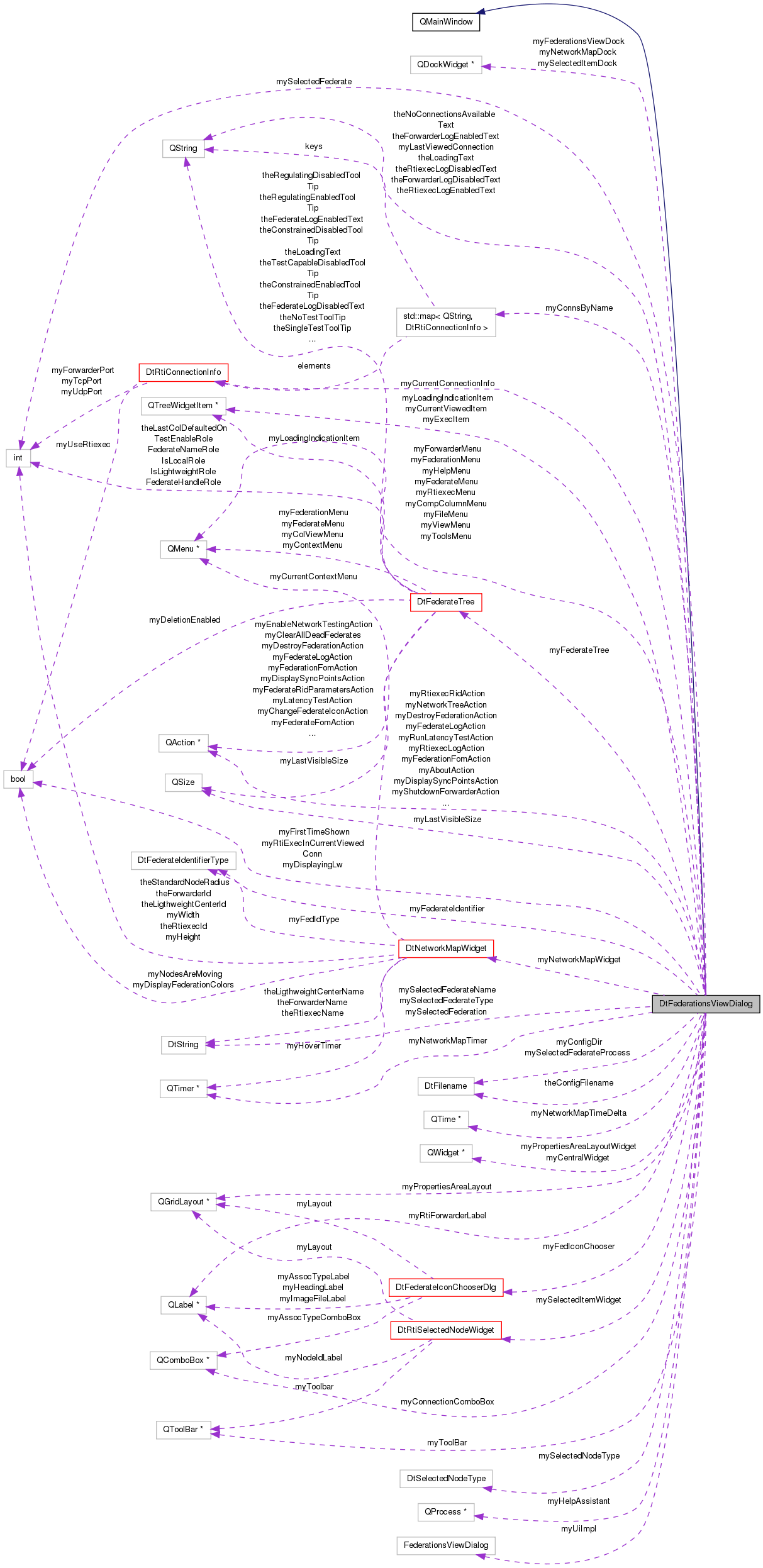

Collaboration diagram for DtFederationsViewDialog:

Public Types
enum	DtFederationsViewHeaderEnum {   DtFederationsViewProcess = 0, DtFederationsViewIP, DtFederationsViewHandle, DtFederationsViewHostName,   DtFederationsViewQueueStatus, DtFederationsViewName, DtFederationsViewType, DtFederationsViewPID,   DtFederationsViewCommandLine }

Public Slots
void	processConnectionSelection (int index, bool ignoreVisibility=false)
	Processes the selection of a new connection.
void	showHelpDialog ()
	Shows the help dialog.
void	processHelpDialogClose ()
	Handles cleanup of the help dialog after it is closed.
void	showEvent (QShowEvent *event)
	Override QWidget's show function so we can display the correct forwarder.
virtual void	hideEvent (QHideEvent *event)
	Override hideEvent to store the size of the dialog when it is hidden.
void	closeEvent (QCloseEvent *event)
	Override QWidget's close function so we can stop observers.
void	keyPressEvent (QKeyEvent *event)
	Handles key press events.
void	shutdownCurrentRtiexec ()
	Processes a command to shutdown the current rtiexec.
void	shutdownCurrentRtiForwarder ()
	Processes a command to shutdown the current RTI Forwarder.
void	updateNetworkMap ()
	Update the Network Map widget.
void	changeFederationColor (const QString &federationName, const QColor &newColor)
	Changes the color of the specified federation.
void	enableFederationColors (bool enable)
	Enable/disable display of federation colors.
void	setFederateIdentifierType (unsigned int fedIdType)
	Change the text type used to identify federates.
void	showSyncPointDialog ()
	Shows the sync point dialog for the selected federation.
void	showFederateStatsDialog ()
	Shows the federate statistics dialog for the selected federate.
void	showFomDialog ()
	Shows the Fom dialog for the selected federate.
void	enableOrDisableMenuActions (const DtRtiConnectionInfo &conn)
	Enables or disables menu actions based on selected connection.
void	updateFederateRemovalTime (float period)
	Processes an update to the defunct federate removal period.
void	clearSelection ()
	Processes unselection.
void	updateFederateIcon ()
	Updates the icon for the selected federate to the user chosen image.
void	showSelectedFederateRidParams ()
	Handles a request to show the RID parameters for the selected federate.
void	showSelectedFederateLog ()
	Handles a request to show the log file for the selected federate.

Signals
void	viewedConnectionChanged (const DtRtiConnectionInfo &conn)
	Emitted when the user chooses a different connection to be viewed.
void	shutdownRtiexec ()
	Emitted when the currently viewed rtiexec should be shutdown.
void	shutdownForwarder ()
	Emitted when the currently viewed RTI Forwarder should be shutdown.
void	aboutDialogRequested ()
	Emitted when the RTI about dialog is requested.
void	showPopup (const MAKRti::DtString &, const MAKRti::DtString &, const MAKRti::DtString &)
	Emitted when a popup dialog from a remote rtiexec should be displayed.
void	forceFederateResign (int, const QString &)
	Emitted when user has requested to resign a federate.
void	forceFederationDestroy (const QString &)
	Emitted when user has requested to destroy a federation.
void	showRtiexecRidParams ()
	Emitted when RID parameters for the current rtiexec are requested.
void	showForwarderRidParams ()
	Emitted when RID parameters for the current RTI Forwarder are requested.
void	showFederateRidParams (const MAKRti::DtString &federation, int federateHandle)
	Emitted when RID parameters for the specified federate are requested.
void	showRtiexecLog ()
	Emitted to display a local rtiexec's log.
void	showForwarderLog ()
	Emitted to display a local forwarder's log.
void	showFederateLog (const MAKRti::DtString &federation, int federateHandle)
	Emitted when log file for the specified federate are requested.
void	showLatencyTestDialog (const QString &fedexName, int fedHandle)
	Emitted when a latency test is requested.
void	enableNetworkTesting (const QString &fedexName)
	Emitted to enable network testing for the given federation.
void	disableNetworkTesting (const QString &fedexName)
	Emitted to disable network testing for the given federation.
void	saveToLog ()
	Emitted when a user requests to save the currently displayed federation information to a log file.
void	showFederationsViewPreferences ()
	Emitted to show the federations view preferences.
void	federateSelected (const MAKRti::DtString &federation, int federateHandle)
	Emitted on the selection of a federate.
void	rtiexecSelected ()
	Emitted on the selection of an rtiexec.
void	forwarderSelected (const MAKRti::DtString &name)
	Emitted on the selection of a central forwarder.
void	peerForwarderSelected (const MAKRti::DtString &name)
	Emitted on the selection of a peer forwarder.
void	federationSelected (const MAKRti::DtString &name)
	Emitted on the selection of a federation.
void	lightweightSelected ()
	Emitted on the selection of the central lightweight node.
void	showSyncPointDialog (const MAKRti::DtString &name)
	Emitted to show a sync point dialog for the given federation.
void	showFederateStatsDialog (const MAKRti::DtString &federation, int federateHandle)
	Emitted to show the federate statistics dialog for the given federate.
void	defunctFederateRemoved (const MAKRti::DtString &federation, int federateHandle)
	Emitted when a defunct federate was removed from the federate tree.
void	showFomDialog (const MAKRti::DtString &federation, int federateHandle)
	Emitted to show the fom dialog for the given federate.

Public Member Functions
	DtFederationsViewDialog (const MAKRti::DtFilename &configDir, QWidget *parent=0, Qt::WindowFlags flags=0)
	Constructor.
virtual	~DtFederationsViewDialog ()
	Destructor.
virtual QSize	sizeHint () const
	Returns the recommended size for the widget.
virtual void	tick ()
	Performs periodic functions.
virtual void	setConnectionIsLocal (const MAKRti::DtString &name, bool isLocal)
	Changes the state of whether the given forwarder connection is being used by a local component.
virtual void	checkAndAddMainForwarder (const MAKRti::DtString &hostname)
	Makes sure the currently displayed forwarder is up to date.
virtual void	checkAndAddLightweight (const MAKRti::DtString &hostname)
	Makes sure the currently displayed lightweight connection is up to date.
virtual void	addNetworkMapForwarderNode (const MAKRti::DtString &forwarderName)
	Adds a forwarder node to the network map.
virtual void	removeNetworkMapForwarderNode (const MAKRti::DtString &forwarderName)
	Removes a forwarder node from the network map.
virtual void	addNetworkMapRtiexecNode ()
	Adds an rtiexec node to the network map.
virtual void	removeNetworkMapRtiexecNode ()
	Removes an rtiexec node from the network map.
virtual void	addNetworkMapFederateNode (int fedHandle, const MAKRti::DtString &federationName, const MAKRti::DtString &processName, const MAKRti::DtString &fedType, const MAKRti::DtString &fedName, bool notJoined=false, bool isDropped=false)
	Adds a federate node to the network map.
virtual void	removeNetworkMapFederateNode (int fedHandle, const MAKRti::DtString &federationName)
	Removes a federate node from the network map.
void	updateNetworkMapFederateNode (int fedHandle, const MAKRti::DtString &federationName, int queueStatus, bool disconnected, bool reconnecting, bool inErrorState=false)
	Updates a federate node in the network map.
void	refreshNetworkMap ()
	Refreshes the network map. Should be called after any series of updates.
virtual void	clearData ()
	clears old data.
virtual void	setViewedConnectionDescription (const DtRtiConnectionInfo &conn)
	Set forwarder connection info.
virtual void	clearNetworkMap ()
	Clears all data from the connection tree.
virtual void	enableCommands (bool enable)
	Enables or disables the rtiexec & forwarder shutdown option.
virtual void	enableRtiExecShutdownCommand (bool enable)
	Enables or disables the rtiexec shutdown option.
virtual void	enableRtiForwarderShutdownCommand (bool enable)
	Enables or disables the forwarder shutdown option.
virtual void	displayLoadingIndication ()
	Displays a message that the current federation information is loading.
virtual void	removeLoadingIndication ()
	Removes the loading indication messages.
void	saveGuiConfiguration ()
	Saves the current GUI configuration to file.
Ui::FederationsViewDialog	getUiImpl () const
virtual int	addConnection (const MAKRti::DtString &name, const DtRtiConnectionInfo &conn, bool isLocal)
	Adds a connection to the list of viewable connections.
virtual void	removeConnection (const MAKRti::DtString &name)
	Removes an rtiexec from the list of viewable rtiexecs.
virtual void	updateFederations (const DtFederationStateByNameMap *federations, const DtAssistantForwarderInfo *forwarderInfo)
	Updates the displayed federation information for the currently displayed connection.
virtual void	updateFederation (const DtAssistantFederationInfo *federation, const DtAssistantForwarderInfo *forwarderInfo)
	Updates a federation of the currently displayed connection.
virtual void	removeFederation (const MAKRti::DtString &federationName)
	Removes a federation from the currently displayed connection.
virtual void	removeAllFederations ()
	Removes all federations from the display.
virtual void	updateFederate (const DtAssistantFederateInfo &federate, const DtAssistantForwarderInfo *forwarderInfo, const MAKRti::DtString &federationName)
	Updates a federate in the given federation of the currently displayed connection.
virtual void	removeFederate (int federateHandle, const MAKRti::DtString &federationName)
	Removes a federate from the given federation of the currently displayed connection.
void	setupFederateTree ()
	Sets up the federate tree, including the initial column display and the View/Column menu actions.
virtual void	setFederateIdentifierType (DtFederateIdentifierType fedIdType)
	Change the text type used to identify federates.
void	selectFederate (const MAKRti::DtString &federation, int federateHandle, const DtAssistantFederateInfo *fedInfo, const DtAssistantNetworkCompInfo *netCompInfo)
	Processes selection of a federate.
void	selectDeadFederate (const MAKRti::DtString &federation, const MAKRti::DtString &federateName, const DtAssistantNetworkCompInfo &newInfo)
	Processes selection of a Dead (Disconnected or Dropped) federate.
void	selectRtiexec (const DtAssistantNetworkCompInfo *netCompInfo)
	Processes selection of an rtiexec.
void	selectForwarder (const MAKRti::DtString &name)
	Processes selection of a central forwarder.
void	selectPeerForwarder (const DtAssistantNetworkCompInfo *netCompInfo)
	Processes selection of a peer forwarder.
void	selectFederation (const DtAssistantFederationInfo *)
	Processes selection of a federation.
void	selectLightweight ()
	Processes selection of the lightweight connection node.
virtual void	initializeQtToolTips ()

Protected Types
enum	DtSelectedNodeType {   DtForwarderNode, DtRtiexecNode, DtFederateNode, DtFederationNode,   DtLightweightNode, DtNoSelectedNode }

Protected Member Functions
void	showFederateInfo (const MAKRti::DtString &federation, int federateHandle, const DtAssistantFederateInfo *fedInfo, const DtAssistantNetworkCompInfo *netCompInfo)
	Displays info on the specified federate in the selected node panel.
void	showDeadFederateInfo (const MAKRti::DtString &federation, const MAKRti::DtString &federateName, bool isDropped, const DtAssistantNetworkCompInfo &newInfo)
	Displays info on the specified dead federate in the selcted node panel.
void	showRtiexecInfo (const DtAssistantNetworkCompInfo *info)
	Displays info on the specified rtiexec in the selected node panel.
void	showForwarderInfo (const DtRtiConnectionInfo &info)
	Displays info on the specified forwarder in the selected node panel.
void	showPeerForwarderInfo (const DtAssistantNetworkCompInfo *netCompInfo)
	Displays info on the specified peer forwarder.
void	showFederationInfo (const DtAssistantFederationInfo *info, bool update)
	Displays info on the specified rtiexec in the selected node panel.
void	showLightweightInfo (const DtRtiConnectionInfo &info)
	Displays info on the specified lightweight connection in the selected node panel.
MAKRti::DtString	selectedFederateId () const
	Returns the federate identifier to use for the selected federate.
void	loadGuiConfiguration ()
	Loads the GUI configuration from a file.
Setup methods
void	setupUI ()
	Sets up the Federations View UI.
void	setupMenus ()
	Populates the menus with the sub-menus and actions.
void	connectSignals ()
	Connects Qt signals and slots.

Protected Attributes
Ui::FederationsViewDialog	myUiImpl
bool	myRtiExecInCurrentViewedConn
QProcess *	myHelpAssistant
	Help application.
QComboBox *	myConnectionComboBox
	Combo box for selecting an RTI connection.
QLabel *	myRtiForwarderLabel
	Current Connection layout widgets.
QGridLayout *	myPropertiesAreaLayout
QWidget *	myPropertiesAreaLayoutWidget
QToolBar *	myToolBar
QWidget *	myCentralWidget
QTreeWidgetItem *	myExecItem
QTreeWidgetItem *	myCurrentViewedItem
QTreeWidgetItem *	myLoadingIndicationItem
	Item that indicates information is being loaded.
QString	theNoConnectionsAvailableText
	Text displayed in the combo box if there are no known rtiForwarders.
DtNetworkMapWidget *	myNetworkMapWidget
	The network map widget.
QTimer *	myNetworkMapTimer
QTime *	myNetworkMapTimeDelta
DtRtiSelectedNodeWidget *	mySelectedItemWidget
	The selected item widget.
QDockWidget *	myNetworkMapDock
	Docking Widgets.
QDockWidget *	mySelectedItemDock
DtRtiConnectionInfo	myCurrentConnectionInfo
	Details of the selected connection.
DtFederateIconChooserDlg *	myFedIconChooser
	The dialog to choose a federate icon.
bool	myDisplayingLw
	Indicates whether we are currently displaying a lightweight connection.
MAKRti::DtFilename	myConfigDir
	The RTI Assistant configuration directory.
bool	myFirstTimeShown
	Indicates that the dialog has not yet been shown.
std::map< QString, DtRtiConnectionInfo >	myConnsByName
	Name to connection info map.
QString	myLastViewedConnection
	Name of connection shown last time dialog was displayed.
DtFederateTree *	myFederateTree
	Federate tree.
QDockWidget *	myFederationsViewDock
	Dock widget for the federations view tree.
DtFederateIdentifierType	myFederateIdentifier
	What identifying text should be displayed for federates.
DtSelectedNodeType	mySelectedNodeType
	The type of node currently selected.
MAKRti::DtString	mySelectedFederation
	Name of the selected federation.
int	mySelectedFederate
	Handle of the selected federate.
MAKRti::DtString	mySelectedFederateType
	Federate type of selected federate.
MAKRti::DtString	mySelectedFederateName
	Federate name of selected federate.
MAKRti::DtFilename	mySelectedFederateProcess
	Process name of selected federate.
QSize	myLastVisibleSize
	The size of the dialog the last time it was visible.
Menus and actions
QMenu *	myFileMenu
	File menu.
QAction *	myCloseAction
	File menu.
QAction *	mySaveAction
	File menu.
QMenu *	myViewMenu
	View menu.
QAction *	myNetworkMapAction
	File menu.
QAction *	myNetworkTreeAction
	File menu.
QAction *	mySelectedNodeAction
	File menu.
QMenu *	myRtiexecMenu
	rtiexec menu
QAction *	myRtiexecRidAction
	File menu.
QAction *	myRtiexecLogAction
	File menu.
QAction *	myShutdownRtiexecAction
	File menu.
QMenu *	myForwarderMenu
	Forwarder menu.
QAction *	myForwarderRidAction
	File menu.
QAction *	myForwarderLogAction
	File menu.
QAction *	myShutdownForwarderAction
	File menu.
QMenu *	myFederateMenu
	Federate menu.
QAction *	myStatisticsAction
	File menu.
QAction *	myRunLatencyTestAction
	File menu.
QAction *	myFederateRidAction
	File menu.
QAction *	myFederateFomAction
	File menu.
QAction *	myFederateLogAction
	File menu.
QAction *	myChangeFederateIconAction
	File menu.
QAction *	myResignFederateAction
	File menu.
QMenu *	myFederationMenu
	Federation menu.
QAction *	myFederationFomAction
	File menu.
QAction *	myDisplaySyncPointsAction
	File menu.
QAction *	myDestroyFederationAction
	File menu.
QMenu *	myToolsMenu
	Tools menu.
QAction *	myOptionsAction
	File menu.
QMenu *	myHelpMenu
	Help menu.
QAction *	myHelpAction
	File menu.
QAction *	myAboutAction
	File menu.
QMenu *	myCompColumnMenu
	Component tree column view menu.
QString	theRtiexecLogEnabledText
	Text to be displayed for log file viewing actions depending on whether viewing is enabled or disabled.
QString	theRtiexecLogDisabledText
	Text to be displayed for log file viewing actions depending on whether viewing is enabled or disabled.
QString	theForwarderLogEnabledText
	Text to be displayed for log file viewing actions depending on whether viewing is enabled or disabled.
QString	theForwarderLogDisabledText
	Text to be displayed for log file viewing actions depending on whether viewing is enabled or disabled.

Static Protected Attributes
static const QString	theLoadingText
	Text displayed when loading information.
static const MAKRti::DtFilename	theConfigFilename = "federationsView.conf"
	The name of the file where the GUI configuration is stored.

Member Enumeration Documentation

enum DtFederationsViewDialog::DtFederationsViewHeaderEnum

Enumerator:

DtFederationsViewProcess
DtFederationsViewIP
DtFederationsViewHandle
DtFederationsViewHostName
DtFederationsViewQueueStatus
DtFederationsViewName
DtFederationsViewType
DtFederationsViewPID
DtFederationsViewCommandLine

enum DtFederationsViewDialog::DtSelectedNodeType

protected

Enumerator:

DtForwarderNode
DtRtiexecNode
DtFederateNode
DtFederationNode
DtLightweightNode
DtNoSelectedNode

Constructor & Destructor Documentation

DtFederationsViewDialog::DtFederationsViewDialog	(	const MAKRti::DtFilename &	configDir,
		QWidget *	parent = 0,
		Qt::WindowFlags	flags = 0
	)

Constructor.

References connectSignals(), initializeQtToolTips(), myUiImpl, setupMenus(), and setupUI().

DtFederationsViewDialog::~DtFederationsViewDialog ( )

virtual

Destructor.

References myConnsByName, and myHelpAssistant.

Member Function Documentation

void DtFederationsViewDialog::aboutDialogRequested ( )

signal

Emitted when the RTI about dialog is requested.

Referenced by connectSignals().

int DtFederationsViewDialog::addConnection ( const MAKRti::DtString &  name, const DtRtiConnectionInfo &  conn, bool  isLocal  )

virtual

Adds a connection to the list of viewable connections.

Returns the index of the new connection (index is only useful internally to this class). If isLocal is true this connection will be identified as a potential default connection to be shown.

References myConnectionComboBox, myConnsByName, processConnectionSelection(), and theNoConnectionsAvailableText.

Referenced by DtAssistantFederationsViewMgr::processConnectionsUpdate(), and DtAssistantFederationsViewMgr::processForwarderAdded().

void DtFederationsViewDialog::addNetworkMapFederateNode ( int  fedHandle, const MAKRti::DtString &  federationName, const MAKRti::DtString &  processName, const MAKRti::DtString &  fedType, const MAKRti::DtString &  fedName, bool  notJoined = false, bool  isDropped = false  )

virtual

Adds a federate node to the network map.

References DtNetworkMapWidget::addFederateNode(), and myNetworkMapWidget.

Referenced by DtAssistantFederationsViewMgr::processFederateUpdated(), DtAssistantFederationsViewMgr::processFederationUpdate(), DtAssistantFederationsViewMgr::updateFederateCompInfo(), and DtAssistantFederationsViewMgr::updateUnclassifiedComps().

void DtFederationsViewDialog::addNetworkMapForwarderNode ( const MAKRti::DtString &  forwarderName )

virtual

Adds a forwarder node to the network map.

References DtNetworkMapWidget::addPeerForwarderNode(), and myNetworkMapWidget.

Referenced by DtAssistantFederationsViewMgr::updatePeerForwarders().

void DtFederationsViewDialog::addNetworkMapRtiexecNode ( )

virtual

Adds an rtiexec node to the network map.

References DtNetworkMapWidget::addExecNode(), enableOrDisableMenuActions(), myCurrentConnectionInfo, and myNetworkMapWidget.

Referenced by DtAssistantFederationsViewMgr::updateRtiexecCompInfo().

void DtFederationsViewDialog::changeFederationColor ( const QString &  federationName, const QColor &  newColor  )

slot

Changes the color of the specified federation.

References DtNetworkMapWidget::changeFederationColor(), myFederateTree, myNetworkMapWidget, and DtFederateTree::updateFederationColor().

Referenced by showFederateInfo(), and showFederationInfo().

void DtFederationsViewDialog::checkAndAddLightweight ( const MAKRti::DtString &  hostname )

virtual

Makes sure the currently displayed lightweight connection is up to date.

References DtNetworkMapWidget::checkAndAddLightweight(), and myNetworkMapWidget.

Referenced by DtAssistantFederationsViewMgr::changeViewedConnection().

void DtFederationsViewDialog::checkAndAddMainForwarder ( const MAKRti::DtString &  hostname )

virtual

Makes sure the currently displayed forwarder is up to date.

References DtNetworkMapWidget::checkAndAddMainForwarder(), and myNetworkMapWidget.

Referenced by DtAssistantFederationsViewMgr::processForwarderUpdated().

void DtFederationsViewDialog::clearData ( )

virtual

clears old data.

References DtRtiSelectedNodeWidget::clearInformation(), clearNetworkMap(), DtNoSelectedNode, DtNetworkMapWidget::forceClearSelection(), myNetworkMapWidget, mySelectedItemWidget, mySelectedNodeType, and removeAllFederations().

Referenced by DtAssistantFederationsViewMgr::changeViewedConnection(), DtAssistantFederationsViewMgr::processForwarderUpdated(), and showEvent().

void DtFederationsViewDialog::clearNetworkMap ( )

virtual

Clears all data from the connection tree.

References DtNetworkMapWidget::clearList(), and myNetworkMapWidget.

Referenced by clearData().

void DtFederationsViewDialog::clearSelection ( )

slot

Processes unselection.

References DtRtiSelectedNodeWidget::clearInformation(), DtNoSelectedNode, DtNetworkMapWidget::forceClearSelection(), DtFederateTree::forceClearSelection(), myFederateTree, myFedIconChooser, myNetworkMapWidget, mySelectedItemWidget, mySelectedNodeType, and DtNetworkMapWidget::setContextMenu().

Referenced by connectSignals(), removeFederation(), and selectRtiexec().

void DtFederationsViewDialog::closeEvent ( QCloseEvent *  event )

slot

Override QWidget's close function so we can stop observers.

References processConnectionSelection().

void DtFederationsViewDialog::connectSignals ( )

protected

Connects Qt signals and slots.

References aboutDialogRequested(), clearSelection(), connect(), defunctFederateRemoved(), disableNetworkTesting(), enableNetworkTesting(), enableOrDisableMenuActions(), federateSelected(), federationSelected(), forceFederateResign(), forceFederationDestroy(), forwarderSelected(), lightweightSelected(), myAboutAction, myChangeFederateIconAction, myCloseAction, myConnectionComboBox, myDisplaySyncPointsAction, myFederateFomAction, myFederateLogAction, myFederateRidAction, myFederateTree, myFedIconChooser, myForwarderLogAction, myForwarderRidAction, myHelpAction, myNetworkMapWidget, myOptionsAction, myRtiexecLogAction, myRtiexecRidAction, mySaveAction, myShutdownForwarderAction, myShutdownRtiexecAction, myStatisticsAction, peerForwarderSelected(), processConnectionSelection(), rtiexecSelected(), saveToLog(), showFederateStatsDialog(), showFederationsViewPreferences(), showFomDialog(), showForwarderLog(), showForwarderRidParams(), showHelpDialog(), showLatencyTestDialog(), showRtiexecLog(), showRtiexecRidParams(), showSelectedFederateLog(), showSelectedFederateRidParams(), showSyncPointDialog(), shutdownCurrentRtiexec(), shutdownCurrentRtiForwarder(), updateFederateIcon(), and viewedConnectionChanged().

Referenced by DtFederationsViewDialog().

void DtFederationsViewDialog::defunctFederateRemoved ( const MAKRti::DtString &  federation, int  federateHandle  )

signal

Emitted when a defunct federate was removed from the federate tree.

Referenced by connectSignals().

void DtFederationsViewDialog::disableNetworkTesting ( const QString &  fedexName )

signal

Emitted to disable network testing for the given federation.

Referenced by connectSignals().

void DtFederationsViewDialog::displayLoadingIndication ( )

virtual

Displays a message that the current federation information is loading.

References DtFederateTree::displayLoadingIndication(), and myFederateTree.

Referenced by DtAssistantFederationsViewMgr::changeViewedConnection().

void DtFederationsViewDialog::enableCommands ( bool  enable )

virtual

Enables or disables the rtiexec & forwarder shutdown option.

Referenced by DtAssistantFederationsViewMgr::changeViewedConnection(), and DtAssistantFederationsViewMgr::tick().

void DtFederationsViewDialog::enableFederationColors ( bool  enable )

slot

Enable/disable display of federation colors.

References DtNetworkMapWidget::enableFederationColors(), and myNetworkMapWidget.

void DtFederationsViewDialog::enableNetworkTesting ( const QString &  fedexName )

signal

Emitted to enable network testing for the given federation.

Referenced by connectSignals().

void DtFederationsViewDialog::enableOrDisableMenuActions ( const DtRtiConnectionInfo &  conn )

slot

Enables or disables menu actions based on selected connection.

References DtNetworkMapWidget::doesRtiexecExist(), DtRtiConnectionInfo::isValid(), myForwarderRidAction, myNetworkMapWidget, myRtiexecRidAction, myShutdownForwarderAction, myShutdownRtiexecAction, and DtRtiConnectionInfo::useRtiexec().

Referenced by addNetworkMapRtiexecNode(), connectSignals(), removeNetworkMapRtiexecNode(), and setViewedConnectionDescription().

void DtFederationsViewDialog::enableRtiExecShutdownCommand ( bool  enable )

virtual

Enables or disables the rtiexec shutdown option.

Referenced by DtAssistantFederationsViewMgr::tick().

void DtFederationsViewDialog::enableRtiForwarderShutdownCommand ( bool  enable )

virtual

Enables or disables the forwarder shutdown option.

Referenced by DtAssistantFederationsViewMgr::tick().

void DtFederationsViewDialog::federateSelected ( const MAKRti::DtString &  federation, int  federateHandle  )

signal

Emitted on the selection of a federate.

Referenced by connectSignals(), removeFederate(), and updateFederate().

void DtFederationsViewDialog::federationSelected ( const MAKRti::DtString &  name )

signal

Emitted on the selection of a federation.

Referenced by connectSignals(), removeFederate(), and updateFederate().

void DtFederationsViewDialog::forceFederateResign ( int  , const QString &    )

signal

Emitted when user has requested to resign a federate.

Referenced by connectSignals().

void DtFederationsViewDialog::forceFederationDestroy ( const QString &  )

signal

Emitted when user has requested to destroy a federation.

Referenced by connectSignals().

void DtFederationsViewDialog::forwarderSelected ( const MAKRti::DtString &  name )

signal

Emitted on the selection of a central forwarder.

Referenced by connectSignals().

Ui::FederationsViewDialog DtFederationsViewDialog::getUiImpl

(

)

const

References myUiImpl.

void DtFederationsViewDialog::hideEvent ( QHideEvent *  event )

virtualslot

Override hideEvent to store the size of the dialog when it is hidden.

References myLastVisibleSize.

void DtFederationsViewDialog::initializeQtToolTips ( )

virtual

References theForwarderLogDisabledText, theForwarderLogEnabledText, theNoConnectionsAvailableText, theRtiexecLogDisabledText, and theRtiexecLogEnabledText.

Referenced by DtFederationsViewDialog().

void DtFederationsViewDialog::keyPressEvent ( QKeyEvent *  event )

slot

Handles key press events.

References showHelpDialog().

void DtFederationsViewDialog::lightweightSelected ( )

signal

Emitted on the selection of the central lightweight node.

Referenced by connectSignals().

void DtFederationsViewDialog::loadGuiConfiguration ( )

protected

Loads the GUI configuration from a file.

References DtFederateTree::loadGuiConfiguration(), myConfigDir, myFederateTree, and theConfigFilename.

Referenced by showEvent().

void DtFederationsViewDialog::peerForwarderSelected ( const MAKRti::DtString &  name )

signal

Emitted on the selection of a peer forwarder.

Referenced by connectSignals().

void DtFederationsViewDialog::processConnectionSelection ( int  index, bool  ignoreVisibility = false  )

slot

Processes the selection of a new connection.

If ignoreVisibility is set, the selection change will be processed even if the dialog is not visible.

References DtRtiConnectionInfo::invalidConn(), myConnectionComboBox, myConnsByName, myLastViewedConnection, and viewedConnectionChanged().

Referenced by addConnection(), closeEvent(), connectSignals(), and showEvent().

void DtFederationsViewDialog::processHelpDialogClose ( )

slot

Handles cleanup of the help dialog after it is closed.

References myHelpAssistant.

Referenced by showHelpDialog().

void DtFederationsViewDialog::refreshNetworkMap

(

)

Refreshes the network map. Should be called after any series of updates.

References myNetworkMapWidget, and DtNetworkMapWidget::refreshPositions().

Referenced by DtAssistantFederationsViewMgr::processFederateRemoved(), DtAssistantFederationsViewMgr::processFederateUpdated(), DtAssistantFederationsViewMgr::processFederationRemoved(), DtAssistantFederationsViewMgr::processFederationUpdate(), DtAssistantFederationsViewMgr::processForwarderUpdated(), and DtAssistantFederationsViewMgr::removeDefunctFederateFromMap().

void DtFederationsViewDialog::removeAllFederations ( )

virtual

Removes all federations from the display.

References myFederateTree, and DtFederateTree::removeAllFederations().

Referenced by clearData().

void DtFederationsViewDialog::removeConnection ( const MAKRti::DtString &  name )

virtual

Removes an rtiexec from the list of viewable rtiexecs.

References myConnectionComboBox, myConnsByName, myLastViewedConnection, and theNoConnectionsAvailableText.

Referenced by DtAssistantFederationsViewMgr::processConnectionRemoval(), and DtAssistantFederationsViewMgr::processForwarderRemoved().

void DtFederationsViewDialog::removeFederate ( int  federateHandle, const MAKRti::DtString &  federationName  )

virtual

Removes a federate from the given federation of the currently displayed connection.

References DtFederateNode, DtFederationNode, federateSelected(), federationSelected(), myFederateTree, mySelectedFederate, mySelectedFederation, mySelectedNodeType, and DtFederateTree::removeFederate().

Referenced by DtAssistantFederationsViewMgr::processFederateRemoved().

void DtFederationsViewDialog::removeFederation ( const MAKRti::DtString &  federationName )

virtual

Removes a federation from the currently displayed connection.

References clearSelection(), DtFederationNode, DtFederateTree::getTreeFederationName(), myFederateTree, mySelectedFederation, mySelectedNodeType, and DtFederateTree::removeFederation().

Referenced by DtAssistantFederationsViewMgr::processFederationRemoved().

void DtFederationsViewDialog::removeLoadingIndication ( )

virtual

Removes the loading indication messages.

References myFederateTree, and DtFederateTree::removeLoadingIndication().

Referenced by DtAssistantFederationsViewMgr::removeLoadingIndication().

void DtFederationsViewDialog::removeNetworkMapFederateNode ( int  fedHandle, const MAKRti::DtString &  federationName  )

virtual

Removes a federate node from the network map.

References myNetworkMapWidget, and DtNetworkMapWidget::removeFederateNode().

Referenced by DtAssistantFederationsViewMgr::processFederateRemoved(), DtAssistantFederationsViewMgr::processFederationRemoved(), DtAssistantFederationsViewMgr::removeDefunctFederateFromMap(), DtAssistantFederationsViewMgr::updateFederateCompInfo(), and DtAssistantFederationsViewMgr::updateUnclassifiedComps().

void DtFederationsViewDialog::removeNetworkMapForwarderNode ( const MAKRti::DtString &  forwarderName )

virtual

Removes a forwarder node from the network map.

References myNetworkMapWidget, and DtNetworkMapWidget::removeForwarderNode().

Referenced by DtAssistantFederationsViewMgr::updatePeerForwarders().

void DtFederationsViewDialog::removeNetworkMapRtiexecNode ( )

virtual

Removes an rtiexec node from the network map.

References enableOrDisableMenuActions(), myCurrentConnectionInfo, myNetworkMapWidget, and DtNetworkMapWidget::removeExecNode().

Referenced by DtAssistantFederationsViewMgr::updateRtiexecCompInfo().

void DtFederationsViewDialog::rtiexecSelected ( )

signal

Emitted on the selection of an rtiexec.

Referenced by connectSignals().

void DtFederationsViewDialog::saveGuiConfiguration

(

)

Saves the current GUI configuration to file.

References myConfigDir, myFederateTree, myFirstTimeShown, DtFederateTree::saveGuiConfiguration(), and theConfigFilename.

Referenced by DtAssistantFederationsViewMgr::saveGuiState().

void DtFederationsViewDialog::saveToLog ( )

signal

Emitted when a user requests to save the currently displayed federation information to a log file.

Referenced by connectSignals().

void DtFederationsViewDialog::selectDeadFederate	(	const MAKRti::DtString &	federation,
		const MAKRti::DtString &	federateName,
		const DtAssistantNetworkCompInfo &	newInfo
	)

Processes selection of a Dead (Disconnected or Dropped) federate.

References DtAssistantNetworkCompInfo::federateHandle(), DtNetworkMapWidget::forceFederateSelection(), DtFederateTree::forceFederateSelection(), DtAssistantNetworkCompInfo::isDropped(), myFederateMenu, myFederateTree, myNetworkMapWidget, DtNetworkMapWidget::setContextMenu(), and showDeadFederateInfo().

Referenced by DtAssistantFederationsViewMgr::processFederateSelection().

MAKRti::DtString DtFederationsViewDialog::selectedFederateId ( ) const

protected

Returns the federate identifier to use for the selected federate.

References DtIdentifyByFederateName, DtIdentifyByFederateType, DtIdentifyByProcessName, myFederateIdentifier, mySelectedFederateName, mySelectedFederateProcess, and mySelectedFederateType.

Referenced by setFederateIdentifierType(), showFederateInfo(), and updateFederateIcon().

void DtFederationsViewDialog::selectFederate	(	const MAKRti::DtString &	federation,
		int	federateHandle,
		const DtAssistantFederateInfo *	fedInfo,
		const DtAssistantNetworkCompInfo *	netCompInfo
	)

Processes selection of a federate.

References DtNetworkMapWidget::forceFederateSelection(), DtFederateTree::forceFederateSelection(), myFederateMenu, myFederateTree, myNetworkMapWidget, DtNetworkMapWidget::setContextMenu(), and showFederateInfo().

Referenced by DtAssistantFederationsViewMgr::processFederateSelection().

void DtFederationsViewDialog::selectFederation

(

const DtAssistantFederationInfo *

info

)

Processes selection of a federation.

References DtNetworkMapWidget::forceClearSelection(), myFederationMenu, myNetworkMapWidget, DtNetworkMapWidget::setContextMenu(), and showFederationInfo().

Referenced by DtAssistantFederationsViewMgr::processFederationSelection().

void DtFederationsViewDialog::selectForwarder

(

const MAKRti::DtString &

name

)

Processes selection of a central forwarder.

References DtFederateTree::forceClearSelection(), DtNetworkMapWidget::forceForwarderSelection(), myCurrentConnectionInfo, myFederateTree, myForwarderMenu, myNetworkMapWidget, DtNetworkMapWidget::setContextMenu(), and showForwarderInfo().

Referenced by DtAssistantFederationsViewMgr::processForwarderSelection().

void DtFederationsViewDialog::selectLightweight

(

)

Processes selection of the lightweight connection node.

References DtFederateTree::forceClearSelection(), myCurrentConnectionInfo, myFederateTree, myNetworkMapWidget, DtNetworkMapWidget::setContextMenu(), and showLightweightInfo().

Referenced by DtAssistantFederationsViewMgr::processLightweightNodeSelection().

void DtFederationsViewDialog::selectPeerForwarder

(

const DtAssistantNetworkCompInfo *

netCompInfo

)

Processes selection of a peer forwarder.

References DtFederateTree::forceClearSelection(), DtNetworkMapWidget::forceForwarderSelection(), DtAssistantNetworkCompInfo::hostName(), myFederateTree, myNetworkMapWidget, DtNetworkMapWidget::setContextMenu(), and showPeerForwarderInfo().

Referenced by DtAssistantFederationsViewMgr::processPeerForwarderSelection().

void DtFederationsViewDialog::selectRtiexec

(

const DtAssistantNetworkCompInfo *

netCompInfo

)

Processes selection of an rtiexec.

References clearSelection(), DtFederateTree::forceClearSelection(), DtNetworkMapWidget::forceRtiexecSelection(), DtAssistantNetworkCompInfo::isValid(), myFederateTree, myNetworkMapWidget, myRtiexecMenu, DtNetworkMapWidget::setContextMenu(), and showRtiexecInfo().

Referenced by DtAssistantFederationsViewMgr::processRtiexecSelection().

void DtFederationsViewDialog::setConnectionIsLocal ( const MAKRti::DtString &  name, bool  isLocal  )

virtual

Changes the state of whether the given forwarder connection is being used by a local component.

References myConnectionComboBox.

Referenced by DtAssistantFederationsViewMgr::processForwarderConnUpdated().

void DtFederationsViewDialog::setFederateIdentifierType ( DtFederateIdentifierType  fedIdType )

virtual

Change the text type used to identify federates.

References DtFederateNode, DtIconAndTextureManager::getInstance(), myFederateIdentifier, myNetworkMapWidget, mySelectedFederateName, mySelectedFederateProcess, mySelectedFederateType, mySelectedItemWidget, mySelectedNodeType, selectedFederateId(), DtNetworkMapWidget::setFederateIdentifierType(), and DtRtiSelectedNodeWidget::setNodeNameAndIcon().

Referenced by setFederateIdentifierType().

void DtFederationsViewDialog::setFederateIdentifierType ( unsigned int  fedIdType )

slot

Change the text type used to identify federates.

References setFederateIdentifierType().

void DtFederationsViewDialog::setupFederateTree

(

)

Sets up the federate tree, including the initial column display and the View/Column menu actions.

References myFederateTree.

Referenced by setupUI().

void DtFederationsViewDialog::setupMenus ( )

protected

Populates the menus with the sub-menus and actions.

References DtFederateTree::changeFederateIconAction(), DtFederateTree::columnViewMenu(), DtFederateTree::destroyFederationAction(), DtFederateTree::federateFomAction(), DtFederateTree::federateLogAction(), DtFederateTree::federateMenu(), DtFederateTree::federateRidParamAction(), DtFederateTree::federationFomAction(), DtFederateTree::federationMenu(), DtIconAndTextureManager::getIcon(), DtIconAndTextureManager::getInstance(), DtFederateTree::latencyTestAction(), myAboutAction, myChangeFederateIconAction, myCloseAction, myCompColumnMenu, myDestroyFederationAction, myDisplaySyncPointsAction, myFederateFomAction, myFederateLogAction, myFederateMenu, myFederateRidAction, myFederateTree, myFederationFomAction, myFederationMenu, myFederationsViewDock, myFileMenu, myForwarderLogAction, myForwarderMenu, myForwarderRidAction, myHelpAction, myHelpMenu, myNetworkMapAction, myNetworkMapDock, myNetworkTreeAction, myOptionsAction, myResignFederateAction, myRtiexecLogAction, myRtiexecMenu, myRtiexecRidAction, myRunLatencyTestAction, mySaveAction, mySelectedItemDock, mySelectedNodeAction, myShutdownForwarderAction, myShutdownRtiexecAction, myStatisticsAction, myToolsMenu, myUiImpl, myViewMenu, DtFederateTree::resignFederateAction(), DtFederateTree::statisticsAction(), and DtFederateTree::syncPointsAction().

Referenced by DtFederationsViewDialog().

void DtFederationsViewDialog::setupUI ( )

protected

Sets up the Federations View UI.

References connect(), DtRtiSelectedNodeWidget::initialize(), myConnectionComboBox, myFederateTree, myFederationsViewDock, myFedIconChooser, myNetworkMapDock, myNetworkMapTimeDelta, myNetworkMapTimer, myNetworkMapWidget, myRtiForwarderLabel, mySelectedItemDock, mySelectedItemWidget, myToolBar, setupFederateTree(), theNoConnectionsAvailableText, and updateNetworkMap().

Referenced by DtFederationsViewDialog().

void DtFederationsViewDialog::setViewedConnectionDescription ( const DtRtiConnectionInfo &  conn )

virtual

Set forwarder connection info.

References enableOrDisableMenuActions(), DtRtiConnectionInfo::isValid(), myCurrentConnectionInfo, myDisplayingLw, and DtRtiConnectionInfo::useRtiexec().

Referenced by DtAssistantFederationsViewMgr::changeViewedConnection(), and DtAssistantFederationsViewMgr::processForwarderUpdated().

void DtFederationsViewDialog::showDeadFederateInfo ( const MAKRti::DtString &  federation, const MAKRti::DtString &  federateName, bool  isDropped, const DtAssistantNetworkCompInfo &  newInfo  )

protected

Displays info on the specified dead federate in the selcted node panel.

References DtRtiSelectedNodeWidget::addItem(), DtAssistantNetworkCompInfo::address(), DtRtiSelectedNodeWidget::clearInformation(), connect(), DtFederateNode, DtHla13, DtHla13DLC, DtHla1516, DtHlaEvolved, DtHlaVersionUnknown, DtNotJoinedIcon, DtIconAndTextureManager::getInstance(), DtAssistantNetworkCompInfo::hlaVersion(), myFedIconChooser, mySelectedFederate, mySelectedFederateName, mySelectedFederateProcess, mySelectedFederateType, mySelectedFederation, mySelectedItemWidget, mySelectedNodeType, DtAssistantNetworkCompInfo::processName(), DtRtiSelectedNodeWidget::setNodeNameAndIcon(), and DtAssistantNetworkCompInfo::typeName().

Referenced by selectDeadFederate().

void DtFederationsViewDialog::showEvent ( QShowEvent *  event )

slot

Override QWidget's show function so we can display the correct forwarder.

References clearData(), loadGuiConfiguration(), myConnectionComboBox, myFirstTimeShown, myLastViewedConnection, and processConnectionSelection().

void DtFederationsViewDialog::showFederateInfo ( const MAKRti::DtString &  federation, int  federateHandle, const DtAssistantFederateInfo *  fedInfo, const DtAssistantNetworkCompInfo *  netCompInfo  )

protected

Displays info on the specified federate in the selected node panel.

References DtRtiSelectedNodeWidget::addAction(), DtRtiSelectedNodeWidget::addItem(), changeFederationColor(), DtRtiSelectedNodeWidget::clearInformation(), DtAssistantNetworkCompInfo::commandArgs(), connect(), DtErrorIcon, DtFederateNode, DtHla13, DtHla13DLC, DtHla1516, DtHlaEvolved, DtHlaVersionUnknown, DtAssistantFederateInfo::federateHostAddr(), DtAssistantFederateInfo::federateHostName(), DtAssistantFederateInfo::federateName(), DtAssistantFederateInfo::federateType(), DtNetworkMapWidget::getFederationColor(), DtIconAndTextureManager::getInstance(), DtAssistantFederateInfo::hlaVersion(), DtAssistantFederateInfo::isLocalComp(), myDisplayingLw, myFederateFomAction, myFederateLogAction, myFederateRidAction, myFedIconChooser, myNetworkMapWidget, myResignFederateAction, myRunLatencyTestAction, mySelectedFederate, mySelectedFederateName, mySelectedFederateProcess, mySelectedFederateType, mySelectedFederation, mySelectedItemWidget, mySelectedNodeType, myStatisticsAction, DtAssistantNetworkCompInfo::pid(), DtAssistantNetworkCompInfo::processName(), DtAssistantNetworkCompInfo::queueStatus(), selectedFederateId(), DtFederationColorItem::setFederationColor(), DtFederationColorItem::setFederationName(), and DtRtiSelectedNodeWidget::setNodeNameAndIcon().

Referenced by selectFederate().

void DtFederationsViewDialog::showFederateLog ( const MAKRti::DtString &  federation, int  federateHandle  )

signal

Emitted when log file for the specified federate are requested.

Referenced by showSelectedFederateLog().

void DtFederationsViewDialog::showFederateRidParams ( const MAKRti::DtString &  federation, int  federateHandle  )

signal

Emitted when RID parameters for the specified federate are requested.

Referenced by showSelectedFederateRidParams().

void DtFederationsViewDialog::showFederateStatsDialog ( )

slot

Shows the federate statistics dialog for the selected federate.

References mySelectedFederate, and mySelectedFederation.

Referenced by connectSignals().

void DtFederationsViewDialog::showFederateStatsDialog ( const MAKRti::DtString &  federation, int  federateHandle  )

signal

Emitted to show the federate statistics dialog for the given federate.

void DtFederationsViewDialog::showFederationInfo ( const DtAssistantFederationInfo *  info, bool  update  )

protected

Displays info on the specified rtiexec in the selected node panel.

If update is true, the dialog won't be cleared, just updated with any changed values.

References DtRtiSelectedNodeWidget::addAction(), DtRtiSelectedNodeWidget::addItem(), DtRtiSelectedNodeWidget::addSubItem(), changeFederationColor(), DtRtiSelectedNodeWidget::clearInformation(), connect(), DtFederationNode, DtAssistantFederationInfo::federationHandle(), DtAssistantFederationInfo::federationName(), DtAssistantFederationInfo::fomModules(), DtNetworkMapWidget::getFederationColor(), DtIconAndTextureManager::getInstance(), DtIconAndTextureManager::getPixmap(), myDestroyFederationAction, myDisplaySyncPointsAction, myFedIconChooser, myNetworkMapWidget, mySelectedFederation, mySelectedItemWidget, mySelectedNodeType, DtAssistantFederationInfo::numFederates(), DtRtiSelectedNodeWidget::removeItem(), DtFederationColorItem::setFederationColor(), DtFederationColorItem::setFederationName(), and DtRtiSelectedNodeWidget::setNodeNameAndIcon().

Referenced by selectFederation(), and updateFederation().

void DtFederationsViewDialog::showFederationsViewPreferences ( )

signal

Emitted to show the federations view preferences.

Referenced by connectSignals().

void DtFederationsViewDialog::showFomDialog ( )

slot

Shows the Fom dialog for the selected federate.

References mySelectedFederate, and mySelectedFederation.

Referenced by connectSignals().

void DtFederationsViewDialog::showFomDialog ( const MAKRti::DtString &  federation, int  federateHandle  )

signal

Emitted to show the fom dialog for the given federate.

void DtFederationsViewDialog::showForwarderInfo ( const DtRtiConnectionInfo &  info )

protected

Displays info on the specified forwarder in the selected node panel.

References DtRtiSelectedNodeWidget::addAction(), DtRtiSelectedNodeWidget::addItem(), DtRtiConnectionInfo::bestEffortIp(), DtRtiSelectedNodeWidget::clearInformation(), DtForwarderIcon, DtForwarderNode, DtGetLocalHostName(), DtFederateTree::forceClearSelection(), DtRtiConnectionInfo::forwarderPort(), DtIconAndTextureManager::getInstance(), DtRtiConnectionInfo::hostName(), myFederateTree, myFedIconChooser, myForwarderLogAction, myForwarderRidAction, mySelectedItemWidget, mySelectedNodeType, myShutdownForwarderAction, DtRtiConnectionInfo::networkInterfaceAddr(), DtRtiConnectionInfo::reliableIp(), DtRtiSelectedNodeWidget::setNodeNameAndIcon(), DtRtiConnectionInfo::tcpPort(), theForwarderLogDisabledText, theForwarderLogEnabledText, and DtRtiConnectionInfo::udpPort().

Referenced by selectForwarder().

void DtFederationsViewDialog::showForwarderLog ( )

signal

Emitted to display a local forwarder's log.

Referenced by connectSignals().

void DtFederationsViewDialog::showForwarderRidParams ( )

signal

Emitted when RID parameters for the current RTI Forwarder are requested.

Referenced by connectSignals().

void DtFederationsViewDialog::showHelpDialog ( )

slot

Shows the help dialog.

References connect(), DtRtiLibPath(), myHelpAssistant, and processHelpDialogClose().

Referenced by connectSignals(), and keyPressEvent().

void DtFederationsViewDialog::showLatencyTestDialog ( const QString &  fedexName, int  fedHandle  )

signal

Emitted when a latency test is requested.

Referenced by connectSignals().

void DtFederationsViewDialog::showLightweightInfo ( const DtRtiConnectionInfo &  info )

protected

Displays info on the specified lightweight connection in the selected node panel.

References DtRtiSelectedNodeWidget::addItem(), DtRtiConnectionInfo::bestEffortIp(), DtRtiSelectedNodeWidget::clearInformation(), DtLightweightIcon, DtLightweightNode, DtIconAndTextureManager::getInstance(), myFedIconChooser, mySelectedItemWidget, mySelectedNodeType, DtRtiConnectionInfo::networkInterfaceAddr(), DtRtiSelectedNodeWidget::setNodeNameAndIcon(), and DtRtiConnectionInfo::udpPort().

Referenced by selectLightweight().

void DtFederationsViewDialog::showPeerForwarderInfo ( const DtAssistantNetworkCompInfo *  netCompInfo )

protected

Displays info on the specified peer forwarder.

References DtRtiSelectedNodeWidget::addItem(), DtAssistantNetworkCompInfo::address(), DtRtiSelectedNodeWidget::clearInformation(), DtForwarderIcon, DtForwarderNode, DtIconAndTextureManager::getInstance(), DtIconAndTextureManager::getPixmap(), DtAssistantNetworkCompInfo::hostName(), myFedIconChooser, mySelectedItemWidget, mySelectedNodeType, and DtRtiSelectedNodeWidget::setNodeNameAndIcon().

Referenced by selectPeerForwarder().

void DtFederationsViewDialog::showPopup ( const MAKRti::DtString &  , const MAKRti::DtString &  , const MAKRti::DtString &    )

signal

Emitted when a popup dialog from a remote rtiexec should be displayed.

void DtFederationsViewDialog::showRtiexecInfo ( const DtAssistantNetworkCompInfo *  info )

protected

Displays info on the specified rtiexec in the selected node panel.

References DtRtiSelectedNodeWidget::addAction(), DtRtiSelectedNodeWidget::addItem(), DtAssistantNetworkCompInfo::address(), DtRtiSelectedNodeWidget::clearInformation(), DtGetLocalHostName(), DtRtiexecIcon, DtRtiexecNode, DtIconAndTextureManager::getInstance(), DtAssistantNetworkCompInfo::hostName(), myFedIconChooser, myRtiexecLogAction, myRtiexecRidAction, mySelectedItemWidget, mySelectedNodeType, myShutdownRtiexecAction, DtAssistantNetworkCompInfo::queueStatus(), DtRtiSelectedNodeWidget::setNodeNameAndIcon(), theRtiexecLogDisabledText, and theRtiexecLogEnabledText.

Referenced by selectRtiexec().

void DtFederationsViewDialog::showRtiexecLog ( )

signal

Emitted to display a local rtiexec's log.

Referenced by connectSignals().

void DtFederationsViewDialog::showRtiexecRidParams ( )

signal

Emitted when RID parameters for the current rtiexec are requested.

Referenced by connectSignals().

void DtFederationsViewDialog::showSelectedFederateLog ( )

slot

Handles a request to show the log file for the selected federate.

References DtFederateNode, mySelectedFederate, mySelectedFederation, mySelectedNodeType, and showFederateLog().

Referenced by connectSignals().

void DtFederationsViewDialog::showSelectedFederateRidParams ( )

slot

Handles a request to show the RID parameters for the selected federate.

References DtFederateNode, mySelectedFederate, mySelectedFederation, mySelectedNodeType, and showFederateRidParams().

Referenced by connectSignals().

void DtFederationsViewDialog::showSyncPointDialog ( )

slot

Shows the sync point dialog for the selected federation.

References mySelectedFederation.

Referenced by connectSignals().

void DtFederationsViewDialog::showSyncPointDialog ( const MAKRti::DtString &  name )

signal

Emitted to show a sync point dialog for the given federation.

void DtFederationsViewDialog::shutdownCurrentRtiexec ( )

slot

Processes a command to shutdown the current rtiexec.

References shutdownRtiexec().

Referenced by connectSignals().

void DtFederationsViewDialog::shutdownCurrentRtiForwarder ( )

slot

Processes a command to shutdown the current RTI Forwarder.

References shutdownForwarder().

Referenced by connectSignals().

void DtFederationsViewDialog::shutdownForwarder ( )

signal

Emitted when the currently viewed RTI Forwarder should be shutdown.

Referenced by shutdownCurrentRtiForwarder().

void DtFederationsViewDialog::shutdownRtiexec ( )

signal

Emitted when the currently viewed rtiexec should be shutdown.

Referenced by shutdownCurrentRtiexec().

QSize DtFederationsViewDialog::sizeHint ( ) const

virtual

Returns the recommended size for the widget.

References myLastVisibleSize.

void DtFederationsViewDialog::tick ( )

virtual

Performs periodic functions.

References myFederateTree, myNetworkMapTimeDelta, myNetworkMapWidget, NULL, DtFederateTree::processInvalidList(), and DtNetworkMapWidget::tick().

Referenced by DtAssistantFederationsViewMgr::tick().

void DtFederationsViewDialog::updateFederate ( const DtAssistantFederateInfo &  federate, const DtAssistantForwarderInfo *  forwarderInfo, const MAKRti::DtString &  federationName  )

virtual

Updates a federate in the given federation of the currently displayed connection.

Adds the federate if it does not already exist.

References DtFederateNode, DtFederationNode, DtAssistantFederateInfo::federateHandle(), federateSelected(), federationSelected(), myFederateTree, mySelectedFederate, mySelectedFederation, mySelectedNodeType, and DtFederateTree::updateFederate().

Referenced by DtAssistantFederationsViewMgr::processFederateUpdated().

void DtFederationsViewDialog::updateFederateIcon ( )

slot

Updates the icon for the selected federate to the user chosen image.

References DtIdentifyByFederateName, DtIdentifyByFederateType, DtIdentifyByProcessName, DtFederateIconChooserDlg::federateAssocType(), DtIconAndTextureManager::getInstance(), DtFederateIconChooserDlg::imageFileName(), myFedIconChooser, mySelectedFederateName, mySelectedFederateProcess, mySelectedFederateType, mySelectedItemWidget, selectedFederateId(), DtIconAndTextureManager::setNodeImageFile(), and DtRtiSelectedNodeWidget::setNodeNameAndIcon().

Referenced by connectSignals().

void DtFederationsViewDialog::updateFederateRemovalTime ( float  period )

slot

Processes an update to the defunct federate removal period.

References myFederateTree, and DtFederateTree::setFederateRemovalTime().

void DtFederationsViewDialog::updateFederation ( const DtAssistantFederationInfo *  federation, const DtAssistantForwarderInfo *  forwarderInfo  )

virtual

Updates a federation of the currently displayed connection.

Adds the federation if it does not already exist.

References DtFederationNode, DtAssistantFederationInfo::federationName(), DtNetworkMapWidget::getFederationColor(), myFederateTree, myNetworkMapWidget, mySelectedFederation, mySelectedNodeType, showFederationInfo(), DtFederateTree::updateFederation(), and DtFederateTree::updateFederationColor().

Referenced by DtAssistantFederationsViewMgr::processFederationUpdate(), and updateFederations().

void DtFederationsViewDialog::updateFederations ( const DtFederationStateByNameMap *  federations, const DtAssistantForwarderInfo *  forwarderInfo  )

virtual

Updates the displayed federation information for the currently displayed connection.

References updateFederation().

void DtFederationsViewDialog::updateNetworkMap ( )

slot

Update the Network Map widget.

References myNetworkMapWidget.

Referenced by setupUI().

void DtFederationsViewDialog::updateNetworkMapFederateNode	(	int	fedHandle,
		const MAKRti::DtString &	federationName,
		int	queueStatus,
		bool	disconnected,
		bool	reconnecting,
		bool	inErrorState = false
	)

Updates a federate node in the network map.

References myNetworkMapWidget, and DtNetworkMapWidget::updateFederateInfo().

Referenced by DtAssistantFederationsViewMgr::updateFederateCompInfo().

void DtFederationsViewDialog::viewedConnectionChanged ( const DtRtiConnectionInfo &  conn )

signal

Emitted when the user chooses a different connection to be viewed.

Referenced by connectSignals(), and processConnectionSelection().

Member Data Documentation

QAction* DtFederationsViewDialog::myAboutAction

protected

File menu.

Referenced by connectSignals(), and setupMenus().

QWidget* DtFederationsViewDialog::myCentralWidget

protected

QAction* DtFederationsViewDialog::myChangeFederateIconAction

protected

File menu.

Referenced by connectSignals(), and setupMenus().

QAction* DtFederationsViewDialog::myCloseAction

protected

File menu.

Referenced by connectSignals(), and setupMenus().

QMenu* DtFederationsViewDialog::myCompColumnMenu

protected

Component tree column view menu.

Referenced by setupMenus().

MAKRti::DtFilename DtFederationsViewDialog::myConfigDir

protected

The RTI Assistant configuration directory.

Referenced by loadGuiConfiguration(), and saveGuiConfiguration().

QComboBox* DtFederationsViewDialog::myConnectionComboBox

protected

Combo box for selecting an RTI connection.

Referenced by addConnection(), connectSignals(), processConnectionSelection(), removeConnection(), setConnectionIsLocal(), setupUI(), and showEvent().

std::map< QString, DtRtiConnectionInfo > DtFederationsViewDialog::myConnsByName

protected

Name to connection info map.

Referenced by addConnection(), processConnectionSelection(), removeConnection(), and ~DtFederationsViewDialog().

DtRtiConnectionInfo DtFederationsViewDialog::myCurrentConnectionInfo

protected

Details of the selected connection.

Referenced by addNetworkMapRtiexecNode(), removeNetworkMapRtiexecNode(), selectForwarder(), selectLightweight(), and setViewedConnectionDescription().

QTreeWidgetItem* DtFederationsViewDialog::myCurrentViewedItem

protected

QAction* DtFederationsViewDialog::myDestroyFederationAction

protected

File menu.

Referenced by setupMenus(), and showFederationInfo().

bool DtFederationsViewDialog::myDisplayingLw

protected

Indicates whether we are currently displaying a lightweight connection.

Referenced by setViewedConnectionDescription(), and showFederateInfo().

QAction* DtFederationsViewDialog::myDisplaySyncPointsAction

protected

File menu.

Referenced by connectSignals(), setupMenus(), and showFederationInfo().

QTreeWidgetItem* DtFederationsViewDialog::myExecItem

protected

QAction* DtFederationsViewDialog::myFederateFomAction

protected

File menu.

Referenced by connectSignals(), setupMenus(), and showFederateInfo().

DtFederateIdentifierType DtFederationsViewDialog::myFederateIdentifier

protected

What identifying text should be displayed for federates.

Referenced by selectedFederateId(), and setFederateIdentifierType().

QAction* DtFederationsViewDialog::myFederateLogAction

protected

File menu.

Referenced by connectSignals(), setupMenus(), and showFederateInfo().

QMenu* DtFederationsViewDialog::myFederateMenu

protected

Federate menu.

Referenced by selectDeadFederate(), selectFederate(), and setupMenus().

QAction* DtFederationsViewDialog::myFederateRidAction

protected

File menu.

Referenced by connectSignals(), setupMenus(), and showFederateInfo().

DtFederateTree* DtFederationsViewDialog::myFederateTree

protected

Federate tree.

Referenced by changeFederationColor(), clearSelection(), connectSignals(), displayLoadingIndication(), loadGuiConfiguration(), removeAllFederations(), removeFederate(), removeFederation(), removeLoadingIndication(), saveGuiConfiguration(), selectDeadFederate(), selectFederate(), selectForwarder(), selectLightweight(), selectPeerForwarder(), selectRtiexec(), setupFederateTree(), setupMenus(), setupUI(), showForwarderInfo(), tick(), updateFederate(), updateFederateRemovalTime(), and updateFederation().

QAction* DtFederationsViewDialog::myFederationFomAction

protected

File menu.

Referenced by setupMenus().

QMenu* DtFederationsViewDialog::myFederationMenu

protected

Federation menu.

Referenced by selectFederation(), and setupMenus().

QDockWidget* DtFederationsViewDialog::myFederationsViewDock

protected

Dock widget for the federations view tree.

Referenced by setupMenus(), and setupUI().

DtFederateIconChooserDlg* DtFederationsViewDialog::myFedIconChooser

protected

The dialog to choose a federate icon.

Referenced by clearSelection(), connectSignals(), setupUI(), showDeadFederateInfo(), showFederateInfo(), showFederationInfo(), showForwarderInfo(), showLightweightInfo(), showPeerForwarderInfo(), showRtiexecInfo(), and updateFederateIcon().

QMenu* DtFederationsViewDialog::myFileMenu

protected

File menu.

Referenced by setupMenus().

bool DtFederationsViewDialog::myFirstTimeShown

protected

Indicates that the dialog has not yet been shown.

Referenced by saveGuiConfiguration(), and showEvent().

QAction* DtFederationsViewDialog::myForwarderLogAction

protected

File menu.

Referenced by connectSignals(), setupMenus(), and showForwarderInfo().

QMenu* DtFederationsViewDialog::myForwarderMenu

protected

Forwarder menu.

Referenced by selectForwarder(), and setupMenus().

QAction* DtFederationsViewDialog::myForwarderRidAction

protected

File menu.

Referenced by connectSignals(), enableOrDisableMenuActions(), setupMenus(), and showForwarderInfo().

QAction* DtFederationsViewDialog::myHelpAction

protected

File menu.

Referenced by connectSignals(), and setupMenus().

QProcess* DtFederationsViewDialog::myHelpAssistant

protected

Help application.

Referenced by processHelpDialogClose(), showHelpDialog(), and ~DtFederationsViewDialog().

QMenu* DtFederationsViewDialog::myHelpMenu

protected

Help menu.

Referenced by setupMenus().

QString DtFederationsViewDialog::myLastViewedConnection

protected

Name of connection shown last time dialog was displayed.

Referenced by processConnectionSelection(), removeConnection(), and showEvent().

QSize DtFederationsViewDialog::myLastVisibleSize

protected

The size of the dialog the last time it was visible.

Referenced by hideEvent(), and sizeHint().

QTreeWidgetItem* DtFederationsViewDialog::myLoadingIndicationItem

protected

Item that indicates information is being loaded.

QAction* DtFederationsViewDialog::myNetworkMapAction

protected

File menu.

Referenced by setupMenus().

QDockWidget* DtFederationsViewDialog::myNetworkMapDock

protected

Docking Widgets.

Referenced by setupMenus(), and setupUI().

QTime* DtFederationsViewDialog::myNetworkMapTimeDelta

protected

Referenced by setupUI(), and tick().

QTimer* DtFederationsViewDialog::myNetworkMapTimer

protected

Referenced by setupUI().

DtNetworkMapWidget* DtFederationsViewDialog::myNetworkMapWidget

protected

The network map widget.

Referenced by addNetworkMapFederateNode(), addNetworkMapForwarderNode(), addNetworkMapRtiexecNode(), changeFederationColor(), checkAndAddLightweight(), checkAndAddMainForwarder(), clearData(), clearNetworkMap(), clearSelection(), connectSignals(), enableFederationColors(), enableOrDisableMenuActions(), refreshNetworkMap(), removeNetworkMapFederateNode(), removeNetworkMapForwarderNode(), removeNetworkMapRtiexecNode(), selectDeadFederate(), selectFederate(), selectFederation(), selectForwarder(), selectLightweight(), selectPeerForwarder(), selectRtiexec(), setFederateIdentifierType(), setupUI(), showFederateInfo(), showFederationInfo(), tick(), updateFederation(), updateNetworkMap(), and updateNetworkMapFederateNode().

QAction* DtFederationsViewDialog::myNetworkTreeAction

protected

File menu.

Referenced by setupMenus().

QAction* DtFederationsViewDialog::myOptionsAction

protected

File menu.

Referenced by connectSignals(), and setupMenus().

QGridLayout* DtFederationsViewDialog::myPropertiesAreaLayout

protected

QWidget* DtFederationsViewDialog::myPropertiesAreaLayoutWidget

protected

QAction* DtFederationsViewDialog::myResignFederateAction

protected

File menu.

Referenced by setupMenus(), and showFederateInfo().

bool DtFederationsViewDialog::myRtiExecInCurrentViewedConn

protected

QAction* DtFederationsViewDialog::myRtiexecLogAction

protected

File menu.

Referenced by connectSignals(), setupMenus(), and showRtiexecInfo().

QMenu* DtFederationsViewDialog::myRtiexecMenu

protected

rtiexec menu

Referenced by selectRtiexec(), and setupMenus().

QAction* DtFederationsViewDialog::myRtiexecRidAction

protected

File menu.

Referenced by connectSignals(), enableOrDisableMenuActions(), setupMenus(), and showRtiexecInfo().

QLabel* DtFederationsViewDialog::myRtiForwarderLabel

protected

Current Connection layout widgets.

Referenced by setupUI().

QAction* DtFederationsViewDialog::myRunLatencyTestAction

protected

File menu.

Referenced by setupMenus(), and showFederateInfo().

QAction* DtFederationsViewDialog::mySaveAction

protected

File menu.

Referenced by connectSignals(), and setupMenus().

int DtFederationsViewDialog::mySelectedFederate

protected

Handle of the selected federate.

Referenced by removeFederate(), showDeadFederateInfo(), showFederateInfo(), showFederateStatsDialog(), showFomDialog(), showSelectedFederateLog(), showSelectedFederateRidParams(), and updateFederate().

MAKRti::DtString DtFederationsViewDialog::mySelectedFederateName

protected

Federate name of selected federate.

Referenced by selectedFederateId(), setFederateIdentifierType(), showDeadFederateInfo(), showFederateInfo(), and updateFederateIcon().

MAKRti::DtFilename DtFederationsViewDialog::mySelectedFederateProcess

protected

Process name of selected federate.

Referenced by selectedFederateId(), setFederateIdentifierType(), showDeadFederateInfo(), showFederateInfo(), and updateFederateIcon().

MAKRti::DtString DtFederationsViewDialog::mySelectedFederateType

protected

Federate type of selected federate.

Referenced by selectedFederateId(), setFederateIdentifierType(), showDeadFederateInfo(), showFederateInfo(), and updateFederateIcon().

MAKRti::DtString DtFederationsViewDialog::mySelectedFederation

protected

Name of the selected federation.

Referenced by removeFederate(), removeFederation(), showDeadFederateInfo(), showFederateInfo(), showFederateStatsDialog(), showFederationInfo(), showFomDialog(), showSelectedFederateLog(), showSelectedFederateRidParams(), showSyncPointDialog(), updateFederate(), and updateFederation().

QDockWidget* DtFederationsViewDialog::mySelectedItemDock

protected

Referenced by setupMenus(), and setupUI().

DtRtiSelectedNodeWidget* DtFederationsViewDialog::mySelectedItemWidget

protected

The selected item widget.

Referenced by clearData(), clearSelection(), setFederateIdentifierType(), setupUI(), showDeadFederateInfo(), showFederateInfo(), showFederationInfo(), showForwarderInfo(), showLightweightInfo(), showPeerForwarderInfo(), showRtiexecInfo(), and updateFederateIcon().

QAction* DtFederationsViewDialog::mySelectedNodeAction

protected

File menu.

Referenced by setupMenus().

DtSelectedNodeType DtFederationsViewDialog::mySelectedNodeType

protected

The type of node currently selected.

Referenced by clearData(), clearSelection(), removeFederate(), removeFederation(), setFederateIdentifierType(), showDeadFederateInfo(), showFederateInfo(), showFederationInfo(), showForwarderInfo(), showLightweightInfo(), showPeerForwarderInfo(), showRtiexecInfo(), showSelectedFederateLog(), showSelectedFederateRidParams(), updateFederate(), and updateFederation().

QAction* DtFederationsViewDialog::myShutdownForwarderAction

protected

File menu.

Referenced by connectSignals(), enableOrDisableMenuActions(), setupMenus(), and showForwarderInfo().

QAction* DtFederationsViewDialog::myShutdownRtiexecAction

protected

File menu.

Referenced by connectSignals(), enableOrDisableMenuActions(), setupMenus(), and showRtiexecInfo().

QAction* DtFederationsViewDialog::myStatisticsAction

protected

File menu.

Referenced by connectSignals(), setupMenus(), and showFederateInfo().

QToolBar* DtFederationsViewDialog::myToolBar

protected

Referenced by setupUI().

QMenu* DtFederationsViewDialog::myToolsMenu

protected

Tools menu.

Referenced by setupMenus().

Ui::FederationsViewDialog DtFederationsViewDialog::myUiImpl

protected

Referenced by DtFederationsViewDialog(), getUiImpl(), and setupMenus().

QMenu* DtFederationsViewDialog::myViewMenu

protected

View menu.

Referenced by setupMenus().

const MAKRti::DtFilename DtFederationsViewDialog::theConfigFilename = "federationsView.conf"

staticprotected

The name of the file where the GUI configuration is stored.

Referenced by loadGuiConfiguration(), and saveGuiConfiguration().

QString DtFederationsViewDialog::theForwarderLogDisabledText

protected

Text to be displayed for log file viewing actions depending on whether viewing is enabled or disabled.

Referenced by initializeQtToolTips(), and showForwarderInfo().

QString DtFederationsViewDialog::theForwarderLogEnabledText

protected

Text to be displayed for log file viewing actions depending on whether viewing is enabled or disabled.

Referenced by initializeQtToolTips(), and showForwarderInfo().

const QString DtFederationsViewDialog::theLoadingText

staticprotected

Text displayed when loading information.

QString DtFederationsViewDialog::theNoConnectionsAvailableText

protected

Text displayed in the combo box if there are no known rtiForwarders.

Referenced by addConnection(), initializeQtToolTips(), removeConnection(), and setupUI().

QString DtFederationsViewDialog::theRtiexecLogDisabledText

protected

Text to be displayed for log file viewing actions depending on whether viewing is enabled or disabled.

Referenced by initializeQtToolTips(), and showRtiexecInfo().

QString DtFederationsViewDialog::theRtiexecLogEnabledText

protected

Text to be displayed for log file viewing actions depending on whether viewing is enabled or disabled.

Referenced by initializeQtToolTips(), and showRtiexecInfo().

---

The documentation for this class was generated from the following files:

• federationsViewDialog.h
• federationsViewDialog.cxx
